Volkswagen 1992 Caravelle User manual

Instruction Manual
CaravelleandTransport
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

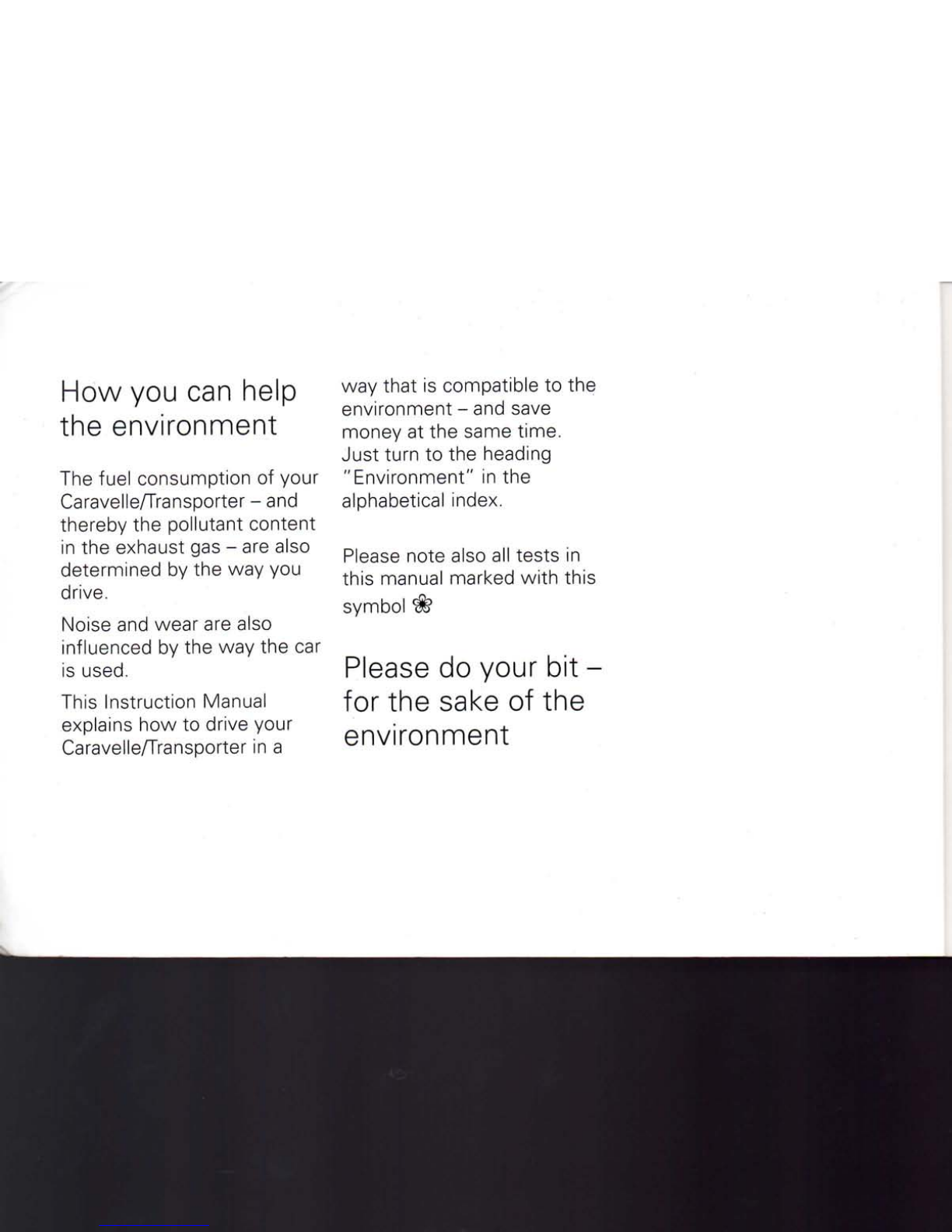

Howyoucanhelp
theenvironment
Thefuelconsumptionofyour
Caravelle/Transporter- and
therebythepollutantcontent
intheexhaustgas- arealso
determinedbythewayyou
drive.
Noiseandweararealso
influencedbythewaythecar
isused.
ThisInstructionManual
explainshowtodriveyour
Caravelle/Transporterina
waythatiscompatibletothe
environment- andsave
moneyatthesametime.
Justturntotheheading
"Environment"inthe
alphabeticalindex.
Pleasenotealsoalltestsin
thismanualmarkedwiththis
symbol*$?
Pleasedoyourbit-
forthesakeofthe
environment
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

We thankyoufortheconfidenceyouhaveplacedinusthrough
:hepurchaseofthenewCaravelle/Transporter.
~~e newCaravelle/Transporterhasbeencompletelyredesigned.In
:~'s processtheyearsofexperience with severalmillionTrans-
portersand front wheeldrivepassengercarshasbeenputtogood
__e newCaravelle/Transporterisdistinguishedbythegenerous
amountofinsidespaceitoffersandbyitsmodernaerodynamicstyl-
-g. Inadditionitalsohasa highpayload,variability,drivingcomfort
anddrivingsafety.
Environmentalfactorsplayeda largepartinitsdesign,selectionof
materialsandmanufacture.Theresultspeaksforitself:TheVolks-
.vagenis thrifty with petrolislowpollutant,onlyrequiresa small
amountofservicingatlongintervals,hasextremelylong-lifewear-
"ngpartsandisextensivelyrecyclable.Thereforeithasallthetypical
Volkswagen virtuessuchas,economy,quality,reliabilityandvalue
retention.
tisalsoreassuringforyoutoknow that oneofthelargestandmost
efficientorganizationsintheworldisavailabletolookafteryour
Volkswagen. InEuropealonethereisa networkofabout9000Volks-
wagendealers that workeconomicallyandprofessionallyinaccord-
ance with factoryguidelines.
TheVolkswagendealersalsoguarantee that everythingisOKon
yourCaravelleATransporter.Theyofferyou
•1 yearwarrantyagainstdefects- with nomileage limit
Inthemajorityofcountriesthereisa completepackageofadditional
warrantycoverandservicesoffered,likeforexample:
•6 yearswarrantyagainstrusting-throughonthebodywor<-
without expenseforinterimtreatment.
•1 yearwarrantyonworkshoprepairs
•1 yearwarrantyonallgenuinepartsandonVolkswagen acces-
sories approvedbyus.
•Thequick,valueformoneyExpressServiceforthesmallerjobs
•A reasonablypricedreplacementcarfortheperiod that yoursis
beingservicedorrepaired- askyourdealer.
•TheVolkswagenAccessoryService
Tested, factoryapprovedaccessoriesandtheprofessionalinstalla-
tion - heretopleasealsoreadthenoteon Page 116.
Volkswagen dealerswillgladlysupplydetailsontheabove-men-
tionedservicesandpossiblecountryspecificdeviations. Please see
also thenotesintheServiceSchedule.
We wishyoupleasantandsafemotoringatalltimes.
Your VOLKSWAGEN AG
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

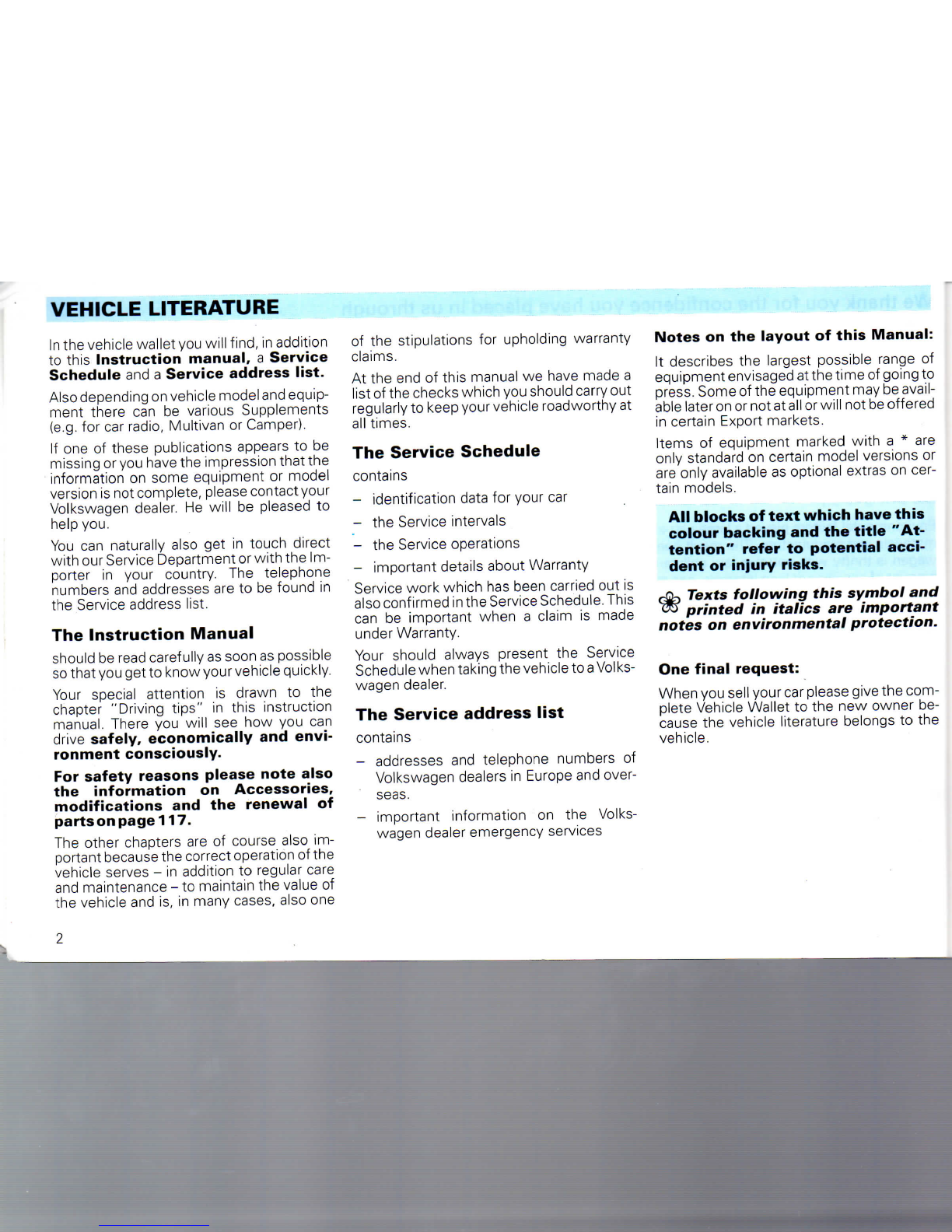

VEHICLELITERATURE
Inthevehiclewalletyouwillfind,inaddition
tothis Instruction manual, a Service
Scheduleanda Serviceaddress list.
Also dependingonvehiclemodelandequip-
menttherecanbevariousSupplements
(e.g. forcarradio,MultivanorCamper).
Ifoneofthesepublicationsappearstobe
missing oryouhavetheimpression that the
informationonsomeequipmentormodel
versionisnotcomplete,pleasecontactyour
Volkswagen dealer.Hewillbepleasedto
helpyou.
You cannaturallyalsogetintouchdirect
with ourServiceDepartmentor with theIm-
porterinyourcountry.Thetelephone
numbersandaddressesaretobefoundin
theServiceaddresslist.
The Instruction Manual
shouldbereadcarefullyassoonaspossible
so that yougettoknowyourvehiclequickly.
Your specialattentionisdrawntothe
chapter"Drivingtips"inthisinstruction
manual. Thereyouwillseehowyoucan
drive safely, economically andenvi-
ronment consciously.
For safety reasons please note also
the information onAccessories,
modifications andthe renewal of
parts on page 117.
Theotherchaptersareofcoursealsoim-
portantbecausethecorrectoperationofthe
vehicleserves- inadditiontoregularcare
andmaintenance- tomaintainthevalueof
thevehicleandis,inmany cases, alsoone
ofthestipulationsforupholdingwarranty
claims.
Attheendofthismanualwehavemadea
listofthecheckswhichyoushouldcarryout
regularlytokeepyourvehicleroadworthyat
alltimes.
TheServiceSchedule
contains
-identificationdataforyourcar
-theServiceintervals
-theServiceoperations
-importantdetailsaboutWarranty
Service workwhichhasbeencarriedoutis
also confirmedintheService Schedule. This
can beimportantwhena claimismade
underWarranty.
Your shouldalwayspresenttheService
Schedule whentakingthevehicleto a Volks-
wagendealer.
TheServiceaddress list
contains
-addressesandtelephonenumbersof
Volkswagen dealersinEuropeandover-
seas.
-importantinformationontheVolks-
wagendealeremergencyservices
Notes onthe layout of this Manual:
Itdescribesthelargestpossiblerangeof
equipmentenvisagedatthetimeofgoingto
press. Someoftheequipmentmaybeavail-
ablelateronornotatallorwillnotbeoffered
incertainExportmarkets.
Items ofequipmentmarked with a * are
onlystandardoncertainmodelversionsor
areonlyavailableasoptionalextrasoncer-
tainmodels.
Allblocksof text which have this
colour backing andthe title "At-
tention" refer to potential acci-
dent or injury risks.
Texts following this symbol and
printed in italics are important
notes on environmental protection.
One final request:
Whenyousellyourcarpleasegivethecom-
pleteVehicleWallettothenewownerbe-
cause thevehicleliteraturebelongstothe
vehicle.
2
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTENTS
DASHBOARDAND
CONTROLS
Layout 4
i\='-:ng lamps6
CONTROLS AND
EQUIPMENT
• e.s.Centrallockingsystem7,8
I:cs,Tailgate9,10
I'I ~gdoors11
.. -^ows,Mirrors12,13
Sea:belts15
5re:yforchildren18
-eadrestraints19
Seats 20
_:ariing/sleepingsurface26
__ggage compartmentcover27
__cgagecompartment/loadsurface...28
-edals,Brakes29
Vanualgearbox31
--tomaticgearbox32
gnition lock36
Starting/ Stoppingtheengine....37,38
"struments40
.'. arninglamps47
Switches50
~yn signalanddiplever52
3'uise controlsystem53
.'.'indscreenwiper54
-eatingandventilation55
Air conditioner57
Recirculatingair switch61
Auxiliaryheater63
Additional waterheater67
Sunroof,Sliding/tiltingroof70,71
nteriorlights,Sunvisors72,73
Ashtray,Cigarettelighter73
-oof rack75
DRIVING TIPS
Thefirst1500km- andafterwards...76
Drivingsafely78
Drivingeconomicallyand
ecologically 79
Trailertowing81
GENERAL MAINTENANCE
Fillingthetank,Fuel85,86
Careofcar,Maintenance88,93
Bonnet,Enginecompartment94,95
Engineoil,Gearboxoil96,99
Air cleaner100
Powerassistedsteering100
Cooling system101
Brakefluid104
Battery106
Windscreenwashersystem108
Wheels110
Arduousoperatingconditions115
Winterdriving116
Accessories,modificationsand
renewalofparts117
Mobile telephonesandtwoway
radios117
DO-IT-YOURSELF
First aidkit,Warningtriangle118
Vehicletools118
Sparewheel/changingwheel...119,120
Fuses 122
Changing bulbs124
Adjusting/maskingheadlights..128,129
Headlights129
Installingradio129
Emergencystarting130
Towstarting/towing132
Liftingvehicle134
TECHNICAL DESCRIPTION
Engine136
Emissioncontrolsystem137
Activatedcharcoalfilter'38
Powerflow'39
Steering,Axles139
Brakes,Body-139, 1 AC
Environmentcompatibility140
TECHNICAL DATA
Engine141
Performance142
Fuelconsumption143
Sparkplugs145
V-belts145
Wheels, Tyre pressures146,147
Weights, Trailerweights148,151
Dimensions152
Capacities153
Vehicleidentificationdata154
SPECIAL INFORMATION
Adjustingthebrakepressureregulator155
ALPHABETICAL INDEX
Alphabeticalindex156
CHECKS WHEN FILLING
THETANK
Overview160
3
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

LI Aon BOARDANDCONTROLS
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

DASHBOARDANDCONTROLS
Page
|Remotecontrolledoutsidemirror 13
2 Switchforelectricwindows 12
3 Switches 50
-
Air vents 55, 58
5
_urnsignalandheadlightdiplever
Cruise controlsystem 52
53
z
Emergency light systemswitch 51
Combi instrument:
Warninglamps
Instruments 47
40
I
Ignition lock 36
9
Windscreen wiper/washerlever
with switchfor multi functionindicator 54
42
110
Switches 50
Air vents 55, 58
I12 Space forauxiliaryheatercontrols 63
' 3
Radio"
'-
Glove box 74
'5
Bonnet releasehandle 94
0
Lola startingaid(Dieselengines)
17
Fuse boxbehindshelf —
18 Horn( onlyfunctions with ignitionswitchedon
19
Controls andswitchesforheating/ventilation
...airconditioner V-
20 Gear lever(manualgearbox)
Selector lever(automaticgearbox) 31
21 Switch forrecirculatingair
s:
22
Ashtray 73
23
Cigarettelighter/electricsocket
Notes
•Someoftheitemslistedareonly fitted oncertainmi
optionalextras.
•Onrighthanddrivevehiclesthearrangementofthesv
thelocationofsomeitemscanvary.Thesymbolsontr
arethesameasforlefthanddrivevehicles.
11 Vehicles with afactory fitted radiohavea radioinstructioniea
When serviceinstallinga radiopay attention totheins
page 129inthe"Do-it-yourself"section.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

DASHBOARD AND CONTROLS

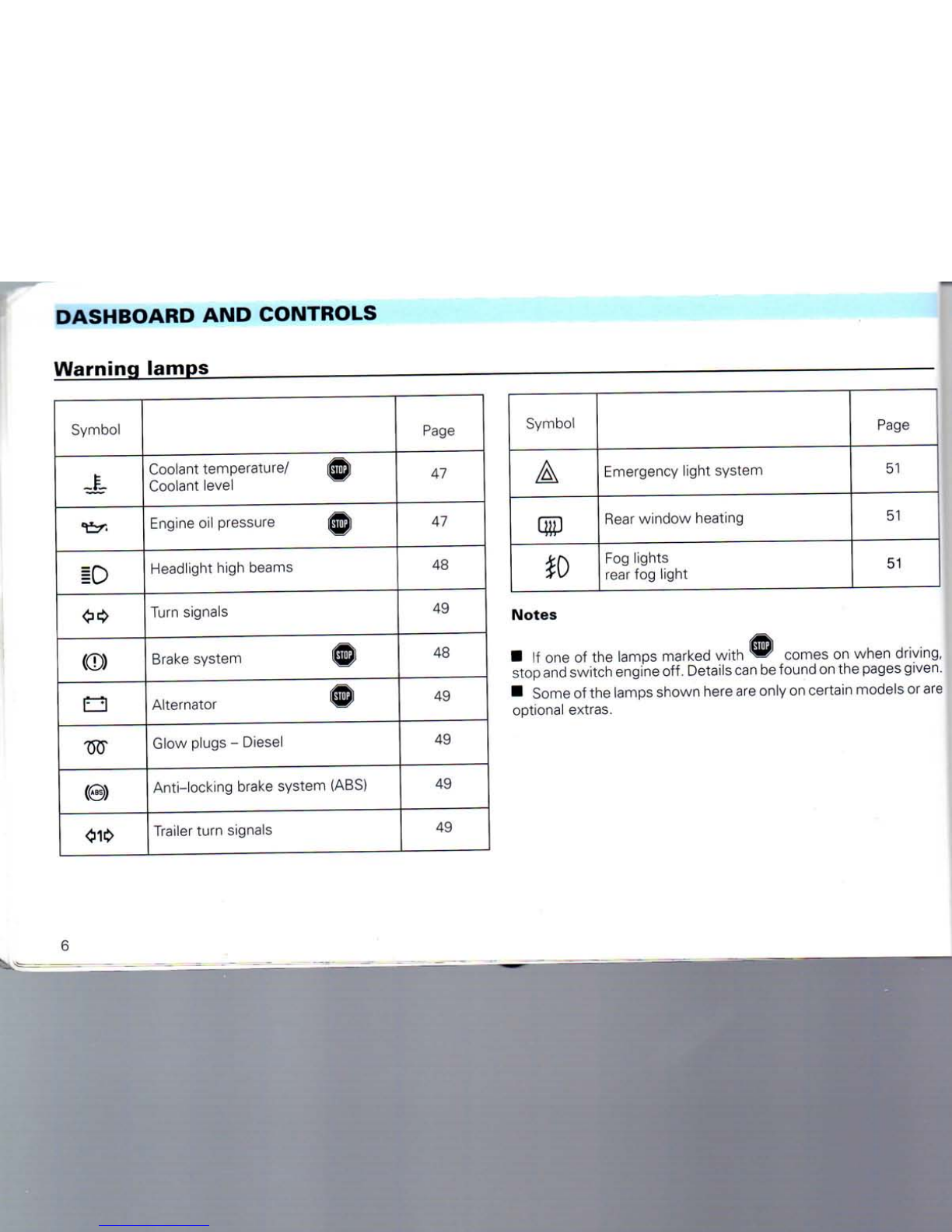

Warninglamps
Symbol Page Symbol Page
Coolanttemperature/
Coolantlevel
47
A Emergencylightsystem 51
Engineoilpressuref^i
47
m Rear
window heating 51
ID
Headlight high beams
48
to Foglights
rearfoglight 51
Turn signals
49
Notes
((D)
Brake systeml^i
48 •
Ifoneofthelampsmarked with comesonwhendriving
stopandswitchengineoff.Detailscanbefoundonthepages given
BSomeofthelampsshownhereare only oncertainmodelsorare
optionalextras.
£3
Alternator
49
• Ifoneofthelampsmarked with comesonwhendriving
stopandswitchengineoff.Detailscanbefoundonthepages given
BSomeofthelampsshownhereare only oncertainmodelsorare
optionalextras.
m Glowplugs- Diesel
49
(©)
Anti-lockingbrakesystem(ABS)
49
<m>
Trailerturnsignals
49
6
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSANDEQUIPMENT
Keys
hevehicleissuppliedwithtwokeys
"hesekeysfitalllocksonthevehicle.
Attention
Whenleaving the vehicleunat-
tended - even if only fora few
moments - alwaystake the keys
with you.
Key tag
Thekeynumberisontheplastictag.With
theaidofthenumber,a replacementkey
canbeorderedfroma Volkswagendealer.
Itmustthenbestatedifitis themainkeyor
thesecondkey.
Thetagshouldbekeptsafelyandseparate-
ly(in yourwalletforexample)sothatnoun-
authorizedpersoncanordera key.
Inadditiontotheplastictagtheremayalso
bea metaltagonwhichthereisa partofthe
vehicleidentificationnumber.Thistagisno
longerrequiredaftervehiclehasbeendeliv-
ered.
7
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLS ANDEQUIPMENT
Central lockingsystem*
Withthissystemallthedoors,and- de-
pending onthepositionofthetailgateor
wingdoorlock- thetailgateorwingdoor
can alsobelockedandunlocked.
The systemisoperatedfromthe driver's
dooror front passengerdoor- from
outside withthekey,frominsidewiththe
locking knob.
Note
The centrallockingsystemcanonlyfunc-
tioncorrectlywhenthedriver'sand front
passenger doorsareproperly closed.
When locking, thelockingknobsonalldoors
mustmovedown.Iftheknobononedoor
does notmoveatanytime,openthedoor
concerned andcloseitproperly.
Attention
• When thelockingknobsinthe
driver's or front passengerdoors
arepressed down all other doors
arelocked automatically.
Sinceit would be difficult toren-
derassistance from theoutside
inanemergency, when thedoors
arelocked,childrenshould never
be left inthevehicleon their
own.
•Lockingthedoorscan prevent
them from burstingopeninan
extraordinary accidentsituation.
Lockeddoorsalso prevent per-
sons from entering thecarforci-
blye.g.at traffic lights. However,
inanemergency they make it
more difficult foroutside help to
openthedoors.
Notes:
Ifthecentrallockingsystemshoulddevelop
a fault,allthelockscanbeoperatednor-
mally, seenextpage.
The slidingdoorcanbesecuredorreleased
separately withthesafetycatch.
Slidingdoorand tailgate or wing
doorcanbelockedorunlockedseparately
withthekey.
To unlockthetailgateorwingdoorinsertkey
and turn ittoright(c).Holdinthisposition
and pressbuttonin.
Ifthekeyiswithdrawninthehorizontal posi-
tion(a),lockingofthetailgateorwingdoor
willbecontrolledbythecentrallocking sys-
temwhenitisclosedagain.
When thekeyiswithdrawninthevertical
position(b)andtailgateorwingdoor closed,
itwillbelockedallthetime.Thetailgatecan
thenonlybeunlockedwiththekey.
8
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSAND EQUIPMENT
Doors
Cabdoors
Fromoutside the front doorscanbe
coked orunlocked with thekey.Whenun-
D eking, thelockingknobsgoup,whenlock-
"5 :heygodown.
Ihe front passengerdoorcanbelocked
from outside without usingthekey:Just
:"5ss lockingknobdownandclosedoor.
~~e driver'sdoorcannotbelockedwhen
coen bypressingthelockingknobdown
andclosingdoor.Thispreventsyoufrom
esving thekeyinthecarandforgettingit.
Frominside allthedoorscanbelockedby
messing downthelockingknobs.
-s longastheknobsarepresseddownthe
coors cannotbeopenedfrominsideorout-
skte.
Attention
Locking the doors can prevent
themfromburstingopen inan
extraordinaryaccidentsituation.
Lockeddoorsalsopreventper-
sonsfromentering thecar forci-
blye.g. at trafficlights.However,
in an emergencytheymake it
moredifficult for outsidehelp to
open the doors.
Slidingdoor
Fromoutside, theslidingdoorcanbe
locked andunlocked with thekey.
Theslidingdoorcanalsobelockedfromout-
side without usingthekey: Press locking
knobdownandclosedoor.
Frominside, theslidingdoorislockedby
pushingdownthelockingknob.
As longastheknobispresseddownthe
doorcannotbeopenedfrominsideorout-
side.
Whenthevehicleismoving,thedoormust
alwaysbeproperly closed, butwhencarry-
ingpassengersthelockingknobshouldbe
left intheupperpositionso that thedoorcan
beopenedfromoutsideinanemergency.
Note
Intheopenedpositiontheslidingdooris
heldopenbya retainer.
Child-proof catch
Whenthechild-proofcatchisengaged-
leverondoorlockdown- theinnerlockre-
lease leverisinoperative.Thedoorcanonly
beopenedfromoutside with thelocking
knobintheupposition.
9
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSAND EQUIPMENT
Tailgate
To open thetailgatewhenkeyslotishori-
zontal, pullcontrolbehindfingerstripontail-
gateand lift tailgate.
To open from inside
On theinsideofthetailgatethereis,de-
pendingonmodel,eitheranopeninglever
oran emergencylockreleasewhichcanbe
reached througha holeinthetrim.
This makesitpossibleforvehicleoccupants
toleavethevehicleviathetailgateinan
emergency.
Child proof lock*
Vehicles with an openingleverontheinside
ofthetailgateare fitted with a childproof
lock.
Whenthechildproofcatchisengaged-
leveronlockmoveddown- theinnerlever
is blocked.Thetailgatecanthenonlybe
openedfromoutside.
Toclose tailgate pullitdownandslamit
togently.
To makethetailgateeasiertopulldown
thereisa loopontheinside.
Attention
• After closingthe tailgate al-
ways pull uponitto make sure
that itis properly closed- other-
wise itcould open suddenly
when vehicle ismoving, even
though thekeyhas been turned
inlock.
•The tailgate must always be
fully closed when vehicle is mov-
ing, otherwise exhaust gas will
be drawn into the vehicle in-
terior!
10
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLS AND EQUIPMENT
Wing doors*
Righthand door
From outside thewingdoorcanbe
rckedandunlockedwiththekey.Whenun-
;ckingthelockingknobgoesup,when
:ekingitgoesdown.
From inside thedoorislockedbypressing
downtheknob.
-s longastheknobispresseddownthe
;3or cannotbeopenedfrominsideorout.
-thefullyopenposition(approx.90°)the
;corisheldbya checkstrap.
Lefthand door
Thelefthanddoorcanbeopenedwhenthe
righthanddoorisopen.
Toopen,pullreleaselever(seeillustration)
andopendoor.
Note
When closing the wing doors always
ensure that the left door is closed
first.
Unhooking door check strap
Bothdoorsareheldintheopenposition(ap-
prox.90°)bycheckstraps.
Toopenthedoorsfurtherthecheckstrap
canbeunhooked(seeillustration).
Whendoorsareclosedthecheckstrapsen-
gageagainautomatically.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSANDEQUIPMENT
Windows
Mechanical windows
The windowsareopenedandclosed with
crank-handles fitted inthedoor trim panels.
Electric windows*
Electric windowsofferthefollowing com-
fort facilities:
•Single-touchopeningfordriver'sand
front passenger'sdoorwindows
•Single-touchclosingofdriver'sdoorwin-
dow
The windowsfunction with theignition
switchedon.Ifthedriver'sdoorisnot
opened afterswitchingofftheignition,the
windowscanstillbeoperatedforaboutone
hour.Apartfromthis,thewindowscanal-
ways functionwhenthedriver'sdooris
open. Forsafetyreasons,thesingle-touch
closing ofthedriver'sdoorwindowonly
functionswhentheignitionison.
|B70 - 142]
The switchesareinthedoor trim panels.
The windowofthe front passenger'sdoor
can alsobeopenedandclosedfromthe
driver'sdoor.
a - Driver'sdoor
b- Frontpassengerdoor
All windowscanbeopenedautomatically
bytouchingthelowerpartoftheappropri-
ateswitch.Ifmorethanonewindowistobe
opened atthesametime,thisisdoneauto-
matically,oneaftertheother,intheselected
sequence.
Iftheappropriateswitchistappedonce
again, thewindowwillstopimmediately.
All windowscanbeclosedbypressingthe
upperpartoftheappropriateswitch.To
close thedriver'sdoorwindow,whenthe
ignitionisswitchedon,itissufficientto
touchtheswitch.Iftheswitchistouched
again, thewindowstopsmovingimmedi-
ately.
Attention
•Be careful when closingthe
windows!
Carelessor uncontrolled closing
ofthe windows cancausein-
juries.
Therefore when leaving theve-
hicle, always take the ignition
key with you.The electric win-
dows are then only putoutofac-
tion ifthe driver's doorisopened
andclosedagain.Assoonasthe
driver's doorisopenedagain,the
windows canonce again func-
tion.
12
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Mirrors
CONTROLS AND EQUIPMENT
dowopen.
Adjustingmirrors
Therearviewmirrorsshouldalways be ad-
justedproperlybeforemoving offso that
goodvision tothe rear is obtained.
Anti-dazzle inside mirror
Thelever onthe loweredge ofthe mirror
should be pointingforwardswhen the basic
setting is made.
To setthe anti-dazzleposition,pulllever to
therear.
Outsidemirror
Theoutsidemirrorshould be adjusted so
that theside of yourownvehiclecan just be
seen. Thissettingensuresthebestpossible
field of view,and in addition it serves asan
instantcheck onthe mirrorsetting.
Normaloutsidemirrors are adjusted by
pressing the edge ofthe mirrorsurface in
themirrorhousing.
/R
/ (B707T76]
Electrically adjustable mirrors*are
set by moving the knob inthe driver'sdoor
trim.
Turning the knobfrom Lto R switches con-
trol from left to right mirror.
Ifthe electricalcontrol ofthe mirrorfails at
anytime the mirrorscan be adjustedman-
ually by pressing onthe edge ofthe mirror
surface.
13
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSANDEQUIPMENT
Note forvehicles with convexoras-
pherical outside mirrors *
Convex(curvedoutwards)mirrorsenlarge
thefieldofviewbuttheymakeobjectslook
smaller. Thesemirrorsmakeitdifficultto
estimatehowfarawaya followingvehicle
is.
Asphericaloutermirrorshavea mirror
surface with differentcurvature.Thiswide-
angle mirrorincreasestheareaofvision
even moresothanconventionalconvex
mirrors.Theirusefulnessisalsolimited
whenjudgingthedistancetovehiclesap-
proachingfrombehind.
Mirrorheating *
The electricallyoperatedoutsidemirrorsare
heatedaslongastheheatedrearwindow
is switchedon.
Foldingoutsidemirrors in
The outsidemirrorscanbefoldedin.
When foldedinthemirrorsareheldby a det-
ent.
To foldout again, pressmirrorintowardsve-
hicle, pressdetentinandfoldmirrorout-
see illustration.
Attention
When folding mirror out ensure
that the fingers arenot trapped
between mirror and bracket -
Danger of injury.
Notes
•Beforeputtingthevehiclethroughanau-
tomaticwashingplant,themirrorsshould
be foldedintopreventthembecomingdam-
aged.
•Theseremarksapplyonlytovehicles
with normaloutsidemirrors.Mirrorsonex-
tendedarmscanalsobefoldedinbutthey
have nodetent.
14
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

Seat belts
CONTROLSANDEQUIPMENT
Ithas been proven that seat belts
give good protection inaccidents.In
most countries therefore the wear-
ingof seat belts is required bylaw.
Attention
The belts shouldbeputon before
every journey - even in town
traffic. This applies alsotothe
rear seats.
Pregnant women tooshouldal-
ways wear a seat belt.
The routing ofthe belt isof major
importance tothe protective ef-
fect ofthe belt. Howthe belt
shouldbe worn isdescribedon
the next pages.
General notes
•The belt must notbe twisted.
•Twopersons (including children)
mustneverbesecured with onebelt.Itis
particularlydangeroustoputthebeltround
a childsittingona personslap.
•Thebeltshouldnotbewornoverhardor
breakable articles(glasses,ballpens,key
rings, pipes,etc.)becausethiscancausein-
jury tothebody.
• Loose, bulkyclothing(e.g.overcoats
over jackets)affectsthefitandfunctionof
thebelts.
•Thebeltmustnotbejammedanywhere
orrubonanysharpedges.
•Thelocktonguemayonlybeinserted
intothelockpartbelongingtotheappropri-
ateseatotherwise,theprotectiveeffectis
impaired.
•Theslotforthebelttonguerr„s:-;:ze
blocked with paperoranyth'-cs ~
otherwisethetonguecannot5"a;e
properly.
•Thebeltsmustbekeptcleanotherwise
theretractorsmaynotworkproperly(see
also "Care ofcar"section).
•Seatbeltswhichhavebecomedamagec
orhavebeenstressedinanaccidentand
stretchedmustberenewed- preferablyby
a Volkswagendealer.Theanchorages
should alsobechecked.
•Insomeexportcountriesseatbelts
could beusedonwhichthefunctionsdiffer
fromthosedescribedonthenextpages.
•OntheDeliveryVantherearenobeltan-
chorage pointsintheloadcompartment.
-DW childrencanbecarriedsafelyintheve-
"cleisexplainedonpage18.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSANDEQUIPMENT
Three-point inertia reel belts
The inertiareelbeltgivescompletefreedom
ofmovementwhenpulledslowly.Sudden
brakinghoweverwillcausethebelttolock.
The mechanismwillalsolockthebeltwhen
accelerating, drivingdownsteepgradients
orcornering.
Putting belt on
Pull thetongueslowlyandsmoothlyacross
thechestandhipsandpushitintothelock
part fitted ontheseatuntilthetongueen-
gages audibly(pulltocheck).
Theshoulder part of belt must run
roughly acrossthe centre ofthe
shoulderas shown - onnoaccount
against the neck - andbe firmly in
contact with thebody.
Thebackrestsofthe front seats
must notbeinclinedtoofartothe
rear, otherwise the belts areno
longer fully effective.
Withtheaidofthe belt height adjust-
ment theroutingofthe front seatshoulder
beltcanbesettofitthebodyproperly.
•Toadjust,pushbutton with relay fitting
(see right illustration)upordownso that the
shoulder partofbeltrunsroughlyacrossthe
centreoftheshoulderasshownonthe left
-onnoaccount against theneck.
•Afteradjusting,pullthebelt with a jerk to
ensure that therelay fitting isproperlyen-
gaged.
16
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSANDEQUIPMENT
Thelappartofbeltmustalwaysfit
tightlyacrossthepelvis.Ifnecess-
ary, pullthebelttight.
Particularlyinthecaseofpregnant
women, thelappartofthebelt
shouldbeaslowacrossthepelvisas
possiblesothatnopressureisex-
ertedontheabdomen.
Takingbeltoff
Kreleasethebelt,presstheorange-co-
:_redbuttoninthelock.Thetonguewill
"enspringout.
-assthetonguetowardsthedoorbyhand
sothattheretractorcanrollthebeltup
oroperly.A plasticknobinthebeltholdsthe
:ongueina convenientposition.
Lapbelt
Thebeltlockisusedinthesamewayason
thethree-pointinertiareelbelts.
Thebeltmustalwaysfittightly
acrossthepelvis.
Forsafetyreasonsa lapbeltnotbeingused
shouldalwaysbeconnectedtothebuckle.
Tolengthenbeltholdthetongueatright
anglestobeltandpullbeltthroughtothere-
quiredlength- seeillustration.
Thebeltiseasiertoadjustiftongueandcap
arepressedtogether.
Toshortenbeltitisonlynecessarytopull
thefreeendofbelt.
Thesurplusbeltlengthistakenupbymov-
ingtheplasticslide.
Automaticretractinglap beits
Thesingleseats*intheca;;e-;e' ;im-
pertinentareequippedwith=-—5;;
retractinglapbelt.
Puttingbelton
Pullthebeltoutandinsertthetors_e~:
theappropriatelockpartuntiltongueen-
gages(pulltocheck).
Thebeltmustalwaysfittightly
acrossthepelvis,ifnecessary, pull
thebelttight.
Note
Ifthebeltispulledtootight,itcan
bereleasedbypressinginthe but-
tonlocatedonthebeltreel.
Takingbeltoff
Presstheorange-colouredbuttoninthe
lockpartandguidebeltbyhandsc:na::~s
retractorcanrollthebeltupproperly.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans

CONTROLSAND EQUIPMENT
Safety for children
Children under 12 years ofage
should normally travel onthe rear
seat1>(Caravelle, Kombi, Double-
cab). Depending upon their age,
height and weight, they must bepro-
tected with either a child restraint
system orthe seat belt provided.
A childmayalsooccupythe front passenger
seat iftherestraintsystemusedhasbeen
expressly approvedforthispurposebythe
manufacturer.Oneshouldbearinmind
however that theyaregenerallysaferonthe
rearseat.
Onno account should children - or
babies travel onan adult's lap.
•Babiesuptoabout9 monthsold/10kg
arebestprotected,inan accident, with a
safetyseator a specialsafetycarrier.
•Experiencehasshown that babiesand
small childrenuptoabout3 years/18kgare
bestprotectedinchildseatsorsafety
carrierswheretheycanlieorsitfacingthe
rearofthecar.
•Childrenuptoabout7yearsofage/25kg,
dependingontheirheight,aresafestwhen
secured ina childseatorbya safetyseat
cushion.
•Childrenoverabout7 yearsofagemay
use thethreepointbeltsortwopointbelts
providedontherearseats.Itisimportantto
ensure that thediagonalpartofthebelt fits
overthecentreoftheshoulder- anddoes
not make contact with the neck. The
lappartofthebeltmustpassacrossthe pel-
vis andnot over thechild'sstomach.
Ifthisisnotsoa safetycushionmustbe
used toraisetheseatingposition.
Whenusingthebeltthesection"Seat
belts"shouldalsobenoted.
Notethefollowingpointswhenpurchasing,
installingandusinga childrestraintsystem:
•Forsafetyreasonsalwaysusea restraint
systemwhichconformstotheinternational
safetystandardECER 44.Restraint sys-
tems that canbeconnectedtotheseat
beltsprovidedinthecararerecommended.
•Onlyusechildseatsorsafetycarriersof
thetypewhichhavea large, flat areain con-
tact with thecar'sseatupholstery.Child
seats whichhavefeetortubularframesand
no flat basecaneasilypenetrate into the
car's upholstery,andarethereforenotso
safe.
•Werecommend that childrestraint sys-
temsfromthegenuineaccessorypro-
grammeoftheVolkswagendealersare
used. Hereunderthename"Bobsy"re-
straintsystemsforallagegroupsareof-
fered21. Thesesystems fulfil alltherequire-
mentsmentionedandoverandabovethis,
havebeendevelopedandtestedbyusfor
use inVolkswagenvehicles.
•Specialcaremustbetakenifchildre-
straintsystemsareusedwhicharebolted
onatthesamepointasthebeltsprovided
inthevehicle.Onemustensure that thebolt
is longenoughso that the full lengthofthe
threadedholeisutilizedandtightenedtoa
torqueof30Nm
Furthermore,oneshouldensure that the
beltitselfcannotbecomedamagedby
sharpedgedbucklesetc.
•Forthe installation anduse,at-
tention must be paid tothe legal
regulations andthe instructions of
the restraint system manufacturer.
Notinallexportmarkets
Observe anystatutoryregulationstothe con-
trary.
18
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Transporter Campervans
