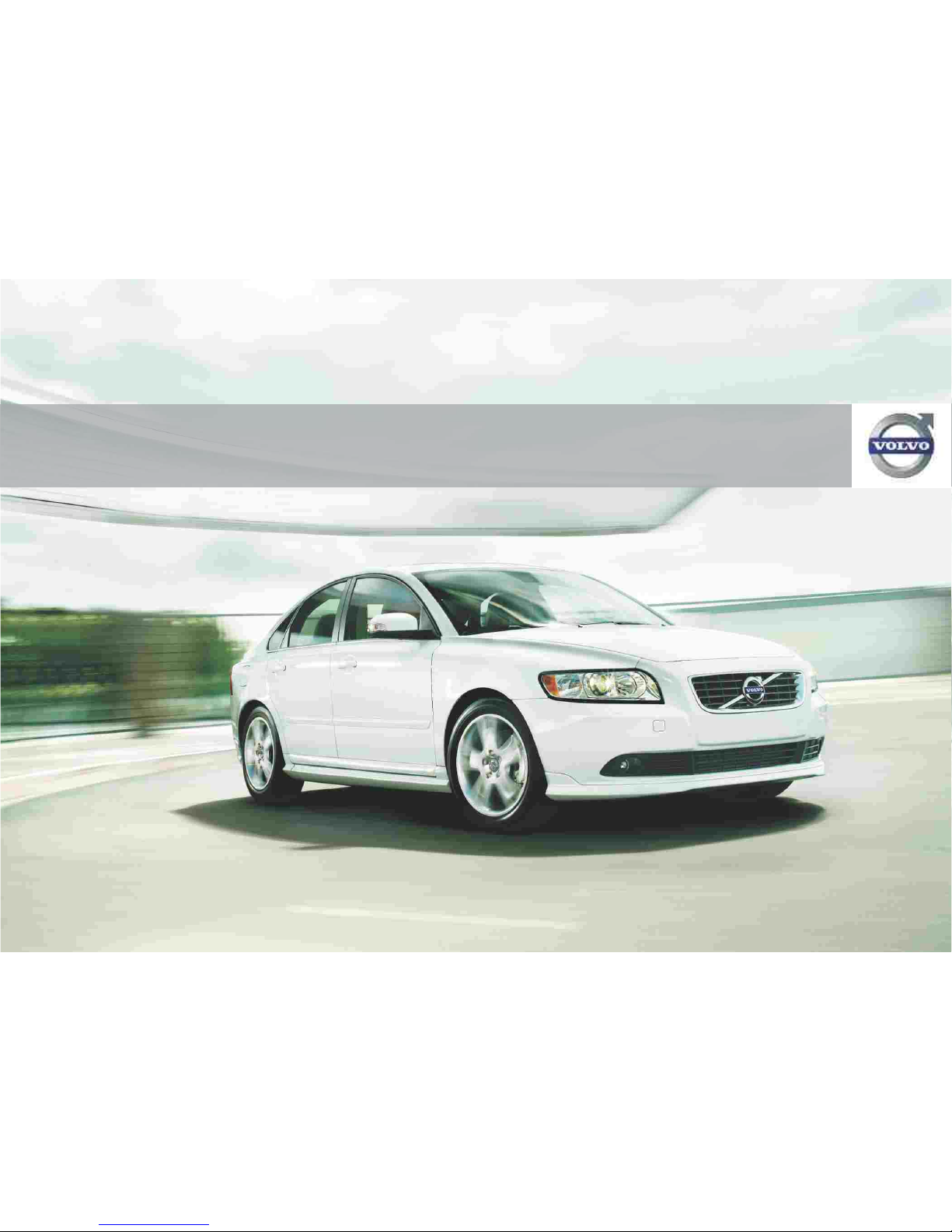

THE VOLVO S40

2
THERE’S MORE TO LIFE WITH A VOLVO.
That’s why you drive THE VOLVO S40.
THERE’S THE BUZZ
OF THE BIG CITY, THERE’S A BIG GAME TONIGHT, THERE’S
THE LAST-SECOND SHOT THAT WINS IT, THERE’S THE
PASS THAT MAKES IT HAPPEN, THERE’S BEATING THE
ODDS WITHOUT BReAKING THE BANK, THERE’S PLAYING
THE GAME WITHOUT GAMING THE SYSTEM, THERE’S ICE-
CREAM, THERE’S CHOCOLATE, THERE’S ICE CREAM AND
CHOCOLATE TOGETHER, THERE’S A HALF HOUR BEFORE
YOU CAN GO SWIMMING, THERE’S SWIMMING NAKED,
THERE’S WINNING THE PART, THERE’S RUNNING THE
SHOW, THERE’S A STANDING OVATION, THERE’S YOUR
NAME IN LIGHTS, THERE’S A STAR BY YOUR NAME,
THERE’S THE NORTH STAR, THERE’S VENUS AND MARS,
THERE’S CAMPING OUT, THERE’S ORDERING IN, THERE’S
LIVING IT UP, THERE’S LAYING IT DOWN, THERE’S THE
LATEST HIT SONG, THERE’S THE FLAVOUR OF THE DAY,
THERE’S TRYING IT ALL, THERE’S BEING SMART ABOUT IT.
2

3
STANDARD EQUIPMENT – SAFETY AND SECURITY
Dual stage driver and passenger airbags l l
Passenger airbag cut-off switch l l l
SIPS (Side Impact Protection System) l l l l
SIPS Airbags l l l l
IC (Inflatable Curtain) l l l l
WHIPS (Whiplash Protection System) (front seats) l l l l
ABS (Anti-lock Brake System) with EBD (Electronic Brake Distribution) and Electronic Brake Assistance l l l l
DSTC (Dynamic Stability and Traction Control) l l l l
5 x three point seat belts l l l l
ISOFIX (rear seats) l l l l
Seat belt pre-tensioners (front and outer rear) l l l l
Head restraints – all 5 seats l l l l
Anti-theft alarm including immobiliser and level sensor l l l l
Key integrated remote control central locking including fuel flap with deadlocking system l l l l
Mass movement sensor and inclination sensor l l l l
Humidity sensor l
Auto open/close windows (including sunroof) l l l l
High level LED brake light l l l l
Side marker illumination l l l l
Home safe and approach lighting l l l l
IDIS (Intelligent Driver Information System) l l l l
Warning triangle l l l l
D2 DRIVe D4 2.0 T5
l
l
l
THE RIGHT EQUIPMENT. It’s essential that your Volvo comes equipped with everything you need. Below you’ll find the standard equipment lists for each
model variant, plus optional equipment to personalise your Volvo S40. And as you’d expect, there is an array of industry-leading, cutting edge safety
innovations.
STANDARD EQUIPMENT – EXTERIOR
16" Convector Alloy Wheels – 205/55 R16 W Tyres l
17" Spartacus Alloy Wheels – 205/50 R17 W Tyres l
17" Serapis Alloy Wheels – 205/50 R17 W Tyres l
17" Cratus Alloy Wheels – 205/50 R17 93W Tyres (standard with R-Design package) l l
Tempa spare wheel with jack l l l l
Active bending headlights l l
Headlamp cleaning system l l
Auto-folding power door mirrors with ground lights l l
Front fog lights l l l
Power adjustable and heated door mirrors l l l l
Rain sensor – automatic windscreen wiper activation l l l l
Comfort chassis l
Dynamic chassis l l
Efficiency chassis l
Rear lip spoiler l l
Full body coloured side mouldings l l l l
Park assist rear l l
D2 DRIVe 2.0 T5D4
l

4

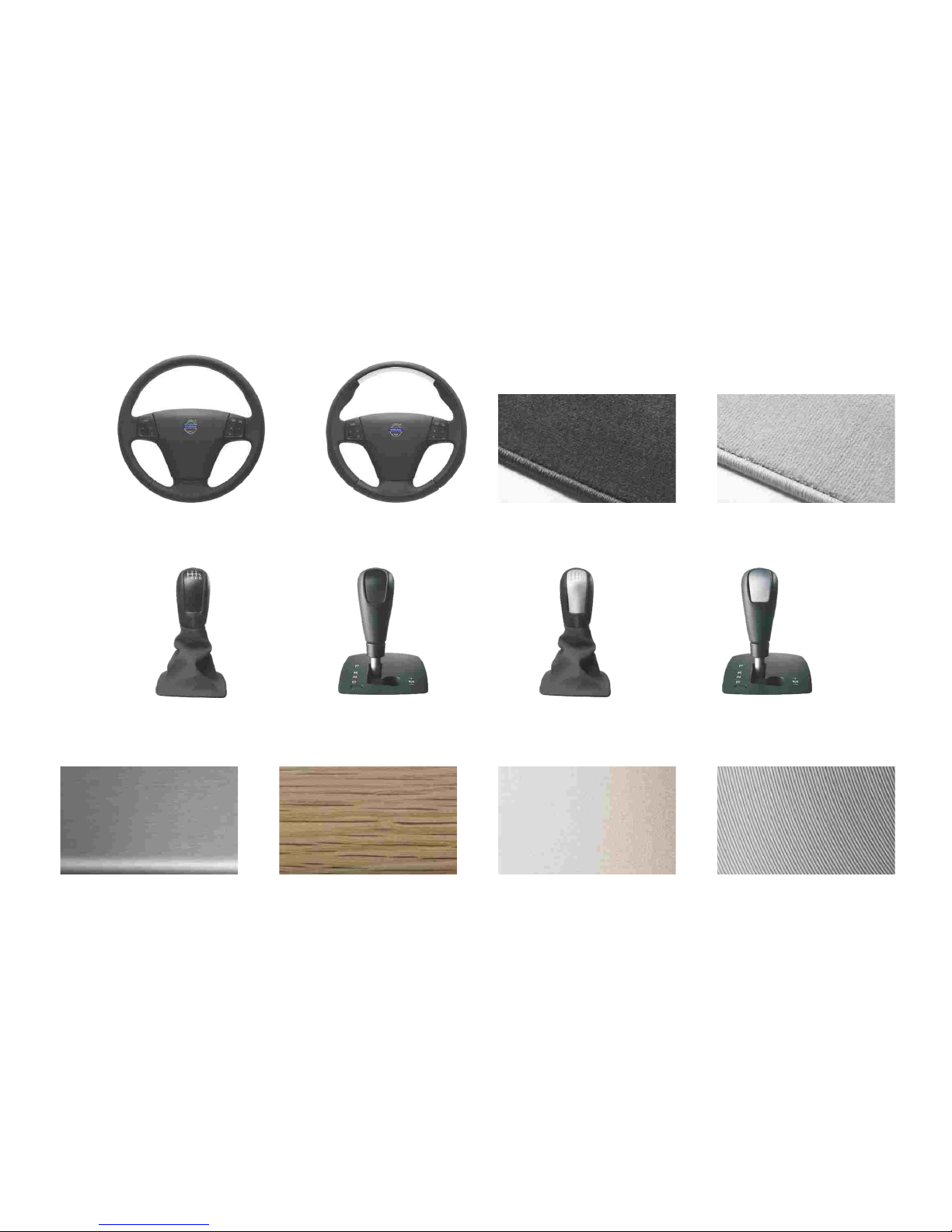

STANDARD EQUIPMENT – INTERIOR
ECC (Electronic Climate Control) and pollen filter l l l
Information centre l l l l
Exterior temperature gauge l l l l
Cruise control l l l l
Front and rear power windows l l l l
Illuminated driver and passenger vanity mirrors l l l l
Auto-dimming rear view mirror l l l l
Front and rear reading lights l l l l
Front centre armrest l l l l
Front and rear ashtray with cigarette lighter l l l l
Power driver’s seat with seat memory l l
Height adjustable passenger seat with lumbar support l l l l
Power child lock l l l l
Forward folding front passenger seat l l l l
Asymmetric split-folding rear seat (60%/40%) l l l l
Leather steering wheel, gear knob and handbrake lever l l l l
Steering wheel remote audio controls l l l l
Height and reach adjustable steering column l l l l
Aluminium trim l l l l
Leather-faced upholstery l l l l
Luxury floor mats l l
Performance Sound Audio System – 1 x CD/Radio, 4 x 20W Amplifier and 6 Speakers l l
High Performance Sound Audio System – 1 x CD/Radio, 4 x 40W Amplifier and 8 Speakers (MP3/WMA compatible). iPod/USB function l l
Aux Input for MP3 Player l l l l
D2 DRIVe 2.0 T5D4
l
* OPTIONAL EQUIPMENT – SAFETY AND SECURITY
BLIS (Blind Spot Information System) R7,800.00 o o o o
Laminated water repellent side windows R5,200.00 o o o o
Dual booster cushions (rear seats) R2,600.00 o o o o
14% VAT D2 DRIVe 2.0 T5D4
Price incl.

5
* OPTIONAL EQUIPMENT – INTERIOR
Powershift (6 Speed Automatic Transmission) R15,500.00 n/a n/a o
Keyless drive R5,200.00 o o o o
Power glass tilt and slide sunroof R7,500.00 o o o o
Auto-dimming rear view mirror with compass R1,100.00 o o o o
Power driver’s seat R4,200.00 o lol
Power passenger seat (iv) R4,200.00 o o o o
Oyster burst trim R1,600.00 o o o o
Nordic light oak trim R2,100.00 o o o o
6 x CD Player (ii) R3,100.00 o o o o
High Performance Sound Audio System – 1 x CD/Radio, 4 x 40W Amplifier and 8 Speakers (MP3/WMA compatible). iPod/USB function R3,100.00 o lol
Premium Sound Audio System – with Dolby Pro Logic II Surround Sound (i), 5 x 130W Amplifier,
1 x CD and 12 Speakers (MP3/WMA compatible). iPod/USB function R10,300.00 o o o o
RTI Navigation System with RDS-TMC Map Data on Hard Disk (ii) R21,200.00 o o o o
Bluetooth® Handsfree System (ii) (iii) R2,600.00 o o o o
Dual Band Integrated GSM Telephone (ii) R9,300.00 o o o o
AQS (Air Quality System) R1,100.00 o o o o
Luxury floor mats R400.00 o lol
Sun curtain rear window (manual) R1,100.00 o o o o
Sunglass holder R200.00 o o o o
Rear centre armrest with twin cup holders and storage R600.00 o o o o
Heated front seats R1,600.00 o o o o
14% VAT
n/a
D2 DRIVe D4 2.0 T5
Price incl.
l = standard; o = option; n/a = not available
* Fitted at factory.
TM
(i) Dolby and Pro Logic Surround Sound are trademarks of Dolby Laboratories Licensing Corporation.
(ii) Must be ordered in conjunction with High Performance or Premium Sound Audio Systems.
(iii) Cannot be ordered in conjunction with Dual Band Integrated GSM Telephone.
(iv) Must be ordered in conjunction with power driver seat.
(v) In exchange for fog lights.
* OPTIONAL EQUIPMENT – EXTERIOR
Metallic/Pearlescent Paint R1,900.00
16" Libra Alloy wheels 205/55R16 V Efficiency tyres no cost o n/a n/a n/a
16" Cordelia Alloy Wheels – 205/55 R16 W Tyres no cost o n/a o n/a
17" Spartacus Alloy Wheels – 205/50 R17 W Tyres R6,700.00 o no cost o l
17" Serapis Alloy Wheels – 205/50 R17 W Tyres R6,700.00 o lo no cost
18" Atreus Alloy Wheels – 215/45 R18 W Tyres R6,700.00 n/a o o o
18" Midir Alloy Wheels – 215/45 R18 W Tyres (R-Design only) R6,700.00 n/a n/a o o
Auto-folding power door mirrors with ground lights R1,100.00 o lol
Water repellent door mirror glass R600.00 o o o o
Rear park assist R2,100.00 o lol
Active bending headlamps R7,300.00 o lol
Sport chassis R1,100.00 n/a o o o
LED day time running lights in spoiler (v) no cost o o o o
14% VAT
o o o o
D2 DRIVe D4 2.0 T5
Price incl.

6
Prices are inclusive of 14% VAT
Luxury floor mats; Retractable rear view mirrors; High Performance Sound Audio System – 1 x CD/Radio, 4 x 40W Amplifier and
8 Speakers (MP3/WMA compatible). iPod/USB function.
Power driver seat; Headlamp washers; Luxury floor mats; Retractable rear view mirrors; High Performance Sound Audio System – 1 x CD/Radio,
4 x 40W Amplifier and 8 Speakers (MP3/WMA compatible). iPod/USB function; Rear park assist; Active bending headlamps; 17" Spartacus alloy wheels. R15,000.00 n/a R15,000.00 n/a
Power driver seat; Headlamp washers; Retractable rear view mirrors; High Performance Sound Audio System – 1 x CD/Radio,
4 x 40W Amplifier and 8 Speakers (MP3/WMA compatible). iPod/USB function; Rear park assist; Active bending headlamps. n/a n/a R9,500.00 n/a
D2 DRIVe D4 2.0 T5
EXCEL PACKAGE - D2 DRIVe and 2.0
R2,500.00 n/a R2,500.00 n/a
ELITE PACKAGE - D2 DRIVe and 2.0
R-DESIGN ADDITIONAL CONTENT PACKAGE - 2.0
n/a = not available

THERE’S MORE TO LIFE WITH A VOLVO.
That’s why WE INNOVATE
FOR LIFE.
That’s why we
design our cars to support you in any situation
on the road. That’s why our safety technology
has pushed automotive development for more
than eighty years. That’s why we aim for a future
where cars don’t crash. That’s why we lead the
way to zero emissions, and offer one of the
premium segments strongest ranges of low CO2
alternatives. And there are all the reasons in the
world to move the boundaries for what’s
possible and what’s not.
We protect more
than the fun of living
Across the world, Volvo equals safety. But we're not satisfied. Because we
know what we want to achieve: zero accidents. The good news is, we've
already come a long way. Driving a Volvo today is like having a first peek at
a future where life is effectively preserved and celebrated.
77

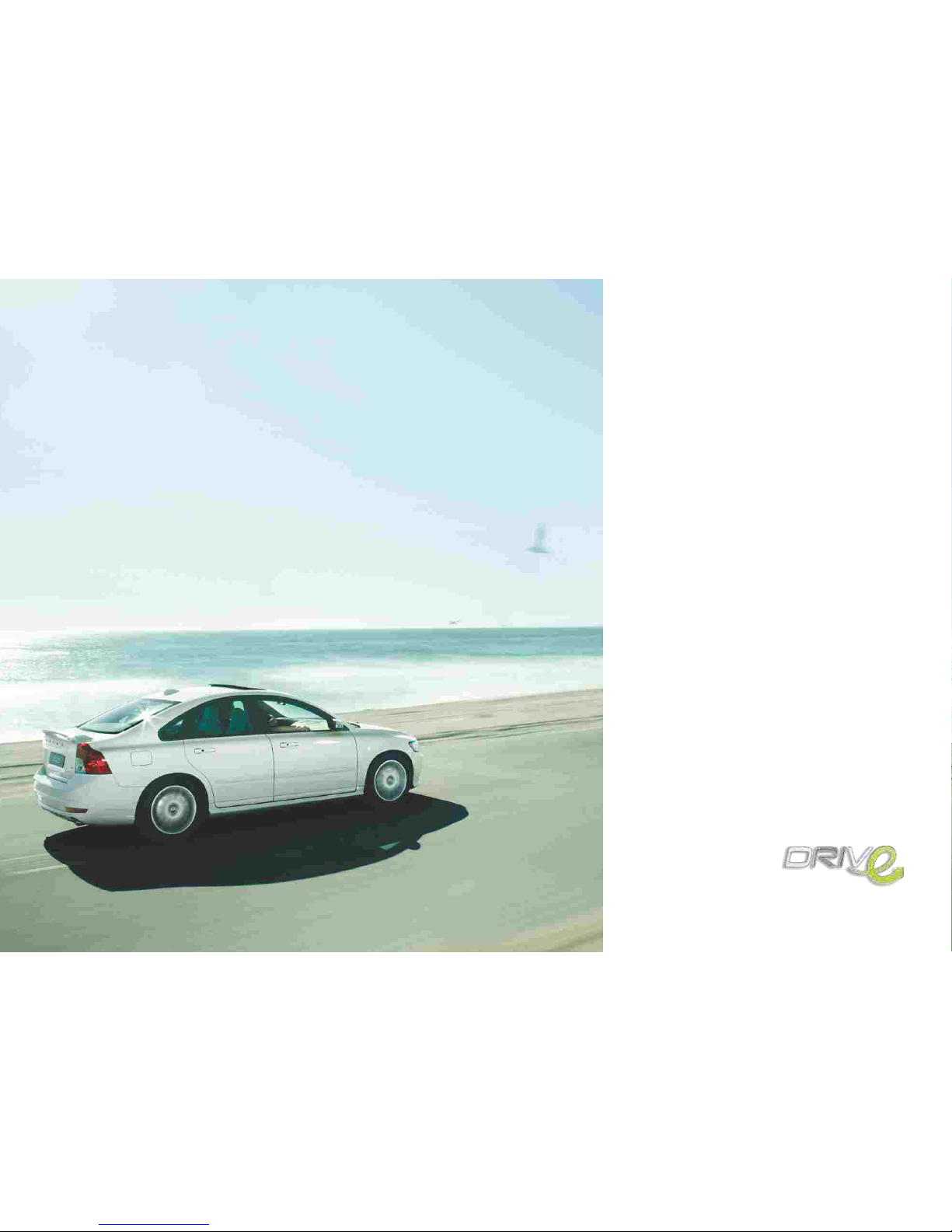

Necessity is the mother
of all Volvos.
In order to reduce the environmental impact of our cars,
Volvo is introducing the DRIVe program along with this
superbly agile and hyper efficient Volvo S40 D2 DRIVe
with Start/Stop technology. Aerodynamically optimised to
save fuel, and emitting only 99 grams of CO per
2
kilometre, form and function have never been better
served.
8

9
Easy on the eyes.
Easier on the environment.
Easily yours.
The exceptionally clean Scandinavian design of the Volvo
S40 DRIVe with Start/Stop helps it cut through the air
with fuel saving ease. Sipping barely 3.9 l/100km* with an
average carbon dioxide emission of just 99 grams per
kilometre, this aerodynamically optimised sports saloon
makes eco-driving a beautiful thing. The lowered chassis,
low drag wheels and instant power of a super efficient
engine with Start/Stop technology are just a few of the
fuel saving refinements that make this car more earth
friendly and more fun to drive.
*Based on a combined cycle

Can cheating the wind be good for it? We think so. Design and drive train modifications
significantly reduce air resistance and minimise CO emissions. For example, a special front grille,
2
spoilers, wheel deflectors and a lowered chassis help reduce drag. And Volvo’s state-of-the-art
common rail turbo diesel with Start/Stop technology, brake energy regeneration, heightened gear
ratios, optimised electro-hydraulic power steering, newly developed transmission oil (that reduces
internal resistance), and energy saving tyres, all help lower CO emissions significantly. For more
2
detailed information, contact your Volvo dealer or visit www.volvocars.co.za
What’s in it for you?
We are committed to creating cars that contribute to a
better life, be it inside or outside the vehicle. Utilising
advanced technology, your Volvo is designed to use fuel
efficiently and reduce its impact on the environment. And
nowhere is this more evident than in Volvo’s new
environmentally optimised DRIVe variant. This caring
attitude continues inside your Volvo. Here you and your
passengers can experience one of the automotive
industry’s cleanest and healthiest cabin environments. It’s
as enjoyable as it’s responsible. Just as you would expect
of a Volvo.
10

Green at the red lights.
To further reduce fuel consumption and
CO emissions when driving in the city,
2
the DRIVe turbo diesel is available with
Volvo’s new Start/Stop technology.
FSC certified interior wood trim.
Choosing the Nordic Light Oak trim you can be
confident that the wood in the interior trim
comes from responsibly managed forests and is
certified according to Forest Stewardship
Council (FSC).
Fuel-saving design.
To reduce energy-loss from wind and roll resistance,
we utilise advanced aerodynamic design, light-weight
materials and low-friction technology. Together with
state-of-the-art engine technology, this lowers your
CO emissions and helps you travel further on fuel.
2
Fuel-saving design.
To reduce energy-loss from wind and roll resistance,
we utilise advanced aerodynamic design, light-weight
materials and low-friction technology. Together with
state-of-the-art engine technology, this lowers your
CO emissions and helps you travel further on fuel.
2
Fresh cabin air.
Continuously monitoring incoming air and shutting out carbon
monoxide, ground-level ozone and nitrogen dioxide, Volvo’s Interior
Air Quality System helps ensure that the air you breathe in the car is
cleaner than that outside when driving in heavy city traffic.
Eco driving support.
Displaying when it’s optimum to shift gear,
the gear shift indicator in the DRIVe variant
helps you save fuel and reduce your CO2
emissions.
85% recyclable.
To help minimise its total environmental impact, every
Volvo is designed to facilitate recovery and recycling at
the end of its useful life.
Brake for energy.
Driving the DRIVe with Start/Stop, the battery is
fed with extra power every time you brake. Smart
and fuel saving.
Safer interior materials.
All our upholsteries are tested for certain allergy inducing or harmful
substances and comply with Oeko-Tex Standard 100. And several interior
metal details are tested with regard to contact allergies. Good for you,
and for anyone who shares your ride.
Maximised fuel efficiency with diesel.
Volvo’s advanced common rail turbo diesel technology ensures
superior fuel economy and lower CO emissions.
2
Cleaner exhaust.
Fast responding after a cold start, Volvo’s advanced emission control
eliminates between 95 and 99% of carbon monoxide, hydrocarbons
and nitrogen oxides from petrol engine exhaust gases. The Volvo
turbo diesels feature a particulate filter that removes about 95% of
the particles from the diesel exhaust gases. *Based on a combined cycle. 11

12
There is nothing normal about these factory settings.
R-DESIGN is not just the badge of the bold. From outside, the sweet bodykit, rear spoiler, 17" 5-spoke Cratus aluminium
wheels, and the front grille and side mirrors in a special silver-matt finish, all signal this is a Volvo S40 with a different attitude.
Inside, you’ll notice the superbly comfortable seats with unique upholstery and an embossed R-DESIGN logo on the front
seats. The many other exclusive R-DESIGN touches throughout the cabin help define a style that’s not just far from normal,
but moving beyond it without apology.

A selection of R-DESIGN items are also available in our Accessory range. Please contact your local dealer for further information. 13
R-DESIGN upholstery
Settle back in unique Off Black T-Tec and
Cream leather-faced seats with embossed
R-design logo.
R-DESIGN deco inlay
The centre stack and door handle inlays
convey a sporty, contemporary feel.
Sports gear knob
Leather and aluminium are combined to give
the gear knob an exciting look and feel.
Sports steering wheel
Every R-design model features an exclusive
sports steering wheel with embossed logo.
Combi instruments
At the centre of the instrument panel, the
speedometer and rev counter feature
attractive blue inserts.
Silk metal grille
Silk metal finished front grille and side mirror
caps add a dash of exterior sportiness.
Sports pedals
Enhance the driving experience with these
tough, ridged sports pedals.
Sports floor mats
Look down and you’ll see exclusive sports
floor mats are brought to life with contrasting
piping.

14
* ACCESSORIES FROM VOLVO. Of course, your Volvo S40 won’t be perfect until it’s exactly how you want it. And that’s why we offer a range of accessories so you can completely
personalise your new car.
“Space design” roof box
A lightweight, aerodynamic roof box available in two sizes: 380 and 480 litres. (other options also available)
Convertible child seat (9-25kg)
Advanced design helps provide world class
protection and flexible seating for many years.
Booster seat
(15-36kg)
Volvo’s new booster
seat helps position a
child at the correct
height for the safety belt.
* Fitted at local dealer
Towbars
Our lockable, easy to remove towbars are designed specifically for your Volvo.
Frame-mounted bicycle holder
This holder secures the bicycle at the frame and
both wheels and fits most frame sizes.
Infant seat
(up to 13kg)
Infants can travel
safely backwards in this
comfortable, easy to carry
seat with a five point harness.

15
Take a look at all our accessories and full pricing information at www.volvocars.co.za/accessories
®
USB and iPod
Simply connect your iPod® or USB device and
seamlessly integrate with your Volvo’s audio system.
music interface
Bluetooth® Handsfree System
Volvo’s voice controlled, handsfree system with Bluetooth® is a versatile and easy way
to speak on your mobile phone.
Car cover
Made to fit, protects and keeps clean
Portable Navigation System
Designed to complement your Volvo, this easy-to-use Garmin nüvi® navigation unit guides you all the way.
Sports Pedals
Enhance the driving experience with these tough,
ridged sports pedals.
Towbar mounted bike rack
This state of the art holder secures your bicycles
conveniently and safely on the back of your Volvo.

(i) Also available for R-Design
Please note: It’s not possible to reproduce exact original shades in printed matter. Please ask your dealer to show you
samples.
CLEAN COLOURS To reduce usage of environmentally hazardous solvents all Volvo exterior colours are
water-based. What’s more, our painting facilities are among the cleanest in the world.
COLOUR YOUR VOLVO. When it comes to the appearance of your Volvo, the
choice of exterior colour and wheels are probably your most important design
decisions. For more exterior styling options and to build your new Volvo online,
please visit www.volvocars.co.za
16
019 Black stone 426 Silver metallic (i) 452 Black sapphire metallic (i)
455 Titanium grey pearl metallic (i) 466 Barents blue pearl metallic (i) 477 Electric silver coarse flake metallic (i)
490 Chameleon blue pearl metallic 481 Cosmic white metallic
612 Passion red
614 Ice white (i) 701 Orange flame metallic 702 Flamenco red pearl metallic

EXTERIOR DESIGN Aluminium wheels
17
18" Atreus
17" Serapis
17" Spartacus
16" Convector 16" Cordelia
17" Cratus (R-Design only)
18" Midir (R-Design only)
16" Libra (DRIVe only)

10
BESPOKE TAILORING FROM VOLVO. The finest
fabrics, superb stitching and minute attention to detail –
whichever interior you choose for your Volvo S40, you'll
be surrounded by luxury. How will you tailor yours?
LEATHER. This is the upholstery that affords the Volvo S40 an
atmosphere of luxury. It’s a new hide quality that’s smooth, durable
and has a fine grain pattern. Like all Volvo leather, it’s organically
tanned and ages beautifully.
NB It is not possible to reproduce exact original shades in printed matter.
R-DESIGN Off black and Cream upholstery in
Off black interior (5F7K)
18
Leather Calcite in Dark Beige interior. Off black leather-clad steering wheel and
gearknob. Aluminium centre console and door panel inlays (5DE4)
Leather Calcite in Off black interior. Off black leather-clad steering wheel and
gearknob. Aluminium centre console and door panel inlays (5DF4)
Upholstery Upholstery Upholstery Dashboard top Lower door panel, Floor mats Door insert Headliner
code colour & upper door lower dashboard, carpet & tunnel colour colour
panel console
R-DESIGN Leather/
T-Tec with Logo 5F7K Off black/Cream Off black Off black Off black Off black Quartz beige
Leather 5DF4 Calcite/Off black Off black Off black Off black Calcite Quartz beige
5DE4 Calcite/Umbra Dark umbra Quartz beige Quartz beige Calcite cream Quartz beige
5D77 Off black Off black Off black Off black Off black Quartz beige
5DM9 Cacao Off black Off black Off black Cacao Quartz beige
Leather Cacao in Off black interior. Off black leather-clad steering wheel and
gearknob. Nordic Light Oak centre console and door panel inlays (5DM9)
Leather Off black in Off black interior. Off black leather-clad steering wheel and
gearknob. Aluminium centre console and door panel inlays (5D77)

19
R-DESIGN Leather sports steering
wheel with aluminium inlay
Leather steering wheel
Leather gear knob with
aluminium inlay - Geartronic
Leather gear knob - Geartronic
Leather gear knob - Manual Leather gear knob with
aluminium inlay - Manual
Oyster Burst centre stack
and door panel inlays
R-DESIGN centre stack
and door panel inlays
Nordic Light Oak centre stack
and door panel inlays
Aluminium centre stack
and door panel inlays
Off Black textile mats Quartz textile mats
INTERIOR INLAYS. A section of premium materials to complement your interior fabric.

20
