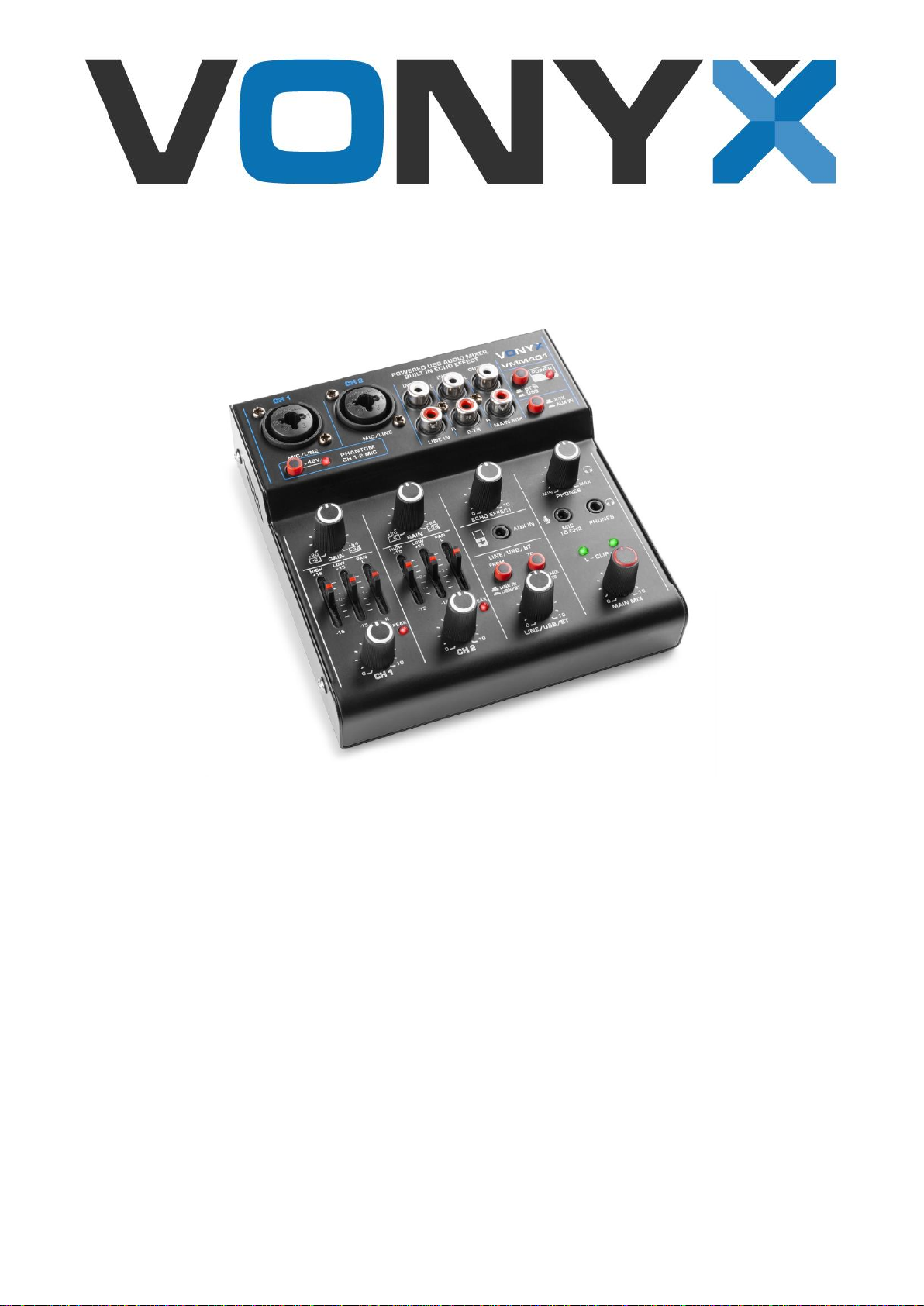

Vonyx VMM401 User manual

VMM401 Mixer 4CH/EQ/BT
Ref. nr.: 172.644
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
V1.2

2

3
ENGLISH
Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to
benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions
to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock.
Keep the manual for future reference.
- Prior to using the product, please ask advice from a
specialist. When the product is switched on for the first
time, some smell may occur. This is normal and will
disappear after a while.
- The product contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the
product. This may cause electrical shock and
malfunction.
- Do not place the product near heat sources such as
radiators, etc. Do not place the product on a vibrating
surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the product from a mains outlet,
always pull the plug, never the lead.
- Do not plug or unplug the product with wet hands.
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal
parts are visible, do NOT plug the product into a mains
outlet and DO NOT switch the unit on. Contact your
dealer. Do NOT connect the product to a rheostat or
dimmer.
- To avoid fire and shock hazard, do not expose the
product to rain and moisture.
- All repairs should be carried out by a qualified technician
only.
- Connect the product to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used
for a longer period of time, unplug it from the mains. The
rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of
time, condensation may occur. Let the unit reach room
temperature before you switch it on. Never use the
product in humid rooms or outdoors.
- To prevent accidents in companies, you must follow the
applicable guide lines and follow the instructions.
- Do not repeatedly switch the product on and off. This
shortens the life time.
- Keep the product out of the reach of children. Do not
leave the product unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice from
a specialist.
- Do not force the controls.
- If this product is with speaker inside which can cause
magnetic field. Keep the product at least 60cm away
from computer or TV.
- If this product have a built-in lead-acid rechargeable
battery. Please recharge the battery every 3 months if
you are not going to use the product for a long period of
time. Otherwise the battery may be permanently
damaged.
- If the battery is damaged please replace with same
specifications battery. And dispose the damaged battery
environment friendly.
- If the product has fallen, always have it checked by a
qualified technician before you switch the product on
again.
- Do not use chemicals to clean the unit. They damage the
varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the
mains and/or other equipment. Unplug all leads and
cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this product.
- Keep the original packing material so that you can
transport the product in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should
read and adhere to.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate
and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and
35°C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also
invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the
warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety
recommendations and warnings. This is also applicable to all damages in whatever form.

4
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the equipment is indicated on this type of power supply must be connected. Check that the
mains voltage corresponds to this, all other voltages than specified, the equipment can be irreparably damaged. The equipment
must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

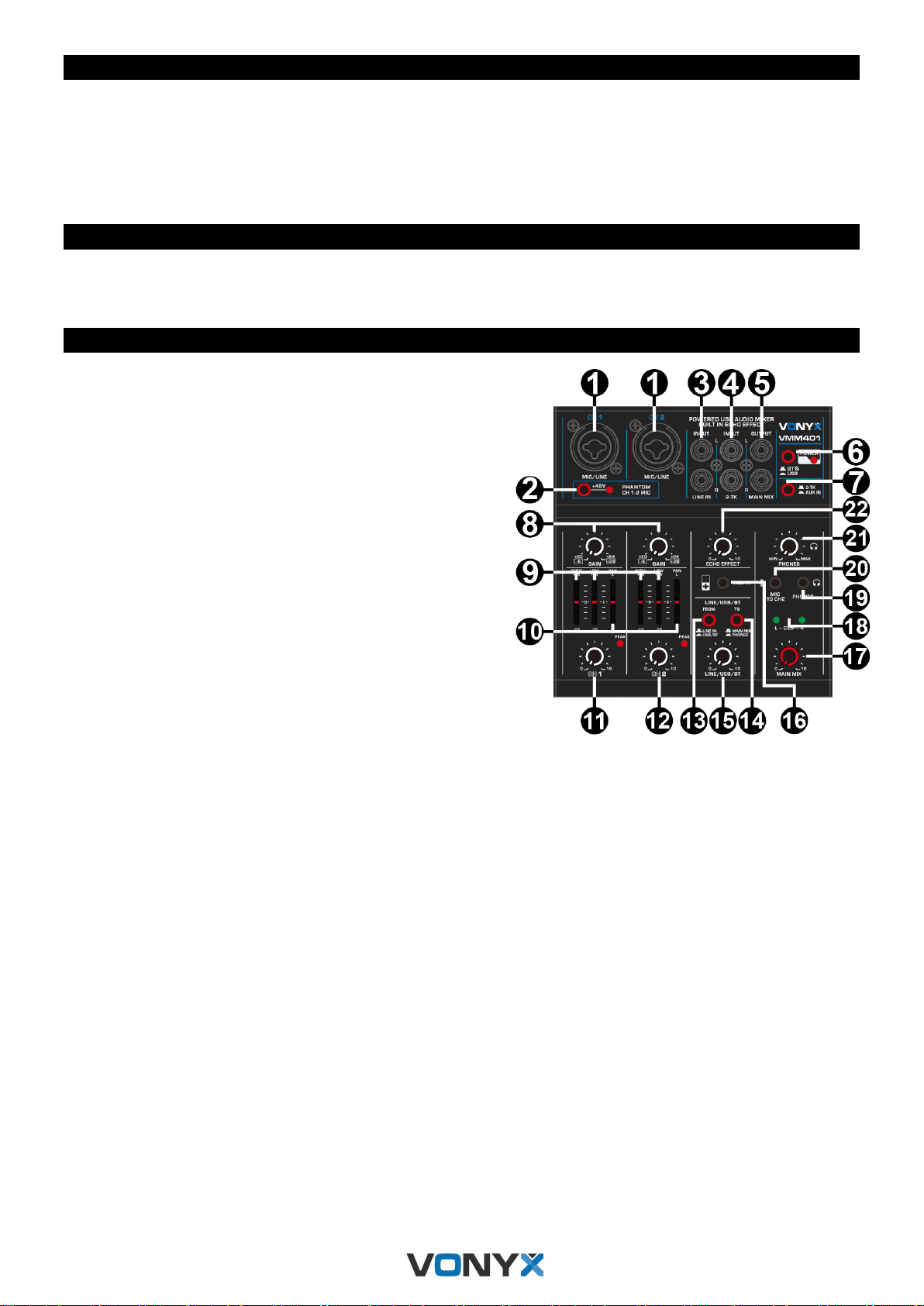

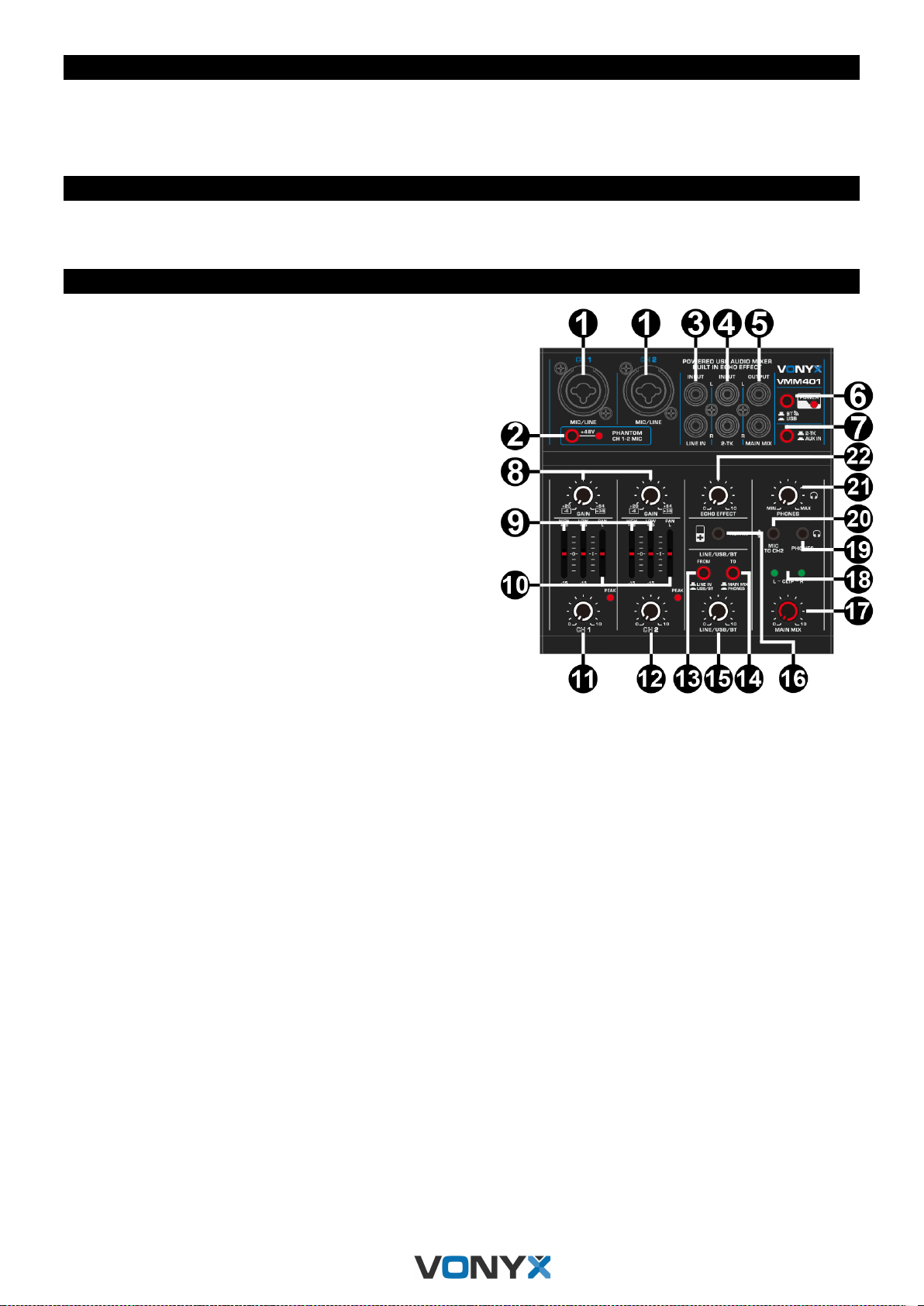

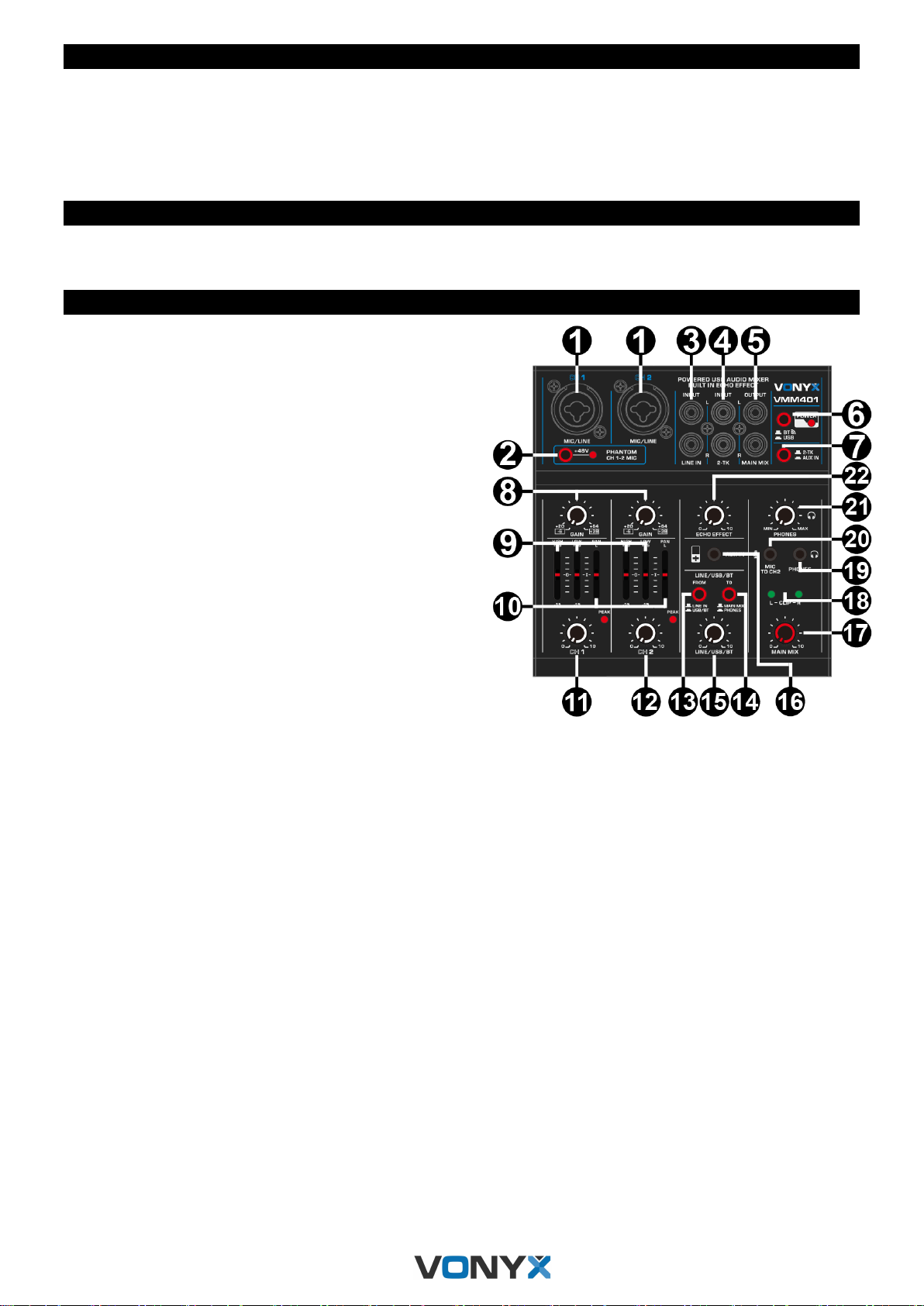

FRONT PANEL
1. MIC & LINE INPUTS
Combo input jacks for mono signal (for example XLR
microphones or 1/4” line input devices).
2. PHANTOM SWITCH
Use to activate phantom power on the XLR mono microphone
connectors of channel 1 & 2 (+48V phantom power). Turn this
on when using a condenser microphone. The LED will light up
when turned on.
3. STEREO RCA LINE INPUT
Stereo RCA input jacks. Connect with the output of an audio
source with line signal, such as a CD player, tape deck, etc.
4. 2-TK RCA INPUT
Stereo RCA input jacks. Connect with the output of an audio
source with line signal, such as a CD/MP3 player, etc.
5. STEREO RCA OUTPUT (MAIN MIX)
Stereo RCA output jacks. Connect with the input of an
amplifier or a recorder.
6. BT/USB SELECTOR
Change between BT and USB input.
7. 2-TK/AUX SELECTOR
Change between 2-TK and AUX input.
8. CHANNEL 1 & 2 GAIN CONTROL
Turn to determine the gain level of both channel 1 and channel
2.
9. TREBLE & BASS CONTROL
Adjust the high and low tones/frequencies for channel 1 and
channel 2.
10.PAN CONTROL
Pan(orama)/balancing control to determine the position of the channel signal within the stereo image.
You can use the pan controller to assign the signal to just a single output, which provides flexibility in recording situations.
11.CHANNEL 1 VOLUME CONTROL
Turn to adjust the volume for channel 1 (1). The led-indicator lights up when the input signal is too high.
12.CHANNEL 2 VOLUME CONTROL
Turn to adjust the volume for channel 2 (1). The led-indicator lights up when the input signal is too high.
13.INPUT SELECTOR SWITCH
Change the input signal source between LINE-IN and USB/BT.
14.OUTPUT SELECTOR SWITCH
Change the output destination between MAIN MIX and PHONES.
15.LINE/USB/BT CHANNELS VOLUME CONTROL
Turn to adjust the volume for LINE/USB/BT channels.
16.AUX STEREO IN
3.5mm stereo jack AUX input for connecting a variety of external audio devices. Volume can be controlled by the MAIN MIX
controller or the connected audio device.
17.MAIN VOLUME CONTROL
Turn to adjust the volume of the MAIN- (5) and USB channel (23).
18.CLIP LEDS
Will light up when MAIN MIX output signal is too high (left and right channel separately).
19.HEADPHONE JACK
3.5mm output jack, supporting stereo headphone plugs.
20.MIC TO CH2 JACK
3.5mm input microphone jack. Input signal is sent to CH2.
21.HEADPHONES VOLUME CONTROL
Turn to adjust the volume of the headphones channel.
22.ECHO EFFECT
Turn to adjust the echo effect.

5
REAR PANEL

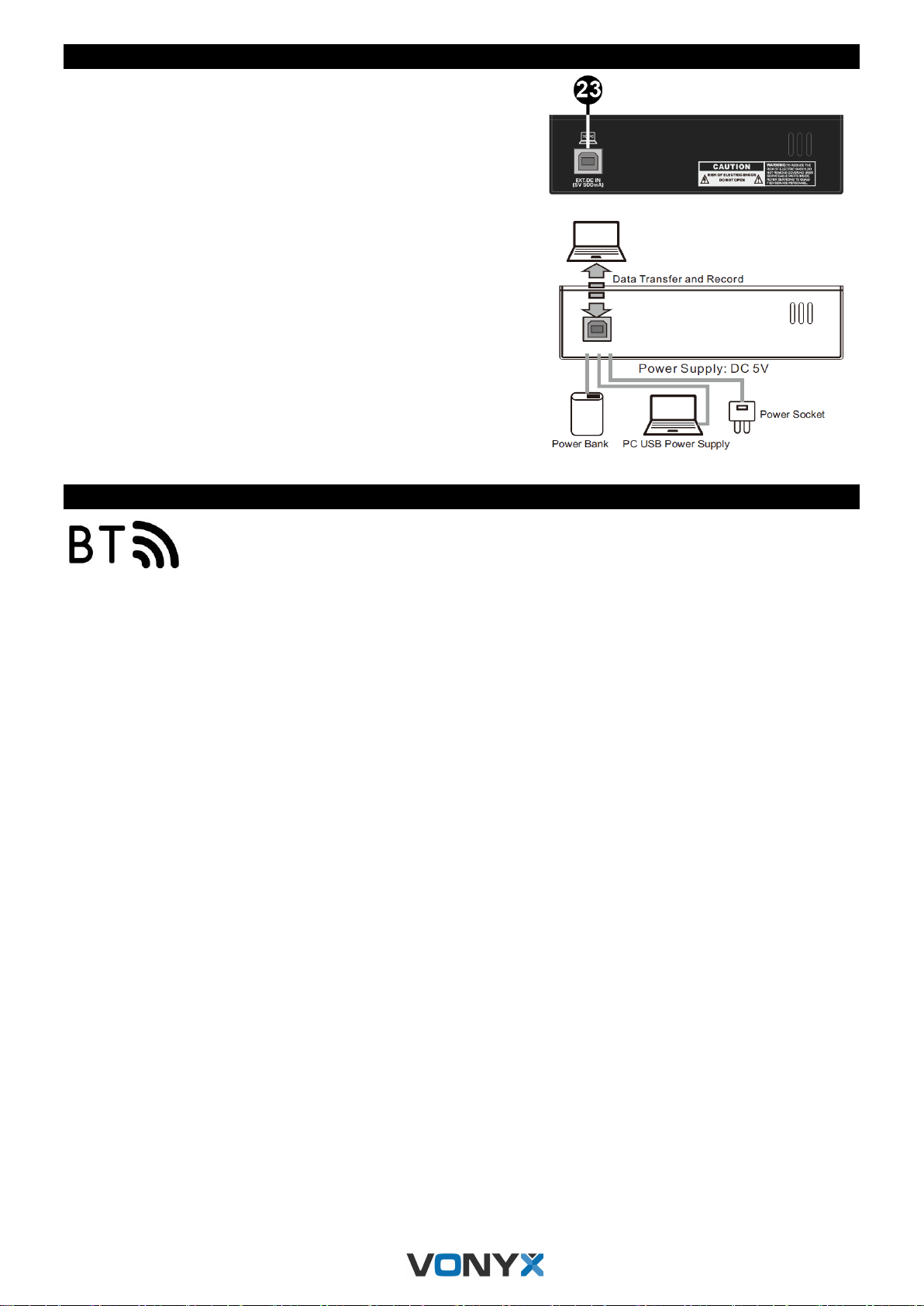

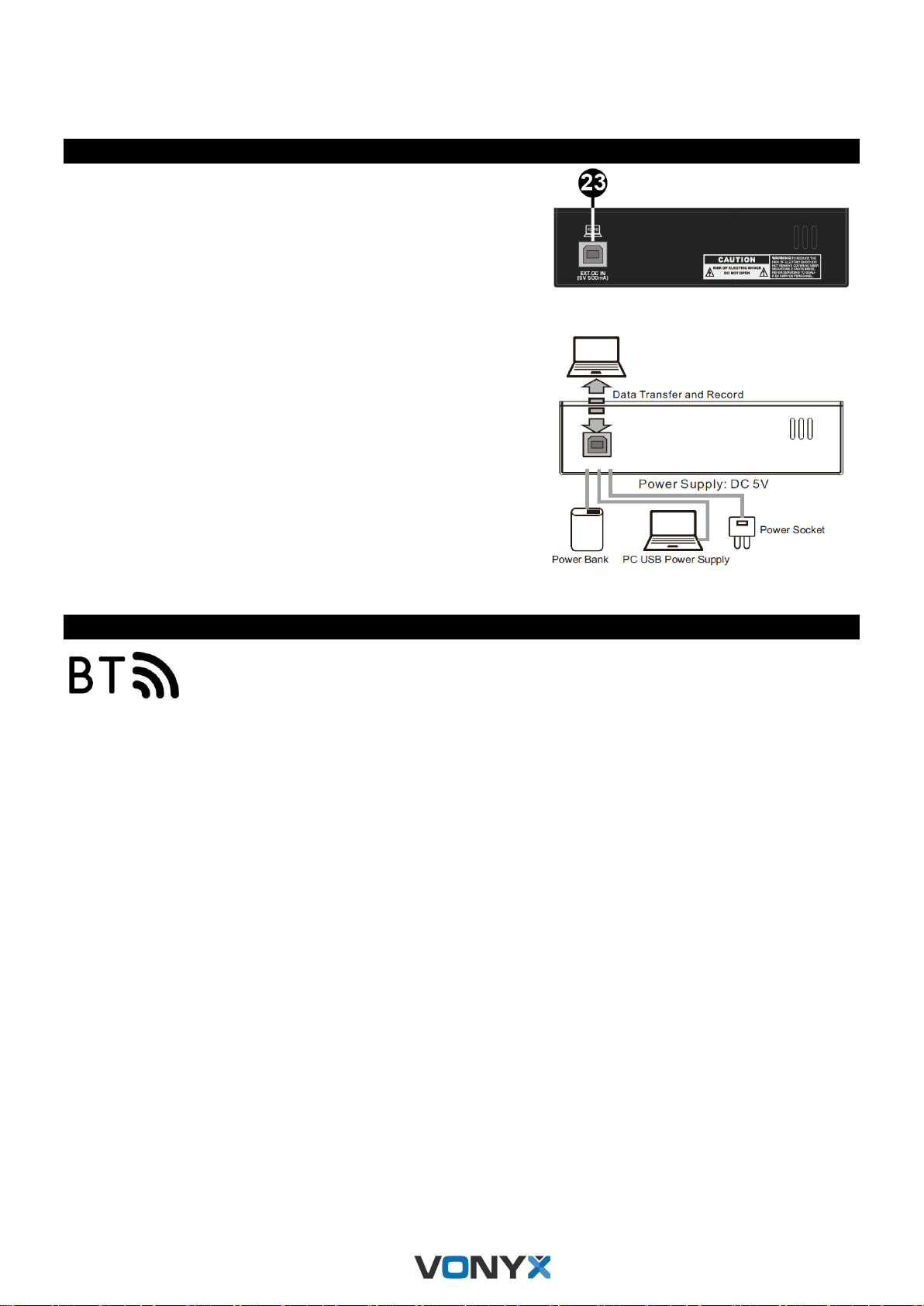

23.USB 2.0 TERMINAL
Use the included USB 2.0 cable to connect with a computer. The
computer supplies power to the mixer and audio data can be sent
between the two. Alternatively, the terminal can be used as a USB
power socket (mains power or USB power bank) to supply the mixer
with power. Obviously, utilizing the terminal for this purpose, data
cannot be transferred or recorded. Using external power supply must
meet the following requirements:
Output voltage: 4.8V to 5.2V
Output current: 0.5A or more
BT CONNECTION
1. Activate the BT-function on your device (mobile phone, tablet etc.) from which you want to play the
music. See the operating instructions for that device.
2. Select “VMM”on your BT-device and make the BT-connection.
No password is required.
Attention: The BT distance is approx. 10 meter without any barrier.
