VOX electronics LC20E User manual

Dishwasher / User Manual
EN
LC20E

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................ 1
1.1. General Safety Warnings ..............................................................................................1
1.2. Installation Warnings .....................................................................................................2
1.3. During Use.....................................................................................................................3
2.INSTALLATION ................................................................................................................. 6
2.1. Machine Positioning .....................................................................................................6
2.2. Water Connection .......................................................................................................... 6
2.3. Water Inlet Hose ............................................................................................................ 6
2.4. Electrical Connection ....................................................................................................7
3.TECHNICAL SPECIFICATIONS ....................................................................................... 8
3.1. General Appearance......................................................................................................8
3.2. Technical Specifications ................................................................................................8
4.BEFORE USING THE APPLIANCE .................................................................................9
4.1. Preparing your Dishwasher for first use .......................................................................9
4.2. Salt usage......................................................................................................................9
4.4. Test Strip ...................................................................................................................10
4.5. Water Hardness Table .................................................................................................10
4.6. Water Softener System ...............................................................................................10
4.7. Setting ...................................................................................................................10
4.8. Detergent Usege .........................................................................................................11
4.9. Filling the Detergent .................................................................................................... 11
4.10. Using Combined Detergents ..................................................................................... 11
4.11. Rinse-aid Usege ........................................................................................................ 11
4.12. Filling the Rinse-aid and Setting ................................................................................ 11
5.LOADING YOUR DISHWASHER ....................................................................................12
5.1. Recommendations....................................................................................................... 12
5.2. Alternative Basket Loads .............................................................................................14
6.PROGRAMME TABLE .................................................................................................... 15
7.THE CONTROL PANEL .................................................................................................. 16
7.1. Changing a Programme .............................................................................................16
7.2. Cancelling a Programme .............................................................................................17
7.3. Switching the Machine Off ...........................................................................................17
4.3. Fill the salt ....................................................................................................................9
2.4. Drain Hose.....................................................................................................................7

8.CLEANING AND MAINTENANCE ................................................................................. 19
8.1. Filters ...........................................................................................................................19
8.2. Spray Arms ..................................................................................................................19
9.TROUBLESHOOTING .................................................................................................... 21
8.3. Drain Pump ..................................................................................................................20

EN - 1
1. SAFETY INSTRUCTIONS
1. General Safety Warnings
• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed. Do
not operate the machine if it appears damaged or if
the packaging has been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.

EN - 2
2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If the

EN - 3
pressure exceeds 1 MPa, a pressure relief valve
must be fitted between the connection.
3. During Usage
• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door of
the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for
dishwashing, and take care not to overfill the baskets.
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close

EN - 4
• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
• The cardboard parts consist of recycled paper. They can be put into waste paper
containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different
materials.
PACKAGING AND THE ENVIRONMENT
• Packaging materials protect your machine from damage that may occur during
transportation. The packaging materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw material consumption and
therefore decreases waste production.
RECYCLING
the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has
finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from the
mains, never pull on the cord.

CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead, it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where the product was purchased.
EN - 5

EN - 6
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in an
area where the ambient temperature falls
below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand
on the electrical cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed
on flat ground otherwise it will be unstable
and the door of the machine will not close
properly.
2.2. Water connection
We recommend fitting a filter to your water
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.
Note printing on the water inlet hose!
If models are marked with 25°, the water
temperature may be max. 25 °C (cold
water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
relief valve must be fitted between the
connection.
WARNING: After the connections are
made, turn the tap on fully and check
for water leaks. Always turn off the
water inlet tap after a wash program has
finished.
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or
twisted.
2.3. Water inlet hose
2.4. Drain Hose
Connect the water drain hose directly to
water drain hole or to the sink outlet spigot.
This connection should be minimum 50 cm
and maximum 110 cm from flor plane.
IMPORTANT: Items will not wash
properly if a drain hose longer than 4
m is used.

EN - 7
2.6. Fitting the machine undercounter
If you wish to fit your machine undercounter,
there must be sufficient space to do so and
the wiring-plumbing must be suitable to do
so (1). If the space under the countertop is
suitable for fitting your machine, remove the
worktop as shown in the illustration (2).
WARNING: The countertop, which
the machine will be placed under, must be
stable in order to prevent imbalance.
The top panel of the dishwasher must
be removed to fit the machine under the
countertop.
To remove the top panel, remove the
screws that hold it on, located at the rear
of the machine. Then, push the panel 1 cm
from the front towards the rear and lift it.
Adjust the machine feet according to the
slope of the floor (3).
Fit your machine by pushing it under the
counter taking care not to crush or bend the
hoses (4).
WARNING: After removing the
top panel of your dishwasher, the
machine should be placed in a
space of the dimensions shown
in the figure below.
H1: min A
H2: min B1
H3: min B2
A B
All
Products B1B2
Product’s Height
(±2 mm) 820 mm 830 mm 835 mm
A: If there is no felt on the top of the
product; you should take into account this
product’s height.
B1: If there is felt on the top of the product
with 2nd basket; you should take into
account this product’s height.
B2: If there is felt on the top of the product
with 3rd basket; you should take into
account this product’s height.
In the absence of earthing
installation, an authorised
electrician should carry out an
earthing installation. In the case of use
without earthing installed, we will not be
responsible for any loss of use that may
occur.
The plug on this appliance may
incorporate 13A fuse depending on
the target country. (For Example UK,
Saudi Arabia)
2.5. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect a
transformer of 110/220 V and 3000 W
between the electrical connection.
Connect the product to a
grounded outlet protected by a fuse
complying with the values in the
"Technical Specifications" table".
The earthed plug of the
machine must be connected
to an earthed outlet supplied by
suitable voltage and current.

EN - 8
3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications
Capacity 12 place
settings
Dimensions
(mm)
Height
Width
Depth
850(mm)
598(mm)
598(mm)
Net weight 37,300 kg
Operating
voltage /
frequency
220-240V
50 Hz,
Total current
(A) 10(A)
Total power
(W) 1900(W)
Water supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)
13
3.1. General appearance
1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch
13. Mini Drying Unit: This system
enhances the drying performance of
your dishes.

EN -9
4. BEFORE USING
THE APPLIANCE
4.1. Preparing your
dishwasher for first use
• Make sure the electricity and supply
water specifications match the values
indicated in the installation instructions
for the machine.
• Remove all packaging material inside
the machine.
• Set the water softener level.
• Fill the rinse aid compartment.
4.2 Salt usage (IF AVAILABLE)
For a good washing function, the
dishwasher needs soft, i.e. less calcareous
water. Otherwise, White lime residues
will remain on the dishes and the interior
equipment. This will negatively affect your
machine’s washing, drying and shining
performance. When water flows through
the softener system, the ions forming the
hardness are removed from the water
and the water reaches the softness
required to obtain the best washing result.
Depending on the level of hardness of the
inflowing water, these ions that harden
the water accumulate rapidly inside the
softener system. Therefore, the softener
system has to be refreshed so that it
operates with the same performance
also during the next wash. For this
purpose, dishwasher salt is used.
Machine can only be used by special
dishwasher salt to soften the water.
Do not use any small grained or
powdered type of salts which can
easily soluble. Using any other type
of salt can damage your machine.
3 4
1 2
SALT
Only add water to the salt compartment
on first use.
Use softener salt specifically produced for
use in dishwashers.
When you start your dishwasher, the salt
compartment is filled with water, therefore
put the softener salt in prior to starting your
machine.
If the softener salt has overflowed and you
do not start the machine immediately, run
a short washing program to protect your
machine against corrosion.
4.3. Fill the salt (IF AVAILABLE)
To add softener salt, open the salt
compartment cap by turning it counter
clockwise. (1) (2) At first use, fill the
compartment with 1 kg salt and water (3) until
it is almost overflowing. If available, using a
funnel (4) will make filling easier. Replace the
cap and close it. After every 20-30 Cycles
add salt into your mach until it fills up (approx.
1 kg).

4.8. Detergent usage
Only use detergents specifically designed for domestic dishwashers.
Add the recommended amount of detergent for the selected programme to ensure the best
performance.
Keep your detergents in cool, dry places out of reach of children.
See the detergent manufacturer’s instructions for a further information.
EN - 10
4.4. Test Strip
Run water
through tap
(1min.)
Keep the
strip in
water (1sec)
Shake the
strip.
Wait
(1min.)
Set the hardness level of
your machine.
1
2
3
4
5
6
NOTE: Level is set 3 as default. If the water is well water or has a hardness level above 90
dF, we recommend that you use filter and refinement devices.
4.5 Water Hardness Table
Level German dH French
dF
British
dE Indicator
1 0-5 0-9 0-6 Wash LED is on.
2 6-11 10-20 7-14 Rinse LED is on.
3 12-17 21-30 15-21 Dry LED is on.
4 18-22 31-40 22-28 End LED is on.
5 23-31 41-55 29-39 Wash and End LEDs are on.
6 32-50 56-90 40-63 Rinse and End LEDs are on.
4.6. Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the
mains water supply. To find out the hardness level of your tap water, contact your water
company or use the test strip (if available).
4.7. Setting
• Turn the knob to the “0/Reset” position.
• Push the “Start/Pause” button and hold down.
• Turn on the machine.
• Hold down the “Start/Pause” button until the lights flash and “SL” disappears.
• The machine will display the last setting.
• Set the level by pushing the “Start/Pause” button.
• Switch off the machine to save the setting.

EN - 11
Continued use of too much detergent may
cause machine damage.
Using little detergent can result in
poor cleaning and you can see whitish
streaksin hard water. See the detergent
manufacturer’s instructions for a further
information.

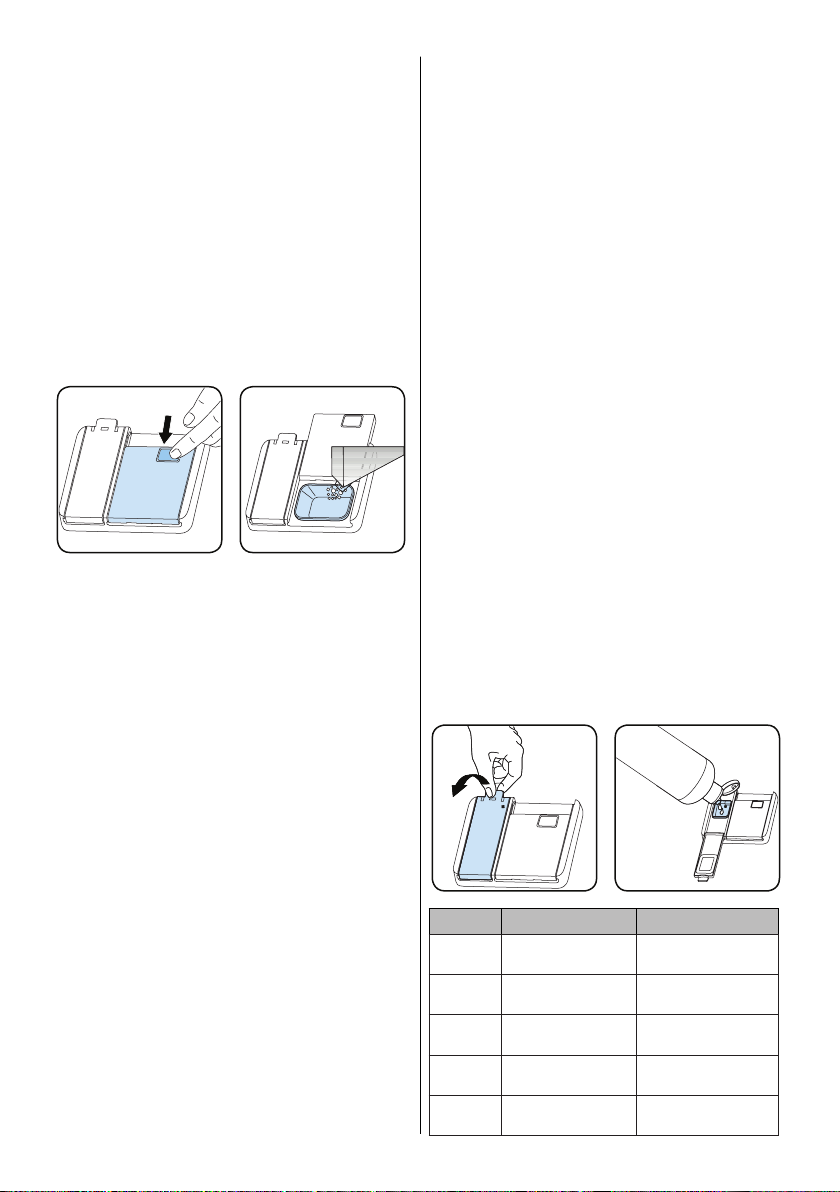

4.9. Filling the detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled just
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
4.10. Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to the correct level.
4.11. Rinse-aid usage
The rinse aid helps to dry the dishes without
streaks and stains. Rinse-aid is required for
stain-free utensils and clear glasses. The
rinse aid is automatically released during
the hot rinse phase. If rinse aid dosage
setting set too low, whitish stains remains
on dishes and dishes do not dry and
washed clean. If rinse aid dosage setting
set too height, you can see bluish layers on
glass and dishes.
4.12. Filling the rinse-aid and setting
To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX
level and then close the cap. Be careful not
to overfill the rinse aid compartment and
wipe up any spills.
In order to change the rinse aid level,
follow the below steps before turning on
the machine:
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
Wash LED is on.
2 1 dose is
dispensed
End LED is on.
3 2 doses are
dispensed
Start/Pause LED
is on.
4 3 doses are
dispensed
Wash and End
LEDs are on.
5 4 doses are
dispensed
Wash and Start/
Pause LEDs are on.
save the setting.
The factory setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level.
• Turn the knob to the “off” position.
• Push the “Start/Pause” button and hold
it down.
• Turn the knob counter clockwise one
step.
• Hold down the “Start/Pause” button until
the LEDs flash twice.
•The machine will display the current
setting.
• Set the level by pushing the “Start/
Pause” button.
• Turn the knob to the “off” position to

EN - 12
WARNING: To avoid any possible
injuries, place long-handle and sharp-
pointed knives with their sharp points facing
down or horizontally on the baskets.
5. LOADING YOUR
DISHWASHER
For best results, follow these loading
guidelines.
Loading the household dishwasher up to
the capacity indicated by the manufacturer
will contribute to energy and water savings.
Manual pre-rinsing of tableware items leads
to increased water and energy
consumption and is not recommended
You can place cups, glasses, stemware,
small plates, bowls, etc. in upper basket.
Do not lean long glasses against one
another or they cannot remain steady and
may receive damage.
When placing long stem glasses and
goblets, lean them against the basket edge
or rack and not against other items.
Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards otherwise water
can collect on items.
If there is cutlery basket in machine, you
are recommended to use the cutlery grid in
order to obtain the best result. Place all
large (pots, pans, lids, plates, bowls etc.)
and very dirty items in the lower rack.
Dishes and cutlery should not be placed
above each other.
WARNING: Take care not to obstruct
the rotation of spray arms.
WARNING: Make sure after loading
the dishes do not prevent opening the
detergent dispenser.
5.1. Recommendations
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or place
dishes in the wrong basket.

EN - 13
Upper Basket
Height adjustment
Turn the Rail Stop Clips, at the ends of the
rails, to the sides to open them (as shown in
the image below), then pull out and remove
the basket. Change the position of the
wheels, then reinstall the basket to the rail,
making sure to close the Rail Stop Clips.
When the upper basket is in the higher
position, large items such as pans can be
placed on the lower basket.
Top basket
Fixed Rack
Upper basket racks have two positions:
open (a) and closed (b). You can place cups
on the racks to be washed. You can also
place long forks, knives and spoons on the
racks laterally.
a
b

EN - 14
5.2. Alternative basket
loads Lower basket
Upper basket
Unsuitable items for dishwashing
• Cigarette ashes, candle leftovers,
polish, paint, chemical substances, iron-
alloy materials.
•
•
Forks, spoons and knives with wooden,
bone, ivory or nacrecoated handles;
glued items, items soiled with abrasive,
acidic or base chemicals.
Temperature-sensitive plastics, copper
or tincoated containers.
• Aluminium and silver objects.
• Some delicate glasses, ornamental
printed porcelains; some crystal items,
adhered cutlery, lead crystal glasses,
cutting boards, synthetic fibred items.
• Absorbent items such as sponges or
kitchen rugs.
IMPORTANT: In future, purchase
dishwasher-proof kitchenware.
Important Note for Test Laboratories
For detailed information required for tests
according to EN normatives and a softcopy
of the manual, please send the model name
and serial number to the following address:
[email protected]
Incorrect Loads
Incorrect loading can cause poor washing
and drying performance. Please follow the
manufacturer's recommendations for a good
performans result.

EN - 15
6. PROGRAMME TABLE
P1 P2 P3 P4 P5
Program
Name: Quick 30’ 40°C Eco Super 50’ Intensive 65°C Hygiene 70°C
Type of Soil:
Suitable for
lightly soiled
dishes and
quick wash.
Standard
program for
normally
soiled daily
using dishes
with reduced
energy
and water
Suitable for
normally
soiled daily
dishes
with faster
program.
Suitable for
heavily soiled
dishes.
Suitable
for heavily
soiled dishes
requiring
hygienic
washing.
Level of Soil: Light Medium Medium Heavy Heavy
Amount of
Detergent:
A: 25 cm3
B: 15 cm3”
A A A A A
Program
Duration
(h:min)
00:30 03:41 00:50 01:57 02:07
Electiricity
consumption
(kWh/cycle)
0.740 0.923 1.100 1.700 1.900
Water
consumption
(l/cycle)
12.4 9.0 12.0 17.2 16.0
• The program duration may change according to the amount of dishes, the water
temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• If your model has turbidity sensor, it has Auto program instead of Intensive program.
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the
most efficient programme in terms of its combined energy and water consumption, and
that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and
water in the use phase than hand dishwashing when the household dishwasher is used
according to the manufacturer’s instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading
the QR code on the energy label.
NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy
consumption values may differ. This table is in line with regulations 2019/2022 and
2017/2022.

EN - 16
7.. THE CONTROL PANEL
Rotate the Programme Selection Knob
(3) to switch the machine on and select
suitable programme for your dishes. When
the knob is in the 'Off' position, the machine
will not operate.
Press the Start/Pause button (2) to start
the selected programme. The Start/Pause
light will switch off and the Wash light will
illuminate. If the door of your machine is
opened while a programme is in operation,
the Start/Pause light will flash.
NOTE: Press and hold the Delay
button (1) for 3 seconds to activate the Half
Load function, which shortens the duration
of a programme. Press and hold the button
again for 3 seconds to cancel it.
NOTE: If an extra feature is used,
such as the Delay or Half Load, (1) on the
most recent wash programme, this feature
will remain active on the next selected
programme. To cancel this feature on the
newly selected wash programme, turn the
Programme Selection Knob to the 'Off'
position, then turn the machine on. Extra
features can be activated with the newly
selected programme.
Delaying the Programme
Press the Delay button to delay the start
time of a programme for 3, 6 or 9 hours.
Pressing the button once will delay the start
time for 3 hours, pressing twice will delay
for 6 hours, and pressing a third time will
delay the start time for 9 hours. If the button
is pressed for a fourth time, there will be
no delay. Press the Start/Pause button to
activate the delay. The programme can be
selected first and the delay time after, or
vice versa. To cancel or change the delay
time, press the Start/Pause button first, then
select a new delay time. The delay time
can be cancelled by turning the Programme
Selection knob to the 'Off' position. During
a delay, the light corresponding to the
remaining time is switched on.
7.1. Changing a Programme
Follow the steps below to change a
programme while in operation.
Press the Start/Pause button.
After the programme stops,
select a new programme using
the Programme Selection Knob.
Press the Start/Pause button
to start the newly selected
programme.
The new programme will
resume the course of the
old programme.
