Vox IKG2600 User manual
EN BUILT IN REFRIGERATOR
Fridge - Freezer
User manual
IKG2600
LET’S LIVE TOGETHER
SB UGRADNI
Frižider sa Zamrzivačem
Uputstva za upotrebu
SL VGRAJENI HLADILNIK
Hladilnik - zamrzovalnik
Uporabniški priročnik
MK Вграден фрижидер
Корисничко упатство
BO UGRADBENI
Kombinovani Frižider
Uputstvo za upotrebu
EN -2-
Index
BEFORE USING THE APPLIANCE ..........................................3
General warnings ....................................................................3
Safety warnings.......................................................................5
Installing and operating your fridge .........................................6
Before Using your Fridge ........................................................7
HOW TO OPERATE THE APPLIANCE .....................................7
Thermostat setting ..................................................................7
FOOD STORAGE IN THE APPLIANCE ....................................8
Refrigerator Compartment ......................................................8
Freezer Compartment .............................................................8
CLEANING AND MAINTENANCE.............................................9
Defrosting...............................................................................10
Replacing the Light bulb.........................................................11
SHIPMENT AND REPOSITIONING..........................................11
BEFORE CALLING YOUR AFTER SALES SERVICE.............11
Tips For Saving Energy..........................................................13
PARTS OF THE APPLIANCE AND THE COMPARTMENTS ..14
Installation instructions and door reversibility.........................15
The operating instructions apply to several models. Differences may therefore occur.
EN -3-
BEFORE USING THE APPLIANCEPART 1.
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended by
the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be xed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn this
information from the label on the cooler- you should be careful
during shipment and installation to prevent your appliance’s
cooler elements from being damaged. Although R600a is an
environmentally friendly and natural gas. As it is explosive, in the
event of a leak due to damage to the cooler elements, move your
fridge from open ame or heat sources and ventilate the room
where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, ofces and other working
environments
- farm houses and by clients in hotels, motels and other residential
type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
EN -4-
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable
of your refrigerator. This plug should be used with a specially
grounded socket of 16 amperes. If there is no such socket in your
house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazard involved. Children shall
not play with the appliance. Cleaning and user maintenance, shall
not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualied persons in
order to avoid a hazard.
EN -5-
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with
CFC. Therefore, take care not to harm environment when you are discarding
your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled and
our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play
with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department.
Bottles or cans may explode.
• Do not place explosive or ammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by closing
their necks tightly in the fridge department.
EN -6-
• When taking ice made in the freezer department, do not touch it, ice may cause
ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes
immediately after you have taken them out of the freezer department!
• Do not re-freeze frozen goods after they have melted. This may cause health issues like
food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odor when you rst switch on the appliance. It will disappear after the
appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the
nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efcient ground connection. If the socket has
no ground contact or the plug does not match, we suggest you to call an authorized
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply
(AC) and voltage at the operating point must with the details on the name plate of the
appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your fridge should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores,
and should be at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be at least
2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use (See
Cleaning and Maintenance).
• Installation procedure into the kitchen unit is given in the The installation procedure into
the kitchen unit is given in the Installation Manual. This product is intended to be used
in proper kitchen units only.
• The adjustable front legs should be adjusted to an appropriate height to allow your
freezer to operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in the
freezer.
• Before using your fridge, wipe all parts back with warm water added with a tea spoonful
of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
EN -7-

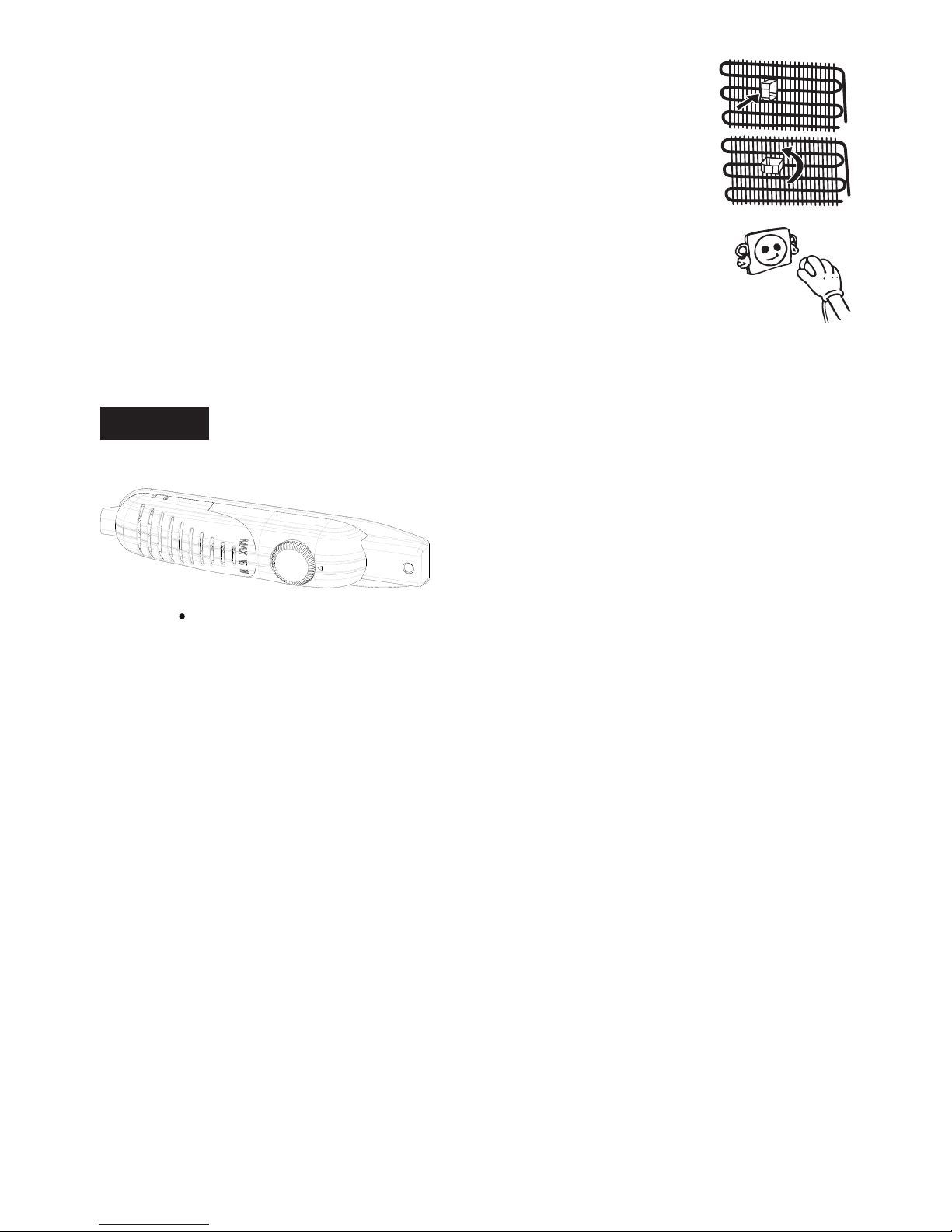

• Install the plastic distance guide (the part with black vanes at the rear)
by turning it 90° as shown in the gure to prevent the condenser from
touching the wall.
• Refrigerator should be placed against a wall with a free distance not
exceeding 75 mm.
Before Using your Fridge
• When it is operated for the rst time or after transportation, keep your
fridge in the upright position for 3 hours and plug it on to allow efcient
operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the rst time; the smell will fade
away when your fridge starts to cool.
HOW TO OPERATE THE APPLIANCEPART 2.
Thermostat setting
• Thermostat automatically regulates the inside
temperature of the refrigerator compartment
and freezer compartment. By rotating the knob
from position 1 to 5, colder temperatures can be
obtained.
• The “ “ position shows thermostat is closed and no cooling is available.
• For short-term storage of food in the freezer compartment, you can set the knob between
minimum and medium position (1-3).
• For long-term storage of food in the freezer compartment, you can set knob medium
position.(3-4)
• Note that; the ambient temperature, temperature of the freshly stored food and how often
the door is opened, affects the temperature in the refrigerator and freezer compartments.
If required, change the temperature setting.
• When you rst switch on the appliance, you should ideally try to run it without any food
in for 24 hours and not open the door. If you need to use it straight away, try not to put
much food inside.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting
in order not to damage the compressor.
• The freezer of the refrigerator cools down to -18°C and less.
EN -8-
FOOD STORAGE IN THE APPLIANCEPART 3.
Refrigerator Compartment
Refrigerator compartment is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf
just above the vegetable bin, where the air is colder.
• You can put the fruits and vegetables into crisper without packing.
• To avoid the cold air escaping, try not to open the door too often, and not leave the door
open for a long time.
Freezer Compartment
Freezer compartment is used for freezing fresh foods and for storing frozen foods for the
period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should
be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy grade, in
doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen
food.
• Always mark the date and the content on the pack and do not exceed the stated storage
time.
• In case of a power failure or malfunction, the freezer compartment will maintain a
sufciently low temperature for food storage. However, avoid opening the freezer door
to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is
indicated on the name plate ( see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is not
damaged.
• The storage time and the recommended temperature for storing frozen foods are
indicated on the packaging. For storing and using, follow the manufacturer’s instructions.
If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible
in order to consume or to freeze once again.
EN -9-

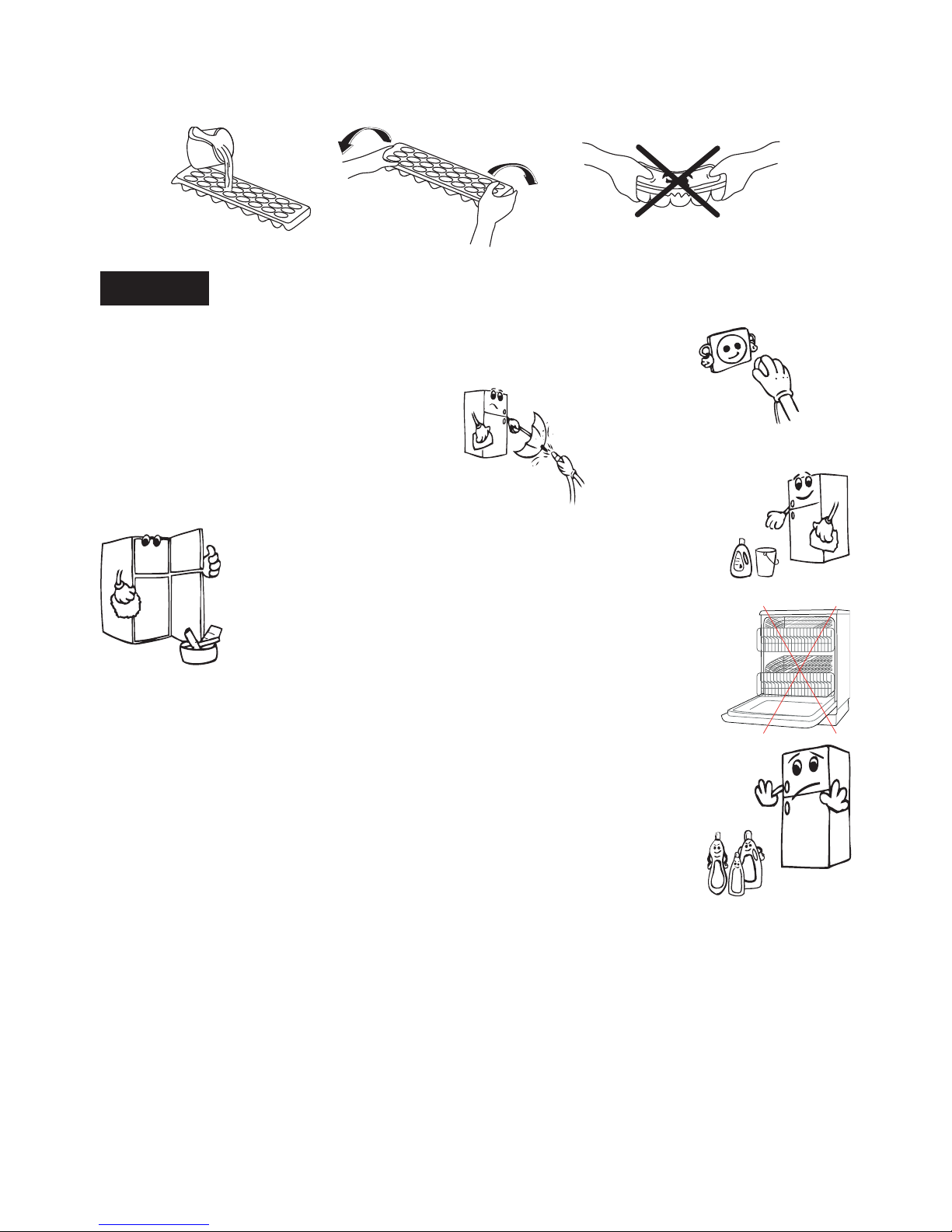

• When making ice cubes, ll the ice tray with water and place in freezer compartment.
After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
CLEANING AND MAINTENANCEPART 4.
• Disconnect the appliance from the power supply before cleaning.
• Do not pour water over the appliance.
• The refrigerator compartment should be cleaned
periodically using a solution of bicarbonate of soda
and lukewarm water.
• Clean the accessories separately with soap and
water. Do not put them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After washing,
rinse with clean water and dry carefully. When the cleaning
operations have been completed, reconnect the plug with dry
hands.
EN -10-

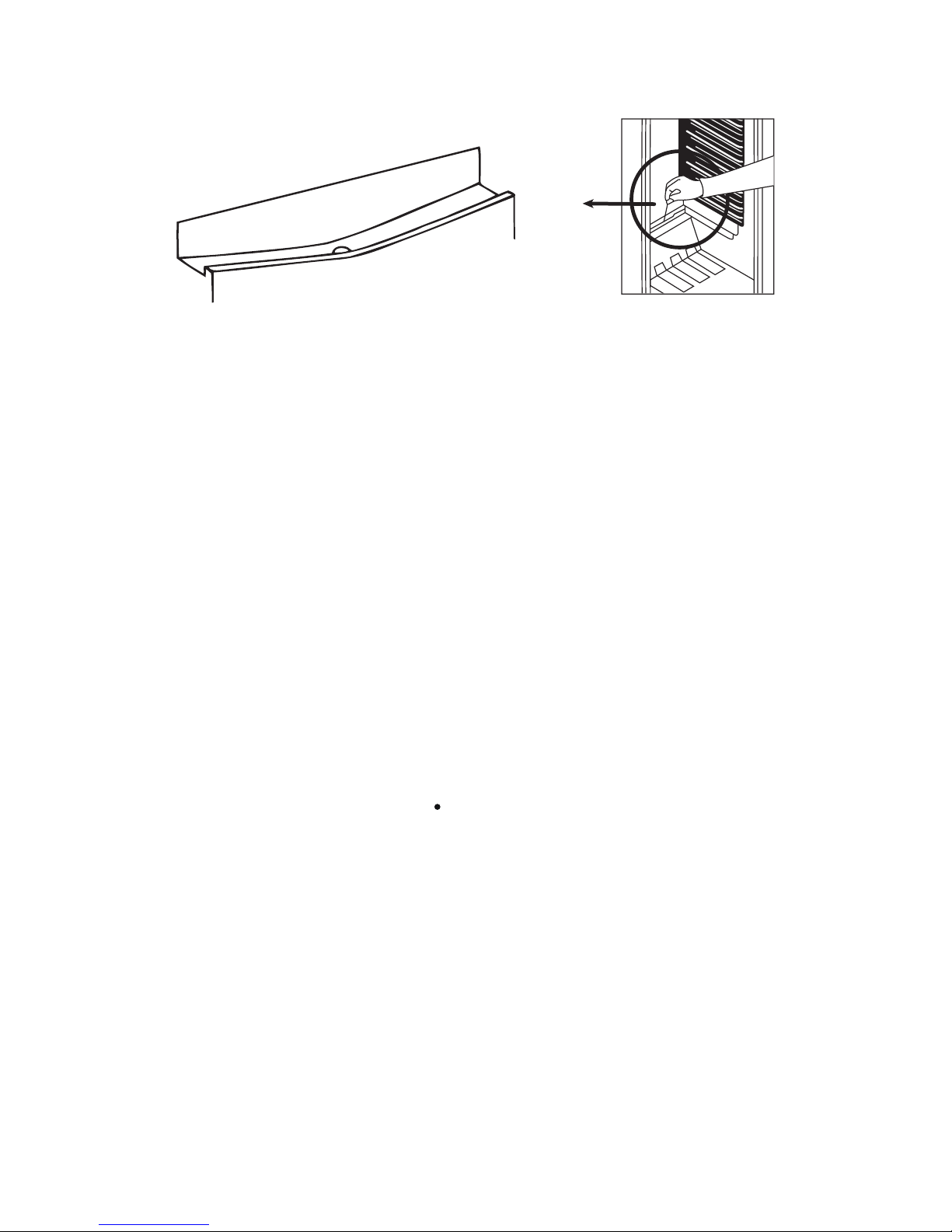

Defrosting
Defrosting the Refrigerator compartment:
• Defrosting occurs automatically in refrigerator compartment during operation; the defrost
water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with
defrost drain plug to prevent the water from collecting on the bottom of the refrigerator
instead of owing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
Defrosting the Freezer compartment:
WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this
operation as they can damage the refrigeration circuit.
After a period of time, frost will build up in certain areas in the freezer compartment. The
frost, accumulated in the freezer compartment, should be removed periodically (use the
plastic scraper if available).
Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain the
efciency of the freezer.
• The day before you defrost, set the thermostat dial to position “5” to freeze the foods
completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in
a cool place. The inevitable rise in temperature will shorten their storage life. Remember
to use these foods within a relatively short period of time.
• Set the thermostat knob to position “ “ and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the
compartment.
• Clean the interior by hand with lukewarm water and a little detergent.
Never use abrasive products or aggressive cleaning agents.
• Dry the inside of the unit, plug on the mains, and set the thermostat knob to position “5”.
After 24 hours, reset the thermostat to the desired position.
EN -11-
Replacing the Light bulb
When replacing the bulb of the refrigerator compartment;
1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.
SHIPMENT AND REPOSITIONINGPART 5.
Transportation and changing of installation position
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the
instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves,
accessories, vegetable bins etc.) or x them
into the fridge against shocks using bands
during re-positioning and transportation.
BEFORE CALLING YOUR AFTER SALES SERVICE
PART 6.
If your refrigerator is not working properly, it may be a minor problem, therefore check the
following.
The appliance does not operate,
Check if;
• There is a power failure,
• The mains plug is not properly plugged in, or is loose
• The thermostat setting is on position “ “,
• The socket is defective. To check this, plug in another appliance that you know which is
working into the same socket.
EN -12-
The appliance performs poorly;
Check if;
• You have overloaded the appliance,
• The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation
Manual.
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling
sound) even when the compressor is not running. Do not worry, this is quite normal. If these
sounds are different check if;
• The appliance is installed rmly as described in the Installation Manual.
• The objects on the appliance are vibrating.
f there is water in the lower part of the refrigerator;
Check if;
The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating
your fridge out of stated temperatures value limits in terms of cooling effectiveness.
Climate
Class Ambient Temperature oC
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
Recommendations
• In order to increase space and improve the appearance, the “cooling section” of
refrigerators is positioned inside the back wall of the refrigerator compartment. When
the compressor is working, this wall is covered with frost or water drops. Do not worry.
This is quite normal. The appliance should be defrosted only if an excessively thick ice
layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays), set
the thermostat knob to position “ “. Defrost and clean the refrigerator leaving the door
open to prevent the formation of mildew and smell.
Conformity Information
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C
range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24,
2004/108/EC standards.
EN -13-
Tips For Saving Energy
1.Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near
heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2.Allow ward food and drinks to cool down outside the appliance.
3.When thawing frozen food, place it in the refrigerator compartment. The low temperature
of the frozen food will help to cool the refrigerator compartment when it is thawing. So it
causes energy saving. If the frozen food is put out, it causes wastage of energy.
4.When placing, drinks and slops they must be covered. Otherwise humidity increases at
the appliance. Therefore the working time gets longer. Also covering drinks and slops
helps to save smell and taste.
5.When placing food and drinks, open the appliance door as briey as possible.
6.Keep close the covers of any different temrepature compartment in the appliance (crisper,
chiller ...etc ).
7.Door gasket must be clean and pliable. Replace gaskets if worn.
EN -14-
A) Freezer compartment
B) Fridge compartment
1) Ice blade
2) Ice box
3) Freezer compartment shelf
4) Termostat box
5) Fridge compartment shelves
6) Crisper cover
7) Crispers
8) Bottle shelf
9) Butter-Cheese shelf
10) Egg holder
PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
PART 7.
The purpose of this presentation is informing you about the parts of your appliance.
The parts may vary depending on the model of the appliance.
1
2
3
A
4
B
5
6
78
9
10
EN -15-
Installation instructions and door reversibility
Installation
! Before installation, read the instructions carefully.
! Fit the refrigerator/freezer in stable kitchen units only.
! If necessary, reverse the door according to instructions.
! Check the installation dimensions according to g.C. The position of the joint between
the unit doors must be level with the position of the joint between the appliance doors.
1.See g.A for the necessary attachment components.
2.Insert trim ap1into slot and screw by screws6. (g.D)
3.Pass the power cord through ventilation shaft and position it so that the appliance could
be easily plugged in once it has been installed. (g.B - g.C)
4.Take out the trim gasket2located on the side panel of the appliance and stick it on
reverse side of the door hinges of the appliance. (g.D - g.E)
5.Raise appliance and slide into kitchen unit. Push appliance to the reverse side of door
hinges providing that trim gasket2covers space between appliance and the kitchen unit.
6.Align front feet with front surface of kitchen unit. (g.F)
7.Screw the front feet by using screws5. (g.F)
8.Screw trim ap1to kitchen unit using screws5. (g.G)
9.Screw xing bracket11, as leaned to kitchen unit by using screws5. Repeat this for the
opposite side. (g.H)
10. Screw guides3to appliance doors with screws6. Lean appliance doors to unit door as it
is opened at right angle. Slide rails4into guides3aligning the groove. Screw the rails4to
the unit doors with screws5. (g.J)
11. Set 1~2 mm gap on handle side between unit itself and unit doors by adjusting guides3.
That is vital for appliance performance. (g.J)
EN -16-
Figure A
A B C D E
1445 1025 982 310 1445-1465
mm
Figure B Figure C
Figure D Figure E
EN -17-
Figure F Figure G Figure H
Figure J
EN -18-
Door reversing
1.Unscrew upper door hinge15 and take upper door14 to safe place.
2.Unscrew door hinge pin16 and screw it to opposite side rmly and take to safe place.
3.Unscrew middle door hinge12 and take lower door10 to safe place. Screw back xing
bracket11 to original position without middle door hinge12.
4.Take door lower pin18 to opposite side.
5.Take hole plugs17 to empty holes on opposite side.
6.Place lower door10 over door lower pin18 and close onto cabinet.
7.Unscrew xing bracket13. Position middle door hinge12 onto lower door10. Place xing
bracket11 onto middle door hinge12 and screw together onto cabinet rmly.
8.Place upper door14 over middle door hinge12 and position upper door hinge15 over
upper door14 and then screw upper door hinge15 rmly onto opposite side of original
position.
Figure K
SB -19-
Instrukcije oko rukovanja su validne za više modela. Mogu nastati razlike zbog toga.
Indeks
PRE NEGO ŠTO KORISTITE UREĐAJ ...................................20
Opšta upozorenja...................................................................20
Sigurnosna upozorenja ..........................................................22
Instalacija i rukovanje vašeg frižidera ....................................23
Pre upotrebe frižidera.............................................................24
KAKO RUKOVATI UREĐAJEM................................................24
Postavke termostata ..............................................................24
ČUVANJE HRANE U UREĐAJU..............................................24
Odeljak frižidera .....................................................................24
Odeljak zamrzivača................................................................25
ČIŠĆENJE I ODRŽAVANJE .....................................................26
Odmrzavanje..........................................................................26
Zamjena lampice....................................................................27
PREVOZ I PROMENE POZICIJE .............................................28
PRE NEGO ŠTO SE JAVITE POSLE-PRODAJNOG SERVISA28
Saveti za uštedu energije.......................................................29
DELOVE UREĐAJA I ODELJKE..............................................30
Uputstva za montažu i okretanje vrata...................................31
Table of contents
Languages:
Other Vox Refrigerator manuals
