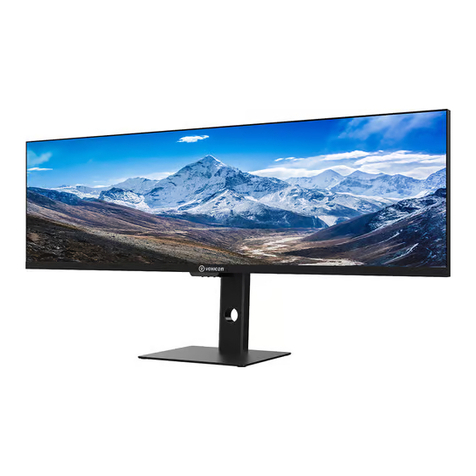

voxicon VXD-P49UWHD User manual

VXD-P49UWHD
USER MANUAL

1
1. Safety Precautions
2. Maintenance Guidelines
WARNING: Safety Instructions
CAUTION
Do not place the monitor in rain, humid environment or open
the monitor case to avoid any shock, electrical hazards, and/or
mechanical hazards.
Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
To clean your screen, slightly dampen a soft, clean cloth with water.
If possible, use a special screen-cleaning tissue or solution. Do not
use benzene, thinner, ammonia, abrasive cleaners, or compressed
air.
Use a slightly dampened, warm cloth to clean the frame. Avoid
using detergent of any kind as some detergents might leave a milky
film on the plastics.
Unplug the monitor if you are not going to use it for an extended
period of time.
To avoid the risk of shock or permanent damage to the set, do not
expose the monitor to dust, rain, water, or excessive moisture
environment. If your monitor gets wet, wipe it with dry cloth as soon
as possible.
Keep the monitor out of direct sunlight and away from stoves or
any other heat source.
Keep the monitor out of water source
Remove any object that could fall into ventilation holes or
prevent proper cooling of the monitor's electronics.
Do not block the ventilation holes.
Do not knock or drop the monitor during operation or transportation.
Operation
Caring for Your Monitor

2
3. Box Contents
Monitor x 1
Screws M4*12mm x 4
(for wall mounting)
DP Cable x 1
Stand Stem x 1 Stand Base x 1
Screws CM4*8mm x 3
(for stand installation)
Power Cable x 2
User Manual x 1
length 17mm
length 35mm
Base A
Base B
Screws CM5*12mm x 4
(for stand installation)
VXD-P49UWHD
USER MANUAL

3
4. Product Overview
4.1 —Monitor Buttons
4.2—Monitor Ports
M Menu Button: Press to display the OSD menu or enter sub-menus.
Down Button: Press to move down in the menus.
Up Button: Press to move up in the menus.
E Exit Button: Press to exit.
Power Button: Press to turn the monitor on/off.
HDMI Connectors: Insert one end of the HDMl cable into the computer's
HDMl output and connect the other end to the monitor's HDMI port.
DP Connector: lnsert one end of the DP cable into the computer's DP
output and connect the other end to the monitor's DP port.
Audio Output: Insert the audio cable for output of audio signals.
Power Connector: Insert the power cable to supply power to the monitor.
2
1
3
4
5
7
6
8
9
1 2 3 4 5

2. Lock the base A and the base B with three CM4*8 screws. Then lock the base
assembly and bracket assembly with three CM5*12 screws.
3. Take the whole machine out of the carton and put it in the upper styrofoam, and
put the whole machine upside down.
4. Fasten the assembled base part to the quick-release position of the whole machine,
but be sure to shake the fastened base back and forth twice to see if it is fastened.
base A
base B
CM4*8
Screws x3
Stand Stem
CM5*12
Screws x3
4
5. Stand lnstallation
1. Open the package, remove the product with the foam still attached, and place it
gently on a desk or table.

Bu�on
5
6. Mount lnstallation
This monitor only includes screws which may be used when attaching the
monitor to a VESA 75*75mm type mount. No VESA mount or mounting
accessory is included.
1. Open the carton package, take out the whole machine and Polylon together, as
shown in the figure, place a horizontal table top, use a Phillips screwdriver to
remove the four screws of the rear lock shell first.
5. If you want to remove the base, take off the decorative cover of the rear shell, pull
down the quick release button, and the base can be taken off.
6. Use both hands to place the assembled monitor on a flat desk.
Keep the foam underneath the monitor before attaching the stand.
Remove four M4*8 screws

6
2. Take the hexagonal studs from the accessory bag and lock them on the back shell,
as shown in the figure, two stud locks with a length of 35mm are above and two
stud locks with a length of 17mm are underneath.
3. The assembled product can be wall-mounted. Do not pinch the screen directly with
your hands during the process of hanging the product to prevent the screen from
being broken.
Do not discard the original screws because they may be needed for later use.
Stud length 35mm
Stud length 17mm
Wall bracket

Exposure to loud audio for prolonged periods of time may permanently
damage your hearing.
Plug in your earphones to receive audio signals from your monitor. If you have an
audio device connected toyour computer when you connect your earphones tothe
monitor, the audio devices will not produce sound. Earphones and other audio
devices are not included.
7. Connectivity Options
7.2 – Connecting Your Earphones
7.1 – Connecting the Power Cable
7
Earphones (not included)
Connect the included power cable to the power connector and then plug the other
end into a wall outlet.
Power Cable

7.3 – DP Connectivity
7.4 – HDMI Connectivity
For the monitor to receive DP signals from the computer, use the DP cable to connect
the monitor tothe computer.
8
DP
DP OUTPUT
DP Cable (Included)
For the monitor to receive HDMl signals from the computer, use an HDMl cable to
connect the monitor to the computer.
HDMI Cable (Not Included)
HDMI OUTPUT
PC

Indicator Light
9
8. Basic Operation
9. lndicator Light
1. Insert one end of the DP cable into your PC's graphics card. An HDMl cable may
also be used. HDMI cable is not included.
2. Connect the other end of the cable to the corresponding connector on your monitor.
3. Connect the power cable to your monitor then connect the other end to your power
source. It is recommended that you use a surge protector with adequate voltage if
a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.
Solid blue light indicates power is on and the monitor is operating normally. Flashing
blue light indicates no video source, no horizontal or vertical signal has been detected
or power is low.Please ensure your computer is on and all video cables are fully inse-
rted and/or connected.
HDMI Connectors
DP Connectors

3. Press ( ) or ( ) to browse functions.
- Highlight the desired function and then press Mto enter the sub-menu.
- Press ( ) or ( ) to browse sub-menus then press Mto highlight the desired
function.
- Press ( ) or ( ) to highlight an option and then press Mto confirm the
settings and exit the current screen.
- Press E ( ) to exit the current screen.
3840x1080@144Hz
3840x1080@144Hz
10
10. On-Screen Display (OSD)
When using the monitor for the first time, settings will automatically adjust to
optimal settings according to your computer's configuration and parts etc.
The On-Screen Display (OSD) Menu may be used to adjust your monitor's settings
and appears on screen after turning on the monitor and pressing the Mbutton.
2. Press M( ) to enter the OSD screen.
1. Press one of the buttons( ) to activate the navigation window.
M, , , E,

10.1- OSD Menu Functions
Main Menu Sub-Menu Options Description
Input Source
HDMI 1,
HDMI 2,
HDMI 3
NONE Switch to HDMI signal input
DP NONE Switch to DP signal input
Brightness/
Contrast
Brightness 0~100 Adjust display brightness
Contrast 0~100 Adjust display contrast
DCR On Turn on DCR function
Off Turn off DCR function
Color Setting Gamma Set Gamma add-in1.8
2.0
2.6
Picture Mode Standard, Photo,
Movie, Game,
FPS, RTS
Set visual mode according to activity
Color
Temperature
Warm, Cool, User Select color temperature
Low Blue Light 0~100
Hue 0~100 Adjust hue levels
Saturation 0~100 Adjust saturation levels
Quality
Setting
Sharpness 0~100 Set display sharpness
Response Time Off, High, Middle,
Low
Adjust response time
Noise
Reduction
Off, High, Middle,
Low
Reduce the interference of image noise
caused by signal source interference
Dynamic
Luminous
Control
On, Off Compensate for gray scale display
screen and strengthen the expression of
gray scale
Display Aspect Ratio Wide Screen, 4:3,
1:1, Auto
Select on-screen aspect ratio
Audio Mute On, Off Turn mute mode on/off
Volume 0-100 Adjust audio volume
Audio Source DP, HDMI 1,
HDMI 2, HDMI 3
Select audio signal input via HDMI or DP
2.4
2.2
11

Main Menu Sub-Menu Options Description
Multi-Window Multi-Window Off, PIP Mode,
PBP 2Win
Select PIP/PBP modes according to the
number of input signals etc.
Sub Win2 Input DP, HDMI 1,
HDMI 2, HDMI 3
Select according to input signal for
PBP mode
PIP Size PIP Mode, HDMI2,
Medium, TopRight
Adjust the PIP/PBP display window size
PIP Position Top Right,
Top Left,
Bottom Right,
Bottom Left
Adjust the PIP/PBP window position
Swap NONE Swap the two channel signal source of
only the PBP 2 screens function
OSD Language English,简体中文,
한국어,Русский,
Español, 日本語,
Français
Set OSD language
OSD
H-Position
0-100 Adjust the OSD’s horizontal position
OSD V-Position 0-100 Adjust the OSD’s vertical position
OSD
Transparency
0-100 Set the OSD’s overall transparency
OSD Time Out
OSD Rotation Normal, 90,
180, 270
When the user flips the display, this
function can also flip the oSD to achieve
the best display angle
5-100 Set how long the OSD remains open
after non-use
Other DP Version DP1.1, DP1.2
Adaptive-Sync
HDR On, Off;
Auto Detect
Turn the HDR mode on/off
On, Off Turn the Adaptive-Sync function on/off
Reset None
12

3. Press E( )button to switch RGB Ranges included Limited and Full. Full Range
is suitable for most activities.
4. Press ( ) button on monitor or press on remote to enter the LED Effects
menu.
▲
▲
RGB Range:Full
LED Effects System Console
13
11. GamePlus Switching , RGB Ranges
and LED Effects
1. Press one of the buttons( ) to activate the navigation window.
M, , , E,
2. Press ( ) to switch Gameplus modes. According to the needs of your game,
choose the corresponding game icon.These game icons are primarily designed to
optimize your aim during shooting games, though they can be used for other
scenarios.

14
12. Technical Specifications
VXD-P49UWHD
49"
32:9
E-LED
350 cd/m2 (Typ.) / 320 cd/m2(Min.)
VA
144Hz
OD 4ms
75 x 75mm
DP 1.2*1, HDMI 2.0*1, HDMI 1.4*2, Audio out*1
16.7M
AC 100-240~ 50/60Hz 2.0A
1198.54*466.02*240.18mm
1198.54*375.62*160.23mm
11.4kg
15kg
AdditionalFunctions
LowBlueLight
PhysicalDimensions
Dimensions (w/ stand)
Dimensions (w/ostand)
Net Weight
Gross Weight
DP1.2: 3840*1080@144Hz
HDMI 2.0: 3840*1080@120Hz
HDMI 1.4: 3840*1080@60Hz
3000:1
178°(H) / 178°(V)
Yes
No
Yes
Yes
Yes
Yes
Model
screen Size
Aspect Ratio
Backlight
Brightness
Panel
Resolution
Refresh Rate
Response Time
Viewing Angle
Contrast Ratio
VESA Mounting
Display Colours
Adaptive-sync
Interface
Power Input
Audio
Speakers
Audio Out
Accessories
Power Cable
DP Cable
