Voxoa S70 User manual

S70
S70
3
Contents
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 48
FEATURES ............................................................................................................. 50
MAIN FEATURES ................................................................................................... 50
FEATURES & FUNCTION .......................................................................................... 52
CONNECTIONS ...................................................................................................... 54
PART NAMES AND FUNCTIONS ................................................................................. 56
PLAYER CONTROL PANEL ........................................................................................ 56
DISPLAY SECTION ................................................................................................. 62
TOP PANEL MIXER SECTION ..................................................................................... 64
FRONT PANEL ....................................................................................................... 67
REAR PANEL ........................................................................................................ 68
UTILITY MENU ........................................................................................................ 70
OPERATIONS ......................................................................................................... 72
SOFTWARE INSTALLATION INSTRUCTION .............................................................................. 77
VIRTUALDJ CONTROL AND FUNCTIONS ..................................................................... 80
VOXOA TUNEBOX SOFTWARE..........................................................................................82
MIDI MAP (HEX) ....................................................................................................... 85
SPECIFICATIONS .................................................................................................... 89

48
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to the presence
of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
CAUTION : To reduce the risk of electric shock, do not remove any cover. No user-
serviceable parts inside. Refer servicing to qualified service personnel only.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the literature accompanying this appliance.
WARNING
CAUTION

S70
S70
49
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
17. All warnings on the appliance and in the operating instructions should be adhered to.
18. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
19 .Power Sources - This product should be operated only from the type of power source indicated on the rating label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer the operating instructions.
20. Grounding or Polarization - This product may be equipped with a polarized alternation-current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
21. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the cord in correspondence of plugs, convenience receptacles,
and the point where they exit from the appliance.
22. For AC line powered units - Before returning repaired unit to user, use an ohm-meter to measure from both AC plug blades to
all exposed metallic parts. The resistance should be more than 100,000 ohms.
23. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period
of time.
24. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
25. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power-supply cord
or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance
has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or E. The appliance has been dropped, or the enclosure damaged.
26. Servicing - The user should not attempt any service to the appliance beyond that that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
27. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
28. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
29. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.

50
ENGLISH
- MAIN FEATURES
All-in-one Design
The S70 Digital DJ Workstation is a dual USB player and a high performance mixer, all-in-one design in an elegant
unit. Setting the S70 is easy and fast because you don’t need to waste time connecting cables. You just need to
bring the S70 and USB storage and you can DJing. It’s perfect for DJs working events, clubs that need to be able
to pack away their system quickly, and any other DJ on the move. Moreover, the S70 also is a MIDI controller can
fully control any DJ software, the comprehensive MIDI compatibility all of the 98 control elements can be applied
as MIDI control device.
USB Player
In this digital era, USB devices become the most convenient for music collection. The S70 support 2 external
USB mass storage devices. Connect an MP3 player, thumb drive and large hard drives for easy access to small or
extensive MP3/WAV libraries up to 999 folders and each folder 999 files.
VOXOA TUNEBOX Software
Support the VOXOA TUNEBOX software makes reading and searching files much quicker and easier. The VOXOA
TUNEBOX can scan all of music files in your USB mass storage devices and then create database files to locate
the files in your music library.
MIDI Interface Controller (PC/MAC)
In this new era of DJing, more and more DJs utilize computer and DJ software for their performances. In order
to satisfy DJs requirement, the S70 is also designed to interface and control a variety of popular DJ software
applications that support USB MIDI interface. DJs can assign virtually every button to trigger functions of various
DJ software programs.
Memo Points with 4 Trigger Pads
Every track can be saved 4 memo points for Hot Cues and Loops. The S70 can store your Hot Cues and Loops
on any audio track and recall them at a later time when that track is cued in USB drive. The memo points are
unlimited. It is all depend on your USB memory capacity. This memo function can be used like a mini sampler for
vocals, stabs, or breaks, adding that touch of creativity to any DJ set.
Real-time Cutting and Extending Auto Beat Loop Function
You can easy adjust the Auto Beat loop length by half length or double length increments. Every time you can cut
the loop in half to 1/64 loop length or double the loop to 16X loop length.
SLIP Mode
When the SLIP mode is turned on, normal playback continues in the background with the original rhythm during
scratch play, loop playback and loop roll playback.
Loop Roll
Loop Roll function with 4 difference beat length
FEATURES

S70
S70
51
ENGLISH
Seamless Loop
With this function, any section on music can be played repeatedly between in & out points with no break in sound
or limit in length. Once the loop is be set, it can then be looped continuously or until the ReLoop / Exit button is
pressed. The loop can be re-trigged at any time by pressing the ReLoop / Exit button again.
Real-time Loop Out Point Adjustment
The loop-out point can be real time adjusted by pressing the Out point button while in the loop playback and
turning the jog wheel to adjustment.
Hot Loop
Press IN button during loop playback, to return to the Loop In point and to start over the loop playback. You can
repeatedly press the IN button to create a stuttering effect.
Fader Start Play
The mixer’s fader operation can be used to perform back cue and quick start.
DSP Digital Effects
The S70 supplies the DJ with four different types of DSP digital effects to enhance creativity and performance.
Including ECHO, FLANGER, FILTER and SKID. Moreover, DJs can independently adjust effect’s parameters “TIME ”
and “DEPTH” via the JOG WHEEL.
Tempo Control and Range
A 100mm linear high precision slider gives DJs total control and ensures that the tempo adjustment is easy and
accurate. The range of tempo +/- 6%, +/-10%, +/-16% and -100% can be assigned to the TEMPO ADJUST slider.
Key Lock
The Key Lock function locks the pitch of the track even when you adjust the speed of the track. You can speed up
or slow down the beat without any noticeable difference in how the vocal and music sound.
Two Decks Share the Same USB Device
Two decks can share a single external USB mass storage device from just one USB device. DJs don’t need
to have several USB storage devices for different players and can easy manage your music resource from one
storage device.
BUNDLE WITH VIRTUALDJ
It comes bundled with VirtualDJ, Audio/Video/Karaoke mixing software. The S70 is MIDI-mapable and compatible
with other popular DJ programs. The unit interfaces seamlessly with Mac® OSX and Windows XP, Vista and
Windows 7 operating systems.
FEATURES

52
ENGLISH
- FEATURES AND FUNCTIONS
USB Player
• 2 USB sockets for external USB device support
• Two USB player share one external USB Device
• All control elements are MIDI compatible
• Automatic and manual tap beat counter
• Optional rack-mount adaptor
Playback
• Instant playback from cue point
• Fader start to control playback on fader move
• Single and Continuous play modes
Data Search
• Tracks and folders searching system
• Advanced cueing with track searching by frame
• Support VOXOA TUNEBOX software for fast searching massive USB device
• Onboard file and folder browsing
• ID3 TAG support
Cue/Loop
• Auto Cue function cues track to start of music
• Seamless Loop function / reloop function
• Loop Out point adjustment
• Hot Loop function
• Real-time cut and extend l Auto Beat oop
• 4 independent hot cue/loop banks with real-time adjustment
• Every track can save 4 hot cues and unlimited memos for USB drive
Pitch Control
• Adjustable pitch range ±6%, ±10%, ±16% and -100%
• High quality 100 mm long pitch fader
• Micro pitch with a resolution up to 0.02%
• Pitch bend control buttons
• Pitch bend up to +/- 16%
• Key Lock allow a track’s tempo to be changed without affecting the original key of the track
FEATURES

S70
S70
53
ENGLISH
Jog Wheel
• Touch sensitive JOG WHEEL for scratching
• Multifunctional JOG WHEEL for search, pitch bend and effects adjustment
• 3 modes for JOG WHEEL: CDJ, VINYL, AUTO CUE SCRATCH (A. CUE)
• A. CUE Scratch mode – touch WHEEL return-to-cue function
• JOG WHEEL control for pitch bending and frame searching
DSP Effects
• 4 superb beat synchronized DSP effects
• Build-in Effects: ECHO, FLANGER, FILTER and SKID
• Auto beat sync effects
• Effect parameters “TIME” and “DEPTH” adjustable via JOG WHEEL
Display
• Large extra bright dot-matrix VFD display for all functions
• Display playing address
• Display ELAPSED/REMAIN time mode
• Displays text for ID3 tags and folder names for easy navigation
• Text display for navigating folders on USB flash drives
Mixer
• Input: Line x 2 (RCA), Phono x 2 (RCA), MIC x 2 (XLR/1/4 inch Combo x 1, 6.3mm x1),USB x2
• Output: Balanced (XLR) x 1, Unbalanced (RCA) x1, Unbalanced Booth (RCA) x1, USB MIDI x 1
• 3 USB jacks, 2 for USB playback, one for PC MIDI connection
• Three-band EQ with Full output kill for each channel
• 2 MIC with level control, tone adjust and talkover
• Effect auto beat sync function
• Effect X & Y parameter adjustable
• Replaceable Crossfader with 3 curve switch
• Crossfader with fader start function
• Headphone with level control and cue mixing
• Booth Out with level adjust
• Dual 10 LEDs monitor display (selectable PFL or Master output)
FEATURES

54
ENGLISH

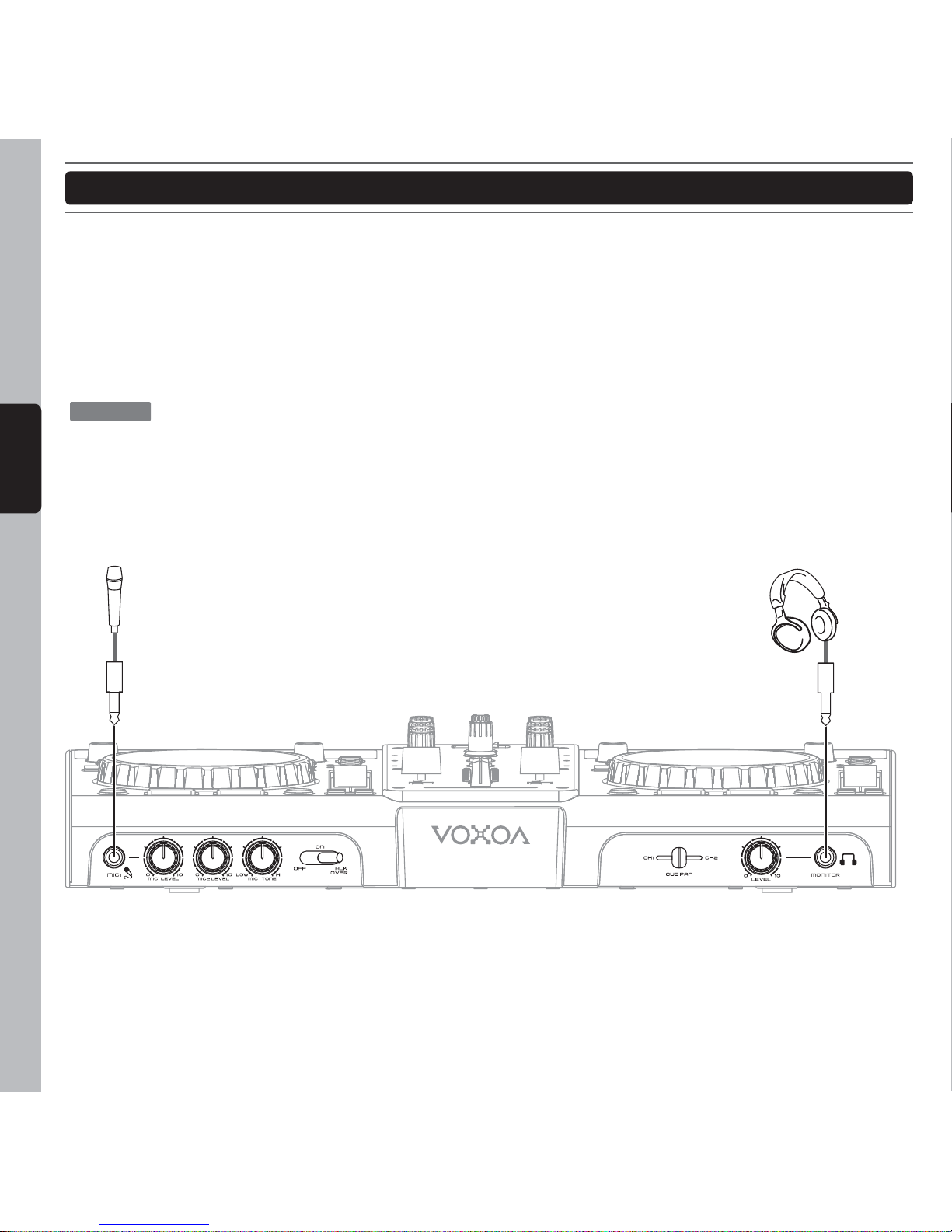

CONNECTIONS
1. Before making or changing connections, switch off the power and disconnect the power cord from the AC
outlet.
2. Quality cables make a big difference in fidelity and punch. Use high-quality, audio cables.
3. Do not use excessively long cables. Be sure plugs and jacks are securely fastened. Loose connections
cause hum, noise, or intermittence that could damage your speakers.
4. Connect the RCA pin cords to the inputs on your amplifer.
CAUTION : Be sure to use the supplied control cord. Using another type of cable may result in damage.
Connecting to a Computer
Support computer operating systems include Windows Vista, Window XP, and MAC OS X or later.
Headphones
Microphone
6.3mm6.3mm

S70
S70
55
ENGLISH
CONNECTIONS
BOOTH
power amplifier
Microphone
Computer
USB Storage Device

CD/MP3 Player
Turntable
Main unbalanced
power amplifier
Main balanced
power amplifier
RCA USB
Type A
USB
Type B
6.3mmXLR

56
ENGLISH
PART NAMES AND FUNCTIONS
PLAYER CONTROL PANEL
1 52 3 4
6
7
8
9
10
1112131415
17
16

S70
S70
57
ENGLISH
PART NAMES AND FUNCTIONS
1. Auto Beat Loop control knob
Loops can be set automatically without breaking the beat by pressing the AUTO BEAT LOOP control knob. The
loop’s number of beats can be changed by turning the AUTO BEAT LOOP control clockwise or counterclockwise.
AUTO BEAT LOOP control
Turn: set the length of the auto beat loop’s length in units of beats. The loop length can be changed by 1/32,
1/16, 1/8, 1/4,1/2,1,2,4,8,16,32 beats.
Press: Turns loop playback on and off.
CAUTION : You can’t active the Auto Beat Loop function till the BPM is displayed.
2. Loop In / Real-time Cue / Hot loop button
This function allows you to set a cue point without music interruption. This button also sets the starting point of
a seamless loop. During loop playback, press this button to start over the loop playback. What we called HOT
LOOP function. Repeatedly press the IN button to create a stuttering effect.
3. Loop Out button
This button is used to set the ending point of a loop. A loop is started by pressing the IN button, pressing the
OUT button set the loop ending point. The loop will continue to play until the RELOOP/EXIT button 4is pressed.
During loop playback, press the LOOP OUT button. The display will show the loop-out point time, and the LOOP
OUT button will flash, while the LOOP IN button indicator turns off. Rotate the JOG WHEEL to adjust the loop out
point. Press LOOP OUT button again to save the new out point and exit the adjust mode.
4. Reloop/Exit button
If a Seamless Loop has been made, but the player is not actively in seamless loop mode, pressing the RELOOP/
EXIT button will instantly reactivate the seamless loop mode. To exit loop, press the button again. RELOOP will
appear in the VFD display when the RELOOP function is available.
During play mode, pressing the RELOOP button will instantly return play to the last set loop without interrupting
playback.
5. Track/Folder Search knob
•Under TRACK SEARCH mode this knob is used to select a track. Turning the knob will forward/backward skip
to next track.
• Press the TRACK/FOLDER SEARCH switch button
20
the LED lit to switch the knob as TRACK/FOLDER
Search knob. If a CD/MP3 or USB device is divide into folders, change directly into these folders use the knob.
Turn the knob to search the desired folder.
6. Source Select button
Use this button to switch between the two media modes - USB1/USB2.

58
ENGLISH
PART NAMES AND FUNCTIONS
7. BMP SYNC button
Press this button to automatically synchronize the tempo (BPM) to the other deck based on
BPM counter or manual BPM.
Caution: 1. BPM SYNC function only active under both decks BPM are displayed.
2. The BPM difference of two deck must under 16%.
TEMPO indicator
When the upper or lower indicator is flashing the BPM SYNC function is active. The lower
indicator represents current BPM is faster than original BPM. The upper indicator represents
current BPM is slower than original BPM.
CAUTION : When the BPM SYNC function is active, operations with the Pitch slider are
disable.
8. Tempo Control Range Selector button
Each time this button is pressed, the tempo adjust slider’s variable range alternates between ±6%, ±10%,
±16%, and -100%.
9. Key Lock button
This function allows the tempo or BPM of the music to be altered without affecting the musical key. While this
button is illuminated, the key will be locked at zero.
10. Tempo Adjust slider
This slider is used to adjust the playback pitch percentage.
11. Pitch Bend +/- button
The desired pitch decrease or increase when button is pressing and returns to the original pitch when the button
is released.
12. Active Slip mode
When turned on, normal playback continues in the background with the original rhythm during scratch play, auto
beat loop and loop roll playback. When scratch play or loop roll play is canceled, normal playback resumes
from the position playing in the background at that time.
CAUTION : Under Slip mode the “AUTO CUE SCRATCH”
28
is disable.
13. Play/Pause button
Each press of the button to change from play to pause or from pause to play
14. Cue button
A Cue Point is self-defined starting point, usually at the beginning of a beat. Pressing the CUE button during
playback immediately pause playback and returns the tracks to the last set cue point. By pressing and holding
the CUE button you will return to play mode until you release the button again. The player will then returns to the
cue point and go into pause mode.
15. Tap/Auto BPM button
Tap along with the music to enter manual BPM values for use with FX & AUTO LOOP. This is generally used to
manually calculate BPMs when the AUTO BPM function is unable to lock onto a consistent beat. You must tap
at least four times in order for a calculation to occur, and the calculation will only be as accurate as your tapping.

S70
S70
59
ENGLISH
PART NAMES AND FUNCTIONS
16. Jog Wheel
This touch-sensitive wheel has multiple functions:
1) Frame Search - The JOG WHEEL will act as a frame search control when the track in the pause or cue mode
(without vinyl mode engaged), allowing you to set a point.
2) Pitch Bend - During CDJ mode playback, the WHEEL also works as a pitch bend during playback, similar to
a “push” or a “drag” on a turntable. Turning the WHEEL clockwise will increase the pitch
percentage up to 16%, and turning the WHEEL counterclockwise will decrease the pitch
percentage down to -16%. The pitch bend will be determined on how fast you turn the JOG
WHEEL continuously.
3) Vinyl Simulation - When in VINYL mode, the top platter acts just like a vinyl turntable, moving the playback
position forward or back in response to your movements. The outer JOG WHEEL still
performs the pitch bend function.
4) Effects Parameter Adjustment - The jog wheel can be used with pressing the X Parameter (TIME)
21
button
or Y Parameter (DEPTH)
27
button to set effects parameter adjustment.
17. Search buttons
This search button allows you to quickly scan backwards through a track. This search button allows you
to quickly scan forwards through a track.
31 32302928
19 2018
21
22 23 24 25 26 27
18. Active Loop Roll mode
Press this button to active the HOT CUE buttons as “LOOP ROLL” buttons. Under the LOOP ROLL mode hold
the HOT CUT 1 as 1/16 beats loop roll, hold the HOT CUE 2 as 1/8 loop roll, hold the HOT CUE 3 as 1/4 loop
roll, and hold the HOT CUE 4 as 1/2 loop roll.

60
ENGLISH
PART NAMES AND FUNCTIONS
19. Bank Pads 1,2,3,4
These buttons are used to store either four cue points or four loops. Each Bank Button can store either a loop
or a cue point. For Hot Cue the illumination is Orange. For Loops the illumination is Blue.
NOTE : While the Pad is flashing, it indicates that the Pad is active.
20. Track/Folder search switch button
Press this button to switch the konb’s function as AUTO BEAT LOOP Control button or TRACK/FOLDER Search
knob.
21. X Parameter (Time) and Decrease Beat Sync button
This button is used to adjust the parameter time value. You can push the X parameter (TIME) button, LED on,
and turn the JOG WHEEL to adjust the parameter time value. If the HOLD
24
function is selected any changes
to the effect parameters will be permanent . During hold function is selected the auto beat sync will be turned
off.In FX Auto Beat Sync mode, press this button to decrease beat sync.
22. Echo Effect button
This button is used to activate and deactivate the echo effect. The echo effect adds an echo to your output
signal.
23. Flanger Effect button
This button is used to activate and deactivate the flanger effect. The Flanger effect distorts the output signal and
creates an effect similar to the frequency phasing in and out of each other. This frequently applied effect is similar
to the Phase effect, but slightly more harmonious, emphasizes the upper pitch more and is reminiscent of a
flying aircraft.
To manually change the beat frequency of the effect, press the X Parameter (TIME) button
21
and regulate the
frequency value with the JOG WHEEL (from 0-9990 mSec.). To influence the intensity of the effect, press the Y
Parameter (DEPTH) button
27
and set the volume with the JOG WHEEL (from 0-255).
TIP : The Flanger effect is best when set to 4/1 beat with the Beat Link Button.
24. Hold and FX Auto Beat Sync Mode button
This button allows you to set and lock any new parameters you set to the effects. Otherwise, the effect
parameters always return to the original value. This button will glow when the hold function is activated.
Hold this button for 2 sec and the LED is flashing to active FX Auto Beat Sync mode. In the FX Auto Beat Sync
mode, you can press X button
21
to decrease beat sync or press Y button
27
to increase beat sync.
CAUTION : The FX Auto Beat Sync function is based on BPM. Therefore, without correct BPM the
function can’t work. Before use the Auto Beat Sync function, please make sure the BPM
counter already count the correct BPM.

S70
S70
61
ENGLISH
PART NAMES AND FUNCTIONS
25. Filter Effect button
This button is used to activate and deactivate the filter effect. The filter effect tweaks the original sound to add
different tonal definition.
To manually change the beat frequency of the effect, press the X parameter (TIME) button
21
and regulate the
frequency mean of the JOG WHEEL (from 0-9990 mSec.). To influence the intensity of the effect, press the Y
parameter button
27
and adjust the volume with the JOG WHEEL (from 0-255).
TIP : To create a great filter sweep effect, set the time parameter value to “0” mSec. and activate
“Hold”
24
. Use the parameter DEPTH button and the JOG WHEEL to infinitely filter the frequency
of your track from the value “0” (High Pass Filter) to the value of “255” (Low Pass Filter).
26. Skid Effect button
This button is used to activate and deactivate the SKID effect. This effect to simulate traditional vinyl turntable
turn on and turn off sound effect. You can adjust X parameter to determines the acceleration speed until
full playback speed is reached when the Play/Pause button is pressed. You also can adjust Y parameter to
determine the deceleration speed until play stops when the Play/Pause button is pressed.
27. Y Parameter (Depth) and Increase Beat Sync button
This button is used to adjust the Y parameter (DEPTH) value. You can push the button and turn the JOG WHEEL
to adjust the parameter value. In FX Auto Beat Sync mode, press this button to increase beat sync.
28. Jog Wheel “A.CUE” Mode button
This button is used to switch JOG WHEEL mode to Auto Cue Scratch (A. CUE) Mode. While in playback mode
the JOG WHEEL can be used to return the unit to last in point. Simply touch the surface of the JOG WHEEL and
unit will immediately return to the last set cue point and playback without music interruption. While in cue mode
and when the touch sensitivity function is active, tapping on the JOG WHEEL can be used to start playback.
The unit will continue to playback until the JOG WHEEL is released. Once the JOG WHEEL is released the unit
will return to the last in point.
29. Jog Wheel “Vinyl” Mode button
When the mode is set to VINYL, during playback, touch the surface of the JOG WHEEL to activate the scratch
effect.
30. Jog Wheel “CDJ” Mode button
When wheel mode is set to CDJ, scratch mode is exit, JOG WHEEL can be used as pitch bend and frame
search.
31. Time Display Mode Switch button
The button will switch the time display mode in the Time Mode Indicator between ELAPSED playing time and
TRACK Remaining time.
32. SGL/CTN Switch button
This function allows you to switch single track play or continuous track play (all tracks in order). With this button
you can also switch AUTO CUE on and off, by pressing it for at least 1 second.

62
ENGLISH
PART NAMES AND FUNCTIONS
33. Play indicator
The play indicator will glow when the unit is in play mode.
34. Pause indicator
The pause indicator will glow when the unit is in pause mode.
35. Cue indicator
This indicator will glow when the unit is in cue mode and will flash every time a new cue point is set.
36. Touch indicator
This appears when you touch the surface of the JOG WHEEL.
37. Folder display
Indicates the number of the current folder.
38. Dot Matrix Information display
Indicates the name of the folder, artist, file, album, genre and title while playing a MP3 with ID3 TAG .
39. BPM display
Indicates the current BPM value of the track.
DISPLAY SECTION
33 34 35 38 39 4036 37
41
42
49
50
51
48
43454647 44

S70
S70
63
ENGLISH
PART NAMES AND FUNCTIONS
40. Memory bucket
This indicator serves two functions. The bucket outline details the cue memory status; a full bucket outline
indicates the cue memory is full. The six bars in the memory bucket detail the digital buffer. Each bar indicates 2
second.
41. Auto BPM indicator
Indicates the AUTO BPM counter is active.
42. Key Lock indicator
Indicates the KEY Lock function has been activated.
43. Pitch display
Indicates the set pitch value of a track in percent.
44. Playing address
This bar gives a visual approximation of a track's time. This bar will begin to flash when a track is ending.
45. Time display
These indicators will detail the current Minutes, Seconds, and Frames. The display will indicate either the
elapsed or remaining time of a track. The display time will depend on the selected time function. The selected
time function will be displayed above the TIME DISPLAY as remaining track time or elapsed track time.
46. Time Mode indicator
Indicates if the player shows the elapsed time of a track (the display reads “ELAPSED”) or the remaining time of
a track (the display reads “REMAIN”). Use the TIME DISPLAY MODE button
31
to switch between the modes.
47. Track display
This indicator describes which track is currently cued or is playing.
48. Track Format indicator
This indicator describes the file formate for the track.
49. Play Mode indicator
Indicates if the player is in Single mode (the display reads “SINGLE”) or in Continue mode (nothing on display). In
single play mode, the track will play once and return to Cue mode.
50. Reloop indicator
When “RELOOP” flashes, the loop is active.
51. Auto Cue indicator
This will indicate if the Auto Cue is on or off. Press and hold the SGL/CTN button
32
for 1 sec. to turn the Auto
Cue function on and off.

64
ENGLISH
PART NAMES AND FUNCTIONS
TOP PANEL MIXER SECTION
54
55
56
57
58
59
54
55
56
57
58
59
52 53 52
66
60
61
62
63
65
64

S70
S70
65
ENGLISH
PART NAMES AND FUNCTIONS
52. Source Input Selector switch
These switches are used to select the input source assigned to each channel. Each channel may only be
assigned one input source at a time.
CH1 selected to PC + CH2 selected to PC – the entire unite works as a MIDI controller or you can set the mixer
section as Real Mixer in Utility Menu.
CH1 selected to PC + CH2 selected to DECK B - the Deck A works as a MIDI controller, the mixer works
internally with Deck B.
CH1 selected to PC + CH2 selected to LN2/PH2 - the Deck A works as a MIDI controller, the mixer works
internally with LN2/PH2 input.
53. USB 1 port
The port use to connect a USB memory device.
CAUTION : Please turn on the power before you plug USB storage devices.
54. Input Gain
These knobs are used to adjust the audio source signal input gain for a channel. Never use the gain control to
adjust a channel's output volume. Setting the gain level properly will ensure a clean output signal.
55. Channel Equalizer High-Rang Adjust Knob And Kill switch
These knobs are used to adjust the treble (high-range) frequency sound for each channel. The adjustable range
is from -35dB to +10dB, Press this knob to active Kill function.
56. Channel Equalizer Mid-Rang Adjust Knob And Kill switch
These knobs are used to adjust the mid-range frequency sound for each channel. The adjustable range is from
-35dB to +10dB, Press this knob to active KILL function.
57. Channel Equalizer Low-Rang Adjust Knob And Kill switch
These knobs are used to adjust the bass (low-range) frequency sound for each channel. The adjustable range is
from -35dB to +10dB, Press this knob to active KILL function.
58. Channel fader
This FADER is used to adjust sound volume for each channel.
59. Fader Strat switch
This function works in conjunction with a compatible player. When used with a compatible player, You can use
the crossfader to start and stop a player with the mixer’s crossfader. The switch switches the FADER START
feature on and off. If this function is activated, the FADER START automatically returns the player to the preset
cue point.
