Voyager CL-2200XP ALPHA User manual

User Manual
CL-2200XP
900 MHz LONG-RANGE CORDLESS PHONE SYSTEM
Please read this User Manual completely before operating this phone system and keep it in a
safe place for future reference. Charge the handset battery for 2.5 hours before initial use.

2
TABLE OF CONTENTS
Introduction
Welcome……………………………………………………………………………………………………..4
Important Safety Information………………………………………………………………………………4
Unpacking Your System…………………………………………………………………………………...5
Optional Accessories……………………………………………………………………………………….6
Component Names and Functions
Base Unit…………………………………………………………………………………………………….7
Portable Handset……………………………………………………………………………………………8
Portable Handset Charger Stand ……………………….…….……………………………………….…9
Installation
Base Unit……………………………………………………………………………………………………10
Portable Handset…………………………………………………………………………………………..11
Charger Stand ………………………....…………………………………………………………….…11-12
Batteries…………………………………………………………………….…………………………...12-13
Registering The Base Unit With The Portable Handset…………………………….………………….13
Basic Operation
Turning Your Phone On/Off………………………………………………………………………………14
Tone or Pulse Dialing………………………………………………………………………………….14-16
Tone
Pulse
Placing A Call………………………………………………………………………………………………16
Cellular Dial Mode
Normal Dial Mode
Answering A Call……………………………………………………………………………………….16-17
Redialing Numbers………………………………………………………………………………………...17
Cellular Dial Mode
Normal Dial Mode
Advanced Operations & Features

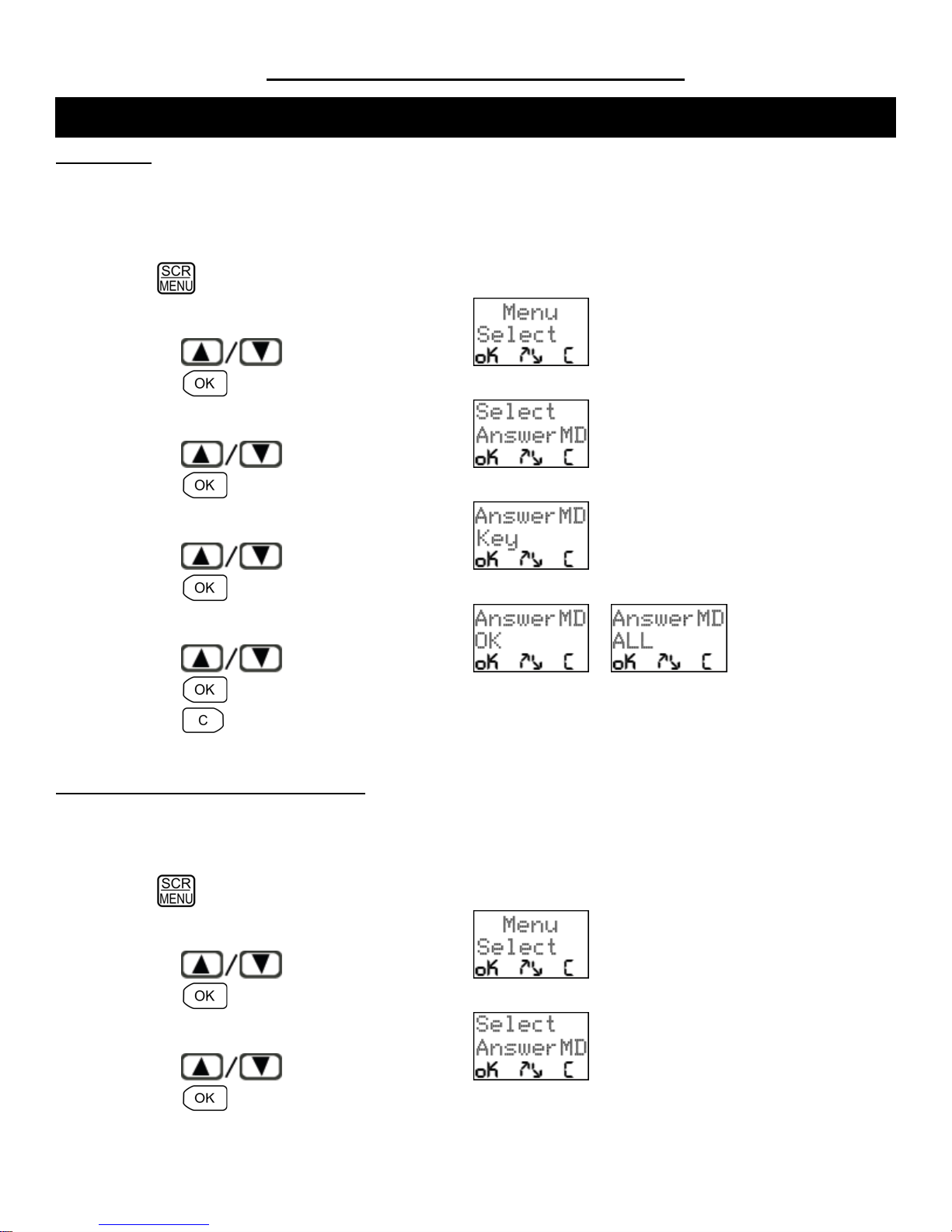

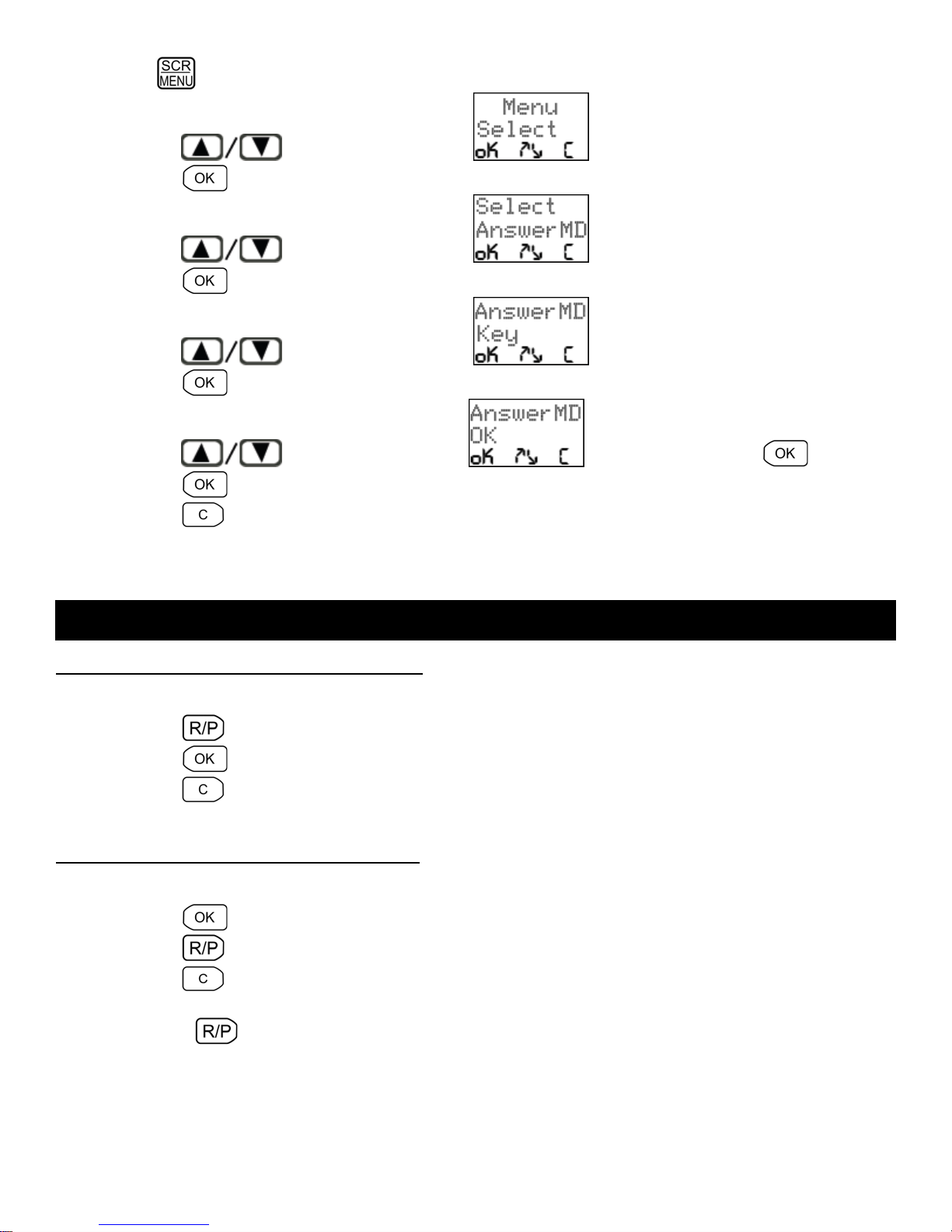

Answering Options……………………………………………………………………………………...18-19
Auto Answer
Press “OK” Key Or Press Any Key To Answer A Call

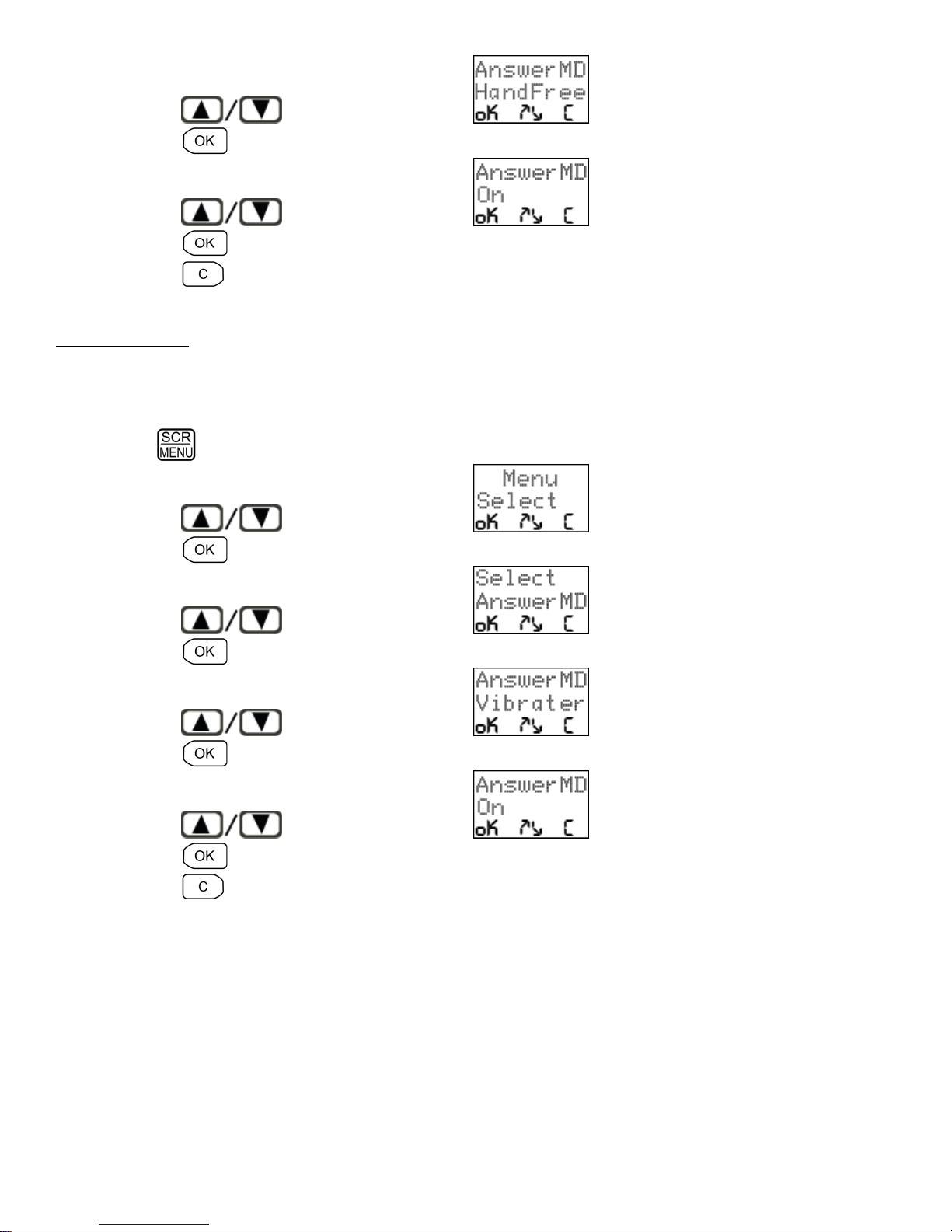

Vibration
Audio Volume ………………………………………………………………………………………….......20
Microphone
Speaker
Battery Low Alert ………………………………………………………………………………………20-21
Button Confirmation Tone…………………………………………………………………………………21
Call Transfer …………………………………………………………………………………………........22
Direct Transfer
Transfer After Talking to One Party

3
Channels………………………………………………………………………………………………..23-24
Grouping
Set Number of Available Channels
Channel Scan (Scanning For A Free Channel) ……………………….……………………………...24
Dialing Options………………………………………………………………………………………....24-26
Call Restriction (Call Barr)
Flash Time
Pause Time
Energy Saving Feature……………………………………………………………………………………26
Group Paging ……………………………………………………….……………………………………..27
ID Exchange…………………………………………………………………….………………………….27
Intercom…………………………………………………………………………………………………….28
Keypad Backlight………………………………………………………………………………………28-29
Out of Range Alert…………………………………………………………………………………………29
Phone Book…………………………………………………………………………………………….30-33
Storing Names And Phone Numbers
Looking In The Phone Book
Deleting An Entry From The Phone Book
Making A Call While In The Phone Book Mode
Speed Dial
Ringer…………………………………………………………………………………………………...33-35
Ringer Melody
Volume Setting
Security……………………………………………………………………………………………..…..35-36
Set Password Feature On/Off
Set Password
Set Security Code
Key Lock
Talk Time Control…………………………………………………………………………………………..37
Voice Scramble…………………………………………………………………………………………37-38
Multiple Systems
Introduction………………………………………………………………………………………………….39
Adding Handsets………………………………………………………………………………………..39-41
Adding Base Units…….………………………………………………………………………………..41-42
Placing A Phone Call…………………………………………………………………………………..42-43
Intercom……………………………………………………………………………………………………..43
Specifications…………………………………………………………………………………..44
Troubleshooting………………………………………………………………………………..45

4
INTRODUCTION
Thank you for purchasing a Voyager Long-Range wireless phone system. To ensure that you optimize the full capabilities
of this product, please read this user’s manual before proceeding. Be sure to keep this manual for future reference in
case any problems or questions should arise. We hope you enjoy your new Voyager wireless phone system.
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire,
electric shock and personal injury. Please read the following before using your equipment:
1. Read and follow all instructions carefully.
2. Follow all warnings and instructions on the product.
3. Unplug the product from the host telephone equipment before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water.
5. Do not place this product on top of a metal surface. Do not place this product on an unstable cart, stand or
table.
6. Do not allow anything to rest on the power cords. Do not place this product in a location where the cords can
be stepped on or where someone can trip over them.
7. Do not use this product near an area where there is a potential of gas leaks or near any fumes that can be
explosive. If you notice that the equipment is being used in such a hazardous area, report this condition on a
telephone that is located in a safe location.
8. Do not place this equipment near or over a radiator or any other heat source.
9. Use ONLY the power adapter supplied with the system.
10. Do not overload the wall outlet or power cord where the power adapter is installed. This can result in fire or
electric shock.
11. This equipment is to be opened by ONLY a qualified serviceperson. There are no user serviceable parts
inside. Opening this equipment may expose you to dangerous voltage and other risks. Incorrect reassembly of
this equipment may result in electric shock.
12. Avoid spilling liquid on this equipment and do not insert any objects through the ventilation slots.
13. Avoid using this equipment during an electrical storm. There is a remote risk of electrical shock from lightning.
14. Do not use this equipment other than for its purpose intended by the manufacturer. Use ONLY the equipment
provided by the manufacturer.
15. Do not break open the batteries and do not dispose of them in fire. Dispose of batteries safely or contact your
local recycling center. Batteries contain corrosive materials that are dangerous to you and to the environment.
INTRODUCTION - Welcome
INTRODUCTION - Important Safety Information

5

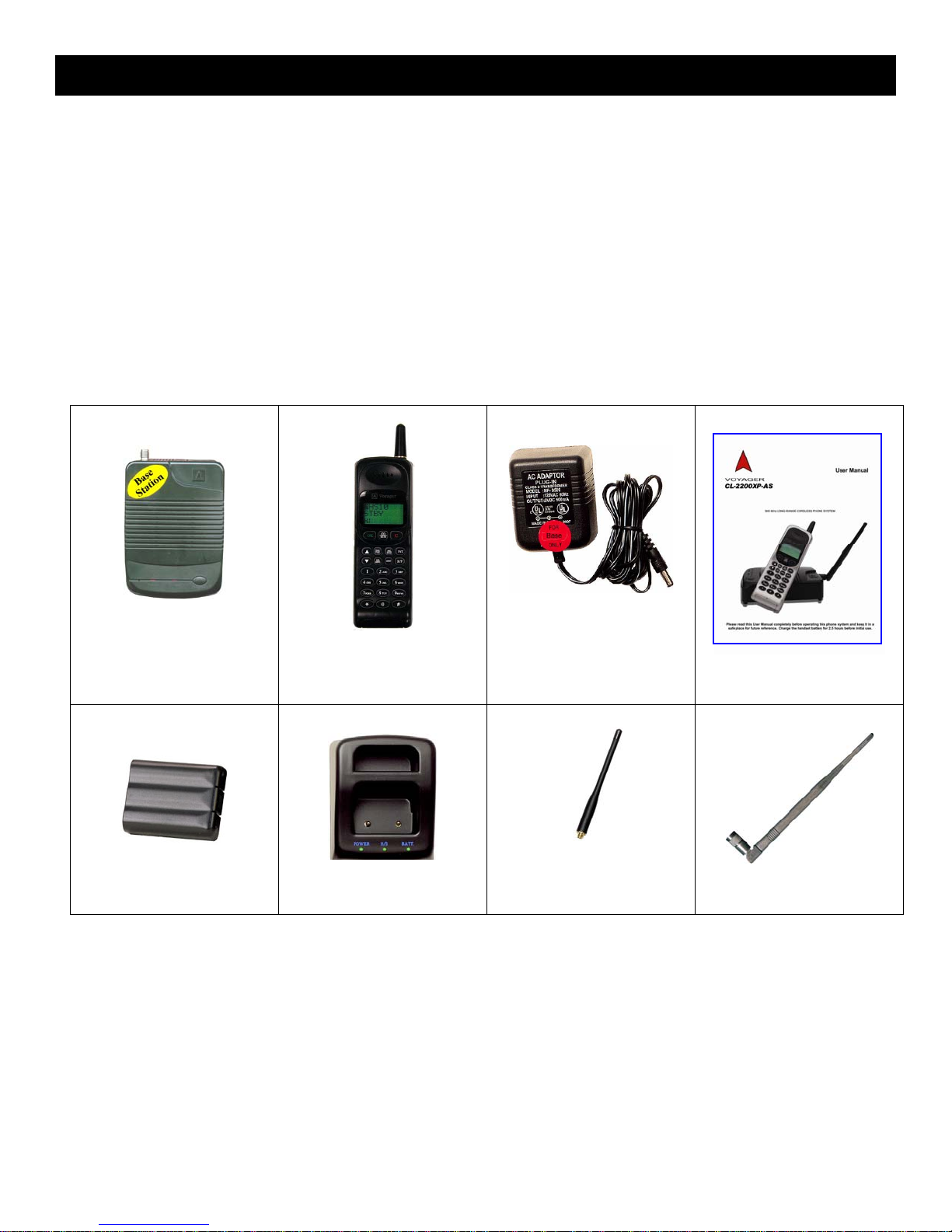

Your system will include the following equipment:
•1 base unit
•1 portable handset
•1 power adapter for the base unit
•1 desktop charger with power adapter
•1 Li-ion battery pack
•1 antenna for the base unit
Note: North American versions will have a fixed antenna.
•1 telephone line
•1 user’s manual
Base Unit
Batter
y
Pack Charger Stand
Portable
Handset Power Adapter for the Base Unit
Base Unit
Antenna
User Manual
Standard Handset
Antenna
INTRODUCTION - Unpacking Your System

6
The following are optional accessories available from Voyager to help you expand your system, improve your system’s
performance and to give you more flexibility.
3dB-Gain Roof
Antenna
Handset
Leather Case
6dB-Gain Roof
Antenna
Neck Carrying Strap
With Built-In Hands-
Free Headset
Extra
Base Unit
Extra
Handset Extra Charger
Wireless Door
Phone System
Extra Battery
Pack Hands Free Headset
INTRODUCTION – Optional Accessories

7
COMPONENT NAMES AND FUNCTIONS

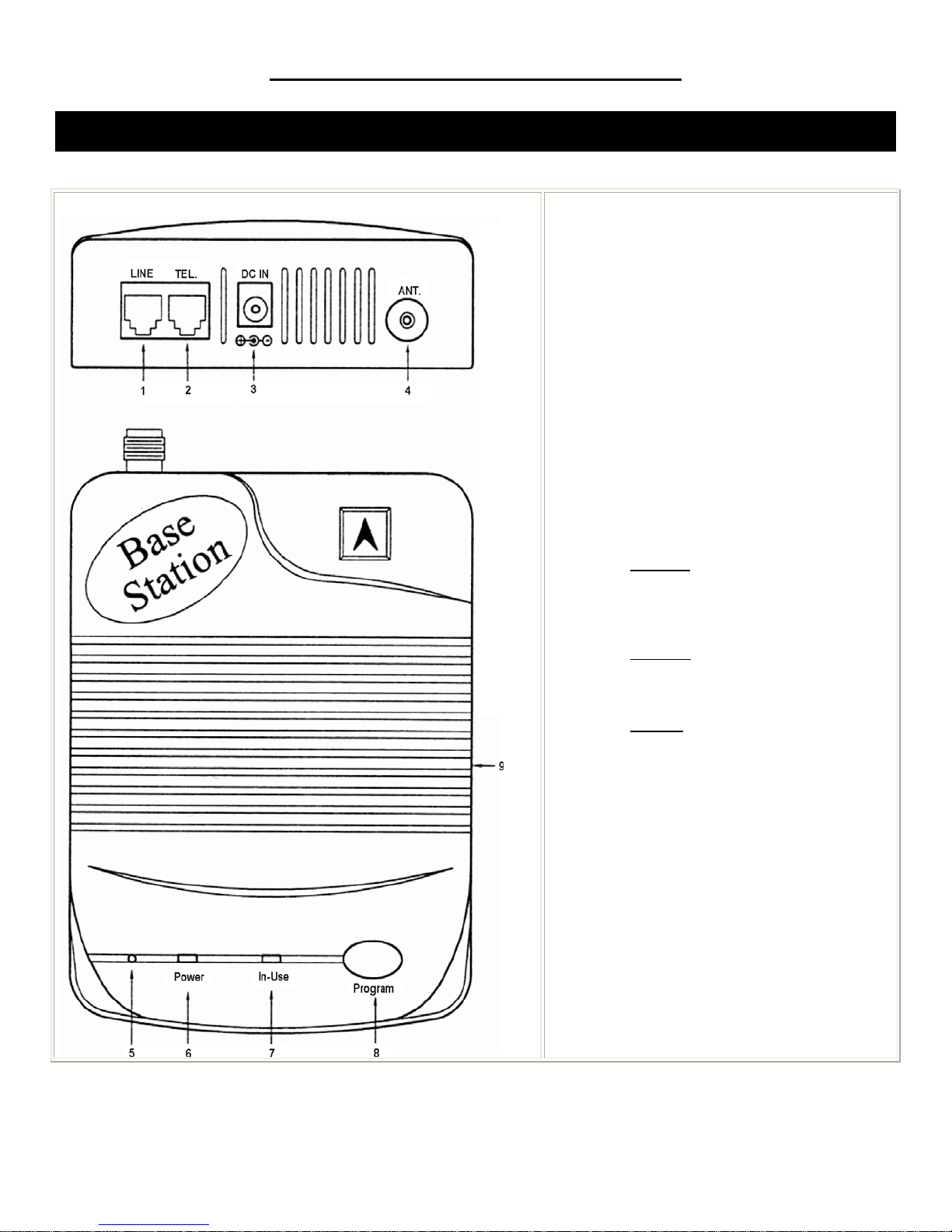

Base Unit
1. CO line jack
2. Telephone jack
3. DC power jack
4. Antenna jack
(North American versions will have
a fixed antenna)
5. Microphone
6. “Power” indicator
7. “In-Use” indicator
8. Program/Intercom/Volume button
Program
Can be used to program the Base
Unit by pressing this button within
5 seconds after plugging in the
power adapter. (see Page 12)
Intercom
Can be used to page the Portable
Handset when the Base Unit is in
Stand-By condition. (see Page )
Volume
Can be used to increase or
decrease the volume when the
Base Unit is in In-Use condition.
(see Page )
9. Speaker
COMPONENT NAMES & FUNCTIONS - Base Unit

8
Portable Handset
1. Fixed antenna or antenna plug
2. Speaker
3. LCD display
4. Function buttons
- Confirm / Send
- button in Standby Mode / Scan for clear
channel while talking
- Clear/End
- Digital Answering Machine view function
in Standby Mode / FLASH or
Backspace when dialing
- Hold button / Adjust microphone
Sensitivity in Standby Mode
- Intercom button
- Voice Scramble / select function
- Save button
- Redial / Pause button
- Volume & Up button
- Volume & Down button
5. Number buttons
6. Microphone
7. Clip to lock or release battery
8. Contact points for battery charger
9. Ringer
10. Jack for headset
11. Battery pack

9

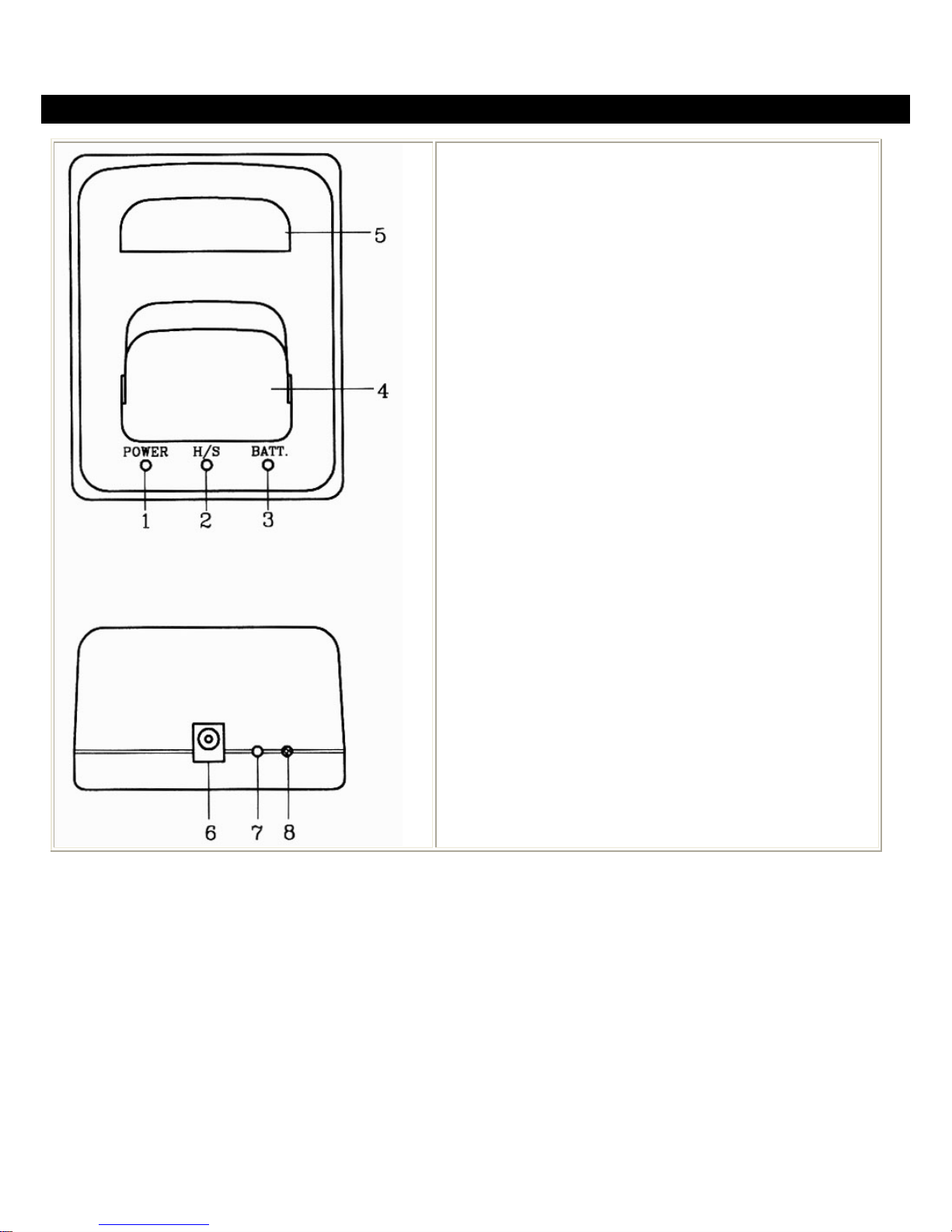

Portable Handset Charger Stand
1. Power indicator
2. Portable handset charging indicator (for front slot)
3. Battery charging indicator (for rear slot)
4. Charging slot for portable handset
5. Charging slot for spare battery
6. DC power jack
7. Discharge button
8. Discharge indicator

10
INSTALLATION
Antenna
Screw the L-type antenna firmly into the antenna socket. Adjust the antenna so it is pointing up.
Note #1: Incorrect installation of the antenna will affect the communication range and you can damage the base unit.
Note #2: North American versions will have a fixed antenna.
Telephone Line
Connect one end of the telephone line into the RJ 11 jack labeled “LINE” and the back of the base unit. Connect the
other end of the telephone line into your wall outlet.
Power Adapter
Insert the mini-plug of the power adapter into the DC power socket at the back of the base unit and the other end into
your AC power outlet on your wall. The “Power” light will turn on, which indicates it is in Standby Mode, when the power is
connected.
Warning! Use only the power adapter supplied. Using any other power adapter could cause serious damage to the
Base Unit.
Connecting Another Telephone
You can connect another telephone into this Base Unit by connection its line cord into the jack labeled “TEL”.
INSTALLATION - Base Unit

11
INSTALLATION - Portable Handset
Antenna
Screw the standard or short antenna firmly into the antenna socket.
Note: Incorrect installation of the antenna will affect the communication range and you can damage the Portable
Handset.

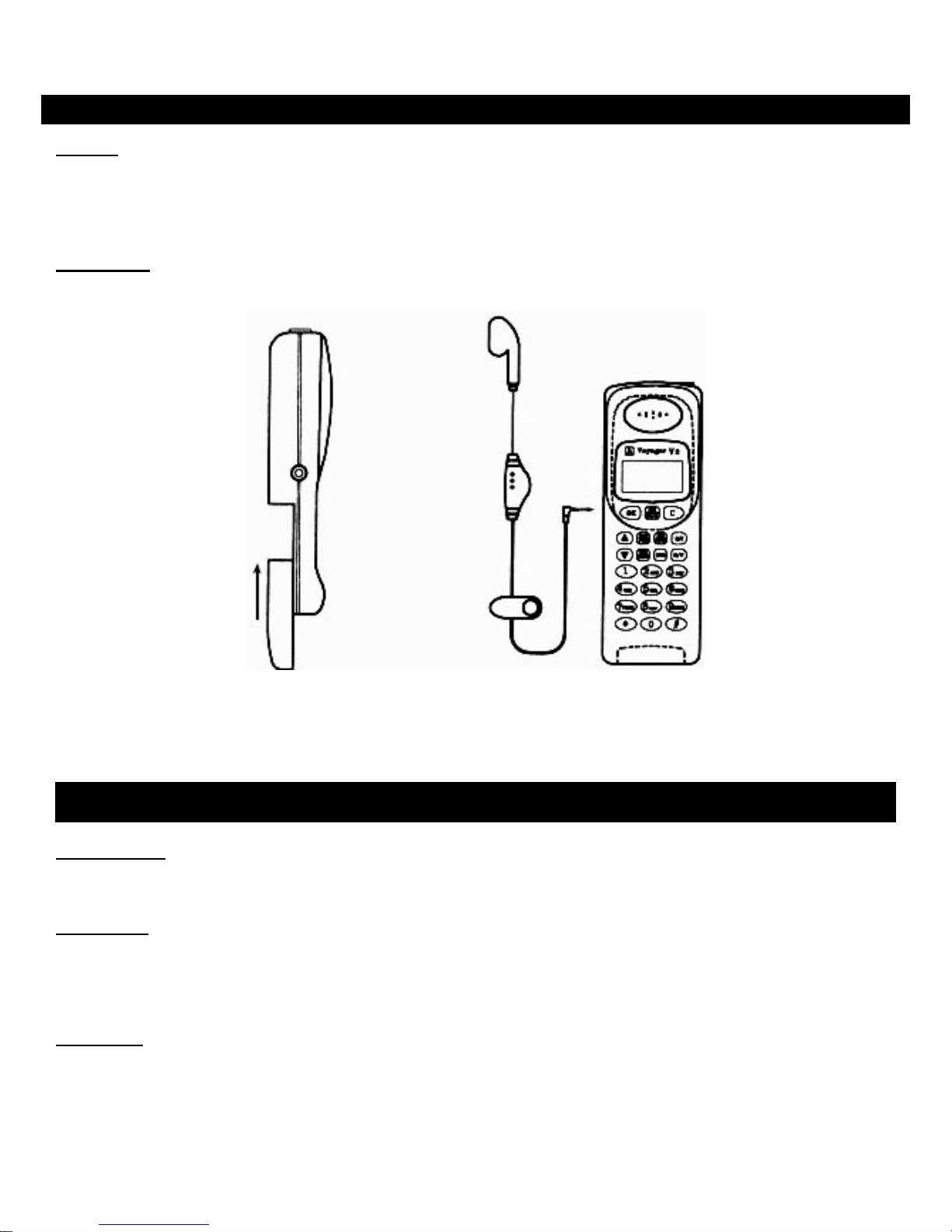

Battery Pack
Insert the battery pack into the back of the Portable Handset and gently push down until it locks in place.
Power Adapter
Insert the mini-plug of the power adapter into the DC power jack at the back of the charger stand and the other end
into your AC power outlet on your wall.
Front Cradle
The front cradle is intended to charge a battery that is already attached to a Portable Handset.
When a Portable Handset (with the battery) is placed in the front slot of the charger stand, the CPU of the Portable
Handset will automatically start monitoring charging status of the battery. The “POW.” indictor will light to verify it is
charging. When the battery is fully charged, the light will turn solid green.
Rear Cradle
A spare battery can be charged in the rear cradle for added convenience. The “BATT.” indictor will light to verify it is
charging. When the battery is fully charged, the light will turn solid green.
INSTALLATION - Charger Stand

12
Incoming Calls While The Portable Handset Is Charging
If there is an incoming call while the Portable Handset is being charged, the handset will ring normally and you can
answer the call. If the battery does not have enough power to answer the call, the handset will turn itself off.
WARNING: If the battery is new or if it is completely discharged, do not charge it while it is attached to the Portable
Handset. Remove the battery from the Portable Handset and charge the battery in the rear cradle of the charger stand.
Charging a fully discharged battery while attached to the Portable Handset creates extra stress to the components of the
Portable Handset and it can erase all the internal settings.
Before Initial Use
Always charge the batteries for 2.5 hours with the standard travel charger before using it for the first time.
Charge Times
Charging with standard travel charger 2.5 hours
Charging on the front cradle of the charger stand (with the Portable Handset) 4.5 hours
Charging on the rear cradle of the charger stand 3.5 hours
Note: The Charger Stand is an optional accessory.
Battery Performance
Standby time 45 hours
Continuous talk time 2 hours to 2.5 hours
Note: We recommend that you keep the Portable Handset in the charger stand (optional accessory) when not in use to
keep it fully charged. If the phone will not be used for long period, remove the battery from the portable handset to
prevent the battery from discharging.
INSTALLATION - Batteries

13
The Base Unit and the Portable Handset are pre-programmed at the factory to have all the same settings. Do not re-
program the Base Unit unless you change the setting for the Dial Type, Channel Group or the Security Code (see
appropriate topics in the ADVANCED OPERATIONS & FEATURES section) on the Portable Handset.
Note: Voyager has incorporated an efficient way of using the Portable Handset to program the Base Unit. If Dial Type,
Channel Group or the Security Code has been changed on the Portable Handset, the same change(s) have to be made
on the Base Unit or the two will no longer be able to communicate with each other. To avoid any mistakes in re-
programming the Base Unit (if it is done manually), it can only be done through the Portable Handset. The Portable
Handset broadcasts all it’s internal settings to the Base Unit and the Base Unit re-programs itself with these new settings.
You can re-program the Base Unit by:
1. Press the button on the Portable Handset.
2. Press the button until you reach the screen.
3. Press the button. The Portable Handset will send a signal to the Base Unit to look for a connection.
4. Unplug the power adapter on the Base Unit. Press the “ ” button on the Base Unit and while you are
holding it down, plug the power adapter on the Base Unit back in. Release the program button after one
second.
Note: You must perform step #4 within 30 seconds after pressing the button (in step #3). If you take
longer than 30 seconds, repeat step #3.
5. When the Portable Handset shows on the display, the Base Unit will emit a confirmation sound.
Once the re-programming is complete, the system will go into Stand-By mode and you can start using the phone.
INSTALLATION - Registering The Base Unit With The Portable Handset

14
BASIC OPERATION
Turning The Base Unit On / Off
Insert the mini-plug of the power adapter into the DC power jack at the back of the base unit and the other end into
your AC power outlet on your wall. The “Power” light will turn on, which indicates it is in Standby Mode, when the power is
connected.
Warning! Use only the power adapter supplied. Using any other power adapter could cause serious damage to the
Base Unit.
Turn the Base Unit off by unplugging the power adapter from the AC power outlet.
Turning The Portable Handset On / Off
Insert the battery pack into the back of the Portable Handset by making sure the tabs on the battery are pointing in the same direction
as the top of the Portable Handset. Reinstall the back cover of the Portable Handset. Press and hold the button for 4 seconds.
The Portable Handset will beep and the phone will enter the “Standby” mode.
Turn the Portable Handset off by pressing the button and holding it down for approximately 3 seconds. The screen
will say “PowerOff” and the Portable Handset will turn off. Press the button to turn the Portable Handset back on.
Default Setting – Tone Dialing
This unit is preset to operate on Tone (DTMF) dialing. The default setting is 100 ms and this should work in all locations
in North America.
Changing Tone Dialing Setting
The DTMF can be adjusted between the range of 50 ms to 200 ms. Please check with your local phone carrier company
for the correct speed if you need to make any changes to the default setting. If you are not sure, do not change the
default setting.
You can change the DTMF setting by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
BASIC OPERATION - Turning The Power On / Off
BASIC OPERATION - Tone Or Pulse Dialing

15
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the DTMF setting your desire.
Example: The factory default setting is 100 ms .
9. Press the button.
10. Press the button twice to exit the programming functions.
Change To Pulse Dialing
This unit can be changed to pulse dialing by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the button twice to exit the programming functions.
Changing The Pulse Dialing Setting
You can change the Pulse Dialing setting by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.

16
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the PULSE setting your desire.
Example: The factory default setting is 1:2 10 ps .
9. Press the button.
10. Press the button twice to exit the programming functions.
Making A Cellular-Type Dial Call
Make a cellular-type dial call by:
1. Key in the phone number. If you make a mistake, press the button and it will delete one number at a time.
Pressing will delete all your numbers at once.
2. Press button and the Portable Handset will dial the number.
3. Press the button to end the call after your conversation.
Making A Normal Dial-Mode Call
Make a normal dial-mode call by:
1. Press the button and listen for a dial tone.
2. Key in the phone number.
3. Press the button to end the call after your conversation.
Answer A Call By Pressing Any Button
Answer an incoming call by pressing any key on the Portable Handset.
Note: The default setting is for you to be able to answer a call by pressing any button.
Answer A Call By Pressing The Button
The default setting is to answer an incoming call by pressing any button.
To change the setting so you can only answer the incoming call by pressing the button:
BASIC OPERATION - Placing A Call
BASIC OPERATION - Answering A Call

17
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the screen. “OK” means the button.
9. Press the button.
10. Press the button twice to exit the programming functions.
Redialing A Number Using The Cellular Dial Mode
You can redial the last number entered into your phone by:
1. Press the button. The phone number will appear.
2. Press the button.
3. Press the button to end the call after your conversation.
Redialing A Number Using The Normal Dial Mode
You can redial the last number entered into your phone by:
1. Press the button. The phone number will appear.
2. Press the button.
3. Press the button to end the call after your conversation.
Note: Pressing the button repeatedly will show the last 5 phone numbers dialed.
BASIC OPERATION - Redialing A Number

18
ADVANCED OPERATIONS & FEATURES
Auto Answer
The Portable Handset can automatically answer an incoming call without having to press any buttons. This feature works
only while the Portable Handset is charging in its cradle.
Note: The default setting is for this feature to be OFF. You can turn this feature ON by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the or screen.
9. Press the button.
10. Press the button twice to exit the programming functions.
Automatically Answer Call After One Ring
The Portable Handset can automatically answer an incoming call after only one ring.
Note: The default setting is for this feature to be OFF. You can turn this feature ON by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
ADVANCED OPERATIONS & FEATURES - Answering Options

19
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the screen.
9. Press the button.
10. Press the button twice to exit the programming functions.
Handset Vibration
The Portable Handset can vibrate and ring at the same time when there is an incoming call.
Note: The default setting is for this feature to be OFF. You can turn this feature ON by:
1. Press button on the Portable Handset.
2. Press the buttons until you reach the screen.
3. Press the button.
4. Press the buttons until you reach the screen.
5. Press the button.
6. Press the buttons until you reach the screen.
7. Press the button.
8. Press the buttons until you reach the screen.
9. Press the button.
10. Press the button twice to exit the programming functions.

20
Microphone Volume
The microphone volume is adjustable so you can calibrate it to meet your local PTT system. Please note that if the
microphone volume is set too high, you may get feedback (sharp sound from the speaker) or you may hear you own voice
(echo). If the microphone volume is setting too low, the other party might hear you not clearly. There are 4 volume levels
and they can only be adjusted when the Portable Handset is in “Standby” mode.
You can change the Microphone Volume by:
1. Press the button on the Portable Handset and you will see the screen.
2. Press the button to choose the volume level you prefer. The microphone volume will increase each time
you press the button. When the volume level reaches 4, it will revert back to Level 1 when you press the button
again.
3. Once you have set the volume level, the Portable Handset will return to “Standby” mode after 4 seconds.
Volume Control On The Portable Handset
You can adjust the volume level by pressing the buttons on the Portable Handset until you reach a
comfortable level. There are 8 volume levels.
Note: Increasing the volume will also increase the amount of background noise. We recommend that you set the volume
just high enough so you can hear the other party clearly. Setting the volume level too high will cause feedback, especially
if the microphone volume is also set very high.
Volume Control On The Base Unit
There are 8 volume levels and they can only be adjusted when the Base Unit is in “In-Use” mode.
Note: Increasing the volume will also increase the amount of background noise. We recommend that you set the volume
just high enough so you can hear the other party clearly. Setting the volume level too high will cause feedback, especially
if the microphone volume is also set very high.
You can adjust the Volume Level on the Base Unit by:
1. Make sure the Base Unit is in “In-Use” mode. The Base Unit is “In-Use” mode when you are using it to intercom
the Portable Handset or if you have the Portable Handset intercom the Base Unit (see Intercom in the
ADVANCED OPERATIONS AND FEATURES section). The “In-Use” indicator on the Base Unit will light.
2. Press the “PROGRAM” button repeatedly until you reach the volume level you prefer. The Base Unit will
remember this setting for all future calls unless you change it.
The Battery-Low Alert will notify you with an audible signal when the battery is low and it needs to be recharged.
Note: The default is for this feature to be OFF. You can turn this feature ON by:
ADVANCED OPERATIONS & FEATURES - Audio Volume
ADVANCED OPERATIONS & FEATURES - Battery-Low Alert
