VSS Nederland DTR-600 User manual

Digital Mobile Zoom Camera
for Law Enforcement
DTR-600
Read this user’s guide carefully for safe operation and proper use of the product.
Features and specifications are subject to change without notification

Index
1. Overview
2. Features
3. Pin Assignment
4. Menu Description
5. Each Function & Operation of the Control Keys
6. On-Screen Display
7. Setting the Menu
8. Specifications

1. Overview
RED LED
Name Plate
Back Button

2. Features
1. 1/4 type Exview HAD CCD (PS) 550 TV lines High Resolution
2. WDR (Wide Dynamic Range) Function
3. Day/Night Function, Minimum Illumination – 0.5 lx/1/60 sec (F1.4, 50 IRE)
4. 12x Optical Zoom (144x with Digital Zoom)
5. Small and Lightweight
6. High-speed serial communication (max. 38.4 kbps) and VlSCA protocol
7. SMART Lens Control
8. High Performance Digital Signal Processor (DSP)
9. Large Backlight buttons
10. Entire Metal (Aluminum) Body
11. One touch Smart Zoom-in, zoom-out button-Auto & Semi auto supported
12. BLC On/Off Control by Back button
13. Red LED for recording status
16. Flicker / Flickerless mode

3. Pin Assignment
4. Menu Description
MENU FORMAT
5. Each Function & Operation of the Control Keys

Speed Zoom
Normal Operation : Smart Zoom – Two modes Auto / Semi Auto in the menu
Auto : when the zoom key is pressed, the camera will zoom into the pre- programed position
and stay for a number of seconds that is also pre-programed before zooming out to
default position.
Semi-Auto : When the zoom key is pressed, the camera will zoom into the pre-programed
position.
When the zoom key is pressed one more time, the camera will zoom out to default
position
B L C
Normal Operation : Toggles back-light compensation mode on/off, MENU Selection : Enter
MENU
Menu Operation : Press and hold down for 2~3 seconds to turn on OSD menu.
Pushing MENU button when OSD is displayed will enter into sub-menu and
Pushing MENU button at sub-menu will exit from sub-menu.
If press MENU button in short, it can be Day/Night function
FAR
Normal Operation : Focus Far, MENU Selection : DOWN
NEAR
Normal Operation : Focus Near, MENU Selection : UP
TELE
Normal Operation : Zoom Tele
WIDE
Normal Operation : Zoom Wide

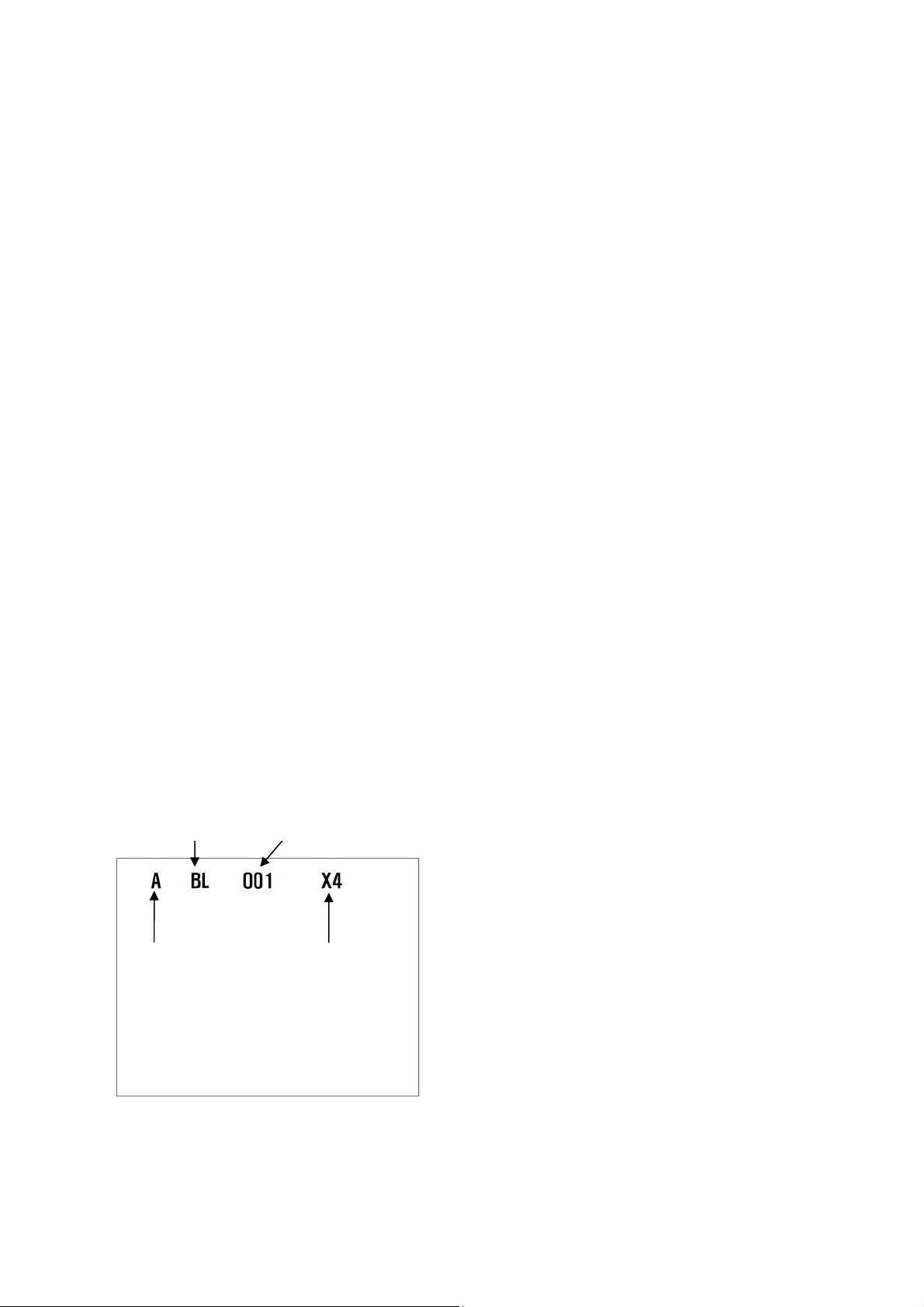

6. On Screen Display
Note ) Icon or abbreviation of the function will be displayed for about 5sec
When corresponding key is pressed
Zoom Ratio
A : Auto Mode
D : Day Mode
N : Night Mode
BLC ON CAM ID

7. Setting the Menu
Normal operation : When MENU key pressed it will toggle Day & Night function.
(Auto Mode Day Mode Night Mode Auto Mode ….)
The Menu consists of “Main Menu” and “Sub-Menu”.
The main menu is displayed where 8 camera functions can be selected.
To the right of each main selection, the sub-menu is displayed.
Press MENU button for 2~3 seconds to access the main setup MENU. It will show the main
MENU. And if you press shortly MENU button again, the screen will be returned to the normal
status.
Press BLC(ENTER) button to access detail menu.

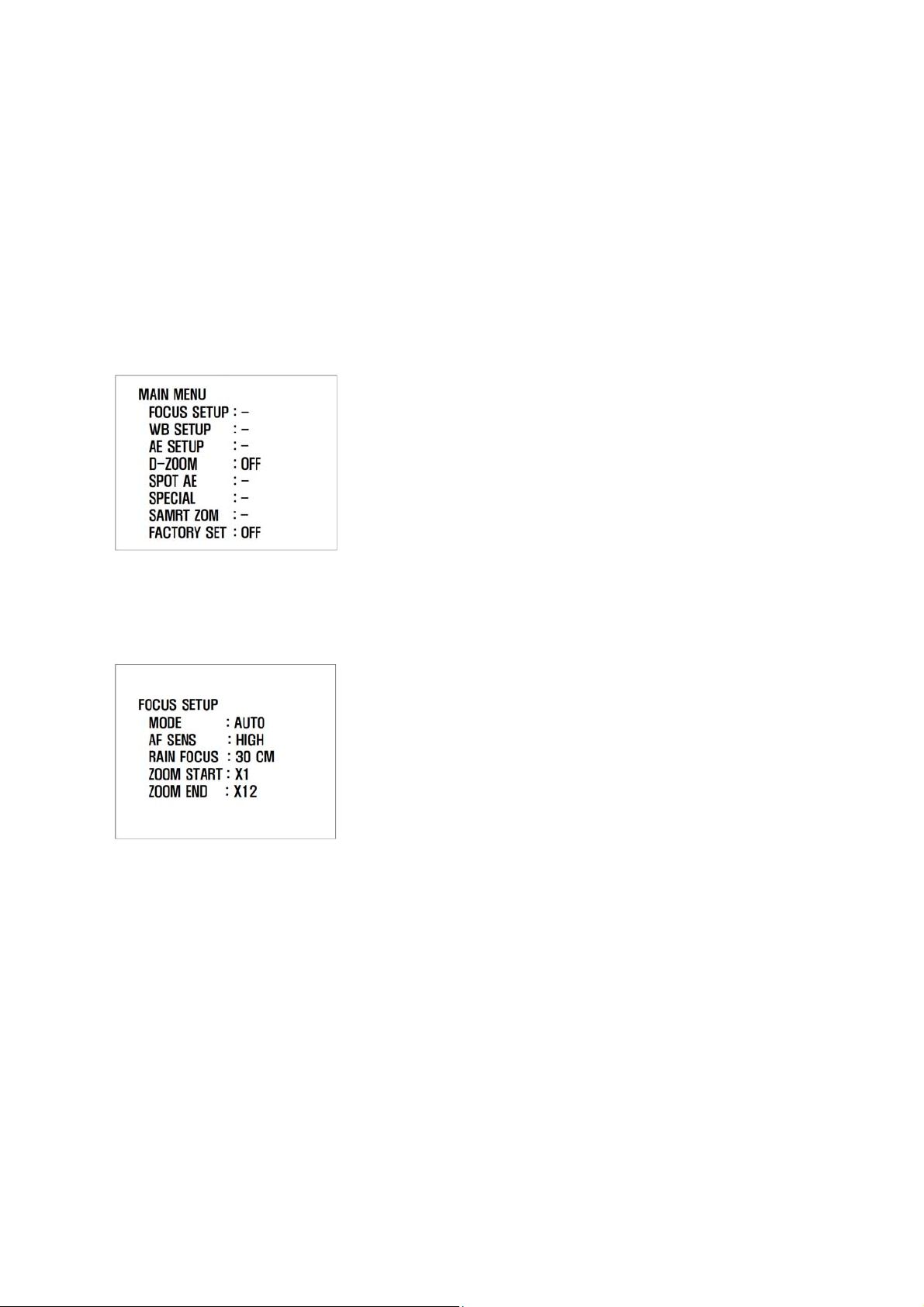

FOCUS
Select Camera Zoom and focus
Press FAR NEAR button to the sub menu
MODE : AUTO / MANUAL
By using the button of B button, you can select Auto Mode or Manual Mode
AF SENS : High / Low --- Auto Focus Sensibility
RAIN FOCUS : 10CM ~ 10M ---- Minimum effective focus distance
ZOOM START : X1 --- Limit of Minimum optical zoom position
ZOOM END : X12 ---- Limit of the Maximum optical zoom position
Select appropriate magnification using TELE / WIDE key and push BLC(ENTER) to select
※ DIGITAL ZOOM: Set D-ZOOM value to MAX and set ZOOM END value using TELE KEY
& WIDE KEY.
※ ZOOM END value should be higher than ZOOM START value.
If ZOOM START value is X12 and ZOOM END value is X1, ZOOM SATRT & ZOOM END
Value will automatically be changed to X12.

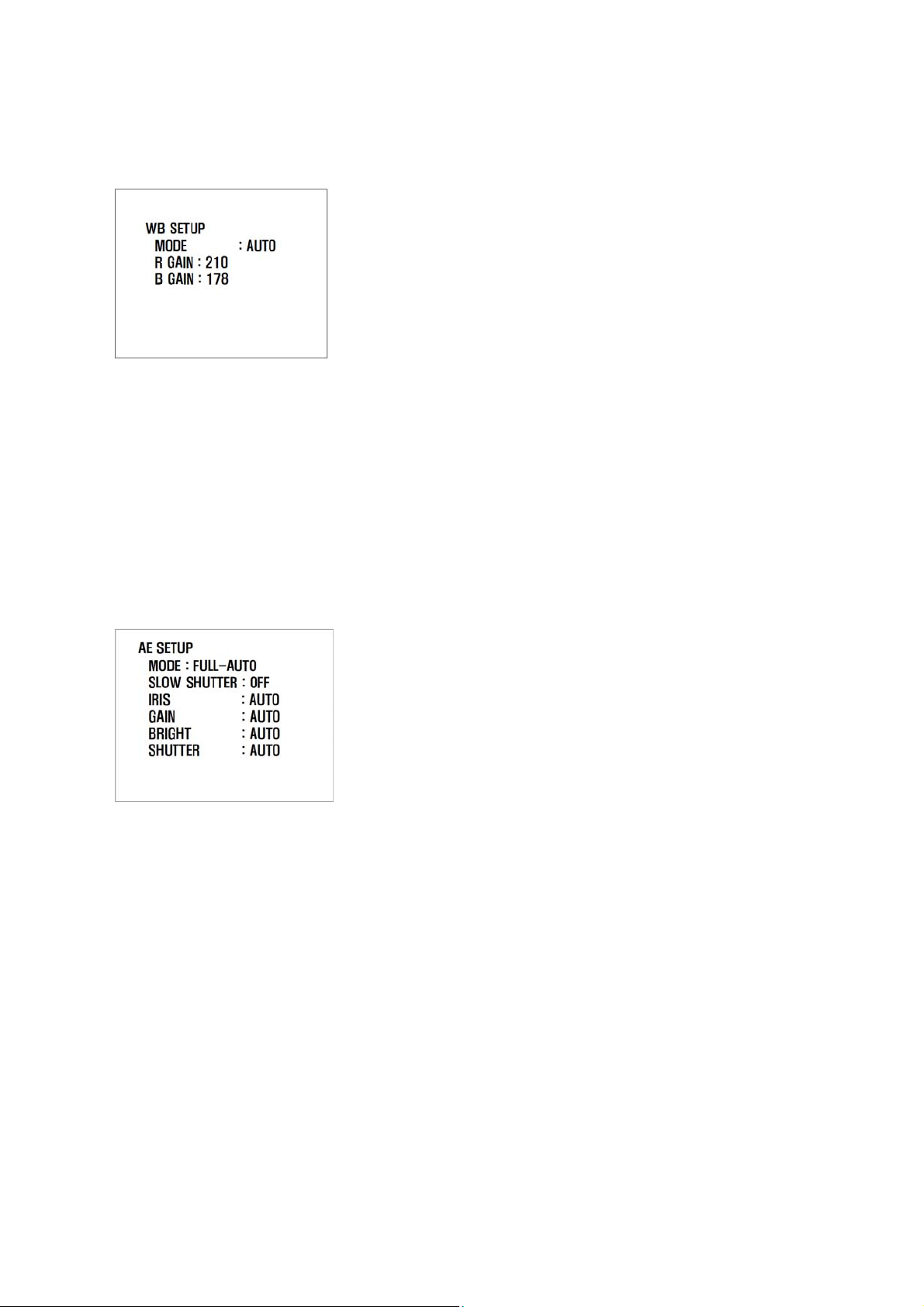

WB(White Balance)
Use to adjusts White Balance
MODE : AUTO / INDOOR / OUTDOOR / ATW / MANUAL
AUTO : This mode computes the white balance value output using color information from the
entire screen. It outputs the proper value using the color temperature
radiating from a black subject based on a range of values from 3000 to 7500K.
INDOOR : 3200K Base Mode
OUTDOOR : 5800K Base Mode
ATW : Auto Tracing White balance (2000 to 10000K)
MANUAL : Manual control of R and B gain, 256(0~255) steps each
R-GAIN & B-GAIN can be change when MODE is set as MANUAL.
AE
Use to adjust picture brightness
Press FAR NEAR button to the sub menu
MODE : FULL AUTO, MANUAL, SHUTTER PRIO, IRIS PRIO, BRIGHT
SLOW SHUTTER : OFF, ON
IRIS :AUTO
GAIN :AUTO
Bright :AUTO
Shutter :AUTO.
In this mode, AE is adjusted automatically shutter speed selected (1/1~ 1/10000)
Note : Slow Shutter can be On only when Mode is Full Auto.
※ When MODE is FULL-AUTO (can change SLOW SHUTTER)
※ When MODE is MANUAL (can change IRIS, GAIN, SHUTTER)
※ When MODE is SHUTTER PRIO (can change SHUTTER)
※ When MODE is IRIS PRIO (can change IRIS)
※ When MODE is BRIGHT (can change BRIGHT)

D - ZOOM
Configure magnification limit from OFF/MAX using the feature
By press BLC(ENTER) button you can select OFF/MAX Mode.
SPOT AE
In Full Auto AE, the level for the entire screen is computed and the optimum Auto Iris and Gain
levels are determined. In Spot AE, a particular section of the subject can be designated, and
then that portion of the image can be weighted and a value computed so that Iris and Gain can
be optimized to obtain an image.
MODE : MANUAL / AUTO
POSITION X : 9(1~16)
POSITION Y : 8(1~16)
SPECIAL SETUP
WIDE-D : ON/OFF WDR(Wide Dynamic Range On/Off)
SHARPNESS : 12 (1~16) : Increasing this value sharpness object edges.
E-FLIP : On/off Screen is inverted up or down
MIRROR : On/Off Screen is inverted to the left or right in On Mode.
FLICKERLESS: On/Off Auto mode on/off.
CAMERA ID : Unique identification number for each camera (000 ~255 settings)
PROTOCOL : SONY
BAUDRATE : 9600(9600, 19200, 38400)

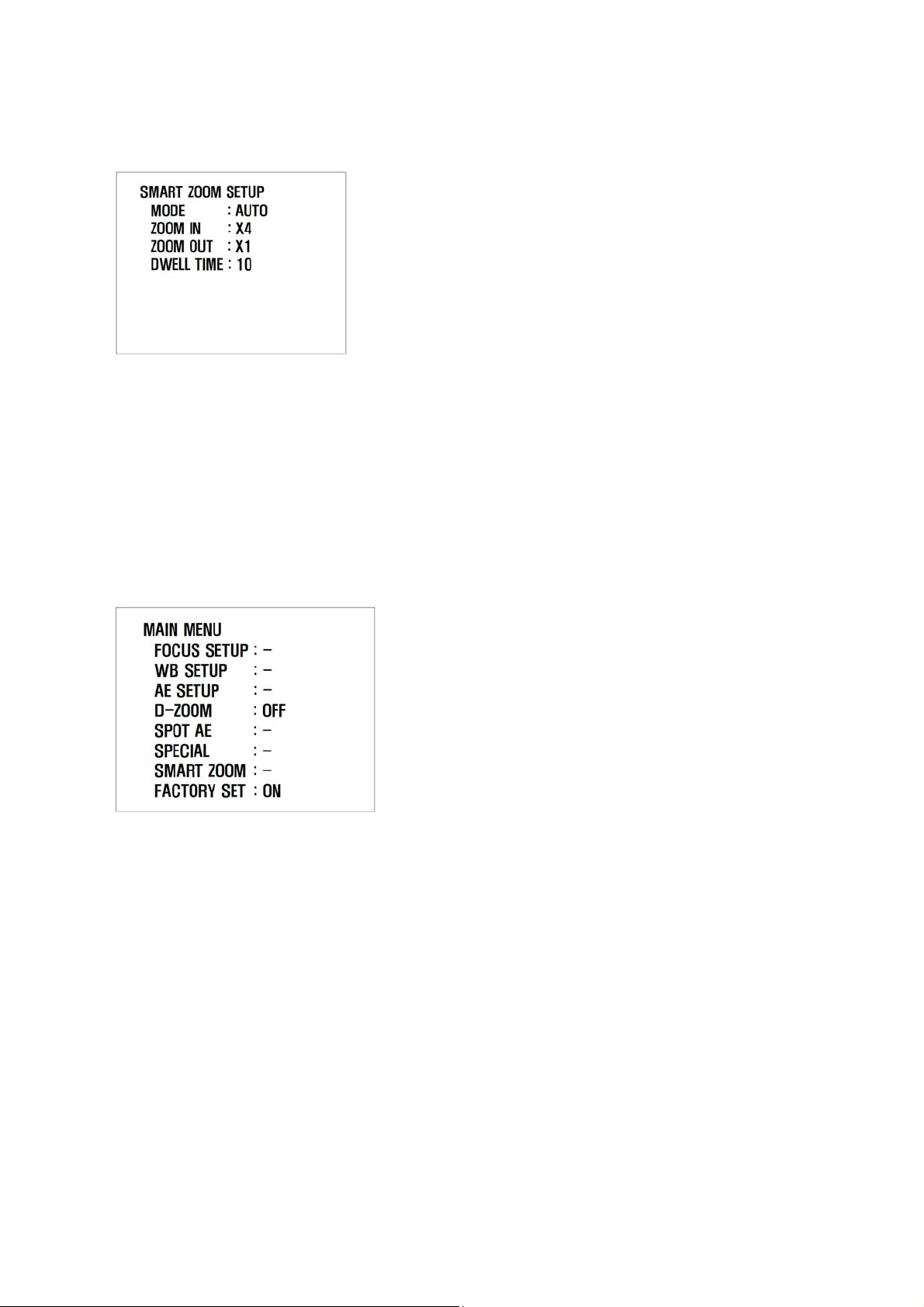

SMART ZOOM
Mode : AUTO/SEMI
Zoom In : x 4
Zoom Out : x 1
Dwell Time : 10 (you can select 1~30 settings)
※ When MODE is AUTO, DWELL TIME can be change.
※ When MODE is SEMI, DWELL TIME cannot be change.
※ ZOOM IN value should be higher than ZOOM OUT value.
FACTORY SET
Factory default of all settings is restored
FACTORY SET : ON MENU - EXIT
Close menu
Press MENU button to close menu.

8. Specifications Specifications
Specifications
Image sensor 1/4-type EXview HAD CCD (PS)
Effective number of
pixels NTSC : 380,000 pixels
PAL : 440,000 pixels
Lens 12x optical zoom lens
f=3.7 mm (wide) to 44.4 mm (tele), F1.6 to F2.5
Digital zoom 12x (144x with Digital Zoom)
Horizontal resolution 550 TV lines
Angle of view (H) 48° (wide end) to 2.8 ° (tele end)
Minimum working
distance 290 mm* (WIDE end) ~ 800 mm (TELE end)
*Default: 290 mm
Sync system Internal
Minimum illumination Approx. 0.5 lx (F1.4, 50 IRE)
S/N ratio More than 50 dB
Video output(CVBS) VBS: 1.0 Vp-p (sync negative)
Camera control
interface
VISCA protocol
9.6 Kbps, 19.2 Kbps, 38.4 Kbps
Stop bit, 1 bit
Electronic shutter NTSC : 1/4 sec to 1/10000 sec (20 steps)
PAL : 1/3 sec to 1/10000 sec (20 steps)
White balance Auto, ATW, Indoor, Outdoor, Manual
Gain Auto/Manual/Max. Gain Limit
(-3 to +28 dB, +2 dB step/total 16 steps)
AE control Auto, Manual, Priority mode (shutter priority & iris priority),
Bright,
Focusing system Auto (Sensitivity: normal, low), Manual
Storage temperature -20°C ~ 60°C
Operating temperature -5°C ~ 60°C
Power requirements 9.0 V ~ 15.0 V DC
Power consumption 3.7 W (motors active) / 2.4 W (motors inactive)
Features
Wide-D Yes
Auto ICR Yes
2D/3D Noise
Reduction Yes
Slow AE response Yes (Longer than 10 min.)
Picture effects Yes (E-Flip, Mirror Image)
Slow shutter Yes
Title display Yes (English)
Camera mode display Yes
