Vuescape 61000100 Operation manual
2.4 GHz Wireless Keyboard
Item Number: 61000100
Installation & User’s Guide
All brand names and trademarks are the property of their respective owners.
Contents
1. Introduction ………………………………………………………………………….....3
2. Package Contents.……………………………………………………………………..3
3. System Requirements…………………………………………………………………3
4. Quick Installation Guide..…………………………………………………………..4-5
4-1. Programming the Hot Keys...…………………………………………………5-6
5. Features and Functions Descriptions……………………………………………..6
5-1. Description of Internet Keys……………………..……………………….……6
5-2. Description of Multimedia Keys.…………..……………………………….....6
5-3. Description of Application Keys.…..…………………………………………6
6. Troubleshooting……………………………………………………………………....7
7. FCC & CE Certification …...………………………………………………………....8
8. Service Procedure…………………………………………………………………….9
9. Warranty………………………………………………………………………..………10
1. Introduction:
The 2.4 GHz Wireless Keyboard:
This keyboard was developed to provide greater efficiency and productivity when working
with a PC. The keyboard has 8 hot keys including: Internet, Multimedia and System keys
that will increase your productivity by providing direct access to your important applications
by a simple press of the key.
2.4GHz wireless technology allows you to work up to 33ft away from your computer without
having any interference to the signal.
Instant link technology connects your wireless keyboard to the USB receiver automatically.
There is no need for you to re-synchronize the devices.
The 2.4 GHz Wireless Keyboard is compatible with Microsoft Office® 2000 / XP / 2003 or
later. It is compatible with Windows® 2000, XP and Vista® Operating Systems.
2. Package Contents:
•Wireless Keyboard
•USB Wireless Receiver
•User’s Manual
•Installation CD
•2-AAA batteries to power the keyboard
3. System Requirements:
•IBM PC or Compatible Computer
•Microsoft Windows® 2000, XP, Vista®.
•CD-ROM or DVD-ROM Drive to install the CD driver.
•An available USB port for the USB Wireless Receiver Connector.
4. Quick Installation and Set Up:
Open the battery compartment located underneath the keyboard
and install the 2 AAA batteries. Note the polarity signs in the battery
compartment.
Turn on the power to your computer and make sure your Windows
operating system is active.
Ins
tall the Software CD Driver that has been included and you may
now go on to section 4-
2, Programming the Hot Keys on the
Keyboard. Note:
Install the Software before plugging in the
receiver.
Insert the USB Receiver into an available USB port. Your computer
will recognize the USB device and make the proper settings to
enable you to operate your keyboard. Click on any key on your
keyboard to connect with the receiver.
1) If the keyboard does not work, please see the Troubleshooting information on page
9 of this manual.
2) Caution: Before your keyboard can be connected, you need to position the devices
within 6 feet of the receiver to establish the initial connection.
Note: The Windows operating systems will search for the new USB HID products and load the
built-in standard USB HID device driver automatically. The system may ask for the Windows
2000 full Operating System CD if it needs the driver to update the operating system. (Windows
XP and Vista Operating System CD is not required).
Follow the instructions and complete the standard USB HID reorganization process. The
keyboards’ basic functions will work properly, the exception may be the Hot Key Functions
which will require you to run the Software CD Driver included with this kit.

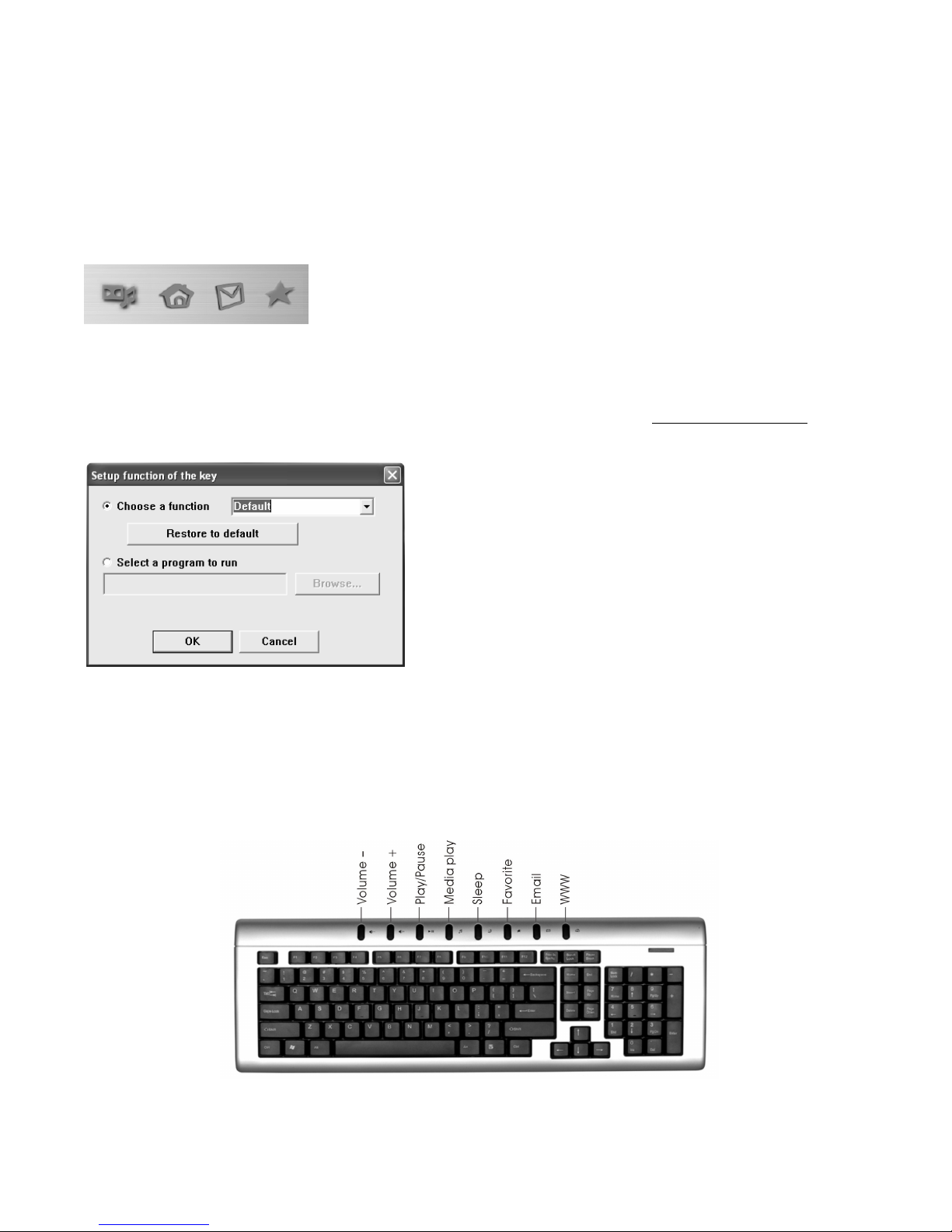

4-1 Programming the Hot Keys
You can customize your Keyboard Hot Keys by activating the Keyboard Properties. To do this
click Start, then Programs, and choose the Wireless Keyboard Properties. Click on the
Keyboard Icon located in the lower right hand corner of your screen. When the following
screen appears, select which Hot Key you would like to change: Music, Home, E-mail, and
Favorites.
Once you click the hot key to change, the following setup screen will appear. Choose a
function from the drop down menu list or select a program by browsing your PC. You can
restore all the settings to their original configurations by pressing the Restore to Default button.
5. Features and Function Descriptions:
5-1. Multimedia Keyboard Button Descriptions
Decrease Volume Press this key to decrease the volume.
Increase Volume Press this key to increase the volume.
Play/Pause
Press this key to Play or Pause Music or Video. Once in Pause mode, press this
key again to resume Play.
Media Play Press this key to activate your Media software in order to Play Music or Videos
5-2. Keyboard Energy Saving Sleep Mode
Sleep
This button will put the computer system into sleep mode if the PC supports
power management and h
as it enabled. It will protect data and save energy. The
user can put the computer into Sleep mode by holding this button down for 3
seconds. Press the key once quickly to awaken the computer from sleep mode.
5-3. Multimedia Keyboard Internet Key Descriptions
Favorites
Press this key to open the Internet Explorer Favorites listing. This is where you can store
shortcuts to frequently used files, websites or other items for easy access.
Email Press this key to Start the default e-mail program. If you are not sure what the default e-
mail program is, press this key to find out. You can reassign the Email key to start
another e-mail program or another application.
WWW Press this key to Start the Worldwide Web browser or go to your Home Web page. If
the
Web browser is already activated it opens the Home Web page. You can reassign the
WWW key to start another Web browser, another Home Web page or another
application.
6. Troubleshooting:
If you are experiencing problems with your keyboard or mouse please check the
following:
Symptom—No response between the receiver and keyboard;
1. Remove the USB Receiver from the computer and check to see if the Receiver’s USB plug
is damaged. If the plug appears normal then reinsert the device into a different USB port on
your PC, there may be a conflict with the previous USB port.
2. Check to see if the batteries in the keyboard are installed correctly. Make sure the polarity
of the batteries corresponds with the polarity signs in the battery compartment.
3. Replace the batteries to make sure the batteries are not low on power.
4. It is strongly recommended that you do not place the USB Receiver near the computer
monitor, as the magnetic field produced by the monitor may interfere with the reception of the
signal from the keyboard and cause data errors. For best results place the USB Receiver in
front of the monitor in order to prevent signal disturbance from the monitor.
Symptom—Keyboard is typing the wrong characters;
5. Replace the batteries to make sure the batteries are not low on power.
Symptom---Some Hot Keys do not work properly.
There are some HP, Compaq or special PC system configurations where the Multi-
Media Hot Key Keyboard Driver has been installed previously. This will effect the
performance of the Hot Keys keyboard software function. Please make sure the original
Multi-Media keyboard software drivers have been removed from your PC. Then restart
your computer and reinstall the Software CD Driver that is included with this package.
How to remove the Multi-Media keyboard software driver?
1. Please click the Start button/Control panel, select Add/Remove software and find the
original keyboard software for removal.
2. If you cannot find the original keyboard software driver, you should click the Start
button/Control panel/System/Hardware/Device manager/keyboard and find the
original keyboard device name, then left click the keyboard device name to update
the driver. You can select and use “Standard 101/102 key or Microsoft Natural
keyboard”.
3. Restart your PC system and the keyboard should work properly.
FCC AND CE RADIATION NORM
FCC
This equipment has been tested and found to comply with limits for Class B digital device
pursuant to Part 15 of Federal Communications Commission (FCC) rules.
CE
This equipment has been tested and found to comply with the limits of the European Council
Directive on the approximation of the law of the member states relating to electromagnetic
compatibility (89/336/EEC) according to EN 55022 Class B.
FCC and CE Compliance Statement
These limits are designed to provide reasonable protection against frequency interference in
residential installation. This equipment generates, uses and can radiate radio frequency
energy, and if not installed or used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that interference will not
occur in television reception, which can be determined by turning the equipment off and on.
The user is encouraged to try and correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected to.
CAUTION!
The Federal Communications Commission warns the user that changes or modifications to the
unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Customer Service
For information regarding the return or exchange of this item within 14 days of
purchase , please visit your Inkstop store location or go to www.inkstop.net to read the
instructions regarding customer service returns procedures. Click on the Satisfaction
Guaranteed icon on the website.
For technical support in regards to operation and installation of this item please call the toll free
number below to obtain assistance. A customer service representative will assist you and
provide operating information on the product.
Please have the following information available when you contact technical support:
Your Name and Address
Date of Purchase
Model Number
Serial Number
Store Name and Address
Type of problem with the unit
To contact the technical support facility, please call
508-435-4830 or 800-639-3803.
Warranty
90 Days Limited Warranty
This product is warranted to be free from defects in material and workmanship for a period of
90 days. Warranty obligations are limited to replacement or repair of defective parts and
components, at the option of the manufacturer. If the original model is no longer available, we
will substitute with a model of equal or better value than the original item. The warranty of this
product is null and void if the product is subjected to negligence, abuse, modification, misuse,
accident or if the customer uses the product for a function it was not intended for. This
warranty is only valid for the original purchaser of this product and will not be honored if the
product is resold. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
The manufacturer will not be liable for incidental or consequential damages caused by the use
of this product. The manufacturer will not be liable for any costs such as lost profits or
revenues, cost of temporary replacements, loss of data, loss of equipment or use of equipment
or any claims by third parties.
After 14 days from the purchase date of this product, please call the phone number listed
below to obtain service. A customer service representative will give you a return authorization
(RA number) allowing you to ship the product to the service center. The purchaser must have
a copy of the original receipt for proof of purchase within 90 days. The purchaser of this
product is responsible for any shipping charges to the repair facility. The manufacturer service
center will repair or replace the unit in question and send it back to the purchaser.
In order to contact the service facility, please call 508-435-4830 or 800-639-3803.
The address for this facility is:
Fourstar Group
26840 Fargo Ave.
Suite C
Bedford Heights, OH 44146
