Instruction Manual
Dylastir® Stirrer
Dylatherm® Hotplate
Dyla-Dual® Hotplate-Stirrer

PACKAGE CONTENTS
Dylastir Stirrer, Dylatherm Hotplate, or Dyla-Dual Hotplate-Stirrer
72" (183cm) power cord
Stir bar (stirring models only)
Instruction manual
WARRANTY
Manufacturer warrants this product to be free from defects in material and workman-
ship when used under normal conditions for two (2) years. Register your equipment or
instrument online at: www.vwrsp.com/warranty for US residents or
www.vwrcanlab.com/warranty for Canadian residents. For your reference, make a note
of the serial number, date of purchase and supplier here.
Serial No.:________________________Date of Purchase:_______________________
Supplier:______________________________________________________________
TABLE OF CONTENTS
Package Contents . . . . . . . . . . . . . . 1
Warranty .............. 1
Installation . . . . . . . . . . . . . . 1
Maintenance & Servicing . . . . . . . . . . . . . . 1
Environmental Conditions . . . . . . . . . . . . . . 1
Safety Instructions . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . 2
Stirring Operating Instructions . . . . . . . . . . . . . . 2
Heating Operating Instructions . . . . . . . . . . . . . . 3
Replacement Parts . . . . . . . . . . . . . . 3
1
INSTALLATION
Upon receiving the VWR Dylastir/Dylatherm/Dyla-Dual, check to ensure that no damage
has occurred in shipment. It is important that any damage that occurred in transport
is detected at the time of unpacking. If you do find such damage the carrier must be
notified immediately.
After unpacking, place the Dyla Series unit on a level bench or table, away from
explosive vapors. Ensure that the surface on which the unit is placed will withstand
typical heat produced by the unit and place the unit a minimum of six (6) inches from
vertical surfaces. Always place the unit on a sturdy work surface.
The Dyla Series unit is supplied with a 3-prong power cord that should be plugged into
a standard 3-prong grounded outlet. If the cord supplied does not meet your needs,
please use an approved power cord that suits local codes and electric supply.
Replacement of the plug must be made by a qualified electrician.
MAINTENANCE & SER ICING
The Dylastir/Dylatherm/Dyla-Dual is built for long, trouble-free, dependable service.
No lubrication or other technical user maintenance is required. It needs no user
maintenance beyond keeping the surfaces clean. The unit should be given the care
normally required for any electrical appliance. Avoid wetting or unnecessary exposure
to fumes. Spills should be removed promptly after the unit has cooled down. Do not
use a cleaning agent or solvent on the front panel which is abrasive or harmful to
plastics, nor one which is flammable. Always ensure the power is disconnected from
the unit prior to any cleaning. If the unit ever requires service, contact your VWR
representative.
EN IRONMENTAL CONDITIONS
Operating Conditions: Indoor use only.
Temperature: 5 to 40°C (41 to 104°F)
Humidity: 20% to 80% relative humidity, non-condensing
Altitude: 0 to 6,562 ft (2000 M) above sea level
Non-Operating Storage:
Temperature: -20 to 65°C (-4 to 149°F)
Humidity: 20% to 85% relative humidity, non-condensing
Installation Category II and Pollution Degree 2 in accordance with IEC 664.

2
SAFETY INSTRUCTIONS
Please read the entire instruction manual before operating the Dylastir/Dylatherm/Dyla-
Dual.
WARNING! DO NOT use the Dylastir/Dylatherm/Dyla-Dual in a hazardous
atmosphere or with hazardous materials for which the unit was not designed.
Also, the user should be aware that the protection provided by the equipment
may be impaired if used with accessories not provided or recommended by the
manufacturer, or used in a manner not specified by the manufacturer.
Always operate unit on a level surface for best performance and maximum safety.
DO NOT lift unit by the top plate.
CAUTION! To avoid electrical shock, completely cut off power to the unit by
disconnecting the power cord from the wall outlet. Disconnect unit from the
power supply prior to maintenance and servicing.
Spills should be removed promptly after the unit has cooled down. Alkalis spills,
hydrofluoric acid or phosphoric acid spills may damage the unit and lead to
thermal failure. DO NOT immerse the unit for cleaning.
CAUTION! The top plate can reach 400°C, DO NOT touch the heated surface.
Use caution at all times. Keep the unit away from explosive vapors and clear of
papers, drapery and other flammable materials. Keep the power cord away from
the heater plate.
DO NOT operate the unit without a vessel/sample on the top plate.
DO NOT operate the unit if it shows signs of electrical or mechanical damage.
CAUTION! Hotplates are not explosion proof. Use caution when heating volatile
materials.
Earth Ground - Protective Conductor Terminal
Alternating Current

Ꮨ
DYLASTIR/DYLATHERM/DYLA-DUAL SPECIFICATIONS
Overall dimensions (L x W x H): 8.75 x 8 x 4.75" (22.2 x 20.3 x 12.1cm)
Top plate dimensions (Dia.): 6.5" (16.5cm)
Top plate material: aluminum
Electrical (50/60 Hz) Dylastir: 120 volts, .5 amps, 20 watts
230 volts, .25 amps, 20 watts
Dylatherm/Dyla-Dual: 120 volts, 10 amps, 575 watts
230 volts, 5 amps, 575 watts
Temperature range (Dylatherm/Dyla-Dual): to 400°C
Speed range (Dylastir/Dyla-Dual): 100 to 1200rpm
Weight capacity: 1500mL, gross weight should not exceed 10lbs (4.5kg)
Controls: heat knob with indicator light
stir knob with indicator light
Ship weight: 4.6lbs (2.1kg)
STIRRING OPERATING INSTRUCTIONS
1. Get ready:
Turn stir knob to the off position, at the extreme counter-clockwise position. Plug
power cord into a standard 3-prong grounded outlet. Place a vessel with the
solution and the appropriate accessories in the center of the top plate.
2. Set speed:
Slowly turn the stir knob clockwise until the pointer reaches the desired set speed.
The stirrer may initially have to be set at a higher speed to overcome friction in
the motor and the material being stirred.
3. Adjust speed:
Speed adjustments can be made without interrupting stirring by turning the
indicator knob clockwise to increase speed, or counter-clockwise to decrease speed.
4. Stop:
To stop stirring, turn the stir knob to the extreme counter-clockwise position, until
it clicks. Your vessel can then be removed. The stirring knob should be kept in the
off position when not in use.

3
1
2
3
6
5
4
7
8
9
MANUFACTURED BY:
201 Wolf Drive • PO Box 87 • Thorofare, N 08086-0087
Phone: [phone] • Fax: [phone] • E-mail: [e-mail]
www.troemner.com
540001-00 (REV 2 - 9/10)
HENRY TROEMNER LLC
HEATING OPERATING INSTRUCTIONS
1. Get ready:
Turn heat knob to the off position, at the extreme counter-clockwise position. Plug
power cord into a standard 3-prong grounded outlet. Place a vessel with the
solution and the appropriate accessories in the center of the top plate. This is
important because the vessel should be over the hottest part of the top plate.
2. Set temperature:
Turn the heat knob clockwise until the pointer reaches the selected heat setting.
As soon as this is done, the red pilot light will flash on and will stay illuminated
until the hotplate reaches the selected temperature setting (graduations on the
panel surrounding the control knob are reference marks only and do not indicate
specific temperatures). The pilot light will continue to light intermittently as the
thermostat acts to maintain this temperature. Rotating the heat control to its full
on position will bring the hotplate surface to its maximum temperature of about
400°C. After cycling for a short period, the plate temperature should stabilize
between 350°C and 400°C, when the control setting is left on "HIGH". To prevent
possible damage, however, this position should not be maintained indefinitely. DO
NOT allow the unit to operate at maximum temperature without a beaker or flask
(with fluid) on the top plate.
3. Adjust temperature:
Temperature adjustments can be made without interrupting heating by turning the
indicator knob clockwise to increase heat, or counter-clockwise to decrease heat.
4. Stop:
To stop heating, turn the heat knob to the extreme counter-clockwise position.
Your vessel can then be removed. The heating knob should be kept in the off posi-
tion when not in use.

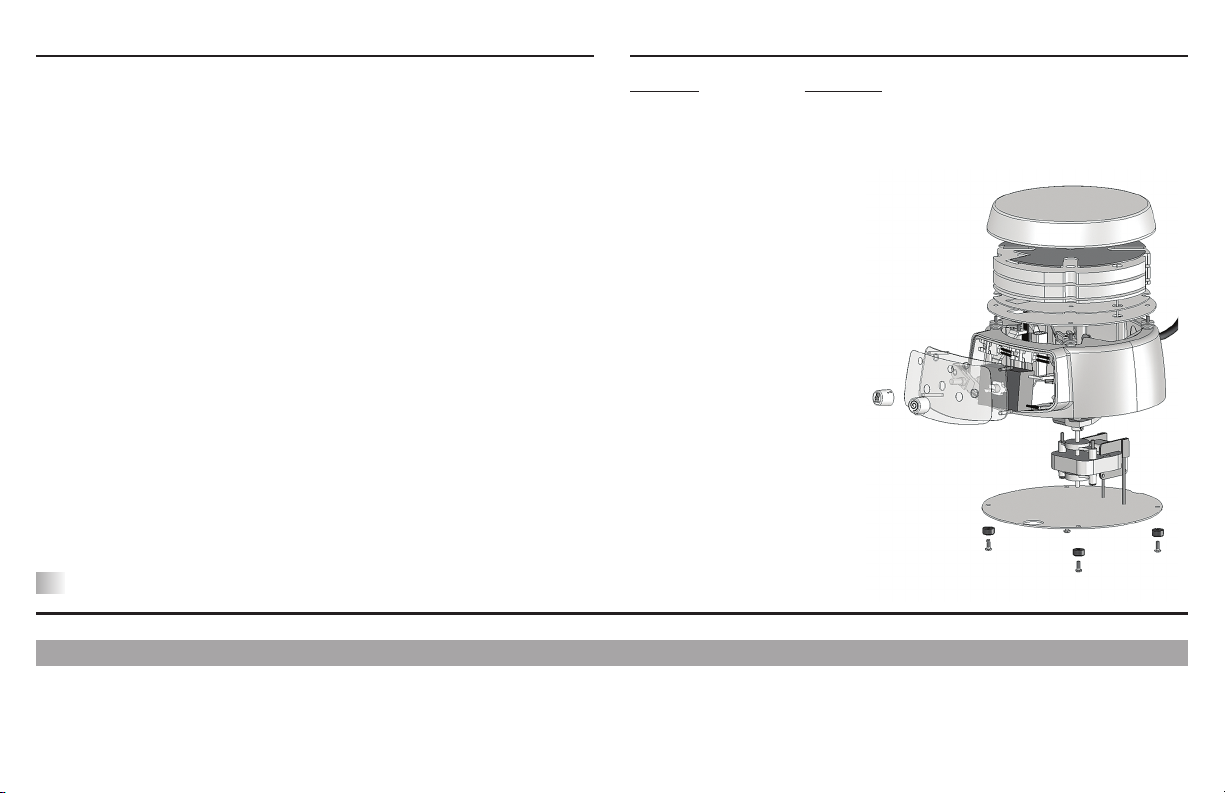

DESCRIPTION PART NUMBER
1. Top plate 242040-00
2. Heater 342008-00
(heating models only)
3. Thermostat 342011-00
4. Heat knob 242016-00
5. Stir knob 242017-00
6. Speed control 342007-00
7. Magnet assembly 486002-00
(stirring models only)
8. Motor 386027-00
9. Feet 530052-00
10. Power cord 330067-00
REPLACEMENT PARTS
