Vyrsa RAIN-PRO VYR PG-6045 User manual

RAIN-PRO VYR PG-6045
Irrigation Programmer
Installation Instructions,
Programming and Operation.

Head Quarter Office
Polígono Industrial N-1, Monte de la Abadesa, Parcela 3801, 09001 BURGOS, ESPAÑA.
P.O. Box 313. Tel.: +(34) 947 26 22 26 Fax: +(34) 947 26 21 24
www.vyrsa.com
e-mail:[e-mail]
ISO 9001:2000

SET UP
• 1. Installation specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
• 2. Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PROGRAMMING AND OPERATING
• 3. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• 4. Set time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
• 5. Set start times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
• 6. Set watering days . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• 7. Set stations run times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
• 8. Set auxiliaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 & 8
• 9. Test system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• 10. Run program manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• 11. Shut off controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• 12. Auto run mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CUSTOMER SERVICE
• 13. Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• 14. Waranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• 15. Solutions for troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INDEX
INDEX

• INSTALLATION: Indoor/Outdoor. Waterproof case IP-65.
• WORKING VOLTAGE:
Input: AC 230V OR AC 110V, 35VA
Output: AC 24V, 300 mA
• Controller connection:
AC24V: Providing power for both controller and electromagnetic valve.
C: Common terminal: Common terminal for rain sensor and electromagnetic solenoid-valve.
R: Rain sensor terminal, usually it will not to be connected with C terminal. Rain sensor will interrupt when raining.
1-11: Connection for 24Vac solenoid valve of each station.
1. INSTALLATION SPECIFICATIONS
1
SET UP

- NUMBER OF STATIONS: Available in 4,6,9 or 11 stations configuration (with water pump or master
valve).
• PROGRAMS & STARTS: 6 separate programs, each of which has 6 start times.
• RUNNING TIMES: 1 minute to 12 hours 59 minutes for each station.
• IRRIGATION SCHEDULE: 7 days, odd/even day, selectable from per day to every 15th day.
• RAIN SENSOR: Rain sensor can be connected outside and it will be interrupted during raining.
On/off function for rain sensor.
• DELAYS BETWEEN MASTER VALVE (MV) OR PUMP, & STATIONS: Synchronization between water
pump and station. While the magnetic valve starting, the water pump will be put into operation
simultaneously or with a delay.
• MASTER VALVE (MV) OR PUMP: Water pump will be put into operation simultaneously.
• WATER BUDGET %: Allow quick adjust water flow from 10% to 200%.
• STAND-BY BATTERY: Keeps clock and selected parameter while power supply interrupt.
2. TECHNICAL SPECIFICATIONS
2
SET UP

PROGRAMMING AND OPERATION
3
Install backup battery (Type: 6LR61),then connect to AC power.
3. CONNECTION
Turn dial to SET CLOCK / CALENDAR to set current time & correct day. Press + or -to
adjust the hours. Using ➔, press + - adjust the minutes. After clock was set, press twice
to adjust the calendar. Date will be “year, month, day” and week, odd even day display
automatically during adjusting. Press will ➔return clock.
4. SET TIME
FUSE BATTERY
9V COMMON
SENSOR POWER
TRANSFORMER
220V-24 VAC
MASTER
VALV. VALVES
➔

4
PROGRAMMING AND OPERATION
Turn the dial to SET START TIMES to set start time of irrigation, there are 36 start time
can be used totally.
PROG NO corresponding to each programmable group, START NO corresponding to
schedule of each program. Using ➔o will move to relevant setting.
After 6 start time for PROG NO 1 were finished, press Pto select PROG NO 2 for next
schedule.
Total 6 programmable group will be set by same way. If less than 6 starting time needed,
it can be cancelled by press + or -up to display OFF during setting hours.
5. SET START TIMES
➔

5
PROGRAMMING AND OPERATION
Turn the dial to SET WATERING DAYS, there are 6 groups to be set. The PROGNO 1 will
display first. This is to set interval watering time for No.1 group.
When week position lighting, press + or - setting or cancel the watering time of that week,
after week moving, ODD will display as odd day and EVEN as even day, watering on odd
day or even day can be selected.
Using ➔to interval days watering selection, press + or -under NO WATER will make a
selection, how may day will begin watering under INTERVAL DAYS. Using ➔to set
INTERVAL DAYS, press + or -button to select interval days.
After PROG NO 1 finishing, press Pfor PROG NO 2 interval days setting and the rest to
be set accordingly until 6 groups interval days to be set.
6. SET WATERING DAYS

6
PROGRAMMING AND OPERATION
Turn the dial to SET STATION RUN TIMES to set running time for each station. Station
No show relevant station. Press ➔or and + or -to set running time for selected
station.
The RUN TIME can be set to “0:00” if watering not need.
After 1-6 points for this STATION NO finished, press Pto set running time of each
points of following station.
7. SET STATIONS RUN TIMES
➔

7
PROGRAMMING AND OPERATION
Turn the dial to SET AUXILIARIES to set auxiliary function during irrigation which like: If
each station need to be controlled by rain sensor, if each station work together with water
pump, if need delay between pump and each station and delay among each station.
• SENSOR DELAY
The station 1 will be displayed first to make selection for if rain sensor controlling needed,
using ➔ then press + or -selecting ON or OFF, press ON then using ➔ twice to set delay
time (from 0 to 240 hours) of rain sensor. This mean a specific delay time after the rainy
sensor with an indication of dried out and the watering of relevant station will be closed
after this delay. Using ➔ returning control menu to set rain sensor controlling for rest
station.
8. SET AUXILIARIES

8
PROGRAMMING AND OPERATION
• PUMP SET
Press Preturn main menu to set next function.
When Per 1 display, press Pagain to the status of station will running together with pump,
press + or -to select station, after using ➔then press + or -again to select ON or OFF
to decide if need the station and pump running together.
• PUMP DELAY
Press Pbutton again into PUMP DELAY BETWEEN to select delay time that is the time lags
between the pump begin working and the relevant station. It can be set from OFF to 99
seconds.
• STATION DELAY
Press Pinto STATION DELAY, this mean delay time among each station. If 10 seconds
were set, this station will start running 10 seconds later than former station stop. The
others will be set as same as above. Using + or -and ➔or to finish setting, this time
can be set from OFF to 99 seconds.
8. SET AUXILIARIES
➔

PROGRAMMING AND OPERATION
9

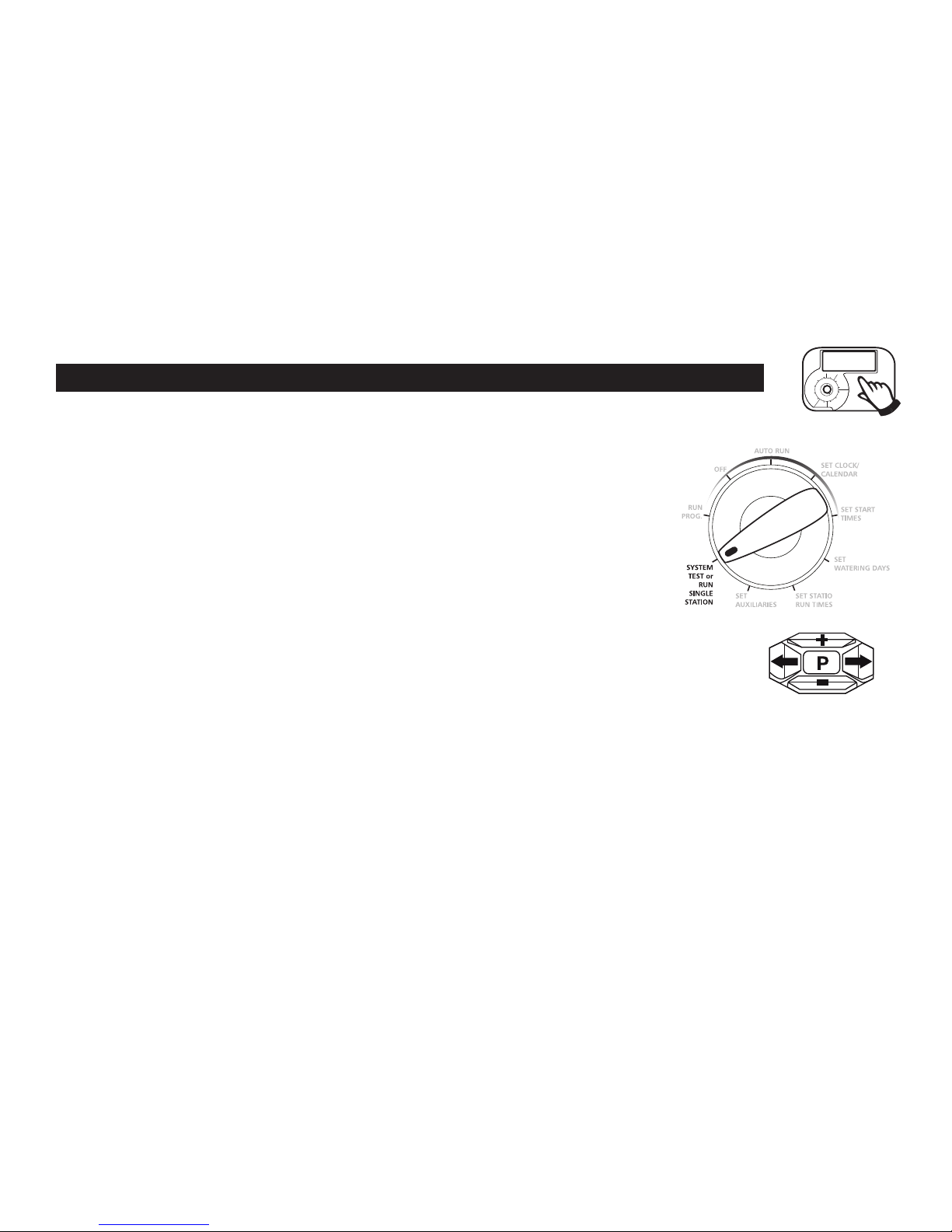

Turn the dial to SYSTEM TEST to set manual testing and function for each station.
Press + or -and ➔or to select relevant station and running time. Pressing Pagain,
the manual operation wasoperated immediately and will stopped after running once, then
“single” was displayed in the left bottom of the Led.
During operation, press Pbutton again which can stop manual running.
Press and +at same time, the “multi” will display in the left bottom of the led. This
mean, it can be run continually once for manual setting time of more stations. Press + or
-select station, using ➔then press + or -again to set running time, press again to
return station selection. After run time for each station to be set, pressing P, the all station
will be run in turn once, the running can be stopped temporarily by pressing P.
9. TEST SYSTEM
➔
➔
➔

PROGRAMMING AND OPERATION
10

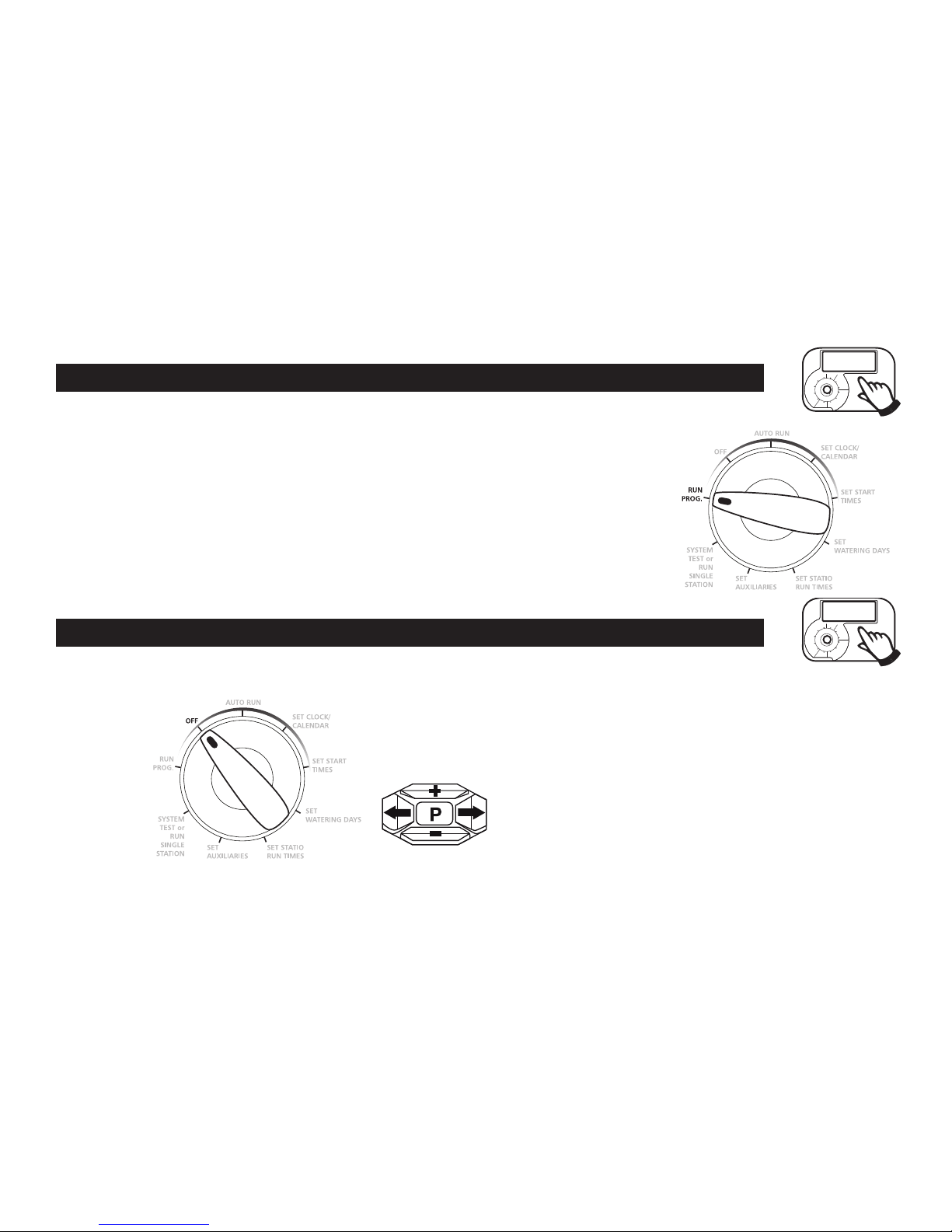

Turn dial to OFF to close all the function of this controller.
Turn the dial to RUN PROGRAM enable one or more programs (Among 6 programs) to
run a manual operation once.
Press Pbutton select programs No. and press + or -button to make relevant program ON
or OFF, after 6 programs to be set, press ➔button ,the program with ON will running and
press Pbutton the operation will be halt for 10 minutes, The HOLD 10:00 will be
displayed, press Pagain, the running will renew. After manual programs running, the
system will return to automatic running status.
10. RUN PROGRAM MANUALLY
11. SHUT - OFF CONTROLLER

PROGRAMMING AND OPERATION
11
Turn dial to AUTO RUN, this mean the controller will be automatic running status after
setting. It will be operated automatically with watering parameter that to be installed from
step No.2 to No.6. During automatic running, press will indicate current date, press ➔
will return clock status. Under clock status and press ➔, the flow of irrigation can be
adjusted 10% to 200% by press button + or -.
This mean, the running time can be shorten or extended proportionally (under all
parameter no change) to adapt the requirement in different season.
12. AUTO RUN MODE
➔

In case that you need any type of technical assistance, please contact with your nearest VYRSA Authorized
Distributor or Installer, contact us at [email protected] or by calling at (SPAIN) [phone] during our office hours.
13. TECHNICAL SUPPORT
19
CUSTOMER SERVICE
VYRSA warrants all our control system products to be free of defects in materials or workmanship under normal use for a
period of three (3) years from the original date of manufacture. All our sprinkler and accessories products are warranted to be
free of defects in materials or workmanship under normal use for five (5) years from the original date of manufacture. In case
that VYRSA detects any defect during the warranty period on any of our products, VYRSA will repair or replace, at its option,
the product or the defective part.
VYRSA warranties does not extend to repairs, adjustments, or replacement of any of our products or part that results from
misuse, negligence, alteration, tampering, modification or improper installation and/or maintenance of the product. This
warranty extends only to the original installer of the VYRSA product.
In case that a defect appears in a VYRSA product or part during the warranty period, you should contact your local VYRSA
Authorized Distributor.
VYRSA´S OBLIGATION TO REPAIR OR REPLACE ITS PRODUCTS AS SET FORTH ABOVE IS THE SOLE AND EXCLUSIVE WARRANTY
SET FORTH BY VYRSA. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. VYRSA WILL NOT BE LIABLE TO ANY PARTY IN STRICT
LIABILITY, TORT, CONTRACT OR ANY OTHER MANNER FOR DAMAGES CAUSED OR CLAIMED TO BE CAUSED AS A RESULT OF ANY
DESIGN OR DEFECT IN VYRSA PRODUCTS, OR FOR ANY SPECIAL, INCIDENTAL OR CONSECUENTIAL DAMAGES OF ANY NATURE.
If you have any questions concerning the warranty or its application, please write to:
VYRSA • Polig. Ind. N-1 • 09001 Burgos, SPAIN
14. WARANTY

15. SOLUTIONS FOR TROUBLESHOOTING
13
CUSTOMER SERVICE
1. The controller doesn´t start at
the programmed running times.
2. When connecting the battery
the controller doesn´t start up.
3. The solenoids doesn´t work
properly.
4. The MASTER VALVE or PUMP
doesn´t start
5. The running time is different
from the one in the programs.
Make sure that the WATER DAYS and RUN TIMES are sellected.
Make sure that the PAUSE and JUMP modes are unsellected.
Make sure that the power in ON.
Make sure that the cable or the positive or negative poles are not broken.
Make sure you are using 24Vac solenoids.
Make sure the wires are properly connected.
The distance in between the controller and the solenoids must not be more than 300
meters. Check the technical especifications of the solenoids that you are using or ask
our tech-department.
Make sure the solenoids are clean in the inside and that water going through the
solenoids has been previously filtered on a 120 micron screen.
Make sure the PUMP mode has sellected ON every station that you want the MV to be
running at the same time.
Make sure that the WATER BUDGET is not different from 100%.
