Wadia 171iTransport User manual

171iTransport
with Universal D ck f r iP d
manual

Thank You.
All of us at Wadia Digital would like to say
thank you, and congratulations for purchasing the
Wadia171iTransport Digital iPhone, iPad and iPod
integration device. We sincerely believe that your
Wadia 171iTransport is an intelligent investment
that will bring you many years of musical enjoyment
and satisfaction.
We understand how eager you are to begin listening
and we want you to become familiar with the full
capabilities of the Wadia 171iTransport. However,
before powering on the device, we encourage you to
look through the manual and pay special attention
to the sections highlighted with an ◆.

Table of Contents
Installation
Connections
Operation
Appendices
Wadia Digital a Brief History 3
Advantages of Digital Audio 5
Optimizing Performance 6
Unpacking 7
Accessories 7
Installing Battery in Remote Control 8
◆Connecting to AC Power 8
◆Installing iPhone, iPad and iPod Dock Inserts 8
Choosing a Digital Cable 10
◆Connecting to an Audio or Audio Video System 11

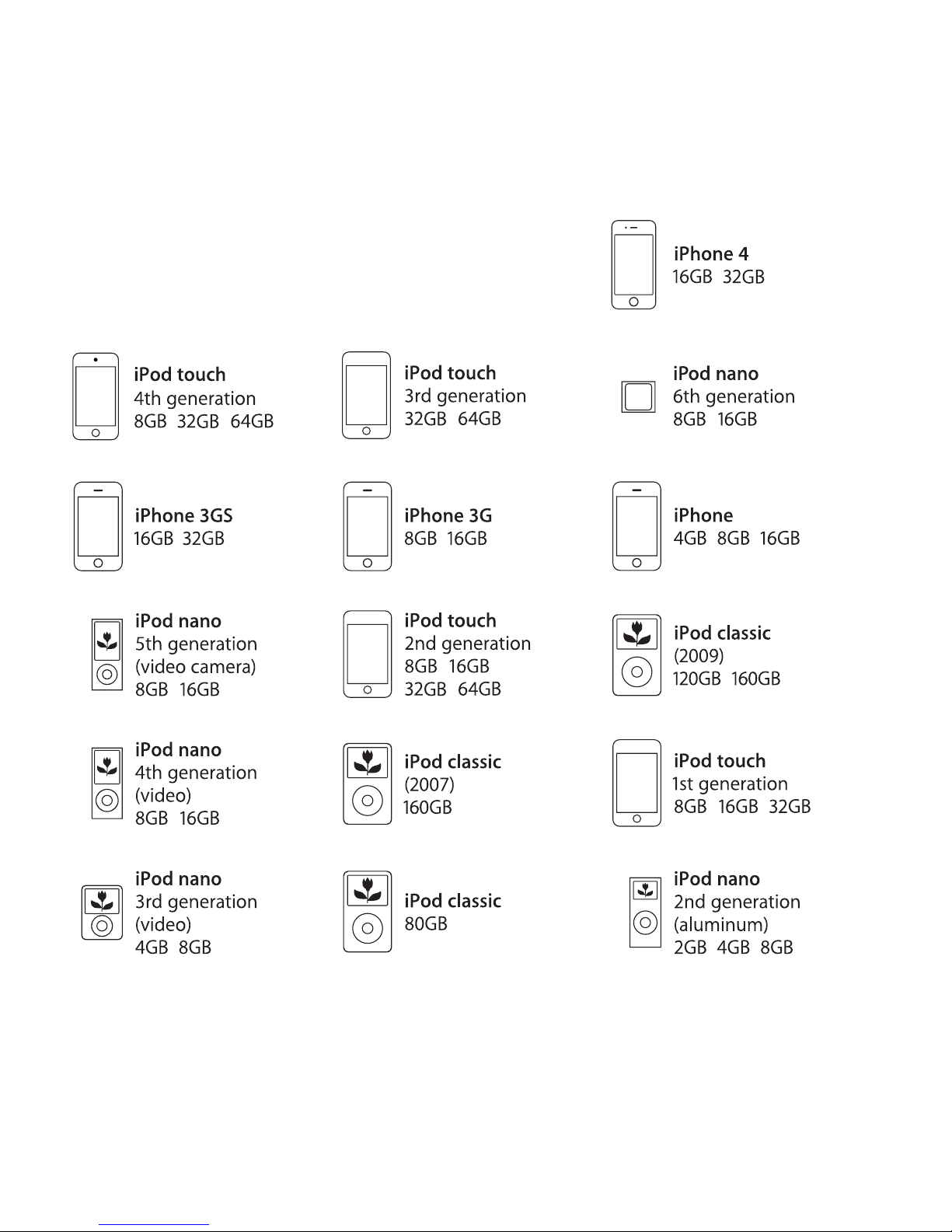

Supported iPhone, iPad and iPod Models 14
◆Connecting the iPhone, iPad and iPod 15
Using the Remote Control 16
Remote Buttons and Functionality 17
Environmental Care 18
Important Safety Precautions 18
Trouble Shooting 20
Warranty 21
Specifications 22

Wadia Digital – a Brief History
Wadia Digital, founded in 1988, is one of the original companies dedicated to
high performance digital audio reproduction. Wadia was formed by a team of
engineers from the Minneapolis based 3M Corporation (Minnesota Mining and
Manufacturing) who shared many years of experience in advanced digital
telecommunications research and development. In the early 1980’s, these engineers
became intrigued by the emerging compact disc technology. Disappointed with
the sound quality of early CD players, they examined the workings and designs of
these early components and found them to be unsophisticated when compared
with the technology available in other areas of digital design. In response, they
founded Wadia Digital a company based on the philosophy of applying advanced
technology to improve the performance of digital audio components. Wadia’s
first product, the Wadia 2000 Decoding Computer, was an absolute breakthrough
in digital audio. For many discerning listeners, it proved that Digital Audio was a
musically responsive, evolving, and engaging format.
Building on a tradition of excellence, Wadia continues to develop innovative
technology; refining, listening, engineering, and improving along the way. Since the
Wadia 2000, new generations of industry-leading designs have been introduced
and embraced by listeners around the world. Each step of the way, Wadia has
consistently raised the standard for performance of Digital Audio playback.
3

Here is a brief list f the techn l gical inn vati ns the Wadia engineers
have pi neered ver the past 20 years:
• DigiMaster™ patented algorithm (filter optimized for reproducing music)
• ClockLink™ proprietary jitter reduction technology
• SwiftCurrent™ current to voltage conversion technology
• First outboard Digital-to-Analog converter
• First to apply glass fiber-optics to home audio
• First to recognize jitter as a source of audible distortion
• First to perfect digital volume control
• First high-end CD player competitive with expensive separates
•First c mpany t pr vide bit perfect digital audi utput fr m the
iPh ne and iP d
While Wadia’s expertise and track record exceed those of most digital audio
companies, technology alone does not guarantee an immersive and captivating
musical performance. Wadia’s intuitive designs are born of a delicate balance
of technology shaped by a passion for music.
Wadia continues to re-define the limits of digital music playback. We are proud
to introduce the Wadia 171iTransport a breakthrough in sonic performance
and a strong statement of our dedication to music.
4

Advantages of Digital Audio
Digital audio signals can be processed without the additive losses and distortion
found in analog processing. This loss of resolution is caused by analog circuitry
and connectors in a signal path. The Wadia 171iTransport bypasses the digital to
analog conversion and analog output stage from the iPhone, iPad and iPod. By
providing a pure digital audio output from your iPhone, iPad and iPod, the Wadia
171iTransport enables performance that is only limited by the resolution of the
audio files stored on your iPhone, iPad and iPod, and the overall quality of your
audio system. In other words, the Wadia 171iTransport makes it possible to
achieve true audiophile performance from your iPhone, iPad and iPod.
5

Optimizing Preformance
For optimum sonic performance when using iPhone, iPad and iPod we highly
recommend that you store music at the highest bit rate you can justify. Storing
music files at higher bit rates will require substantially more storage space on
your computer, iPhone, iPad and iPod, however, the sonic improvement is self
evident. The highest available quality is achieved by importing music into iTunes
as WAV or AIFF files. AIFF and WAV files are full resolution files equal to the
original master source. Another good option for storing music in iTunes is Apple
Lossless. Apple Lossless will allow you to preserve much of the performance of
your music while not using as much space on your computer, iPhone, iPad and
iPod. To make sure that you are importing music at the highest bit rate you will
need to open iTunes and follow these instructions.
• Select Open the iTunes drop down menu (Mac), or
Edit Tab (Windows) from the menu bar
• Select Preferences
• Select Advanced Tab (within the Preferences window)
• Select Importing Tab (within the Advanced Tab window)
• Select Import Using (2nd Selection From Top). With this Drop Down
menu you will be able to select AIFF, WAV or Apple Lossless
• Select AIFF, WAV or Apple Lossless Encoder
6

Installation
Unpac ing
Use care in unpacking your Wadia 171iTransport.
Inspect it for any signs of shipping damage and call your dealer immediately if
any is found.
Do not plug your Wadia 171iTransport into any outlet if you find
shipping damage.
Please save all packing materials so unit can be easily and safely shipped if the
need arises.
Accessories
Included in the carton, you will find an accessory kit that contains the following:
• Locking AC Adapter and Power Cord
• IR Remote Control
• Digital Coax Cable
• iPhone Adapter Insert
• iPod Adapter Inserts
Video Cables are not included with the Wadia 171iTransport. For optimal
performance, please contact your local dealer for information on Video Cables
that will be most compatible with the Wadia 171iTransport and your system.
7

Installing Battery in Remote Control
The Wadia 171iTransport remote control will ship with the required battery
preinstalled. However, you will need to remove the clear plastic insert tab from
the battery to allow operation of the remote.
◆Connecting to AC Power
Check to make sure that the power cord shipped with your Wadia 171iTransport
has been manufactured for operation at your AC line voltage. Damage caused
by improper operation is not covered by Wadia warranty. If the included cable
and wall termination is different from your AC outlet, contact your Wadia dealer.
◆Installing and Removing the iPhone & iPad Adapter Cable
The Wadia 171iTransport comes with a special adapter cable for use with the
iPhone and iPad. The adapter is pre-installed on the 171iTransport. While primarily
used for the iPhone and iPad, users may connect any Apple music device to the
transport through the adapter cable.

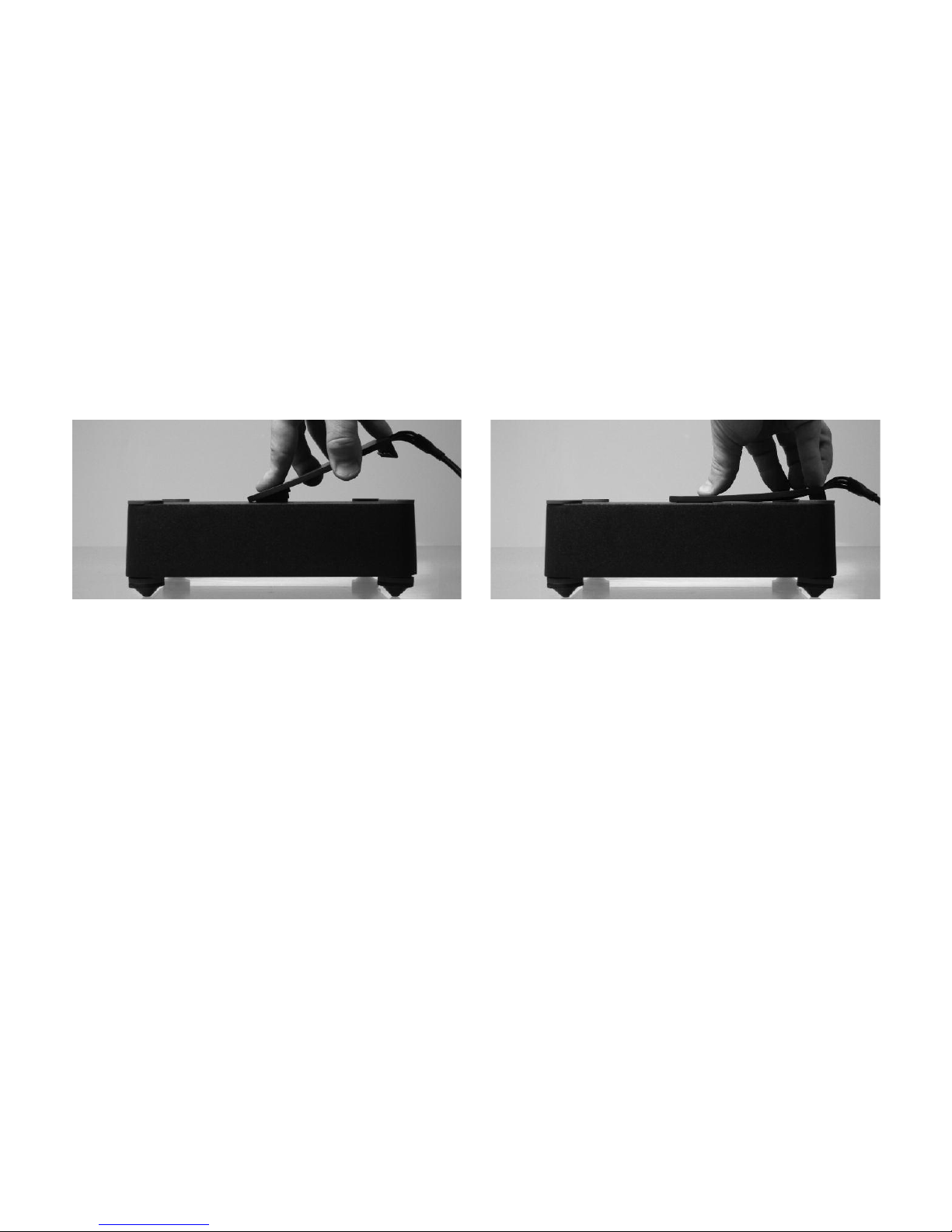

Caution: The adapter can be removed, but is not designed for regular
removal. If you must remove the adapter, pull up on the back section of
the flat plastic connector on top of the iTransport. Do not pull on the
cable. Removing the adapter reveals a typical iPod docking well.
To re-attach the adapter cable, locate two small tabs on the front of the flat
connector portion of the adapter. Also, note two corresponding grooves on the
front inside portion of the docking well. Angle the front part of the adapter so
the front slides into the well. Make sure the tabs firmly seat inside the grooves
8

on the well. The connector will not move left or right if the tabs are seated
correctly. Once those tabs are seated, push down slowly on the rear of the
adapter until the back of the adapter clips on the back edge of the iTransport.
Do not force the adapter down. Forcing the connector could damage the 30-pin
connector on the iTransport. Damage due to incorrect installation of the adapter
cable is not covered by the Wadia warranty.
F r further instructi ns, please visit www.wadia.c m and view the
adapter installati n vide in the 171iTransp rt secti n.
◆Installing iPod Doc Inserts
The Wadia 171iTransport comes with several dock inserts that will allow it to
accommodate the compatible iPod models. First, you will want to determine
which insert fits your iPod model. If there is already a dock insert in the Wadia
171iTransport, you will want to remove it. This is accomplished by applying slight
pressure with your thumbs to the back of the insert while pushing up to release
the dock insert. To install the new insert, make sure that the two (2) small slits in
the inside of the insert are facing the front of the Wadia 171iTransport. Place the
dock insert over the multi-pin metal connector and carefully click into place.
9

◆Installing iPhone Doc Insert
The Wadia 171iTransport comes with an special adaptor insert for the iPhone
and iPad. To attach the new adaptor, insert the front part into the well first.
This takes some patience. Once the front section is in the well, push on the
back part to clip the adaptor onto the back edge of the Wadia 171iTransport.
Connections
Avoid static discharge to the inputs or outputs. To prevent static shocks,
touch any grounded surface, such as the chassis of any component that
uses a grounded 3-prong plug, before connecting or removing a cable.
It is unlikely that a static discharge will damage the unit, but it may
cause the Wadia 171iTransport circuitry to “lock-up” (see Lock-Up under
Trouble Shooting in Appendices).
Choosing a Digital Cable
The Wadia 171iTransport features both a Coaxial S/PDIF Connection with a
RCA connector and a Optical S/PDIF Connection with a Toslink connector. The
quality of either of these transmission methods depends on the quality of the
cable and the sophistication of the transmitter and receiver. While the cable
included with the Wadia 171iTransport will certainly work for the transmission
of digital information between the Wadia 171iTransport and a Digital to Analog
Converter or other digital receiving device, we recognize distinct advantages in
higher quality cables available today. Again, we highly recommend that you take
advantage of your dealer’s experience and, most importantly, trust your ears.
10

◆Connecting to an Audio or Audio/Video System

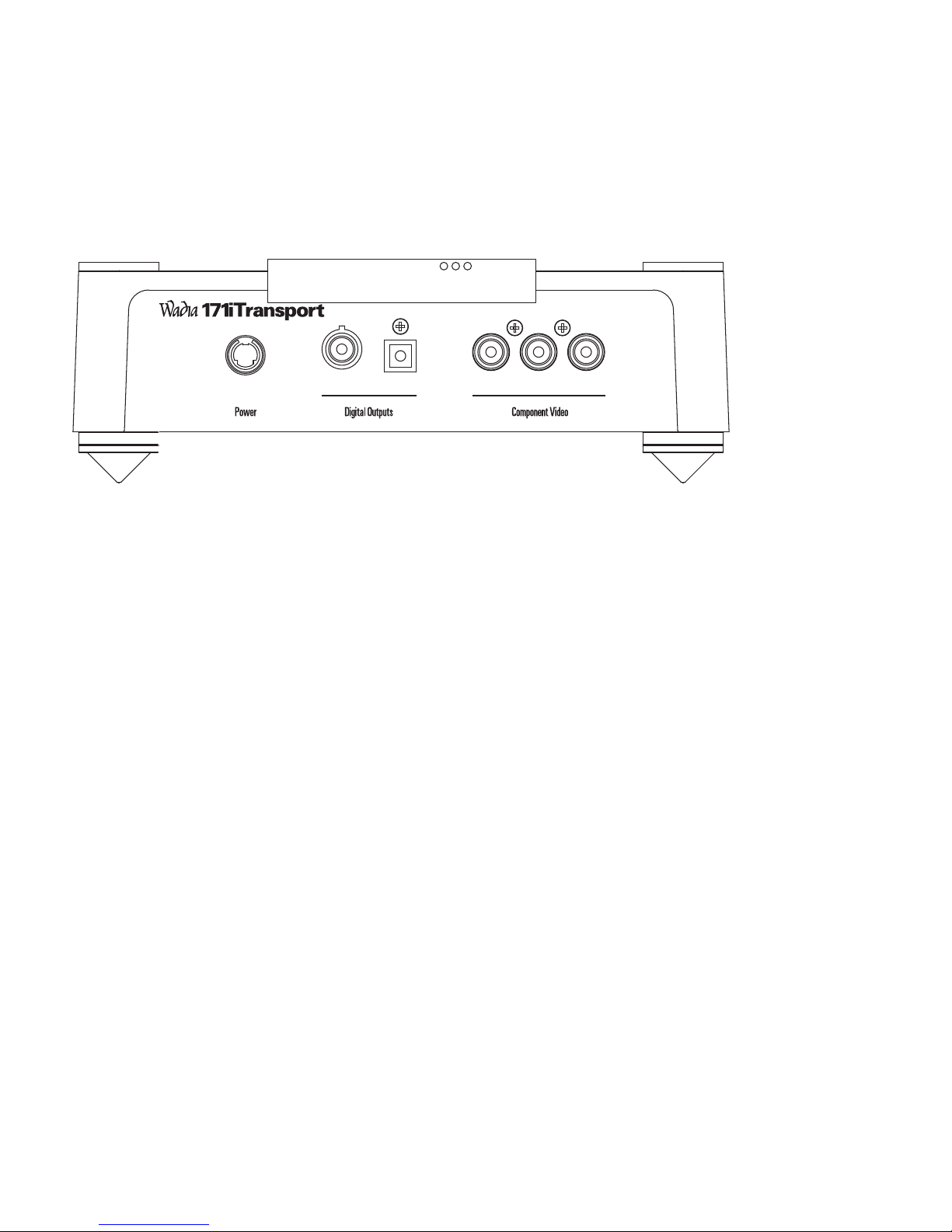

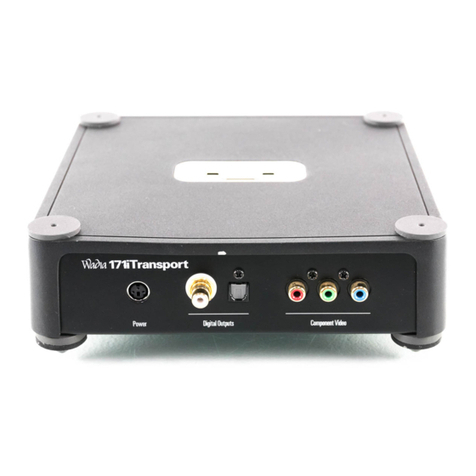

Bac Panel (fr m left t right)
1P wer: The power supply comes with the Wadia 171iTransport. It is a custom
power supply and the use of any other power supply will void the warranty.
2Digital Out C ax: This is a digital audio output that is compatible with
the S/PDIF standard. It is intended to mate to a coax digital input on a
compatible device.
3Digital Out T slink: This is a digital audio output that is compatible
with the S/PDIF standard. It is intended to mate to a Toslink digital input
on a compatible device.
4C mp nent Vide : This is the high resolution video output available
from the newer generation of iPods (iPod touch, iPod classic and iPod nano
3G and 4G) iPhones and iPads.
11
1 2 3 4

Ma ing a Digital Connection
Connect your chosen cable from the S/PDIF Coaxial or Toslink Digital Audio
output on the Wadia 171iTransport (connection 2 or 3 in iTransport Outputs
illustration) to the corresponding digital input on your Digital to Analog Converter,
Digital A/V Receiver or Digital Preamp/Processor.
Ma ing a Component Video Connection
Connect your chosen cable from the Component Video output on the Wadia
171iTransport (connection 4 in the iTransport Outputs illustration) to the
corresponding Component Video input on your Television, A/V Receiver or
Preamp Processor.
(The Wadia 171iTransport only acts as a high-performance pass-thru for
video signals. Picture performance is limited to the uality of the material
stored on the iPhone, iPad or iPod. Some video adjustments may be
necessary on your video display for maximum video performance).
12

Ma ing a Power Connection
Connect the supplied Power Cord to the AC Adapter. Connect the AC Adapter
with locking connector to the Power Input on the Wadia 171iTransport
(connection 1 in the iTransport Outputs illustration). The locking connector
has a sleeve that has to be pulled back while the metal portion of the connector
is being inserted into the Wadia 171iTransport (this may require both hands).
The connector can only go in with the flat side of the connector facing up. Once
the connector is all the way in, let go of the sleeve and it will return to its original
position and lock the connector in place. Finally plug the Power Cord into the
wall to supply power to the Wadia 171iTransport.
13

O eration
Supported iPhone and iPod Models
14

◆Connecting the iPod
Connect your iPod once you have properly installed the appropriate dock insert.
Gently slide the iPod down into the dock insert. Make sure to align the connection
on the bottom of the iPod with the multi-pin metal connector located within the
plastic dock insert. Do not force the iPod down into the dock insert or you may
damage the multi-pin connector and cause the Wadia 171iTransport to malfunction.
To remove the iPod from the Wadia 171iTransport, grasp the iPod with a firm
grip and pull upwards at the same angle of the iPod while docked.
◆Connecting the iPhone
We recommend you use the adaptor with the extension cable for optimum
antenna performance. Plug the extension cable into the iPhone with the marked
side facing up toward the touch screen. You can dock the iPhone using the
appropriate insert provided with your iPhone.
◆Connecting the iPad
The iPad can only be connected using the adaptor with the extension cable due
to the size of the iPad. The extension cable plugs into the 30 pin connector on
the iPad with the marked side up. The 171iTransport will not charge the iPad,
but it will not drain the iPad either.
15

+
input
menu
mute
track back
volume down volume up
previous album
previous playlist next playlist
track forward
-
shuffle
shuffle play/pause
select
next album
-
+
-
+
menu
up down
select
mute input
Using the Remote Control
The Wadia 171iTransport includes
a metal remote which controls the
iPod/iPhone/iPad. The remote commands
will behave differently on individual
iPod/iPhone models. If you need
clarification on the difference, please go
to our web site at:
www.wadia.com/products/transports/171i
16

Remote Buttons and Functionality
Mute: Will mute the sound on Wadia products that feature volume control.
Input: Will cycle through the inputs on Wadia products that feature input selection.
Volume Down: Will lower the volume on Wadia products that feature volume control.
Volume Up: Will raise the volume on Wadia products that feature volume control.
Menu: Will go up one menu on an iPod. *
Select: Will select the highlighted option on the iPod. *
Up: Will move the highlighted option on the iPod up one. *
Down: Will move the highlighted option on the iPod down one. *
Shuffle: Will turn the shuffle option on or off on most compatible iPod models.
Play/Pause: Will cause the iPod to play music or to pause the music playback.
Track Back: Will cause the iPod to skip back to the previous track.
Track Forward: Will cause the iPod to skip forward to the next track.
Previous Album: Will skip to the previous album in the selected playlist. *
Next Album: Will skip to the next album in the selected playlist. *
Previous Playlist: Will skip to the previous playlist. *
Next Playlist: Will skip to the next playlist. *
* Designates command that can be further explained on our website www.wadia.com. These commands
behave differently on different iPod/iPhone/iPad models. The website will explain in greater detail how
your iPod/iPhone/iPad should react to the commands.
17
mute
input
-
+
menu
shuffle
-
select
-
+
-
+

A endices
Environmental Care
Wadia Digital makes every effort to be an environmentally conscientious company.
We greatly appreciate it when our customers join our efforts. Please dispose of
batteries and packing material in a manner that is environmentally responsible.
Important Safety Precautions
To get the best performance from your Wadia 171iTransport, and for your own
safety, please read and follow these important safety instructions.
1Before operating the Wadia 171iTransport please read all of the operating
and safety instructions.
2Never place the Wadia 171iTransport near heat sources such as radiators,
fireplaces, stoves, or other appliances that produce heat. Avoid placing
the Wadia 171iTransport where it will be subject to direct sunlight or
low temperatures.
18

19
3Before cleaning the Wadia 171iTransport, always disconnect the power
supply cord. Use a soft cloth and, if necessary, dampen with clean water.
Never apply water, or any other cleaner, directly to the chassis.
4If you smell smoke, or an abnormal smell, immediately unplug the Wadia
171iTransport from the power supply and contact your Wadia dealer.
5Never attempt to service the Wadia 171iTransport beyond what is
described in this Owner’s Manual. All service should be performed by
qualified service personnel.
6Unplug unit if it becomes wet.
7Do not attempt to repair or modify your Wadia 171iTransport.
