WALTIS Viva GT Guide

Valtis ogrevanje d.o.o
Cesta k Tamu 61
2000 Maribor
Manual for Maintenance Workers
Viva GT
V_06032020

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
1. Fume extraction duct
2. Combustion chamber
3. Loading bay door
4. Ash cleanout doors
5. Smoke chamber cover
6. Firewood storage
7. Belimo air intake motors
8. Boiler heat exchanger
9. Fan
10. Chimney connection
11. Electronic regulation
12. Turbocharger cleaning lever
BOILER DESCRIPTION

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
PUMP OEP 25-60-180
PRE-COMMISSIONING ASSEMBLY INSPECTION
The protection against condensation prevents water from the heating network from entering the boiler
when the water in the boiler has cooled below 58 °C.
The electronics installed into the boiler enable the control of the mixing valve, which ensures the correct
mixing of cold water from the storage tank and hot water from the furnace. When the water in the lower
part of the storage tank starts to rise above 60 °C, the mixing valve starts to open, which allows a greater
exchange of energy between the furnace and the water storage tank.
For full operation of the boiler it is mandatory to install a three-way mixing valve 5/4'' with motor drive
(e.g. PROMIX AVC05 5Nm, 2 min, 230V and flow pumps 25-60-180) or the exact equivalent of the one
described. The diameter of the pipe between the boiler and the water storage tank must be 35 mm in
diameter. In the event that the equipment installed is not in accordance with the requirements, the
manufacturer shall not be held liable for any malfunctioning of the boiler. However, the person
authorised to start the boiler has the right to cancel the boiler start-up. Any costs incurred in connection
with this shall be borne by the customer themself or by the person who installed the boiler.
Explanation of labels:
- Mixing valve PROMIX AVC05 5Nm, 2 min, 230V:
- Pump 25-60-180:
Three-port mixing valve, 90
degree rotation angle
Torque 5 Nm
Engine rotation speed, 2
min for 90 degrees
Connection voltage 230V~
Nominal suction and pressure
connection diameter, 25mm, 1
inch (DN)
Maximum pressure level [dm]
Installation length [mm]

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers

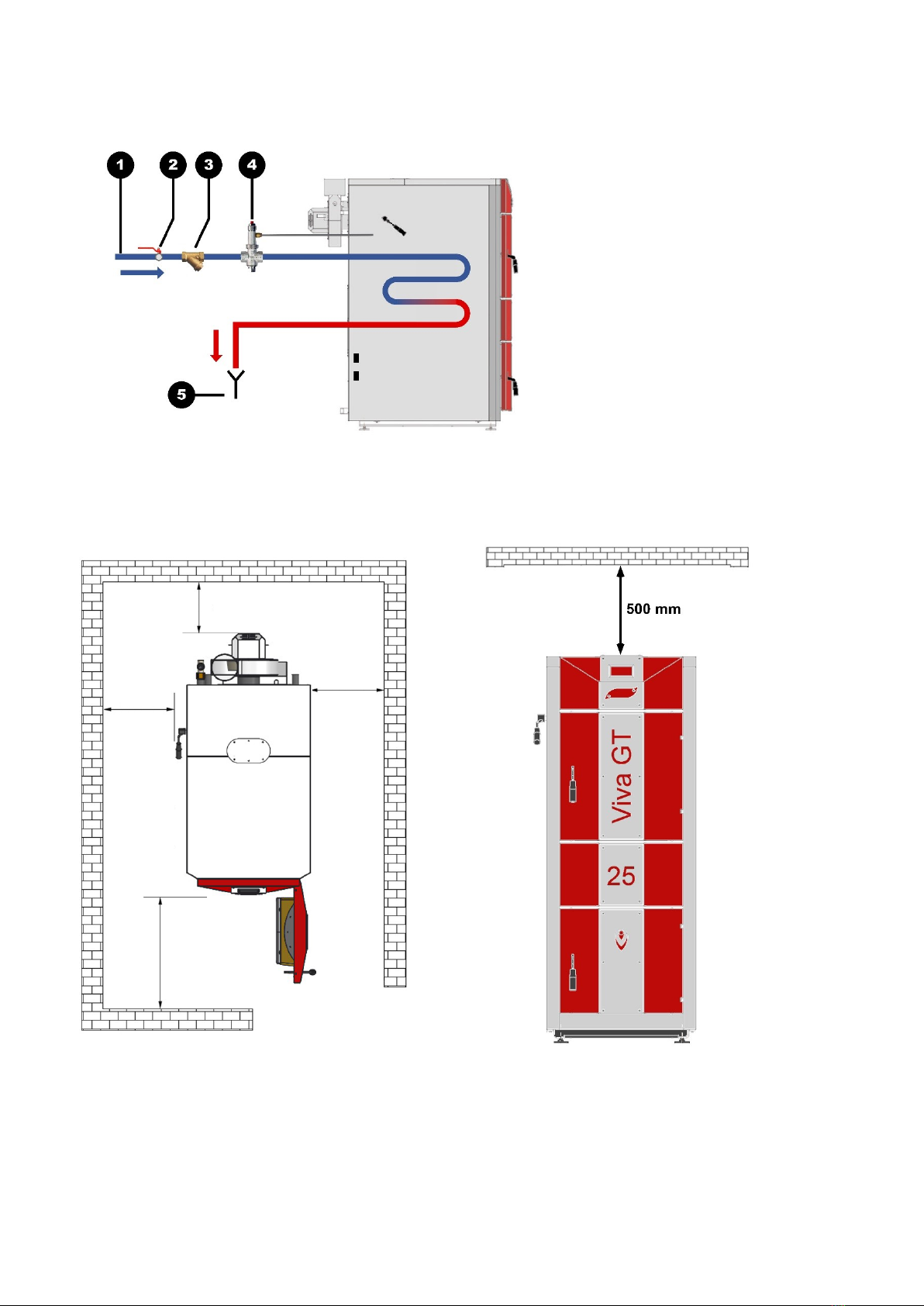

1. Cold water connection
2. Check tap, remove handwheel
3. Dirt trap
4. Thermal discharge safety device
5. Visible outflow into the canal
INSPECTION OF THE CORRECT INSTALLATION OF THE STS SAFETY VALVE
MINIMUM WALL CLEARANCE
In order for the manufacturer to ensure trouble-free operation and maintenance of the boiler, it is
prohibited to start the boiler if the minimum wall clearances are not complied with.

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
ELECTRONICS PREPARATION
For the first start-up of the boiler and also for subsequent firing, it is essential that the wood is
properly dry. It is necessary to explain to the customer that the optimum humidity for firing is
14%. Up to 20% is still acceptable, anything more than that has a bad effect on the performance of
the furnace!
We explain to the client in what order to load firewood, kindling, ignition cubes, paper, ... It is
recommended not to display burning using a gas gun. Demonstration of combustion using a gas
gun is discouraged.
Before starting, we need to change the first parameter, which determines the allowed ignition
time. When the time set in parameter P00 has elapsed, the furnace will sound an alarm in case of
too low fumes. Set the P00 value at Vivi GT to 35.
Initially, OFF is displayed on the top screen. To get to the parameter change menu, you must first
unlock the electronics.
The procedure for unlocking the electronics is as follows
1. Hold the bottom right button no. 3 MENU on the keyboard for 3 seconds.
TEN is displayed on the upper screen and OFF is displayed on the lower screen (if OFF is
flashing, press button no. 3 MENU briefly again to make it stop flashing)
2. Press the button no. 4 and select "P1A" and by pressing the key no. 3 activate the flashing
3. With button no. 4 continue (10:03). In between and at the end, confirm with the button
no. 3
Repeat the same procedure for "P1d" (10:03)
4. Hold the button no. 3 (MENU) 3 seconds to exit the menu
The electronics are now unlocked. In the following steps we will enter the parameter list and
set the parameter P00. The same procedure applies to changing other parameters.
5. Press and hold for 3 seconds the button no. 5 to enter the parameters
6. Cycle through the parameters with the button no. 2 (+) and button no. 6 (-)
7. With button no. 5 we start changing the value and confirm the changes

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
8. The parameter menu is closed by pressing the key no. 5 for 3s or more
After the parameters have been changed, it is necessary to lock the electronics for safety reasons.
This is done by repeating steps 1-4 and changing the values for P1A and P1d (different from
10:03).
Now the furnace is ready for start-up. First, perform a dry run. The purpose of this is to check that
all electronic components are working correctly. Start-up and control procedure:
•Close the door and press the power button (no. 1). Blov is displayed on the screen and the
seconds count down below. At this stage, check if the fan is rotating.
•The next step is to check the primary and secondary air flaps. Look through the lid (with
the λcut out) to see if the flaps have started to open. The upper flap regulates the primary
air and the lower flap the secondary air. The opening procedure at switch-on is as follows:
oThe lower flap remains closed.
oTop hatch opens to 100%
When the sensor detects a fire in the firebox, it starts to regulate both flaps. In the first
stage, the primary air flap will be almost fully open (it must reach a fume temperature of
180 °C). When the boiler reaches an operating temperature of 180 °C, it starts to close the
primary air flap and open the secondary air flap.
Check that the mixing valve backflow preventer is correctly connected (at this stage it must
be actuated by the electronics).
•Next comes the start-up. Explain to the customer which button to press for start-up, how
to load the wood and the recommended burning procedure.
We explain to the customer that the door must be closed at all times, except when refuelling. To
control the combustion, press the button no. 2, with which the temperature of the fumes and the
return duct are checked. If this temperature does not rise within the first 15 minutes, then repeat
the firing process.

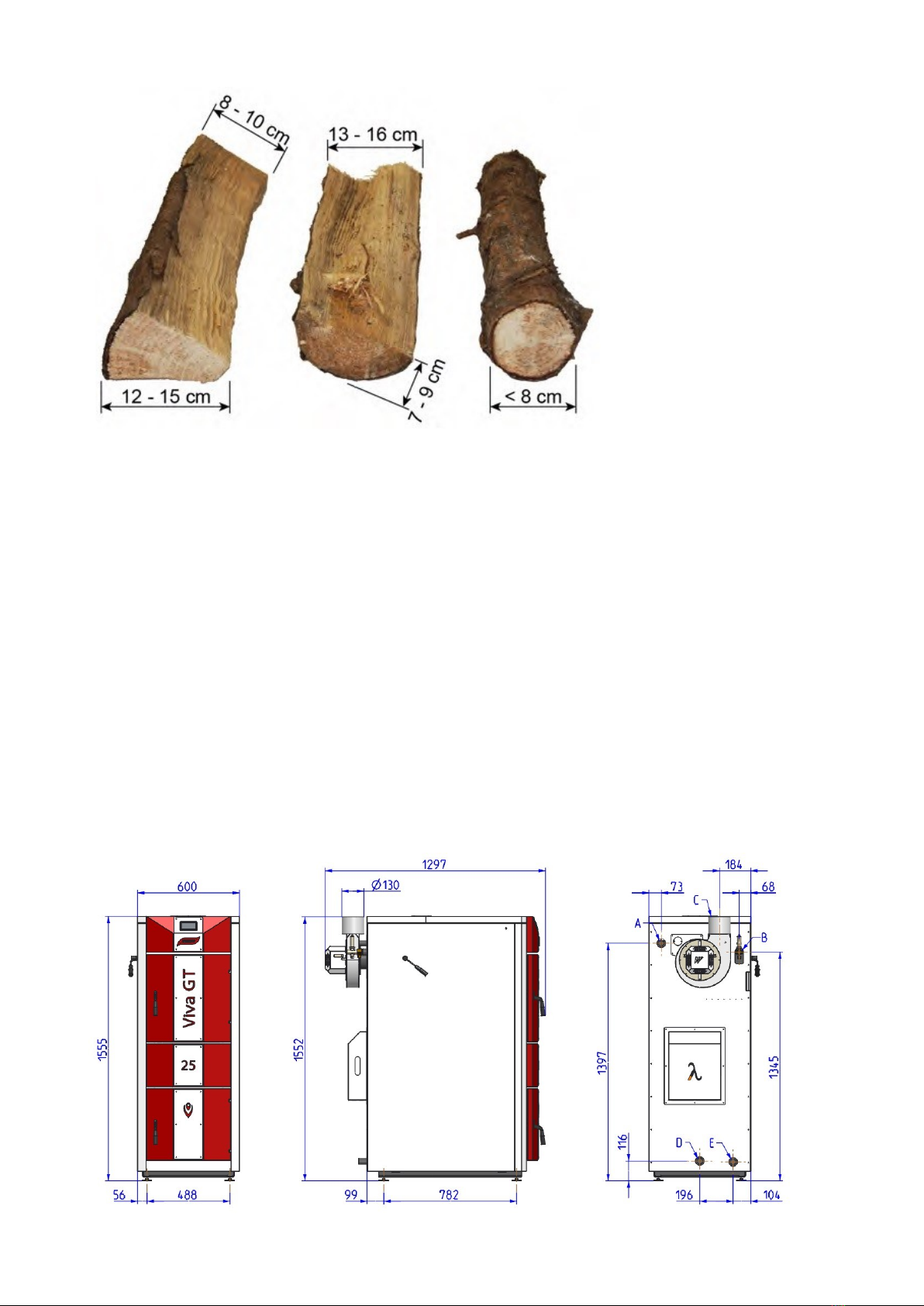

FUEL
The fuel used in the boiler must be firewood with a maximum length of 500 mm and an average diameter
of 10 cm. Round pieces of wood smaller than 8 cm are not split, but can be placed between the firewood.
All types of wood with a maximum moisture content of 20% can be burned. The boiler output is
determined by the type and dryness of the firewood.

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
Wooden planks can only be inserted between the firewood and must not be the first layer, as they
cover the combustion opening in the grate. The finer material can only be used as a filler for the
space between the firewood, but in no case in the lower layer. The smaller the material, the less
you can mix in.
Inappropriate fuels
Moist fuels with more than 20% water are not allowed. They cause water to accumulate,
corroding the walls of the boiler's filling chamber. It is also forbidden to burn rubbish, paper and
cardboard (for kindling only), wood dust, sawdust, pieces of wood smaller than a thumb, coal,
coke and substances prohibited by the relevant air pollution law, such as old railway sleepers,
plastic sheets, impregnated wood, etc.
TECHNICAL CHARACTERISTICS

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
Characteristics of the boiler
VIVA GT 25
VIVA GT 35
Unit
Boiler weight
596
596
kg
The volume of water in the boiler
184
184
I
Fuel storage tank volume
135
135
I
Dimensions of the fuel inlet
350 x 430
350 x 430
mm
Max. operating pressure
2
2
bar
Maximum temperature hot water duck
85
85
°C
Minimum return temperature
55
55
°C
Fuel consumption
6.21 / NP
8.54 / NP
kg/h
*Efficiency (EN 303-5:2012)
90.50
90.80
%
Thermal output
24.81
34.19 / NP
kW
Output range
rated output only
rated output only
kW
Boiler connection voltage
230 / 50
230 / 50
V/Hz
Required chimney draft
10 - 15
10 - 15
Pa
Fumes temperature
100-200
100-200
°C
Test pressure
4.5
4.5
bar
Boiler class (EN303-5:2012)
5
5
/
Combustion period
2 - 6
6
h
Boiler water settings
70 - 85
70 - 85
°C
Fumes flow
0.0146 / NP
0.0185 / NP
kg/s
Water resistance (∆t=10K)
102
160
mbar
Water resistance (∆t=20K)
25
47
mbar
Hot water reservoir
1000
1500
I
Protection water temperature and
pressure
20 / 2
20 / 2
°C / bar
Diameter of the chimney connection
130
130
mm
Electrical power
59 / NP / 3
64 / NP / 3
W
Noise emission
> 70
> 70
db(A)
Condensing boiler
no
no
/
Operation at excess or negative pressure
negative pressure
negative pressure
/
Operation with or without fan
with fan
with fan
/

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers

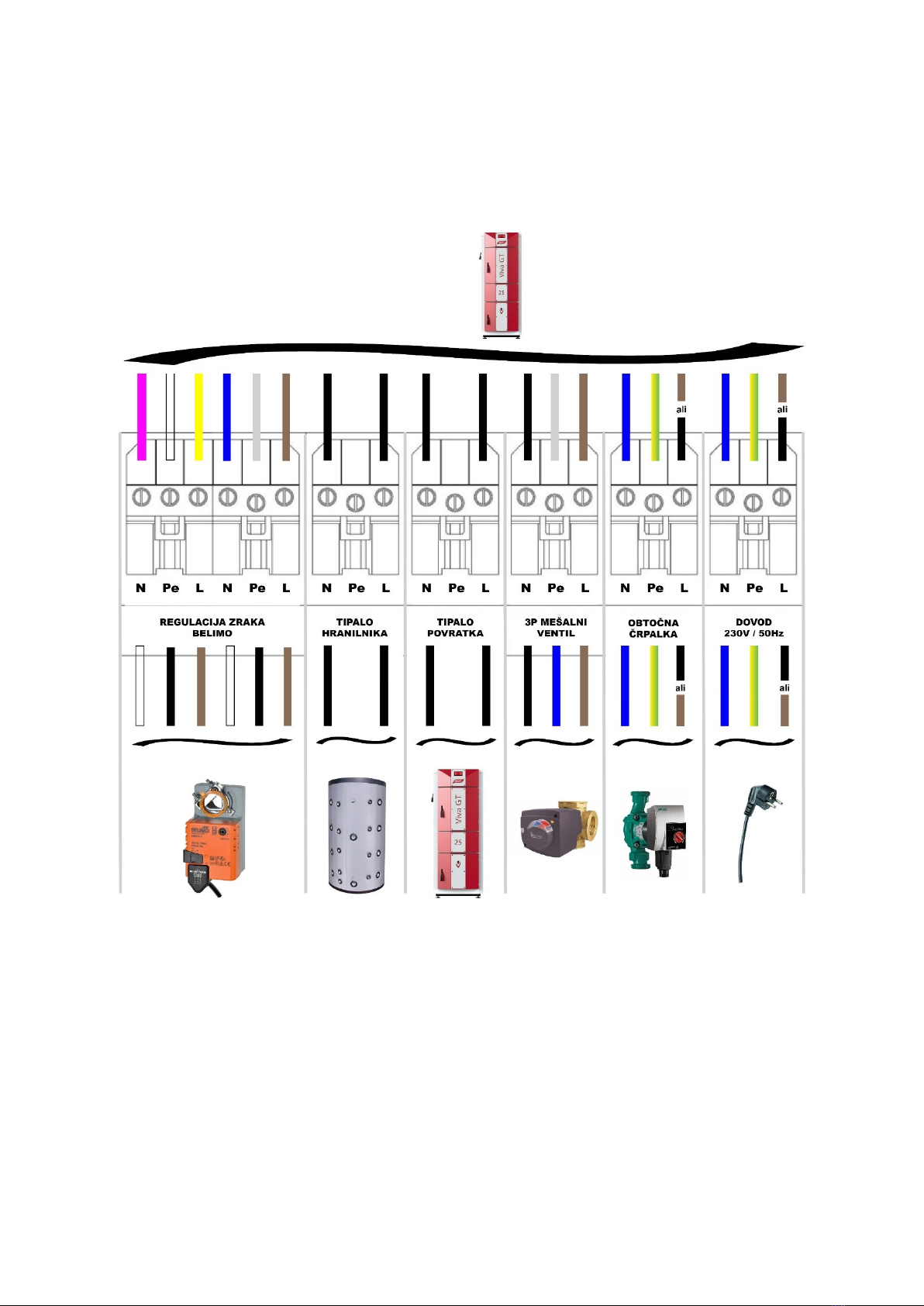

CONNECTING THE BOILER TO THE ELECTRICITY GRID
The connection of the boiler to the electricity grid and the input/output components (valves, pump,
sensors...) is done via the terminal connectors, as shown in the figure below.

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
UPDATE TO THE LATEST VERSION OF THE SOFTWARE
VIVA GT –SW_28012020
Process, innovations and what it includes:
First, disconnect the electrical voltage from the boiler, connect the calibration sensors and reconnect the
electrical voltage. We take into account that the water in the boiler should be below 30°C.
1.) Place the fume sensor in the correct
position. Keep him in the cocoon,
deep in the ribs.
2.) Insert the stick with the latest version of
the programs into the USB slot and first
plug the power supply (12V, 1A) into the
Bootloader
3.) Connect the connecting cable to the
RJ25 connector
4.) Check the registration and correct reading of
the USB stick (symbol appears)
and press FLASHBOOT

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
7.) When the program is loaded, disconnect the bootloader and connect the display. First, make sure
that the calibration sensors are aligned and show the same values (a difference of + - 3°C is
allowed).
8.) Enter the entry code in the P1A and P1d menus and exit the menu. Press the MENU key (right
below) and the possibility of setting the water in the boiler (85°C) is available. Pressing the same
key again will cause the Lambda probe to be calibrated. The display shows "CALB –00". When the
+ key is pressed, the calibration of the Lambda probe is triggered. It is necessary to know that the
boiler temperature must be below 30°C. Once this operation is finished, the process is complete.
When it comes to this version of the program, it is important to note that:
-The Lambda probe through the Belimo motors maintains 180 °C of fumes by closing the primary
flap. This parameter is an integral part of the "hidden" parameters and cannot be modified.
-If the fume temperature exceeds 190 °C, the boiler starts to modulate, thus reducing the boiler
output.
-The output of the boiler is no longer visible on the display
IMPORTANT!
The SW_28012020 program version is currently not uploading to Vivo GT with Flamtronic lambda probe.
6.) With the + and - keys, select the program
for the appropriate boiler and confirm it
with the MENU key
5.) It is imperative that we wait for the sensors
to be calibrated correctly

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
POSSIBLE ERRORS AND HOW TO SOLVE THEM
INACTIVE SCREEN
NO NTC
NO TCI
NO STB
No electrical power
Blown fuse in the electronics
Check the connection of the electrical power
Change the fuse in the electronics
Displayed when the regulation has not detected a
water sensor
Check the connection where the sensor is connected
Physically check the sensor, the suitability of the
insulation
Change the sensor
Displayed when the regulation has not detected a
fume sensor
Check the connection where the sensor is connected
Physically check the sensor, the suitability of the
insulation
Change the sensor
Displayed when the capillary thermal fuse is
activated
The thermal protection is activated when the water in
the boiler overheats above 95 degrees and cannot be
deactivated until the temperature drops below this
value
Check the operation of the circulation pump
Check the operation of the mixing valve
Too much fuel in the firebox

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
Leaking fume connection
Impassability of the heat exchanger
Door leakage
REGU THROTTLE
SMELL OF FUMES
CONDENSATE ACCUMULATION
RELEASE LEVER CAN'T BE MOVED
It shall be displayed when the fumes temperature
approaches the upper limit, which means:
High boiler load
Uncleaned boiler walls
Clogged pipe exchanger, reduced fumes
transmission
Excessive ash in the area below the heat exchanger
Clogged chimney
Try to change the activation of heating pumps with
external control
Clean the walls of the boiler
Clean the heat exchanger
Clean the ash in the area under the heat exchanger
Clean the fume pipes
No anti-condensation protection
Wet firewood
Check the operation of the pump and mixing valve
Replace wood with a maximum humidity of 15%
Irregular cleaning of the lever (necessary at least at
each loading and addition of firewood)
Boiler overdose
Clean the heat exchanger
Firewood is added as needed
Seal the fume connection
Clean the heat exchanger
Replace the door sealing cord

Valtis Ogrevanje d.o.o. Instructions for installers and maintenance workers
Dirt accumulated in the fan housing
The fan is malfunctioning
When the boiler overheated, the STB switch turned
off
THE FAN DOES NOT START
SCOPE OF WORK –SERVICE
CLEANING AND INSPECTION OF THE FIREBOX
-Clean the boiler walls under the wall coverings
-Clear the ashes
-Clean under the stainless steel grid
CLEANING AND INSPECTION OF THE HEAT EXCHANGER
-Clean the chamber walls
-Pipe clearance inspection
-Turbolator suitability inspection
CLEANING THE CHAMBER UNDER THE REGISTER CLEANING THE CHAMBER BELOW THE REGISTER
-Clean the chamber walls
-Clear the ashes
INSPECTION OF DOORS AND COVERS
-Inspection of insulation inserts
-Inspection and replacement of the sealing cord
-Check for leaks
INSPECTION OF CONTROL AND ELECTRONIC COMPONENTS
-Inspection of all electronic components
-Inspection of regulation and parameters
FAN INSPECTION
-Dismantling the fan, cleaning the fan blades
-Cleaning the Lambda probe
BELIMO ENGINES INSPECTION
-Cleaning the flap
-Inspection of the rotation, movement of the flap
INFORMATION
-All information is available at: [email protected]
-or by telephone: [phone]
-All orders are executed with the completed attached document, to the following address:
[email protected]
Unscrew the fan and clean it
Contact the service centre
STB switch deactivation
