WAR-LOCK GARDENSHED Skillion Series User manual

Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw
horses, 3mm steel drill bit, 4mm steel drill bit and a 10mm masonry drill bit.
Assembly instructions
Skillion SeriesSkillion Series
Congratulations on purchasing your new War-Lock garden shed. Before assembling, we
recommend you read the instructions thoroughly. Your new garden shed comes with pre-drilled
holes to make assembly quicker. We recommend you assemble it using a trestle table or
sawhorses and planks. This will ensure that you are working o󰀨 the ground and make it easier
for you.
Assembly of this shed is a two-person job and should not be attempted in windy conditions.
GARDENSHED
1.51W x 1.51D x 1.98Hm
[phone]
[email protected]

2
GARDENSHED1.51W x 1.51D x 1.98Hm
Outer base dimensions 1515 x 1515 mm
Inner base dimensions 1470 x 1470 mm
Wall height 1800 mm
Peak height 1983 mm
Roof width 1601 mm
Door opening dimensions 1740 x 746 mm
Dimension overview:

Build your garden shed in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door

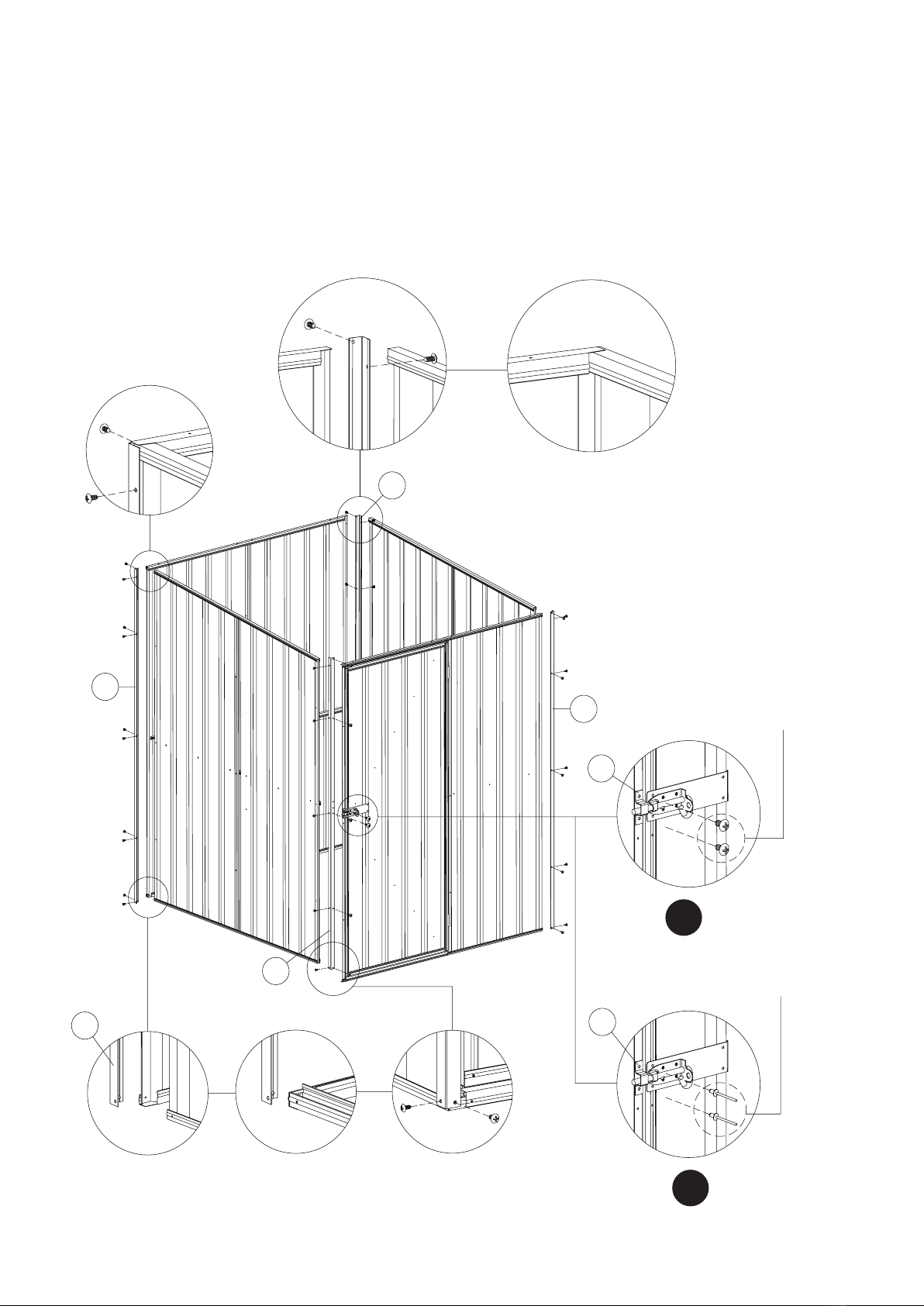

Step 7: Fit the panels together
CONCRETESLAB1600mm
1600mm
Warning: Do not assemble this shed on a windy day.
Warning: This shed must be fully assembled and anchored to a concrete slab using the supplied bolt down kit in one session/
day. The shed must not be left partly assembled.
Assembly recommendations: We recommend a minimum of two people are needed to assemble this shed.
CONCRETE SLAB: 1615mm
100mm
1615mm
Concrete slab: Please ensure that your site is level. It is recommended that your slab is
100mm thick and you use builder’s plastic and F52 reinforcing mesh. We recommend that
you make your slab 100mm bigger than the base dimensions of your garden shed. This will
allow for a 50mm edge around your garden shed. We recommend that you slope the 50mm
edges downward by 10mm so that rainwater can drain away from your garden shed.
WARNING: If you require a cyclonic kit for this shed please note, you will need to assemble the kit and shed
together.

4
GARDENSHED1.51W x 1.51D x 1.98Hm
Picture Description Component Location Part No. QTY Check
Sheet Sheet 1957x770mm Rear wall S87 2
Sheet
Sheet 1877-1957x770mm
(right)
Side wall S88 1
Sheet
Sheet 1877-1957x770mm
(left)
Side wall S89 1
Sheet
Sheet 1800-1880x770mm
(right)
Side wall S90 1
Sheet
Sheet 1800-1880x770mm
(left)
Side wall S91 1
Sheet Sheet 1600x770mm Roof 8 2
Sheet Sheet 1800x708mm Front S86 1
Door Sheet Sheet 1745x770mm Door D18R 1
Channel Channel 1743mm Door M24 1
Channel Brace 1743mm Door M25 1
Channel Channel 768mm Door M26 2
Brace Brace 998mm Door U11 2

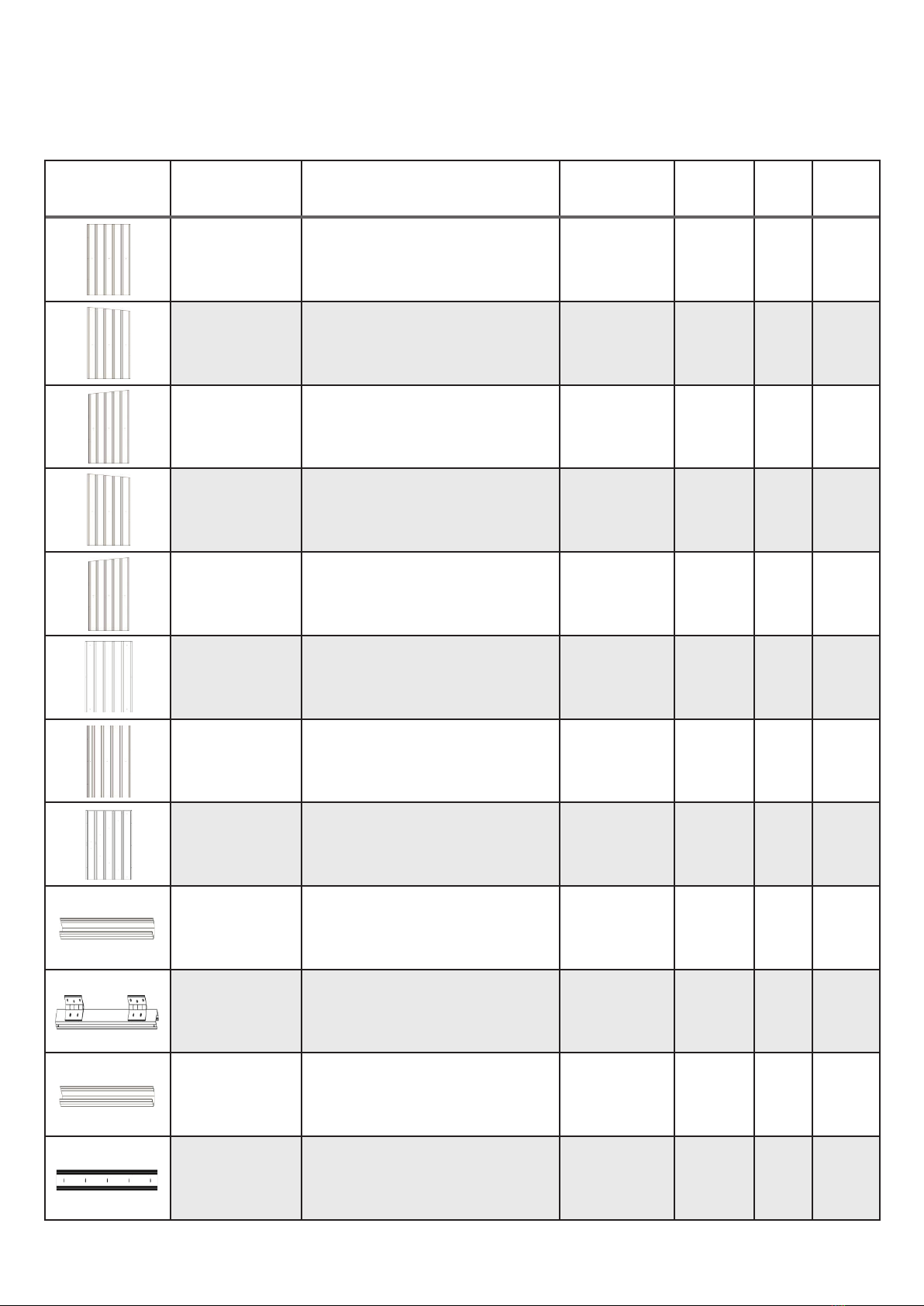

Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check o󰀨 against parts list.

Picture Description Component Location Part No. QTY Check
Channel Channel 1508mm
Roof
side wall
20A 4
Channel Channel 1508mm Rear wall 20B 1
Channel Channel 1508mm Rear wall 20C 1
Channel Channel 1508mm Front 20D 1
Channel Channel 1508mm Front 20E 1
Channel Channel 1515mm Side wall 25 2
Channel Channel 775mm Front 23 1
Channel Channel 1458mm
Rear wall
Side wall
31 3
Channel Channel 674mm Front 33R 1
Jamb Jamb 1798mm Front J3 1
Jamb Jamb 1798mm Front J5 1
Jamb Jamb 775mm Front 42 1
Brace Corner brace 1798mm Corner Z39 1

GARDENSHED1.51W x 1.51D x 1.98Hm
Fittings part list:
Picture Component QTY Picture Component QTY
Self-tapping screws (10mm) 150 Self-tapping screws (16mm) 20
4 x 10mm Rivet 12 3 x 10mm Rivet 40
Pad bolt (Part 70) 1 Keeper (Part 71) 1
Bracket 8 5/16 x 19mm Hexagonal bolt 8
5/16 Hexagonal Nut 8
Mid wall brace bracket
(Part 72)
3
Self tapper safety cover 25
Channel safety cover
(L type)
1
Channel safety cover
(R type)
1 Plastic stopper 4
Picture Description Component Location Part No. QTY Check
Brace Corner brace 1798mm Corner Z40 1
Brace Corner brace 1955mm Corner Z41 1
Brace Corner brace 1955mm Corner Z42 1
Lip Lip 1601mm Roof 51 2
Joining
Brace
Joining brace Door W 1

7

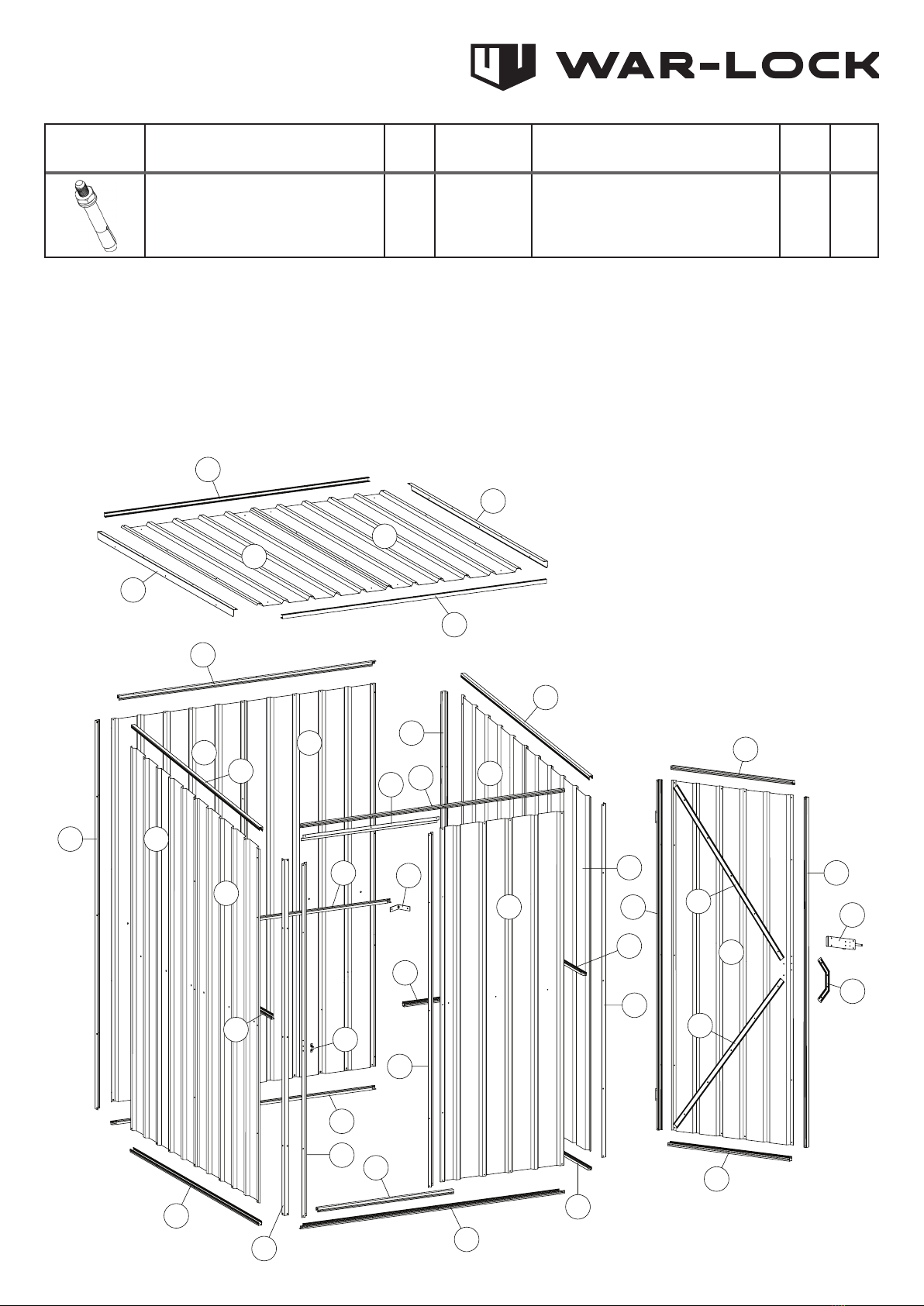

Garden shed overview:
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _________________________________________
In the unlikely event that you nd you are missing a part, Australian customers please contact AQUILIA on [phone].
Picture Component QTY Picture Component QTY �
Sleeve anchor bolt 8
72
71
25
S87
8
8
20A
20A
20B
20C
20A 20A
25 20D
20E
23
42
51
51
31
33R
31
31
Z41
Z42
Z39
Z40
S87
S88
S89
S90
S91
S86 M25
M24
M26
M26
W
70
D18R
U11
U11
J5
J3

8
GARDENSHED1.51W x 1.51D x 1.98Hm

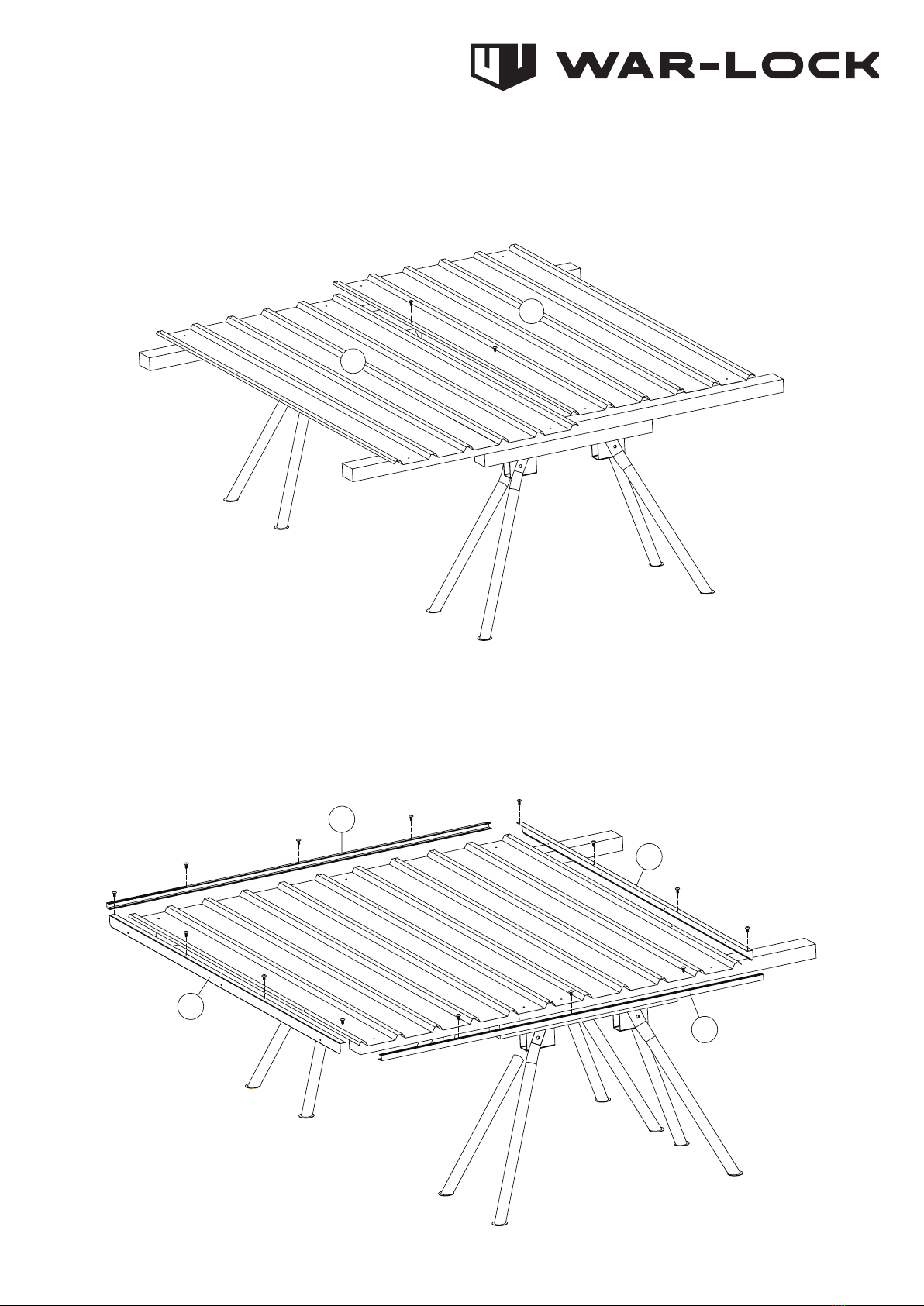

Step 2: Assemble the rear wall panels
You will nd it easier to assemble your shed using sawhorses with timber studs attached (timber needs to be the same length as the
shed (1.5m)) or alternatively, a trestle table.
Place 2 x part S87 (sheet) on your worktable and join together with the self-tapping screws as per the diagram below.
Now t part 20B (top channel) and part 20C (bottom channel) to the sheeting by tapping it in (diagram A) or sliding it in (diagram B).
Make sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your shed.
900mm
20B
20C
S87
S87
RIDGES FACING UP
ROOF TOP EDGE
A

9
Step 2: Assemble the rear wall panels (continued)
Now t part 31 (mid wall channel) to the sheeting and position it with the self-tapping screws provided. Please note the groove should
face downwards. Position the top and bottom channels with self-tapping screws as well. NOTE: All screws marked with a cross should
not be xed at this stage.
TIP: If panel and screw holes do not line up, try pulling panel to match up holes.
900mm
20B
20C
S87
S87
31
31
20B
20C
ROOF TOP EDGE
RIDGES FACING DOWN
TOP
B

10
GARDENSHED1.51W x 1.51D x 1.98Hm

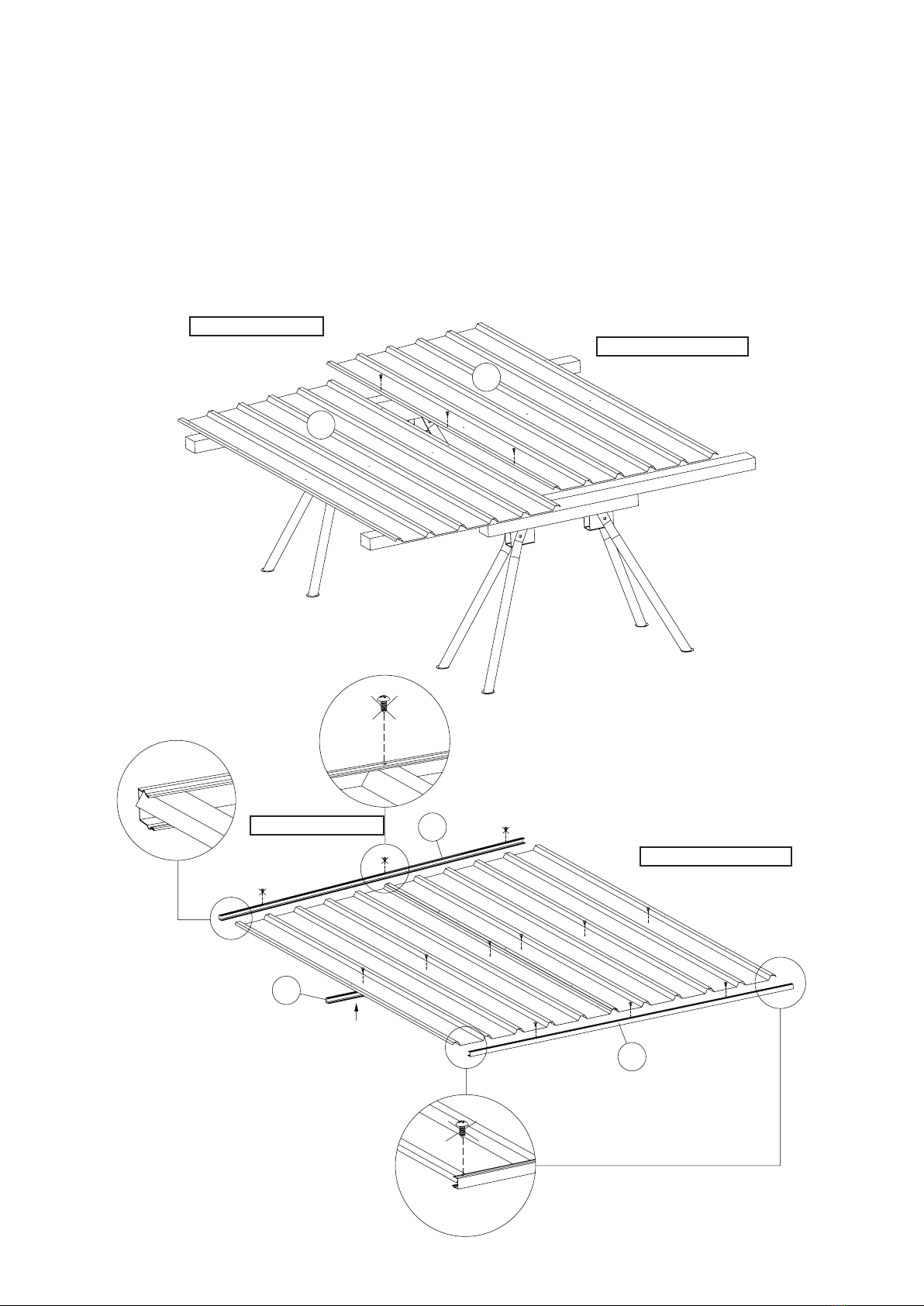

Step 3: Assemble the side wall panels
Place part S88 and S90 (sheets) on your worktable and tap or slide on part 25 (top channel) and part 20A (bottom channel). Position
and x part 31 (mid wall channel) using the self-tapping screws. Fix part 20A (bottom channel) with self-tapping screws but not part 25
(top channel) at this stage. Make sure that the small lip of the channels is always facing out. This ensures rainwater cannot build up
inside your shed. Repeat the same steps for part S89 and part S91 (the other sidewall). NOTE: All screws marked with a cross should
not be xed at this stage.
S90
25
20A
31
S88
ROOF TOP EDGE
ROOF TOP EDGE
RIDGES FACING UP
RIDGES FACING UP
Note: Channel 31
should face down.

11
Step 4: Assemble the roof panel
Place 2 x part 8 (sheet) on your worktable and join together with the self-tapping screws provided as per the diagram below.
Now tap or slide in 2 x part 20A (channels) onto the sheeting and x them to the top and bottom with the self-tapping screws provided.
Make sure that the small lips on channels 20A are always facing out. This ensures rainwater cannot build up inside your shed.
8
8
20A
51
51
20A

12
GARDENSHED1.51W x 1.51D x 1.98Hm

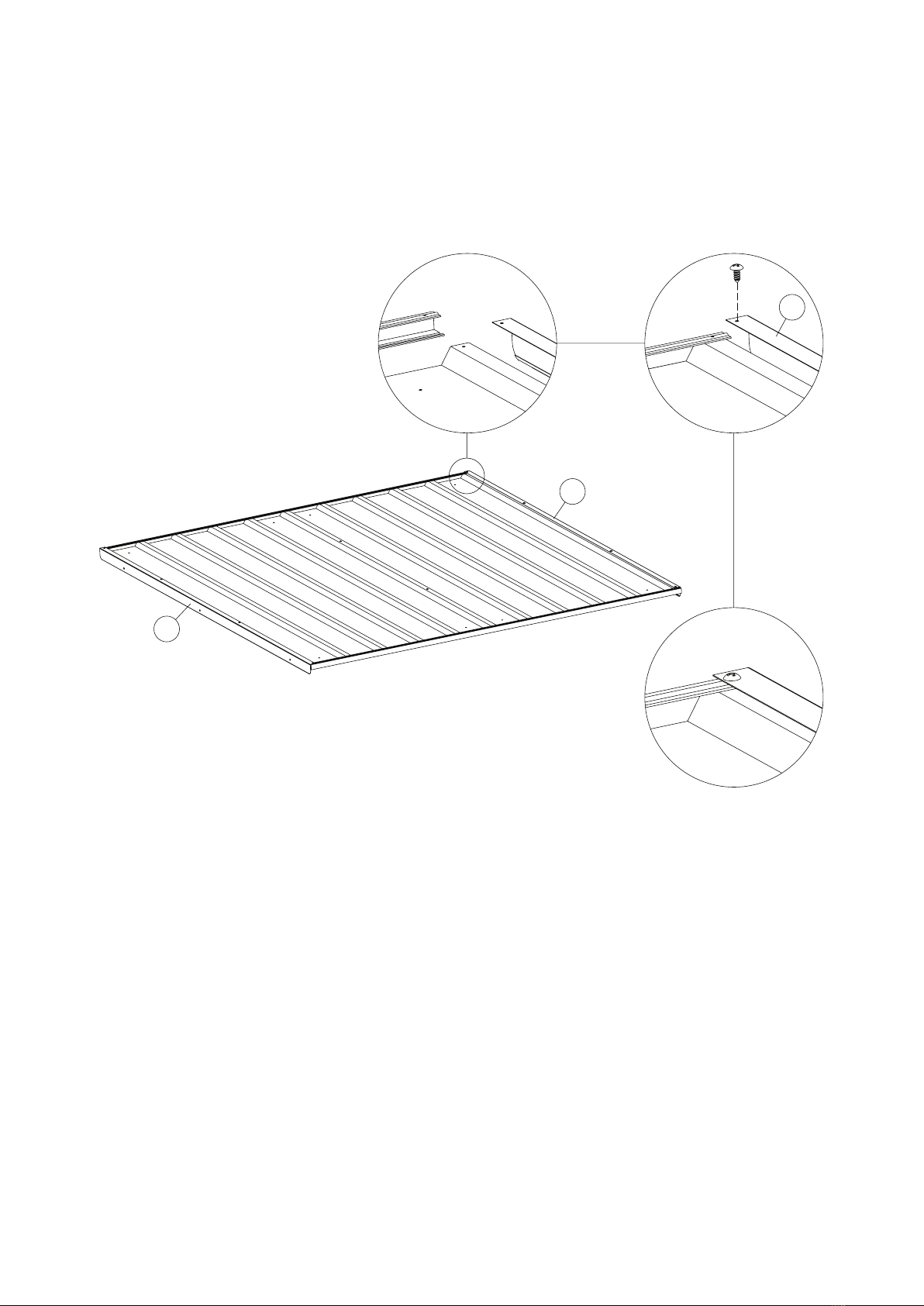

Step 4: Assemble the roof panel (continued)
Now t 2 x part 51 (side lips) to the sheeting and x them with the self-tapping screws provided.
51
51
51

13

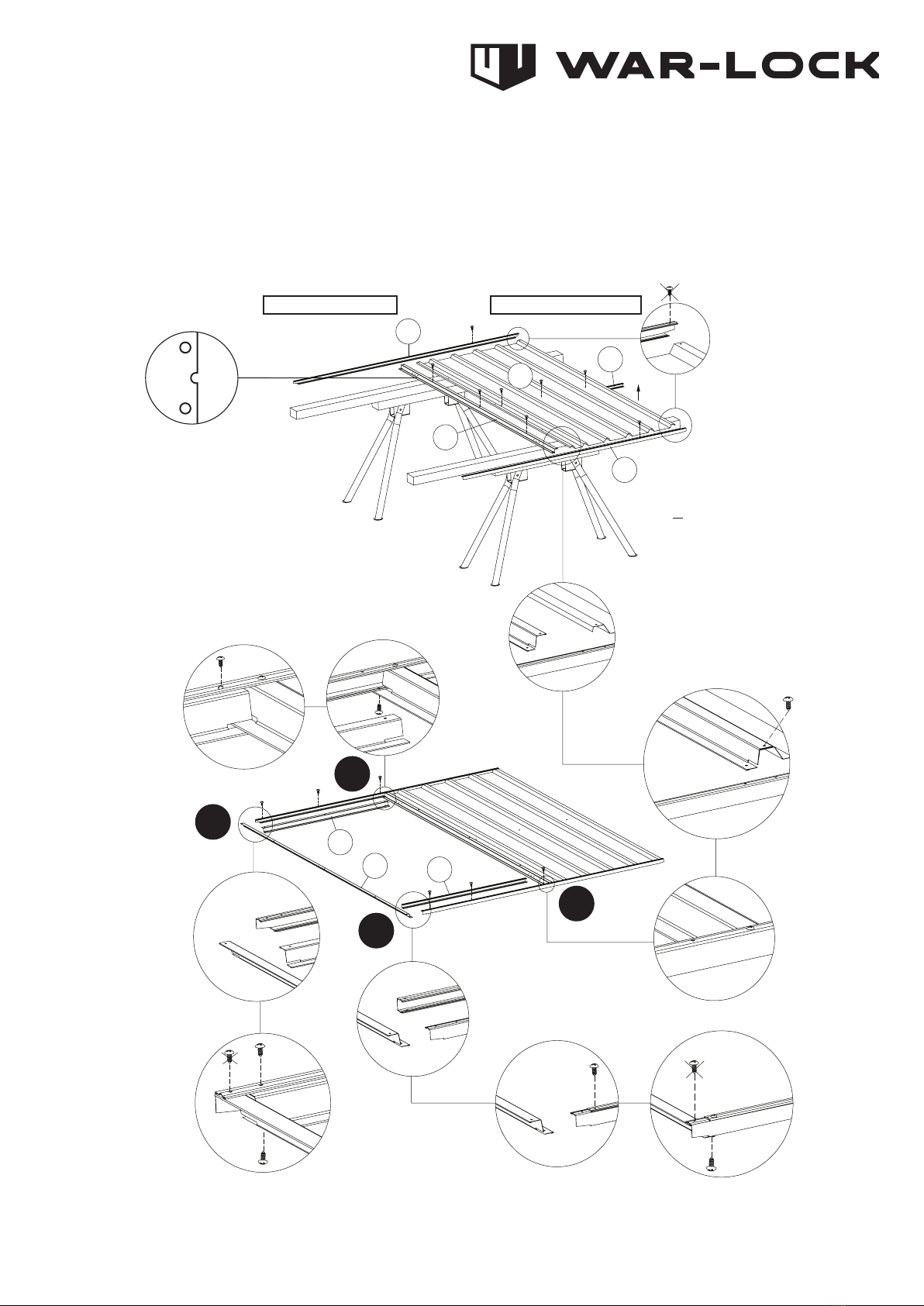

Step 5: Assemble the front wall panels
Place part S86 (sheet) on the worktable. Fit part 20D (top channel), part 20E (bottom channel) and part J3 (jamb) (There are pre-drilled
holes for the next step on both parts S86 and J3 that must be aligned) and part 33R (mid wall channel) to the sheeting and x them
with the self-tapping screws. NOTE: All screws marked with a cross should not be xed at this stage. Make sure that the small lips on
channels 20D and 20E are always facing out. This ensures rainwater cannot build up inside your shed.
Fit part J5 (jamb), part 42 (jamb) and part 23 (bottom channel) and x them with the self tapping screws (except those
marked with a cross). Make sure both joins (diagrams A and B) are xed the same followed by diagrams C and D.
42
20D
20E
J3
S86
J5
33R
23
ROOF TOP EDGE RIDGES FACING UP
Note: Holes drilled in the edge of
this sheet are not a defect. They
are there to allow the door hinge
rivets clearance through this sheet. Note: Small lip on
channels 20D &
20E should always
be facing out.
Note: Channel 33R
should face down.
B
A
D
C

14
GARDENSHED1.51W x 1.51D x 1.98Hm
Step 6: Assemble the front door
Place part D18R (door sheet) on the worktable and x 2 x part M26, part M24 and part M25 (channels) with the provided 3.0 x 10mm
rivets. Make sure the small lips on channels M26 are always facing out. This ensures rainwater cannot build up inside your shed.
M26
M26
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS
FIX WITH 3.0MM RIVETS
D18R
M24
M25
RIDGES FACING UP
RIDGES FACING UP

15
Step 6: Assemble the front door (continued)
Once channels are tted to both doors, align 2 x part U11 (brace) and part W (joining brace) with holes on the back of the door and
position temporarily with some tape or simply hold in place.
D18R
W
U11
U11
BACK
Turn door over so the
ridges are facing down.

16
GARDENSHED1.51W x 1.51D x 1.98Hm
Step 6: Assemble the front door (continued)
Turn door over with bracing aligned with holes (make sure the ridges of the door are facing up) and x the bracing with the provided
3.0 x 10mm rivets through the front of the panel. Then turn door over and insert plastic stoppers at the ends of braces as shown below.
WHITE PLASTIC
STOPPER
WHITE PLASTIC STOPPER
FIX WITH 3.0MM RIVETS
RIDGES FACING DOWN
RIDGES FACING UP
ROOF TOP EDGE
Note: Fix rivets through the front
panel with ridges facing up.

17
Step 6: Assemble the front door (continued)
Fit part D18R (assembled door) to the front wall panel as per the diagram below. Use a rivet gun to x the door using the pre-drilled
holes. Fix the pad bolt (but NOT its keeper at this stage) using the pre-drilled holes and the self-tapping screws (diagram A) or the
rivets (diagram B) provided.
D18R
70
70
FIX PAD BOLT WITH
3.0 X 10MM RIVETS
FIX DOOR HINGE WITH
4.0 X 10MM RIVETS
ROOF TOP EDGE RIDGES FACING UP
AB

18
GARDENSHED1.51W x 1.51D x 1.98Hm
Step 7: Fit the panels together
