Water Furnace Versatec Ultra Series User manual

IM1200AUB 11/18
Installation Information
Water Piping Connections
Hot Water Connections
Electrical
Startup Procedures
Troubleshooting
Preventive Maintenance
Commercial
Geothermal/Water Source Heat Pump
• R-410A Refrigerant
• 0.75-6 Tons
Versatec Ultra Series Installation Manual

VERSATEC ULTRA SERIES INSTALLATION MANUAL
Table of Contents
Model Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Installing Horizontal Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

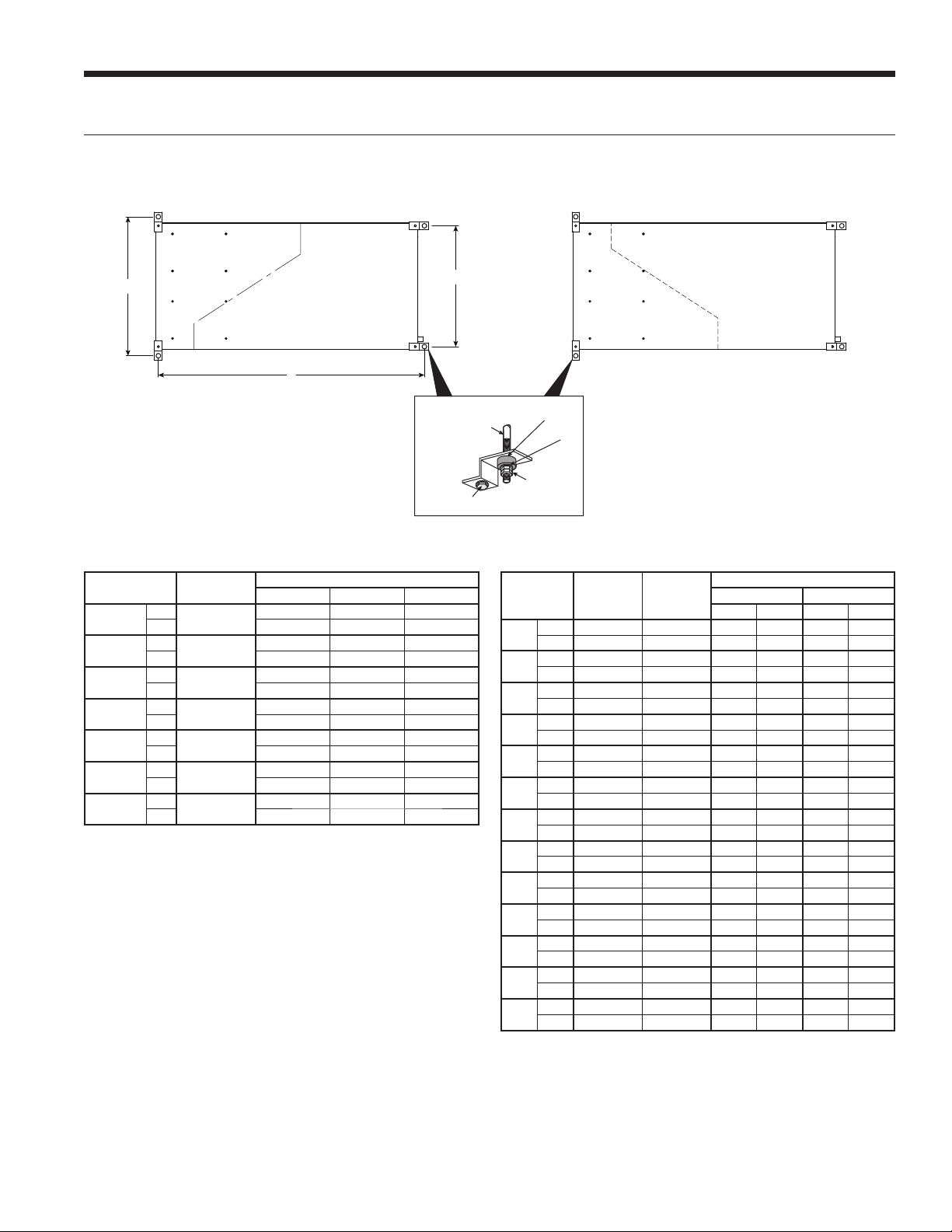

Hanger Bracket Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Duct System and Water Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Condensate Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

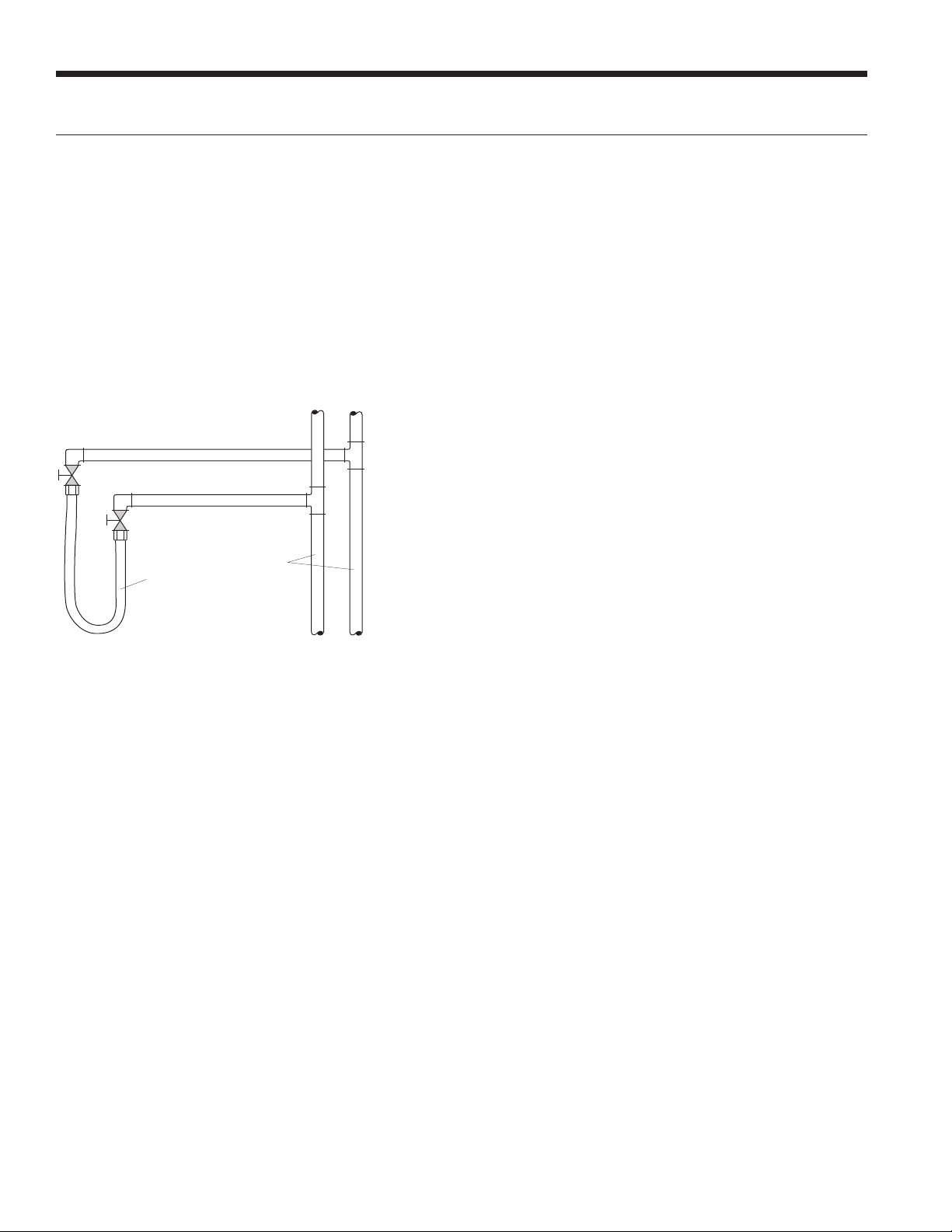

System Cleaning and Flushing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

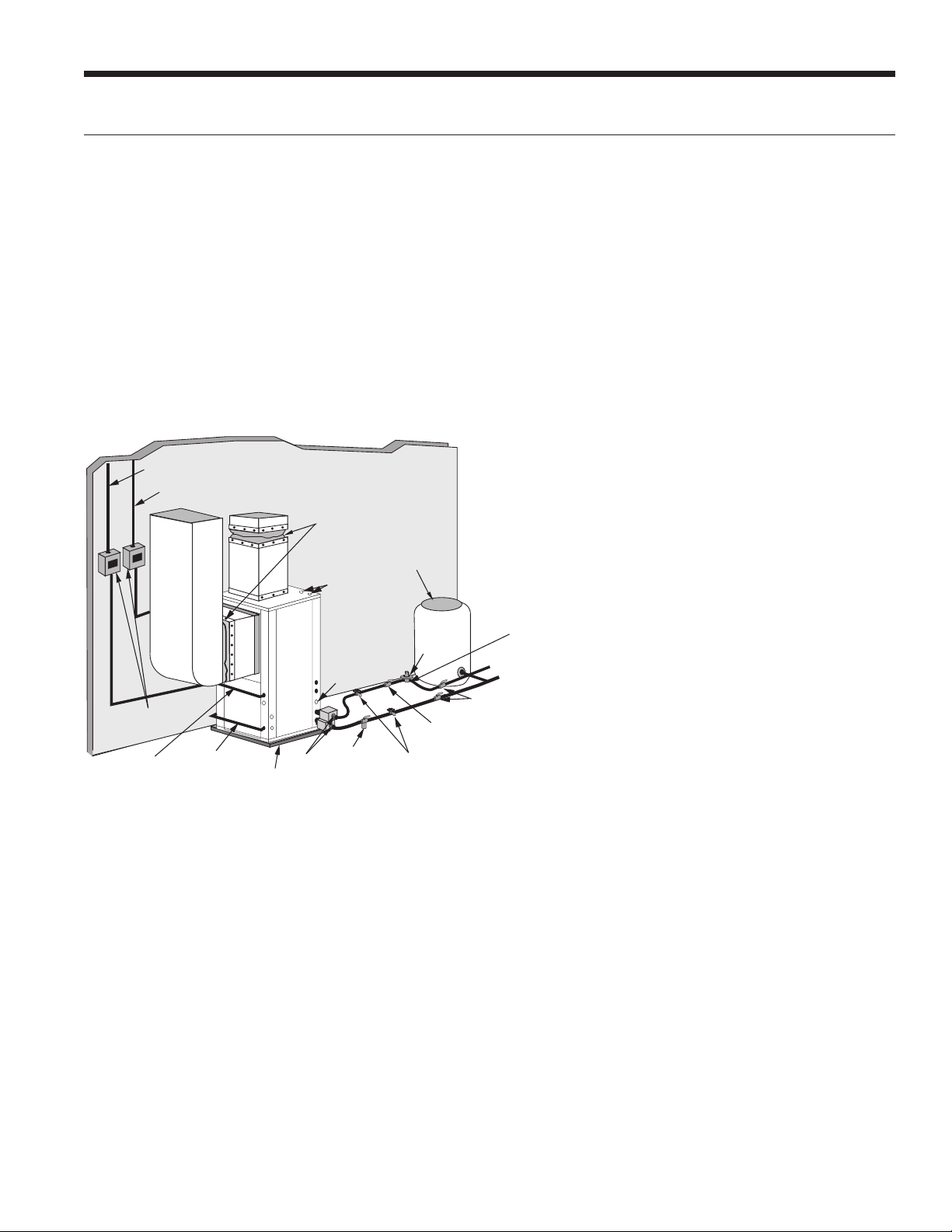

Open Loop Ground Water Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

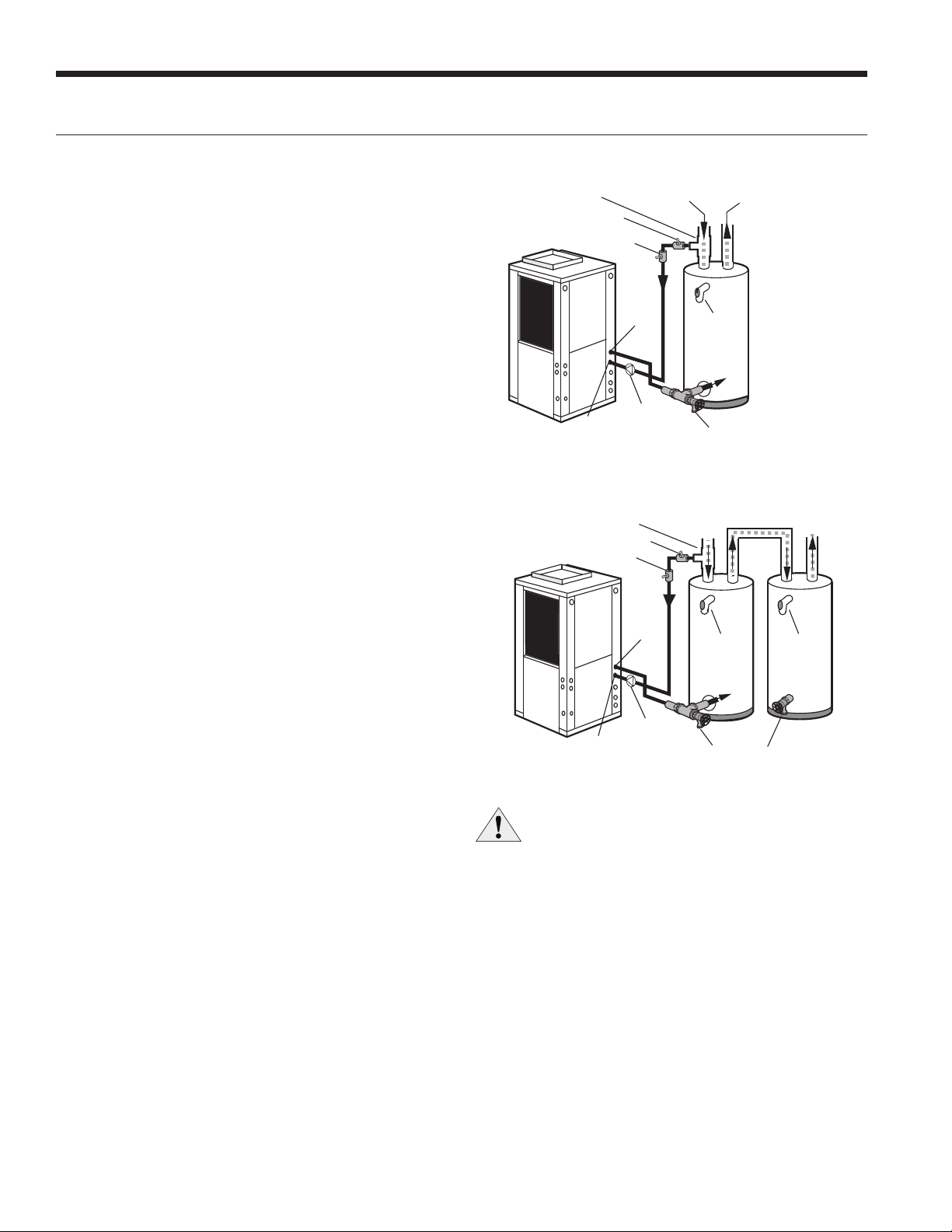

Hot Water Generator Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17
Freeze Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-21
Blower Performance Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-27
Wiring Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-30
Controls - Aurora Base Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-36
Controls - UPC (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37-45
Unit Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Operating Limits and Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Pressure Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Reference Calculations and Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Refrigerant Circuit Guideline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Compressor and Thermistor Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Heat of Extraction/Rejection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Startup/Troubleshooting Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53-54
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Revision Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

4
VERSATEC ULTRA SERIES INSTALLATION MANUAL

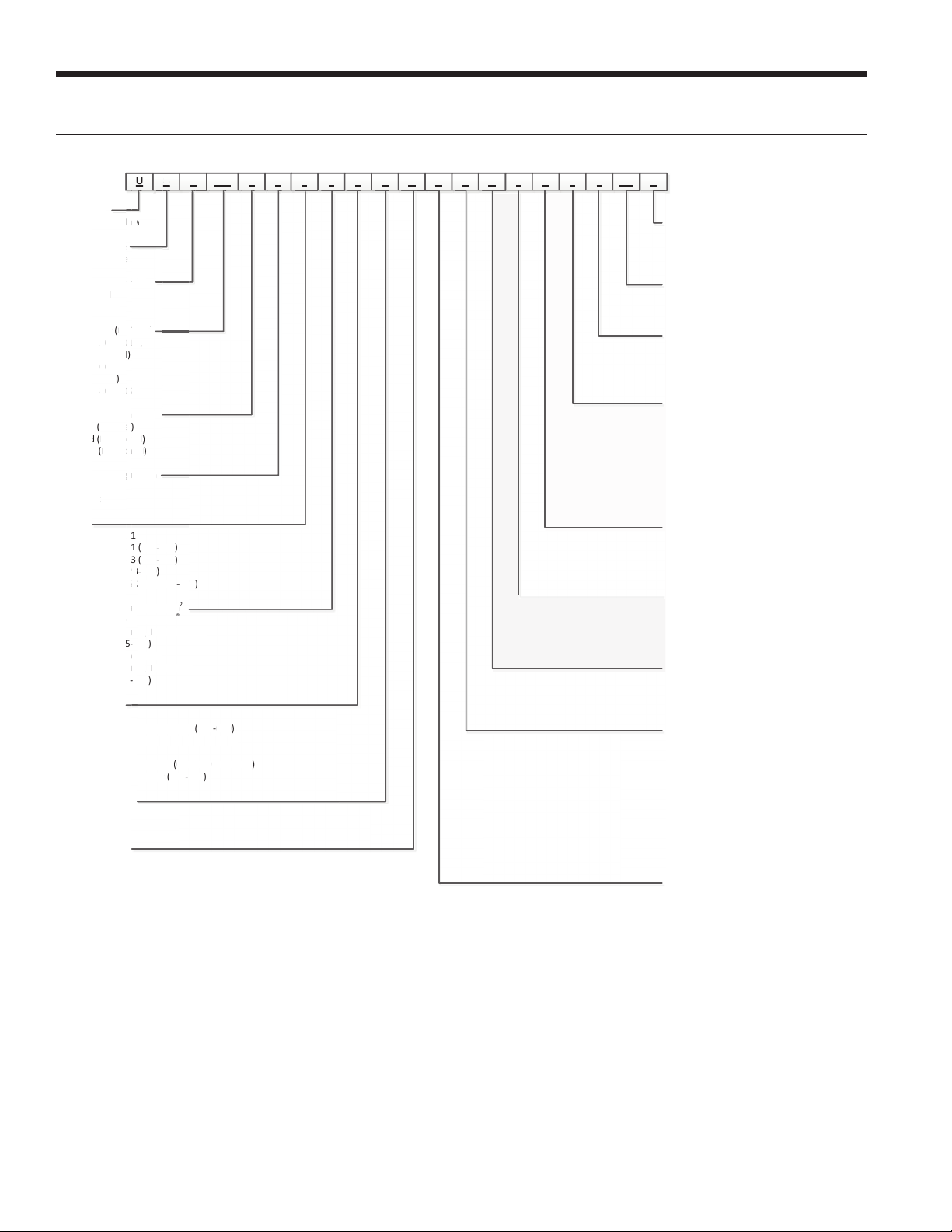

Model Nomenclature
U S
U
S
134-6789
Model Type
U – Versatec Ultra
Operation Range
S – Single Stage
Cabi net Configu rati on
V – Vertical
H - Horiz onta l
Unit Capacity (MBTUH)
009, 012, 015, 018,
023 (Horiz ontal)
024, 030, 036,
041 (Vertical)
042, 048, 060, 070
Disc harge Config urat ion
T – Top (Vertical)
E – End (Horizontal)
S – Side (Horiz ontal)
Return Air Configuration
L – Left
R – Right
Voltage
0 – 208-230/60/1
2 – 265-277/60/1 (009-036)
3 – 208-230/60/3 (023-070)
4 – 460/60/3 (023-070)
5 – 575/60/3 (PSC Only 041-070)
Hot Wate r Generati on Option2
0 – No HWG, No IntelliStart®
2 – HWG w/o Pump, No IntelliStart
(Vertical 015-070)
3 – No HWG, IntelliStart
5 – HWG w/o Pump, Intel liStart
(Vertical 018-070)
Blower Options
0 – PSC Blower
1 – Variable Speed ECM Blower (015-070)
2 – High Static Variable Speed ECM Blower
(042-048)
3 – High Static PSC Blower (024, 030, 042, 048)
4 – 5-Speed ECM Blower (015-070)
Wa ter Coil Opti on
C – Copper
N – CuproNickel
Sound Kit Optio n
A – None
B – Sound Kit (Not Available on H009-012)
Vintage
D – Control Option “A”
G – Control Options “E”& “F”
Non-Standard Options
SS – Standard
Drain Pan Option
0 – Composi te, No Secondary Connection
1 – Com posi te, Sec ondary Con nectio n
2 – Stainles s Steel, No Secondary Connection
3 – Stainles s Steel, Secondary Connection
Cabi net Opt ion
0 – Unpainted, 1 in MERV 4, Filter Rail
1 – Painted, 1 in MERV 4, Filter Rail
2 – Unpai nted, 2 in M ERV 13 , Fil ter Rail
3 – Painted, 2 in M ERV 13, Filter Rail
4 – Unpainted, 1 in MERV 4, Filter Rack
5 – Painted, 1 in MERV 4, Filter Rack
6 – Unpainted, 2 in MERV 13, Filter Rack
7 – Painted, 2 in M ERV 13, Filter Rack
Phase Guard1
N – No Phase Guard, No Disconnect
P – Phase Gua rd, No Disconnect
B – P hase Gua rd, D isc onnect
D – No Phase Guard, Disconnect
All-Aluminum A ir Coil Option
5 – AlumiSea lTM/Extended Range
6 – Al umiSea l/Sta ndar d Range
7 – No Coating/Extended Range
8 – No Coating/Standard Range
Control Option
A – AuroraTM Base Control (ABC)
E – Aurora UPC DDC Controller
F – Aurora UPC DDC Controller with LON
Water Control Option3
N – None
R – Water Flow Regulator (015-070)
V – 2-Wa y Valve (015-07 0)
B – 2-Way Valve w/ Water Flow Regulator
(01 5-070)
W – Waterside Economizer
S – Waterside Economizer w/ Water
Flow Regulator
E – Waterside Economizer w/ 2-Way Valve
C – Waterside Economizer w/ 2-Way Valve &
Water Flow Re gulator
Refrigeration Option
N – None
G – Hot Gas Bypass (015-072)
R – Hot Gas Reheat (015-072)
B – Hot Gas Bypass w/Hot Gas Reheat (015-072)
10 11 12 14
V036 T L 0 0 0 C A N
13
N
15
A
16
y
p
e
rsa
t
ec
Ul
o
n Ran
ge
gl
e Sta
ge
C
onf
igu
r
r
ti
cal
r
iz
o
nt
al
p
ac
i
ty
(
M
12
,
0
1
5
,
0
o
riz
o
nt
a
30
,
036
,
e
rti
c
al
)
48
,
060
,
0
g
e Confi
g
p
(
V
e
rti
ca
d
(
Ho
riz
o
e
(
Hor
izo
A
ir Confi
g
t
ht
0
/
1
0
/
1
0
/
3
02
PS
r
a
o
P
u
5
-
n
t
e
P
u
8
-
l
t
e
e
a
t
B
T
01
l
)
07
u
al
)
o
n
o
n
gu
5
17
N
18
0
19
0
20
SS
21-22
D
23
Notes:
1 - Phase Guard Only Available on 208-230/60/3 and 460/60/3
2 - IntelliStart is not available with Phase Guard
3 – Waterside economizer option must be ordered with stainless steel drain pan and either 5-speed
ECM or variable speed ECM (024-070)
2
r
ed
ar
SC
M
B
1
1
3
23
SC
a
t
i
I
n
um
-
0
el
um
-
0
t
i
o
TU
18
70
r
a
)
t
a
nta
u
r
a
d
ECM B
l
ower
(
0
1
5
-
0
7
0
)
r
ia
bl
e Speed ECM B
l
ower
C
B
l
owe
r
(
024
,
030
,
0
4
2
,
0
4
8
)
Bl
ower
(
0
1
5
-
0
7
0
)
(
009
-
036
)
(
023
-
0
7
0
)
3
-
0
7
0
)
C
On
ly
0
41
-
0
7
i
on Op t
ion
2
n
t
ell
i
S
t
a
r
t
®
mp
,
No
Int
ell
i
S
t
art
0
7
0
)
l
i
S
t
art
mp
,
I
nt
ell
i
S
t
a
r
t
0
7
0
)
on
UH
)
8
,
0
a
tio
n
a
l
)
a
l
)
a
tio
n
0
)
ra
a

5
VERSATEC ULTRA SERIES INSTALLATION MANUAL
WARNING: Before performing service or
maintenance operations on a system, turn off main
power switches to the indoor unit. If applicable,
turn off the accessory heater power switch.
Electrical shock could cause personal injury.
Installing and servicing heating and air conditioning
equipment can be hazardous due to system pressure and
electrical components. Only trained and qualified service
personnel should install, repair or service heating and air
conditioning equipment. Untrained personnel can perform
the basic maintenance functions of cleaning coils and
cleaning and replacing filters. All other operations should
be performed by trained service personnel. When work-
ing on heating and air conditioning equipment, observe
precautions in the literature, tags and labels attached to the
unit and other safety precautions that may apply.
Follow all safety codes. Wear safety glasses and work
gloves. Use a quenching cloth for brazing operations and
have a fire extinguisher available.
Moving and Storage
Move units in the normal “up” orientation. Horizontal units
may be moved and stored per the information on the
packaging. Do not stack more than three units in total
height. Vertical units may be stored one upon another to
a maximum height of two units. Do not attempt to move
units while stacked. When the equipment is received, all
items should be carefully checked against the bill of lading
to be sure all crates and cartons have been received.
Examine units for shipping damage, removing the units
from the packaging if necessary. Units in question should
also be internally inspected. If any damage is noted, the
carrier should make the proper notation on the delivery
receipt, acknowledging the damage.
Safety Considerations
General Installation Information
Vertical Unit Mounting
2 in. PEX Foam
Unit Location
Locate the unit in an indoor area that allows for easy
removal of the filter and access panels. Location should
have enough space for service personnel to perform
maintenance or repair. Provide sufficient room to make
water, electrical and duct connection(s). If the unit is
located in a confined space, such as a closet, provisions
must be made for return air to freely enter the space
by means of a louvered door, etc. Any access panel
screws that would be difficult to remove after the unit
is installed should be removed prior to setting the unit.
On horizontal units, allow adequate room below the unit
for a condensate drain trap and do not locate the unit
above supply piping. Care should be taken when units are
located in unconditioned spaces to prevent damage from
frozen water lines and excessive heat that could damage
electrical components.
Installing Vertical Units
Prior to setting the unit in place, remove and discard the
compressor hold down shipping bolt located at the front of
the compressor mounting bracket.
Vertical units are available in left or right air return
configurations. Top flow vertical units should be mounted
level on a vibration absorbing pad slightly larger than the
base to provide isolation between the unit and the floor.
It is not necessary to anchor the unit to the floor (see
figure below).

6
VERSATEC ULTRA SERIES INSTALLATION MANUAL

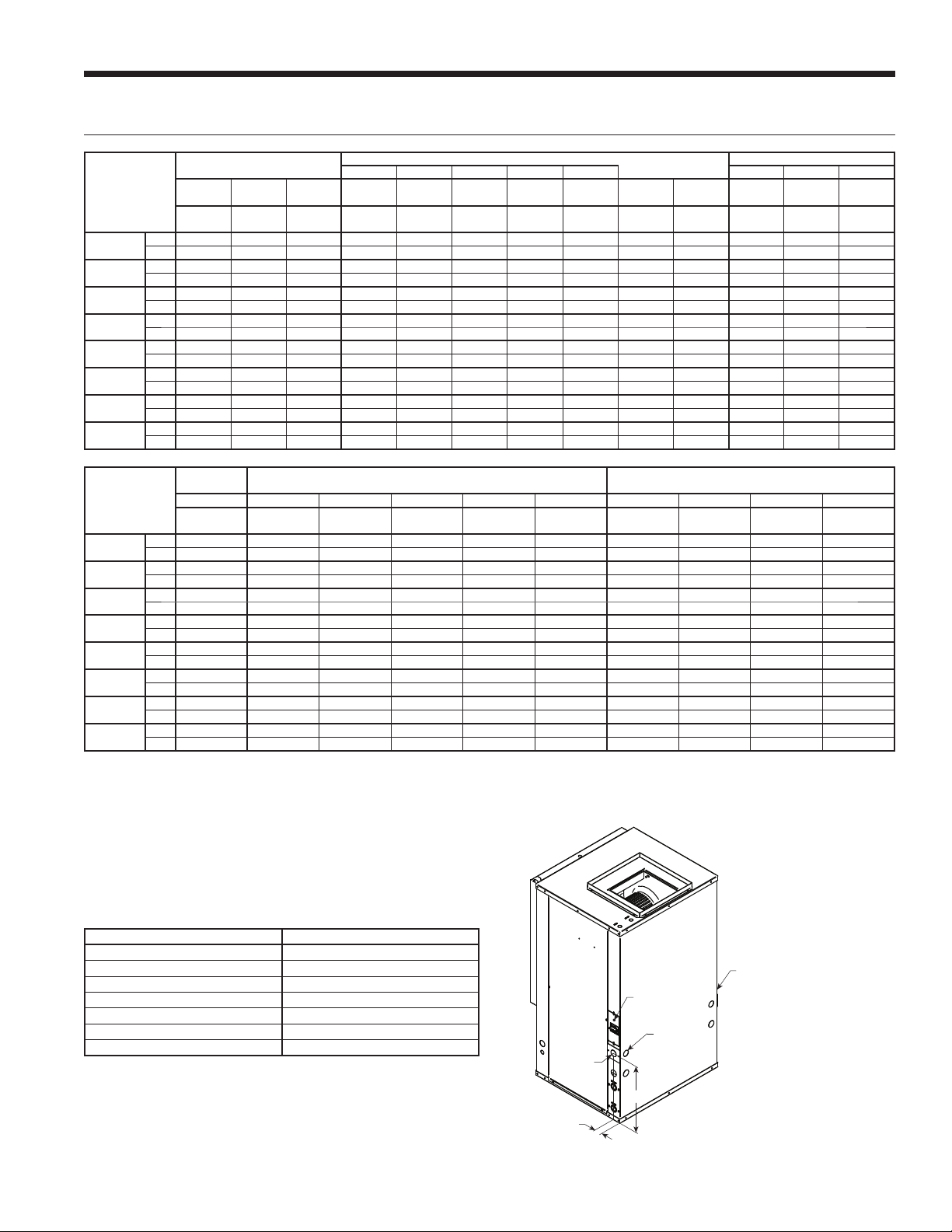

Vertical Dimensional Data
1
2
8
3
4
ACCESS
PANEL
Air coil
AIR COIL SIDE
AIR COIL SIDE
Air coil
5
Power supply
1 in (25.4 mm)
knockout
Low voltage
1/2" (12.7 mm)
knockout
Condensate
3/4 in PVC
glue socket
FRONT FRONT
Right View - Right Return
Left View - Left Return
Air coil
5
Condensate 3/4 in
PVC glue socket
1
2
3
4
6
8
7
8
7
8
6
Standard filter rails for
open return applications
Deluxe filter rack for
ductable return applications
2' (61 cm)
Service Access Left Return
(Right Return opposite side)
2' (61 cm)
Alternate
Service Access
Field installed
duct flange
ACCESS
PANEL
ACCESS
PANEL
ACCESS
PANEL
Front View - Left Return
Top View - Right Return Top View - Left Return
P
Q
B
RN
A
Front View - Right Return
UT
C
D
E
H
F
G
1.4 in (3.5 cm)
1.6 in (4.1 cm)
W
V
1.6 in (4.1 cm)
D
EH
C
1.6 in
(4.1 cm)
1.6 in (4.1 cm)
LLK
J
1.4 in (3.5 cm) F
G
Q
PB
SN
MM
A
Isometric View - Left Return
KL
L
J

7
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Vertical Dimensional Data cont.
LL
1.8 in.
[4.6 cm]
Alternative
Power
Location
Disconnect Located on this
Side for a Right Return
Disconnect
Location
Power
Supply
Vertical Shown in
Left Return Configuration
Vertical
Models
Overall Cabinet
Water Connections Electrical Knockouts
12345 678
A B C D E F G H Loop Knock-
out JKL
Width Depth Height** In Out HWG
In
HWG
Out
Cond-
ensate
Water
FPT
HWG
Provisions
1/2 in.
cond
1/2 in.
cond
1 in.
cond
009-012 in. 22.5 22.2 23.7 2.6 5.6 N/A N/A 8.8 1/2 N/A 7.4 3.4 5.4
cm. 57.2 56.4 60.2 6.6 14.2 N/A N/A 22.4 12.7 mm N/A 18.8 8.6 13.7
015-018 in. 22.5 22.2 36.2 2.6 7.6 1.4 2.9 10.8 3/4 0.875 9.4 5.4 7.4
cm. 57.2 56.4 91.9 6.6 19.3 3.6 7.4 27.4 19.1 mm 22.2 mm 23.9 13.7 18.8
024-030 in. 22.5 26.2 40.2 2.6 7.6 1.4 4.4 10.8 3/4 0.875 10.1 6.1 8.1
cm. 57.2 66.5 102.1 6.6 19.3 3.6 11.2 27.4 19.1 mm 22.2 mm 25.7 15.5 20.6
036 in. 22.5 26.2 44.2 2.6 7.6 1.4 4.4 10.8 3/4 0.875 10.1 6.1 8.1
cm. 57.2 66.5 112.3 6.6 19.3 3.6 11.2 27.4 19.1 mm 22.2 mm 25.7 15.5 20.6
041 in. 22.5 26.2 44.2 2.6 7.6 1.4 2.9 10.8 3/4 0.875 10.1 6.1 8.1
cm. 57.2 66.5 112.3 6.6 19.3 3.6 7.4 27.4 19.1 mm 22.2 mm 25.7 15.5 20.6
042-048 in. 25.5 31.2 44.2 2.6 7.6 1.4 4.4 10.8 1 0.875 10.1 6.1 8.1
cm. 64.8 79.2 112.3 6.6 19.3 3.6 11.2 27.4 25.4 mm 22.2 mm 25.7 15.5 20.6
060 in. 25.5 31.2 48.2 2.6 7.6 1.4 4.4 10.8 1 0.875 10.1 6.1 8.1
cm. 64.8 79.2 122.4 6.6 19.3 3.6 11.2 27.4 25.4 mm 22.2 mm 25.7 15.5 20.6
070 in. 25.5 31.2 52.2 2.6 7.6 1.4 4.4 10.8 1 0.875 10.1 6.1 8.1
cm. 64.8 79.2 132.6 6.6 19.3 3.6 11.2 27.4 25.4 mm 22.2 mm 25.7 15.5 20.6
Vertical
Models
Discharge Connection
duct flange installed (±0.10 in)
Return Connection*
using deluxe filter rack (±0.10 in)
MN PQR S T U VW
Filter Rack
Width
Supply
Width
Supply
Depth
Return
Depth
Return
Height
009-012 in. 2.2 10.0 10.0 6.1 9.4 9.4 2.1 18.1 10.0 1.9
cm. 5.6 25.4 25.4 15.5 23.9 23.9 5.3 46.0 25.4 4.8
015-018 in. 2.2 14.0 14.0 4.1 4.3 7.7 2.1 18.1 20.0 1.9
cm. 5.6 35.6 35.6 10.4 10.9 19.6 5.3 46.0 50.8 4.8
024-030 in. 2.2 14.0 14.0 6.1 4.5 7.7 2.1 22.1 22.1 1.9
cm. 5.6 35.6 35.6 15.5 11.4 19.6 5.3 56.1 56.1 4.8
036 in. 2.2 14.0 14.0 6.1 4.5 7.7 2.1 22.1 26.1 1.9
cm. 5.6 35.6 35.6 15.5 11.4 19.6 5.3 56.1 66.3 4.8
041 in. 2.2 18.0 18.0 4.1 3.9 3.9 2.1 22.1 26.1 1.9
cm. 5.6 45.7 45.7 10.4 9.9 9.9 5.3 56.1 66.3 4.8
042-048 in. 2.2 18.0 18.0 6.6 4.6 6.3 1.6 28.1 26.0 2.0
cm. 5.6 45.7 45.7 16.8 11.7 16.0 4.1 71.4 66.0 5.1
060 in. 2.2 18.0 18.0 6.6 4.6 6.3 1.6 28.1 30.0 2.0
cm. 5.6 45.7 45.7 16.8 11.7 16.0 4.1 71.4 76.2 5.1
070 in. 2.2 18.0 18.0 6.6 4.6 6.3 1.6 28.1 34.0 2.0
cm. 5.6 45.7 45.7 16.8 11.7 16.0 4.1 71.4 86.4 5.1
11/10/09
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front.
*Dimensions for return connections are for the deluxe filter rack that is suitable for ducted return applications and extends 3.25 in.
[8.26 cm] from the unit. The open filter rack, used in non-ducted returns, extends 2.2 in. [5.59 cm] from the unit.
**Discharge flange is field installed and extends 1 in. (25.4 mm) from top of cabinet.
Vertical Models LL
009-012 Externally Mounted
015-018 18.8 [47.8]
024-030 14.3 [36.3]
036 15.3 [38.9]
042-048 14.3 [36.3]
060 14.3 [36.3]
070 14.3 [36.3]
Dimensions in inches [cm] 02/06/13
Vertical Disconnect
When using disconnect, do not use dimension L from
the standard vertical dimensional data. Use dimension
LL from the vertical disconnect dimensional data.

8
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Horizontal Dimensional Data
Right Return
End Discharge
Left Return
End Discharge
End Discharge End Discharge
Side Discharge
Side Discharge
Right Return Left Return
Front Front
CMP CMP
AP AP
Condensate
"X" PVC size Condensate
"X" PVC size
RR Front View
BLOWER
OUTLET
BLOWER
OUTLET
Right Return Side Discharge Left Return Side Discharge
Right Return Side View Left Return Side View
FILTER RACK CONNECTION FILTER RACK CONNECTION
Front Front
Air Coil Air Coil
LR Front View
CP
CP
BLOWER
OUTLET
BLOWER
OUTLET
Front Front
CMP
AP
CMP
AP
AP
AP
AIR COIL SIDE
AIR COIL SIDE
0.5 in. [1.3 cm] knockout
1 in. [2.5 cm] knockout
1 in. [2.5 cm]
knockout
0.5 in. [1.3 cm]
knockout
BP
BP
FILTER RACK
FILTER RACK
Standard filter rails
Standard filter rails
Deluxe filter rack option shown
Deluxe filter rack option shown
Deluxe filter
rack option
(shown)
B
B
CC
L
M
N
P
L
M
P
N
A
L
M
P
N
C
L
M
C
A
PN
D
E
J
A
1.7 in.
[5.3 cm]
1.7 in.
[5.3 cm]
H
2.1 in. [5.3 cm] 2.1 in. [5.3 cm]
H
D
EK
J
K
1.7 1.7
J
KJ
K
1.5 in. [3.8 cm]
SQ SQ
T
R
T
R
2.3 in. [5.8 cm]
Legend
AP = Alternate Service Panel
BP = Blower Service Panel
CP = Control Access Panel
CMP = Compressor Service Panel
2' (61 cm)
Service Access
2' (61 cm)
Service Access
0.5 in. [1.3 cm]
knockout
1.5 in. [3.8 cm]
2.3 in.
[5.8 cm]
1 in. [2.5 cm]
knockout
0.5 in. [1.3 cm]
knockout

9
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Horizontal Dimensional Data cont.
2.1 in.
[5.3 cm]
KK
Disconnect Located
on this Side for a
Left Return
Disconnect
Location
Power Supply
Horizontal Shown in
Right Return Configuration
*Dimensions for return connections are for the deluxe filter rack that is suitable for ducted return applications and extends 3.25 in.
[8.26 cm] from the unit. The open filter rack, used in non-ducted returns, extends 2.2 in. [5.59 cm] from the unit.
Condensate 3/4 in. PVC stub extends from cabinet approximately 1-1/2 in. [38.1 mm]
Horizontal
Models
Overall Cabinet
Water Connections Electrical Knockouts
123 JK
A B C D E H Loop 1/2 in. cond 1 in. cond
Width Depth Height* In Out Cond-
ensate Water FPT Low Voltage Power Supply
009-012 in. 19.2 30.9 11.9 1.8 4.8 0.8 1/2 4.5 4.5
cm. 48.8 78.5 30.2 4.6 12.2 2.0 12.7 mm 11.4 11.4
015-023 in. 22.5 42.0 17.2 1.8 6.8 0.8 3/4 7.1 7.1
cm. 57.2 106.7 43.7 4.6 17.3 2.0 19.05 mm 18.0 18.0
024-030 in. 22.5 42.0 19.2 1.8 6.8 0.8 3/4 9.2 7.1
cm. 57.2 106.7 48.8 4.6 17.3 2.0 19.05 mm 23.4 18.0
036 in. 22.5 45.0 19.2 1.8 6.8 0.8 3/4 9.2 7.1
cm. 57.2 114.3 48.8 4.6 17.3 2.0 19.05 mm 23.4 18.0
042-048 in. 25.5 48.0 21.2 1.8 6.8 0.8 1 9.2 9.1
cm. 64.8 121.9 53.8 4.6 17.3 2.0 25.4 mm 23.4 23.1
060 in. 25.5 53.0 21.2 1.8 6.8 0.8 1 9.2 9.1
cm. 64.8 134.6 53.8 4.6 17.3 2.0 25.4 mm 23.4 23.1
070 in. 25.5 61.0 21.2 1.8 6.8 0.8 1 9.2 9.1
cm. 64.8 154.9 53.8 4.6 17.3 2.0 25.4 mm 23.4 23.1
Horizontal
Models
Discharge Connection
duct flange installed (±0.10 in)
Return Connection*
using deluxe filter rack option (±0.10 in) PVC Size
LMNPQRSTX
Supply
Width
Supply
Depth
Return
Depth
Return
Height
009-012 in. 2.3 8.0 10.0 2.3 15.4 9.4 3.0 1.4 1/2
cm. 5.8 20.3 25.4 5.8 39.1 23.9 7.6 3.6 1.3
015-023 in. 5.7 10.5 9.4 4.9 23.4 14.5 2.0 1.4 3/4
cm. 14.5 26.7 23.9 12.4 59.4 36.8 5.1 3.6 1.9
024-030 in. 6.7 10.5 9.4 4.9 27.4 16.4 2.0 1.5 3/4
cm. 17.0 26.7 23.9 12.4 69.6 41.7 5.1 3.8 1.9
036 in. 6.7 10.5 9.4 4.9 30.4 16.4 2.1 1.5 3/4
cm. 17.0 26.7 23.9 12.4 77.2 41.7 5.3 3.8 1.9
042-048 in. 4.9 13.6 13.2 4.6 35.4 18.6 2.4 1.5 3/4
cm. 12.4 34.5 33.5 11.7 89.9 47.2 6.1 3.8 1.9
060 in. 4.9 13.6 13.2 4.6 40.4 18.4 2.4 1.5 3/4
cm. 12.4 34.5 33.5 11.7 102.6 46.7 6.1 3.8 1.9
070 in. 4.9 13.6 13.2 4.6 45.6 18.6 2.3 1.5 3/4
cm. 12.4 34.5 33.5 11.7 115.8 47.2 5.8 3.8 1.9
10/29/13
Horizontal Models KK
009-012 Externally Mounted
015-018 8.2 [20.8 ]
024-030 9.2 [23.4]
036 9.2 [23.4]
042-048 11.2 [28.4]
060 10.2 [25.9]
070 11.2 [28.4]
Dimensions in inches [cm] 02/06/13
Horizontal Disconnect
When using disconnect, do not use dimension K from the
standard horizontal dimensional data. Use dimension KK from
the horizontal disconnect dimensional data.

10
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Installing Horizontal Units
Remove and discard the compressor hold down shipping
bolt located at the front of the compressor mounting
bracket prior to setting the unit in place. Horizontal units
are available with side or end discharge.
NOTE: Left (Right) Return Side Discharge cannot be
converted to Left (Right) Return End Discharge or vice
versa, without additional custom sheet metal parts.
Horizontal units are normally suspended from a ceiling by
four (009-060 models) or five (070-072 models) 3/8 in.
diameter threaded rods. The rods are usually attached to
the unit by hanger bracket kits furnished with each unit.
Lay out the threaded rods per the Hanger Bracket
Dimensions table. Assemble the hangers to the unit as
shown. Securely tighten the brackets to the unit using the
weld nuts located on the underside of the bottom panel.
When attaching the hanger rods to the bracket, a double
nut is required since vibration could loosen a single nut.
To allow filter access, install hanger brackets as illustrated
in the Hanger Bracket Locations section. The unit should
be pitched approximately 1/4 in. towards the drain in both
directions to facilitate the removal of condensate. Use only
the bolts provided in the kit to attach hanger brackets. The
use of longer bolts could damage internal parts.
Some applications require the installation of horizontal
units on an attic floor. In this case, the unit should be set
in a full size secondary drain pan on top of a vibration
absorbing pad. The secondary drain pan prevents possible
condensate overflow or water leakage damage to the
ceiling. The secondary drain pan is usually placed on a
plywood base isolated from the ceiling joists by additional
layers of vibration absorbing material.
CAUTION: Do not use rods smaller than 3/8 in.
diameter since they may not be strong enough
to support the unit. The rods must be securely
anchored to the ceiling.
Installing Horizontal Units

11
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Hanger Bracket Locations
BC
A
E
D
G
F
Left
D
E
F
G
Right
Vibration Isolator
Washer
Hex Nuts
(not supplied)
Bolt and
Lockwasher
3/8”
Threaded Rod
(not supplied)
Compressor
Section
Compressor
Section
Air Handler
Section
Air Handler
Section
Hanger Dimensions
Model Hanger Kit
Part Number
Unit Hanger Dimensions
ABC
009-012 in. 99S500A04 31.7 21.8 18.1
cm [80.5] [55.4] [46.0]
015-023 in. 99S500A04 42.8 25.1 21.4
cm [108.6] [63.8] [54.4]
024-030 in. 99S500A04 42.8 25.1 21.4
cm [108.7] [63.8] [54.4]
036 in. 99S500A04 45.8 25.1 21.4
cm [116.3] [63.8] [54.4]
042-048 in. 99S500A04 48.8 28.1 24.4
cm [124.0] [71.4] [62.0]
060 in. 99S500A04 53.8 28.1 24.4
cm [136.7] [71.4] [62.0]
070 in. 99S500A04 61.8 28.1 24.4
cm [157.0] [71.4] [62.0]
10/29/13
Weight Distribution
Model
Vertical
Shipping
Weight
Horizontal
Shipping
Weight
Horizontal Weight Distribution
Front Back
DEFG
009 lb. 110 120 46 23 26 25
kg [50] [54] [21] [11] [12] [11]
012 lb. 115 125 48 24 27 26
kg [52] [57] [22] [11] [12] [12]
015 lb. 165 175 67 34 37 36
kg [75] [79] [31] [15] [17] [17]
018 lb. 170 180 69 35 38 38
kg [77] [82] [31] [16] [17] [17]
023 lb. na 185 71 36 39 39
kg na [84] [32] [16] [18] [17]
024 lb. 230 245 94 47 52 51
kg [104] [111] [43] [22] [24] [23]
030 lb. 240 255 98 49 54 53
kg [109] [116] [44] [22] [25] [24]
036 lb. 265 285 110 55 61 59
kg [120] [129] [50] [25] [28] [27]
041 lb. 275 na na na na na
kg [125] na na na na na
042 lb. 285 300 115 58 64 63
kg [129] [136] [52] [26] [29] [28]
048 lb. 290 310 119 60 66 65
kg [132] [141] [54] [27] [30] [29]
060 lb. 335 360 138 70 77 75
kg [152] [163] [63] [32] [35] [34]
070 lb. 380 405 156 78 86 84
kg [172] [184] [71] [36] [39] [38]
11/10/09

12
VERSATEC ULTRA SERIES INSTALLATION MANUAL
An air outlet collar is provided on vertical top flow units
and all horizontal units to facilitate a duct connection.
A flexible connector is recommended for discharge
and return air duct connections on metal duct systems.
Uninsulated duct should be insulated with a minimum of
1-inch duct insulation. Application of the unit to uninsulated
ductwork in an unconditioned space is not recommended
as the unit’s performance will be adversely affected.
If the unit is connected to existing ductwork, check the duct
system to ensure that it has the capacity to accommodate
the air required for the unit application. If the duct is too
small, as in the replacement of heating only systems, larger
ductwork should be installed. All existing ductwork should
be checked for leaks and repaired if necessary.
Duct System
Water Piping
The duct system should be sized to handle the design
airflow quietly and efficiently. To maximize sound
attenuation of the unit blower, the supply and return
plenums should include an internal duct liner of fiberglass
or constructed of ductboard for the first few feet. On
systems employing a sheet metal duct system, canvas
connectors should be used between the unit and the
ductwork. If air noise or excessive airflow is a problem, the
blower speed can be changed.
The proper water flow must be provided to each unit
whenever the unit operates. To assure proper flow, use
pressure/temperature ports to determine the flow rate.
These ports should be located at the supply and return
water connections on the unit. The proper flow rate cannot
be accurately set without measuring the water pressure
drop through the refrigerant-to-water heat exchanger.
All source water connections on commercial units are
fittings that accept a male pipe thread (MPT). Insert the
connectors by hand, then tighten the fitting with a wrench
to provide a leakproof joint. When connecting to an open
loop (groundwater) system, thread any copper MPT fitting
into the connector and tighten in the same manner as
described above.
1/2'' Pitch
Drain
1.5 in. 1.5 in.
1/2” or 3/4”
PVC tube stub
1/2” or 3/4”
PVC Coupling
Vent (if needed)
1/2” or 3/4” PVC
1/8 in. per foot
Tube Stub
Unit Pitch for DrainHorizontal Drain Connection (Composite Drain Pan)
Condensate Drain
On vertical units, the internal condensate drain assembly
consists of a drain tube which is connected to the drain
pan, a 3/4 in. PVC female adapter and a flexible connecting
hose. The female adapter may exit either the front or the
side of the cabinet. The adapter should be glued to the
field-installed PVC condensate piping. On vertical units, a
condensate hose is inside all cabinets as a trapping loop;
therefore, an external trap is not necessary.
On horizontal units, a PVC stub or stainless steel tube
is provided for condensate drain piping connection. An
external trap is required (see below). If a vent is necessary,
an open stand pipe may be applied to a tee in the field-
installed condensate piping.

13
VERSATEC ULTRA SERIES INSTALLATION MANUAL
In ground water situations where scaling could be heavy
or where biological growth such as iron bacteria will be
present, a closed loop system is recommended. The heat
exchanger coils in ground water systems may, over a period
of time, lose heat exchange capabilities due to a buildup
of mineral deposits inside. These can be cleaned, but only
by a qualified service mechanic, as special solutions and
pumping equipment are required. Hot water generator coils
can likewise become scaled and possibly plugged. In areas
Water Quality
Material Copper 90/10 Cupronickel 316 Stainless Steel
pH Acidity/Alkalinity 7 - 9 7 - 9 7 - 9
Scaling Calcium and
Magnesium Carbonate
(Total Hardness)
less than 350 ppm
(Total Hardness)
less than 350 ppm
(Total Hardness)
less than 350 ppm
Corrosion
Hydrogen Sulfide Less than 0.5 ppm (rotten egg
smell appears at 0.5 ppm) 10 - 50 ppm Less than 1 ppm
Sulfates Less than 125 ppm Less than 125 ppm Less than 200 ppm
Chlorine Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Chlorides Less than 20 ppm Less than 125 ppm Less than 300 ppm
Carbon Dioxide Less than 50 ppm 10 - 50 ppm 10 - 50 ppm
Ammonia Less than 2 ppm Less than 2 ppm Less than 20 ppm
Ammonia Chloride Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Nitrate Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Hydroxide Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Sulfate Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Total Dissolved Solids (TDS) Less than 1000 ppm 1000 - 1500 ppm 1000 - 1500 ppm
LSI Index +0.5 to -0.5 +0.5 to -0.5 +0.5 to -0.5
Iron Fouling
(Biological Growth)
Iron, FE2+ (Ferrous)
Bacterial Iron Potential < 0.2 ppm < 0.2 ppm < 0.2 ppm
Iron Oxide Less than 1 ppm, above this
level deposition will occur
Less than 1 ppm, above this
level deposition will occur
Less than 1 ppm, above this
level deposition will occur
Erosion
Suspended Solids Less than 10 ppm and filtered
for max. of 600 micron size
Less than 10 ppm and filtered
for max. of 600 micron size
Less than 10 ppm and filtered
for max. of 600 micron size
Threshold Velocity
(Fresh Water) < 6 ft/sec < 6 ft/sec < 6 ft/sec
NOTES: Grains = ppm divided by 17
mg/L is equivalent to ppm
2/22/12
with extremely hard water, the owner should be informed
that the heat exchanger may require occasional flushing.
Failure to adhere to the guidelines in the water quality table
could result in loss of warranty.
Units with cupronickel heat exchangers are recommended
for open loop applications due to the increased resistance
to build-up and corrosion, along with reduced wear caused
by acid cleaning.

14
VERSATEC ULTRA SERIES INSTALLATION MANUAL
System Cleaning and Flushing
Cleaning and Flushing
Prior to start up of any heat pump, the water circulating
system must be cleaned and flushed of all dirt and debris.
If the system is equipped with water shutoff valves, the
supply and return runouts must be connected together
at each unit location (This will prevent the introduction of
dirt into the unit, see Flushing with Water Shutoff Valve
Equipped Systems illustration). The system should be filled
at the water make-up connection with all air vents open.
After filling, vents should be closed.
The contractor should start the main circulator with the
pressure reducing valve makeup open. Vents should be
checked in sequence to bleed off any trapped air and to
verify circulation through all components of the system.
As water circulates through the system, the contractor
should check and repair any leaks found in the piping
system. Drain(s) at the lowest point(s) in the system should
be opened for initial flush and blowdown, making sure
water fill valves are set at the same rate. Check the pressure
gauge at the pump suction and manually adjust the make-
up water valve to hold the same positive pressure both
before and after opening the drain valves. Flushing should
continue for at least two hours, or longer if required, until
drain water is clean and clear.
The supplemental heater and/or circulator pump, if used,
should be shut off. All drains and vents should be opened
to completely drain the system. Short-circuited supply and
return runouts should now be connected to the unit supply
and return connections.
Refill the system with clean water. Test the system water
for acidity and treat as required to leave the water slightly
alkaline (pH 7.5 to 8.5). The specified percentage of
antifreeze may also be added at this time. Use commercial
grade antifreeze designed for HVAC systems only.
Environol™ brand antifreeze is recommended.
Once the system has been filled with clean water and
antifreeze (if used), precautions should be taken to protect
the system from dirty water conditions. Dirty water will
result in system-wide degradation of performance, and
solids may clog valves, strainers, flow regulators, etc.
Additionally, the heat exchanger may become clogged
which reduces compressor service life and can cause
premature unit failure.
In boiler/tower application, set the loop control panel
set points to desired temperatures. Supply power to all
motors and start the circulating pumps. After full flow has
been established through all components including the
heat rejector (regardless of season), air vented and loop
temperatures stabilized, each of the units will be ready for
check, test and start up and for air and water balancing.
Ground Source Loop System Checkout
Once piping is completed between the unit pumping
system and ground loop, final purging and charging of
the loop is needed. A high pressure pump is needed to
achieve adequate flow velocity in the loop to purge air
and dirt particles from the loop itself. Antifreeze solution
is used in most areas to prevent freezing. Flush the
system adequately to remove as much air as possible;
then pressurize the loop to a static pressure of 40-50
PSI (summer) or 50-75 PSI (winter). This is normally
adequate for good system operation. Loop static pressure
may decrease soon after initial installation, due to pipe
expansion and loop temperature change. Running the
unit for at least 30 minutes after the system has been
completely purged of air will allow for the “break-in”
period. It may be necessary to adjust static loop pressure
(by adding water) after the unit has run for the first time.
Loop static pressure will also fluctuate with the seasons.
Pressures will be higher in the winter months than during
the cooling season. This fluctuation is normal and should be
considered when charging the system initially.
Ensure the pump provides adequate flow through the unit
by checking pressure drop across the heat exchanger.
Usually 2.25-3.0 gpm of flow per ton of cooling capacity is
recommended in earth loop applications.
Return Runout
Supply Runout
Mains
Rubber Hose
Runouts Initially
Connected Together
Flushing with Water Shutoff Valve Equipped Systems

15
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Typical open loop piping is shown below. Always maintain
water pressure in the heat exchanger by placing water
control valves at the outlet of the unit to prevent mineral
precipitation. Use a closed, bladder-type expansion tank
to minimize mineral formation due to air exposure. Insure
proper water flow through the unit by checking pressure
drop across the heat exchanger and comparing it to the
figures in unit capacity data tables in the specification
catalog. 1.5-2 gpm of flow per ton of cooling capacity is
recommended in open loop applications. Due to only minor
differences in flow rate from low to high, only one solenoid
valve should be used. The valve should be sized for full flow.
Open System - Groundwater Application
Flexible
Duct Collar
Vibration
Absorbing Pad
P/T Plugs
Drain
Hot Water Generator
Connections
Low Voltage
to Thermostat
and Valve
Unit Supply
Aux. Heat Supply
Water Out
Water In
Shut Off Valves
Boiler Drains
For HX Flushing
Disconnects
(IfApplicable)
Rubber Bladder
Expansion Tank
Solenoid
Valve
Shut Off Valves
(to isolate solenoid
valve while acid flushing)
Strainer
Flow Control
Valve
(on outlet of
Solenoid Valve)
Compressor
Line Voltage
Discharge water from the unit is not contaminated in any
manner and can be disposed of in various ways, depending
on local codes, i.e. recharge well, storm sewer, drain field,
adjacent stream or pond, etc. Most local codes forbid
the use of sanitary sewer for disposal. Consult your local
building and zoning departments to assure compliance in
your area.
Open Loop Ground Water Systems

16
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Hot Water Generator Connections
The heat reclaiming hot water generator coil is of vented
double-wall copper construction and is suitable for
potable water.
To maximize the benefits of the hot water generator a
minimum 50-gallon water heater is recommended. For
higher demand applications, use an 80-gallon water heater
or two 50-gallon water heaters connected in a series as
shown below. Electric water heaters are recommended.
Make sure all local electrical and plumbing codes are met
for installing a hot water generator. A water softener is
recommended with hard water (greater than 10 grains or
170 total hardness).
Typical Hot Water Generator Installation
Drain Valve
In
P/T Relief
Valve
Cold
Water In Hot
Water Out
HWG
Water In
HWG
Water Out
Ball Valve
3/4 in. x 3/4 in. x 1/2 in. Tee
Vent
Field Installed
HWG Pump
CAUTION: Elements will burn out if energized dry.
Hot Water Generator Installation In Preheat Tank
In
Ball Valve
3/4 in. x 3/4 in. x 1/2 in. Tee
Cold
Water In
Hot
Water Out
P/T Relief
Valve
P/T Relief
Valve
HWG
Water In
HWG
Water Out
Drain Valve
Vent
Field Installed
HWG Pump
NOTE: This configuration maximizes hot water
generator capability.
Water Tank Preparation
To install a unit with a hot water generator, follow these
installation guidelines.
1. Turn off the power to the water heater.
2. Attach a water hose to the water tank drain connection and
run the other end of the hose to an open drain or outdoors.
3. Close the cold water inlet valve to the water heater tank.
4. Drain the tank by opening the valve on the bottom of the
tank, then open the pressure relief valve or hot water faucet.
5. Flush the tank by opening the cold water inlet valve to
the water heater to free the tank of sediments. Close
when draining water is clear.
6. Disconnect the garden hose and remove the drain valve
from the water heater.
7. Refer to Plumbing Installation and Hot Water
Generator Startup.
Plumbing Installation
1. Inspect the dip tube in the water heater cold inlet
for a check valve. If a check valve is present it must
be removed or damage to the hot water generator
circulator will occur.
2. Remove drain valve and fitting.
3. Thread the 3/4-inch NPT x 3-1/2-inch brass nipple into
the water heater drain port.
4. Attach the center port of the 3/4-inch FPT tee to the
opposite end of the brass nipple.
5. Attach the 1/2-inch copper to 3/4-inch NPT adaptor to
the side of the tee closest to the unit.
6. Install the drain valve on the tee opposite the adaptor.
7. Run interconnecting tubing from the tee to HWG
water out.
8. Cut the cold water “IN” line going to the water heater.
9. Insert the reducing solder tee in line with cold water
“IN” line as shown.
10. Run interconnecting copper tubing between the unit
DHW water “IN” and the tee (1/2-inch nominal). The
recommended maximum distance is 50 feet.
11.
To prevent air entrapment in the system, install a vent
coupling at the highest point of the interconnecting lines.
12. Insulate all exposed surfaces of both connecting water
lines with 3/8-inch wall closed cell insulation.
NOTE: All plumbing and piping connections must comply
with local plumbing codes.

17
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Hot Water Generator Connections cont.
CAUTION: Never operate the HWG circulating
pump while dry. If the unit is placed in operation
before the hot water generator piping is
connected, be sure that the pump wires are
disconnected from the contactor.
Hot Water Generator Startup
1. Make sure the power is off to the heat pump. Connect
the wire from the hot water generator pump to T1 on
the contactor.
2. Close the drain valve to the water heater.
3. Open the cold water supply to the tank.
4. Open a hot water faucet in the building to bleed air
from the system. Close when full.
5. Open the pressure relief valve to bleed any remaining
air from the tank, then close.
6. If so equipped, turn the venting (burping) screw in the
center of the pump two (2) turns open (water will drip out),
wait until all air is purged from the pump, then tighten the
plug. Use vent couplings to bleed air from the lines.
7. Carefully inspect all plumbing for water leaks and
correct as required.
8. Before restoring electrical supply to the water heater,
adjust the temperature setting on the tank.
• On tanks with both upper and lower elements,
the lower element should be turned down to
the lowest setting, approximately 100°F. The
upper element should be adjusted to 120°F to
130°F. Depending upon the specific needs of
the customer, you may want to adjust the upper
element differently.
• On tanks with a single element, lower the
thermostat setting to 120°F.
9. After the thermostat(s) is adjusted, replace the access
cover and restore electrical supply to the water heater.
10. Make sure that any valves in the hot water generator
circuit are open.
11. Turn on the unit to heating.
12. The HWG pump should be running. When the pump
is first started, turn the venting (burping) screw (if
equipped) in the center of the pump two (2) turns open
until water dribbles out, then replace. Allow the pump
to run for at least five minutes to ensure that water has
filled the circulator properly.
13. The temperature difference between the water entering
and leaving the hot water generator should be 5°F to
15°F. The water flow should be approximately 0.4 gpm
per ton of nominal cooling.
14. Allow the unit to heat water for 15 to 20 minutes to be
sure operation is normal.

18
VERSATEC ULTRA SERIES INSTALLATION MANUAL
General
Be sure the available power is the same voltage and phase
as that shown on the unit serial plate. Line and low voltage
wiring must be done in accordance with local codes or the
National Electric Code, whichever is applicable.
Power Connection
Connect the incoming line voltage wires to L1 and L2 of the
contactor for single-phase unit. Consult the Electrical Data
tables for correct fuse sizes.
Electrical Connections
208 Volt Operation
All Versatec Ultra Series 208/230 units are factory wired
for 230 volt operation. For 208 volt operation, the red and
blue transformer wires must be switched on terminal strip PS.
CAUTION: When installing a unit with an ECM
blower motor in 460/60/3 voltage, a neutral wire
is required to allow proper unit operation.
For Aurora Base Control, set SW2-1, FP1, on the printed
circuit board for applications using a closed loop antifreeze
solution to 15°F [-9.4°C]. On applications using an open
loop/ground water system (or closed loop no antifreeze), set
this dip switch to 30°F [-1.1°C], the factory default setting.
(Refer to the Dip Switch Field Selection table).
Freeze Detection
Aurora Base Control Box

19
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Electrical Data
PSC Motor
HACR circuit breaker in USA only
* With optional high-static PSC motor
** With optional IntelliStartTM
NOTE: High-static option not available on all model sizes.
Model Rated
Voltage
Voltage
Min/Max
Compressor Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
009 208-230/60/1 187/253 6.4 4.1 21.0 n/a 0.6 4.7 5.7 10/15
265/60/1 238/292 6.7 4.3 22.0 n/a 0.6 4.9 6.0 10/15
012 208-230/60/1 187/253 7.7 4.9 25.0 n/a 0.6 5.5 6.7 10/15
265/60/1 238/292 7.0 4.5 22.0 n/a 0.6 5.1 6.2 10/15
015 208-230/60/1 187/253 9.2 5.9 29.0 n/a 1.1 7.0 8.5 10/15
265/60/1 238/292 7.8 5.0 28.0 n/a 1.0 6.0 7.2 10/15
018 208-230/60/1 187/253 10.4 6.7 33.5 13.4 1.1 7.8 9.5 15
265/60/1 238/292 8.7 5.6 28.0 n/a 1.0 6.6 8.0 10/15
023
208-230/60/1 187/253 21.0 13.5 58.3 23.3 1.2 14.7 18.1 30
265/60/1 238/292 14.0 9.0 54.0 n/a 1.1 10.1 12.4 20
208-230/60/3 187/253 11.0 7.1 55.0 33.0 1.2 8.3 10.1 15
460/60/3 414/506 5.5 3.5 28.0 16.8 0.6 4.1 5.0 10/15
024
208-230/60/1 187/253 21.0 13.5 58.3 23.3 1.2 14.7 18.1 30
265/60/1 238/292 14.0 9.0 54.0 n/a 1.1 10.1 12.4 20
208-230/60/3 187/253 11.0 7.1 55.0 33.0 1.2 8.3 10.1 15
460/60/3 414/506 5.5 3.5 28.0 16.8 0.6 4.1 5.0 10/15
024*
208-230/60/1 187/253 21.0 13.5 58.3 23.3 1.5 15.0 18.4 30
265/60/1 238/292 14.0 9.0 54.0 n/a 1.5 10.5 12.8 20
208-230/60/3 187/253 11.0 7.1 55.0 33.0 1.5 8.6 10.4 15
460/60/3 414/506 5.5 3.5 28.0 16.8 1.0 4.5 5.4 10/15
030
208-230/60/1 187/253 22.0 14.1 73.0 29.2 1.5 15.6 19.1 30
265/60/1 238/292 17.5 11.2 60.0 n/a 1.5 12.7 15.5 25
208-230/60/3 187/253 13.9 8.9 58.0 34.8 1.5 10.4 12.6 20
460/60/3 414/506 6.5 4.2 28.0 16.8 1.0 5.2 6.3 10/15
030*
208-230/60/1 187/253 22.0 14.1 73.0 29.2 2.2 16.3 19.8 30
265/60/1 238/292 17.5 11.2 60.0 n/a 2.0 13.2 16.0 25
208-230/60/3 187/253 13.9 8.9 58.0 34.8 2.2 11.1 13.3 20
460/60/3 414/506 6.5 4.2 28.0 16.8 1.1 5.3 6.4 10/15
036
208-230/60/1 187/253 27.0 17.3 96.7 38.7 2.2 19.5 23.8 40
265/60/1 238/292 19.0 12.2 72.0 n/a 1.1 13.3 16.3 20
208-230/60/3 187/253 20.0 12.8 95.0 57.0 2.2 15.0 18.2 30
460/60/3 414/506 10.0 6.4 45.0 27.0 1.1 7.5 9.1 15
041
208-230/60/1 187/253 31.0 20.0 115.0 46.0 3.5 23.5 28.5 45
208-230/60/3 187/253 20.0 12.8 95.0 57.0 3.5 16.3 19.5 30
460/60/3 414/506 10.0 6.4 45.0 27.0 1.8 8.2 9.8 15
575/60/3 517/633 8.5 5.4 38.0 n/a 1.4 6.8 8.2 10/15
042
208-230/60/1 187/253 31.0 20.0 115.0 46.0 3.5 23.5 28.5 45
208-230/60/3 187/253 20.0 12.8 95.0 57.0 3.5 16.3 19.5 30
460/60/3 414/506 10.0 6.4 45.0 27.0 1.8 8.2 9.8 15
575/60/3 517/633 8.5 5.4 38.0 n/a 1.4 6.8 8.2 10/15
042*
208-230/60/1 187/253 31.0 20.0 115.0 46.0 4.6 24.6 29.6 45
208-230/60/3 187/253 20.0 12.8 95.0 57.0 4.6 17.4 20.6 30
460/60/3 414/506 10.0 6.4 45.0 27.0 2.3 8.7 10.3 15
575/60/3 517/633 8.5 5.4 38.0 n/a 1.9 7.3 8.7 10/15
048
208-230/60/1 187/253 32.0 21.0 115.0 46.0 3.5 24.5 29.8 50
208-230/60/3 187/253 25.0 16.0 115.0 69.0 3.5 19.5 23.5 35
460/60/3 414/506 12.0 7.7 50.0 30.0 1.8 9.5 11.4 15
048*
208-230/60/1 187/253 32.0 21.0 115.0 46.0 4.6 25.6 30.9 50
208-230/60/3 187/253 25.0 16.0 115.0 69.0 4.6 20.6 24.6 40
460/60/3 414/506 12.0 7.7 50.0 30.0 2.3 10.0 11.9 15
575/60/3 517/633 10.0 6.4 40.0 n/a 1.9 8.3 9.9 15
060
208-230/60/1 187/253 41.0 26.3 150.0 60.0 5.9 32.3 38.8 60
208-230/60/3 187/253 27.5 17.6 120.0 72.0 5.9 23.5 27.9 45
460/60/3 414/506 13.0 8.3 70.0 42.0 3.0 11.3 13.4 20
575/60/3 517/633 11.5 7.4 53.0 n/a 1.9 9.3 11.2 15
070
208-230/60/1 187/253 47.0 30.1 145.0 58.0 5.9 36.0 43.5 70
208-230/60/3 187/253 28.0 17.3 120.0 72.0 5.9 23.2 27.5 40
460/60/3 414/506 15.0 9.6 70.0 42.0 3.0 12.6 15.0 20
575/60/3 517/633 12.5 8.0 53.0 n/a 1.9 9.9 11.9 15
05/21/13

20
VERSATEC ULTRA SERIES INSTALLATION MANUAL
Electrical Data cont.
5-Speed ECM Motor
HACR circuit breaker in USA only
** With optional IntelliStartTM
Model Rated Voltage Voltage
Min/Max
Compressor Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
015 208-230/60/1 187/253 9.2 5.9 29.0 n/a 4.1 10.0 11.5 15
265/60/1 238/292 7.8 5.0 28.0 n/a 3.6 8.6 9.9 10/15
018 208-230/60/1 187/253 10.4 6.7 33.5 13.4 4.1 10.8 12.5 15
265/60/1 238/292 8.7 5.6 28.0 n/a 3.6 9.2 10.6 15
023
208-230/60/1 187/253 21.0 13.5 58.3 23.3 4.1 17.6 21.0 30
265/60/1 238/292 14.0 9.0 54.0 n/a 3.6 12.6 14.9 20
208-230/60/3 187/253 11.0 7.1 55.0 33.0 4.1 11.2 13.0 20
460/60/3 414/506 5.5 3.5 28.0 16.8 2.1 5.6 6.5 10/15
024
208-230/60/1 187/253 21.0 13.5 58.3 23.3 4.1 17.6 21.0 30
265/60/1 238/292 14.0 9.0 54.0 n/a 3.6 12.6 14.9 20
208-230/60/3 187/253 11.0 7.1 55.0 33.0 4.1 11.2 13.0 20
460/60/3 414/506 5.5 3.5 28.0 16.8 2.1 5.6 6.5 10/15
030
208-230/60/1 187/253 22.0 14.1 73.0 29.2 4.1 18.2 21.7 35
265/60/1 238/292 17.5 11.2 60.0 n/a 3.6 14.8 17.6 25
208-230/60/3 187/253 13.9 8.9 58.0 34.8 4.1 13.0 15.2 20
460/60/3 414/506 6.5 4.2 28.0 16.8 2.1 6.3 7.4 10/15
036
208-230/60/1 187/253 27.0 17.3 96.7 38.7 4.1 21.4 25.7 40
265/60/1 238/292 19.0 12.2 72.0 n/a 3.6 15.8 18.9 30
208-230/60/3 187/253 20.0 12.8 95.0 57.0 4.1 16.9 20.1 30
460/60/3 414/506 10.0 6.4 45.0 27.0 2.1 8.5 10.1 15
041
208-230/60/1 187/253 31.0 20.0 115.0 46.0 7.6 27.6 32.6 50
208-230/60/3 187/253 20.0 12.8 95.0 57.0 7.6 20.4 23.6 30
460/60/3 414/506 10.0 6.4 45.0 27.0 4.0 10.4 12.0 15
042
208-230/60/1 187/253 31.0 20.0 115.0 46.0 7.6 27.6 32.6 50
208-230/60/3 187/253 20.0 12.8 95.0 57.0 7.6 20.4 23.6 30
460/60/3 414/506 10.0 6.4 45.0 27.0 4.0 10.4 12.0 15
048
208-230/60/1 187/253 32.0 21.0 115.0 46.0 7.6 28.6 33.9 50
208-230/60/3 187/253 25.0 16.0 115.0 69.0 7.6 23.6 27.6 40
460/60/3 414/506 12.0 7.7 50.0 30.0 4.0 11.7 13.6 20
060
208-230/60/1 187/253 41.0 26.3 150.0 60.0 7.6 33.9 40.5 60
208-230/60/3 187/253 27.5 17.6 120.0 72.0 7.6 25.2 29.6 45
460/60/3 414/506 13.0 8.3 70.0 42.0 4.0 12.3 14.4 25
070
208-230/60/1 187/253 47.0 30.1 145.0 58.0 7.6 37.7 45.2 70
208-230/60/3 187/253 28.0 17.3 120.0 72.0 7.6 24.9 29.2 45
460/60/3 414/506 15.0 9.6 70.0 42.0 4.0 13.6 16.0 25
05/21/13
