Water Tec WT1 User manual

Water-Tec.co.uk
Operation Manual

Index
1. Cover
2. Index.
3. WT1-3 Installation.
4. WT4 Installation.
5. WT2-5 Installation.
6. WT RGB Driver Box wiring.

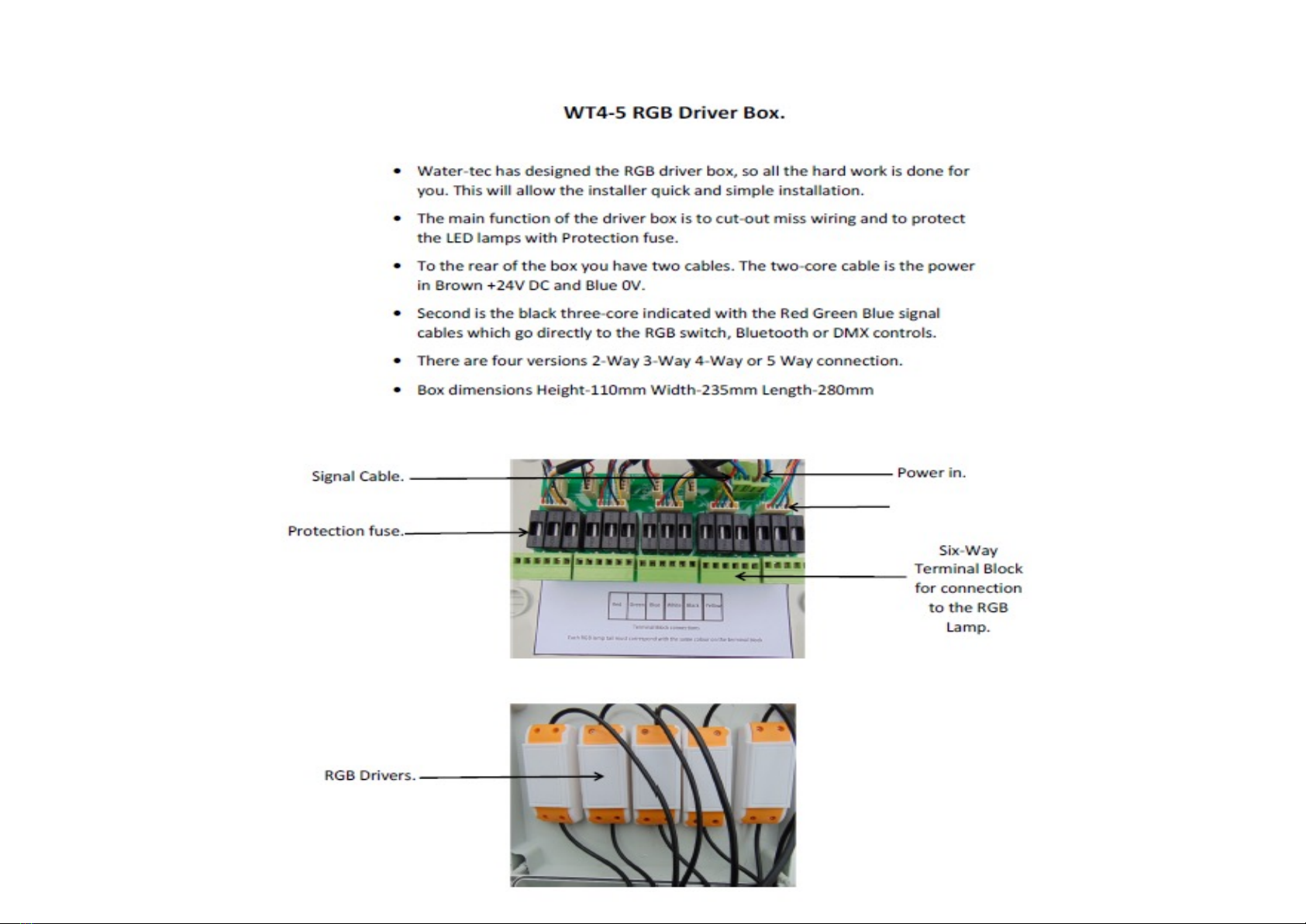

7. WT4-5 RGB Driver Box
8. WT1-2 RGB Pre-Wired Driver Box
9. WT-RGB Lamp.
10. WT-Wiring to DMX/Switch/Bluetooth.
11. WT4-5 White Driver Box Wiring.
12. WT1-2 White Driver Box Wiring.
13. WT1-2-4-5 White Driver Box.
14. WT1-2 Single driver.
15. WT4-5 Single Driver.
16. WT3 White to Dim switch.
17. WT3 White Driver Box Wiring.
18. WT3 White Driver Box To Dim Switch Wiring.
19. WT3 White Driver Box.
20. WT1-2-3 RGB spacing.
21. WT1-2-4-5 White spacing.
22. Joining cables.
23. 150W, 1 Output, Switch Mode Power Supply.
24. How to connect to Freecolour Phone App.
25. How to connect to Magic home App.
26. Bluetooth connection.
27. Remote Control.
28. Touch Dim Switch.
Index
29. RGB Touch Panel.
30. White Touch Panel.
31. Touch Panel installation.
32. WT1-Techincal information.
33. WT2-Techincal information.
34. WT3-Techincal information.
35. WT4-Techincal information.
36. WT5-Techincal information.
37. WT4-Niche.
38. Trouble shooting white.
39. Trouble shooting RGB.
40. RGB Test switch.
41. WT-Terms and Conditions.
42. WT-Terms and Conditions.

WT1 or WT3 light at
recomended depth
of 500 - 1000 mm
2" BSP plastic pipe
ID 2" 53 mm CP2/156
threaded reducer
welded into pipe
blue water pipe or
22mm ABS pipework.
All pipework must be
made water tight.
Pipework to be
installed ABOVE pool
water line
apply PTFE tape
around casing and
'O' ring to seal into
pipework
6mm dia light cable
WT1 & WT3 light installation 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OXON Tel [phone]

WT4 light at
recomended depth
of 500 - 1000 mm
2" BSP plastic pipe
ID 2" 53 mm CP2/156
threaded reducer
welded into pipe
blue water pipe or
22mm ABS pipework.
All pipework must be
made water tight.
Pipework to be
installed ABOVE pool
water line
apply PTFE tape
around casing and
'O' ring to seal into
pipework
6mm dia light cable
WT4 Niche fix with M6 csk screws
2" BSP socket
120
80
5
WT4 Niche
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OXON Tel [phone]
6/2/2019
WT 4 light installation

WT2 or WT5 light at
recomended depth
of 500 - 1000 mm
2" BSP plastic pipe
ID 2" 53 mm CP2/156
threaded reducer
welded into pipe
blue water pipe or
22mm ABS pipework.
All pipework must be
made water tight.
Pipework to be
installed ABOVE pool
water line
apply PTFE tape
around casing and
'O' ring to seal into
pipework
6mm dia light cable.
NOTE: coil cable ANTI-clockwise
before screwing into the inlet
1 1/2" threaded
insert welded into
pipe
6/2/2019
WT2 & WT5 light installation
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OXON Tel [phone]

Power
supply
unit
LED driver
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
fuse
fuse
fuse
LED light LED light LED light LED light LED light
LED driver
LED driver
LED driver
LED driver
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
blue 0V
brown + 24V DC
DMX RGB
Switch
Phone App
blue signal
green signal
red signal
5 Way RGB Driver Box
5 Way RGB Driver Box Wiring Diagram 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

Power
supply
unit yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
yellow -
black -
white -
blue +
green +
red +
fuse
fuse
fuse
LED light LED light LED light LED light LED light
LED driver
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
blue 0V
brown + 24V DC
DMX RGB
Switch
Phone App
blue signal
green signal
red signal
5 Way RGB Driver Box Wired in Series
Pre-Wired
Box
V-OV 24V DC
It is essential that all connections are waterproof
5 Way RGB Driver Box Wired in Series 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

RGB Single Lamp
Black (-Green Cathode)
LED LUXEON Rebel
Green (+Anode)
Blue (+Anode)
WT3 Constant Current 350mA Max
Yellow (-Blue Cathode)
Forward Voltage 3.05V
Red (+Anode)
White (-Red Cathode)
Lamp 1
WT1-2-4-5 Constant Current 1000mA Max
Recommended Current 700mA

0vB G
0V
RGB Touch Switch
RGB Driver
+24V+
+24V DC
R
Green
0V
Blue
Output
+24V DC
Red
Input

Power
supply
unit
LED driver
blue -
brown +
fuse
fuse
fuse
LED light
LED driver
LED driver
LED driver
LED driver
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
fuse
blue 0V
brown + 24V DC
green signal
WT1 & WT2 White Driver Box NO Control
LED lightLED lightLED lightLED light
V-OV 24V DC
Green Signal to OV when not using control
blue -
brown +
blue -
brown +
blue -
brown +
blue -
brown +
It is essential that all connections are waterproof
WT1 & WT2 White Driver Box NO Control 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

5 Way WHITE Driver Box WT4 & WT5
black -
green / yellow -
grey +
brown +
LED light
fuse
fuse
Power
supply
unit
LED driver
LED driver
LED driver
LED driver
LED driver
blue 0V
brown + 24V DC
DMX/DIM
Switch
Phone App
green signal
V-OV 24V DC
If not using any form
of control - put green
wire into V-OV
LED light
fuse
fuse
LED light
fuse
fuse
LED light
fuse
fuse
LED light
fuse
fuse
It is essential that all connections are waterproof
black -
green / yellow -
grey +
brown +
black -
green / yellow -
grey +
brown +
black -
green / yellow -
grey +
brown +
black -
green / yellow -
grey +
brown +
5 Way WHITE Driver Box WT4 & WT5 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

WT1 & WT2 White Lamp
Power
supply
unit
blue 0V
red + 24V DC
DMX/DIM
Switch
Phone App
green signal
V-OV 24V DC
If not using any form
of control - put green
wire into V-OV
blue -
brown +
LED light
LED driver
It is essential that all connections are waterproof
WT1 & WT2 WHITE Lamp External Driver 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

WT4 & WT5 White Lamp
Power
supply
unit
blue 0V
red + 24V DC
DMX/DIM
Switch
Phone App
green signal
V-OV 24V DC
If not using any form
of control - put green
wire into V-OV
black -
green / yellow -
grey +
brown +
LED light
LED driver
It is essential that all connections are waterproof
WT4 & WT5 WHITE Lamp External Driver 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

Power
supply
unit
fuse
blue V-
brown + 24V DC
WT3 White Driver Box with Control
blue -
brown +
LED light
V-OV 24V DC
blue V-
blue input 0V-
brown +24V DC
fuse
LED light
fuse
LED light
fuse
LED light
fuse
LED light
It is essential that all connections are waterproof
DIM switch
or DMX
blue -
brown +
blue -
brown +
blue -
brown +
blue -
brown +
WT3 White Driver Box with Control 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

WT3 White Lamp
Power
supply
unit
blue 0V
brown + 24V DC
V-OV 24V DC
blue -
brown +
LED light
It is essential that all connections are waterproof
WT3 WHITE Lamp External Driver 6/2/2019
Water-tec.co.uk
10 Crabtree Lane Drayton Abingdon OX144HS Tel [phone]

PSU
5 WAY RGB DRIVER BOX
Power in Blue 0V
3 WAY RGB DRIVER BOX
RGB Cable Six Core 20M run
0V V- 24V V+
WT1-2 Spacing 2M
WT4-5 Spacing 3M
RGB Switch / DMX
Power in Brown +24V
