ASTEL LIGHTING METEOR LSR0640 User manual

METEOR
LSR0640
UNDERWATER
POOL
LIGHT
Operating Instructions

2
CONTENTS
Preface...............................................................................................................................................................3
Features .............................................................................................................................................................3
Precautions ........................................................................................................................................................3
Components and Connectors ............................................................................................................................4
Installation ..........................................................................................................................................................5
Controls..............................................................................................................................................................7
Appearance........................................................................................................................................................9
Technical Specifications.....................................................................................................................................9
Warranty...........................................................................................................................................................10
_________________________________________________________________________________

3
PREFACE
The METEOR LSR0640 series of a compact
ultra-thin underwater pool light with built-in
driver is designed to use the latest LED lighting
technology.
The surface-mount designed casing enable
very simple installation on the flat surface
without any surface preparation during
construction and the max. diameter of the hole
through the wall is 8 mm.
The METEOR LSR0640 series is available in
stainless steel casings. The lighting is available
in white, blue, green, RGB, WGB or RGBW
colors with 6 high-power LEDs.
The multi-color RGB, WGB or RGBW versions
allow changing of the color of lighting manually
or automatically through the complete
(rainbow) spectrum.
The most advanced electronic design with
built-in microprocessor enables network
connection and simple control of complete
group of lights with dimming.
FEATURES
•Innovative Design
•Stainless Steel Ultra-Thin Casing
•6 Power LEDs Design
•Cool White, Warm White, Blue, Green or
Multi-Color RGB / WGB / RGBW Lighting
•High Grade Polycarbonate Glass Optical
Window
•Vacuum Metalized Reflector
•Remote Control
•Digital Dimming
•Built-in ASTEL Protocol for DMX512
Control of Multi-Color versions
•Polarity Protection
•Transient Protection
•Thermal Protection
•Wide Range Power Supply
•Low Power Consumption
•Simple Installation
•Optional Accessories for Different Pools
Installations
PRECAUTIONS
•The underwater pool light has to be
installed and used in accordance with the
instructions of this manual only.
•The power supply has to be disconnected
before installation.
•Except when the luminaire is installed in an
area of the swimming pool that is not used
for swimming and the lens is adequately
guarded to keep any person from
contacting it, the luminaire shall be installed
in or on a wall of the pool, with the top of
the lens opening not less than 18’’ below
the normal water level of the pool.
•The optical window must be clear and not
covered by any kind of isolating or other
material.
•The optical window has to be cleaned with
a mild soap or detergent and lukewarm
water by using a soft cloth or sponge. Do
not use abrasive or highly alkaline cleaners.
Never scrape with razor blades or other
sharp instruments. Benzene, leaded
gasoline, acetone or carbon tetrachloride
should never be used.
•Do turn power off immediately and refer
servicing to qualified service personnel if
the underwater pool light does not operate
normally following the operating
instructions.

4

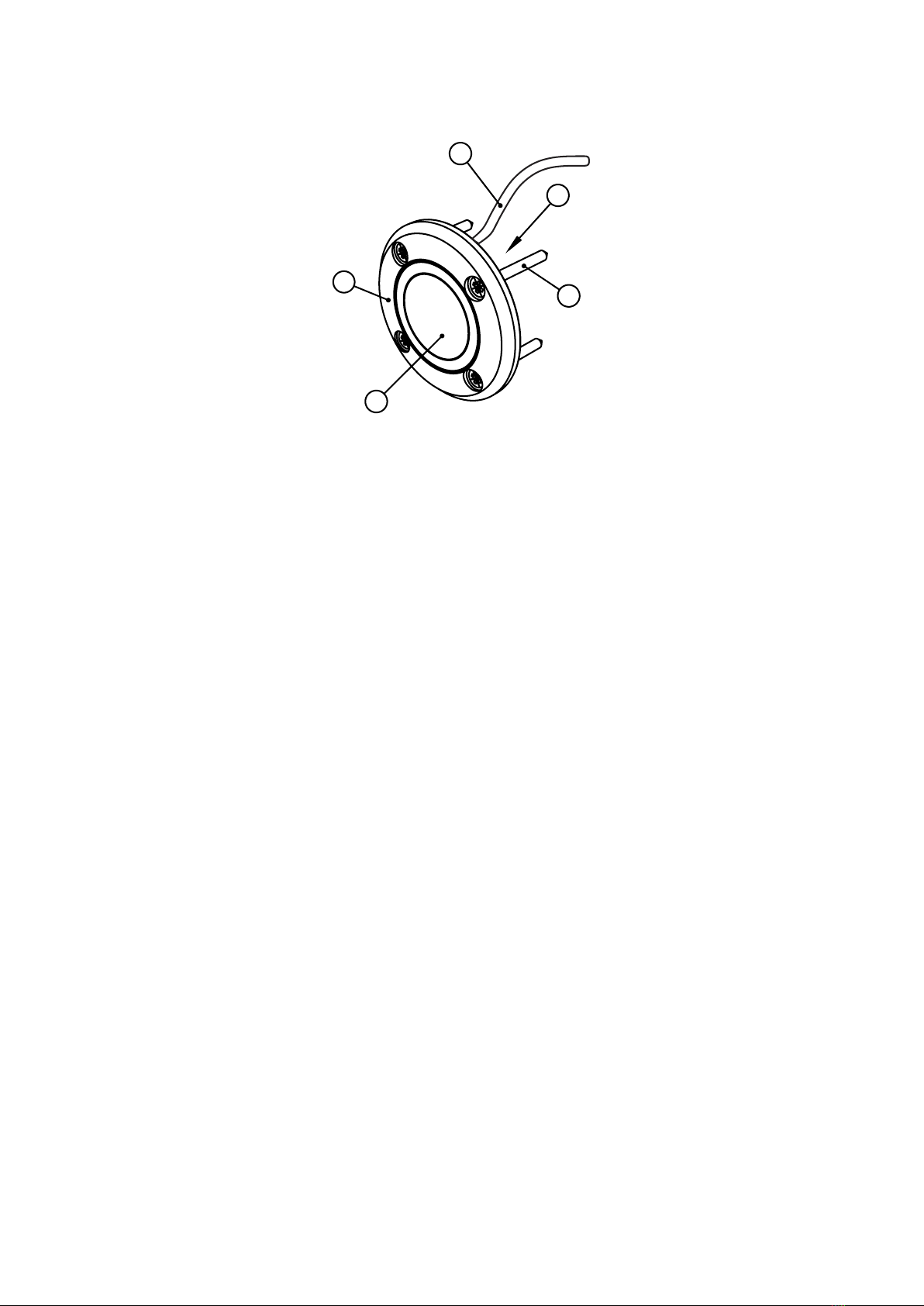

COMPONENTS AND CONNECTORS
1
24
3
5
(1) Optical window
High-grade polycarbonate glass optical window.
(2) Underwater pool light casing
Stainless steel casing with fixing holes and cable gland.
(3) Cable
The 4-pole multi-core cable to connect the 12-24Vdc power supply and optional remote control or
switch.
(4) Fixing screw
The fixing screws to fix the underwater pool light on the wall.
(5) Bonding
The terminal to fix the bonding wire equipped with cable lug.

5
INSTALLATION
The underwater light kit consists of the following components:
•Underwater Light METEOR LSR0640
•4 x fixing screw 5.5x50 with wallplugs
•1 x set of washer, ribbed-washer and M6 self-locking nut for bonding
•Operating Instructions with Declaration of Conformity and Warranty conditions
The METEOR LSR0640 has to be installed on a flat surface on the pool wall under water line.
Do not try to install the underwater pool light while the pool is filled with water.
When the installation is finished briefly test the underwater light prior to fill the pool with water.
The installation have to be realized by a qualified personnel.

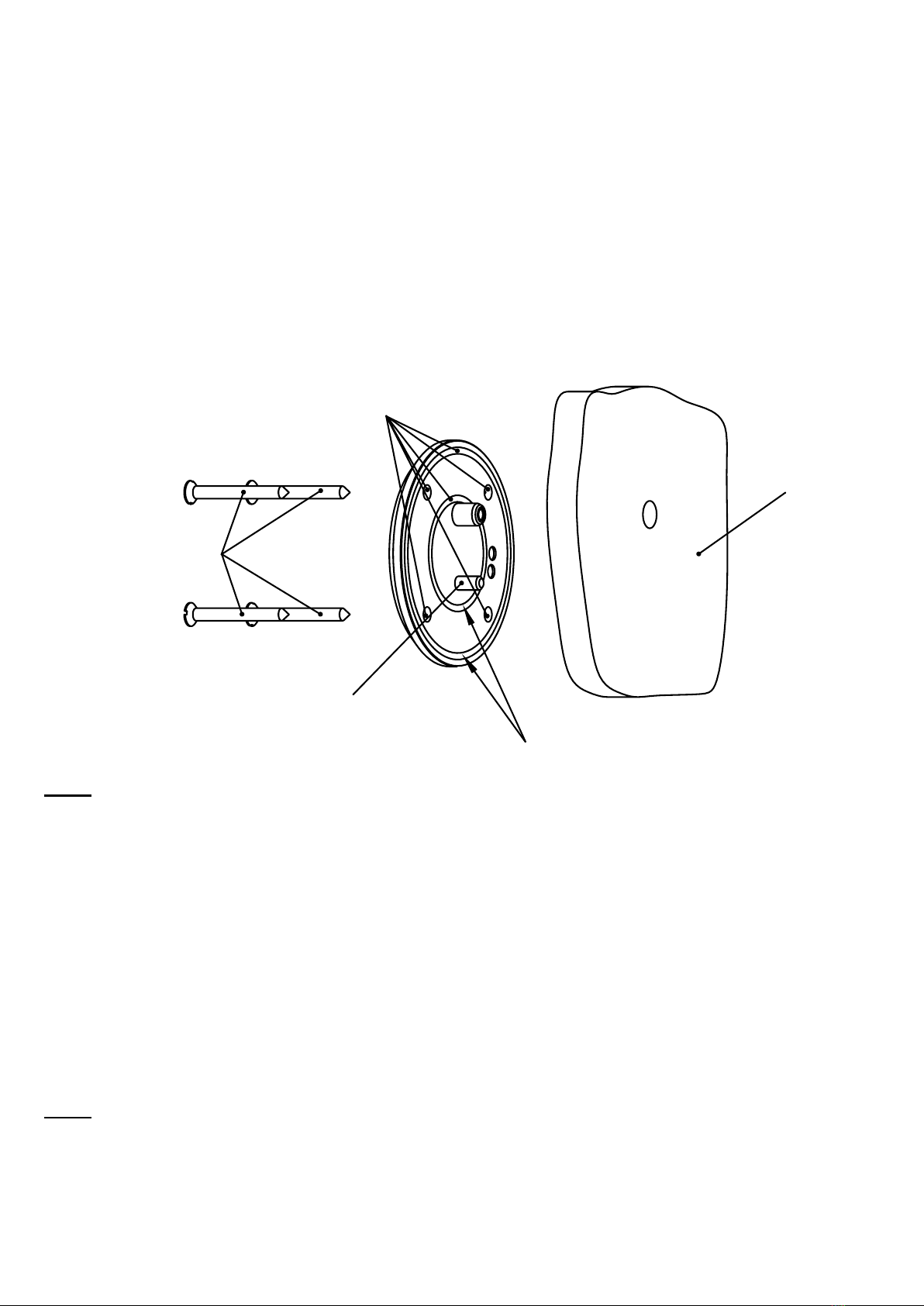

Wall
Screw 5.5X50
Sealing grooves (2X)
Sealing
Bonding
Note:
•Avoid using the underwater pool light out of the water – submerge before lighting.
Wall preparation
To fix the underwater pool light with screws 5.5x50 the diameter of holes drilled into the wall has to
be 8mm/0.32’’.
Sealing
Before inserting the cable with gland through the hole the sealant has to be used into the grooves,
around the four fixing holes and around the gland in the rear surface of the underwater pool light.
The sealant can be on silicon basis but the best solution is MS polymer sealant.
Fixing
The underwater light has to be fixed with four screws 5.5x50 with wallplugs.
Note:
•Do not overtighten the screws as this can result in underwater pool light damage.

6
Bonding
The bonding of the underwater pool light is realized by using a pre-tinned green wire with a yellow
stripe a minimum of 8 AWG (8.36 mm2). The wire has to be connected to the rear side of underwater
pool light by the help of prepared fixing terminal M6 and optional cable lug fixed by included set of
nut, washer and ribbed-washer, signed by bonding label.
Note:
•Bonding is mandatory ONLY when the underwater pool light is mounted using the
Concrete Pool Niche LCPN0640 or LCFN0640
Connection
The power supply has to be connected through the main switch (not included) with correct polarity
and protected by a fuse (not included). The power supply voltage has to be from 10 - 30Vdc.
Note:
•The power supply has to be switched off before installation.
The underwater light has to be connected as described in the table below:
METEOR LSR0640
wire color
FUNCTION
Red
+ DC Power Supply
Black
GND Power Supply
Orange
+ Control
Brown
GND Control
Remote control and network connection
Single-color cool white (W), warm white (WW), blue (B) or green (G) models
To remotely turn-on and turn-off the underwater pool light the simple switch (not included) can be
used and connected to the CONTROL wires by a 2-pole signal cable (not included).
Note:
•If the remote control is not used at single-color models for normal operation the both
CONTROL wires have to be bridged and insulated or connected to the GND.
Multi-color RGB (M), WGB (WM), RGBW (MW) models
To control the mode of lighting the simple momentary-switch (not included) has to be used and
connected to the CONTROL wires by the 2-pole signal cable (not included).
Optional LXU01 interface can be connected to the CONTROL wires by using a 2-pole signal cable
(not included).

7
CONTROLS
Single-color cool white (W), warm white (WW), blue (B) or green (G) models
Remote control can be used to turn-on and turn-off the underwater pool light.
Multi-color RGB (M), WGB (WM), RGBW (MW) models:
Remote control has to be used to turn-on and turn-off the underwater pool light and to control the
mode of lighting and luminosity.
The multi-color underwater pool light can be controlled by using the momentary-switch.
When the light is turned-off the color or mode of lighting can be changed sequentially by pressing
the momentary switch for 2 seconds:
RGB (M)
Sequence of lighting
WGB (WM)
Sequence of lighting
RGBW (MW)
Sequence of lighting
Custom Color
Custom Color
Custom Color
Full RGB
Full WGB
Full RGBW
Cool White
Cool White
Neutral White
Bluish White
Bluish White
White
Red
White
Red
Green
Green
Green
Blue
Blue
Blue
Rainbow Color Spectrum
Color Spectrum
White Color Spectrum
Custom White Color
(Rainbow) Color Spectrum
Turning on /off
Press the momentary-switch shortly.
Changing the color or mode of lighting
When the light is turned-off press the momentary-switch for 2 seconds.
Setting the Custom Color
At the selected (Rainbow) Color Spectrum mode press the momentary-switch shortly to turn the light
off. After that press the momentary-switch for 5 seconds or until the light is switched to the selected
color and then the Custom Color is set and selected.
Dimming
When the light is turned-on press the momentary-switch until the desired illumination is achieved. By
another pressing of the momentary-switch the luminosity will increase to the maximum illumination.
Set default
Press the momentary switch for min. 40 seconds or until the light is turned off.
Synchronization
When more than one multi-color underwater pool light is connected to the system the optional
Synchronization Unit LSU08 is recommended to synchronize the colors of lighting at the (Rainbow)
Color Spectrum mode of lighting. On the other case the colors of all installed lights would not be the
same after few minutes or hours of operation in the (Rainbow) Color Spectrum mode.
If the multi-color light is used only with one of the fixed color of lighting the synchronization is not
necessary.

8
DMX512 control
The built-in ASTEL protocol enables the network connection to control the lights with the standard
DMX512 protocol by using optional LXU01 interface.

9

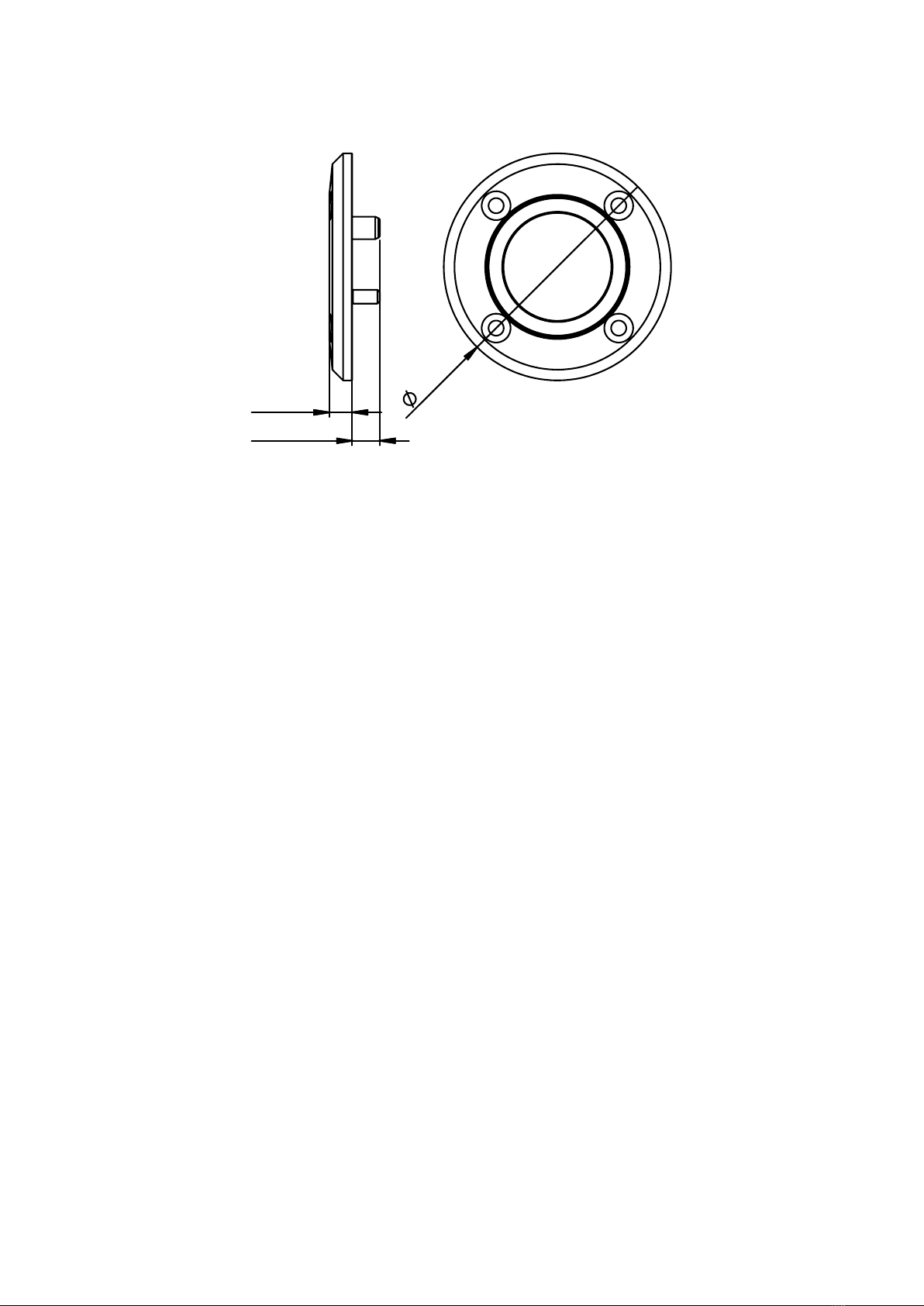

APPEARANCE
3.90"
0.39"
0.47"
TECHNICAL SPECIFICATIONS
Power supply 12 – 24 Vdc, max. 800 mA/12 Vdc or 410 mA/24 Vdc
Lens angle 60°(standard)
Optical window High-grade polycarbonate glass
Luminous flux max. 950 lm
ASTEL protocol default address 1
Operating temperature 14°F - 122°F
Casing Stainless steel (SAE316L)
Protection IP 68
Dimensions Ø3.90’’ x 0.39’’
Weight 0.88 lbs
Design and specifications subject to change without notice.

10
WARRANTY
1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in
workmanship and materials under normal use and service.
2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase
must be included, to establish that it is inside the warranty period.
3. This Warranty is transferrable and covers the product for the specified time period.
4. In case any part od the equipment proves to be defective, other than those parts excluded in
paragraph 5 below, the owner should do the following:
(a) prepare a detailed written statement of the nature and circumstances of the defect, to the best
of the Owner’s knowledge, including the date of purchase, the place of purchase, the name and
adress of the installer, and the Purchaser’s name, adress and telephone number;
(b) the Owner should return the defective part or unit along with the statement referenced in the
preceding paragraph to the warrantor, ASTEL d.o.o., or an authorized distributor,
postage/shipping prepaid and at the expense of the Purchaser;
(c) if upon the Warrantor’s or authorized distributor’s examination, the defect is determined to
result from defective material or workmanship, the equipment will be repaired or replaced at the
Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense;
(d) no refund of the purchase price will be granted to the Purchaser, unless the Warrantor is
unable to remedy the defect after having a reasonable number of opportunities to do so. Prior
to refund of the purchase price, Purchaser must submit a statement in writing from a
professional supplier that the installation instructions of the Operating Instructions manual have
been complied with and that the defect remains;
(e) warranty service shall be performed only by the Warrantor, or an authorized distributor, and
any attempt to remedy the defect by anyone else shall render this warranty void.
5. There shall be no warranty for defects or damages coused by faulty installation or hook-up, abuse
or misuse of the equipment including exposure to excessive heat, salt or fresh water spray, or
water immersion except for equipment specially designed as waterproof.
6. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its
employees and representatives for injury to any person or persons, or damage to property, loss of
income or profit, or any other consequential or resulting damage or cost which may be claimed to
have been incurred through the use or sale of the equipment, including any possible failure or
malfunction of the equipment, or part thereof.

11

12
ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia
Tel: [phone]
Fax:[phone]
E-mail: [e-mail]
Web: www.astel-lighting.com
