ELECTRIC 88 PIANO
Electric
88
Piano
USER GUIDE

ELECTRIC 88 PIANO
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION ..........................................................................................................................................................3
WELCOME .............................................................................................................................................................................................................................. 3
1.1 PRODUCT OVERVIEW ................................................................................................................................................................................................. 4
1.2 CONCEPTS AND TERMINOLOGY ............................................................................................................................................................................ 4
1.3 COMPONENTS .............................................................................................................................................................................................................. 5
1.4 FUNCTIONAL BLOCK/FLOW DIAGRAM ................................................................................................................................................................ 6
CHAPTER 2 QUICK START GUIDE ................................................................................................................................................7
CHAPTER 3 INTERFACE AND CONTROLS .................................................................................................................................8
3.1 INTERFACE ...................................................................................................................................................................................................................... 8
3.2 CONTROLS ...................................................................................................................................................................................................................... 8
3.2.1 Keyboard Control .................................................................................................................................................................................................. 8
3.2.2 Piano Module .......................................................................................................................................................................................................... 9
3.2.3 Eects Module ....................................................................................................................................................................................................... 14
3.2.4 WaveSystem Toolbar ........................................................................................................................................................................................... 20
CHAPTER 4 STANDALONE APPLICATION .............................................................................................................................. 22

3
ELECTRIC 88 PIANO
CHAPTER 1:INTRODUCTION
Welcome
Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take a moment to read this user
guide.
To install software and manage your licenses, you need to have a free Waves account. Sign up at www.waves.com. With a Waves
account you can keep track of your products, renew your Waves Update Plan, participate in bonus programs, and keep up to date
with other important information.
We suggest that you become familiar with the Waves Support pages: www.waves.com/support. There are technical articles about
installation, troubleshooting, specifications, and more. Plus, you’ll find company contact information and Waves Support news.
Acknowledgement
The Electric 88 Piano samples library was recorded and produced by Yoad Nevo at Nevo Sound Studios in London, UK.
Visit www.yoadnevo.com.

4
ELECTRIC 88 PIANO
1.1 Product Overview
The unmistakable sound of the electric piano has shaped our musical landscape since the 70s. This sound changed the way we
think about the piano, and it opened up many new musical possibilities. Now the sound, feel, and personality of this unique piano is
available from Waves.
Waves painstakingly sampled a well-used, road-worn Mark 1 88-key electric piano to capture the nuance and detail of the original
sound. The result is the Electric 88 Piano plugin and standalone application. Every element of the instrument’s sound—down to its
beautiful imperfections—is captured to recreate the magic realism of the original. We’ve gone a few steps further by integrating our
high-quality studio eects and by adding unique features for tone shaping. And there’s a mix section that enables you to use these
tools to put your own personal stamp on this era-defining soun .
For anybody looking to grace their tracks with an electric piano full of character and soul with its own personality, look no further.
The Electric 88 Piano from Waves has arrived.
1.2 Concepts and Terminology
The type of electric piano that became a pop, rock, and jazz favorite in the ‘70s was invented by Harold Rhodes in the 1940s.
The technology behind the instrument consists of a hammer, similar to the ones in acoustic pianos. A hammer strikes a small metal
rod, called a tine, that’s connected to a larger tone bar, which is, in essence, a tone generator. Once struck, this tone generator
vibrates, emitting a certain pitch. This vibration is turned into an electronic signal using a pickup that sits opposite the tine. The
overall structure is somewhat similar to a tuning fork.

5
ELECTRIC 88 PIANO
The richness of the instrument stems in part from the relationship between the tines and the tone bar. The response of the tines
dominates when the tines are struck by the hammer, during the attack period of the note. This sound is bell-like. The tone bar
dominates the sustain of the note. Its sounds are very sinusoidal, with varying degrees of harmonic distortion. You can control the
balance between the tines and the tone bar to influen e the eect: turn up the tines to create a more bell-like start and a more
punchy attack, or turn them down to resemble a more mellow and worn instrument.
Electric 88 Piano is powered by WSE, the Waves Sampler Engine, a state-of-the-art multi-sample engine designed to deliver solid,
high-quality performance.
1.3 Components
The Electric 88 Piano has one component: Electric 88 Piano Stereo
Electric 88 Piano is a virtual instrument plugin and will appear under the related selection menus for virtual instruments under all
supported DAW host applications.
Waves Electric 88 Piano also works as a standalone application, using ASIO (Windows) or Core Audio (Mac) drivers to play through
your audio device of choice. Electric 88 Piano receives MIDI data to trigger notes and control changes.

6
ELECTRIC 88 PIANO

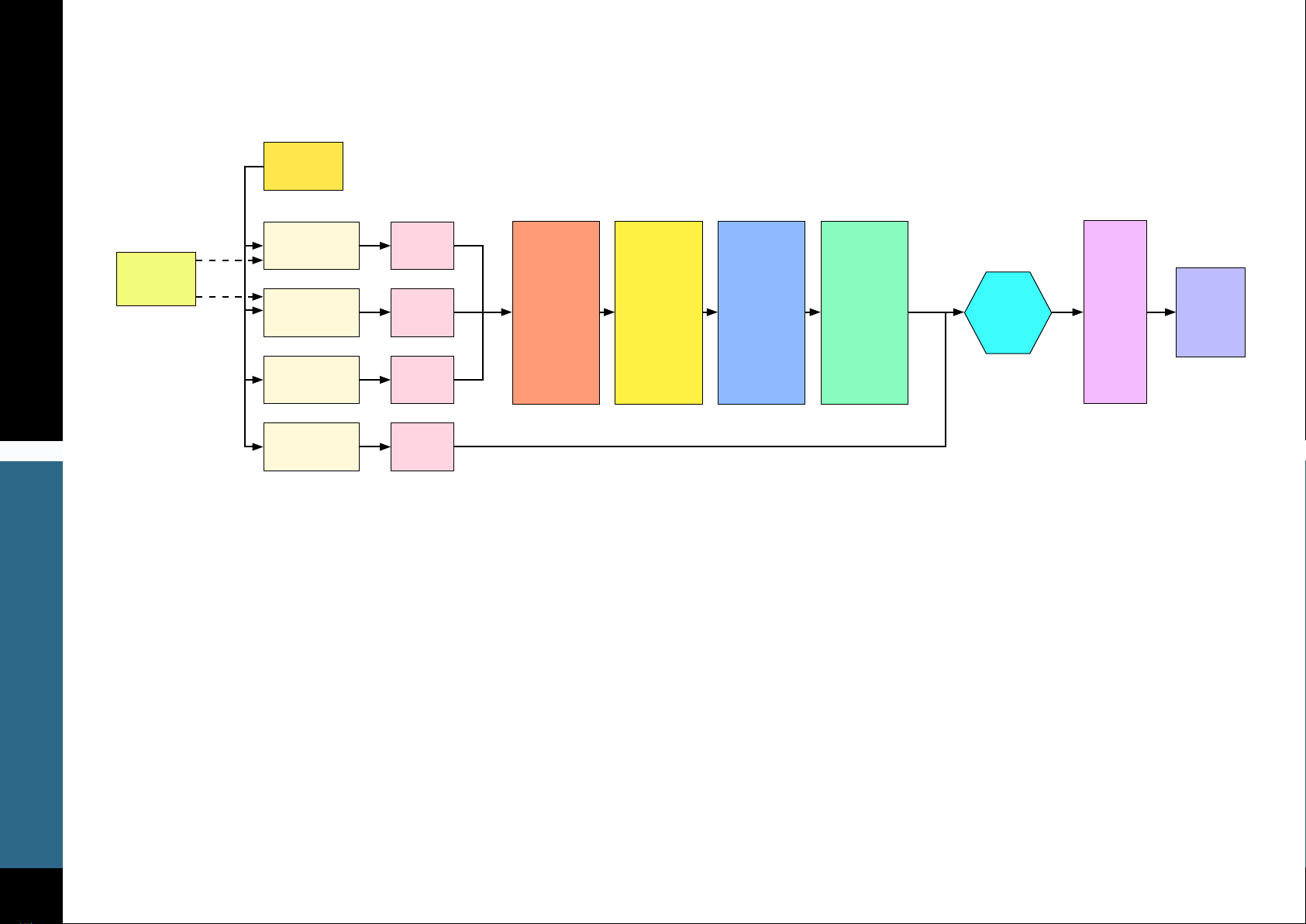

1.4 Functional block/flow diagram
Formant
Velocity Curve
Main
Volume
Key Up
Volume
Vintage
Compressor
AMP
Simulator
(Drive)
Cabinet
Simulator (Mic)
Control Tone
Controls
Bass, Mid,
Treble
FX
Tremolo,
Autopan,
Phaser,
Chorus
Tines
Volume
Mechanics
Volume
Reverb Master
Volume
Brickwall
Limiter
Sampler Engine 1
Main Keys
Sampler Engine 2
Key Up Keys
Sampler Engine 3
Tines Keys
Sampler Engine 4
Mechanics Keys

7
ELECTRIC 88 PIANO
CHAPTER 2: QUICK START GUIDE
Insert Electric 88 Piano on an instrument track in your DAW or launch the standalone application. Start to play and you will
quickly understand how to get the sound you want. There are two modules with which to control the behavior and sound of the
instrument.
Use the top module to create and control eects such as tremolo, phasing, stereo imaging, chorus, and reverb.
Use the bottom module to control the characteristics of the keyboard and the amplifie .
Navigating the presets
Electric 88 presets and sample libraries are managed with the WaveSystem Toolbar at the top of the window. This is discussed
on page 21. To learn more, click the icon at the upper-right corner of the window and open the WaveSystem Guide.
Use the Next/Previous preset arrow controls on the toolbar to scroll through presets.

8
ELECTRIC 88 PIANO
CHAPTER 3: INTERFACE AND CONTROLS
3 .1 I n t e r f a c e
The ELECTRIC 88 Piano interface is arranged into two sections.
Bottom: The Piano module includes tone controls, a vintage style compressor, and an amplified cabinet th t was sampled
with both a condenser mic and a dynamic mic.
Top: The Multi-Eect processor provides modulation eects and reverb.
3.2 Controls
3.2.1 Keyboard Control
At the very bottom there’s a virtual keyboard designed to preview the sound of a note when a keyboard controller is not available.
Use a mouse or similar input device. This control cannot be automated, but it will follow any MIDI input device.

9
ELECTRIC 88 PIANO
3.2.2 Piano Module
Keys Section
Vel Curve
This control changes the curve of the velocity response from logarithmic to exponential.
When the control is set to 50%, the curve is linear.
Range: -50% to +50%
Initial Value: 0
Reset Value: 0
Continuous control
Formant
The formant control changes the sound character but not the pitch. Each step equals a half-tone.
This means that when set to -12, the piano sound character will be lower by one octave, but the pitch will not
change. Range: -12 to +12
Initial Value: 0
Reset Value: 0
Discrete control, 25 steps.

10
ELECTRIC 88 PIANO
Mix Section
Main
The Main control is the sampled sound of the electric piano, without the mechanics and the release keys sounds.
It controls the Main samples level in the overall mix.
Range: 0–100 %
Initial Value: 100%
Reset Value: 100%
Continuous control
Tines
Tines is the sampled sound of the key tines. It controls the Tines samples level in the overall mix.
Range: 0–100 %
Initial Value: 35%
Reset Value: 0
Continuous control
Key Up
Key Up is the sound of the keys while releasing. It controls the Key Up samples level in the overall mix.
Range: 0 – 100%
Initial Value: 25%
Reset Value: 0
Continuous control

11
ELECTRIC 88 PIANO
Mechanics
The Mechanics control is the sampled sound of the electric piano mechanics without the Main and the Key Up sounds.
It controls the Mechanics (thump) samples level in the overall mix.
Range: 0 – 100%
Initial Value: 25%
Reset Value: 0
Continuous control
Comp
The Comp control influen es the mix of the internal compressor. Turning the knob clockwise increases the level.
Range: 0 – 100%
Initial Value: 50%
Reset Value: 0
Continuous control
Amp Section
Amp On/O
The Amp button turns the Amp section on or o.
Range: O, On
Initial Value: On
No Reset Value: Alt+click does not aect the current mode of this switch.

12
ELECTRIC 88 PIANO
Drive
Controls the level of the amplifier verdrive.
Range: 0–100
Initial Value: 0
Reset Value: 0
Continuous control
Mic
There are two microphone options in front of the amplifie : Condenser and Dynamic.
Initial Value: Condenser
Reset Value: Condenser
Tone Section
Bass
The Bass control is a low shelf fil er at 203 Hz, which can be decreased or increased by +/-18 dB.
Range: -50 to +50
Initial Value: 0
Reset Value: 0
Continuous control
Mid
The Mid control is a bell fil er at 900 Hz, which can be increased or decreased by +/-18 dB.
Range: -50 to +50
Initial Value: 0
Reset Value: 0
Continuous control

13
ELECTRIC 88 PIANO
Treble
The Treble control is a high-shelf fil er at 1.875 kHz, which can be increased or decreased by +/-18 dB.
Range: -50 to +50
Initial Value: 0
Reset Value: 0
Continuous control
Output Section
Volume
Controls the output gain level after plugin processing.
Range: 0–10
Initial Value: 8
Reset Value: 8
Continuous control
Limit
Turns the output brickwall limiter On or O.

14
ELECTRIC 88 PIANO
3.2.3 Effects Module
FX In/Out
The FX In/Out switch toggles all eect module sections on and o. When the FX module is again turned on,
each section will return to its previous state.
Tremolo Section
Tremolo On/O
The Tremolo button turns the Tremolo section on or o.
Range: O, On
Initial Value: On
No reset value: Alt+click does not aect the current mode of this switch.
Tremolo Rate
Tremolo Rate provides control over Sync rates (such as ¼) or Free rates (in Hz), using the same knob.
The middle position, 12 o’clock, is the slowest Free value. Turning the knob clockwise from this position increases the rate from
0.25 Hz to 28 Hz.
When the knob setting is less than 12 o’clock, values are defined with espect to the host. Turning the knob counterclockwise
increases the Tremolo rate through music note duration values related to the host’s BPM: 1/32T, 1/32, 1/32D, 1/16T, 1/16, 1/16D,
1/8T, 1/8, 1/8D, 1/4T, 1/4, 1/4D, 1/2, 1/2D, 1, 2/1.

15
ELECTRIC 88 PIANO
2/1 equals one cycle in 2 bars.
Scaling: Custom.
Range: Sync 1/32T-2/1; Free 0.25–28 Hz
Initial Value: 1/16D sync rate
Reset Value: 1/16D sync rate
Continuous control
Tremolo Depth
The Depth control increases or decreases the amplitude level.
Range: 0–100
Initial Value: 60
Reset Value: 0
Continuous control
AutoPan Section
AutoPan On/O
The AutoPan button turns the Autopan section on or o.
Range: O, On
Initial Value: On
No reset value: Alt+click does not aect the current mode of this switch.
Autopan Rate
Autopan Rate provides control over Sync rates that relate to the host (such as ¼), or Free rates (in Hz) that can be set

16
ELECTRIC 88 PIANO
independently of the host BPM, using the same knob.
The middle position,12 o’clock, is the slowest Free value. Turning the knob clockwise from this position increases the rate from
0.25 Hz to 28 Hz.
When the knob setting is less than 12 o’clock, values are defined with espect to the host. Turning the knob counterclockwise
increases the Autopan rate through music note duration values related to the host’s BPM: 1/32T, 1/32, 1/32D, 1/16T, 1/16, 1/16D,
1/8T, 1/8, 1/8D, 1/4T, 1/4, 1/4D, 1/2, 1/2D, 1, 2/1.
2/1 equals one cycle in 2 bars.
Scaling: Custom.
Range: Sync 1/32T-2/1 ; Free 0.25–28 Hz
Initial Value: 1/2 sync rate
Reset Value: 1/2 sync rate
Continuous control
Pan Depth
Controls how far the panning extends from the center.
Range: 0–100
Initial Value: 33
Reset Value: 0
Continuous control
Phaser Section
Phaser On/O
The Phaser button turns the Phaser section on or o.

17
ELECTRIC 88 PIANO
Range: O, On
Initial Value: On
No Reset Value: Alt+click does not aect the current mode of this switch.
Phaser Mix
Controls the level of the Phaser eect.
Range: 0–100%
Initial Value: 25%
Reset Value: 0
Continuous control
Phaser Rate
Phaser Rate provides control over Sync rates that relate to the host (such as ¼), or Free rates (in Hz) that can be set
independently of the host BPM, using the same knob. The middle position, 12 o’clock, is the slowest Free value.
Turning the knob clockwise from this position increases the rate from 0.01 Hz to 22 Hz.
When the knob setting is less than 12 o’clock, values are defined with espect to the host. Turning the knob counterclockwise
increases the Phaser Rate through music note duration values related to the host’s BPM:
1/32T, 1/32, 1/32D, 1/16T, 1/16, 1/16D, 1/8T, 1/8, 1/8D, 1/4T, 1/4, 1/4D, 1/2, 1/2D, 1, 2/1.
2/1 equals one cycle in 2 bars.
Scaling: Custom.
Range: Sync 1/32T-2/1 / Free 0.01–22Hz
Initial Value: 0.03 Hz free rate
Reset Value: 0.07 Hz free rate
Continuous control.

18
ELECTRIC 88 PIANO
Phaser Depth
The Depth control controls the Phaser feedback.
Range: 0–100
Initial Value: 53.5
Reset Value: 0
Continuous control
Chorus Section
Chorus On/O
The Chorus button turns the Chorus section on or o.
Range: O, On
No reset value: Alt+click does not aect the current mode of this switch
Depth
The Depth control influen es the dry/wet mix of the signal into the chorus and determines how much the module
oscillator will influen e the delay. The chorus engine contains four delays and four oscillators.
Range: 0–100
Initial Value: 25
Reset Value: 0
Continuous control

19
ELECTRIC 88 PIANO
Reverb Section
Reverb Mix
Controls the balance between the dry and wet signal, and also controls the amount of reverb added.
Range: 0% (dry) to 100% (wet)
Default: 30%
Reset Value: 0% (dry)
Continuous control
Reverb Predelay
Controls the amount of the delay between the dry and wet signals.
Range: 20 ms–400 ms (milliseconds)
Initial Value: 55 ms
Reset Value: 55 ms
Continuous control
Reverb Time
Control the reverb time, up to 6 seconds.
Range: 0.4 sec–6 sec
Default: 2 sec
Reset Value: 2 sec
Continuous control

20
ELECTRIC 88 PIANO
Reverb Damp
Increases the level of high frequencies during the decay.
Default: 0.8
Reset Value: 0.8
Continuous control
Meters
Meter Scale
Peak meter: -30 dB to 0 dB, showing a VU meter scale calibrated for 18 dB of headroom (0 dBVU = -18 dBFS).
Split Meters
Separate left and right meter indicators.
Black: Left
Green: Right
