TI-810+ Motherboard
Note to Users
This User’s Guide & Technical Reference are for assisting system manu-
facturers and end users in setting up and installing the motherboard. Every
effort has been made to ensure that the information in this manual is
accurate. Weal UnionDevelopment Limited is not responsible for print-
ing or clerical errors. Information in this document is subject to change
without notice and does not represent a commitment on the part of Weal
Union. For previous or updated manuals, BIOS, drivers, or product
release information, please contactWealUnionDevelopment Limited at
http://www.tigatech.com or through any of the means indicated on the
following pages.
Companies and products mentioned in this manual are for identification
purposes only. Product names appearing in this manual may or may not be
registered trademarks or copyrights of their respective owners.
WebSite: http://www.tigatech.com
Email: [email protected]
Product Name: TI-810+
Version: 1.01
Edition: November, 2000

TI-810+ Motherboard
Page 2
Table of Contents
Chapter 1 Introduction...........................................................3
1.1 Product Features ..................................................................................... 3
1.2 Full Software Configurable .................................................................... 3
1.3 Features Summary ................................................................................... 4
Chapter 2 Installation.............................................................5
2.1 Installation Instructions ......................................................................... 5
2.2 Motherboard Layout .............................................................................. 5
2.3 Function & Installation Instructions.................................................... 6
2.3.1 AT Power Supply Connector........................................................... 6
2.3.2 ATX Power Supply Connector........................................................ 6
2.3.3 AT Keyboard Connector.................................................................. 7
2.3.4 Serial(COM1/COM2) Port Connector............................................. 7
2.3.5 Parallel Port Connector ..................................................................... 7
2.3.6 Integrated Functions Connector..................................................... 7
2.3.7 SDRAM Sockets ................................................................................ 8
2.3.8 Floppy Drive Connector................................................................... 8
2.3.9 IDE Connectors .................................................................................. 8
2.3.10 BIOS................................................................................................... 9
2.3.11 PCI Slots ............................................................................................ 9
2.3.12 AMR Slot .......................................................................................... 9
2.3.13 Front Panel Function Connector................................................... 9
2.3.14 Wake-On-LAN Interface................................................................. 9
2.3.15 PGA370S CPU Socket ..................................................................... 10
2.3.16 CPU Fan Connector......................................................................... 10
2.3.17 Audio Connector............................................................................. 10
2.3.18 Internal Audio Connectors ............................................................ 11
2.3.19 VGA Connector................................................................................ 11
Chapter 3 Software Installation...............................................11
Chapter 4 AMI BIOS Setup ...................................................12
4.1 Standard CMOS Setup ........................................................................... 14
4.2 Advanced CMOS Setup......................................................................... 16
4.3 Advanced Chipset Setup ....................................................................... 16
4.4 Power Management Setup ..................................................................... 16
4.5 PCI/PnP Setup.......................................................................................... 16
4.6 CPU Configuration Setup....................................................................... 16
4.7 Save Settings and Exit ............................................................................ 16
4.8 Exit Without Saving ................................................................................ 16

Page 3
TI-810+ Motherboard
Chapter 1
Introduction
1.1 Product Features
The TI-810+ highest performance motherboard is based on the all new Intel
810 chipset with Baby AT form factor to support the latest Socket 370
including Intel Pentium III FCPGA, Celeron FCPGA / PPGA as well as
Cyrix III processors. This chipset incorporates with AGP 3D Graphics
Support and an optional Crystal AC97 Audio. This motherboard is also
fully software configurable via AMI BIOS setup and supports high-speed
UDMA/66 IDE devices. The motherboard supports either an AT or ATX
Power Supply.
1.2 Full Software Configurable
TIGA motherboards are full software configurable. There is no jumper or
DIP switch on board and all the necessary hardware settings are made
through CMOS setup. This motherboard auto-detects the CPU brand and
core voltage, where as the CPU speed is selected in CMOS setup menu by
the instruction of users.
In addition, TIGA motherboard employs AMI BIOS which provides two
start-up hot keys “J”and “F”to give a way out of stability problems due to
improper CMOS settings. That is, to press “J”key at the same time to
switch on the system, which re-detects CPU brand and allows user to
select again in the CMOS setup. To press “F”key at the same time to
switch on the system clearing all CMOS settings (except BIOS passwords).

TI-810+ Motherboard
Page 4
1.3 Features Summary
This Motherboard comes with following features:
Support Intel Pentium III FCPGA, Celeron PPGA or Cyrix III Processor on Socket
370
Intel 810 Chipset on Model TI-810+
Support 66/100MHz Processor Front-side Bus
Intel 810E Chipset on Model TI-810+E
Support 66/100/133MHz Processor Front-side Bus
Full Software Configurable: CPU Plug-and-Play and Full Jumperless
Two DIMM slots Supporting up to 512MB Memory Capacity
Support 100MHz PC100 SDRAM DIMM
1 x AMR slot, 4 x PCI slots
2 x USB ports, 1 x PS/2 mouse port, 1 x IrDA port
1 x FDD port, 1 x LPT port, 2 x COM ports
Dual IDE Channels Supporting Four Ultra-DMA33/66 IDE Devices
Modem Ring Wakeup with External Modem
Interface Header to Support Wake-On-LAN Enabled Ethernet Card
AGP Graphics Controller Integrated inside Intel 810 Chipset
Dynamic Graphics Memory Allocation on System Memory up to 11MB
Hardware Motion Compensation for Accelerated DVD Video Playback
High Graphics Resolution up to 1600x1200 with 8-bit Colour
Full Support for Microsoft Direct 3D and Direct Draw
Integrated AC97 Audio Onboard (Models TI-810+ES and TI-810+S only)
AC97 2.1 Compliant Codec with 3D Stereo Enhancement
1 x Line-out, 1 x Line-in, 1 x Mic-in
1 x CD-in, 1 x AUX-in, 1 x Telephony Port, 1 x Game Port
AMI BIOS, PC99/ACPI/DMI Compliant
Dual AT/ATX Power Supply Interface
Baby AT format, 220mm x 170mm PCB

Page 5
TI-810+Motherboard
Chapter 2
Installation
2.1 InstallationInstructions
This section covers External Connectors and Memory Configuration. Please refer to
the motherboard layout chart for external connectors, slots and I/O ports. Further-
more, this section lists all necessary connector pin assignments for your reference.
The locations of the connectors and ports are illustrated in the following figures.
Before inserting these connectors, please pay attention to the orientations.
NOTICE!!!
1. Make sure to unplug your power supply while adding or removing system
components
2. Always work on an antistatic surface to avoid possible damage to the
motherboard or other components from static discharge.
2.2 MotherboardLayout
SMARTCard
PCI4
PCI3
PCI1
PCI2
IntegratedFunctionsConnector
DIMM2
DIMM1
VGAConnector
AMRSlot
AT KB Connector
InternalAudioConnectors
PRIMARYIDE(IDE1)
1
1
1
AudioConnector
1
PRN
11
COM1COM2
1
1
PGA370S
1
CPU Fan
1
JP2
1
1
1
1
1
1
11
1
FW 82810
FW82801AA
C
R
2
0
3
2
SONY
A
Modem
CD-IN
AUX
CD-IN
Wake-Lan

TI-810+Motherboard
Page 6
2.3 Function & Installation Instructions
2.3.1 AT Power Supply Connector (12-Pin)
This connector connects to a standard 5V power supply. To connect the leads from
the power supply, ensure first that the power supply is not power on. Most power
supplies provide two plugs, and each plug contains six wires. Two of six wires are
black and please orient the plugs to the connector so that 4 black wires are together.
AT Power Connector
At a slight angle, align the plastic guide pins on the lead to their receptacles on
the connector. Once aligned, press the lead onto the connector until the lead locks
into place.
2.3.2 ATX Power Supply Connector (20-Pin)
This connector connects to an ATX power supply. The plug from ATX power
supply will only insert in one orientation because of the different hole sizes. Find
the proper orientation and push down firmly making sure that the pins are aligned.
The system power can be turned off through software control, like the shut down
in Windows 2000 / ME / 98 / 95 start menu. Power management must be enabled in
the system BIOS in order to activate this soft-off feature. Once the system BIOS
receives the power management command from the OS, it will switch the system
power off.
ATX Power Connector
PG
+5V
+12V
-12V
Ground
-5V
+5V
Red White Black Blue Yellow Red Orange
Power Plug Power Plug
Power Plugs
fromPower
Supply
Power
Connector on
Motherboard
+3.3V
-12V
Ground PW_ON Ground Ground Ground
-5V
+5V +5V
Power Connector
on Motherboard
+3.3V +3.3V Ground +5V Ground +5V Ground PWRGOOD +5VSB +12V

Page 7
TI-810+Motherboard
2.3.3 AT Keyboard Connector
This connector supports a standard IBM-compatible keyboard, such as 101/102
enhanced keyboard (Use a PS/2 keyboard adapter in order to connect a PS/2 KB to
this AT connector.).
2.3.4 Serial (COM1/COM2) Port Connector
This motherboard provides two compatible serial ports, it can be used when add
additional serial devices.
2.3.5 Parallel Port Connector (26-pin)
This connector supports the included parallel port ribbon cable with mounting
bracket.
2.3.6 Integrated Functions Connector (20-Pin)
If you want to use PS/2 mouse, USB, or IrDA devices, you need to purchase an
optional USB/MIR connector set. You may use the bundled PS/2 mouse/parallel
port connector set if you just want to use a PS/2 mouse. Either connector set
connects to the 20-pin block and mounts to an open slot on your system’s chassis.
The system will direct IRQ12 to the PS/2 mouse if one is detected. If not detected,
expansion cards can use IRQ12.
The connector pin out signal definitions are described as below:
1 USB +5V 1 USB +5V
2 USB Port 1- 2 USB Port 2-
3 USB Port 1+ 3 USB Port 2+
4 Ground 4 Ground
5 No Connect 5 No Connect
1 PS/2 Data 1 +5V
2 PS/2 Clock 2 No Connect
3 Ground 3 Infrared Receive
4 No Connect 4 Ground
5 +5V 5 Infrared Transmit
PS/2 USB1
IR USB2

TI-810+Motherboard
Page 8
EXPANSIONCARDSINSTALLATION
Before adding or removing any expansion cards or system components, confirm
that you already unplugged your power supply. Otherwise, it may severely
damage to your motherboard and expansion cards. Please follow the installation
procedures as below:
1. Check carefully if those hardware or software settings for your expansion cards
are in the proper position as shown in their User’s Manual.
2. Remove your computer case’s cover and unscrew the bracket plate for those
slots needed to insert.
3. Those expansion cards must be aligned on the slots firmly with good connection.
4. Put on the computer case cover.
5. If needed, set up the BIOS configuration and install the required drivers for your
expansion cards.

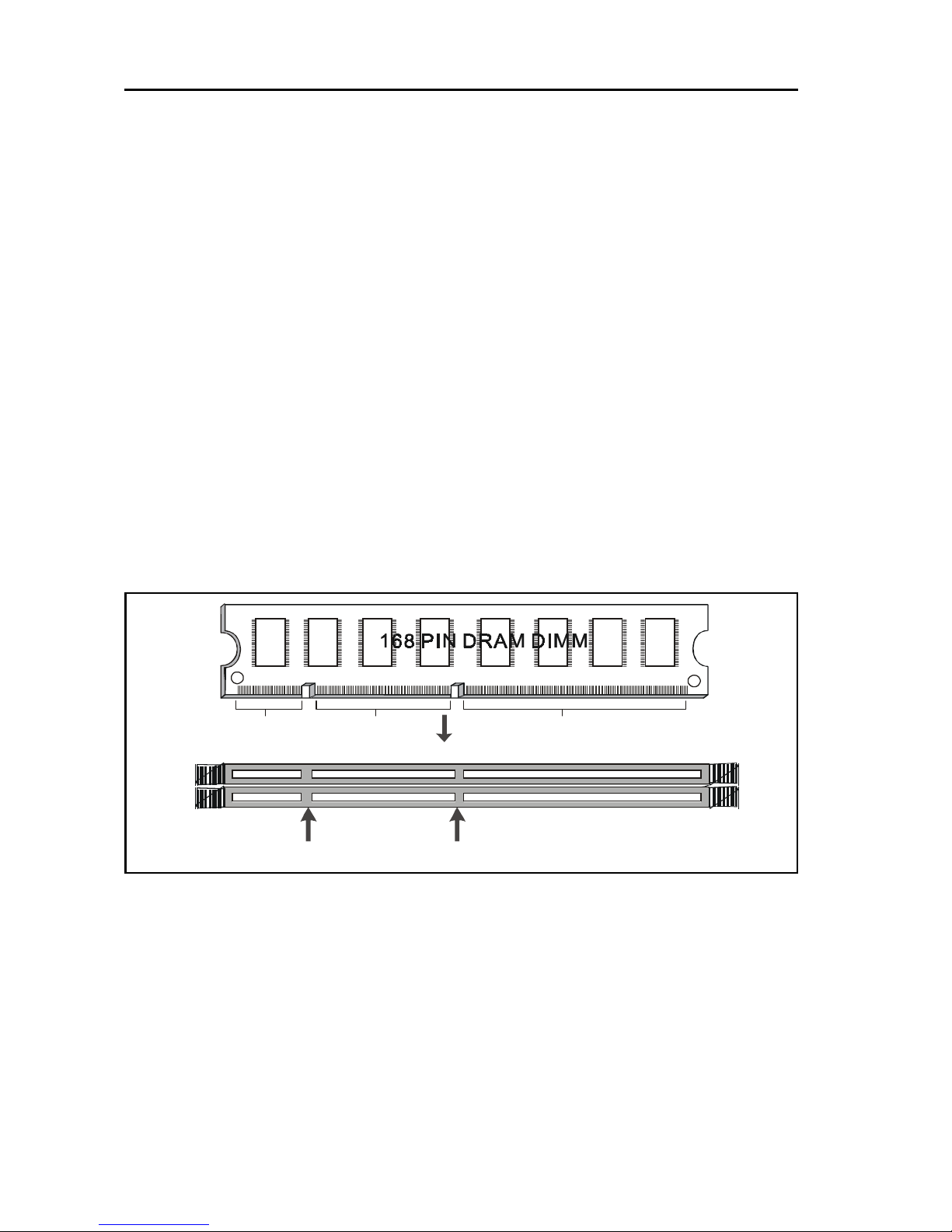

2.3.7 SDRAM Sockets
There are two SDRAM sockets on-board to provide more flexibility for your system
memory upgrade. Because the number of pins are different on either side of the
breaks,theDIMMmodulewillonlyfitthe3.3V168-pinunbufferedforthismotherboard.
168-Pin SDRAM Module Installation Diagram
2.3.8 Floppy Drive Connector (34-Pin)
This connector supports the provided floppy drive ribbon cable. After connecting
the single end to the on-board “FLOPPY”connector, connect the remaining
plugs on the other end to the floppy drives correspondingly.
2.3.9 IDE Connectors (40-Pin)
The IDE connectors support the provided IDE HDD ribbon cable. After connecting
the single end to the board, connect the two plugs at the other end to your HDDs.
3.3V Key
Unbuffered
DRAM Key
20Pins 60Pins 88Pins
Lock
Two DIMM Socket

Page 9
TI-810+Motherboard
If you install two IDE devices on the same cable, you must configure the second
device to slave mode by setting its jumper accordingly. (Refer to your IDE device
document for the jumper settings. Pin 20 is removed to prevent inserting in the
wrong orientation when using ribbon cables with pin 20 plugged.)
IDEConnectors
2.3.10 BIOS
The motherboard flash BIOS provides users with more flexibility in upgrading their
motherboards. The flash BIOS can be easily reprogrammed via software.
2.3.11 PCI Slots
This motherboard provides four full-length 32-bit PCI slots with up to 133MB/sec
burst data transfer rate.
2.3.12 AMR Slot
This connector supports a specially designed audio and/or modem card called an
AMR.
2.3.13 Front Panel Function Connector
The front panel integrates: 2-pin Power On, 2-pin IDE LED, 5-pin Keylock, 2-pin
ResetSwitch,2-pin Sleep, 2-pin ExtSMI, 4-pinSpeaker.
The connector pin out are described as the figure below:
1 ATXPWRON 2 Reset Con
3 Ground 4 Ground
5 VCC 6 SLEEP
7 IDE LED 8 Ground
10 ExtSMI
11 PWR LED 12 Ground
13 Ground 14 Speaker
15 Ground 16 Ground
17 Key Lock 18 Ground
19 Ground 20 VCC +5V
2.3.14 Wake-On-LAN Interface
This connector connects to a LAN card with a Wake-On-LAN output. The connec-
tor powers up the system when a wakeup signal is received from the network.
Pin1
Primary IDE (IDE1)
Secondary IDE (IDE2)
Pin20 be removed
PWRON
IDELED
KEYLOCK
RESET
SLEEP
EXTSMI
SPEAKER

TI-810+Motherboard
Page 10
2.3.15 PGA370S CPU Socket
The motherboard provides a ZIF Socket 370. The CPU that comes with the
motherboard should have a fan attached to it to prevent overheating. If it is not so,
purchase a fan before you turn on your system.
Notice!!! Be sure that there is a sufficient air circulation across the processor’s
heatsink by regularly checking that your CPU fan is working. Without sufficient
circulation, the processor could be overheated and it may damage both the processor
and the motherboard. You may install an auxiliary fan, if necessary.
Installation step:
1. Turn off the power of your system and remove its cover;
2. Locate the ZIF socket and open it by first pulling the lever sideways away from
the socket then upwards to a 90-degree angle;
3. Insert the CPU with correct orientation
(The CPU has a corner pin for two of the four corners, that the CPU only fit in the
orientation.)
4. Once completely inserted, pull down the socket’s lever to horizontal and make
sure the CPU is firmly locked in the socket.
2.3.16 CPU Fan Connector
CPU Fan cable plug in the 3-pin CPU Fan connector onboard.
Pin1 Sense
Pin2 +12V
Pin3 GND
2.3.17 Audio Connector (Available for TI-810+ES and TI-810+S model only)
This connector supports the optional connector set for audio input/output and
game/MIDI port. The connector set connects to the 26-pin block and mounts to an
open slot on your computer’s chassis.
Note: This connector is available only on motherboard with optional onboard audio
support. The AT motherboard provides Audio header for Audio Cable and Audio
connectors:
LineInput
MicrophoneInput
Line Output
Game/MIDI Port (15Pins)
2 126
25
Audio Connector (onboard)

Page 11
TI-810+ Motherboard
2.3.18 Internal Audio Connectors(CD, AUX, 4-pin Modem)
Theseconnectors allow youtoreceivestereo audioinputfromsuch soundsources
as a CD-ROM, MPEG card. The Modem connector allows the onboard audio to
interface with an voice modem card with a similar connector. It also allows the
sharing of mono_in (such as a phone) and mono_out(such as a speaker) between
the onboard audio and the voice modem card.
Telephony Input 1(1: Mono_in; 2,3: Ground; 4: Mono_out)
CD Input 1(1,3: Ground; 2: Right Audio Channel; 4: Left Audio Channel)
Auxiliary Input 1(1: Left Audio Channel；2, 3: Ground; 4: Right Audio Channel)
CD Input (1: Left Audio Channel；2, 3: Ground; 4: Right Audio Channel)
2.3.19 VGA Connector
The VGA connector allows you to connect a standard monitor through the
provided VGA cable with mounting bracket. Connect the cable to this header and
mount the bracket to the case on a free expansion slot.
1
Chapter 3
Software Installation
Note:
Before installation, you must already have Windows 95/98/2000/ME
or Windows NT4.0 install on your computer.
The installation procedure is as below:
1. Make sure that Auto-insert detection is enabled for your CDROM drive.
It should be enabled by default.
2. Insert this CD disk into your CDROM drive.
3. The Explorer screen will then appear, that gives you instructions for
installation.
4. There may require restarts of Windows during some software setup. In
these cases, you can just eject then close the CD-tray in order to get
back to the Explorer screen. You can then proceed with the next step.
You can get more information with open file: readme.txtin the CD disk.

TI-810+ Motherboard
Page 12
Chapter 4
AMIBIOS Setup
AMIBIOS HIFLEX SETUP UTILITY - VERSION 1.21
(C)1998 American Megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
CPU Configuration Setup
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Change Language Setting
Auto Configuration with Optimal Settings
Auto Configuration with Fail Safe Settings
Save Settings and Exit
Exit Without Saving
Standard CMOS setup for changing time, date, hard disk type, etc.
ESC:Exit :Sel F2/F3:Color F10:Save & Exit
This TI-810+ motherboard comes with the AMI BIOS from AMI
Software Inc. Enter the AMI BIOS program Main Menu by:
1. Turn on or reboot the system. After a series of diagnostic checks,
the following message will appear:
Press <DEL> to enter setup, ESC to skip memory test
2. Press the <DEL> key and the main program screen will appear
as follows.

Page 13
TI-810+ Motherboard
3. Using the arrows onyourkeyboard,selectanoption,andpress
<Enter>. Modify the system parameters to reflect the options
installed in your system. Otherwise you may return to the Main
Menu anytime by pressing <ESC> .
Types of Setup Description
Standard CMOS Setup Setstime,date,harddisktype,typesoffloppydrives,
monitor type, and if keyboard is installed.
Advanced CMOS Setup Sets Typematic Rate and Delay, Above 1MB
Memory Test, Memory Test Tick Sound, Hit <Del>
Message Display, System Boot Up Sequence, and
others.
Advanced Chipset Setup Sets chipset-specific options and features.
Power Management Setup Controls power conservation options.
PCI/PnP Setup Sets options related to the PCI bus and Plug and
Play options.
Peripheral Setup Controls I/O Controller-related options.
CPU Configuration Setup This option selects the type of CPU install in the
motherboard. The settings areAuto(AMIBIOSauto-
matically determines the CPU type).
4. In the Main Menu, “Save Settings and Exit”saves your changes
and reboots the system, and “Exit Without Saving”ignores your
changes and exits the CMOS Setup.

TI-810+ Motherboard
Page 14
4.1 Standard CMOS Setup
Select the AMIBIOS Setup options by choosing Standard Setup from the
AMIBIOS Setup main menu. Standard Setup options are described below.
Floppy Drive A: and B:
Move the cursor to these fields via and and select the floppy type. The
settings are 360KB5¼inch,1.2MB5¼inch,720KB3½inch,1.44MB3½inch,or
2.88MB3½inch.
Primary Master
Primary Slave
Secondary Master
Secondary Slave
Select these options to configure the drive named in the option. Select Auto
Detect IDE to let AMIBIOS automatically configure the drive. A screen with a
list of drive parameters appears. Click onOK to configure the drive.
AMIBIOS SETUP - STANDARD CMOS SETUP
(C)1998 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy) : MonSep 25, 2000 Base Memory: 0 KB
Time (hh/mm/ss) : 17:05:08 Extd Memory: 0 MB
Floppy Drive A: 1.44 MB 3½
Floppy Drive B: Not Installed LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master :Auto Off
Pri Slave :Auto Off
Sec Master :Auto Off
Sec Slave :Auto Off
Boot Sector Virus Protection Disabled
Available Options: ESC:Exit :Sel
Disabled PgUp/PgDn:Modify
Enabled F1:Help F2/F3:Color

Page 15
TI-810+ Motherboard
Type How to Configure
SCSI Select Type.SelectNotInstalled thedriveparameterscreen.TheSCSI
driversprovidedbytheSCSImanufacturershouldallowyoutoconfig-
uretheSCSIdrive.
IDE Select Type.SelectAutoto let AMIBIOS determine the parameters.
Click on OK when AMIBIOS displays the drive parameters. Select
LBA/Large Mode.SelectOn ifthedrivehasacapacitygreaterthan540
MB. Select Block Mode.SelectOn toallow blockmode datatransfers.
Select 32-BitTransfer.SelectOn toallow32-bitdatatransfers.Select
the PIOMode. It is best to selectAuto toallowAMIBIOStodetermine
thePIOmode. If youselectaPIO mode thatisnot supported bythe
IDEdrive,thedrivewillnotworkproperly.Ifyouareabsolutelycer-
tain that you know the drive’sPIO mode,select PIO mode 0-5, as
appropriate.
CD-ROM Select Type.SelectCDROM.ClickonOK whenAMIBIOSdisplaysthe
driveparameters.
StandardMFM Select Type.Youmustknowthedriveparameters.Selectthedrive
typethatexactlymatchesyourdrive’sparameters.
Non-Standard Select Type.If the driveparameters do notmatch the drive
MFM parameterslisted fordrive types 1-46, selectUser andenterthecorrect
harddiskdriveparameters.
Entering Drive Parameters
You can also enter the hard disk drive parameters. The drive parameters are
Parameter Description
Type The number for a drive with certain identification parameters.
Cylinders Thenumber ofcylinders in the disk drive.
Heads Thenumberofheads.
Write Theactualphysicalsizeofasectorgetsprogressivelysmalleras
Precompensation thetrackdiameter diminishes.Yeteach sector muststillhold 512 bytes.
Writeprecompensationcircuitryontheharddiskcompensates forthephysical
differenceinsectorsizebyboostingthewritecurrentforsectorsoninner
tracks.This parameter is the track number onthe disksurface where
writeprecompensationbegins.
LandingZone Thisnumberisthecylinderlocationwheretheheadsnormallypark
whenthesystemisshutdown.
Sectors The number of sectors per track. MFM drives have 17 sectors per
track.RLLdriveshave26sectorspertrack.ESDIdriveshave34sectors
pertrack.SCSIandIDEdriveshaveevenmoresectorspertrack.
Capacity Theformattedcapacityofthedriveisthenumberofheadstimesthe
numberof cylinders times the number of sectorsper tracktimes 512
(bytespersector).

TI-810+ Motherboard
Page 16
4.2 Advanced CMOS Setup
The AMIBIOS Setup options described in this section are selected by choos-
ing Advanced CMOS Setup from the AMIBIOS Setup main menu.
4.3 Advanced Chipset Setup
Choose Chipset Setup on the AMIBIOS Setup main menu. All Chipset Setup
options are then displayed. AMIBIOS Setup can be customized.
4.4 Power Management Setup
The AMIBIOS Setup options described in this section are selected by choos-
ing Power Management Setup from the AMIBIOS Setup main menu.
4.5 PCI/PnP Setup
Choose PCI/Plug and Play Setup from the AMIBIOS Setup screen to dis-
play the PCI and Plug and Play Setup options.
4.6 CPU Configuration Setup
This system BIOS is capable to detect the CPU type, say Pentium III,
Pentium II or Celeron. The user is only required to select the CPU speed.
In addition, overclocking option is provided for advanced users who prefer
to run the CPU over the specified clock frequency.
4.7 Save Settings and Exit
Choose Save Setting and Exit from the AMIBIOS Setup main menu. Type
“Y”to exit the BIOS Setup program and saving the values. Type “N”to
return to the Setup program.
4.8 Exit Without Saving
Choose Exit Without Saving from the AMIBIOS Setup main menu. Type
“Y”to exit the BIOS Setup program without saving the values. Type “N”to
return to the Setup program.
The End
