Wearnes MP-1101 User manual



ii
Contents
Copyright Notice������������������������������������������������������������������������������������������������������iii
Trademarks�������������������������������������������������������������������������������������������������������������iii
Revision History ������������������������������������������������������������������������������������������������������iii
Upgrade and Warranty��������������������������������������������������������������������������������������������iv
Acquisition of Replaceable Parts ����������������������������������������������������������������������������iv
Technical Support ���������������������������������������������������������������������������������������������������iv
Green Product Features������������������������������������������������������������������������������������������iv
Environmental Policy����������������������������������������������������������������������������������������������� v
Chemical Substances Information �������������������������������������������������������������������������� v
Battery Information�������������������������������������������������������������������������������������������������� v
Safety Instructions���������������������������������������������������������������������������������������������������vi
1. Overview ............................................................ 1-1
Packing Contents������������������������������������������������������������������������������������������������� 1-2
System Overview ������������������������������������������������������������������������������������������������� 1-3
Component Replacement & Upgrade ������������������������������������������������������������������ 1-8
2. Getting Started................................................... 2-1
Safety & Comfort Tips������������������������������������������������������������������������������������������ 2-2
Hardware Setup ��������������������������������������������������������������������������������������������������� 2-3

Preface
iii
Copyright Notice
The material in this document is the intellectual property of WEARNES
COMPUTER We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents� Our products are under
continual improvement and we reserve the right to make changes without notice�
Trademarks
All trademarks are the properties of their respective owners�
Revision History
Version Date
V1�0 2015/ 09

iv
Upgrade and Warranty
Please note that certain components preinstalled in the product may be upgradable
or replaceable by user’s request� To learn more about upgrade limitation, please
refer to the specications in the User’s Manual. For any further information about the
product users purchased, please contact the local dealer� Do not attempt to upgrade
or replace any component of the product if you are not an authorized dealer or service
center, since it may cause the warranty void� It is strongly recommended that you
contact the authorized dealer or service center for any upgrade or replace service�
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of
the product users purchased in certain countries or territories may be fullled by
the manufacturer within 5 years at most since the product has been discontinued,
depending on the ocial regulations declared at the time. Please contact the
manufacturer via http://www�wearnes�com/support/ for the detailed information
about the acquisition of spare parts�
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor� Alternatively,
please try the following help resources for further guidance� Visit the Wearnes website
for technical guide, BIOS updates, driver updates and other information via http://www�
wearnes�com/support/
Green Product Features
◙Reduced energy consumption during use and stand-by
◙Limited use of substances harmful to the environment and health
◙Easily dismantled and recycled
◙Reduced use of natural resources by encouraging recycling
◙Extended product lifetime through easy upgrades
◙Reduced solid waste production through take-back policy

Preface
v
Environmental Policy
◙The product has been designed to enable proper reuse of parts
and recycling and should not be thrown away at its end of life�
◙Users should contact the local authorized point of collection for recycling and
disposing of their end-of-life products�
◙Visit the Wearnes website and locate a nearby distributor for further recycling
information�
◙Users may also reach us at gpcontdev@wearnes�com for information regarding
proper Disposal, Take-back, Recycling, and Disassembly of Wearnes products�
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No� 1907/2006 of the European Parliament and the
Council), Wearnes provides the information of chemical substances in products at:
http://www�wearnes�com/html/popup/csr/evmtprtt_pcm�html
Battery Information
European Union:
Batteries, battery packs, and accumulators should not be
disposed of as unsorted household waste� Please use the public
collection system to return, recycle, or treat them in compliance
with the local regulations�
Taiwan:
For better environmental protection, waste batteries should be
collected separately for recycling or special disposal�
California, USA:
The button cell battery may contain perchlorate material and requires special
handling when recycled or disposed of in California�
For further information please visit:
http://www�dtsc�ca�gov/hazardouswaste/perchlorate/
Danger of explosion if battery is incorrectly replaced� Replace only with the same or
equivalent type recommended by the manufacturer�

vi
Safety Instructions
◙Read the safety instructions carefully and thoroughly�
◙All cautions and warnings on the equipment or user’s manual
should be noted�
Keep the User’s Guide that comes with the package for future
reference�
Keep this equipment away from humidity and high temperature�
Lay this equipment on a reliable at surface before setting it up.
◙Make sure that the power voltage is within its safety range and
has been adjusted properly to the value of 100~240V before
connecting the equipment to the power outlet� Do not disable
the protective earth pin from the plug� The equipment must be
connected to an earthed mains socket-outlet�
◙Always unplug the AC power cord before installing any add-on
card or module to the equipment�
◙Always disconnect the AC power cord or switch the wall socket
o if the equipment would be left unused for a certain time to
achieve zero energy consumption�
The ventilator on the enclosure is used for air convection and to
prevent the equipment from overheating� Do not cover the ventilator�
Do not leave the equipment in an unconditioned environment with a
storage temperature above 60OC (140OF) or below 0OC (32OF), which
may damage the equipment�
NOTE: The maximum operating temperature is around 40OC�

Preface
vii
Never pour any liquid into the opening that could damage or cause
electrical shock�
Place the power cord in a way that people are unlikely to step on it�
Do not place anything on the power cord�
◙When installing the coaxial cable to the TV Tuner, it is necessary
to ensure that the metal shield is reliably connected to protective
earthing system of the building�
◙Cable distribution system should be grounded (earthed) in
accordance with ANSI/NFPA 70, the National Electrical Code
(NEC), in particular Section 820�93, Grounding of Outer
Conductive Shield of a Coaxial Cable�
Always keep the strong magnetic or electrical objects away from the
equipment�
If any of the following situations arises, get the equipment checked by
service personnel:
◙The power cord or plug is damaged�
◙Liquid has penetrated into the equipment�
◙The equipment has been exposed to moisture�
◙The equipment does not work well or you can not get it work
according to user’s manual�
◙The equipment has dropped and damaged�
◙The equipment has obvious sign of breakage�

viii

1
Overview
Congratulations for purchasing the MP-1101 Personal Computer System�
This system is your best PC choice� With the fantastic appearance, it can
easily be set anywhere� The feature packed platform also gives you an
exciting PC experience�

1-2
Packing Contents
MP-1101
AC/DC Adapter
AC Power Cord
User Manual &
Quick Guide
VESA Mount Kit
(optional)
Second Bottom Kit
(optional)
* Please contact us immediately if any of the items is damaged or missing�
* The illustrations are for reference only and your packing contents may slightly vary
depending on the model you purchased�

Overview
1-3
System Overview

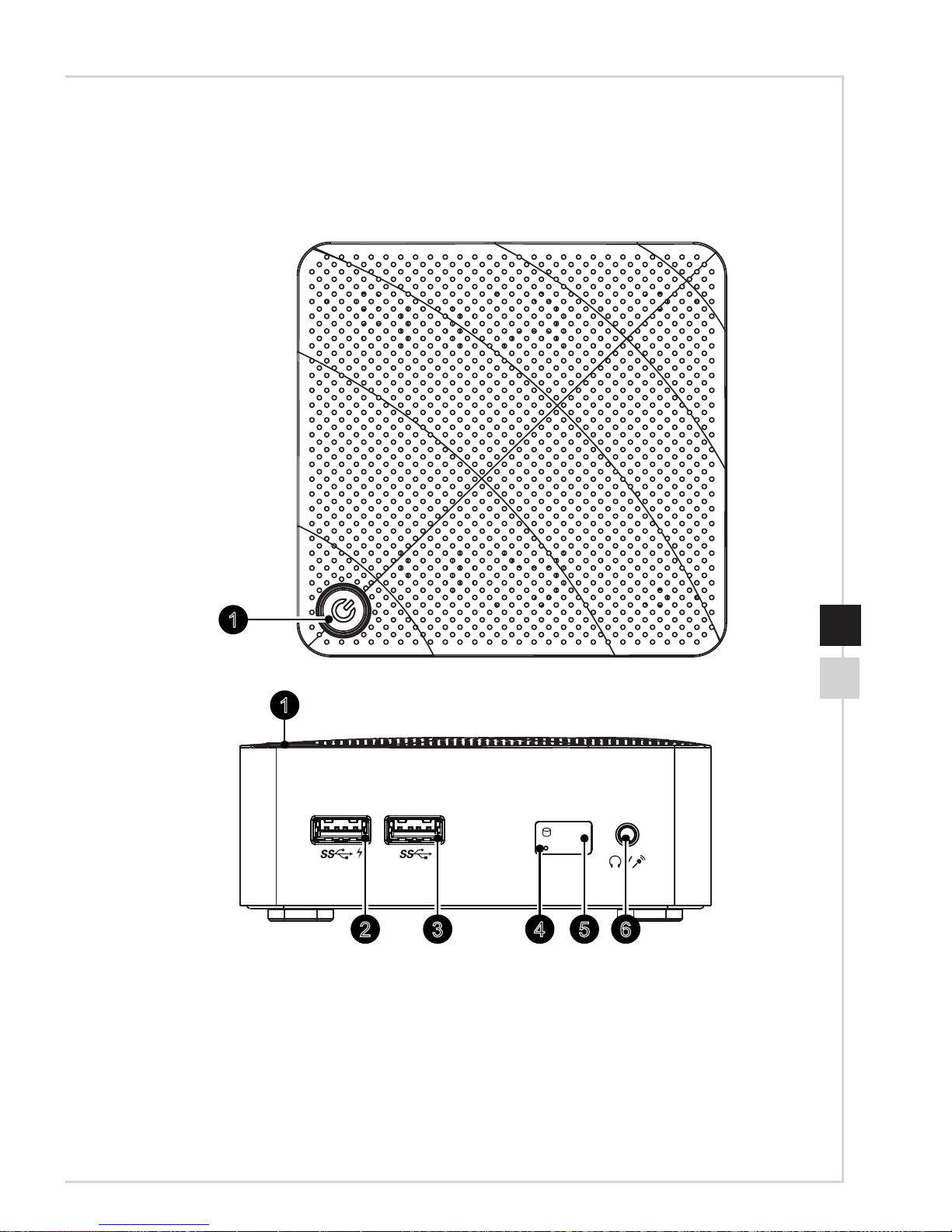

hUpper and Front View
1
5 6432
1

1-4
1Power Button
Press the power button to turn the system on and o.
2USB 3�0 Port (with SuperCharger Technology) (Optional)
With SuperCharger Technology, not only does it function as normal
USB 3�0 port, but it also enables users to charge USB devices even
when the system is turned o.
3USB 3�0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
5Gbit/s (SuperSpeed) data transfer rate� The USB 3�0 port is backward-
compatible with USB 2�0 devices�
4Hard Disk Drive LED
This indicator shows the activity status of the HDD. It ashes when the
system is accessing data on the HDD and remains o when no disk
activity is detected�
5IR Receiver (Optional)
This infrared receiver is provided for remote control�
6Headphone / Microphone Jack
This connector is provided for headphones, speakers, or microphones�
Notice! Use a shielded USB 3.0 cable (at least 8” or 20cm long) when connecting
a USB 3.x device to the USB 3.0 port of this product so as to avoid wireless
interference.

Overview
1-5
hRear View
56
32
1
4
4
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent
the equipment from overheating� Do not cover the ventilator�
2Power Jack
The AC/DC adapter converts AC power to DC power for this jack� Power
supplied through this jack supplies power to the PC� To prevent damage
to the PC, always use the supplied power adapter�
3VGA Port
The DB15-pin female port is provided for monitor�
4USB 3�0 Port
The USB (Universal Serial Bus) port is for attaching USB devices such
as keyboard, mouse, or other USB-compatible devices� It supports up to
5Gbit/s (SuperSpeed) data transfer rate� The USB 3�0 port is backward-
compatible with USB 2�0 devices�
Notice! Use a shielded USB 3.0 cable (at least 8” or 20cm long) when connecting
a USB 3.x device to the USB 3.0 port of this product so as to avoid wireless
interference.

1-6
5LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN)� You can connect a network cable to it�
GreenYellow/ Green
LED Color LED State Condition
Green O LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with
another computer on the LAN�
Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Yellow On 1000 Mbit/sec data rate is selected�
6HDMI-Out Port
The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams� HDMI
supports all TV format, including standard, enhanced, or high-denition
video, plus multi-channel digital audio on a single cable�

Overview
1-7
hLeft View
1
1Kensington Lock Port
This PC provides a Kensington lock port, which allows users to secure
the PC in place with a key or some mechanical PIN device and attached
through a rubberised metal cable� The end of the cable has a small loop
which allows the whole cable to be looped around a permanent object,
such as a heavy table or other similar equipment, thus securing the PC
in place�

1-8
Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased�
For any further information on the product users purchased, please contact the local
dealer� Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void� It is
strongly recommended that you contact the authorized dealer or service center for any
upgrade or replace service�
1234
1� 2�5" HDD (optional)
2� DDR3L Memory
3� Mini-PCIe SSD (optional)
4� M�2 2230 Bluetooth/ WiFi combo card (optional)

2
Getting Started

2-2
Safety & Comfort Tips
The Personal Computer System is a portable platform that allows you to work anywhere�
However, choosing a good workspace is important if you have to work with your PC for
a long period of time�
1� Your work area should have enough illumination�
2� Choose the proper desk and chair and adjust their height to t your posture when
operating�
3� When sitting on the chair, sit straight and keep a good posture� Adjust the chair’s
back (if available) to support your back comfortably�
4� Place you feet at and naturally on the oor, so that your knees and elbows have
the proper position (about 90-degree) when operating�
5� Put your hands on the desk naturally to support your wrists�
6� Avoid using your PC in a place where discomfort may occur (such as on the bed)�
7� The Personal Computer System is an electrical device� Please treat it with great
care to avoid personal injury�

Getting Started
2-3
Hardware Setup
hConnecting the AC Power
1. Unpack the package to nd the AC/DC adapter and AC power cord.
2� Connect the adapter and the power cord�
3� Connect the Power Jack�
4� Plug the power cord to the electrical outlet�
hDisconnecting the AC Power
5. Unplug the AC power cord from the electrical outlet rst.
6� Unplug the AC power cord from the Personal Computer System�
Important
When unplugging the AC power cord, always hold the connector part of the cord� Never
pull the cord directly�
2
3
4
Table of contents
Languages:
