Weil-McLain ECO 70 Installation and operating instructions

Part number 550-100-436_1118
This addendum must only be used by a qualified heating installer/service technician. Read all instructions, including
the Evergreen boiler manual and all other information shipped with the boiler, before installing. Perform steps in the
order given. Failure to comply could result in severe personal injury, death or substantial property damage.
Manual Addendum
This Addendum needs to be used in conjunction with the ECO
Boiler Manual P/N 550-142-190_1018
ATTENTION to installers and homeowners of ECO boilers.
KEEP THIS ADDENDUM WITH BOILER MANUAL
Direct Exhaust Vent Systems Kit
Direct Exhaust Kit 383-500-778, See page 2, for changes to Page 113 of Boiler Manual
The ECO boiler has been designed and tested to work as a direct exhaust unit. Inlet air comes from
the room and is exhausted either vertically or horizontally. The following pages describe the methods
and materials for operating the boiler in the direct exhaust mode.
Rating Note Change
See page 3, for changes to Note 4, on Page 125 of Boiler Manual
Vent Material Change
See page 4, for changes to allow ABS piping (Intake Air only), on page 24 of boiler
manual

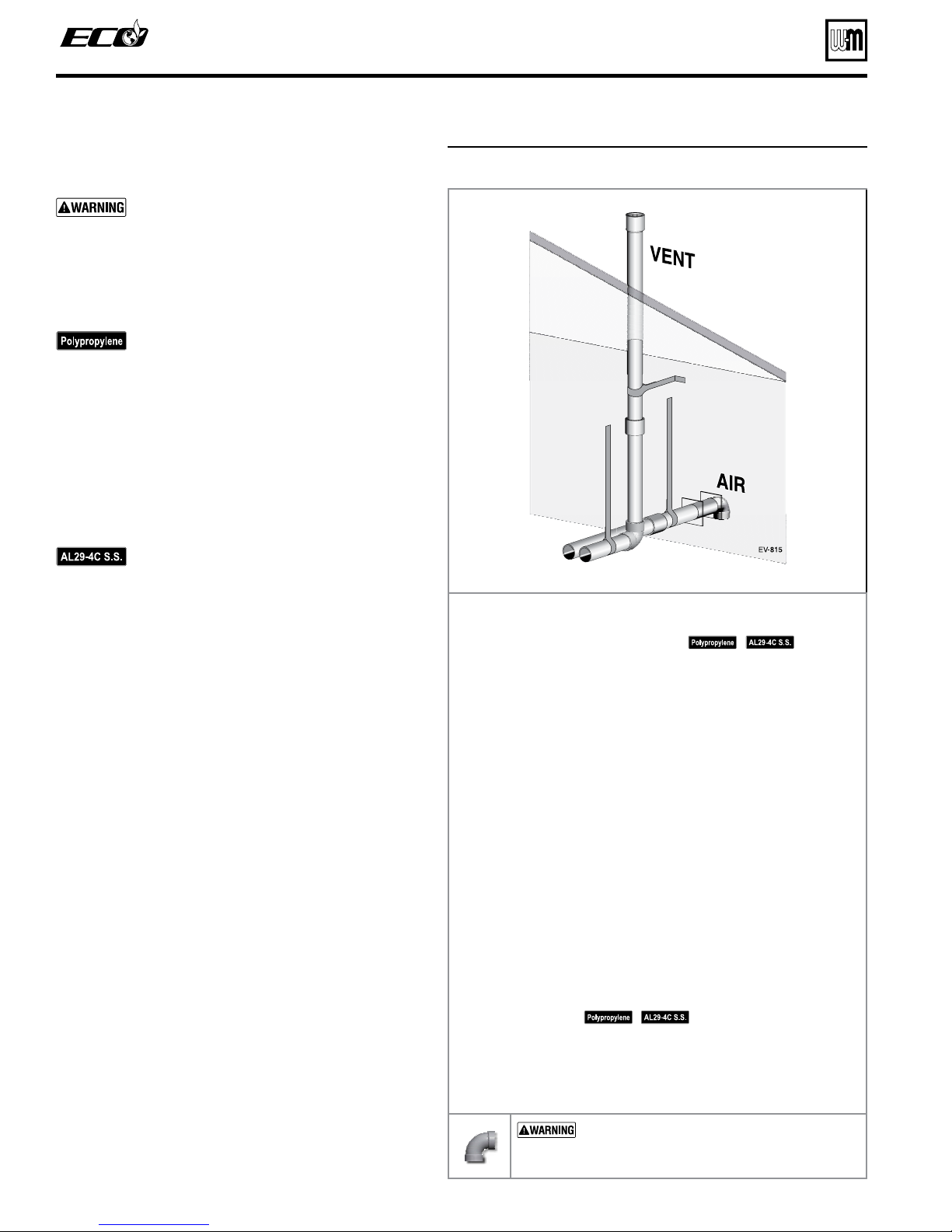

Additional Direct Vent Termination
The ECO boiler has been designed and tested for Direct Vent Vertical exhaust sidewall
air termination. The following pages describe the methods and materials for operating
the boiler in this mode.
Series 2
Wall Mount
Gas-Fired Water Boilers
70/110/155
®

Part number 550-100-436_1118
2
®
SerieS 2 gaS-fired water boiler — Manual Addendum
Figure 116 Miscellaneous parts and kits
Replacement parts (continued)
Description Part Number
CHEMICALS
Antifreeze, Sentinel X500, 1 Gallon . . . . . .
Corrosion inhibitor, Sentinel X100 . . . . . . .
Sentinel X100 Quick Test Kit. . . . . . . . . .
Cleaner, Sentinel X400 . . . . . . . . . . . . .
592-900-029
592-900-002
592-900-005
592-900-003
BOILER ACCESSORIES
ECO 70 maintenance kit — igniter, igniter gasket,
venturi gasket, cover plate gasket, venturi-gas valve
o-ring, refractory, silicone, inhibitor test kit, and clips
383-700-165
ECO 110 maintenance kit — igniter, igniter gasket,
venturi gasket, cover plate gasket, venturi-gas valve
o-ring, refractory, silicone, inhibitor test kit, and clips
383-700-243
ECO 155 maintenance kit — igniter, igniter gasket,
venturi gasket, cover plate gasket, venturi-gas valve
o-ring, refractory, silicone, inhibitor test kit, and clips
383-700-200
Wall-mount kit (supplied with boiler ) — wall mount
bracket and hardware
383-800-218
ECO Floor stand kit 383-800-101
Condensate trap kit (supplied with boiler) —
condensate trap assembly and flexible line
560-907-722
Low-water cutoff with test button, kit 511-100-005
CONDENSATE HANDLING ACCESSORIES
Condensate neutralizer kit 383-500-631
VENT/AIR PARTS AND KITS (PVC or STAINLESS STEEL)
available from Weil-McLain
Weil-McLain Direct Exhaust Venting Kit
Includes interior/exterior intake/exhaust plates, 2” &
3” vent screens, templates and mounting hardware.
383-500-778
Weil-McLain sidewall vent/air cap termination kit for
PVC vent and air pipes
Includes sidewall vent/air termination cap, inside
and outside cover plates, and mounting hardware;
openings are sized for 3" PVC pipe (requires field-
installed 3 x 2 adapter if using 2" vent/air pipes)
383-500-397
Weil-McLain sidewall vent/air cap termination kit for
AL29-4C vent pipe and PVC air pipe
Includes sidewall vent/air termination cap, inside
and outside cover plates, and mounting hardware;
openings are sized for 3" SS vent pipe and 3" PVC
air pipe (requires field-installed 3 x 2 adapter if using
2" vent/air pipes)
382-200-430
Description Part Number
Sidewall separate pipes vent/air termination kits
(includes two cover plates)
Kit for 2" PVC vent and air pipes . . . . . . .
Kit for 3" PVC vent and air pipes . . . . . . .
Kit for 3" AL29-4C SS vent pipe and PVC air pipe
383-700-171
383-500-100
383-700-172
PVC concentric vent kit — horizontal or vertical
(includes components for concentric assembly)
Kit for 2" PVC vent and air pipes . . . . . . .
Kit for 3" PVC vent and air pipes . . . . . . .
383-700-167
383-500-350
Bird screens (1 screen each)
For 2" PVC vent and air pipes . . . . . . . . .
For 3" PVC vent and air pipes . . . . . . . . .
560-907-728
383-500-105
VENT/AIR PARTS AND KITS (POLYPROPYLENE PIPE)
available from M&G Simpson-Duravent ONLY
M&G Simpson-Duravent PolyPro SIDEWALL
concentric vent/air kit (color: white)
2" polypropylene pipe . . . . . . . . . . .
3" polypropylene pipe . . . . . . . . . . .
2PPS-HK
3PPS-HK
M&G Simpson-Duravent PolyPro VERTICAL
concentric vent/air kit; color = black (part number
shown) or terra cotta (add -TC suffix)
2" polypropylene pipe . . . . . . . . . . .
3" polypropylene pipe . . . . . . . . . . .
2PPS-VK
3PPS-VK
M&G Simpson-Duravent PolyPro SIDEWALL
separate air and vent pipes
2" polypropylene pipe . . . . . . . . . . .
3" polypropylene pipe . . . . . . . . . . .
2PPS-HTP
3PPS-HTP
M&G Simpson-Duravent PolyPro
Polypropylene pipe appliance adapter 3" 3PPS-
03PVCM-
3PPF
VENT/AIR PARTS AND KITS (POLYPROPYLENE PIPE)
available from Centrotherm Eco Systems ONLY
Centrotherm INNOFLUE SIDEWALL concentric
vent/air kit
3" polypropylene pipe . . . . . . . . . . .
2" stainless steel/pp pipe . . . . . . . . .
3" stainless steel/pp pipe . . . . . . . . .
ICWT352
ICWS2413
ICWS3513
Centrotherm INNOFLUE VERTICAL concentric vent/
air kit
2" polypropylene pipe . . . . . . . . . .
3" polypropylene pipe . . . . . . . . . .
ICRT2439
ICRT3539
Centrotherm INNOFLUE
Polypropylene pipe appliance adapter 3" ISAAL0303

Part number 550-100-436_1118 3
Ratings — ECO Series 2 boilers
In accordance with Section 303 of the
2007 Energy Act, this boiler is equipped
with a feature that saves energy by re-
ducing the boiler water temperature as
the heating load decreases. This feature
is equipped with an override which is
provided primarily to permit the use of
an external energy management system
that serves the same function.
THIS OVERRIDE MUST NOT BE USED UNLESS AT LEAST ONE OF THE FOL-
LOWING CONDITIONS IS TRUE:
• An external energy management system is installed that reduces the boiler water tem-
perature as the heating load decreases.
• This boiler is not used for any space heating.
• This boiler is part of a modular or multiple boiler system having a total input of 300,000
BTU/hr or greater.
• This boiler is equipped with a tankless coil (not applicable to ECO).
Figure 129 Ratings and engineering data — ECO 70/110/155 Series 2 boilers
Notes
1 As an Energy Star Partner, Weil-McLain has
determined that ECO boilers meet the Energy
Star guidelines for energy efficiency.
NOTE: Adjusting boiler firing rate will affect
AFUE rating.
2 Based on standard test procedures prescribed
by the United States Department of Energy.
Ratings also referred to as CSA Output.
NOTE that only DOE Heating Capacity and
AFUE are certified by AHRI. AFUE is also
know as Annual Fuel Utilization Efficiency or
Seasonal Efficiency.
3 Net AHRI ratings are based on net installed
radiation of sufficient quantity
for the requirements of the building and
nothing need be added for normal piping
and pickup. Ratings are based on a piping
and pickup allowance of 1.15. An additional
allowance should be made for unusual piping
and pickup loads.
4 ECO boilers are designed to be direct-vented.
ECO boilers require special venting, consistent
with Category IV boiler.
Use only the vent materials and methods
specified in this manual.
ECO boilers may be direct exhaust vented.
ECO 70 vent/air pipes can be either 2" or 3".
ECO 110/155 vent/air pipes must be 3".
All vent and air pipe elbows must be sweep
elbows, NOT short-radius elbows.
5 Ratings shown are for sea level applications only.
For altitudes from sea level to 5,500 feet above
sea level, the ECO boiler requires no modifica-
tions and automatically derates itself by approxi-
mately 4% per 1000 feet above sea level.
6 All of the boilers will automatically
de-rate as vent/air pipe length increases, due to
the pressure loss through the piping. For vent/air
pipe lengths less than the maximum, the derate
equals the value above (% Input derate vs. vent
length) times vent length ÷ 100.
THE OUTDOOR SENSOR SUPPLIED WITH THE BOILER MUST BE INSTALLED UNLESS EXEMPTED BELOW:
IMPORTANT
AHRI Certied Ratings
Boiler
Model
ECO
CSA
Input
Heating
Capacity
Seasonal
Efciency
Net
rating
(water)
Boiler
Water
Content
Vent/
Comb. Air
Connection
Diameter
% Input derate vs vent length
(Values shown are at MAX vent/air pipe
length —
See Note 6)
Direct Vent Venting ONLY
Btuh
(Note 5)
Btuh
(Note 2)
AFUE %
(Note 1)
Btuh
(Note 3) Gallons Inches (Note 4)
Natural gas Propane
2"
Vent/air
piping
3"
Vent/air
piping
2"
Vent/air
piping
3"
Vent/air
piping
70 70,000 65,000 95.2 57 2.54 3" PVC 12 % 5 % 12 % 5 %
110 110,000 101,000 95.0 88 2.54 3" PVC N/A 5 % N/A 5 %
155 155,000 143,000 95.1 124 3.22 3" PVC N/A 5 % N/A 5 %
®
SerieS 2 gaS-fired water boiler — Manual Addendum

Part number 550-100-436_1118
4
®
SerieS 2 gaS-fired water boiler — Manual Addendum
Venting & air — general (continued)
Figure 23 Vent and air piping materials — Use only the materials listed below, ensuring that all materials meet local codes
(see Figure 116, page 113 for part/kit numbers)
ALL vent and air pipes require a BIRD SCREEN at each termination. Most kits do not include
the bird screens. Purchase bird screens separately from Weil-McLain or vent kit supplier if
not included. [Note — bird screening is integral to the 3" PVC Weil-McLain sidewall vent
cap, available for purchase from Weil-McLain . No additional screening is required.]
USE SWEEP ELBOWS FOR ALL VENT AND AIR PIPING — DO NOT use short
radius elbows for vent or air piping. Boiler performance could be aected.
Item Material Standards for installations in:
United States Canada (Note 2)
Plastic piping materials Vent or air piping Vent piping Air piping
Vent or air pipe
&
fittings
PVC schedule 40 ANSI/ASTM D1785 ULC S636
PVC, PVC-DWV,
CPVC or
polypropylene
PVC-DWV schedule 40 (Note 1) ANSI/ASTM D2665 N/A
CPVC schedule 40 (Note 1) ANSI/ASTM F441 ULC S636
ABS-DWV schedule 40 (intake only) ANSI/ASTM D2665 ULC S636
PVC & ABS pipe
cement & primer
PVC ANSI/ASTM D2564/F656 ULC S636 Use only cement
and primer
suitable for piping
material used
CPVC (Note 1) ANSI/ASTM F493 ULC S636
ABS (Note 1) ANSI/ASTM D2564/F656 ULC S636
Polypropylene
vent pipe, fittings,
terminations and
cement
Simpson-Duravent — Obtain all materials from M&G
Simpson-Duravent
Centrotherm Eco Systems InnoFlue®Single-wall —
Obtain all materials from Centrotherm
Note: See page 2 for correct appliance adapters to be used.
See manufacturer’s literature for
detailed information
MUST USE LOCKING
COLLAR ON EVERY JOINT
ULC S636
PVC, PVC-DWV,
CPVC or
polypropylene
AL29-4C®stainless steel piping materials
Vent pipe
AL29-4C®
stainless
steel
Heat Fab, Inc. — Saf-T-Vent®
Z-Flex, Inc. — Z-Vent II
Dura-Vent — FasNSeal™
Metal-Fab, Inc. — CORR/GUARD
Centrotherm Eco Systems — InnoFlue®
Certified for Category IV and
direct vent appliance venting
Certified for Category IV and direct
vent appliance venting
Weil-McLain stainless steel bird screens, 2" or 3" (purchase separately) — see Figure 116, page 113 for part numbers
Note 1: Weil-McLain concentric vent kits are made from PVC
pipe and ttings.
Note 2: System 636 PVC concentric terminations utilize PVC
pipe/ttings certied to ULC S636.
If ULC S636 compliance is required, use only System
636 pipe, ttings and cement.
DO NOT mix piping from dierent pipe manufacturers
unless using adapters specically designed for the
purpose by the manufacturer.
Every joint on polypropylene vent piping must
include a locking collar.
DO NOT use cellular core PVC (ASTM F891), cellular
core CPVC, or Radel®(polyphenolsulfone) in venting
systems.
DO NOT cover non-metallic vent pipe and ttings
with thermal insulation.
ADAPTERS — AL29-4C piping — Install a PVC-to-
stainless adapter supplied by the AL29-4C stainless pipe
manufacturer at the 3" PVC boiler vent connection and at
the termination (if using Weil-McLain plate or concentric
PVC termination).
ADAPTERS — Polypropylene piping — Provide adapters
from polypropylene pipe to the 3" PVC connections at the
boiler and at terminations, if required (Weil-McLain sidewall
plate, for example).
ADAPTERS — If using 2" piping, where approved for
the application, provide adapters for the 3" PVC boiler
connections and at the terminations, if required (Weil-
McLain sidewall plate, for example)

Part number 550-100-436_1118 5
Venting & air — general (continued)
Figure 22 ECO venting and air piping — DIRECT VENT ONLY — OPTIONS and PIPING LIMITS
The table below lists the acceptable vent/air pipe terminations described in this manual. Follow all instructions provided to install the
vent/air system. NOT SHOWN below, but also approved, are the polypropylene piping and terminations listed in Figure 23, page 24.
For these applications, use ONLY the manufacturers’ parts listed and follow all instructions provided by the pipe manufacturer.
ECO Model
Maximum vent and air pipe length = 100 feet for all applications
(Minimum length for all applications is 2 feet)
(All applications include allowance for the termination fittings plus one elbow in air piping and one elbow in vent piping).
USE SWEEP
ELBOWS
ONLY
See Figure23,page24 for material specications | See Figure116,page113 for part/kit numbers
Vent and air pipe sizes:
Maximum vent lengths apply for either 2" or 3" vent and air pipe.
If using 2" pipe, provide 3"x 2" tapered reducers at boiler connections and at Weil-McLain vent/air cap or at concentric terminations.
Boilers will derate as vent/air pipe length increases — see rating data on Figure129,page125 for derate amounts.
SIDEWALL termination VERTICAL termination
Separate pipes
[Note 1]
PVC or PP Concentric
[Note 1]
3”Weil-McLain PVC
vent/air cap [Note 1]
Separate pipes
[Note 1]
PVC or PP Concentric
[Note 1]
Vertical Vent,
Side Air [Note 1]
See page28 See page30 See page32 See page34 See page36 See page 39
Size,
inches
Materials
Fig.23,page24
Size,
inches
Materials
Fig.23,page24
Size,
inches
Materials
Fig.23,page24
Size,
inches
Materials
Fig.23,page24
Size,
inches
Materials
Fig.23,page24
Size,
inches
Materials
Fig.23,page24
70
2
PVC/PVC-DWV
CPVC, PP, SS
2
PVC/PVC-DWV
CPVC, PP, SS
2
PVC/PVC-DWV
CPVC, PP, SS
2
PVC/PVC-DWV
CPVC, PP, SS
2
PVC/PVC-DWV
CPVC, PP, SS
2
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
110 3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC Concentric
only
––3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
155
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, SS, PP**
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, PP, SS
3
PVC/PVC-DWV
CPVC, SS,
3
PVC/PVC-DWV
CPVC, PP, SS
** Model 155 may be concentric sidewall vented using Centrotherm polypropylene pipe (Eco Systems InnoFlue® Single-wall) ONLY
if using Centrotherm stainless steel concentric termination kit, part number ICWS3513.
All elbows in vent and air piping must be sweep elbows ONLY. DO NOT use short-radius
elbows. When transitioning to 3" to 2", use tapered reducer with 3" PVC nipple (Length ≥
6"). Do not use 3" to 2" bushing. Bushings will not seal in boiler adapters.
Equivalent feet for elbows (USE SWEEP ELBOWS ONLY) —
deduct from max. equivalent length of piping (does not apply to termination ttings).
• 7 feet per for each additional 90° sweep elbow or 45° elbow — If piping contains more than 1 elbow in air or vent piping, other than termination ttings.
Note 1:
Material abbreviations: PP = polypropylene, SS = AL29-4C stainless steel
If using polypropylene or stainless pipe, provide adapters to for 3”boiler connections and for terminations, if required
IPEX 3” PVC concentric vent kits can be used with standard PVC pipe, ttings and cement (ANSI/ASTM D1785) except if ULC S636
compliance is required. For ULC S636 compliance, all pipe, ttings and cement must be IPEX System 636. If using IPEX kits, use only
IPEX product code 196006 for 3”venting.
Contact Weil-McLain for ordering information and availability of Weil-McLain venting kits.
Note 2: Use only Weil-McLain approved termination kits listed in Figure116,page113
®
SerieS 2 gaS-fired water boiler — Manual Addendum

Part number 550-100-436_1118
6
®
SerieS 2 gaS-fired water boiler — Manual Addendum
DIRECT VENT — Vertical vent / sidewall air
Figure 5 INSTALLATION SEQUENCE — Vertical vent/sidewall
air
Allowable vent/air pipe materials &
lengths
Use only the vent materials and kits listed in
Figure 23, page 24. Provide pipe adapters if
specified.
1. Locate the terminations such that the total air pip-
ing and vent piping from the boiler to the termina-
tion will not exceed the maximum length given in
Figure 22, page 23.
For polypropylene applications, comply with
any additional requirements in the vent sys-
tem manufacturer’s instructions. Provide 3”
PVC-to-PP transition pieces at the boiler vent
and air connections. PP adapter must have
smooth, straight section of pipe to insert in to
the boiler vent and air connections and must
fit and seal tightly. PP adapters with their own
seal which would interfere with the internal
seal of the boiler vent or air connections must
not be used. Refer to page 113 for a list of
compliant adapters. Install a locking collar at
every joint.
For AL29-4C vent pipe applications, comply
with any additional requirements in the vent
system manufacturer’s instructions. Provide
a 3” PVC transition piece at the boiler vent
connection. The air piping must be PVC or
CPVC.
2. For 3” to 2” transitions, must use appropriate vent
material. For polypropylene or stainless steel must use
approved suppliers transitions.
Prepare roof penetration
1. Vent pipe penetration:
a. Cut a hole for the vent pipe. For either combustible
or noncombustible construction, size the vent pipe
hole at least 0.4” larger than the vent pipe diameter.
b. Insert a galvanized metal thimble in the vent pipe
hole.
2. Follow all local codes for isolation of vent pipe when
passing through floors, ceilings and roofs.
3. Provide flashing and sealing boots sized for the vent
pipe and air pipe.
Vent termination and fittings
1. Prepare the vent termination coupling by inserting a
bird screen. Bird screens must be purchased separately.
See the parts list at the end of this manual for part
numbers.
2. Maintain the required dimensions of the finished ter-
mination piping as shown in Figure 6.
Multiple vent terminations
1. When terminating multiple ECO boilers, terminate each
vent/air connection as described in this section.
2. Place adjacent terminations at least 6 inches apart.
3. For Canadian installations, provide clearances required
by Natural Gas and Propane Installation
CAN/CSA
B149.1 or B149.2 Installation Code.
Step 1 Read and follow all instructions in this manual. DO NOT
proceed with vent/air installation until you have read
page 22 through page 27. See notices
at left.
Step 2 Install the boiler in a location that allows proper routing of all
vent and air piping to the selected locations.
Step 3 Make sure the selected vertical termination location complies
with Figure 24, page 26.
Step 4 Use only the vent materials listed in Figure 23, page 24. Provide
pipe adapters where required.Vent piping and air piping lengths
must not exceed the values shown in Figure 22, page 23.
Step 5 Prepare the vertical penetration (vent) and sidewall penetration
(air) and secure penetration components as instructed in this
section.
Step 6 The air piping must terminate in a 90-degree down-turned
elbow as shown above. The vent piping must terminate in a
coupling pointed upward as shown above.
Step 7 Install vent and air piping between the boiler and the air and
vent terminations. Slope horizontal piping downward toward
the boiler at least 1/4 inch per foot. Install pipe supports every
5 feet on both the horizontal and vertical runs. Install a hanger
support within 6 inches of any upturn in the piping. See page 39
for general guidelines.Also comply with vent pipe manufacturer’s
instructions. See notices at left.
Step 8 Insert the vent and air piping through the penetrations and
secure the termination fittings.
Step 9 Maintain clearances shown in this section.Vent and air termina-
tions must be fitted with bird screens as shown.
USE SWEEP ELBOWS FOR ALL VENT AND
AIR PIPING — DO NOT use short radius elbows
for vent or air piping. Boiler performance could be
affected.

Part number 550-100-436_1118 7
DIRECT VENT — Vertical vent / sidewall air (continued)
Figure 6 Vent termination (through the roof) for direct
vent: vertical vent / sidewall air
Figure 7 Sidewall air inlet (termination) for direct vent:
vertical vent / sidewall air
Determine location for air inlet elbow
1. The air inlet of an ECO boiler is part of a direct vent connection.
It is not classified as a forced air intake with regard to spacing
from adjacent appliance terminations.
2. Locate the air inlet elbow (termination) using the following
guidelines.
3. The air piping must terminate in a down-turned elbow as shown
in Figure 7.
a. Apply the configuration on the left side of Figure 7 unless the
terminations would fail to meet minimum clearance to grade
or snow line.
b. Apply the configuration on the right side of Figure 7 when
the terminations need to be raised higher to meet clearance
to grade or snow line.
c. The air pipe may run up the side of the building, as shown.
The vent and air pipes must be secured with braces, and all
clearances and lengths must be maintained. Space braces no
further than 24 inches apart.
4. You must consider the surroundings when terminating the air
connection:
a. Make sure there are no obstructions for air flow. DO NOT
locate the termination where plants could grow and cause
obstruction to air flow.
b. Do not locate the terminations where wind eddies could af-
fect performance or cause recirculation with exhaust from
other appliances, such as inside building corners, near adja-
cent buildings or surfaces, window wells, stairwells, alcoves,
courtyards or other recessed areas.
c. Locate the air inlet termination at least 12 inches below and 12
inches horizontally from any appliance or building vent outlet.
5. Locate terminations so they are not likely to be damaged by
foreign objects, such as stones or balls, or subject to buildup of
leaves or sediment.
Multiple air terminations
1. When terminating multiple ECO boiler air connections,terminate
each air connection as described in this manual.
2. Place wall penetrations to obtain minimum clearances as in-
structed in this manual.
3. Place adjacent air inlets for multiple ECO boilers at least 6 inches
apart.
4. For Canadian installations, provide clearances required by Natu-
ral Gas and Propane Installation
CAN/CSA B149.1 or B149.2
Installation Code.
5. Combustion air (NOT vent piping) can be manifolded as shown
in the ECO Advanced manual.
Prepare wall penetrations
1. Air pipe penetration:
a. Cut a hole for the air pipe. Size the air pipe hole as close as
desired to the air pipe outside diameter.
2. Seal exterior openings thoroughly with exterior caulk.
Termination and fittings
1. Prepare the air termination elbow (Figure 7) by inserting a bird
screen. Bird screens must be purchased separately. See the parts
list at the end of this manual for part numbers.
2. Use metal plates (by installer) at inside and outside penetrations
using the method shown in Figure 28, page 29.
If extending the air pipe out from the wall, install a cou-
pling on each pipe. Mount the piping with the coupling
flush with the outer plate.
®
SerieS 2 gaS-fired water boiler — Manual Addendum

Part number 550-100-436_1118
®
SerieS 2 gaS-fired water boiler — Manual Addendum
8
