Wen 5662 Installation instructions

24
A
R
23 2345678910111213141516171819202122 1
115 1322 1124 917 7 521 19 214 1216 1023 820 618 4 3
B
Q
P
N
M
L
K
J
H
G
F
E
D
C
A
P
M
K
H
F
D
R
Q
B
N
L
J
G
E
C
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:5 SHEET 1 OF 1
A0
WEIGHT:
3D for snow thrower
Model # 5662
SNOW BLASTER
bit.ly/wenvideo
Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
[email protected]
WENPRODUCTS.COM
(M-F 8AM-5PM CST)

TABLE OF CONTENTS
Technical Data 2
3
5
6
7
8
10
12
13
General Safety Rules
Electrical Information

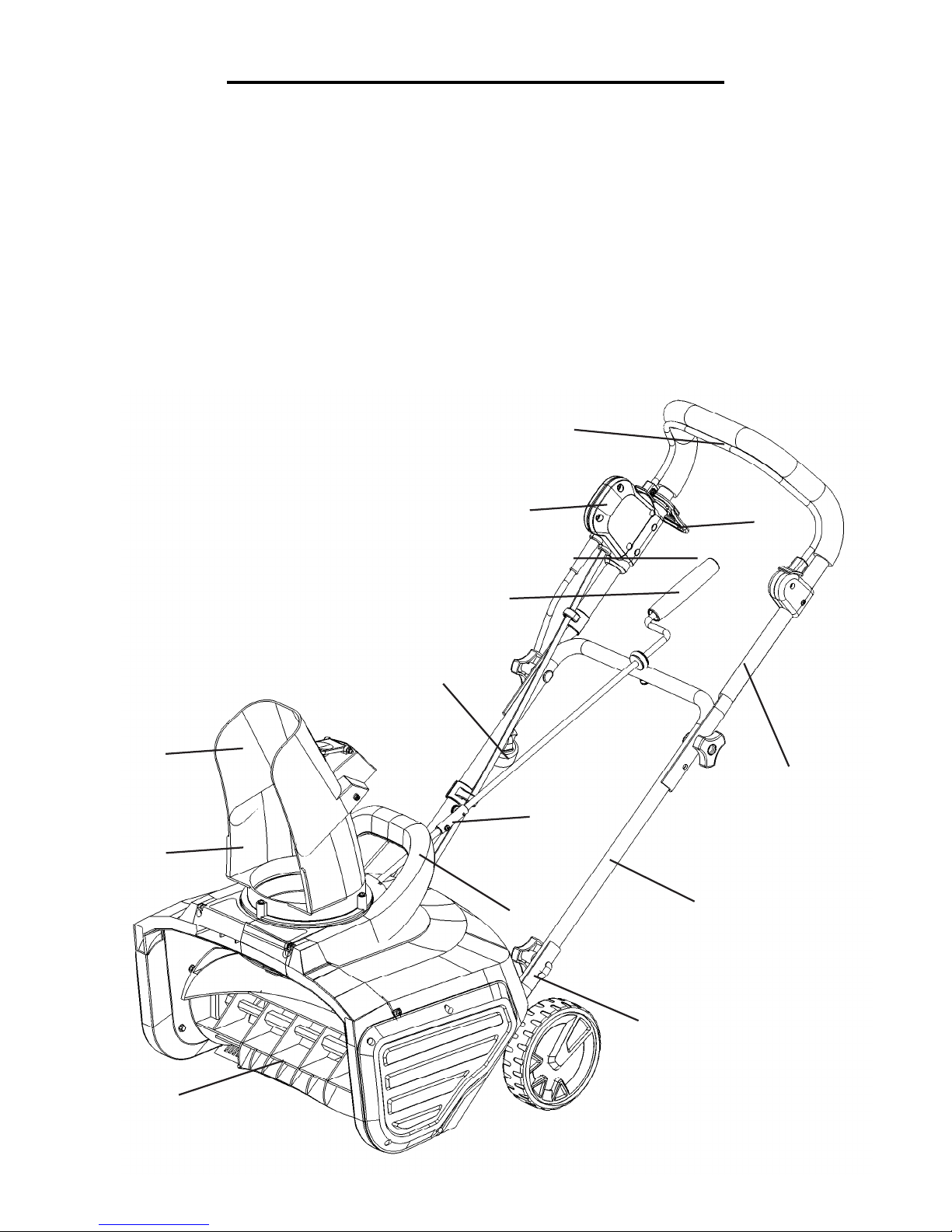

Know Your Snow Thrower
Assembly and Adjustments
Operation
Exploded View and Parts List
Warranty
TECHNICAL DATA
Model Number:
Motor:
Clearing Width:
Clearing Height:
Max Throwing Distance:
Max Throwing Height:
Wheel Size:
Product Dimensions:
Weight:
5662
120 V, 60 Hz, 13.5A
18 inches
7.8 inches
20 feet
10 feet
6 inches
44 x 19.5 x 38 inches
28 pounds
2
Maintenance

3
GENERAL SAFETY RULES
Safety is a combination of common sense, staying alert and knowing how your tool works. SAVE THESE SAFE-
TY INSTRUCTIONS.
WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps
have been read and understood.
READ and become familiar with this entire instruction manual. LEARN the tool’s applications, limitations, and
possible hazards.
STAY ALERT. Watch what you are doing and use common sense when operating your snow thrower.
DO NOT USE the snow thrower while you are tired or under the influence of drugs, alcohol, or medication. A
moment of inattention during operation may result in serious bodily injury.
NEVER LEAVE YOUR RUNNING SNOW THROWER UNATTENDED. Do not leave your Snow Thrower
until it has come to a complete stop. Unplug the unit before leaving for extended periods of time.
REMOVE any adjusting keys or wrenches before turning the snow thrower on. A wrench or a key that’s left attached
to a rotating part of the snow thrower may result in a hex bolt to the clavicle or some other type of bodily injury.
DO NOT OVERREACH. Keep proper footing and balance at all times. This enables better control of the unit in
unexpected situations and will also prevent you from falling down and embarrassing yourself in front of your cool
neighbor Greg. Hold the handles firmly to avoid injury. When stepping backwards, be cautious about any obstacles
beneath your feet or behind you in order to avoid falling.
KNOW YOUR SNOW THROWER. Familiarize yourself with the main parts of your snow thrower.
READ the operator’s manual carefully. Learn your snow thrower’s applications and limitations as well
as the specific potential hazards related to this machine. Do not use this machine for any purpose other
than the one for which it was designed. Otherwise, you may cause mechanical defaults, serious damage
or personal injury.
PRELIMINARY UNIT INSPECTION: thoroughly inspect the unit before operation. Make sure all the parts are
secured and installed correctly. If you notice any abnormalities, do not use the machine until it has been properly
repaired. Always perform a test run the first time you use the snow thrower or after replacing parts to ensure that
the unit is functioning properly.
PRELIMINARY AREA INSPECTION: check and clear the plowing area before each use. Remove all foreign
objects such as rocks, broken glass, nails, wire, or string, which can be thrown by or become entangled in the snow
thrower. Keep the area of operation clear of other people and pets.
EXCESSIVE FORCE: the snow thrower was designed to respond at a certain rate for various snow conditions to
optimize safety and performance. Do not force it to do a job that it cannot handle and always keep pressure constant.
MALFUNCTIONING SWITCH: do not use the snow thrower if the switch does not turn it on and off. Any elec-
trical appliance that cannot be controlled by the switch is not safe to use and must be repaired.

4
HITTING AN OBJECT: if the snow thrower accidentally strikes an object, stop the snow thrower; inspect for dam-
age; repair or replace any damaged parts before restarting and operating the snow thrower.
DISCHARGE CHUTE SAFETY: never direct the snow discharge chute at the operator, at bystanders, at vehicles,
at your neighbor Greg, or at windows. Thrown snow and foreign objects accidentally picked up by the snow thrower
can cause serious damage and personal injury. Do not use your hands to unclog the discharge chute. Stop the motor
and unplug the unit before removing debris. Keep children away during operation.
ABNORMAL OPERATION: if you notice the snow thrower running in an unstable state or if you hear abnormal
sounds from the motor, stop the machine, disconnect the power immediately, and contact our customer service
department.
NOISE CONTROL: when using the snow thrower, you must respect local laws and regulations regarding noise
control and environmental protection. To avoid noise disturbance, you should carefully decide upon an appropriate
operation time and consider the surrounding conditions.
Disconnect the snow thrower from the power source when the machine is not in use, when changing accessories, or
before performing any maintenance.
STORE SAFELY: store the snow thrower indoors in a dry area between uses. Keep the machine in a locked area,
where children and unauthorized users cannot gain access. Do not store the machine while it is still connected to a
power source. This may cause damage and injury.
MAINTAIN FOR SAFETY AND LONGEVITY: check for misalignment or binding of moving parts, breakage of
parts, and any other conditions that may affect the unit’s operation. If damaged, repair or replace the damaged part
before operating. Only use replacement parts made for your model. When replacing any parts, you must strictly
observe the instructions and procedures described in this manual. Call customer service for anything that you find
unclear about maintenance. Special care should be paid to any rubber parts, since these parts may increase the en-
gine load and decrease its mechanical power if damaged.
ONLY USE RECOMMENDED ACCESSORIES: any accessory that does not specify compatibility with the WEN
5662 Snow Thrower creates a risk of injury.
DRESS PROPERLY: do not wear loose clothing or jewelry as they can be caught in the moving parts. Wear rubber
boots when operating the snow thrower.
TO PREVENT ELECTRIC SHOCK: only use with an extension cord suitable for outdoor use. To prevent the
disconnection of snow thrower cords, use the included extension cord wrangling loop included on the handle of the
snow thrower. If the cord is damaged in any manner while plugged in, pull the extension cord from the wall recep-
tacle immediately. Don’t abuse the cord. Never carry the snow thrower by its cord and do not yank it to disconnect
from a receptacle. Keep the cord away from heat, oil and sharp edges.
AVOID ACCIDENTAL STARTUPS: do not carry a plugged-in snow thrower with a finger on the switch.
IF THE SNOW THROWER STRIKES A FOREIGN OBJECT: stop the snow thrower. Inspect for damage.
Repair any damage before restarting and operating the snow mover. Do not use on graveled surfaces.
ALWAYS STORE INDOORS: when not in use, store the unit indoors in a dry, locked place away from children.
GENERAL SAFETY RULES

5
CHECK with a licensed electrician or service personnel if you do not completely understand the grounding instruc-
tions or whether the tool is properly grounded.
CAUTION: In all cases, make certain the outlet in question is properly grounded. If you are not sure, have a li-
censed electrician check the outlet.
WARNING: Do not expose to rain or use in damp locations. Only use with an extension cord suitable
for outdoors.
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. The table below shows the correct size to be used according to cord length and
nameplate ampere rating. When in doubt, use a heavier cord. The smaller the gauge number, the heavier the cord.
Make sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord
or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and should be protected
with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF
position and the electric current is rated the same as the current stamped on the motor nameplate. Running at a
lower voltage will damage the motor.
AMPERAGE UL RECOMMENDATIONS FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
13.5 A 14 gauge 12 gauge Not Recommended by UL
ELECTRICAL INFORMATION
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance
for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an
equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is
properly installed and grounded in accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the outlet, have the proper outlet installed by a
licensed electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in electric shock. The conduc-
tor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor to a
live terminal.
