West bend Wbaf130k3s User manual

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Westbend has a policy of continuous improvement on its products and reserves

the right to change materials and specifications without notice.

The Legacy Companies Weston, FL 33331

www.westbend.com

Models / Modelos / Modelés: WBAF130K3S

(Image may vary from actual unit)

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety

interlocks.

2. Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is very important that the oven door close properly

and that there is no damage to the

a) Door (including any bent),

b) Hinges and latches (broken or loosened),

c) Door seals and sealing surfaces.

4.The oven should not be adjusted or repaired by anyone except qualified service personnel.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..................................2

CONTENT.........................................................................................................................................................................2

IMPORTANT SAFETY INSTRUCTIONS .........................................................................................................................4

GROUNDING INSTRUCTIONS .......................................................................................................................................6

INSTALLATION GUIDE....................................................................................................................................................6

COOKING UTENSILS GUIDE .........................................................................................................................................7

SPECIFICATIONS............................................................................................................................................................8

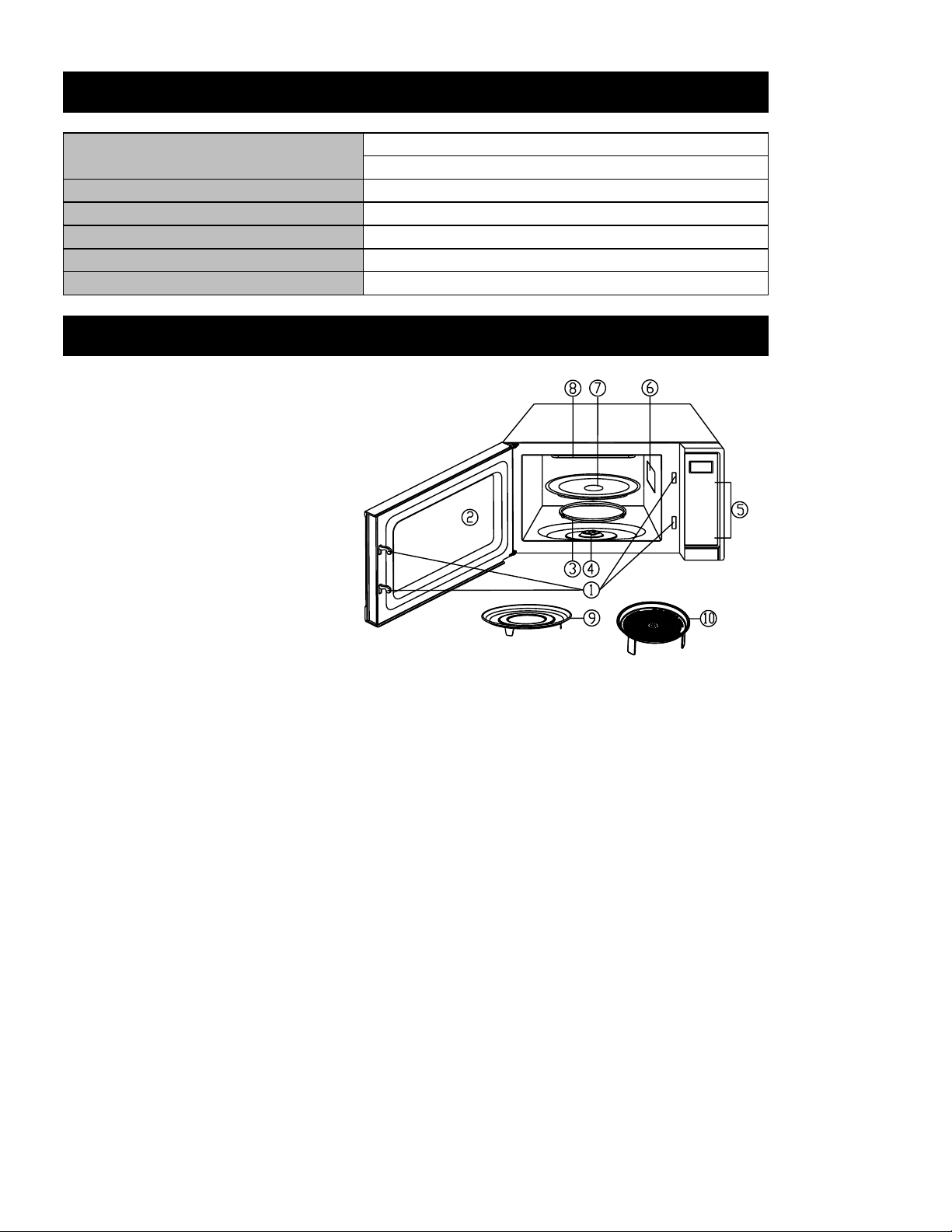

PRODUCT DIAGRAM......................................................................................................................................................8

OPERATION INSTRUCTIONS.......................................................................................................................................10

SETTING THE CLOCK.....................................................................................................................................................10

TIMER FUNCTION..........................................................................................................................................................10

MICROWAVE COOKING ..................................................................................................................................................10

EXPRESS COOKING ......................................................................................................................................................10

CONVECTION ............................................................................................................................................................... 11

MICROWAVE+CONVECTION ........................................................................................................................................... 11

TIME DEFROST............................................................................................................................................................. 11

WEIGHT DEFROST ........................................................................................................................................................ 11

AIR FRY .......................................................................................................................................................................12

BAKE...........................................................................................................................................................................13

ROAST.........................................................................................................................................................................13

MULTI-STAGE COOKING.................................................................................................................................................14

CHILD LOCK .................................................................................................................................................................14

PROTECTION................................................................................................................................................................14

BUTTON ADHESION PROTECTION ...................................................................................................................................14

AUTO COOK .................................................................................................................................................................15

CLEANING AND CARE.................................................................................................................................................15

CONTENT

HELP US HELP YOU…

Read this guide carefully.

Itis intended to help you operate andmaintain

your new microwave oven properly.

Keep it handy to answer your questions.

If you don't understand something or youneed

Write down the model and serialnumbers.

You'll find them on a label located on the rear wall

of the microwave oven.

Please write these numbers here:

more assistance, please call:

Date of Purchase

WestBend Customer Service

954-567-4500

Keep proof of original purchase date (such as

your sales slip) with this guide to establish the

warranty period.

Model Number

Serial Number

Use these numbers in any correspondence or

service calls concerning your microwaveoven.

If you received a damaged microwave oven,

immediately contact the dealer (or builder) that sold

you the microwave oven.

Save time and money. Before you call for service,

check the Troubleshooting Guide. It lists causes

of minor operating problems that you can correct

yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be

pleased. If for some reason you are not happy with

the service you receive, here are some steps to

follow for further assistance.

FIRST, contact the people who serviced your

microwave oven. Explain why you are not pleased.

In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the

details, including your telephone number, and

send it to:

Customer Service

The Legacy Companies

Weston, FL 33331

IMPORTANT SAFETY INSTRUCTIONS

WARNING! - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave

energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY" on page 6.

3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS"

on page 6.

4. Do not operate the oven when empty.

5. Install or locate this appliance only in accordance with the provided installation instructions.

6. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and

should not be heated in this oven.

7. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in

this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or

laboratory use.

8. As with any appliance, close supervision is necessary when used by children.

9. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed

inside the oven to facilitate cooking.

b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or

shut off power at the fuse or circuit breaker panel.

d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity

when not in use.

10. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be

boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the

microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING

OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to

person:

a) Do not overheat the liquid.

b) Stir the liquid both before and halfway through heating it.

c) Do not use straight-sided containers with narrow necks.

d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

e) Use extreme care when inserting a spoon or other utensil into the container.

11. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven.

12. Do not cover or block any openings on the appliance.

13. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in

a wet basement, near a swimming pool, or similar locations.

14. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been

damaged or dropped.

15. Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang over edge of table

or counter.

16. This appliance should be serviced only by qualified service personnel, contact nearest authorized service facility for

examination, repair, or adjustment.

17. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive

soaps, or detergents applied with a sponge or soft cloth.

18. Oversized food or oversized metal utensils should not be inserted in a microwave/toaster oven as they may create a

fire or risk of electric shock.

19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of

electric shock.

20. Do not use paper products when appliance is operated in the toaster mode.

21. Do not store any materials, other than manufacturer’s recommended accessories, in this oven when not in use.

22. Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven.

23. This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the product.

24. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

⚫Reorient or relocate the receiving antenna.

⚫Increase the separation between the equipment and receiver.

⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

⚫Consult the dealer or an experienced radio/TV technician for help.

SAVE THESE INSTRUCTIONS

PROP. 65 WARNING FOR CALIFORNIA RESIDENTS

WARNING:

Cancer And Reproductive Harm

www.p65warnings.ca.gov

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by

providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a

grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING! - Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt

exists as to whether the appliance is properly grounded, and if it is necessary to use an extension cord, use only a 3-

wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the

appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the

appliance.

Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It is recommended that a separate circuit serving

only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet

properly installed and grounded.

Power Cord

1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a

longer cord.

2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.

3. If long cord or extension cord is used：

a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of

the appliance.

b) The extension cord must be a grounding-type 3-wire cord, and the longer cord should be arranged so that it will

not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

INSTALLATION GUIDE

1. Make sure that all the packing materials are removed from the inside of the door.

2. This microwave oven must be placed on a flat.

3. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above

the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall.

Do not cover or block any openings on the appliance. Do not remove feet.

4. The appliance shall be only used on a countertop over 3 feet (916mm) above the floor.

5. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

6. Make sure that the power cord is undamaged and does not run under the oven or over any hot or sharp surface.

7. The socket must be readily accessible so the microwave oven can be easily unplugged in an emergency.

COOKING UTENSILS GUIDE

This section lists which utensils can be used in this microwave, which have limited use for short periods, and which

should not be used in this microwave.

RECOMMENDED

Microwave browning dish —Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the

directions provided with your browning dish.

Microwaveable plastic wrap —Use to retain steam. Leave a small opening for some steam to escape and avoid

placing it directly on the food.

Paper towels and napkins —Use for short-term heating and covering; these absorb excess moisture and prevent

spattering. Do not use recycled paper towels, which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes —Use for heating or cooking.

Paper plates and cups —Use for short-term heating at low temperatures. Do not use recycled paper, which may

contain metal and could ignite.

Wax paper —Use as a cover to prevent spattering.

Thermometers —Use only those labeled "Microwave Safe" and follow all directions. Check the food in several

places. Conventional thermometers may be used on microwave food once the food has been removed from the oven.

LIMITED USE

Aluminum foil —Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage

your oven, so be careful. You should keep distance of 1 inch (2.54cm) between aluminum foil and cavity.

Ceramic, porcelain, and stoneware—Use these if they are labeled "Microwave Safe". If they are not labeled, test

them to make sure they can be used safely.

Plastic —Use only if labeled "Microwave Safe". Other plastics can melt.

NOT RECOMMENDED

Glass jars and bottles —Regular glass is too thin to be used in a microwave. It can shatter and cause damage and

injury.

Paper bags —These are a fire hazard, except for popcorn bags that are designed for microwave use.

Styrofoam plates and cups —These can melt and leave an unhealthy residue on food.

Plastic storage and food containers —Containers such as margarine tubs can melt in the microwave.

Metal utensils —These can damage your oven. Remove all metal before cooking.

Note:

Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH

for 30 seconds. A dish which becomes very hot should not be used.

SPECIFICATIONS

Power Consumption

120V/60Hz,

1500W(microwave) 1450W(Convection)

Output

1000W

Operation Frequency

2450MHz

Outside Dimensions (H x W x D)

11.8”× 21.2”×18.7”inches

Oven Capacity

1.3 cu.ft.

Net Weight

Approx. 35.8lbs

PRODUCT DIAGRAM

1. Door Safety Lock System

2. Oven Window

3. Roller Ring

4. Shaft

5. Control Panel

6. Wave Guide

(Please do not remove the mica

plate covering the wave guide)

7. Glass Tray

8. Grill Heater

9. Bake Plate

10. Air Fry Kit

CONTROL PANEL

⚫DISPLAY

Clock, Cooking time, power indicators are displayed.

⚫BAKE/AIR FRY/ROAST

Use bake, air fry and roast functions to cook food.

⚫MICRO.

Press to select microwave power level.

⚫CONV.

Press to set convection cooking program.

⚫MICRO.+CONV.

Press to set microwave and convection combination cooking programs.

⚫AUTO COOK BUTTONS

Instant settings to cook popular foods.

⚫DEFROST/TIME/WEIGHT

Press once to defrost food based on time.

Press twice to defrost food based on weight.

⚫NUMBER BUTTONS

Press to set clock time, cooking time, temperature, etc.

⚫CLOCK/TIMER

Press to set clock time or timer function.

⚫+30 SEC.

Press to set express cooking program.

⚫START

Press to start cooking programs.

⚫STOP/CANCEL

Press once to temporarily stop cooking, or twice to cancel cooking

altogether.

It is also used to set child lock.

OPERATION INSTRUCTIONS

➢When the oven plugged in, a beep will sound and the display will show "CLOCK " and "12:00".

➢During setup, if nothing happens for 30 seconds the oven will return to standby mode.

➢During cooking, press STOP/CANCEL button to pause the program, then press START button to resume. But if press

STOP/CANCEL button twice, the program will be cancelled.

➢If the cooking time is more than 2 minutes, after cooking end, the screen will display "FAn" for 1 minute, then display

"End". But if the cooking time is less than 2 minutes. After cooking end, the display will show "End" and beep will sound

every two minutes, after pressing STOP/CANCEL button or opening the door, the oven return to standby mode.

➢This microwave is equipped with an automatic cooling feature in-order to prolong the life of the oven. When using

microwave, convection or combination cooking mode for a period greater than 2 minutes. Once the program has

finished, has been manually stopped or the door is open the internal fan will run for approximately 1 minute to help cool

the oven.

SETTING THE CLOCK

This is a 24- or 12- hour clock. You can choose to set the clock time in 24- or 12- hour by pressing the CLOCK/TIMER button

in standby mode.

1. In standby mode, press and hold CLOCK/TIMER button for 3 seconds to choose 24- hour clock, then press it repeatedly

to choose 12- or 24- hour clock.

2. Use number buttons to set the correct time.

3. Press CLOCK/TIMER or START button once to confirm.

TIMER FUNCTION

1. In standby mode or during cooking, press CLOCK/TIMER button once.

2. Use number buttons to set desired time. The longest time is 99 minutes and 99 seconds.

3. Press CLOCK/TIMER or START button to confirm.

NOTE: When the countdown ends, the buzzer will beep to remind you. You can check the countdown time by pressing

CLOCK/TIMER button, if STOP/CANCEL button is pressed when the display shows the time, the function can be cancelled.

MICROWAVE COOKING

1. In standby mode, press MICRO. button repeatedly to select power level.

2. Use number buttons to set cooking time. The longest time is 99 minutes and 99 seconds.

3. Press START button to confirm.

Select power level by pressing the MICRO. button:

Press MICRO. button

Power (Display)

Press MICRO. button

Power (Display)

Once

100% (P100)

7 times

40% (P-40)

Twice

90% (P-90)

8 times

30% (P-30)

3 times

80% (P-80)

9 times

20% (P-20)

4 times

70% (P-70)

10 times

10% (P-10)

5 times

60% (P-60)

11 times

0% (P-00)

6 times

50% (P-50)

NOTE: During cooking, you can check the power by pressing MICRO. button. If you want to set 100% power level, omit the

step 1.

EXPRESS COOKING

Use this feature to program the oven to start at 100% power conveniently. In standby mode, press +30 SEC. button

repeatedly to set cooking time (each press to increase 30 seconds, and up to 99 minutes and 99 seconds). The oven will

start working automatically.

CONVECTION

During convection cooking, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. The

number buttons on the keypad include corresponding temperatures from 180F –400F and are used to select the desired

convection oven temperature: (180--400℉, 1--180℉, 2--225℉, 3--250℉, 4--275℉, 5--300℉, 6--325℉, 7--335℉, 8--350℉, 9--

375℉, 0--400℉).

To preheat and cook with convection:

Your oven can be programmed to combine preheating and convection cooking operations.

1. In standby mode, press CONV. button once.

2. Use number buttons to indicate convection temperature.

3. Press START button once. Beeps will sound when the designated temperature is reached.

4. Open the door and place container of food at the center of the turntable (or press STOP/CANCEL).

5. Use number buttons to set cooking time.

6. Press START button to start.

NOTE: The longest preheat time is 30 minutes, and the preheat time cannot be set. When reached designated temperature,

beep will sound, the oven will return to standby mode if there is not any operation within 30 minutes.

To cook with convection:

1. In standby mode, press CONV. button once.

2. Use number buttons button to indicate convection temperature.

3. Use number buttons to set cooking time. The longest time is 99 minutes and 99 seconds.

Press START button to start.

MICROWAVE+CONVECTION

This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave

automatically.

1. In standby mode, press MICRO.+CONV. button repeatedly to select temperature (225℉, 275℉, 350℉, 400℉).

2. Use number buttons to set cooking time. The longest time is 99 minutes and 99 seconds.

Press START button to start.

NOTE: During cooking, you can check the combination temperature by pressing MICRO.+CONV. button.

TIME DEFROST

1. In standby mode, press DEFROST/TIME/ WEIGHT button once.

2. Use number buttons to set defrosting time. The longest time is 99 minutes and 99 seconds.

3. Press START button to start.

NOTE: During defrosting, the system will pause to remind user to turn food over, and then press START button to resume the

defrosting.

WEIGHT DEFROST

The defrosting time and power level are automatically set once the food category and weight are programmed.

1. In standby mode, press DEFROST/TIME/ WEIGHT button twice.

2. Use number buttons (1~3) to select food category.

3. Press START button.

4. Use number buttons to set food weight.

5. Press START button to start.

The maximum allowable weight for each category is shown below:

Code

Food

Maximum Weight

dEF1

Meat

48 oz

dEF2

Poultry

48 oz

dEF3

Seafood

32 oz

NOTE:

During defrosting, the system will pause to remind you to turn food over, after that, press START button to resume.

Weight must be in pounds and ounces. If label gives weight in pounds only, change the fraction of a pound to ounces

using the following chart.

Converting fractions of a pound to ounces:

Fractions of a pound

Ounces

Fractions of a pound

Ounces

Less than .03

.54 to .59

.03 to .09

.60 to .65

.10 to .15

.66 to .71

.16 to .21

.72 to .78

.22 to .27

.79 to .84

.28 to .34

.85 to .90

.35 to .40

.91 to .97

.41 to .46

above .97

go to next even

.47 to .53

AIR FRY

For food codes "AF-1"~"AF-7":

1. In standby mode, press AIR FRY button twice, then press it repeatedly again to select food codes.

2. Press START button once.

3. Press AIR FRY button repeatedly to set food weight.

4. Press START button to start.

Code

Food

Weight

Time

Display Power

AF-1

Onion Rings

8 oz

18:00

400℉

12 oz

21:00

AF-2

Chicken Drumsticks

8 oz
