Wharfedale Pro WLA-28SUBXF User manual

OVERVIEW
WLA-28SUBXF
QUICK START GUIDE
Your full user manual can also be downloaded from
www.wharfedalepro.com
Note : Specifications may be subject to change without notice.
SPECIFICATIONS
Model Name WLA-28SUBXF
System Type Passive
Configuration 2 x 15" Subwoofer
Frequency Response (+/- 3 dB) 39-900 Hz
Frequency Range (- 10 dB) 35-1.5 KHz
(Passive)Sensitivity 2.83 v / 1 m 108 dB
(Passive)Calculated Maximum SPL @1 m 145 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size (mm / inches) 381 mm / 15''
Voice coil size (mm / inches) 100 mm / 4.0''
LF Magnet Material ferrite
LF Frame Material aluminium
Rated Impedance 8 Ωx 2
LF Power re:AES2-2012 600 W x 2
Nominal Coverage (H x V)
System Continuous Power (w) 1200 W
System Programme Power (w) 2400 W
System Peak Power (w) 4800 W
Crossover frequency
Input Connector 1XWY-24K4Z (waterproof)
Rigging 4 points for rigging
pole mount NO
handles yes
Enclosure
cabinet type square
Enclosure Material and finish 18 mm plywood/3.0 mm Aluminium
Colour Options Water proof black paint
Grille Material & Finish 3.0 mm Black Aluminium
Dimensions - Unpacked (mm / inches):
Height front 494 mm / 19.4"
Height Rear 494 mm / 19.4"
Width 845 mm / 33.3"
Depth 653 mm / 25.7"
Dimensions - Packed (mm / inches):
Height 584 mm / 23"
Width Front 933 mm / 36.7"
Width Rear 933 mm / 36.7"
Depth 723 mm / 28.5"
Weight
Net Weight (kg / lbs) 81.0 kg / 178.2lbs
Gross Weight (kg / lbs) 86.4 kg / 190.1lbs
845.0
494.0
653.0
• Dual 15” Passive subwoofer
• IPX6 Waterproof certification
• Wax wrapped components
• Anti-corrosion stainless steel hardware
• Waterproof input connector
• System Continuous Power 1200 W
• System Programme Power 2400 W
• System Peak Power 4800 W
• Impedance 4 Ω
• 18 mm Plywood construction
3.0 mm Aluminium
KEY FEATURES

April 2023

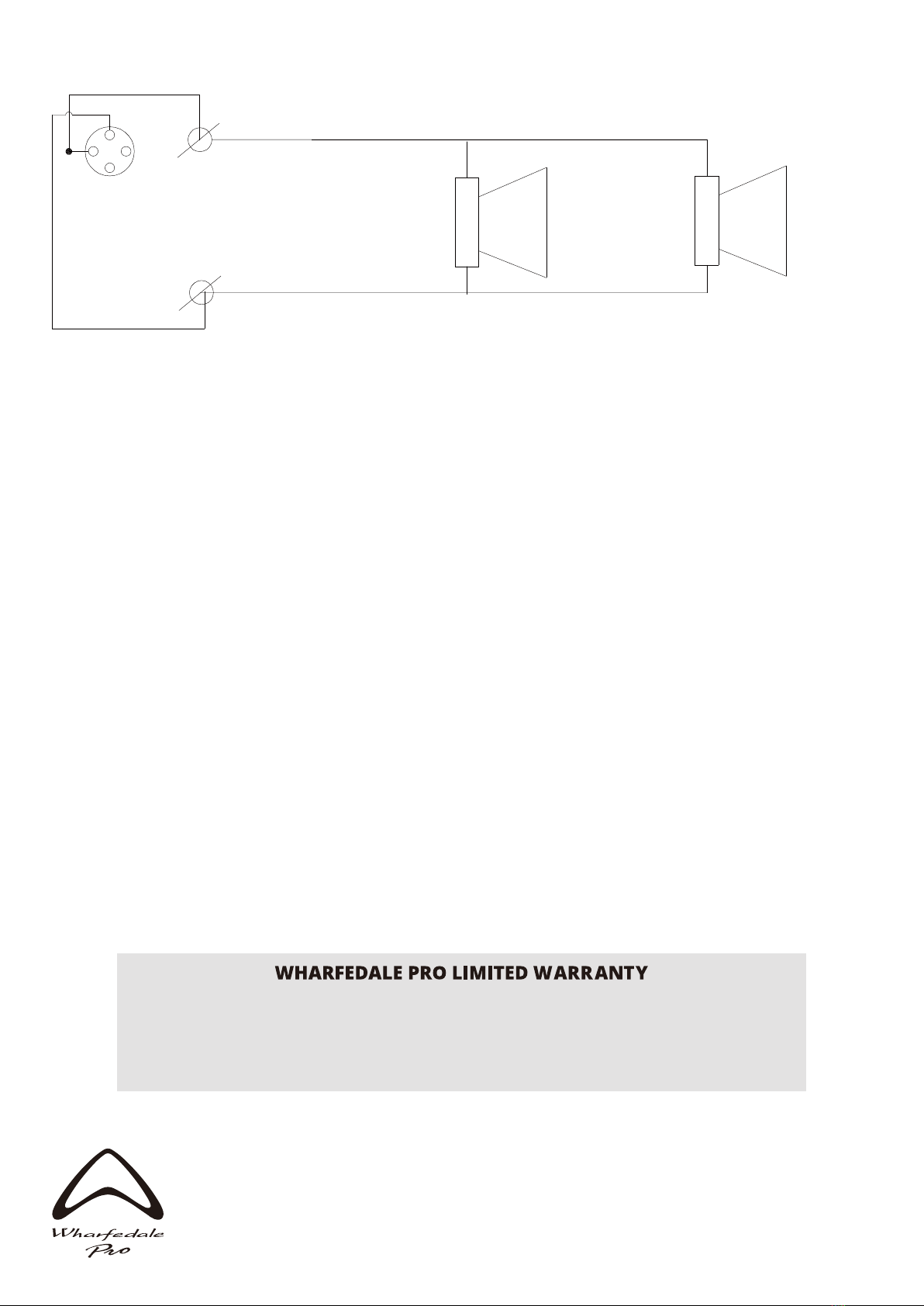

SYSTEM WIRING CONNECTION
WHARFEDALE PROFESSIONAL
IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
www.wharfedalepro.com
Wharfedale Professional reserves the right to alter or improve specifications without notice.
All rights reserved © 2023 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
Wharfedale Pro products are warranted of manufacturing or material defects for a period of
three years from the original date of purchase. In the event of malfunction, contact your
authorised Wharfedale Pro dealer or distributor for information.
Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for
information (available at www.wharfedalepro.com). These terms do not infringe your statutory rights.
2 x 15”
2+ 3-
1-
4+
+
-
+
-
+
-
