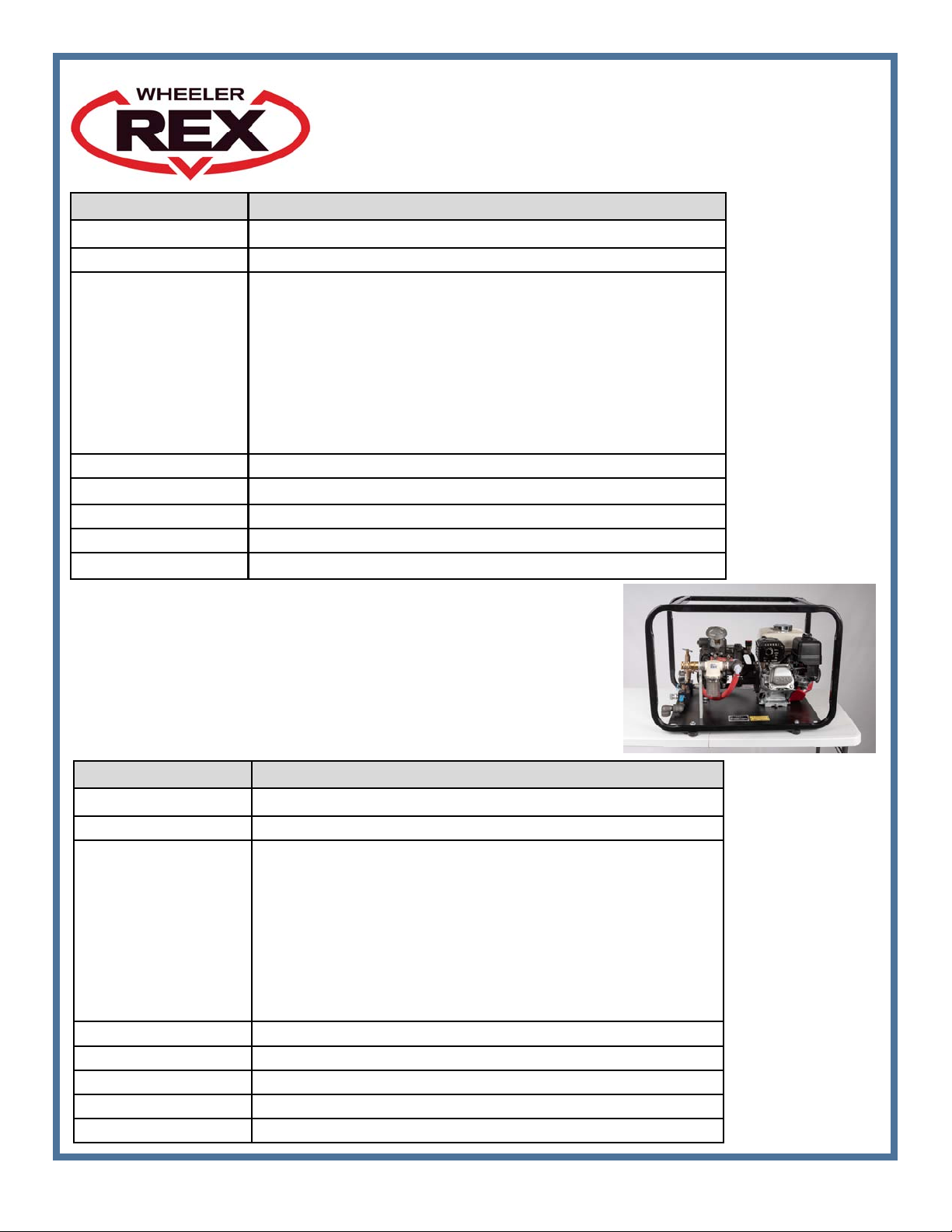

Wheeler-Rex 465210 User manual

1
06112018
DIMENSIONS: 23” (57cm) L x 20” (51cm) W x 19.5” (50cm) H
WEIGHT: 105 lbs. 48 kg
PUMP: Triple Diaphragm: Positive Displacement
Ports: 3/4” inlet ; 1/2” NPT outlet
Capacity: 10gpm, 38lpm
Pressure: 0-500psi
Operating Speed: 550rpm (max) 400rpm (min)
Lubrication: Pump 30W Non-Detergent
Gear 80/90W Gear Oil
Shaft Size: 1” Female
ENGINE: Honda 5.5hp, 4 cycle, gasoline
CONTROL: 50 – 500psi adjustable pressure relief
GAUGE: Glycerin filled, 0 – 1000psi, 0-69bar
DISCHARGE HOSE: 1/2” x 10’ (3m) 2000psi rated
INLET HOSE: ¾” x 10’ (3m) with strainer
465230
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps
DIMENSIONS: 23” (57cm) L x 20” (51cm) W x 19.5” (50cm) H
WEIGHT: 105 lbs. 48 kg
PUMP: Triple Diaphragm: Positive Displacement
Ports: 3/4” inlet ; 1/2” NPT outlet
Capacity: 10gpm, 38lpm
Pressure: 0-500psi
Operating Speed: 550rpm (max) 400rpm (min)
Lubrication: Pump 30W Non-Detergent
Gear 80/90W Gear Oil
Shaft Size: 1” Female
ENGINE: 6.5hp Briggs & Stratton Intek Pro, 4 cycle, gasoline
CONTROL: 50 – 500psi adjustable pressure relief valve
GAUGE: Glycerin filled, 0 – 1000psi, 0-69bar
DISCHARGE HOSE: 1/2” x 10’ (3m) 2000psi rated
INLET HOSE: ¾” x 10’ (3m) with strainer
46523

2
06112018
DIMENSIONS: 28” (71cm) L x 24” (51cm) W x 35” (49.5cm) H
WEIGHT: 111 lbs. 50.5 kg
PUMP: Triple Diaphragm: Positive Displacement
Ports: 1” inlet ; ¾” NPT outlet
Capacity: 10gpm, 38lpm
Pressure: 0-500psi
Operating Speed: 550rpm
Lubrication: Pump 30W Non-detergent
Gear 80/90W Gear Oil
Shaft Size: 1” Female
ENGINE: Honda 5.5hp, 4 cycle, gasoline
CONTROL: 0 – 500psi adjustable pressure relief
GAUGE: Glycerin filled, 0 – 600psi, 0-42kg
DISCHARGE HOSE: ¾” x 10’ (3m) 1000psi rated
INLET HOSE: ¾” x 10’ (3m) with strainer
465210
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps
DIMENSIONS: 28” (71cm) L x 20” (51cm) W x 19.5” (49.5cm) H
WEIGHT: 111 lbs. 50.5 kg
PUMP: Triple Diaphragm: Positive Displacement
Ports: 1” inlet ; ¾” NPT outlet
Capacity: 10gpm, 38lpm
Pressure: 0-500psi
Operating Speed: 550rpm
Lubrication: Pump 30W Non-detergent
Gear 80/90W Gear Oil
Shaft Size: 1” Female
ENGINE: 6.5hp Briggs & Stratton Intek Pro, 4 cycle, gasoline
CONTROL: 0 – 500psi adjustable pressure relief valve
GAUGE: Glycerin filled, 0 – 600psi, 0-42kg
DISCHARGE HOSE: ¾” x 10’ (3m) 1000psi rated
INLET HOSE: ¾” x 10’ (3m) with strainer
46521

3
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps
A Engine Controls (throttle, choke, gas ON/OFF)
B Pull Start
C Power Switch ON/OFF
D Dipstick / Engine oil fill
465210 / 465230
A
B D
C

4
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps

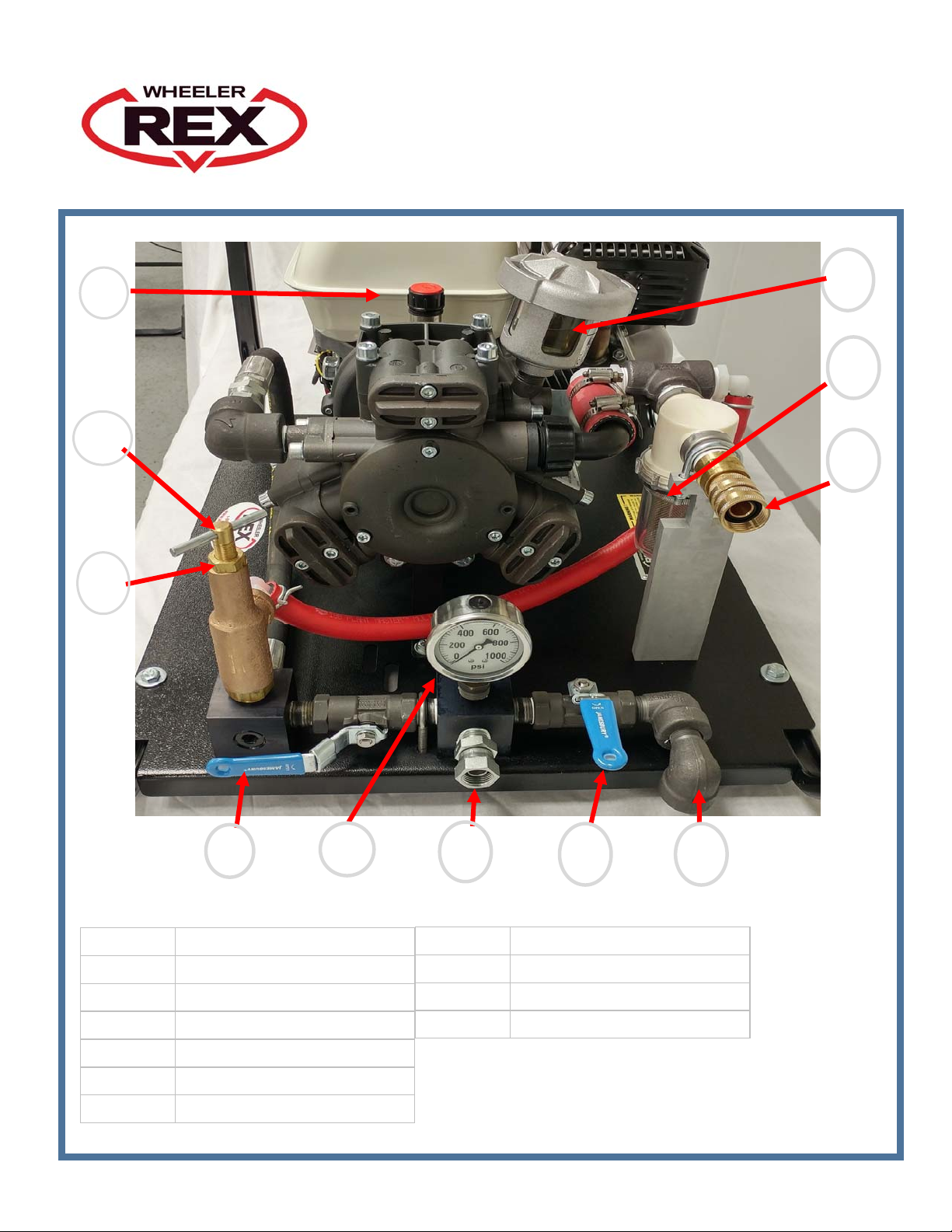

E Pump gear lube vent cap / fill
F Relief valve adjustment
G Relief valve jam nut
H Isolation valve
I Gauge
J Outlet connection
K Dump Valve
LK
JI
H
G
F
E O
N
M
L Dump port
M` Inlet connection
N Strainer bowl
O Pump diaphragm oil reservoir

5
Gravity Feed: (Preferred Method)
This method requires a tank with a water outlet at the bottom. The water tank’s outlet should
be level with or above the level of the water inlet connection on the pump. This allows water
to flow naturally into the test pump. Connecting a pressure fed water line is harmful to the
diaphragms in the pump.
1. Fill the water line (or test vessel) to be tested prior to pump connection.
2. Connect water supply hose to the garden hose inlet connection (M) on the pump.
3. Open valve and turn water supply on.
4. Purge the pump and pressure hose of all air.
5. Connect output (pressure) hose connection (J) between pump and water line (or
vessel) being tested.
6. Turn pump on.
7. Purge water line (or vessel) of all air at the highest point of the system.
8. Bring water line (or vessel) to pressure. Watch the gauge (I) while pumping. When
the desired pressure is achieved, turn the isolation valve (H) to the “off” position.
The engine can now be turned off. If pressure drops, there is a leak in the line.
Siphon Method
Use a clean water source
1. Fill the water line to be tested.
2. Fill the intake hose with water, then quickly place the hose into a bucket and turn pump
on. (Unit is self-priming once primed). Continue to run pump until you see the water
coming out of the outlet hose, with little or no air mixed with it.
3. Connect the output hose to the water line. Continue on with steps 6 through 8 in
Gravity Feed Method.
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps

6
Pre-Setting Your Pump
Your pump can be pre-set to a specific pressure easily by adjusting the pressure relief valve.
1. Loosen the jam nut (G) on pressure relief valve. Then unscrew (counterclockwise
direction) the pressure relief valve knob (F) a few turns . Be sure not to unscrew the
knob too far as the knob and nut can easily be lost.
2. Add a ball valve (not supplied with pump) to the end of the high pressure hose.
3. Follow steps 2 through 4 from the ‘Gravity Feed Method’.
4. As water is flowing out of the high pressure hose, turn the ball valve to the off
position.
5. Slowly start turning pressure relief valve knob (F) in the clockwise direction by ¼
turn increments, until you reach the desired pressure. Tighten jam nut (G) to hold at
this desired pressure.
6. Your test pump is now pre-set. This eliminates over-pressurizing the water line (or
the vessel).
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps

7
Troubleshooting Your Pump
Test pressure not being reached:
 Possible air in line (or vessel)
 Air needs to be purged from system.
 Remove pump from system and follow steps 1 through 6 of the
“Pre-setting Your Pump” section.
 If using the Siphon Method and not getting pressure, try the
‘‘Gravity Feed Method’ to ensure water is getting into the pump.
 Check strainer (F) O-Ring for cracks.
 Oil Reservoir is milky in color
 Diaphragm is cracked, causing water to mix with oil. Diaphragm
needs replaced.
 Pressure relief valve not adjusted properly.
 Turn relief valve counterclockwise and watch gauge (C) for change
in pressure.
Pump Maintenance
 Pump 50/50 antifreeze/water solution through pump after each use to
avoid freezing and to lubricate pump.
 Check strainer (F) O-Ring for cracks prior to each use.
 Check and change engine oil per manufacturers specifications.
 Gear reduction Gear Lube. Check and change per manufacturers
specifications.
 Pump repair kit (Wheeler Rex PN 36345)
 Suction Hose (Wheeler Rex PN 34550)
 Pump Oil Reservoir - Check and change per manufacturers specs.
Use 30W Non-detergent oil
Dump Valve
Dump valve is designed to dump off pressure when the test is complete..
Operating Instructions
Models 46521, 465210, 46523, 465230
Hydrostatic Test Pumps
CAUTION !!!
This pump is designed for water only!!
The pump is equipped with an adjustable pressure relief valve (A), which helps protect the system from being
over pressurized. It can be preset by plugging the end of the hose. Turn the adjusting knob clockwise to
increase pressure and counterclockwise to decrease.

8

9
Item Part No Description 46521 Qty
1 700136 PUMP CART 1
2 275684 6.5 HP BRIGGS & STRATTON ENGINE 1
3 275857 5/16-18 HEX NYLON-INSERT LOCKNUTS 7
4 275638 5/16 x 1 1/2" HEX HEAD CAP SCREW 4
5 275685 5/16" FLAT WASHER 2
6 277303 COMET PUMP ASSEMBLY 1
7 220874 NAME PLATE 1
8 275543 POP RIVET, STAR 4-2AAD 4
9 701542 PUMP BRACE (COMET) 1
10 701543 MANIFOLD BLOCK (COMET) 2
11 275697 1/2" 3000LB FS SCRD 90 ELL 1
12 276341 RELIEF VALVE 1
13 277302 1/2" MNPT x 1/2 HB 90 ELBOW 1
14 275788 GAGE 0-1000 PSI 1
15 275670 1/2 x 1/4 FS SCRD HX BUSH 1
16 275368 HEX SOCKET 1/2" NPT PIPE PLUG 1
17 275689 1/2 NPT x 1/2 SWIVEL ADAPTER 2
18 275675 1/2" VALVE 2
19 275669 1/2 x CLOSE PIPE NIPPLE 3
20 275666 1/2" FS SCRD STREET ELL 2
21 277220 U-BOLT 1
22 729 1/4-20 THIN ESNA NUT 2
23 1020 5/16-18 x 1" HEX HEAD CAP SCREW 1
24 275932 STRAINER, HYPRO 3350-0040P 1
25 276102 3/4" BRASS CLOSE NIPPLE 1
26 275644 3/4" TEE 1
27 275874 3/4" FH x 3/4" FP ADAPTER 1
28 701544 INLET BRACE 1
29 276184 3/4 NPTx 1/2 90 DEG HOSE BARB 1
30 276185 HOSE CLAMP 2
31 276099 3/4" HOSE QUICK DISCONNECT 1
32 560081 1/4-20 x 3/4" HHCS 2
33 276540 1/4" FLAT WASHER 16
34 701547 CONNECTION HOSE 1
35 277304 3/4 MP x 1" MH 90 DEG HOSE BARB 1
36 277200 SMALL U-BOLT 1
37 700641 HIGH PRESSURE HOSE 22" 1
38 701546 BY-PASS HOSE 1
39 277305 5/16" x 3 3/4" LONG HHCS 2
40 275426 1/4-20 ESNA STOP NUT 2
41 275335 HOSE CLAMP 2
42 277322 3/4" x 2 1/2" LONG BRASS NIPPLE 1
43 277181 WARNING TAG ***NOT SHOWN*** 1
44 34550 SUCTION HOSE ASSEMBLY ***NOT SHOWN*** 1
45 221065 PRESSURE HOSE ***NOT SHOWN*** 1

10
46523

11
Item Part No Description 46523 Qty
1 275684 6.5 HP BRIGGS & STRATTON ENGINE 1
2 275857 5/16-18 HEX NYLON-IINSERT LOCKNUTS 11
3 275638 5/16 x 1 1/2" HEX HEAD CAP SCREW 4
4 277303 COMET PUMP ASSEMBLY 1
5 220874
NAME
PLATE 1
6 275543 POP RIVET, STAR 4-2AAD 4
7 701542 PUMP BRACE (COMET) 1
8 701543
MANIFOLD BLOCK
(COMET) 2
9 275697 1/2" 3000LB FS SCRD 90 ELL 1
10 276341
RELIEF
VALVE 1
11 277302 1/2" MNPT x 1/2 HB 90 ELBOW 1
12 275788 GAGE 0-1000 PSI 1
13 275670 1/2 x 1/4 FS SCRD HX BUSH 1
14 275368 HEX SOCKET 1/2" NPT PIPE PLUG 1
15 275689 1/2 NPT x 1/2 SWIVEL ADAPTER 2
16 275675 1/2" VALVE 2
17 275669 1/2 x CLOSE PIPE NIPPLE 3
18 275666 1/2" FS SCRD STREET ELL 2
19 729 1/4-20 THIN ESNA NUT 2
20 1020 5/16-18 x 1" HEX HEAD CAP SCREW 1
21 275932 STRAINER, HYPRO 3350-0040P 1
22 276102 3/4" BRASS CLOSE NIPPLE 1
23 275644
3/4"
TEE 1
24 275874 3/4" FH x 3/4" FP ADAPTER 1
25 701544
INLET
BRACE 1
26 276184 3/4 NPTx 1/2 90 DEG HOSE BARB 1
27 276185
HOSE
CLAMP 2
28 276099 3/4" HOSE QUICK DISCONNECT 1
29 560081 1/4-20 x 3/4" HHCS 2
30 276540 1/4" FLAT WASHER 21
31 701547
CONNECTION
HOSE 1
32 277304 3/4 MP x 1" MH 90 DEG HOSE BARB 1
33 277220
U-BOLT 1
34 700641 HIGH PRESSURE HOSE 22" 1
35 701546
BYPASS
HOSE 1
36 277305 5/16" x 3 3/4" Long HHCS 2
37 701549 ROLL CAGE (XL) 1
38 701548 BASE PLATE (COMET) 1
39 276443
RUBBER FOOT 4
40 275639 5/16-18 x 1 3/4" HHCS 4
41 275426 1/4-20 ESNA STOP NUT 2
42 275335
HOSE
CLAMP 2
43 277322 3/4" x 2 1/2" LONG BRASS NIPPLE 1
44 221065
PRESSURE HOSE ***NOT SHOWN*** 1
45 277181 WARNING TAG ***NOT SHOWN*** 1
46 34550 SUCTION HOSE ASSEMBLY***NOT SHOWN*** 1
47 277200
SMALL U-BOLT 1
46523 pARTS

12

13
Notes…..

14
Wheeler Rex •3744 Jefferson Road •Ashtabula, Ohio 44005
Tel: [phone] or 440-998-2788 •Fax: [phone]
[email protected] •www.wheelerrex.com
