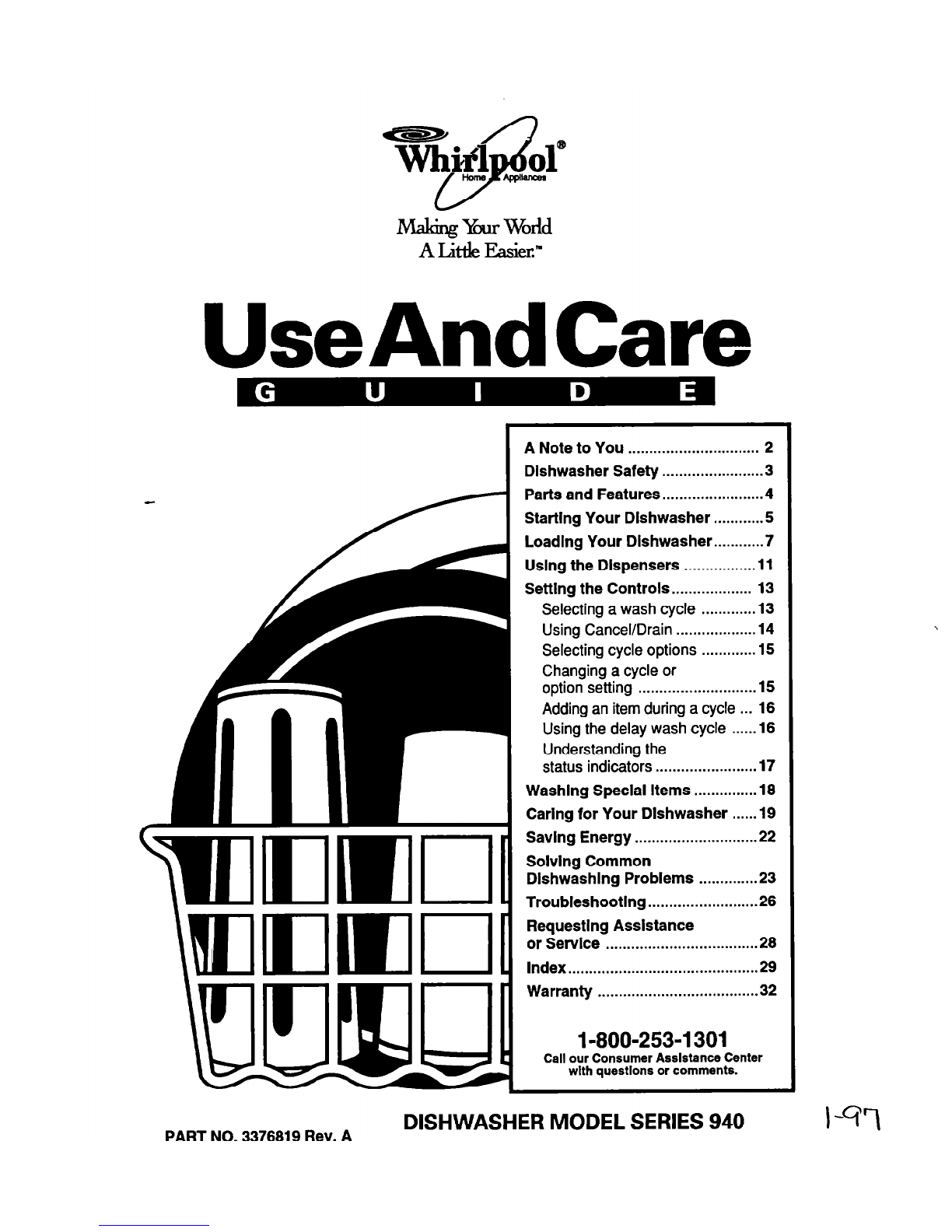

Whirlpool 940 series User manual

Makit$b World
ALitdelZaskm
UseAndCare
A Note to You ............................... 2
Dishwasher Safety ....................... .3
Parts and Features.. ..................... .4
Starting Your Dlshwasher.. ..........5
Loadlng Your
Dlshwasher ............7
Using the Dispensers ................. 11
Settlng the Controls.. ................. 13
Selecting a wash cycle .............13
Using Cancel/Drain .................. .14
Selecting cycle options .............15
Changing a cycle or
option setting ........................... .15
Adding an item during a cycle ... 16
Using the delay wash cycle .....
.16
Understanding the
status indicators ....................... .17
Washlng Special Items ...............18
Caring for Your Dlshwasher .....
.19
Savlng Energy ............................ .22
Solvlng Common
Dlshwashlng Problems ..............23
Troubleshootlng.. ....................... .26
Requestlng Assistance
or Servlce ................................... .28
Index.. .......................................... .29
Warranty ...................................... 32
1-800-253-I 301
Call our Consumer Aaslstance Center
wlth questlons or comments.
PART
NO-
3376819
Rev.
A
DISHWASHER MODEL SERIES 940

A Note to You
Thank you for buying a WHIRLPOOL@ appliance.
Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are
easy to use, save time, and help you manage your home better. To ensure you enjoy years
of trouble-free operation, we developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your
appliance. This card helps us notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for Model Number
your appliance, you need to know your
complete model number and serial number.
Serial Number
You can find this information on the model
Purchase Date
and serial number label (See the “Parts and
Dealer Name
Features” section).
- Please also record the purchase date of
Dealer Address
your appliance and your dealer’s name,
Dealer Phone
address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
I
Our Consumer Assistance
Center number is toll-free.
1-800-253-1301 1
Help us help you
Please:
l Have your dishwasher installed by a
qualified installer.
l Install where dishwasher is protected from
the elements.
l Install and level dishwasher on a floor that
will hold the weight, and in an area suitable
for its size and use.
l Properly connect dishwasher to electricity,
water, and drain.*
l See Installation Instructions for complete
information.
l Remove all shipping plugs from hoses and
connectors (such as the cap on the drain
outlet) before installing.*
l Remove all hang tags and temporary
labels.
l Make sure dishwasher is not used by
anyone unable to operate it properly.
l Properly maintain dishwasher. See the
“Caring for Your Dishwasher” section.
2

Dishwasher Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word “DANGER” or “WARNING.” These words mean:
You y&l be killed or seriously Injured
If you don’t follow Instructlons.
You & be kllled or serlously Injured
If you don’t follow Instructlons.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed. .
IMPORTANT SAFETY INSTRUCTIONS
WARNING -When using the
dishwasher, follow basic precautions,
including the following:
l Read all instructions before using the
dishwasher.
l Use the dishwasher only for its
intended function.
l Use only detergents or rinse agents
recommended for use in a dishwasher
and keep them out of the reach of
children.
l When loading items to be washed:
1)Locate sharp items.so that they
are not likely to damage the door
seal; and
2) Load sharp knives with the handles
up to reduce the risk of cut-type
injuries.
l Do not wash plastic items unless they
are marked “dishwasher safe” or the
equivdent. For plastic items not so
marked, check the manufacturer’s
recommendations.
l Do not touch the heating element
during or immediately after use.
l Do not operate the dishwasher unless
all enclosure panels are properly in
place.
l Do not tamper with controls.
l Do not abuse, sit on, or stand on the
door or dish racks of the dishwasher.
l To reduce the risk of injury, do not
allow children to play in or on the
dishwasher.
l Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not
been used for such a period, before
using the dishwasher turn on all hot
water faucets and let the water flow
from each for several,minutes. This will
release any accumulated hydrogen gas.
As the gas is flammable, do not smoke
or use an open flame during this time.
l Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
3
-SAVE THESE INSTRUCTIONS -

Parts and Features
Your dishwasher is illustrated below with the parts and features called out. To help you find
information on specific parts or features quickly, page references are included.
/
Top rack adjuster
(P. 10)
Third level wash
(Pm10)
/
/
Upper spray arm
(P.9)
Adiustable top rack
(Pm10)
Water inlet opening
(P.
Silverware
Cutlery
basket
b. 7)
.. .
Door latch/
‘/
Spray tower
(P.9)
Fold-down
. POWER CLEANTM
N module (p. 30)
Y Lower spray arm
(P.9)
- Overfill protector
(P. 19)
Detergent
- dispensers
(P. 11)
Rinse agent
y dispenser
\ (P. 12)
Access panel*
Door color panel* /
l See Installatton Instructions
for more information.
Control panel
Your dishwasher has a row of push pads to select cycles and options. You must select a
cycle to start your dishwasher. You may select one or more options.

Starting Your Dishwasher
This section tells you how to start or stop your dishwasher. Refer to it for quick reference.
Tlp Over Hazard
Do not use dlshwasher until
completely Installed.
Do not push down on open door.
Doing so can result In serlous Injury
or cuts.
Electrlcal Shock Hazard
Eiectrlcaily ground dlshwasher.
Connect ground wire to green ground
connector In termlnal box.
Do not use an extenslon cord.
Failure to do so can result in death,
flre, or electrical shock.
GROUNDING INSTRUCTIONS
l For a grounded, cord connected
dishwasher:
The dishwasher must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The
dishwasher is equipped with a cord
having an equipment-grounding conduc-
tor and a grounding plug. The plug must
be plugged into an appropriate outlet that
is installed and grounded in accordance
with all local codes and ordinances.
WARNING - Improper connection of
the equipment-grounding conductor can
result in a risk of electric shock.
Check with a qualified electrician or
service representative if you are in
doubt whether the dishwasher is
properly grounded. Do not modify the
plug provided with the dishwasher; if it
will not fit the outlet, have a proper
outlet installed by a qualified electrician.
l For a permanently connected
dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the dishwasher.
- SAVE THESE INSTRUCTIONS -
5

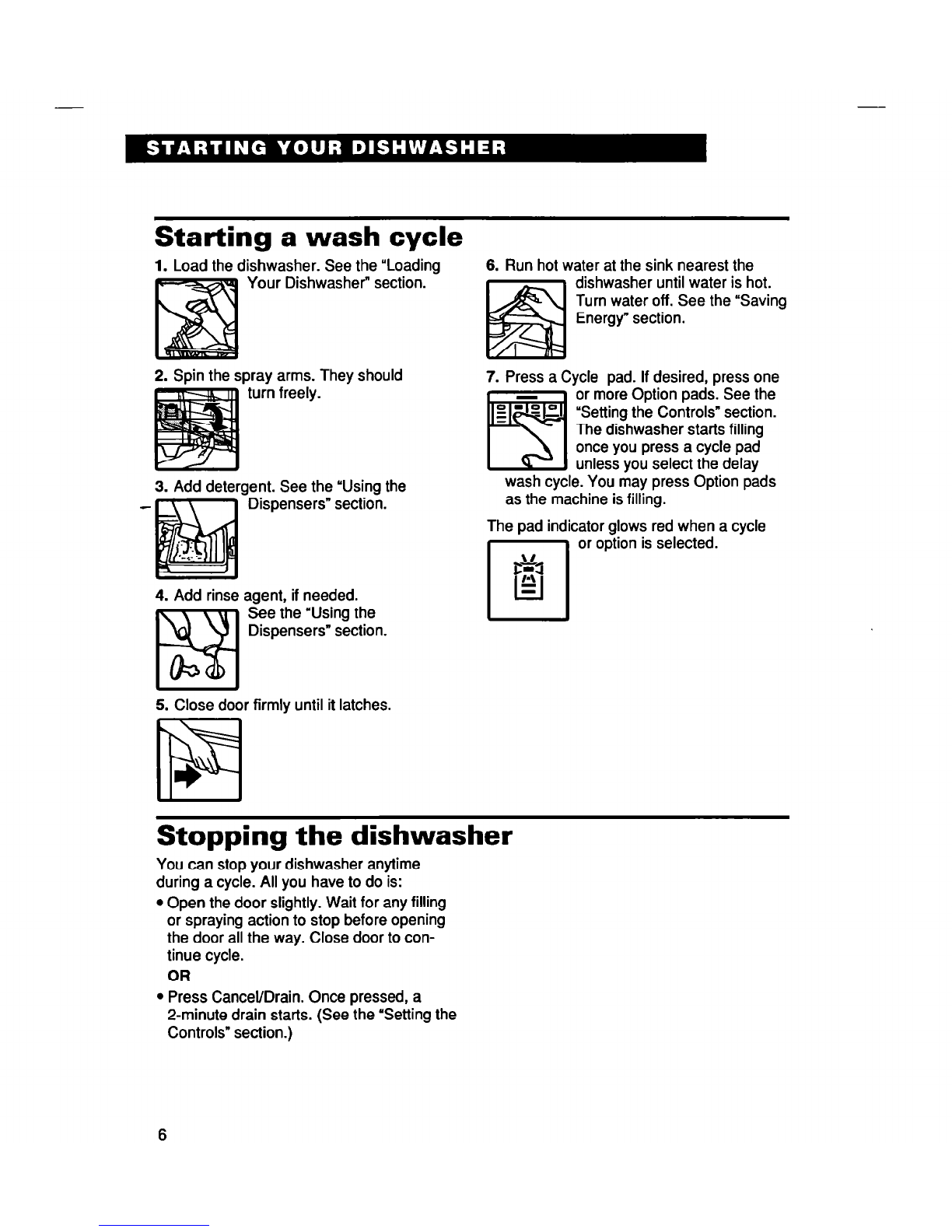

Starting a wash cycle
1. Load the dishwasher. See the “Loading
Your Dishwasher” section. -
2. Spin the spray arms. They should
turn freely.
3. Add detergent. See the “Using the
Dispensers” section.
4. Add rinse agent, if needed.
See the “Using the
Dispensers” section.
5. Close door firmly until it latches.
6. Run hot water at the sink nearest the
dishwasher until water is hot.
Turn water off. See the “Saving
Energy” section.
7. Press a Cycle pad. If desired, press one
-
l?Fl
or more Option pads. See the
O_lOO
Z “Setting the Controls” section.
The dishwasher starts filling
once you press a cycle pad
unless you select the delay
wash cycle. You may press Option pads
as the machine is filling.
The pad indicator glows red when a cycle
l-1 or option is selected.
Stopping the dishwasher
You can stop your dishwasher anytime
during a cycle. All you have to do is:
l Open the door slightly. Wait for any filling
or spraying action to stop before opening
the door all the way. Close door to con-
tinue cycle.
OR
l Press Cancel/Drain. Once pressed, a
2-minute drain starts. (See the “Setting the
Controls” section.)
6

Loading Your Dishwasher
This section tells how to properly load your dishwasher for best washing and rinsing results,
Preparing to load the dishwasher
l To save water and energy, do not rinse
dishes before putting them into the
dishwasher.
l Remove large pieces of food, bones, and
other hard items. The POWER CLEANTM
module removes food particles from the
water. The module contains a chopping
device which reduces the size of food items.
NOTE: If hard items such as fruit seeds,
nuts, and egg shells enter the POWER
- CLEAN module, you might hear chopping,
grinding, crunching, or buzzing sounds.
Those sounds are normal when hard items
enter the module. Do not let metallic items
(such as pot handle screws) get into the
POWER CLEAN module. Damage can
occur.
l Foods like eggs, rice, pasta, and cooked
cereals may be hard to remove if left to dry
over a period of time. Run a Rinse/Wash
Later cycle to keep dishes moist if you do
not plan to wash them soon.
l Load dishes so soiled surfaces face the
rotating spray arm.
l Load dishes so they are not stacked or
overlapping. It is important for the water
spray to reach all soiled surfaces for best
washing. For best drying, water must be
able to drain from all surfaces.
Loading for quiet operation
l Secure lightweight load items in the racks.
l Pot lids and handles, pizza pans, cookie
sheets, etc., should not touch interior
walls, interfere with the spray arm’s
rotation, or cover the spray tower.
l Load dishes so they do not touch one
another.
NOTE: Keep sink drain plugs inserted
during dishwasher operation to prevent
noise transfer through drains.
Loading the cutlery basket
Use the cutlery basket to hold long items.
Always unload or remove the cutlery basket
before unloading the racks to avoid spilling
water on the cutlery.
IMPORTANT: Remove the basket and tip
the contents onto a cutting board to unload.
This helps avoid accidents with sharp points
and edges.
To remove the cutlery basket:
1. Grasp the basket on both sides and slide
it toward the top of the door.
2. Lift the basket off the holding buttons.
To replace the cutlery basket:
1. Set the basket on the holding buttons.
2. Slide the basket toward the bottom of the
door until it locks into place.
7

Loading the silverware basket
l Load the silverware basket while it is in the
door or take the basket out for loading on a
counter or table.
l Mix items in each section of the basket
with some pointing up and some down to
avoid nesting. Spray cannot reach nested
_ items.
IMPORTANT: Always load sharp items
(knives, skewers, forks, etc.) pointing
down.
l Put small items (baby bottle caps, jar lids,
etc.) in any section.
l You can also remove the basket for easy
unloading. Always unload or remove the
basket before unloading the racks to avoid
spilling water on the silverware.
To remove the basket:
1. Grab the basket by the handle and slide it
toward the top of the door.
2. Lift the basket off the holding buttons.
To replace the basket:
1. Set the basket on the holding buttons.
2. Slide the basket towards the bottom of
the door until it locks in place.
To open the basket:
l Unhook the latch as shown.
NOTE: Be sure the cover is completely
latched before pulling out the bottom rack
and before closing the dishwasher door.

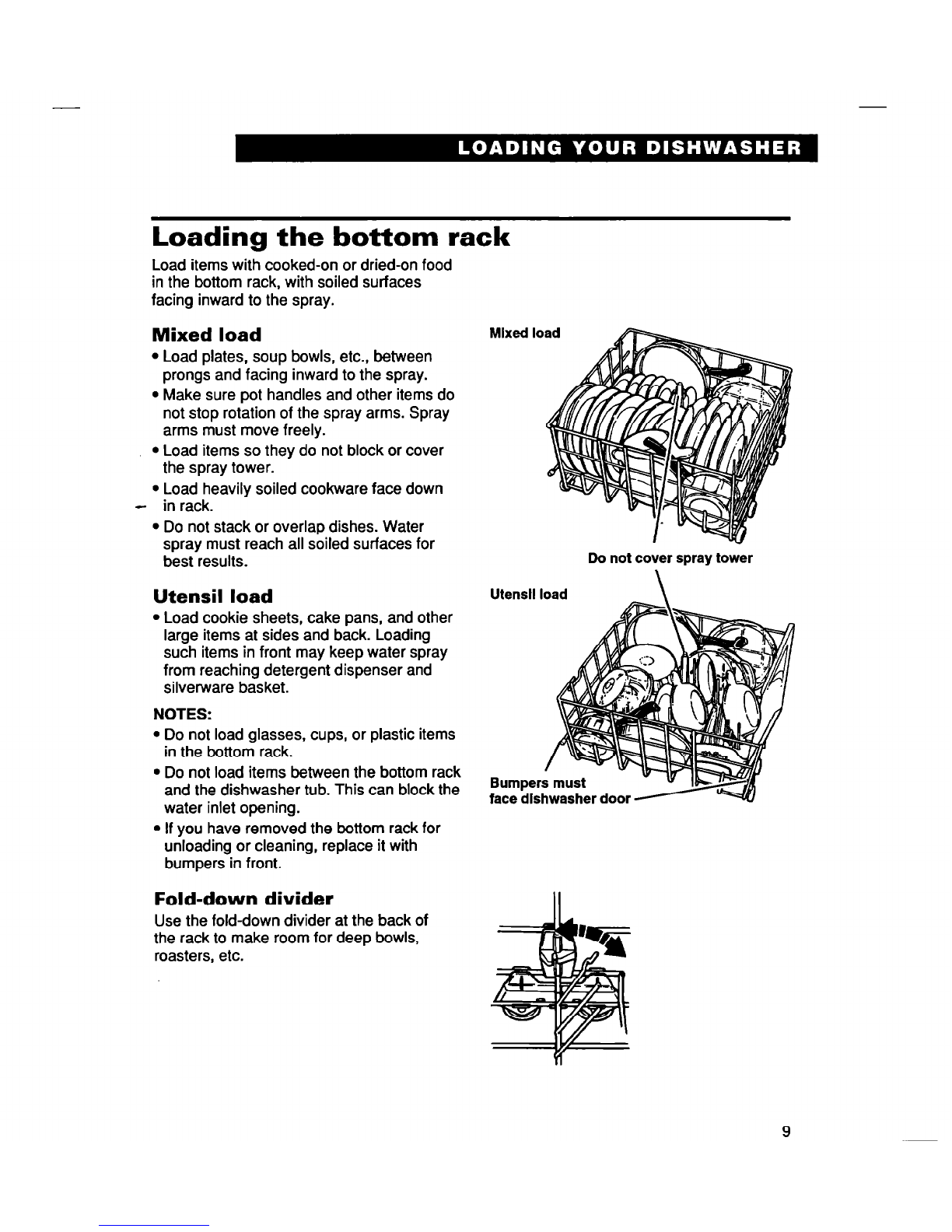

Loading the bottom rack
Load items with cooked-on or dried-on food
in the bottom rack, with soiled surfaces
facing inward to the spray.
Mixed load
l Load plates, soup bowls, etc., between
prongs and facing inward to the spray.
l Make sure pot handles and other items do
not stop rotation of the spray arms. Spray
arms must move freely.
l Load items so they do not block or cover
the spray tower.
l Load heavily soiled cookware face down
- in rack.
l Do not stack or overlap dishes. Water
spray must reach all soiled surfaces for
best results.
Utensil load
l Load cookie sheets, cake pans, and other
large items at sides and back. Loading
such items in front may keep water spray
from reaching detergent dispenser and
silverware basket.
NOTES:
l Do not load glasses, cups, or plastic items
in the bottom rack.
l Do not load items between the bottom rack
and the dishwasher tub. This can block the
water inlet opening.
l If you have removed the bottom rack for
unloading or cleaning, replace it with
bumpers in front.
Fold-down divider
Use the fold-down divider at the back of
the rack to make room for deep bowls,
roasters, etc.
Mlxed load
Do not cover spray tower
Utensil load
Bumper
face dls
9

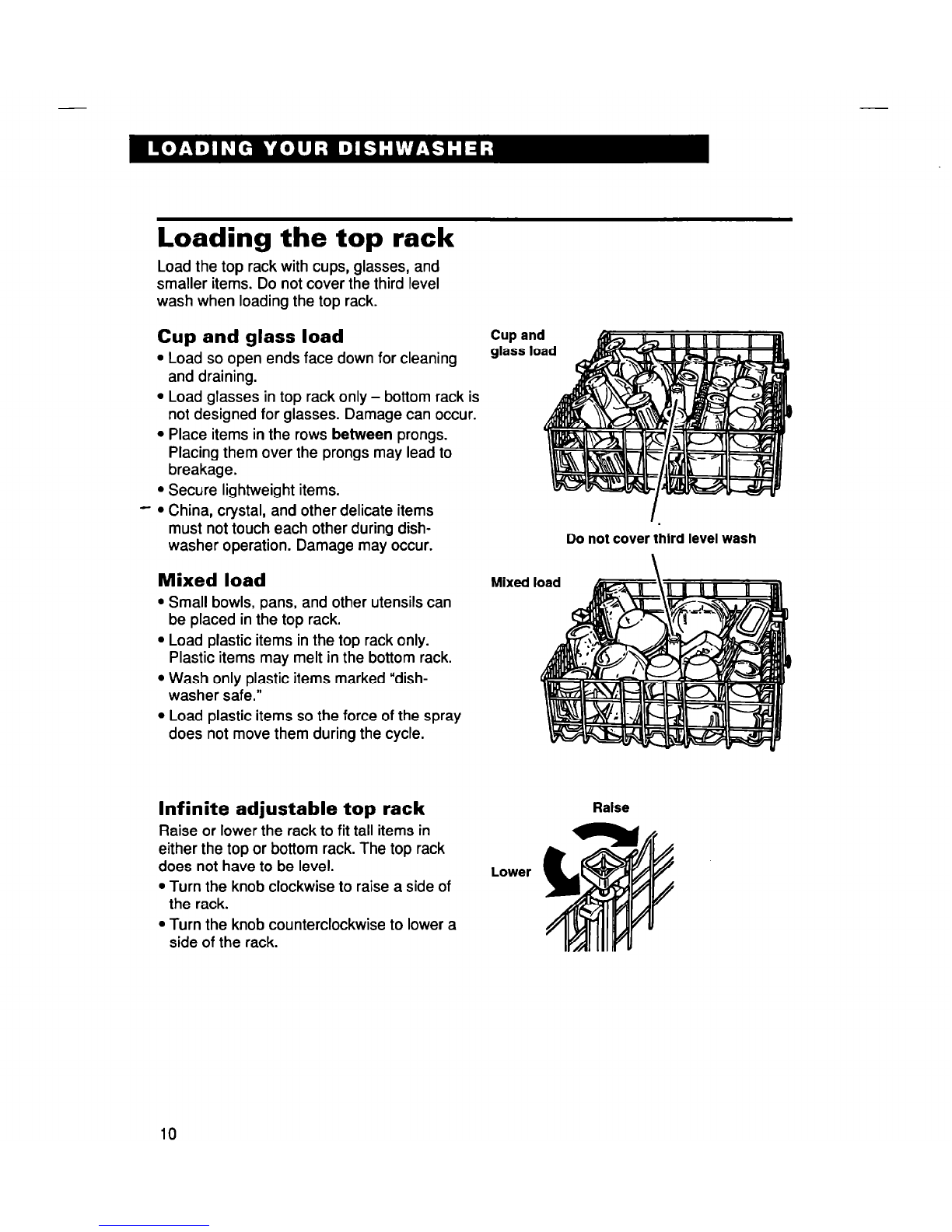

Loading the top rack
Load the top rack with cups, glasses, and
smaller items. Do not cover the third level
wash when loading the top rack.
Cup and glass load
l Load so open ends face down for cleaning
and draining.
l Load glasses in top rack only - bottom rack is
not designed for glasses. Damage can occur.
l Place items in the rows between prongs.
Placing them over the prongs may lead to
breakage.
l Secure lightweight items.
- l China, crystal, and other delicate items
must not touch each other during dish-
washer operation. Damage may occur.
Mixed load Mixed
l Small bowls, pans, and other utensils can
be placed in the top rack.
l Load plastic items in the top rack only.
Plastic items may melt in the bottom rack.
l Wash only plastic items marked “dish-
washer safe.”
l Load plastic items so the force of the spray
does not move them during the cycle.
Do not cover third level wash
Infinite adjustable top rack
Raise or lower the rack to fit tall items in
either the top or bottom rack. The top rack
does not have to be level.
l Turn the knob clockwise to raise a side of
the rack.
l Turn the knob counterclockwise to lower a
side of the rack.
Lower
Raise
10

Using the Dispensers
For best washing results, review the information below. It is important to use detergents and
rinse agents properly.
Using the detergent dispenser
. Use automatic dishwashlng detergent
only. Other detergents are too mild and
much too sudsy.
l Add detergent just before starting cycle.
l Store tightly closed detergent in a cool,
dry place. Fresh automatic dishwasher
detergent results in better cleaning.
Filling the detergent dispenser
- The detergent dispenser has one section
with a cover and one without. Push cover
down firmly until it latches. Detergent in the
open section falls into the dishwasher when
closing the door. The covered section opens
automatically for the main wash.
NOTE: It is normal for the cover to open
partially when dispensing detergent.
Coyer Cover, latch
Use only covered
sectlon for:
- Low Energy/
Chlna
Use both sectlons for:
- Normal
- Heavy
- Pots-N-Pans
How much detergent to use
l The amount of detergent to use depends
on the hardness of your water and the type
of detergent. If you use too little, dishes
won’t be clean. If you use too much in soft
water, glassware will etch.
l Different brands of dishwasher detergent
have different amounts of phosphorous for
softening water. If you have hard water
and use low phosphorous content deter-
gent (6.0% or less), you may need to use
more detergent or use a detergent with a
higher phosphorous content (8.7%).
l Find out your water’s hardness by asking
your local water department, water soft-
ener company, or county extension agent.
I
WATER TYPE WHERE TO FILL
Hard
8+ grains per gallon
136+ parts per million
Top of
3rd step
(3 tbs)
Medium Top of
5-7 grains per gallon 2nd step
85-l 19 parts per million (2 tbs)
Soft
O-4grains per gallon
O-68parts per million
Top of
1st step
(1 tbs)
Fill amounts shown are for standard
powdered detergent. Amounts may vary if
you use liquid or concentrated powdered
detergent. Follow manufacturer’s directions
when using liquid dishwasher detergent or
concentrated powdered detergent.
11

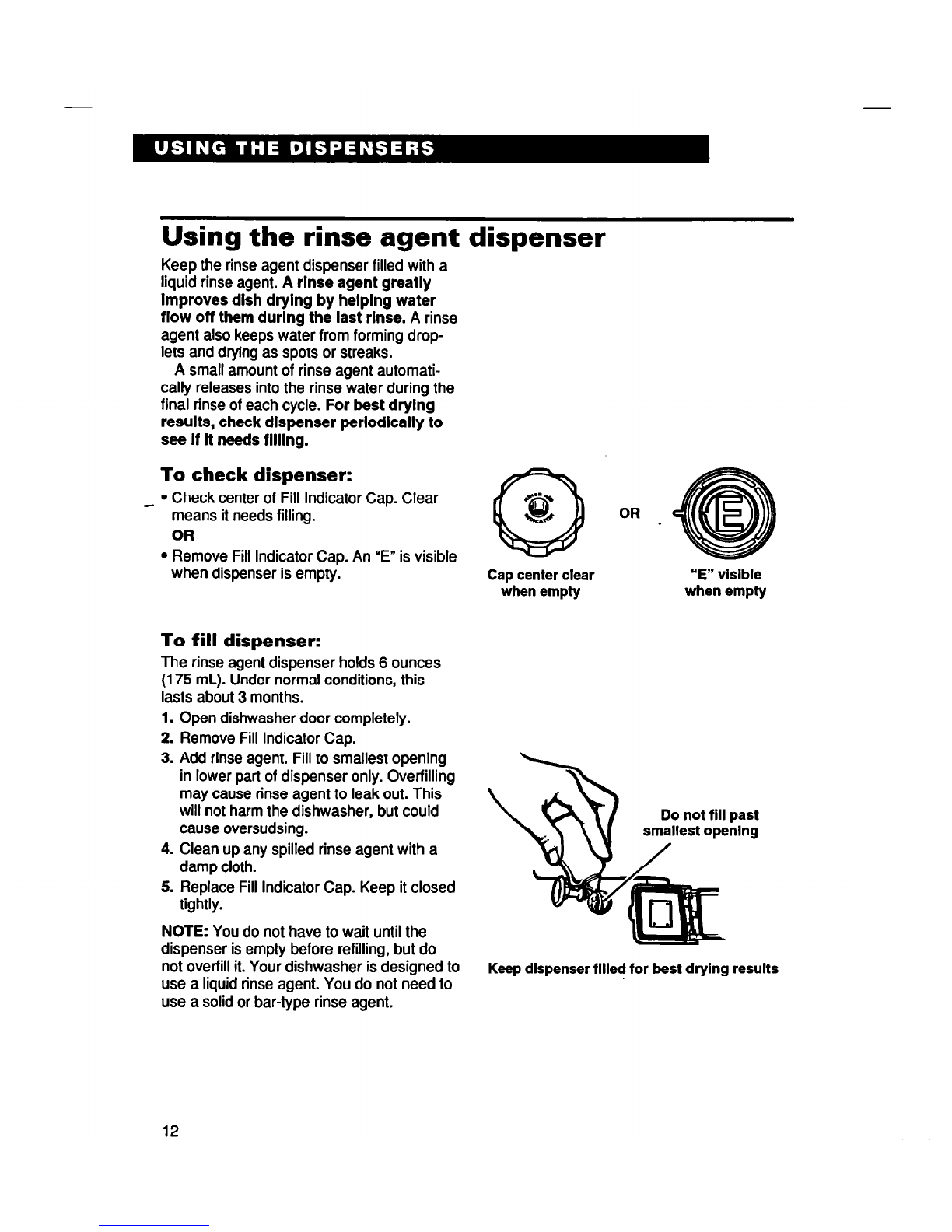

Using the rinse agent dispenser
Keep the rinse agent dispenser filled with a
liquid rinse agent. A rlnse agent greatly
Improves dish drylng by helplng water
flow off them during the last rlnse. A rinse
agent also keeps water from forming drop-
lets and drying as spots or streaks.
A small amount of rinse agent automati-
cally releases into the rinse water during the
final rinse of each cycle. For best drylng
results, check dispenser perlodlcally to
see if It needs filling.
To check dispenser:
_ l Check center of Fill Indicator Cap. Clear
means it needs filling.
OR
l Remove Fill Indicator Cap. An ‘E” is visible
when dispenser is empty.
To fill dispenser:
The rinse agent dispenser holds 6 ounces
(175 mL). Under normal conditions, this
lasts about 3 months.
1. Open dishwasher door completely.
2. Remove Fill Indicator Cap.
3. Add rinse agent. Fill to smallest opening
in lower part of dispenser only. Overfilling
may cause rinse agent to leak out. This
will not harm the dishwasher, but could
cause oversudsing.
4. Clean up any spilled rinse agent with a
damp cloth.
5. Replace Fill Indicator Cap. Keep it closed
tightly.
NOTE: You do not have to wait until the
dispenser is empty before refilling, but do
not overfill it. Your dishwasher is designed to
use a liquid rinse agent. You do not need to
use a solid or bar-type rinse agent.
Cap center clear “E” vlslble
when empty when empty
Do not fill past
smallest openlng
Keep dlspenser fllled for best drylng results
12

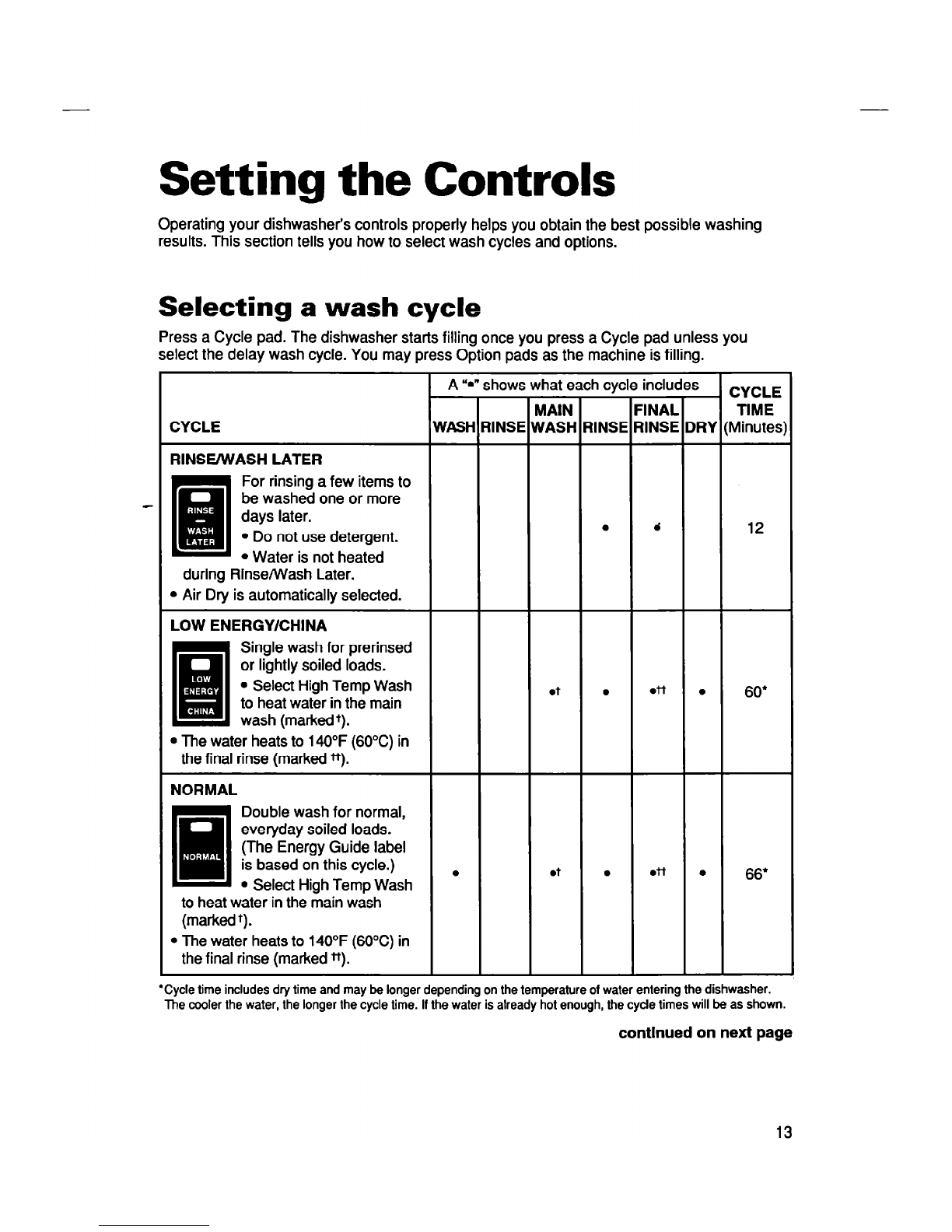

Setting the Controls
Operating your dishwasher’s controls properly helps you obtain the best possible washing
results. This section tells you how to select wash cycles and options.
Selecting a wash cycle
Press a Cycle pad. The dishwasher starts filling once you press a Cycle pad unless you
select the delay wash cycle. You may press Option pads as the machine is filling.
A “0” shows what each cycle includes CYCLE
MAIN FINAL TIME
CYCLE WASH RINSE WASH RINSE RINSE DRY (Minutes]
RINSE/WASH LATER
For rinsing a few items to
be washed one or more
days later.
l Do not use detergent.
l Water is not heated
. 4 12
during Rinse/Wash Later.
l Air Dry is automatically selected.
LOW ENERGY/CHINA
Single wash for prerinsed
or lightly soiled loads.
l Select High Temp Wash
to heat water in the main
wash (markedt).
l t . d-t .
60’
l The water heats to 140°F (60°C) in
the final rinse (marked f+).
NORMAL
BiiiiI
Double wash for normal,
everyday soiled loads.
.- (The Energy Guide label
is based on this cycle.)
l Select High Temp Wash
to heat water in the main wash
(markedr).
. et . d-f . 66’
l The water heats to 140°F (60%) in
the final rinse (marked n).
‘Cycle time includes dry time and may be longer depending on the temperature of water entering the dishwasher.
The cooler the water, the longer the cycle time. Ifthe water is already hot enough, the cycle times will be as shown.
contlnued on next page
13

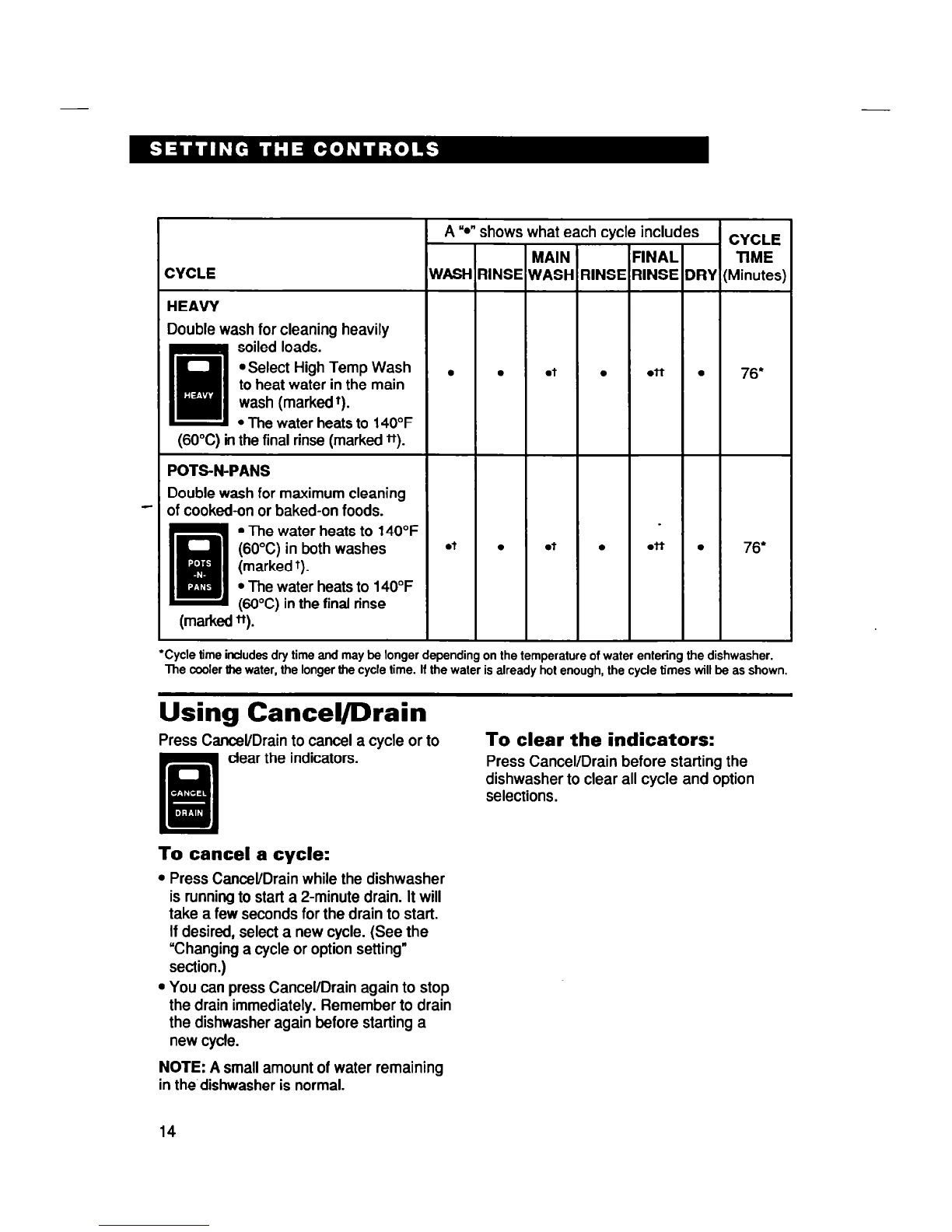

CYCLE
HEAW
A “0” shows what each cycle includes CYCLE
MAIN FINAL TIME
WASH RINSE WASH RINSE RINSE DRY (Minutes
Double wash for cleaning heavily
IiiiiI
soiled loads.
l Select High Temp Wash
to heat water in the main
wash (markedr).
l The water heats to 140°F
(60%) inthe final rinse (marked n).
. . et .
l tt .
76’
POTS-N-PANS
Double wash for maximum cleaning
of cooked-on or baked-on foods.
liiiii
l The water heats to 140°F
(60%) in both washes at .
l t . Ott .
76’
.. (markedr).
-
l The water heats to 140°F
(6O’C)in the final rinse
(markedfi).
‘Cycle time indudes dry time and may be longer depending on the temperature of water entering the dishwasher.
The cooler tha water, the longer the cycle time. Hthe waler is already hot enough, the cycle times will be as shown.
Using Cancel/Drain
Press Cancel/Drain to cancel a cycle or to
dear the indicators.
To clear the indicators:
Press Cancel/Drain before starting the
dishwasher to clear all cycle and option
selections.
To cancel a cycle:
l Press Cancel/Drain while the dishwasher
is running to start a 2-minute drain. It will
take a few seconds for the drain to start.
If desired, select a new cycle. (See the
“Changing a cycle or option setting”
section.)
l You can press Cancel/Drain again to stop
the drain immediately. Remember to drain
the dishwasher again before starting a
new cyde.
NOTE: A small amount of water remaining
in the dishwasher is normal.
14

Selecting cycle options
You can press an Option pad after the dish-
washer starts as long as the cycle has not
passed the point that the option is used.
For example, you can press Air Dry any
time before the Drying indicator glows.
After a wash cycle, the dishwasher
remembers the options used and uses the
same options in the next wash cycle unless
new options are selected or the Cancel/
Drain pad is pressed.
High Temp Wash
When High Temp Wash is selected, the dish-
Iii
washer heats the water during the
main wash of the Low Energy/
China, Normal, and Heavy cycles.
Heating the water helps improve
washing results. The Pots-N-Pans
cycle automatically uses High Temp Wash.
Air Dry
When Air Dry is selected, the air in the
iii
dishwasher is not heated during
the “dry” portion of a cycle. Using
. ,. Air Dry helps save energy, but
dishes take longer to dry and
some spotting can occur. Some
items (such as plastics) may need towel
drying. For best drying, use a liquid rinse
agent.
NOTE: The dishwasher automatically
heats the air in the dishwasher during the
“dry” portion of the cycle unless you select
Air Dry.
Changing a cycle or option setting
After the first minute
of a cycle
1. Press Cancel/Drain. A 2-minute drain
cycle starts. Wait for drain cycle to finish.
2. Press a new Cycle pad.
3. If desired, press one or more Option
pad(s).
4. Check the detergent dispensers. They
must be filled properly for the new cycle.
15

Adding an item during a cycle
You can add an additional item to the
dishwasher anytime before the main wash
portion of a cycle. See the “Selecting a wash
cycle” chart.
1. Lift up the door latch to stop the cycle.
Wait for spraying action to stop before
opening the door.
2. Open the door and add the item.
3. Close the door, but do not latch it. Wait
30 seconds for the air in the dishwasher
to warm up. Doing so reduces the
amount of moisture in the vent when
restarting a cycle.
- 4. Close the door firmly until it latches. The
dishwasher resumes the cycle.
Using the delay wash cycle
Use 4 Hour Delay Start to run the dish-
washer during off-peak hours to reduce
energy usage or to reduce daytime heat
buildup in your home.
1. Close door firmly until it latches.
2. Press 4 Hour Delay Start. The pad
3. Press a Cycle pad. The Delay Start
-
q
countdown begins when you
: - = = press the Cycle pad. If you
don’t press a Cycle pad within
30 seconds, the Delay Start
indicator turns off.
4. If desired, press one or more
Option pad(s).
The 4 Hour Delav Start indicator stays on
NOTES:
l Press 4 Hour Delay Start anytime during
the delay-period to start dish- -
washer immediately.
l Press Cancel/Drain to cancel the delay
iiii
cycle. The 4 Hour Delay Start
indicator will turn off. Press new
Cycle and Option pads.
I..
l You can add items to the load anytime
during the delay .countdown. After adding
items, close the door firmly until it latches.
The delay countdown will not continue if
the door is not latched.
16

Understanding the status indicators
Lock Out Rinsing
The Lock Out feature lets you lock out the
function of the control
pads. When uslng Lock
Out, you cannot start
the dlshwasher.
To use Lock Out:
l Press and hold Air Dry
(about 5 seconds)
To turn off Lock Out:
l Press and hold Air Dry (about 5 seconds)
until the Lock Out indicator turns off.
Washing
The Washing indicator nlows at the start of
the fist fill of any cycle
(except Rinse/Wash Later)
and remains on until the
end of the main wash.
Water Heating
The Water Heating indicator glows when-
.
The Rinsing indicator glows during the
dishes are not as dry as you expected when
using Air Dry, either allow longer drying
times (overnight) or do nbt use Air Dry.
Clean
The Clean indicator nlows at the end of a
cycle to show that the
load is clean. All other
indicators turn off. The
Clean indicator glows
until you press Cancel/Drain or any other
control pad.
ever water is heated
during a cycle.
17

Washing Special Items
If you have any doubts about washing a particular piece of dishware, check with the
manufacturer to see if it is dishwasher safe.
MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION
Alumlnum Yes High water temperature and detergents can pit
finish of anodized aluminum.
Bottles
and Cans No Wash bottles and cans by hand. Labels attached
with glue can loosen in your dishwasher. Loose
labels and glue can clog spray arms or the pump
and will reduce washina oerformance.
Cast Iron No Seasonina will be removed and iron will rust.
ChIna/
Stoneware Yes Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-
the-glaze patterns may fade. Gold leaf can
discolor or fade.
Crystal Yes Always check manufacturer’s recommendations
before washing. Some types of leaded crystal
can etch with repeated washings.
Gold No Gold-colored flatware will discolor.
Glass Yes Milk glass will yellow with repeated dishwasher
washing.
Hollow-
Handle
Knives
No Handles of some knives are attached to the
blade with adhesives which may loosen if
washed in the dishwasher.
Pewter No High water temperatures and detergent can
discolor or pit finish.
Dlsposable
Plastics No Cannot withstand high water temperatures and
detergents.
Plastics
Stalnless
Steel
Yes
Yes
Always check manufacturer’s recommendations
before washing. Plastics vary in their capacity to
withstand high water temperatures and deter-
gents. Load plastics in top rack only.
Run the Rinse/Wash Later cycle if not washing
immediately. Prolonged contact with food
containing salt, vinegar, milk products, or fruit
iuice can damaae finish.
Sterllng
Silver or
Sllver Plate
Yes Run the Rinse/Wash Later cycle if not washing
immediately. Prolonged contact with food con-
taining salt, acid, or sulfide (eggs, mayonnaise,
and seafood) can damage finish.
Tln No Can rust.
Wooden
Ware No Always check manufacturer’s recommendations
before washing. Untreated wood can warp,
crack, or lose its finish.

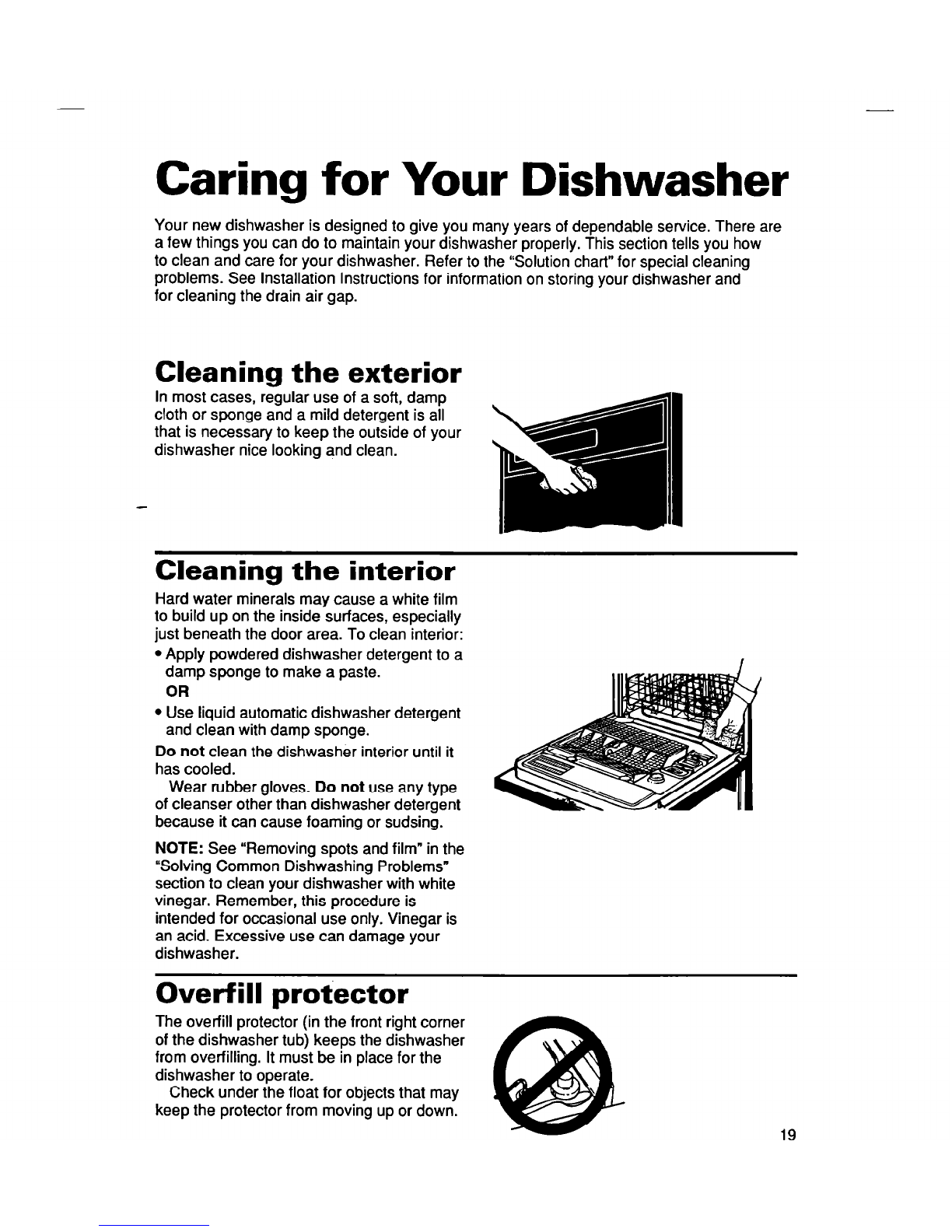

Caring for Your Dishwasher
Your new dishwasher is designed to give you many years of dependable service. There are
a few things you can do to maintain your dishwasher properly. This section tells you how
to clean and care for your dishwasher. Refer to the ‘Solution chart” for special cleaning
problems. See Installation Instructions for information on storing your dishwasher and
for cleaning the drain air gap.
Cleaning the exterior
Cleaning the interior
Hard water minerals may cause a white film
to build up on the inside surfaces, especially
just beneath the door area. To clean interior:
l Apply powdered dishwasher detergent to a
damp sponge to make a paste.
OR
l Use liquid automatic dishwasher detergent
and clean with damp sponge.
Do not clean the dishwasher interior until it
has cooled.
Wear rubber gloves. Do not use any type
of cleanser other than dishwasher detergent
because it can cause foaming or sudsing.
NOTE: See “Removing spots and film” in the
‘Solving Common Dishwashing Problems”
section to clean your dishwasher with white
vinegar. Remember, this procedure is
intended for occasional use only. Vinegar is
an acid. Excessive use can damage your
dishwasher.
Overfill protector
The overfill protector (in the front right corner
of the dishwasher tub) keeps the dishwasher
from overfilling. It must be in place for the
dishwasher to operate.
Check under the float for objects that may
keep the protector from moving up or down.

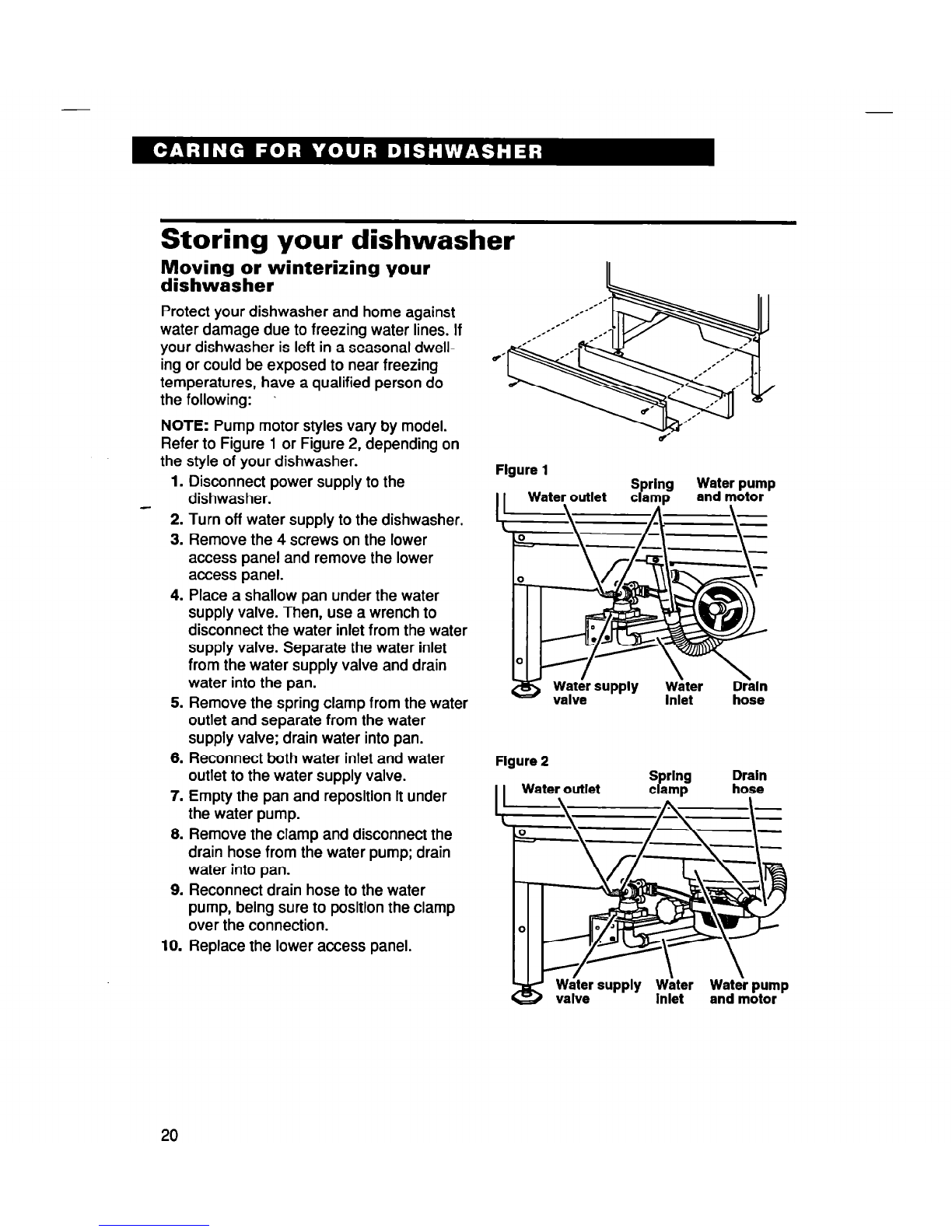

Storing your dishwasher
Moving or winterizing your
dishwasher
Protect your dishwasher and home against
water damage due to freezing water lines. If
your dishwasher is left in a seasonal dwell-
ing or could be exposed to near freezing
temperatures, have a qualified person do
the following:
NOTE: Pump motor styles vary by model.
Refer to Figure 1 or Figure 2, depending on
the style of your dishwasher.
1. Disconnect power supply to the
dishwasher.
- 2. Turn off water supply to the dishwasher.
3. Remove the 4 screws on the lower
access panel and remove the lower
access panel.
4. Place a shallow pan under the water
supply valve. Then, use a wrench to
disconnect the water inlet from the water
supply valve. Separate the water inlet
from the water supply valve and drain
water into the pan.
5. Remove the spring clamp from the water
outlet and separate from the water
supply valve; drain water into pan.
6. Reconnect both water inlet and water
outlet to the water supply valve.
7. Empty the pan and reposition it under
the water pump.
6. Remove the clamp and disconnect the
drain hose from the water pump; drain
water into pan.
9. Reconnect drain hose to the water
pump, being sure to position the clamp
over the connection.
10. Replace the lower access panel.
- valve inlet hose
Figure 2
20
