Whirlpool DWH B80 W Operating and installation instructions

SERVICE Whirlpool EMEA
Customer Services DWH B80 W
Service Information
Dishwasher integratable
DWH B80 W
8542 400 53007
Last Modification: 10/02/12
Creation Date: 06/07/08
Spare Part List 2
Exploded View 5
Technical Data 7
Circuit Diagram 10
Program Chart 12
Testprogram 13

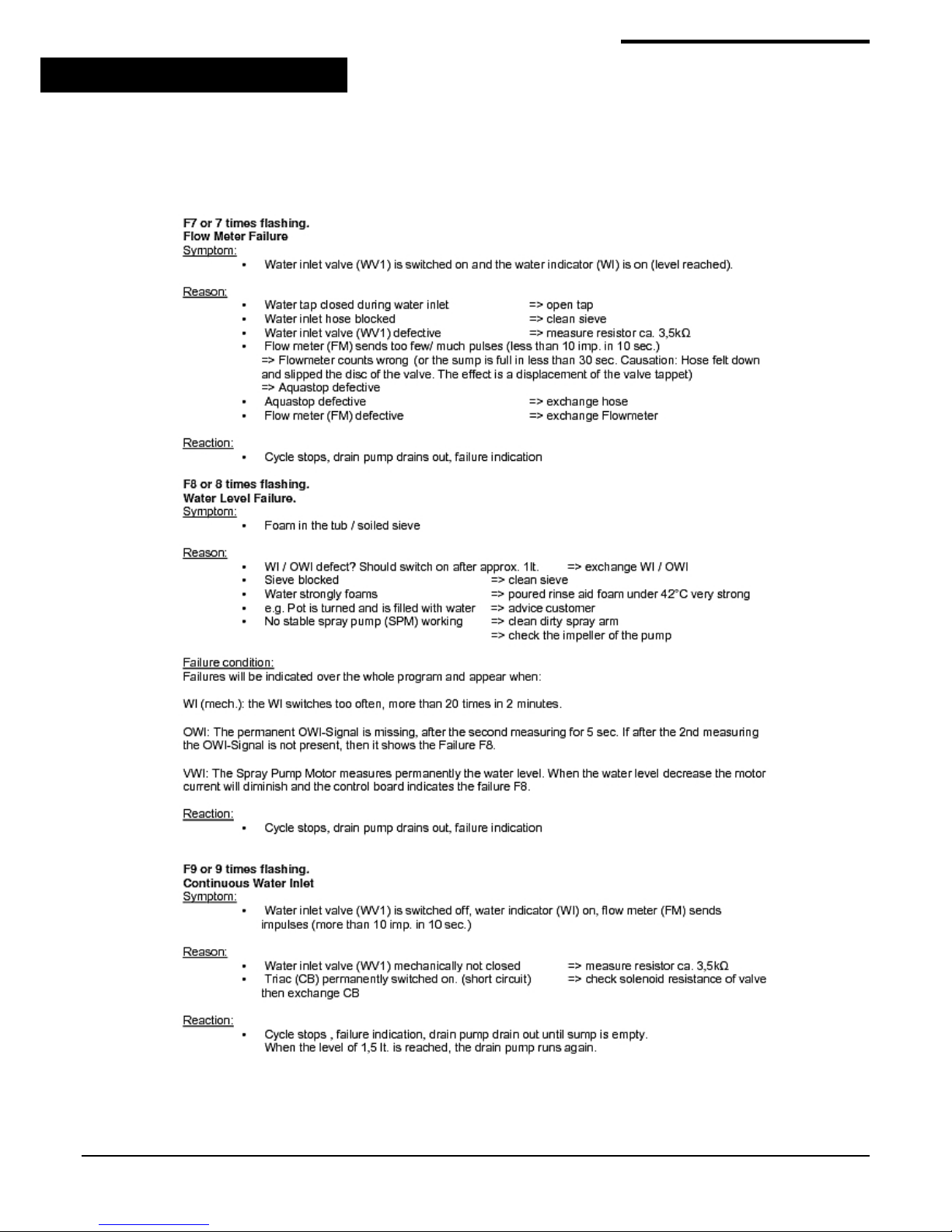

Error Codes 16
This document is only intended for qualified technicans who are aware of the
respective safety regulations.
Subject to modifications
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 2 of 20
Spare Part List
Pos 12NC Description
0030 4812 440 11455 Crossbar
0040 4812 440 11463 Drip tray assy
0041 4812 401 18402 Holder
0110 4812 505 18418 Foot long
0111 4812 528 98004 Shaft flexible
0112 4812 528 78032 Slide disc f.foot
0113 4812 535 98054 Gear
0114 4812 528 98001 Roll f.foot
0220 4812 440 11467 Side panel left metallic
0221 4812 440 11466 Side panel right metallic
0240 4812 440 11468 Panel rear
0401 4812 417 18774 Hinge left
0402 4812 417 18773 Hinge right
0440 4812 492 38362 Spring f.door
0470 4812 404 48746 Brake f.door
0471 4812 401 18707 Band, brake
0472 4812 404 68023 Hook
0530 4812 440 89138 Plinth w/o hole sheet
0650 4812 466 48051 Insulation without outcut
1030 4812 440 11465 Door outer
1050 4812 404 48611 Fastener door
1052 4812 505 68022 Clip
1053 4812 404 48633 Fastener
1054 4812 310 58116 Template FD
1200 4812 440 11578 Door inner
1201 4812 440 11454 Batten
1300 4812 417 58398 Tilt lock
1310 4812 401 18416 Hook lock
1753 4812 466 68867 Batten, grey
1910 4812 466 68564 Gasket door
1920 4812 466 68467 Gasket door lower
2410 4812 458 19027 Basket upper straight
2411 4812 458 19264 Holder cups right VBL10809
2413 4812 528 88113 Wheel basket upper 10809 4pcs.
2416 4812 310 18757 Holder glasses KIT wh; glasses
2416 4812 458 19355 Holder glasses wiring VBL9.8132
2416 4812 535 78095 Bearing wiring glassholder 10809
2418 4812 466 68848 Spacer VBL10809 2pcs.
2420 4812 310 28136 Basket lower KIT
2421 4812 528 88112 Wheel basket lower 10809 8pcs.
2435 4812 310 38897 Cutlery basket KIT soft 10809/10752
2436 4812 458 19296 Grille cutlery EBL 10809
2610 4812 462 79831 Rail telescope, inner
2611 4812 462 79768 Cap rail rear 10809
2612 4812 462 79902 Cap; rail front
2630 4819 520 18013 Ball cage cpl.
2631 4812 310 48026 Service kit balls plas
2650 4812 404 49712 Basket adjustm. VBL cpl.gr.10809
2652 4812 404 48934 Grip basket adj.VBLgr.10809
3010 4812 453 71765 Control panel
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 3 of 20
Pos 12NC Description
3220 4812 453 73459 Insert
3325 4812 410 28556 Cap f.beater
4000 4812 361 58434 Motor + Spray Pump 8255.A3143 CRIN perm.
4052 4812 530 29437 Connection Outlet ServiceKit CRIN
4200 4812 121 18277 Capacitor POINT 6247.A3034
4210 4812 121 18276 Interf.filter
4300 4812 360 18558 Pump draining - 72894 - RoHS
4301 4812 466 68689 Gasket
4500 4812 259 28892 Heating element 210-240V 2kW
4800 4812 321 28416 Cable harness; IC-FD (LS6)
4801 4812 321 28475 Cable UCB-DB
4803 4812 401 18418 Protector f.wiring
4900 4812 321 18051 Cable mains
4901 4812 321 28367 Strain relief
5030 4812 282 10183 Timer switch delay 3-6-9(DLB)
5210 4812 218 38584 Control board eSAM
5210 4812 218 38618 Control board UCB
5710 4812 281 28462 Valve
5830 4812 271 28556 Switch 327000000
6161 4812 271 58184 Contact,reed
6162 4812 310 19147 Contact reed
6210 4812 276 18493 Switch on/off
6230 4812 271 38489 Microswitch
6330 4812 271 38488 Microswitch door
6800 4812 418 68371 Combidosage
6801 4812 466 68495 Gasket
6803 4812 440 11209 rinse aid clip; combidos. 442300.XX
6811 4812 466 68497 Gasket SK 5244.04.04
6812 4812 440 18975 Flap
6820 4812 466 68496 Gasket
6910 4812 282 68051 Resistor NTC
7010 4819 530 28926 Hose inlet 2.5 m (Eltek)
7011 4812 310 18302 Yoke
7012 4822 480 50159 Sieve inlet
7102 4812 310 38896 Threaded ring gr.10809
7103 4819 466 69562 Gasket set
7140 4812 462 79921 Threaded cap
7160 4812 418 68377 Reg.dosage
7161 4812 466 68475 Gasket
7162 4812 462 78994 Cover reg.dos. gr.10809
7171 4812 462 79793 Stopper
7211 4812 360 68689 Spray arm; lower. cpl. sa
7220 4812 360 68687 Spray arm; upper sa
7222 4812 360 68693 Spray arm; 2nd level cpl. saph
7230 4812 360 68691 Douche ceiling
7261 4812 530 29331 Tube; assembly cpl.
7262 4812 505 18208 Nut
7431 4812 530 28102 Hose inlet
7510 4812 418 18338 Water collector ,NTC WI
7550 4812 530 29119 Bend
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 4 of 20
Pos 12NC Description
7552 4812 530 48148 Tray,leak
7560 4812 360 58479 Floater
7610 4812 480 58122 Sieve fine
7612 4812 418 18337 Cover sieve gr.10809
7613 4812 418 18341 Cover
7614 4812 530 58141 O-Ring
7630 4812 480 58363 Sieve
7810 4812 530 29113 Hose,draining
7813 4812 281 28417 Flap non-return
7834 4812 530 28904 Hose 10x3x265+10
7836 4812 530 28824 Hose 10,3X3X245
7910 4812 532 68099 Gasket
7914 4812 466 68503 Gasket
7915 4812 466 68504 Gasket
9001 4812 310 28351 Fastener set n.sh. (IKEA)
9010 4812 401 18709 Clamp hose S10-16/9-C7W1
9011 4812 401 18708 Strap 050,0
9012 4812 401 18705 Strap 033,1
9013 4812 401 18806 Strap 47,0 mm
9015 4812 401 48588 Strap 028,6
9018 4812 401 18711 Clamp hose 25-29
9022 4812 404 78241 Holder
9101 4812 502 18394 Screw 3,5x17-H
9102 4812 502 18363 Screw 4,0x12-H
9103 4812 502 18527 Screw 4x15 T20; 4x15 T20
9104 4812 502 18741 Screw M3,5x8-T15M
9105 4812 502 18739 Screw 3,5x8 Tx15
9107 4812 502 18397 Screw INOX A2 M 5x14 TX20
9108 4812 502 18389 Screw 5x20 T20
9109 4812 401 18706 Screw 2,5x15-H
9641 4812 466 68573 Gasket housing upper, gris
9931 4812 466 78388 Foil protection
9932 4812 404 48753 Key foot
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 5 of 20

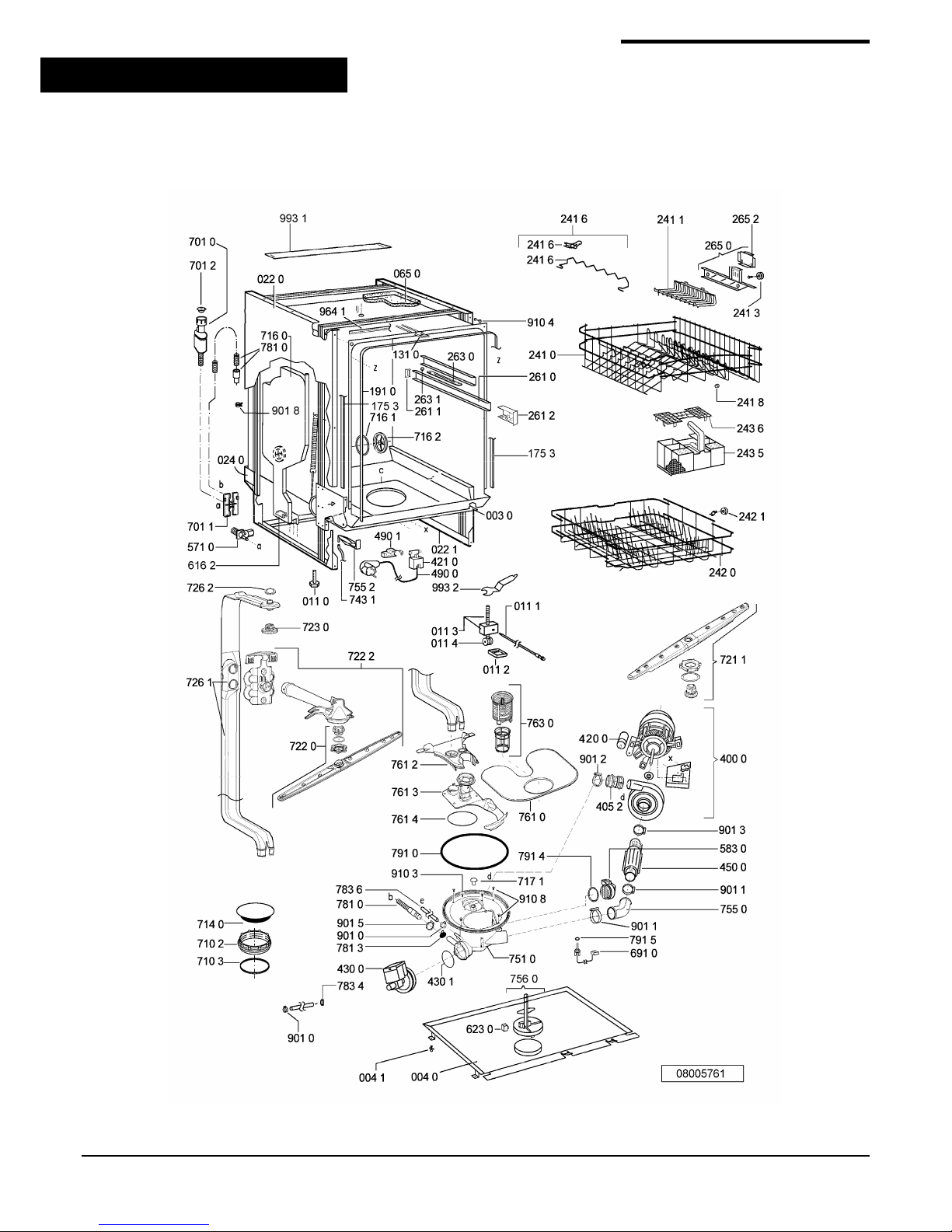

Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 6 of 20
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 7 of 20
Technical Data
Dimensions + Weight
Product dimensions
Height ........................................................................................82.0 -87.0cm
min. .................................................................................................82,0
max. ............................................................................................87.0 cm
Width ...............................................................................................59.7 cm
Depth ...............................................................................................55.5 cm
Weight ................................................................................................50 kg
Wooden door for Full Door appliances
Thickness .......................................................................................16- 20mm
Width .........................................................................................592 -595 mm
Height ........................................................................................620 -718 mm
Weight .......................................................................................... 2.5 - 6.5 kg
Max. stick out over loweredge ofappliance door .....................................................92 mm
Height of plinth
min. ..............................................................................................93mm
Programs
..........................Permanent washing system ..........................Program ID ..........................5C
Successionof programs ..........................................................P1a- P3a- P5k- P11a- P7b
see program diagram
Referenceprogram .........................................................................................P5k
Water Level
........................................................................................................in normal program
Measuring the level
Remove the coarse sieve, put in a measuring meter into the sump, measure the hight of the water level.
Water Volume Level
Regeneration 0.3 l 15 mm
Back rinse 3x 1.0 l 60 mm
Prewash 4.8 l 120 mm
Main wash 4.2 l 118 mm
Intermediate rinse 1 4.2 l 118 mm
Intermediate rinse 2 4.2 l 118 mm
Clear rinse 4.2 l 118 mm
Safety/ overflow 8.5 l 141 mm
Spray arm
Rotations
Spray arm lower ................................................................................30- 40RPM
Spray arm upper ...............................................................................30- 40RPM
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 8 of 20
Electrical base data
Voltage .....................................................................................220 -230 V/ 50 Hz
Total power ............................................................................................. 2.2 kW
Fuse ......................................................................................................10A
Motor
Voltage .....................................................................................220 -240 V/ 50 Hz
Power Consumption .....................................................................................130 W
HI .........................................................................................................62 Ω
HA ......................................................................................................74.8Ω
Capacitor ..................................................................................................4 µF
Heating element
Voltage ......................................................................................220 -230 V/ 50Hz
Power Consumption ..............................................................................1.87/ 2.04kW
Heating resistances ..................................... (T=20°C) ..................................... 24,5 Ω
Heating speed ..................................................................................... ~2,0 °C/min
Temperature onsurface ................................................................................~115 °C
Safetythermostat self reset (Temperature ofwater) .......................................................85°C
Fuse ....................................................................................................206 °C
Drain pump motor
Voltage .....................................................................................220 -240 V/ 50 Hz
Power Consumption ...................................................................................... 30 W
Resistance ...............................................................................................146 Ω
Single electric water inlet valve
Voltage ..............................................................................................220/ 240V
Frequency ............................................................................................50/60 Hz
Resistance .............................................................................................3.76 kΩ
Inletpressure .......................................................................................0.3- 10bar
Coil of dispenser
Voltage ..............................................................................................220/ 240V
Frequency ............................................................................................50/60 Hz
Resistance ..............................................................................................1.3 kΩ
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 9 of 20
NTC
20 °C 58.1 kΩ
25 °C 47.1 kΩ
30 °C 38.2 kΩ
40 °C 25.4 kΩ
50 °C 17.2 kΩ
60 °C 11.8 kΩ
70 °C 8.3 kΩ
80 °C 6 kΩ
85 °C 4 kΩ
Regeneration valve
Voltage ..............................................................................................220/ 240V
Frequency ............................................................................................50/60 Hz
Resistance .............................................................................................3.13 kΩ
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 10 of 20
Circuit Diagram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 11 of 20
Legend
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 12 of 20
Program Chart
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 13 of 20

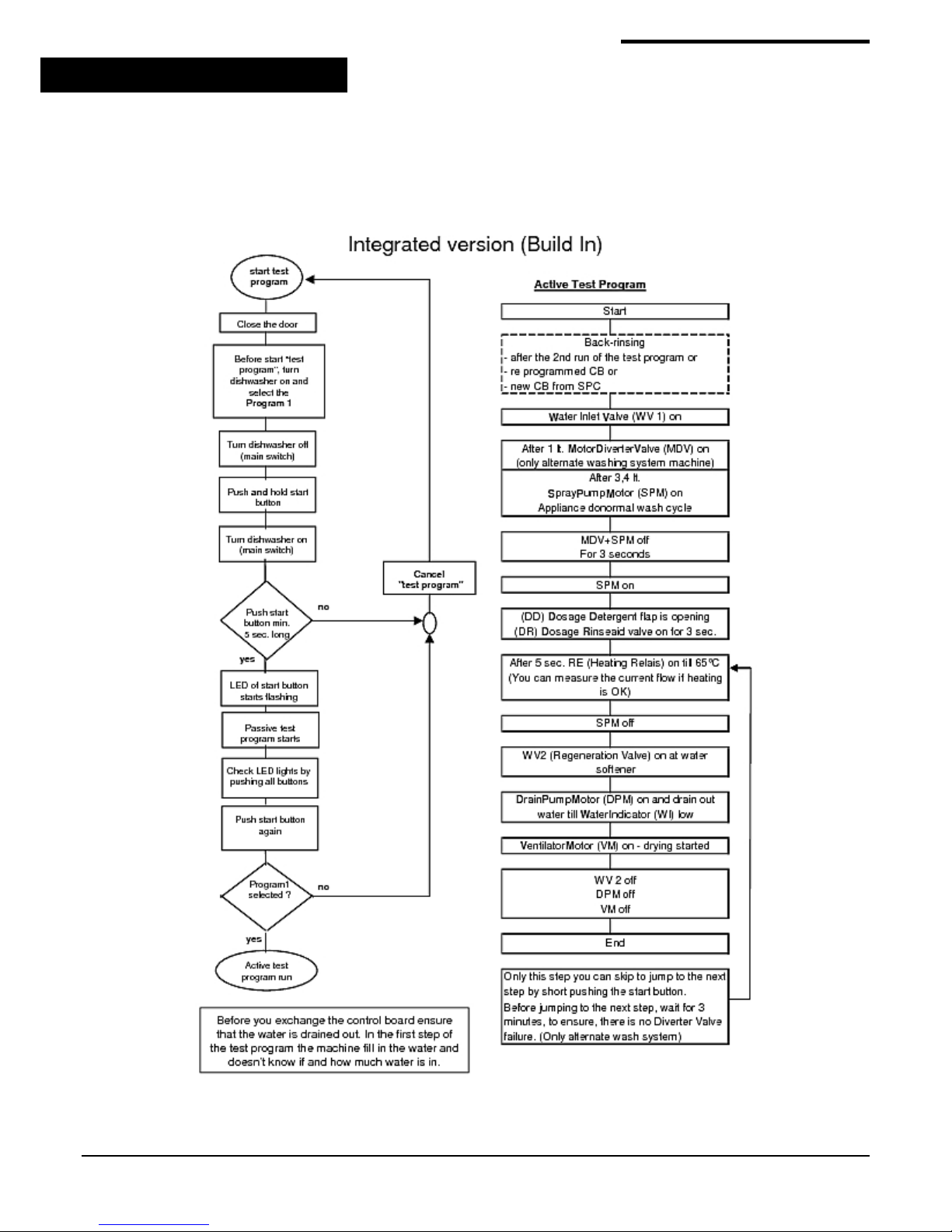

Testprogram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 14 of 20
Testprogram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 15 of 20
Testprogram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 16 of 20
Error Codes
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 17 of 20
Error Codes
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 18 of 20
Error Codes
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 19 of 20
Error Codes
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8542 400 53007, 10/02/12
page 20 of 20
Error Codes
© Whirlpool EMEA www.scc-service.com
