Whirlpool AMW 696 Operating and maintenance manual

1
AMW 696
INSTALLATION, QUICK START INSTALLATIE, SNEL AAN DE SLAG
INSTALLATION, HURTIG START
INSTALLASJON, HURTIG START
ASENNUS, PIKAOPAS
ÜZEMBE HELYEZÉS, RÖVID
KEZDÉSI ÚTMUTATÓ
INSTALACE, NÁVOD VE ZKRATCE
INSTALACJA, SKRÓCONA
INSTRUKCJA OBSŁUGI
, 
 
INŠTALÁCIA, ÚVODNÁ PRÍRUČKA
INSTALLATION, DÉMARRAGE RAPIDE
AUFSTELLUNG, KURZANLEITUNG
INSTALLAZIONE, GUIDA RAPIDA
INICIO RÁPIDO PARA LA INSTALACIÓN
INSTALAÇÃO, GUIA DE INICIAÇÃO RÁPIDA
INSTALLATION, SNABBGUIDE

2
INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulsory. The
manufacturer will accept no responsibility for
injury to persons, animals or damage to ob-
jects arising from the non-observance of this
requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a damaged
mains cord or plug, if it is not working proper-
ly, or if it has been damaged or dropped. Do
not immerse the mains cord or plug in water.
Keep the cord away from hot surfaces. Electri-
cal shock, fire or other hazards may result.
ENSURE the oven cavity is empty before mount-
ing.
CHECK THAT THE VOLTAGE on the rating plate corre-
sponds to the voltage in your home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.
DONOT USE EXTENSION CORD:
IFTHE POWER SUPPLY CORD IS TOO SHORT, have
a qualified electrician or serviceman in-
stall an outlet near the appliance.

3

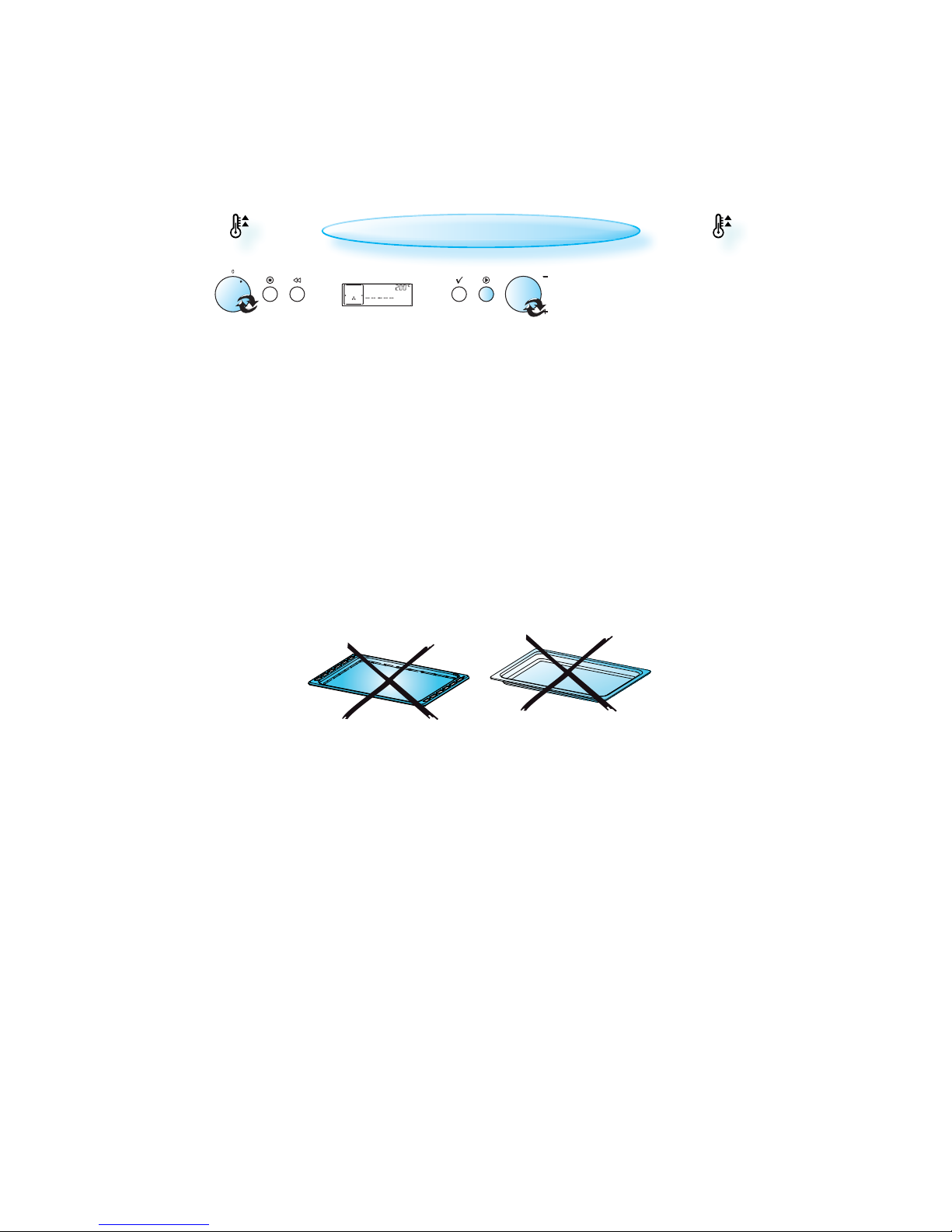

THE OVEN NEEDS TO BE FULLY HEAT-
ED (250 °C)BEFORE FIRST USE (cook-
ing food).
PLEASE USE THE FOLLOWING STEPS to
carry out this proceedure.
BEFORE FIRST USE
TURN THE MULTIFUNCTION KNOB until you find the Pre Heat function.
TURN THE ADJUST KNOB to set the temperature to 250°C.
PRESS THE START BUTTON.



WHEN THE TEMPERATURE IS REACHED the oven keeps the set temperature
for 10 minutes before switching off.
LET THE OVEN COOL TO ROOM TEMPERATURE.
WIPE AND CLEAN THE OVEN cavity with a damp kitchen paper.

4
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in or
near the oven. Fumes can create a fire hazard
or explosion.
DONOT USE YOUR MICROWAVE oven for drying tex-
tiles, paper, spices, herbs, wood, flowers, fruit
or other combustible materials. Fire could re-
sult.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, especially
when using paper, plastic or other combusti-
ble materials in the cooking process. Paper can
char or burn and some plastics can melt if used
when heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE
OR SMOKE IS OBSERVED, keep oven door closed and
turn the oven off. Disconnect the power cord
or shut off power at the fuse or circuit break-
er panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the appliance under
adult supervision and after adequate instructions
have been given, so that the child is able to use
the appliance in a safe way and understands the
hazards of improper use.
THIS APPLIANCE IS NOT INTENDED FOR use by persons
(including children) with reduced physical,
sensory or mental capabilities, unless used under
the supervision of a person responsible for their
safety.
WARNING!
ACCESSIBLE PARTS MAY BECOME HOT during use, young
children should be kept away.
DONOT USE YOUR MICROWAVE oven for
heating anything in airtight sealed
containers. The pressure increas-
es and may cause damage when
opening or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must be reg-
ularly inspected for damage. If these areas are
damaged the appliance should not be operat-
ed until it has been repaired by a trained service
technician.
DONOT USE corrosive chemicals or vapors in this
appliance. This type of oven is specifically de-
signed to heat or cook food. It is not designed
for industrial or laboratory use.

5
GENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
IMPORTANT PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent burns,
when touching containers, oven parts, and
pan after cooking.
DONOT USE THE CAVITY for any storage purposes.
PUSH  PUSH KNOBS
THE KNOBS OF THIS OVEN are aligned
with the buttons on the pan-
el, at delivery.
The knobs will slide out if pushed
and their various functions can be
accessed. It is not necessary to have
them petruding from the panel
during operation.
Simply push them back into the
panel when you are done with the
setting and continue to operate the oven.

6
ACCESSORIES
GENERAL
ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.

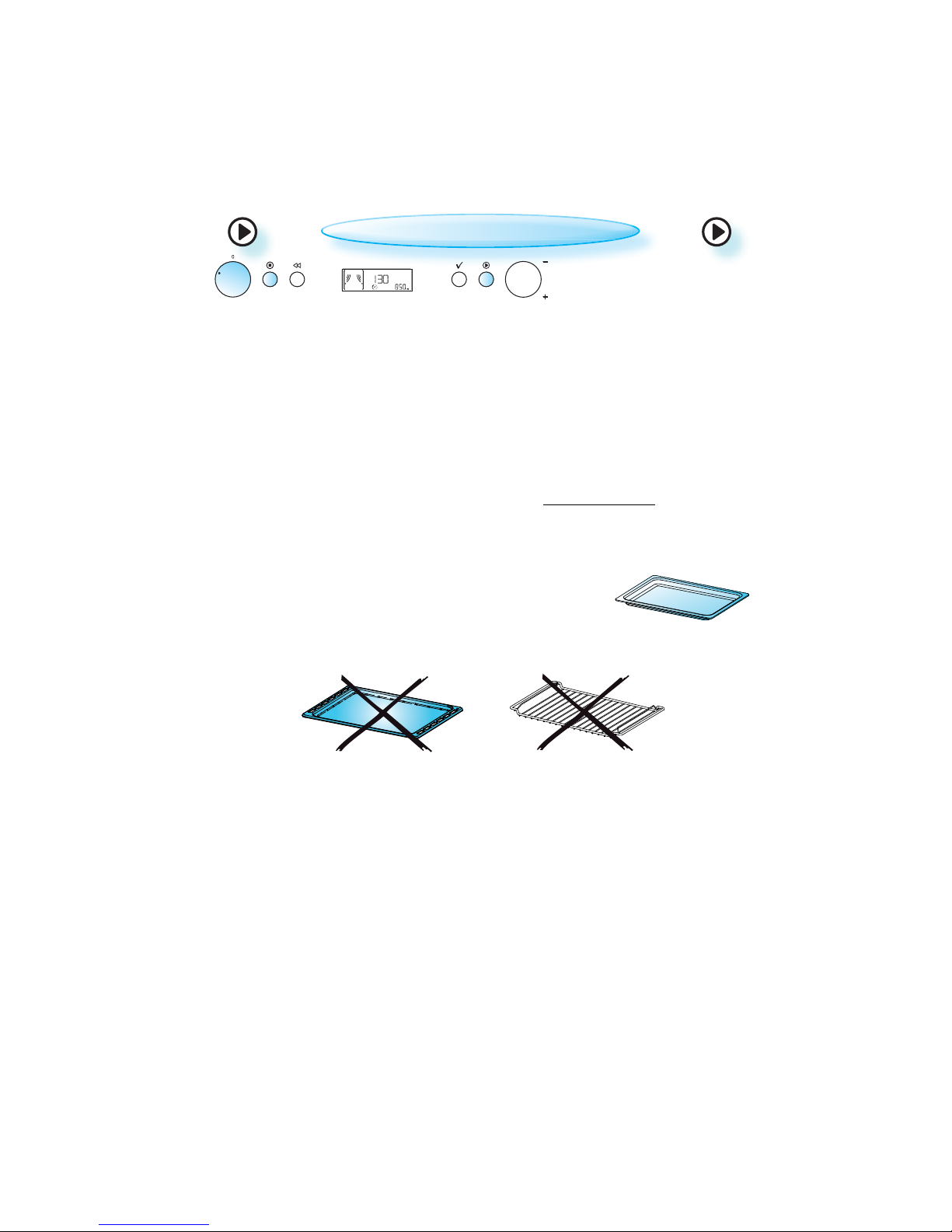

BAKING PLATE
USE THE BAKING PLATE when
cooking or baking
with Convention-
al Bake.
NEVER USE IT in combination with microwaves.

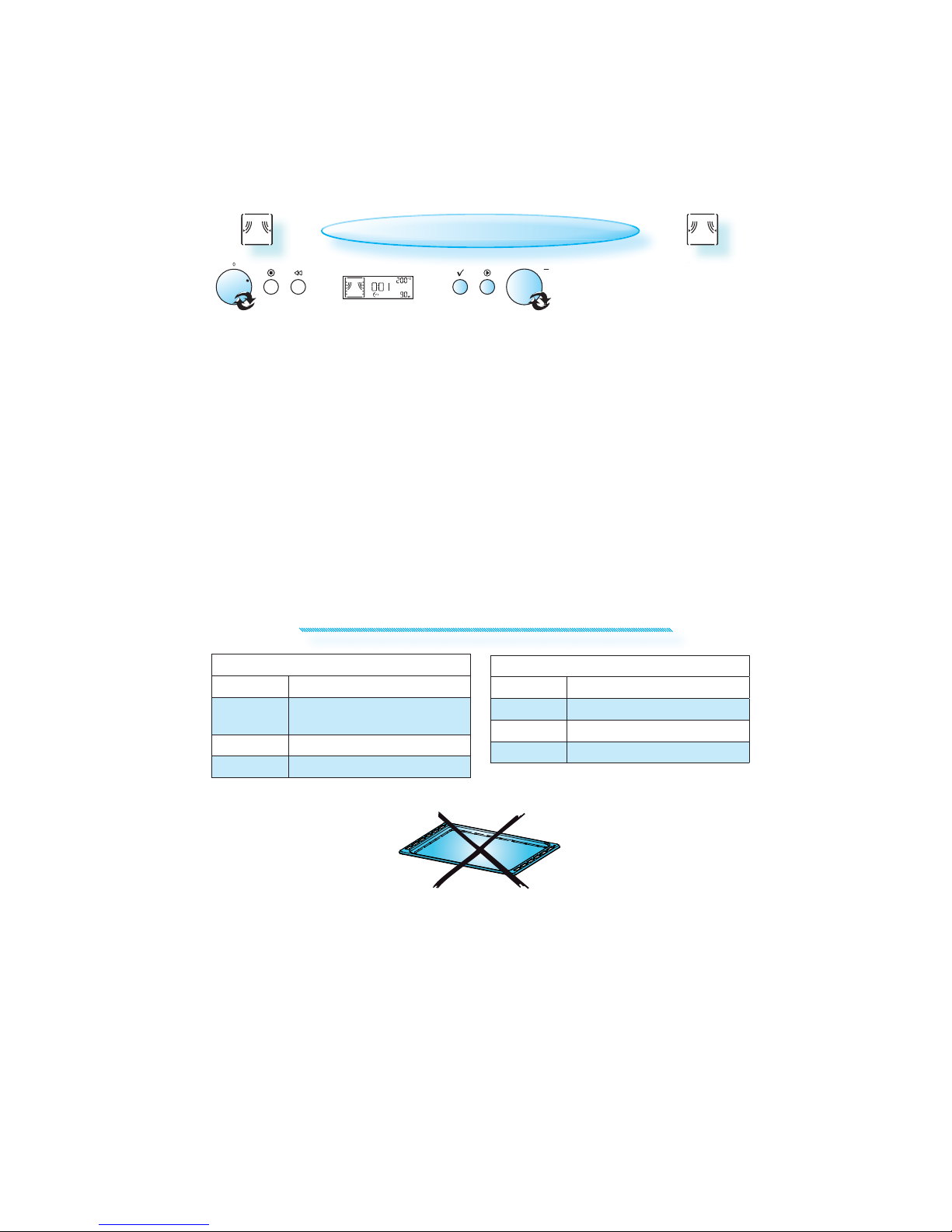

GLASS DRIP TRAY
USE THE GLASS DRIP TRAY beneath the wire shelf
when using the Grill or Grill
and Microwaves in
combination. It may
also be used as a cooking
utensil or as a bak-
ing plate when
using Convention-
al Bake combined with Mi-
crowaves.
THE GLASS DRIP TRAY is used
to collect the dripping
juices and food par-
ticles that otherwise would stain
and soil the interior of the oven.
ALWAYS USE THE GLASS DRIP TRAY when using mi-
crowaves. It shall be placed on shelf level 1.
Avoid placing vessels directly on the oven bot-
tom.

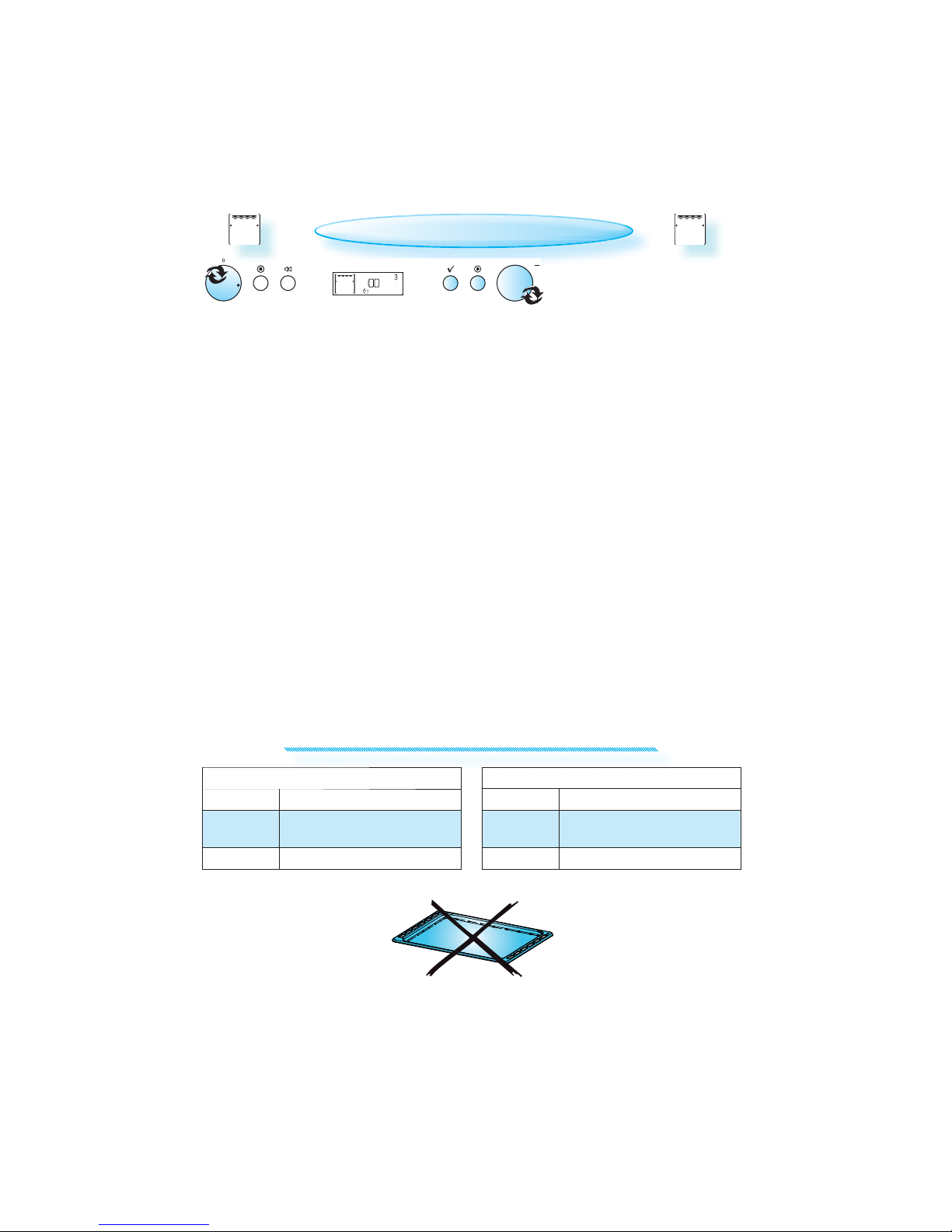

WIRE SHELF
USE THE WIRE SHELF with all
cooking methods, ex-
cept when using the
Microwave function only.
The Wire shelf allows
hot air circulation around
the food and can be placed with the high
end up or down to adjust the distance from
the grill element. When you put food directly
on the Wire shelf, place the Glass drip tray un-
der it. It may also be used with Conventional
Bake . It may also be used when you combine
these functions with Microwaves.
LEVEL INDICATOR
WHEN SOME FUNCTIONS ARE SELECTED, the level in-
dicators will flash and lit. First the levels possi-
ble to use with this function flashes briefly and
then the recommended lev-
el to use with the function
is lit. In this example the lev-
el 1 & 3 would flash briefly
leaving the recommended
level 2 lit.




7
DONENESS (AUTO FUNCTIONS ONLY)
DONENESS IS AVAILABLE in most of the auto func-
tions. You have the possibility to personally
control the end result through the Adjust do-
neness feature. This feature enables you to
achieve higher or lower end temperature com-
pared to the default standard setting.
WHEN USING one of these functions the oven
chooses the default standard setting. This set-
ting normally gives you the best result. But if
the food you heated became too warm to eat
at once, you can easily adjust this before you
use that function the next time. NOTE:
THE DONENESS can only be set or altered during
the first 20 seconds of operation.

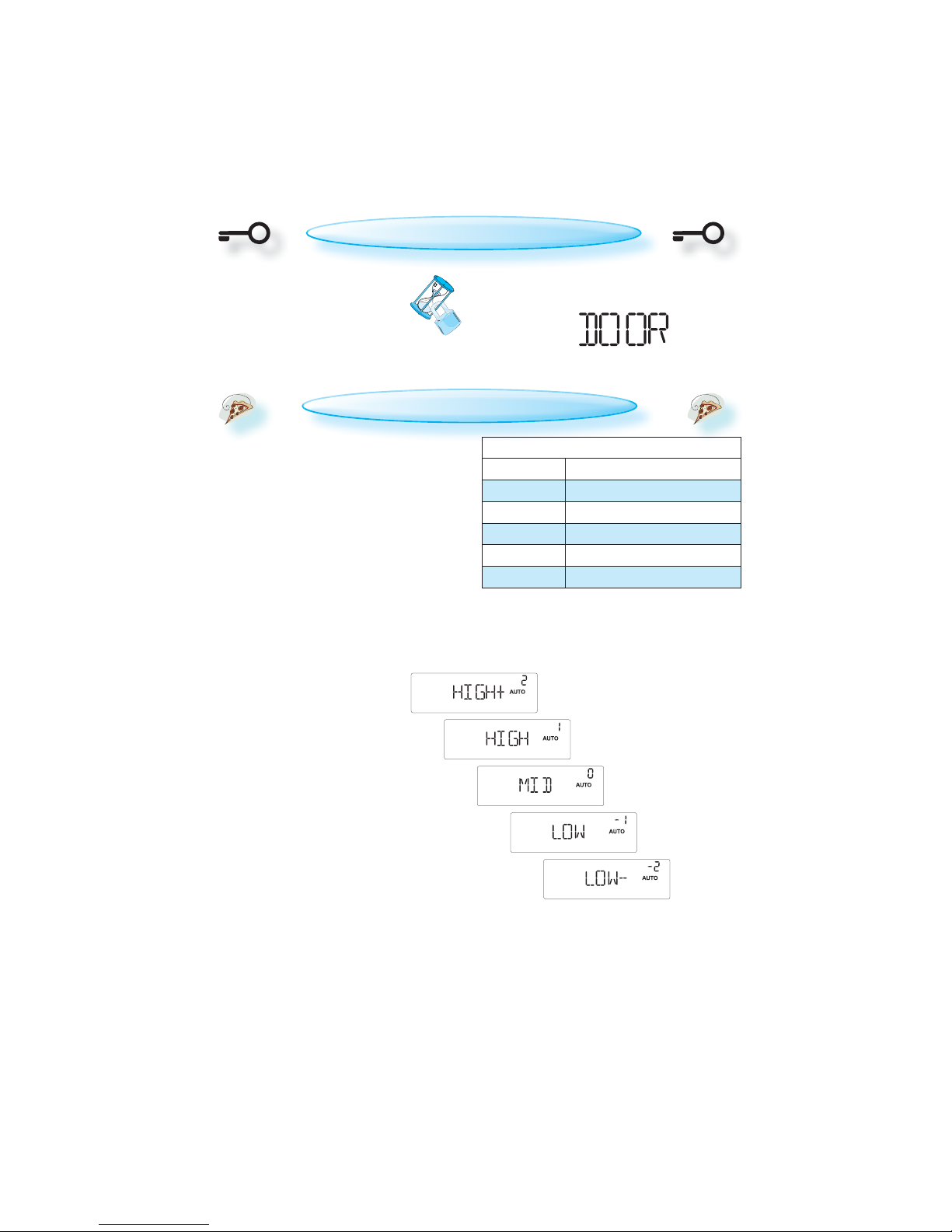

THIS IS DONE BY SELECTING ADONENESS LEVEL with the
adjust knob right after you have pressed the
Start button.
START PROTECTION / KEY LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in
“stand by” when the 24-hour clock is
displayed or if the clock has not been
set, when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Else the display will show “DOOR”.
DONENESS
LEVEL EFFECT
HIGH +2 YIELDS HIGHEST END TEMPERATURE
HIGH +1 YIELDS HIGHER END TEMPERATURE
MED 0 DEFAULT STANDARD SETTING
LOW -1 YIELDS LOWER END TEMPERATURE
LOW -2 YIELDS LOWEST END TEMPERATURE

8
FOOD


TRYPOUL (100g -
(100g - 2.0Kg)MEAT
WHEN USING THE AUTO FUNCTIONS the oven needs
to know which food class it is to use to reach
proper results. The word FOOD and a food
class digit is displayed when you are choosing
a food class with the adjust knob.
COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven may carry
out a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
WHEN USING SOME OF THE AUTO FUNCTIONS the oven
may stop (depending on the chosen program
and food class) and prompt you to STIR FOOD
or TURN FOOD.
STIR OR TURN FOOD (AUTO FUNCTIONS ONLY)
FOOD CLASSES (AUTO FUNCTIONS ONLY)
TOCONTINUE COOKING:
Open the door.
Stir or turn the food.
Close the door and restart by pressing the
Start button.
FOR FOOD NOT LISTED IN THE TABLES and if the
weight is lesser or greater than recommended
weights, you should follow the procedure for
”Cook & Reheat with microwaves”.
THE FOOD CLASSES are listed in the tables placed
with each Auto function.

9

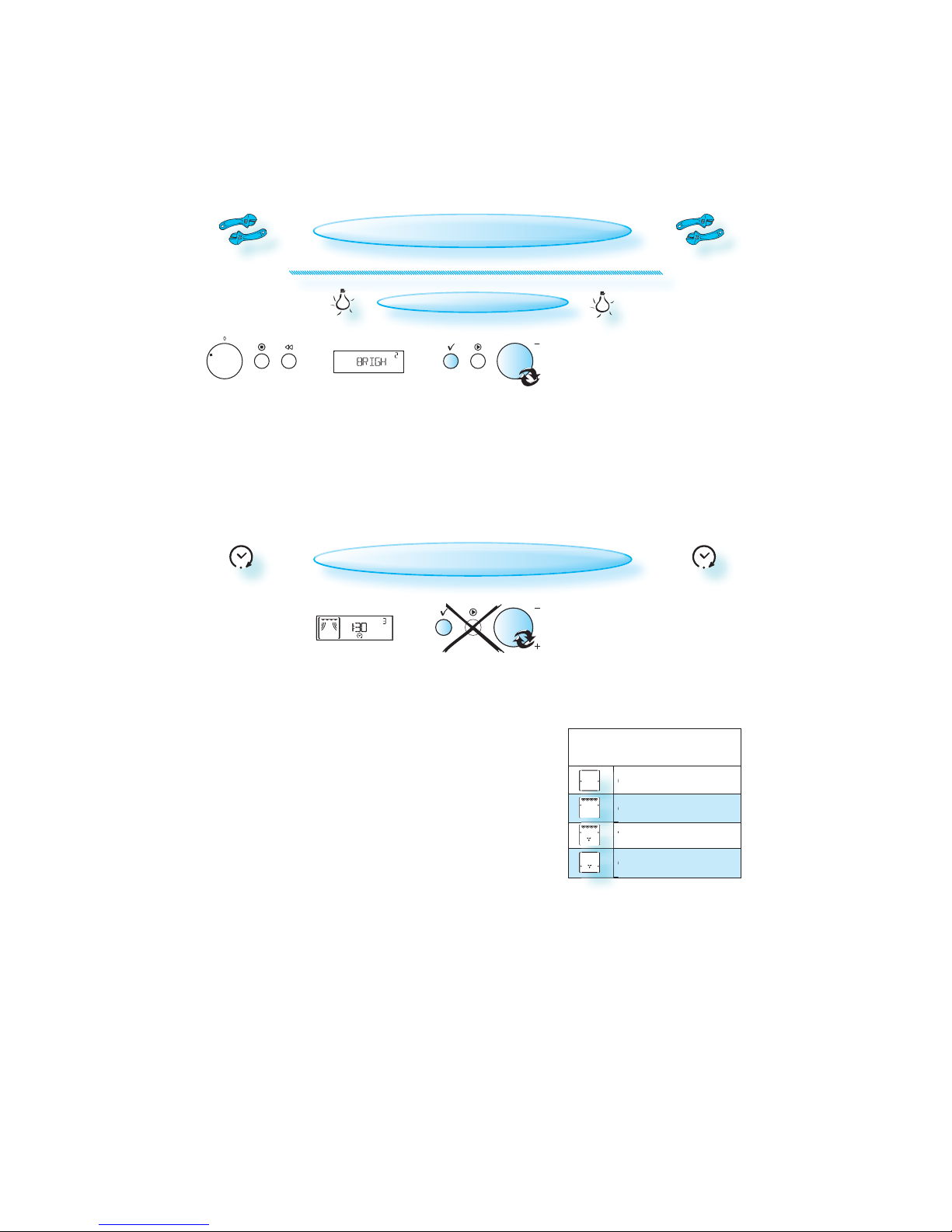

CLOCK SETTING
WHEN THE APPLIANCE IS FIRST PLUGGED
IN it will ask you to set the Clock.
AFTER APOWER FAILURE the Clock will
flash and needs to be reset.
YOUR OVEN HAS a number of func-
tions which can be adjusted to
your personal taste.
CHANGING SETTINGS
TURN THE MULTIFUNCTION KNOB until Settingis shown.
USE THE ADJUST KNOB to choose one of the followingsettings to adjust.
Clock
Sound
ECO
Brightness
PRESS THE STOP BUTTON TO EXIT the settings function and save
all your changes when you are done.
PRESS THE OK BUTTON.(The left right hand digits (hours)flicker).
TURN THE ADJUST KNOB to set the hours.
PRESS THE OK BUTTON. (The two right hand digits (minutes)flicker).
TURN THE ADJUST KNOB to set the minutes.
PRESS THE OK BUTTON again to confirm the change.
THE CLOCK IS SET AND IN OPERATION.
IFYOU WISH TO REMOVE THE CLOCK from the display once it has been set,
simply enter the clock settingmode again and press the Stop but-
ton while the digits flicker.






10


SOUNDSETTING
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to turn the buzzer ON or OFF.
PRESS THE OK BUTTON again to confirm the change.
ECO
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to turn the ECOsettingON or OFF.
PRESS THE OK BUTTON again to confirm the change.
WHEN ECO IS ON, the display will automatically turn off after a while
to save energy.It will automatically light up again when a button is
pressed or the door is opened.
WHEN OFF IS SET, the display will not turn off and the 24 h clock will
always be visible.
CHANGING SETTINGS



11
USE THIS FUNCTION when you need
to have the cookingfinished at
a specific time.The oven needs
to know the desired cookingdu-
ration and the time of day when
the food should be ready.
DELAYEDSTART
FOLLOW THE SETTING PROCEDURE for the function you wish to
use and stop when the cookingtime has been set.
Do not press start button.
PRESS THE OK BUTTON.You will automatically be taken to the
next setting.
TURN THE ADJUST KNOB to set the CookingEnd Time.
PRESS THE OK BUTTON again.Delayed Start is automatically
activated and the oven starts when the time left to “ready
time” equals the cookingtime set.
DELAYEDSTART WORKS WITH
THESE FUNCTIONS
CONVENTIONAL
GRILL
TURBO GRILL
CONVECTION BAKE
CHANGING SETTINGS
BRIGHTNESS
PRESS THE OK BUTTON.
TURN THE ADJUST KNOB to set the level of brightness suitable to your preference.
PRESS THE OK BUTTON again to confirm your selection.
C
G
G
T
T
C
C






12
USE THIS FUNCTION when you need a
kitchen timer to measure time for
various purposes such as cook-
ingeggs or lettingthe dough rise
before bakingetc.This oven also
has a special function for dough
proving(see Dough Proving).

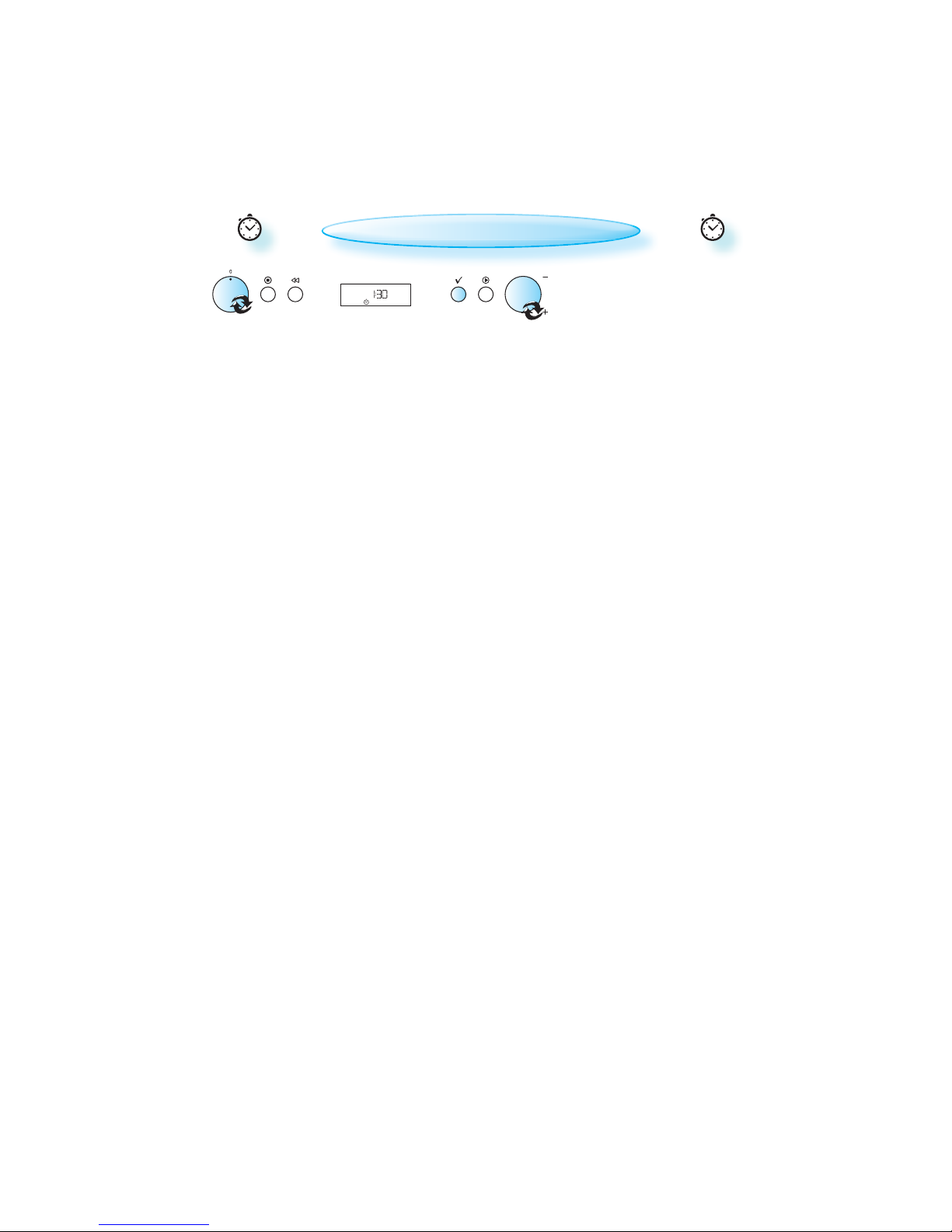

KITCHEN TIMER
TURN THE MULTIFUNCTION KNOB to the zero position.The clock
is displayed if it has been set, else the display will be
blank.
PRESS THE OK BUTTON to invoke settingmode.
TURN THE ADJUST KNOB TO SET THE TIME to measure.
THE KITCHEN TIMER AUTOMATICALLY STARTS the countdown after 3 seconds.
Press the Start button to if you wish to start sooner.
ANACOUSTIC SIGNAL will be heard when the timer has finished to
count down.
PRESSING THE STOP BUTTON before the timer has finished will reset the
timer to zero.




13
COOK & REHEAT WITH MICROWAVES
TURN THE MULTIFUNCTION KNOB until you find the microwave function.
TURN THE ADJUST KNOB to set the microwave power level.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
TURN THE ADJUST KNOB to set the cookingtime.
PRESS THE START BUTTON.
POWER LEVEL
ONCE THE COOKING PROCESS HAS BEEN STARTED:
The time can easily be increased in 30-second steps by pressingthe
Start button.Each press increases the time with 30seconds.
You may also alter the time by turningthe adjust knob to in-
crease or decrease the time.
BYPRESSING THE << BUTTON you may return to where you can
change cookingtime and power level.Both can be altered
with the adjust knob duringcooking.
USE THIS FUNCTION for normal cook-
ingand reheating, such as vege-
tables, fish, potatoes and meat.
ALWAYS USE THE GLASS DRIP TRAY when usingthis function.



MICROWAVES ONLY
POWER SUGGESTEDUSE:
850 W REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water
content.If the food contains egg or cream choose a lower power.
750 W COOKING OF VEGETABLES, meat etc.
650 W COOKING OF fish.
500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-
ingcasseroles.
350 W SIMMERING STEWS, meltingbutter & chocolate.
160 W DEFROSTING. Softeningbutter, cheeses.
90 W SOFTENING Ice cream
0 W WHEN USING the Timer only.

14
ALWAYS USE THE GLASS DRIP TRAY when usingthis function.
JET START
TURN THE MULTIFUNCTION KNOB until you find the microwave function.
PRESS THE STOP BUTTON.
PRESS THE START BUTTON.
IFYOU NORMALLY KEEP the multifunction knob in the microwave position and the
oven is in standby mode when you begin, you may go directly to step 3.
THIS FUNCTION IS USED for quick re-
heatingof food with a high water
content such as; clear soups, cof-
fee or tea.
THIS FUNCTION AUTOMATICALLY STARTS with maximum microwave power
level and the cookingtime set to 30seconds.Each additional press
increases the time with 30seconds.You may also alter the time by
turningthe adjust knob to increase or decrease the time after the
function has started.



15
MANUAL DEFROST
FOLLOW THE PROCEDURE for “Cook & Reheat with
microwaves” and choose power level 160W
when defrostingmanually.
CHECK AND INSPECT THE FOOD REGULARLY. Experi-
ence will give you the times needed for vari-
ous amounts.
TURN LARGE JOINTS halfway through the defrost-
ingprocess.
FROZEN FOOD IN PLASTIC BAGS, plastic films or card-
board packages can be placed directly in the
oven as longas the package has no met-
al parts (e.g. metal twist ties).
THE SHAPE OF THE PACKAGE alters the de-
frostingtime.Shallow packets defrost
more quickly than a deep block.
SEPARATE PIECES as they begin to defrost.
Individual slices defrost more easily.
SHIELD AREAS OF FOOD with small
pieces of aluminum foil if
they start to become warm
(e.g. chicken legs and wing
tips).
BOILED FOOD, STEWS AND MEAT SAUCES defrost
better if stirred duringdefrostingtime.
WHEN DEFROSTING it is better to under-
thaw the food slightly and allow the
process to finish duringstandingtime.
STANDING TIME AFTER DEFROSTING ALWAYS IMPROVES
the result since the temperature
will then be evenly distribut-
ed throughout the food.

16
USE THIS FUNCTION TO PREHEAT the
empty oven.
PREHEATING is always done with
the oven empty just like you
would in a conventional oven be-
fore cookingor baking.
PREHEAT
TURN THE MULTIFUNCTION KNOB to the preheat position.
TURN THE ADJUST KNOB to set the temperature.
PRESS THE START BUTTON.
DONOT PLACE FOOD BEFORE OR DURING preheatingin the oven.It will be
burned from the intense heat.
DURING THE HEATING PROCESS the current oven temperature is displayed
and risinguntil the set temperature is reached.
ONCE THE HEATING PROCESS has been started the temperature can easily
be adjusted by turningthe adjust knob.
WHEN THE SET TEMPERATURE IS REACHED The oven then keeps the set tem-
perature for 10minutes before switchingoff.Duringthis time, it is
waitingfor you to, insert food and choose a Forced Air, Pastry or
Conventional function to begin cooking.




17
CONVENTIONAL
TURN THE MULTIFUNCTION KNOB to the Conventional position.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting(default temperature is displayed).
TURN THE ADJUST KNOB to set the temperature.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting(default cookingtime is displayed).
TURN THE ADJUST KNOB to set the cookingtime.
PRESS THE START BUTTON.
NOTE: If time is not set, this function will run until you open the door
or press the Stop button.If you don’t interrupt this function it will
automatically shut off after 4 hours.
WHEN COOKING FOOD IN DISHES, place the dishes on the Wire shelf.
USE BAKING PLATE for rolls and pizzas.
USE THIS FUNCTION just as you use
your traditional oven when bak-
ingcookies, cakes, rolls and me-
ringues.



you use


18
CONVENTIONAL + MW
TURN THE MULTIFUNCTION KNOB to the conventional position.
TURN THE ADJUST KNOB to the conventional + MW position.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting(default temperature is displayed).
TURN THE ADJUST KNOB to set the temperature.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting(default power level is displayed).
TURN THE ADJUST KNOB to set the microwave power level.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting(default cookingtime is displayed).
TURN THE ADJUST KNOB to set the cookingtime.
PRESS THE START BUTTON.
USE THIS FUNCTION to bake fruit
cakes, tin bread and frozen con-
venience food.



CONVENTIONAL + MW
POWER SUGGESTEDUSE:
350 W COOKING frozen convenience
food
160 W COOKING fruit cake
90 W BAKING Cakes, bread
SHELF LEVEL
LEVEL SUGGESTEDUSE:
3F
ROZEN CONVENIENCE FOOD
2FRUIT CAKE
1CAKES, BREAD
ke fruit

19
GRILL
TURN THE MULTIFUNCTION KNOB to the Grill position.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken
to the next setting(default shelf level is displayed).
TURN THE ADJUST KNOB to set the Grill level (1-5).
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken
to the next setting.
TURN THE ADJUST KNOB to set the cookingtime.
PRESS THE START BUTTON.
USE THIS FUNCTION TO quickly give
a pleasant brown surface to the
food.
NOTE: If time is not set, this function will run until you open the door
or press the Stop button.If you don’t interrupt this function it will
automatically shut off after 4 hours.
DONOT LEAVE THE OVEN DOOR OPEN for longperiods when the Grill is in
operation, as this will cause a drop in temperature.
FOR FOOD LIKE cheese, toast, steaks and sausages.Preheat the grill el-
ement for 3 min.for best result.Place food on the wire shelf and
place the wire shelf in the Glass Drip Tray to collect the juices.
ENSURE THAT THE UTENSILS used are heat resistant and ovenproof before
grilling with them.
DONOT USE PLASTIC utensils when grilling. They will melt. Items of wood or
paper are not suitable either.
GRILL LEVEL
LEVEL SUGGESTEDUSE:
4-5 COOKING fish steaks, thin slices of
meat and poultry.
1-3 COLORING foods like gratin
SHELF LEVEL
LEVEL SUGGESTEDUSE:
3THIN SLICES OF MEAT, SAUSAGES &
CHEESE TOAST.
1 - 2 CHICKEN PIECES, VEGETABLES.
ickly give





20
SHELF LEVEL
LEVEL SUGGESTEDUSE:
3F
ISH STEAKS
2CHICKEN PIECES
1ROASTS
GRILL + MW
POWER SUGGESTEDUSE:
350 W COOKING Gratins & Poultry .
160 W COOKING chicken pieces & vege-
tables.
90 W COOKING fish steaks.
GRILL + MW
TURN THE MULTIFUNCTION KNOB to the Grill position.
TURN THE ADJUST KNOB to the Grill + MW position.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
TURN THE ADJUST KNOB to set the Grill power level.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
TURN THE ADJUST KNOB to set the Microwave power level.
PRESS THE OK BUTTON to confirm your selection.You will automatically be taken to the next
setting.
TURN THE ADJUST KNOB to set the cookingtime.
PRESS THE START BUTTON.
THE MAX. POSSIBLE microwave power level when usingthe Grill + MW
is limited to a factory-preset level.
PLACE FOOD on the wire shelf or on the glas drip tray.
USE THIS FUNCTION TO cook such
food as Lasagne, Fish and Pota-
toe Gratins.








