Whirlpool AVM 512 User manual

SERVICE Whirlpool Europe
Customer Services
Model AVM 512
Version 8538 512 62291 Page
Introduction safety 2
Technical data 3
Text/Legend 4 - 8

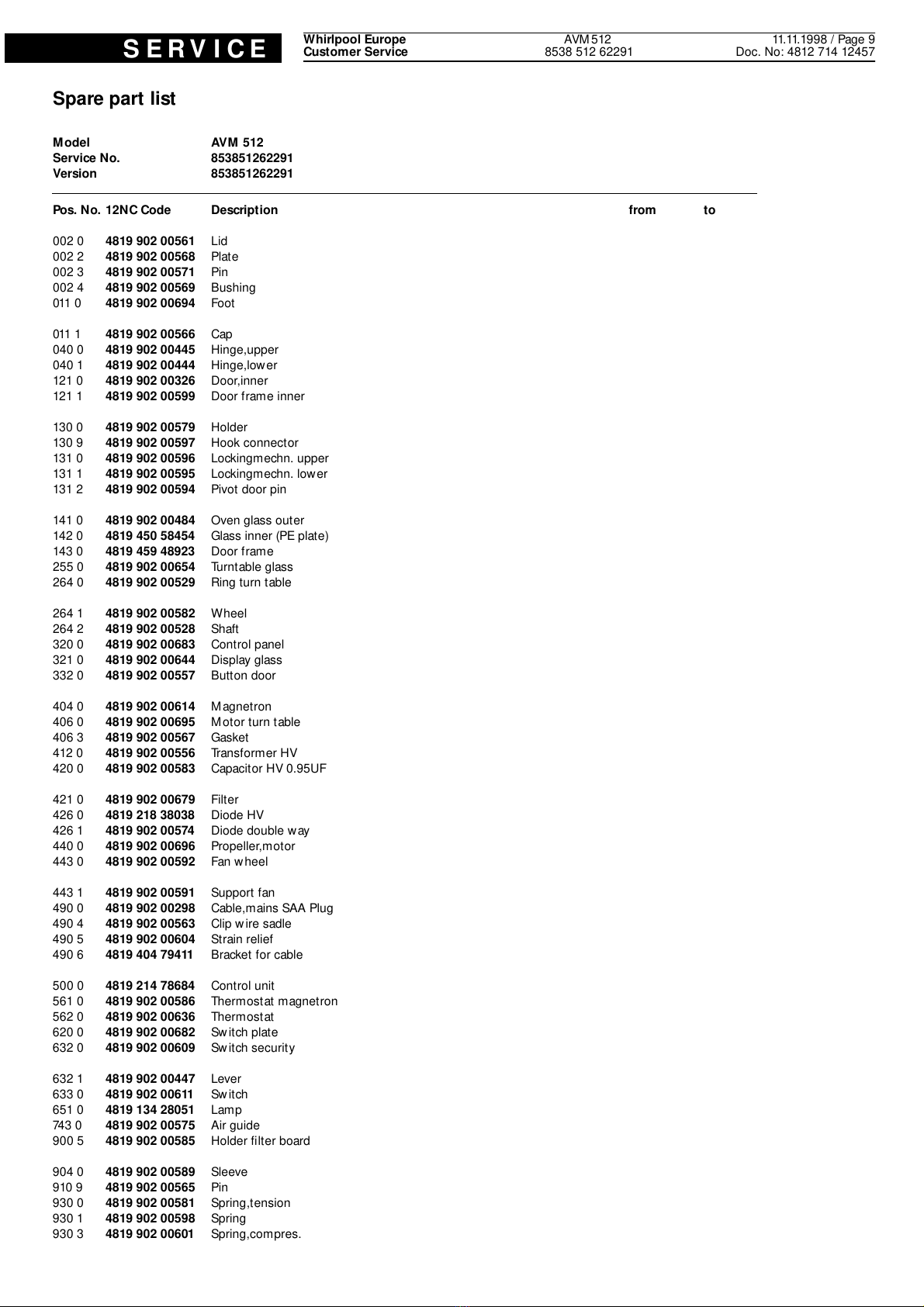

Spare part list 9
Exploded view 10
Wiring diagram 11
Service Manual
M icrow ave oven
AVM 512
AVM 512
This documentation is only intended for qualified technicians who are aw are of the respec-
tive safety regulations.
Date: 11.11.1998 Subject to modification
Document-No.: 4812 714 12457
https://appliancetechmanuals.com

SERVICE
11.11.1998 / Page 2 AVM 512 Whirlpool Europe
Doc. No: 4812 714 12457 8538 512 62291 Customer Service

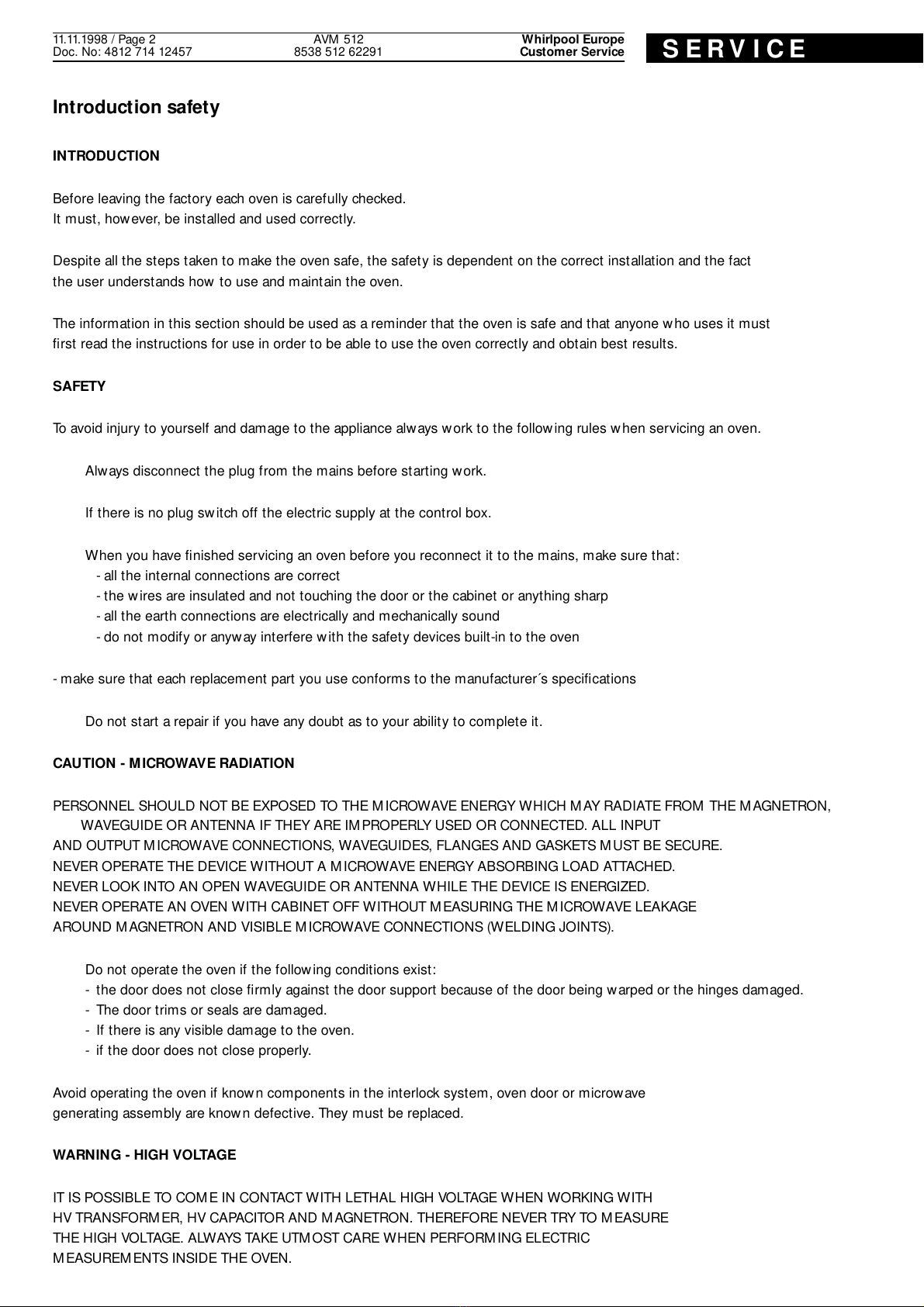

Introduction safety
INTRODUCTION
Before leaving the factory each oven is carefully checked.
It must, however, be installed and used correctly.
Despite all the steps taken to make the oven safe, the safety is dependent on the correct installation and the fact
the user understands how to use and maintain the oven.
The information in this section should be used as a reminder that the oven is safe and that anyone w ho uses it must
first read the instructions for use in order to be able to use the oven correctly and obtain best results.
SAFETY
To avoid injury to yourself and damage to the appliance alw ays w ork to the follow ing rules w hen servicing an oven.
Alw ays disconnect the plug from the mains before starting work.
If there is no plug sw itch off the electric supply at the control box.
When you have finished servicing an oven before you reconnect it to the mains, make sure that:
- all the internal connections are correct
- the w ires are insulated and not touching the door or the cabinet or anything sharp
- all the earth connections are electrically and mechanically sound
- do not modify or anyway interfere w ith the safety devices built-in to the oven
- make sure that each replacement part you use conforms to the manufacturer´s specifications
Do not start a repair if you have any doubt as to your ability to complete it.
CAUTION - MICROWAVE RADIATION
PERSONNEL SHOULD NOT BE EXPOSED TO THE M ICROWAVE ENERGY WHICH M AY RADIATE FROM THE M AGNETRON,
WAVEGUIDE OR ANTENNA IF THEY ARE IM PROPERLY USED OR CONNECTED. ALL INPUT
AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES, FLANGES AND GASKETS MUST BE SECURE.
NEVER OPERATE THE DEVICE WITHOUT A M ICROWAVE ENERGY ABSORBING LOAD ATTACHED.
NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED.
NEVER OPERATE AN OVEN WITH CABINET OFF WITHOUT MEASURING THE M ICROWAVE LEAKAGE
AROUND M AGNETRON AND VISIBLE M ICROWAVE CONNECTIONS (WELDING JOINTS).
Do not operate the oven if the following conditions exist:
- the door does not close firmly against the door support because of the door being warped or the hinges damaged.
- The door trims or seals are damaged.
- If there is any visible damage to the oven.
- if the door does not close properly.
Avoid operating the oven if known components in the interlock system, oven door or microw ave
generating assembly are know n defective. They must be replaced.
WARNING - HIGH VOLTAGE
IT IS POSSIBLE TO COME IN CONTACT WITH LETHAL HIGH VOLTAGE WHEN WORKING WITH
HV TRANSFORMER, HV CAPACITOR AND M AGNETRON. THEREFORE NEVER TRY TO M EASURE
THE HIGH VOLTAGE. ALWAYS TAKE UTM OST CARE WHEN PERFORM ING ELECTRIC
M EASUREMENTS INSIDE THE OVEN.
https://appliancetechmanuals.com

SERVICE Whirlpool Europe AVM 512 11.11.1998 / Page 3
Customer Service 8538 512 62291 Doc. No: 4812 714 12457

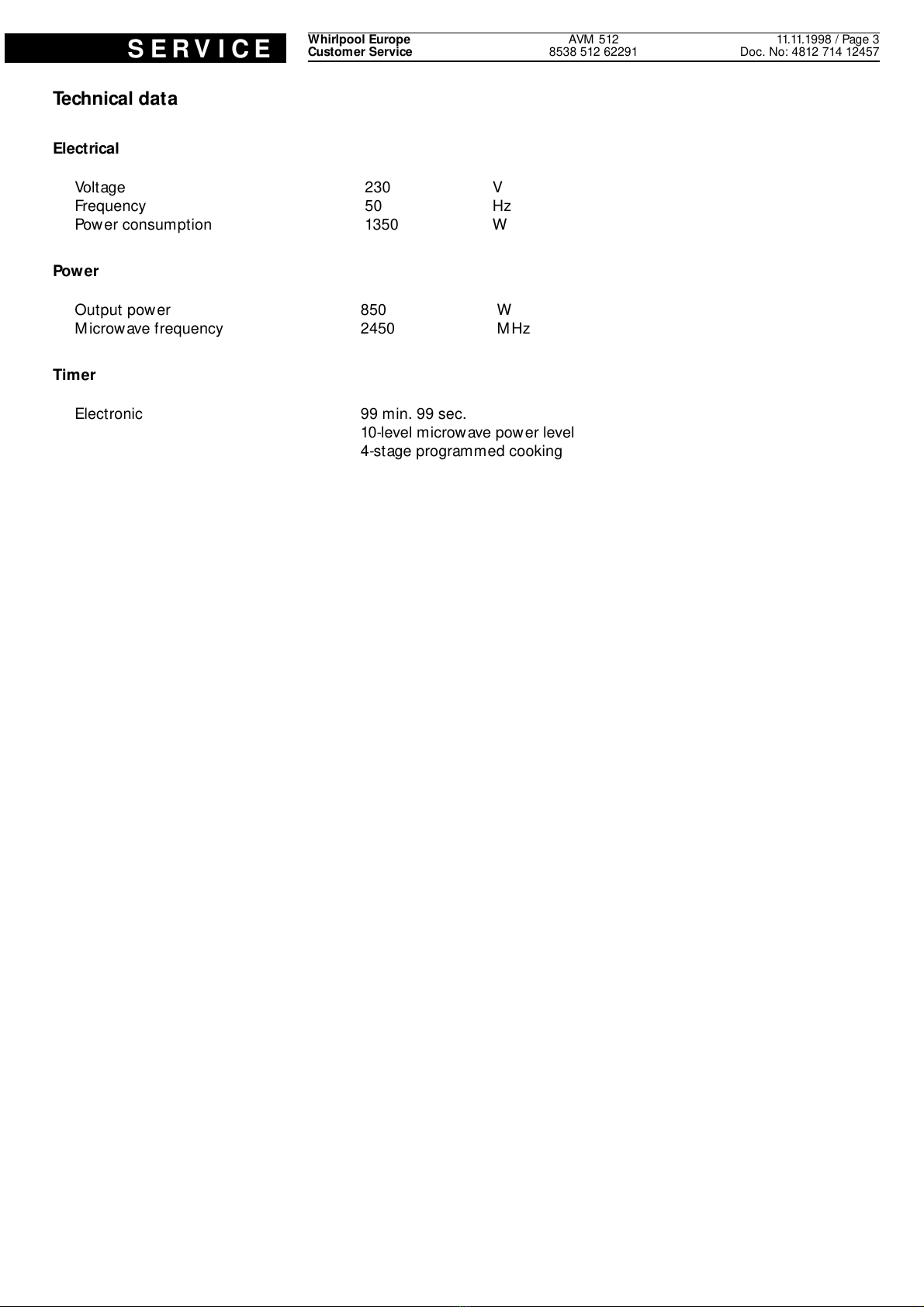

Technical data
Electrical
Voltage 230 V
Frequency 50 Hz
Power consumption 1350 W
Power
Output power 850 W
M icrow ave frequency 2450 M Hz
Timer
Electronic 99 min. 99 sec.
10-level microw ave pow er level
4-stage programmed cooking
https://appliancetechmanuals.com

SERVICE
11.11.1998 / Page 4 AVM 512 Whirlpool Europe
Doc. No: 4812 714 12457 8538 512 62291 Customer Service

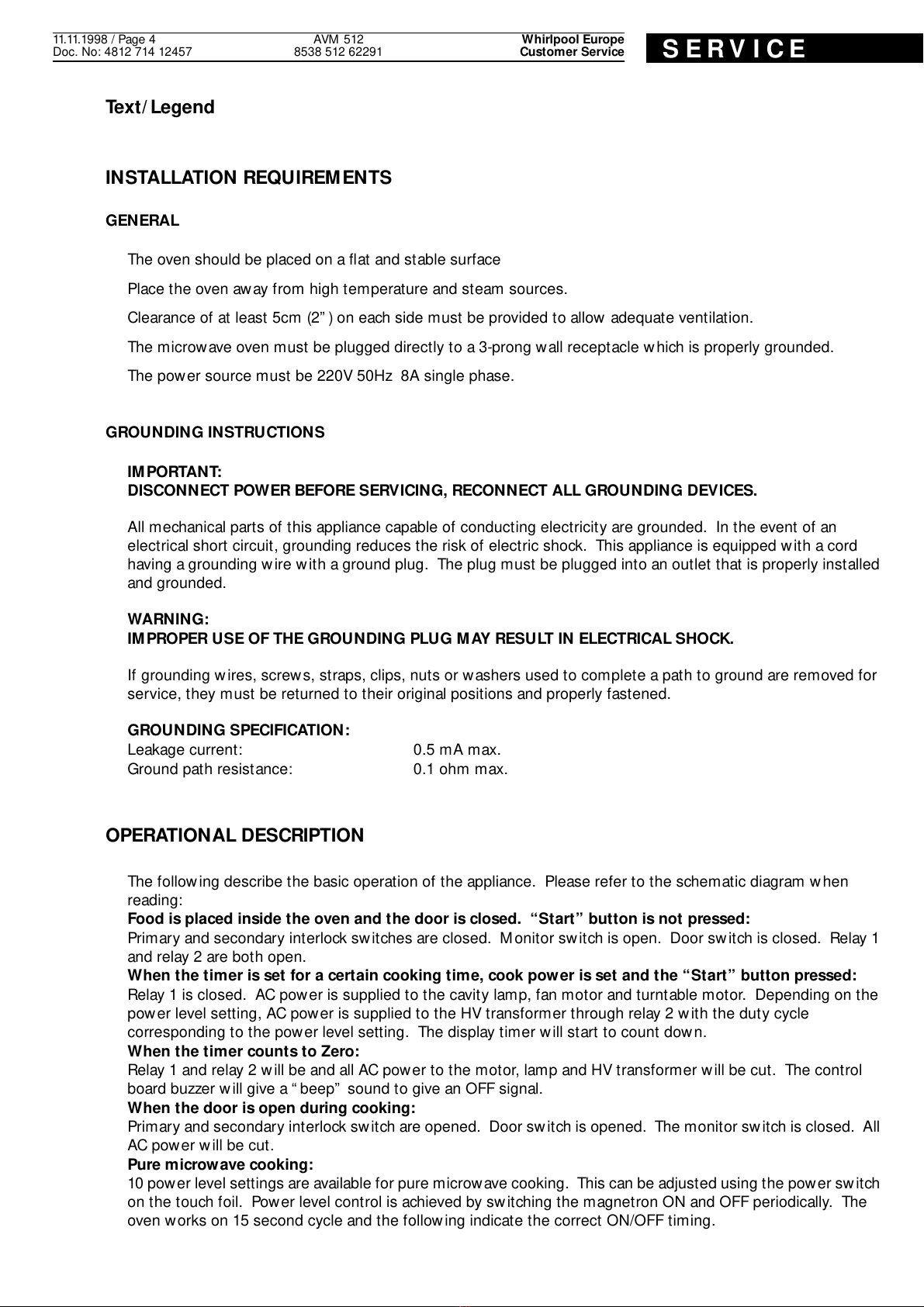

Text/ Legend
INSTALLATION REQUIREMENTS
GENERAL
The oven should be placed on a flat and stable surface
Place the oven aw ay from high temperature and steam sources.
Clearance of at least 5cm (2” ) on each side must be provided to allow adequate ventilation.
The microw ave oven must be plugged directly to a 3-prong wall receptacle w hich is properly grounded.
The power source must be 220V 50Hz 8A single phase.
GROUNDING INSTRUCTIONS
IMPORTANT:
DISCONNECT POWER BEFORE SERVICING, RECONNECT ALL GROUNDING DEVICES.
All mechanical parts of this appliance capable of conducting electricity are grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric shock. This appliance is equipped w ith a cord
having a grounding w ire w ith a ground plug. The plug must be plugged into an outlet that is properly inst alled
and grounded.
WARNING:
IMPROPER USE OF THE GROUNDING PLUG MAY RESULT IN ELECTRICAL SHOCK.
If grounding wires, screws, straps, clips, nuts or washers used to complete a path to ground are removed for
service, they must be returned to their original positions and properly fastened.
GROUNDING SPECIFICATION:
Leakage current: 0.5 mA max.
Ground path resistance: 0.1 ohm max.
OPERATIONAL DESCRIPTION
The following describe the basic operation of the appliance. Please refer to the schematic diagram w hen
reading:
Food is placed inside the oven and the door is closed. “Start” button is not pressed:
Primary and secondary interlock sw itches are closed. Monitor sw itch is open. Door sw itch is closed. Relay 1
and relay 2 are both open.
When the timer is set for a certain cooking time, cook power is set and the “Start” button pressed:
Relay 1 is closed. AC power is supplied to the cavity lamp, fan motor and turntable motor. Depending on the
power level setting, AC power is supplied to the HV transformer through relay 2 with the duty cycle
corresponding to the power level setting. The display timer will start to count down.
When the timer counts to Zero:
Relay 1 and relay 2 w ill be and all AC power to the motor, lamp and HV transformer will be cut. The control
board buzzer will give a “ beep” sound to give an OFF signal.
When the door is open during cooking:
Primary and secondary interlock sw itch are opened. Door switch is opened. The monitor sw itch is closed. All
AC power w ill be cut.
Pure microw ave cooking:
10 power level settings are available for pure microw ave cooking. This can be adjusted using the power sw itch
on the touch foil. Power level control is achieved by switching the magnetron ON and OFF periodically. The
oven works on 15 second cycle and the following indicate the correct ON/OFF timing.
https://appliancetechmanuals.com

SERVICE Whirlpool Europe AVM 512 11.11.1998 / Page 5
Customer Service 8538 512 62291 Doc. No: 4812 714 12457

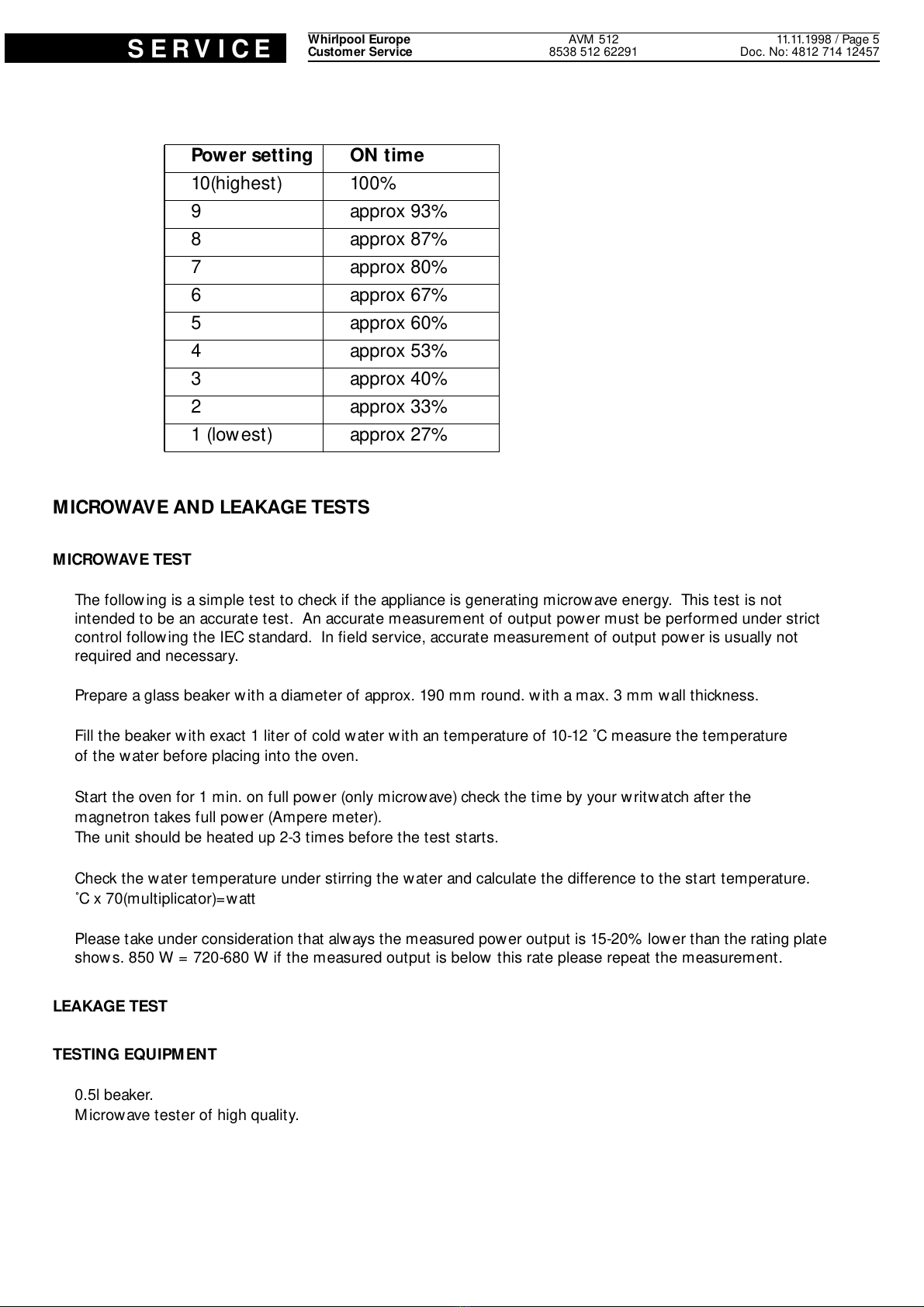

MICROWAVE AND LEAKAGE TESTS
MICROWAVE TEST
The following is a simple test to check if the appliance is generating microw ave energy. This test is not
intended to be an accurate test. An accurate measurement of output power must be performed under strict
control following the IEC standard. In field service, accurate measurement of output power is usually not
required and necessary.
Prepare a glass beaker w ith a diameter of approx. 190 mm round. with a max. 3 mm wall thickness.
Fill the beaker w ith exact 1 liter of cold water w ith an temperature of 10-12 ˚C measure the temperature
of the water before placing into the oven.
Start the oven for 1 min. on full power (only microw ave) check the time by your w ritwatch after the
magnetron takes full power (Ampere meter).
The unit should be heated up 2-3 times before the test starts.
Check the water temperature under stirring the water and calculate the difference to the start temperature.
˚C x 70(multiplicator)=watt
Please take under consideration that alw ays the measured power output is 15-20% lower than the rating plate
show s. 850 W = 720-680 W if the measured output is below this rate please repeat the measurement.
LEAKAGE TEST
TESTING EQUIPM ENT
0.5l beaker.
M icrow ave tester of high quality.
Power setting ON time
10(highest) 10 0%
9 approx 93%
8 approx 87%
7 approx 80%
6 approx 67%
5 approx 60%
4 approx 53%
3 approx 40%
2 approx 33%
1 (lowest) approx 27%
https://appliancetechmanuals.com

SERVICE
11.11.1998 / Page 6 AVM 512 Whirlpool Europe
Doc. No: 4812 714 12457 8538 512 62291 Customer Service
TESTING PROCEDURE
Place 0.25l of water into the beaker and place it in the center of the oven.
Turn on the microw ave oven by setting the unit on full power.
Hold the probe of the microw ave tester to the surface of the oven and scan it at the rate of 2.5 cm per sec.
Test the follow ing areas for microw ave leakage:
- round and across the door glass and control panel.
- all ventilation openings.
The leakage should never exceed 5 mW/cm2.
Record all data.
OVEN LEAKAGE REPAIR
If leakage figure is found above 5 mW/cm2.
The unit has to be set out of function, until the unit is repaired and finally saefty tested.
Service engineer should notify the Service M anagement immediately.
TROUBLE SHOOTING GUIDE
CAUTION AND IM PORTANT
Before disassembling the oven, the oven power must be turned off. Remove the power plug of the oven from
the outlet and wait for at least 3 minutes.
When disassembling, service personnel should remove their watches and metal chains from their hands.
Never touch the high voltage components and w ire.
Before checking or replacing, discharge the high voltage capacitor to oven chassis grounded w ith an insulated
w ire. M ake sure that the wire is grounded to chassis side before short circuiting the capacitor terminal.
Do not measure high voltage w ith a common voltmeter.
https://appliancetechmanuals.com

SERVICE Whirlpool Europe AVM 512 11.11.1998 / Page 7
Customer Service 8538 512 62291 Doc. No: 4812 714 12457
QUICK SERVICE REFERENCES
MAJOR COMPONENT TESTS
HV TRANSFORM ER
Remove lead w ire.
M easure the resistance of the winding using an ohm meter
Primary w inding 3 ohm (approx.)
Secondary w inding 100 ohm (approx.)
Filament w inding 0 ohm (approx.)
HV CAPACITOR
Remove lead w ire
M easure the resistance using an ohm meter set to R* 1000
Terminal to terminal should momentary indicates several ohms but gradually increases to infinite.
Terminal to case should show infinite.
PROBLEM POINTS TO CHECK
Cavity lamp does not light, but
other electrical components
(e.g. turntable) are working.
Lamp burnt.
Bad contact between lamp and lamp socket.
Cavity lamp does not light, all
other electrical components
also do not work.
Power plug not in good connection w ith the socket.
No power supply.
Fuse blow n.
Bad contact between fuse and fuse holder/clip.
Loose door hinge, door poorly adjusted, interlock poorly
adjusted; causing fuse to be blown.
Short circuit w ithin electrical circuit.Lamp filament short,
HV transformer short, all causing fuse blow n.
Bad contact in contacts or terminals of timer sw itch,
primary and secondary interlock sw itch.
HV diode break dow n.
Oven seems w orking, food
does not cook
Defective magnetron (filament broken, filament short to
ground etc.).
Ground wire of HV transformer broken.
Filament w ire short to ground.
Filament w ire broken.
Bad contact in magnetron terminals.
Defective control boards.
HV diode break down, giving a hum noise.
Oven cooks for a short w hile
and stop.
Cooling fan jammed.
Cooling fan motor open circuit.
Defective cooling fan control relay.
Turntable does not turn. Defective turntable motor.
Turntable shaft deformed.
User circuit breaker activates. High leakage in electrical components (mostly motor).
https://appliancetechmanuals.com

SERVICE
11.11.1998 / Page 8 AVM 512 Whirlpool Europe
Doc. No: 4812 714 12457 8538 512 62291 Customer Service
HV DIODE
Remove lead w ire.
M easure forw ard resist ance, normal diode show continuity.
M easure reverse resistance, normal diode show infinite resistance.
MAGNETRON
Remove lead w ire.
Install the magnetron gasket in the correct position. Check that the gasket is in good condition.
M easure the resistance of the filament terminals. Normal magnetron should be less than 1 ohm.
M easure the resistance between the filament terminal to chassis. Normal magnetron should be infinite.
INTERLOCK SWITCH SYSTEM
IMPORTANT: The installation of the interlock and monitor switches is required by Federal regulations.
The interlock and monitor sw itches positions are not service adjustable. If the screw s on the hinges of the
oven door are loosen, the door may not be in a correct position. In this case, the interlock sw itches cannot be
operated by the latch pins of the door w hen the door is shut. To repair the door, remount the door and fasten
the screws on the door hinges.
The monitor switch is provided to monitor the operation of the primary interlock sw itch. If the primary sw itch
fails to operate when the door is open, the monitor sw itch w ill form a short circuit across the supply and the
fuse in the oven will blow. Electric arc may form across the sw itch contacts of the primary interlock sw itch,
the secondary switch and the monitor sw itch. The sw itches may then be damaged. If the fuse is blown due
to the failure of the primary interlock, repair the failed mechanical parts and replace all the interlock sw itches.
IMPORTANT
After replacement of any part of the interlock and monitor circuit:
Check if the microswitches are turned ON and OFF by the latches as specified in the table above.
Apply sealant to the screws and nuts of the door hinges.
Check microw ave leakage.
Check if the oven will turn off instantly when the door button is pushed to the position w here the door latches
leave the interlock sw itches.
Oven door
status
Primary
sw itch
Secondary
sw itch
Monitor
sw itch
Open Open Open Close
Close Close Close Open
https://appliancetechmanuals.com

SERVICE Whirlpool Europe AVM 512 11.11.1998 / Page 9
Customer Service 8538 512 62291 Doc. No: 4812 714 12457
Spare part list
Model AVM 512
Service No. 853851262291
Version 853851262291
Pos. No. 12NC Code Description from to
002 0 4819 902 00561 Lid
002 2 4819 902 00568 Plate
002 3 4819 902 00571 Pin
002 4 4819 902 00569 Bushing
011 0 4819 902 00694 Foot
011 1 4819 902 00566 Cap
040 0 4819 902 00445 Hinge,upper
040 1 4819 902 00444 Hinge,lower
121 0 4819 902 00326 Door,inner
121 1 4819 902 00599 Door frame inner
130 0 4819 902 00579 Holder
130 9 4819 902 00597 Hook connector
131 0 4819 902 00596 Lockingmechn. upper
131 1 4819 902 00595 Lockingmechn. lower
131 2 4819 902 00594 Pivot door pin
141 0 4819 902 00484 Oven glass outer
142 0 4819 450 58454 Glass inner (PE plate)
143 0 4819 459 48923 Door frame
255 0 4819 902 00654 Turntable glass
264 0 4819 902 00529 Ring turn table
264 1 4819 902 00582 Wheel
264 2 4819 902 00528 Shaft
320 0 4819 902 00683 Control panel
321 0 4819 902 00644 Display glass
332 0 4819 902 00557 Button door
404 0 4819 902 00614 M agnetron
406 0 4819 902 00695 M otor turn table
406 3 4819 902 00567 Gasket
412 0 4819 902 00556 Transformer HV
420 0 4819 902 00583 Capacitor HV 0.95UF
421 0 4819 902 00679 Filter
426 0 4819 218 38038 Diode HV
426 1 4819 902 00574 Diode double w ay
440 0 4819 902 00696 Propeller,motor
443 0 4819 902 00592 Fan w heel
443 1 4819 902 00591 Support fan
490 0 4819 902 00298 Cable,mains SAA Plug
490 4 4819 902 00563 Clip wire sadle
490 5 4819 902 00604 Strain relief
490 6 4819 404 79411 Bracket for cable
500 0 4819 214 78684 Control unit
561 0 4819 902 00586 Thermostat magnetron
562 0 4819 902 00636 Thermostat
620 0 4819 902 00682 Sw itch plate
632 0 4819 902 00609 Sw itch securit y
632 1 4819 902 00447 Lever
633 0 4819 902 00611 Sw itch
651 0 4819 134 28051 Lamp
743 0 4819 902 00575 Air guide
900 5 4819 902 00585 Holder filter board
904 0 4819 902 00589 Sleeve
910 9 4819 902 00565 Pin
930 0 4819 902 00581 Spring,tension
930 1 4819 902 00598 Spring
930 3 4819 902 00601 Spring,compres.
https://appliancetechmanuals.com

SERVICE
11.11.1998 / Page 10 AVM 512 Whirlpool Europe
Doc. No: 4812 714 12457 8538 512 62291 Customer Service
Exploded view
https://appliancetechmanuals.com

SERVICE Whirlpool Europe AVM 512 11.11.1998 / Page 11
Customer Service 8538 512 62291 Doc. No: 4812 714 12457
Wiring diagram
https://appliancetechmanuals.com
