INSTALLATION
PRIOR TO CONNECTING
ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check
that the oven door closes firmly against the
door support and that the internal door seal is
not damaged. Empty the oven and clean the
interior with a soft, damp cloth.
AFTER CONNECTING
THE EARTHING OF THIS APPLIANCE is compulso-
ry. The manufacturer will accept no re-
sponsibility for injury to persons, ani-
mals or damage to objects arising from
the non-observance of this requirement.
The manufacturers are not liable for any
problems caused by the user’s failure to ob-
serve these instructions.
DONOT OPERATE THIS APPLIANCE if it has a
damaged mains cord or plug, if it is not
working properly, or if it has been dam-
aged or dropped. Do not immerse the
mains cord or plug in water. Keep the
cord away from hot surfaces. Electrical
shock, fire or other hazards may result.
DONOT REMOVE THE MICROWAVE INLET PROTECTION
PLATES located on the side of
the oven cavity wall. They
prevent grease & food parti-
cles from entering the mi-
crowave inlet channels.
ENSURE the oven cavity is
empty before mounting.
CHECK THAT THE VOLTAGE on the rating
plate corresponds to the voltage in your
home.
THE OVEN CAN BE OPERATED ONLY if the oven door is
firmly closed.
MOUNTING THE APPLIANCE
FOLLOW THE SUPPLIED separate mounting in-
structions when installing the appliance.

3
G
B
IMPORTANT SAFETY INSTRUCTIONS
DONOT HEAT, OR USE FLAMMABLE MATERIALS in
or near the oven. Fumes can create a fire
hazard or explosion.
DONOT USE YOUR MICROWAVE oven for drying
textiles, paper, spices, herbs, wood, flow-
ers, fruit or other combustible materials.
Fire could result.
DONOT OVER-COOK FOOD. Fire could result.
DONOT LEAVE THE OVEN UNATTENDED, espe-
cially when using paper, plastic or oth-
er combustible materials in the cook-
ing process. Paper can char or burn and
some plastics can melt if used when
heating foods.
IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD
IGNITE OR SMOKE IS OBSERVED, keep oven
door closed and turn the oven off. Dis-
connect the power cord or shut off pow-
er at the fuse or circuit breaker panel.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
ONLY ALLOW CHILDREN to use the oven with
adult supervision after adequate instruc-
tions have been given so that the child is
able to use the oven in a safe way and un-
derstands the hazards of improper use.
The appliance is not intended for use by
young children or infirm persons without
supervision. Young children should
be supervised to ensure that
they do not play with the
appliance.
If your oven has a com-
bination mode, children should
only use the oven under adult supervision
due to the high temperatures generated.
DONOT USE YOUR MICROWAVE
oven for heating anything in
airtight sealed contain-
ers. The pressure increas-
es and may cause damage
when opening or may explode.
EGGS
DONOT USE YOUR MICROWAVE oven for cook-
ing or reheating whole eggs with or
without shell since they may
explode even after microwave
heating has ended.
THE DOOR SEALS AND THE DOOR SEAL AREAS must
be regularly inspected for damage. If these
areas are damaged the appliance should
not be operated until it has been repaired
by a trained service technician.
DONOT USE corrosive chemicals or va-
pors in this appliance. This type of oven
is specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.

4
G
BGENERAL
THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!
THE APPLIANCE SHOULD NOT BE OPERATED without food
in the oven when using microwaves. Operation in
this manner is likely to damage the appliance.
IFYOU PRACTICE OPERATING the oven, put a glass
of water inside. The water will absorb the mi-
crowave energy and the oven will not be dam-
aged.
REMOVE WIRE TWIST-TIES from paper or
plastic bags before placing bag in
the oven.
DEEPFRYING
DONOT USE YOUR MICROWAVE oven for deep-frying,
because the oil temperature cannot be
controlled.
LIQUIDS
E.G. BEVERAGES OR WATER. Overheating the liquid
beyond boiling point can occur
without evidence of bubbling.
This could result in a sudden
boil over of the hot liquid.
To prevent this possibility the
following steps should be taken:
1. Avoid using straight-sided containers with
narrow necks.
2. Stir the liquid before placing the container
in the oven and let the teaspoon remain
in the container.
3. After heating, allow standing for a short
time, stirring again before carefully re-
moving the container from the oven.
CAREFUL
ALWAYS REFER to a microwave cookbook for de-
tails. Especially, if cooking or reheating food
that contains alcohol.
AFTER HEATING BABY FOOD or liquids in a
baby bottle or in a baby food
jar, always stir and check the
temperature before serving.
This will ensure that the heat is evenly distributed
and the risk of scalding or burns can be avoided.
Ensure the Lid and the Teat is removed be-
fore heating!
PRECAUTIONS
USE HOT PADS OR OVEN MITTS to prevent
burns, when touching containers, oven
parts, and pan after cooking.
DONOT USE THE CAVITY for any storage purposes.

5
G
B
ACCESSORIES
GENERAL
IFACCESSORIES CONTAINING METAL comes in contact
with the oven interior, while the oven is in op-
eration, sparking can occur and the oven could
be damaged.
TURNTABLE SUPPORT
USE THE TURNTABLE SUPPORT under the
Glass turntable. Never put any other
utensils on the turntable support.
Fit the turntable support in the
oven.

GLASS TURNTABLE
USE THE GLASS TURNTABLE with all cooking meth-
ods. It collects the dripping juic-
es and food particles that other-
wise would stain and soil the in-
terior of the oven.
Place the Glass turntable on the turntable
support.

ENSURE THAT THE UTENSILS YOU USE are oven proof
and allow microwaves to
pass through them before
cooking.
WHEN YOU PUT FOOD AND ACCESSORIES in the micro-
wave oven, ensure that they do not come in
contact with the interior of the oven.
This is especially important with accesso-
ries made of metal or metal parts.
ALWAYS ENSURE that the turntable is able to turn
freely before starting the oven.
THERE ARE a number of accessories available on
the market. Before you buy, ensure they are
suitable for microwave use.
COVER
THE COVER is used to cover food
during cooking and reheating with
microwaves only and helps to re-
duce spattering, retain food mois-
ture as well as reducing the time
needed.
USE THE COVER for two level reheat-
ing.
BABY BOTTLE HOLDER
USE THE BABY BOTTLE HOLDER when
heating baby food in bottles that
are too tall to stand-alone in the
oven. Please see also, the chapter ”Precau-
tions”, for more information about heating
baby food.
(NOT AVAILABLE IN THE UK AND IRELAND).
STEAMER
USE THE STEAMER WITH THE STRAIN-
ER in place for such foods as fish,
vegetables and potatoes.
ALWAYS PLACE the steamer on the
Glass Turntable.

6
G
B
TO PAUSE OR STOP COOKING
TOPAUSE COOKING
The cooking can be paused
to check, turn or stir the
food by opening the door.
The setting will be maintained for 10 minutes.
TOCONTINUE COOKING
Close the door and press the Start but-
ton ONCE. The cooking is resumed
from where it was paused.
Pressing the Start button TWICE will
increase the time by 30 seconds.
IFYOU DON’TWANT TO CONTINUE COOKING
Remove the food, close the door and
press the STOP button
A BEEP WILL SIGNAL once a minute for 10 min-
utes when the cooking is finished.
Press the STOP button or open
the door to cancel the signal.
NOTE: The oven will only hold the settings for
60 seconds if the door is opened and then
closed after the cooking is finished.
START PROTECTION / CHILD LOCK
THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE
MINUTE AFTER the oven has returned to
“stand by mode“. (The oven is in
“stand by” when the 24-hour clock is
displayed or if the clock has not been
set, when the display is blank).
THE DOOR MUST BE OPENED AND CLOSED e.g. putting
food into it, before the safety lock is released.
Else the display will show “door“.
COOLING DOWN
WHEN AFUNCTION IS FINISHED, the oven carries out
a cooling procedure. This is normal.
After this procedure the oven switches off au-
tomatically.
THE COOLING PROCEDURE can be interrupted with-
out any harm to the oven.
door

7
G
B
CLOCK
KEEP THE DOOR OPEN WHILE SETTING THE CLOCK. This gives you 5 minutes to complete the setting of the
Clock. Otherwise, each step must be accomplished within 60 seconds.
qPRESS THE STOP BUTTON (3 seconds) until the left-hand digit (hour’s) flicker.
wPRESS THE +/- BUTTONS to set the hours.
ePRESS THE START BUTTON. (The two right hand digits (minutes) flicker).
rPRESS THE +/- BUTTONS to set the minutes.
tPRESS THE START BUTTON again.
THE CLOCK IS SET AND IN OPERATION.
NOTE: When the appliance is first plugged in or after a power failure, the display is blank. If the
clock is not set, the display will remain blank until the cooking time is set.
IFYOU WISH TO REMOVE THE CLOCK from the display once it has been set, simply press the Stop button
again for 3 seconds and then press the Stop button once more.
TOREINSTATE THE CLOCK, follow the above procedure.
KITCHEN TIMER
USE THIS FUNCTION when you need a kitchen timer to measure exact time for various purposes such
as cooking eggs or letting the dough rise before baking etc.
qPRESS THE +/- BUTTONS to set the desired length of the timer.
wPRESS THE POWER BUTTON repeatedly to set the power to 0 W.
ePRESS THE START BUTTON.
ANACOUSTIC SIGNAL will be heard when the timer has finished to count down.
qe
t
w
r
w
qe

8
G
B
MICROWAVES ONLY
POWER SUGGESTED USE:
750 W
REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water
content. If the food contains egg or cream choose a lower power.
COOKING OF fish, vegetables, meat etc.
500 W MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cook-
ing casseroles.
350 W SIMMERING STEWS, melting butter.
160 W DEFROSTING. Softening butter, cheeses. Softening Ice cream.
0 W WHEN USING the Timer only.
COOK & REHEAT WITH MICROWAVES
USE THIS FUNCTION for normal cooking and reheating, such as vegetables, fish, potatoes and meat.
qPRESS THE +/- BUTTONS to set the time.
wPRESS THE POWER BUTTON repeatedly to set the power.
ePRESS THE START BUTTON.
ONCE THE COOKING PROCESS HAS BEEN STARTED:
The time can easily be increased in 30-second steps by pressing the Start button. Each press in-
creases the time with 30 seconds. You may also alter the time by pressing the +/- buttons to in-
crease or decrease the time.
PRESSING THE POWER BUTTON may also change the power level. The first press will show you the cur-
rent power level. Press the power button repeatedly to change power level.
ALL SETTINGS CAN BE CHANGED during cooking if you so desire.
CHOOSING POWER LEVEL
w
qe

9
G
B
MANUAL DEFROST
FOLLOW THE PROCEDURE for “How to cook & reheat
with microwaves” and choose power level 160 W
when defrosting manually.
CHECK AND INSPECT THE FOOD REGULARLY. Experi-
ence will give you the times needed for vari-
ous amounts.
TURN LARGE JOINTS halfway through the defrost-
ing process.
FROZEN FOOD IN PLASTIC BAGS, plastic films or card-
board packages can be placed directly in the
oven as long as the package has no metal
parts (e.g. metal twist ties).
THE SHAPE OF THE PACKAGE alters the de-
frosting time. Shallow packets defrost
more quickly than a deep block.
SEPARATE PIECES as they begin to defrost.
Individual slices defrost more easily.
SHIELD AREAS OF FOOD with small
pieces of aluminum foil if
they start to become warm
(e.g. chicken legs and wing
tips).
BOILED FOOD, STEWS AND MEAT SAUCES de-
frost better if stirred during defrost-
ing time.
WHEN DEFROSTING it is better to under-
thaw the food slightly and allow the
process to finish during standing time.
STANDING TIME AFTER DEFROSTING ALWAYS IMPROVES
the result since the temperature
will then be evenly distribut-
ed throughout the food.

10
G
B
FOOD AMOUNT HINTS
MEAT 100G- 2KGMinced meat, cutlets, steaks or roasts.
POULTRY 100G- 2KGChicken whole, pieces or fillets.
FISH 100G- 1.5KGWhole, steaks or fillets.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,
you should follow the procedure for “Cook and reheat with microwaves” and choose 160 W when
defrosting.

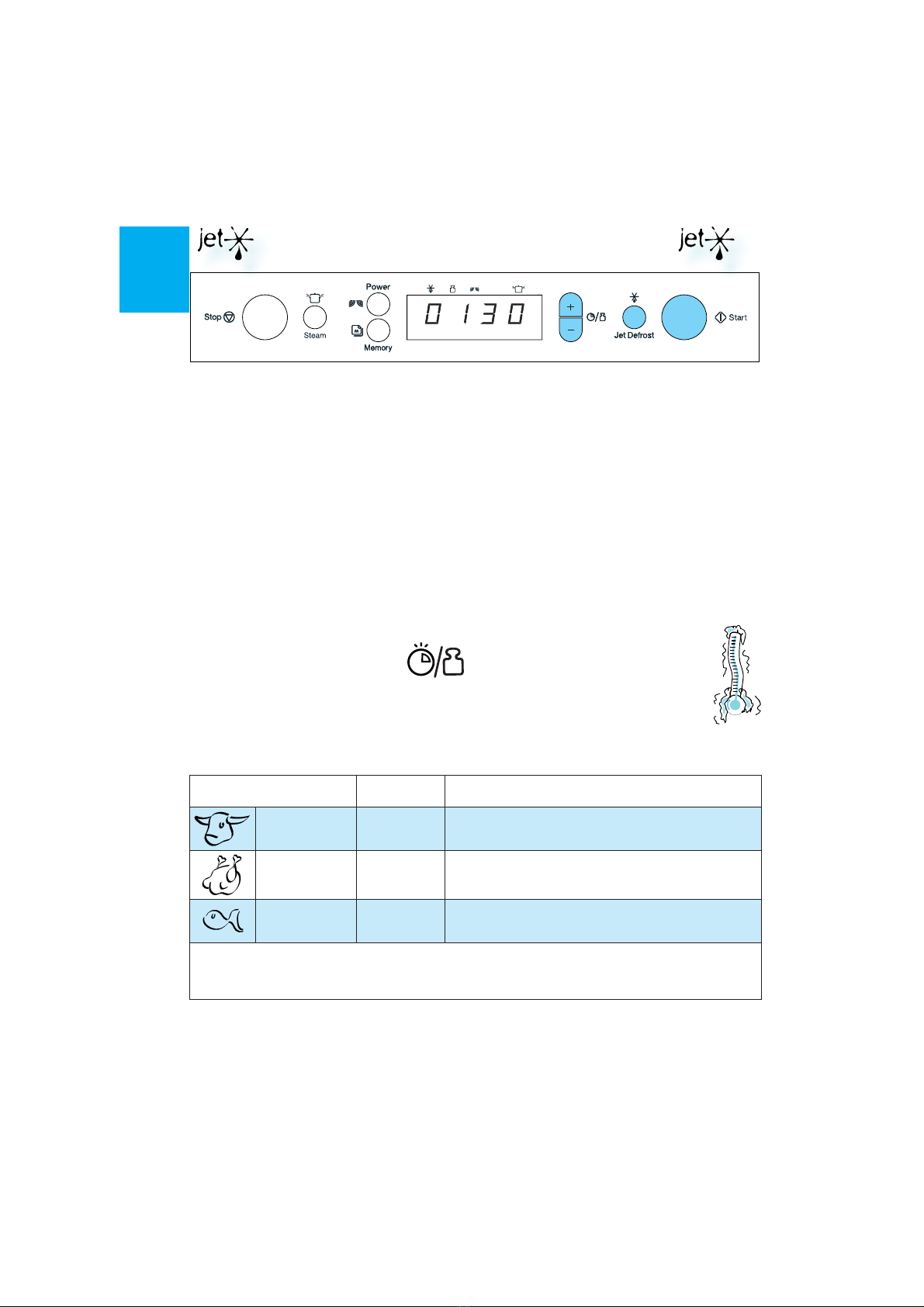

JET DEFROST
USE THIS FUNCTION for defrosting Meat, Fish & Poultry ONLY.
JET DEFROST SHOULD ONLY BE USED if the net weight is between 100 - 2Kg.
qPRESS THE JET DEFROST BUTTON.
wPRESS THE + / - BUTTONS to set the weight of the food.
ePRESS THE START BUTTON.
MIDWAY THROUGH THE DEFROSTING PROCESS the oven stops and prompts you to TURN FOOD.
Open the door.
Turn the food.
Close the door and restart by pressing the Start button.
NOTE: The oven continues automatically after 2 min. if the food hasn’t been turned. The defrosting
time will be longer in this case.



THIS FUNCTION NEEDS TO KNOW the net weight of
the food. The oven will then auto-
matically calculate the needed time
to finish the procedure.
FROZEN FOODS:
IFTHE FOOD IS WARMER than deep-freeze
temperature (-18°C), choose lower
weight of the food.
IFTHE FOOD IS COLDER than deep-freeze
temperature (-18°C), choose higher
weight of the food.
wqe

11
G
B
JET START
THIS FUNCTION IS USED FOR quick reheating of foods with a high water content such as; clear soups,
coffee or tea.
PRESS TO AUTOMATICALLY START with full microwave power level and the cooking time set to 30 sec-
onds. Each additional press increases the time with 30 seconds. You may also alter the time by
pressing the +/- buttons to increase or decrease the time after the function has started.
MEMORY
THE MEMORY FUNCTION PROVIDES you with an easy way to quickly recall a preferred setting.
THE PRINCIPLE OF THE MEMORY FUNCTION is to store whatever setting that is currently displayed.
qPRESS THE MEMO BUTTON.
wPRESS THE START BUTTON.
HOW TO STORE ASETTING:
qSELECT any function and make the nesseccary settings
wMAKE the nesseccary settings
ePRESS AND KEEP THE MEMO BUTTON PRESSED for 3 seconds until an acoustic signal is heard. The set-
ting is now stored. You may reprogram the memory as many times as you wish.
WHEN THE APPLIANCE is plugged in or after a power failure, your Memo function will have stored - 1
minutes and 750 W as default setting.
w
q

12
G
B




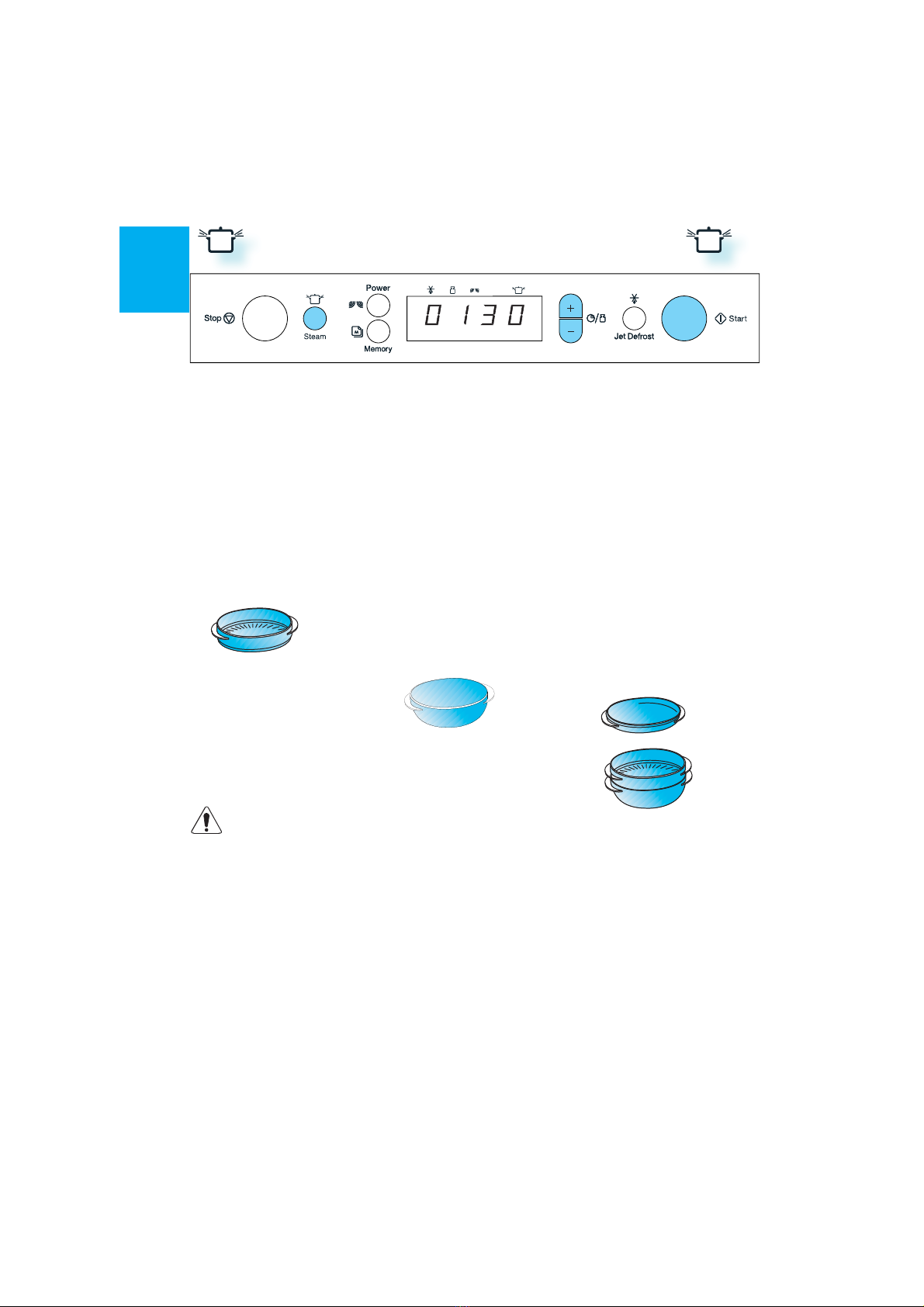

STEAM
USE THIS FUNCTION FOR such food as vegetables & fish.
ALWAYS USE THE SUPPLIED STEAMER when using this function.
qPRESS THE STEAM BUTTON.
wCONTINUE TO REPEATEDLY PRESS THE STEAM BUTTON to set the food class.
ePRESS THE +/- BUTTONS to set the weight of the food.
rPRESS THE START BUTTON.
PLACE the food on the steam grid.
ADD 100 ml (1dl) water in the bottom part of the steamer.
COVER with the lid.
THE STEAMER IS designed to be used with microwaves only!
NEVER USE IT WITH ANY OTHER FUNCTION AT ALL.
USING THE STEAMER in any other function may cause damage.
ALWAYS ENSURE that the turntable is able to turn freely before starting the oven.
ALWAYS PLACE the steamer on the Glass Turntable.
w
qe

13
G
B
POTATOES / ROOT VETABLES
(150g - 500g) USE EVEN SIZES.
Cut the vetgetables into even pieces.
Allow to stand for 1 - 2 minutes, after cooking
VEGETABLES (150g - 500g)
(Cauliflower and Broccoli)
FROZEN VEGETABLES
(150g - 500g) ALLOW TO STAND for 1 - 2 minutes.
FISH FILETS (150g - 500g) DISTRIBUTE FILLETS EVENLY on the steamgrid. Interlace thin
parts. Allow to stand for 1 - 2 minutes, after cooking.
COOKING VEGETABLES
PLACE THE VEGETABLES into the strainer.
Pour 100 ml water into the bottom part.
Cover with the lid and set the time.
SOFT VEGETABLES such as broccoli and leek require 2-3 minutes cooking time.
HARDER VEGETABLES such as carrots and potatoes require 4-5 minutes cooking time.
STEAM
r
w
q
e

14
G
B
MAINTENANCE & CLEANING
CLEANING IS THE ONLY MAINTENANCE normally re-
quired.
FAILURE TO MAINTAIN THE OVEN in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance
and possibly result in a hazardous situation.
DONOT USE METAL SCOURING PADS, ABRASIVE
CLEANSERS, steel-wool pads, grit-
ty washcloths, etc. which
can damage the control
panel, and the interior
and exterior oven surfac-
es. Use a sponge with a mild detergent or a
paper towel with spray glass cleaner. Apply
spray glass cleaner to a paper towel.
DONOT SPRAY directly on the oven.
ATREGULAR INTERVALS, especially if spill
overs have occurred, remove the
turntable, the turntable support
and wipe the base of the oven
clean.
DISHWASHER SAFE:
TURNTABLE SUPPORT.
GLASS TURNTABLE.
THIS OVEN IS DESIGNED to operate with the turnta-
ble in place.
DONOT operate the microwave oven
when the turntable has been removed
for cleaning.
USE AMILD DETERGENT, water and a soft cloth to
clean the interior surfaces, front and rear of the
door and the door opening.
DONOT ALLOW GREASE or food particles to
build up around the door.
FOR STUBBORN STAINS, boil a cup of water in the
oven for 2 or 3 minutes. Steam will soften the
marks.
COVER
STEAMER
BABYBOTTLE HOLDER
ADDING SOME LEMON JUICE to a cup of water, plac-
ing this on the turntable and boiling for a few
minutes can eliminate odors inside the oven.
DONOT USE STEAM CLEANING APPLIANCES when
cleaning your microwave oven.

15
G
B
TROUBLE SHOOTING GUIDE
IFTHE OVEN DOES NOT WORK, do not make a service
call until you have made the following checks:
The Turntable and turntable support is in
place.
The Plug is properly inserted in the wall
socket.
The Door is properly closed.
Check your Fuses and ensure that there is
power available.
Check that the oven has ample ventilation.
Wait for 10 minutes, then try to operate the
oven once more.
Open and then close the door before you
try again.
THIS IS TO AVOID unnecessary calls for which you
will be charged.
When calling for Service, please give the serial
number and type number of the oven (see Ser-
vice label). Consult your warranty booklet for
further advice.







IFTHE MAINS CORD NEEDS REPLACING it should
be replaced by the original
mains cord, which is avail-
able via our service organi-
zation. The mains cord may
only be replaced by a trained
service technician.
SERVICE ONLY TO BE CARRIED OUT BY
ATRAINED SERVICE TECHNICIAN. It
is hazardous for anyone oth-
er than a trained person to carry
out any service or repair oper-
ation, which involves the re-
moval of any cover, which gives pro-
tection against exposure to microwave
energy.
DONOT REMOVE ANY COVER.

16
G
B
Test Amount Approx. time Power level Container
12.3.1 750 g 10 min 750 W Pyrex 3.227
12.3.2 475 g 5 ½ min 750 W Pyrex 3.827
12.3.3 900 g 14 min 750 W Pyrex 3.838
13.3 500 g 2 min 40 sec Jet Defrost
SUPPLY VOLTAGE 230 V/50 HZ
RATED POWER INPUT 1300 W
FUSE 10 A (UK 13 A)
MW OUTPUT POWER 750 W
OUTER DIMENSIONS (HXWXD) 348 X595 X320
INNER DIMENSIONS (HXWXD) 187 X370 X290
ENVIRONMENTAL HINTS
THE PACKING BOX may be fully re-
cycled as confirmed by the re-
cycling symbol. Follow lo-
cal disposal regulations. Keep
potentially hazardous pack-
aging (plastic bags, polysty-
rene etc.) out of the reach of chil-
dren.
THIS APPLIANCE is marked according to the Euro-
pean directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE). By ensuring
this product is disposed of correctly, you will
help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
THE SYMBOL on the product, or on the docu-
ments accompanying the
product, indicates that this
appliance may not be treat-
ed as household waste. In-
stead it shall be handed over
to the applicable collection
point for the recycling of
electrical and electronic
equipment.
DISPOSAL must be carried
out in accordance with lo-
cal environmental regula-
tions for waste disposal.
FOR MORE DETAILED INFORMATION about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
BEFORE SCRAPPING, cut off the mains cord so that
the appliance cannot be connected to the
mains.
INACCORDANCE WITH IEC 60705.
THE INTERNATIONAL ELECTROTECHNICAL COMMISSION, SC. 59H, has developed a standard for comparative
testing of heating performance of different microwave ovens. We recommend the following for
this oven:
