Top Mount Refrigerator
®
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
ET4WSKYS
ET4WSKXS
ET4WVLXV
ET5WSEXS
ET5WSEXV
ET6WSKXS
ET8AHKXR
ET8AHMXR
ET8WTKXV
W4TXNWFW
W5TXEWFW W8TYNWFW
W6TXNWFW
W8TXNGFW
W8TXNGMW
W8TXNWFW
W8TXNWMW
Electrical: A 115-volt, 60-Hz, AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
Water: A cold water supply with water pressure
between 30 and 120 psi (207 and 827 kPa) is
required to operate ice maker. If you have
questions about your water pressure, call a
licensed, qualified plumber.
Reverse Osmosis Water Supply: If a reverse
osmosis water filtration system is connected to
your cold water supply, the water pressure to the
reverse osmosis system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 2316016
03-11-09
3" (7.5 cm)
2" (5.08 cm)
4
1
E
overall
D
top of
cabinet
CC
D
top of
cabinet
B
B
not incl.
handle
A
E
overall
A

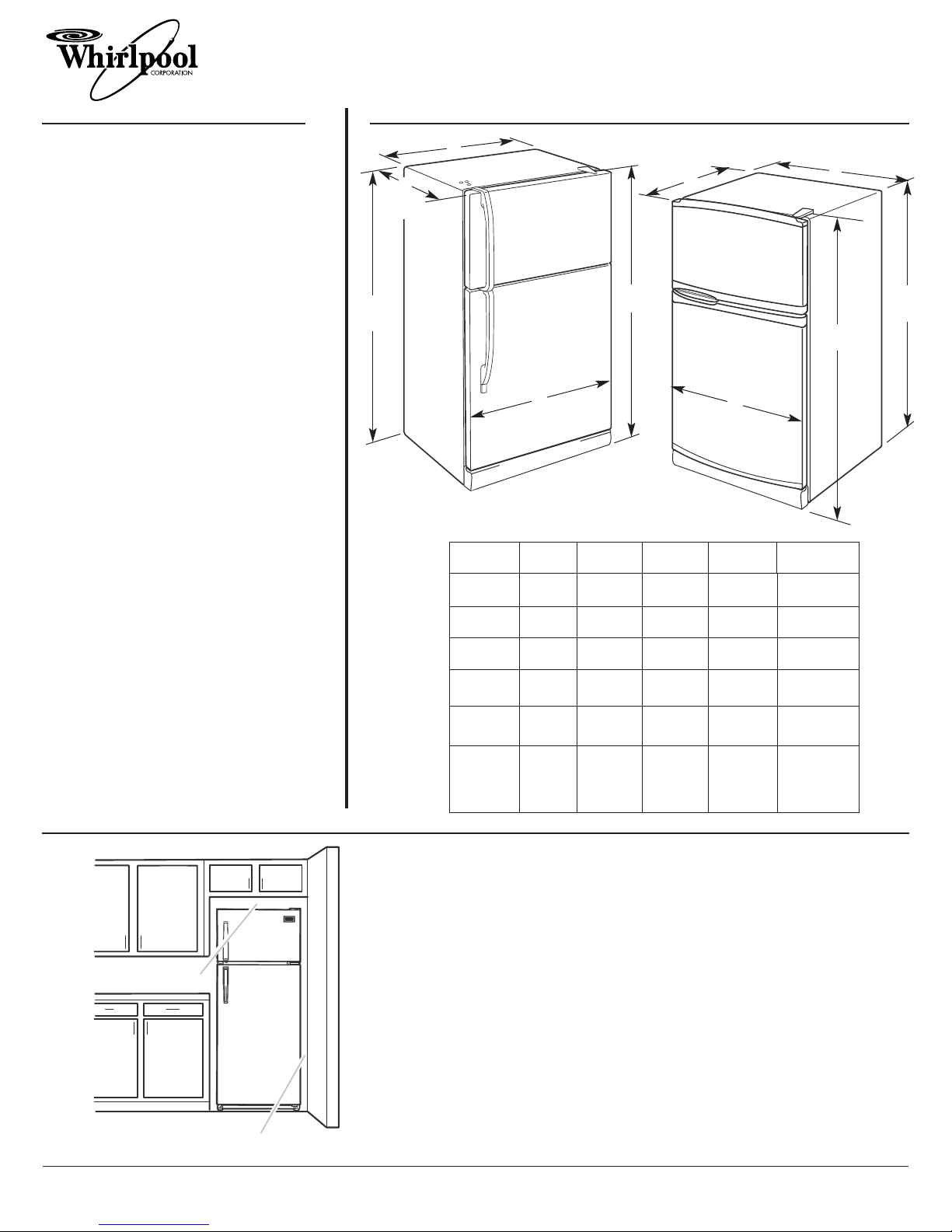

Depth Cab. Width Door Width Cab. Height Overall Height
Model “A” “B” “C” “D” “E”
14 cu.ft. 29-3/4" 28" 28" 62-1/8" 62-3/4"
(75.6 cm) (71.1 cm) (71.1 cm) (157.8 cm) (159.4 cm)
15 cu.ft. 31-1/8" 28" 28" 62-1/8" 62-3/4"
(79.1 cm) (71.1 cm) (71.1 cm) (157.8 cm) (159.4 cm)
16 cu.ft. 31-1/8" 28" 28" 65-1/4" 65-3/4"
ET6WSKXS
(79.1 cm) (71.1 cm) (71.1 cm) (165.7 cm) (167 cm)
16 cu.ft. 30-7/8" 28" 28" 65-1/4" 65-3/4"
W6TXNWFW
(78.4 cm) (71.1 cm) (71.1 cm) (165.7 cm) (167 cm)
18 cu.ft. 31-1/8" 28" 28" 67-3/8" 67-7/8"
ET8AHMXR
(79.1 cm) (71.1 cm) (71.1 cm) (171.1 cm) (172.4 cm)
ET8WTKXV
18 cu.ft. 30-7/8" 28" 28" 67-3/8" 67-7/8"
W8TXNG*W
(78.4 cm) (71.1 cm) (71.1 cm) (171.1 cm) (172.4 cm)
W8TXNW*W
W8TYNWFW
To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (12.7 mm) space
on each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (25.40 mm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
Dimensions “D” and “E” include rollers
extended 3/4" (1.9 cm)
LOCATION REQUIREMENTS
