Whirlpool WSE 2930 W User manual

Version 1.0
Side by Side Cassinetta production
Whirlpool EMEA
Service Competence Center
Office [phone]
Mobile [phone]
Robert Zimmermann
Senior Service Engineer FSS
robert_zimmerm[email protected]
25cf with IDI 2
Range 2012

Chapter list
Installation
Safety Instruction
Installation Instruction
Range 2012 overview
Whirlpool appliance launch / Flat / IDI 2
Whirlpool / Flat / IDI 2 / Spring INOX
Whirlpool / Flat / IDI 2 / INOX
Whirlpool / Flat / IDI 2 / Global White
Novelties
Operations
General description of the User Interface
User Interface layout of dispenser 
Display icons
Indication of Water Filter
Indication of Antibacterial Filter
Characteristics of settings: Eco Modus
Characteristics of settings: Listeria Indication
Buttons description
-segment
Biruni User Interface Alarm indications
Biruni User Interface failure indications
Long Black Out Alarm algorithm
Thermostatic function
Components
3D Multiflow with Antibacterial filter
Multiflow ° 

Chapter list
Troubleshooting
Board failure codes description
Board self test
Alarm summery
Failure codes summery
-
-
-
-
Documents: Manuals, NTC value 
Repair Guide Line
Disassembling Long Door Handle
Disassembling 3 D Multiflow
Disassembling Flow Channel
Disassembling User Interface with I&W
Disassembling Ice Crusher Motor IDI 2
Disassembling Sankyo IDI ice-maker
Disassembling ice-maker water tube
Functional characteristics
Main Control Board description
NTC sensor in the refrigerator compartment
Damper control
NTC sensor in the freezer compartment
NTC sensor failure management
Ice-Water valve
Ice-Maker water valve
Ice-Maker
Dispenser lamp
Dispenser stepper motor
Dispenser heater
Dispenser paddles
Sankyo IDI / Biruni 7-segment UI
Evaporator Defrost Cycle

Chapter list
Technical Data
Main Board
User Interface
Stepper Motor dispenser assembly
Dispenser paddle
Dispenser LED
Ice Motor IDI 2
Lamps
Defrost Heater R134a
Fan Motors
Air Diffuser
Ice Maker Sankyo IDI 2
Water valve

Installation
Safety Instruction

Attention:
•Carefully read the complete safety and operation instructions in the IFU (attached below).
•Attend the environmental regulations.
•Keep the healthy instructions, especially for the assembler and children.
•Read the Installation instruction before first installation.
Quick Start Guide for BIRUNI electronics

Installation
Installation Instruction
Installation Instruction.
Attention:
•Read the complete installation instructions in the IFU (attached below).
•Be careful to avoid damages on the appliance, at the facility or injuries at the people.
•Attend the installation information to ensure the proper functionality of the appliance.
Appliance and niche measurement of SxS  25cf / 715.

12NC
Commercial Code
Predecessor 12NC
858646201000
WSE 2930 W
858642201000
858646201070
WSE 2930 X
858642201010
858646211000
WSF7256 A+W
858642211010
858646211070
WSF7256 A+IX
858642211000
858646215070
WSF7256 A+IX
858642215000
858646279100
WSF 7656 W
858619779010
858646279130
WSF 7656 X
858619779000
858646211170
WSF7256 IX
no predeccessor
858646211100
WSF7256 W
no predeccessor
Range 2012 overview
Whirlpool appliance launch / Flat / IDI2

Range 2012 overview

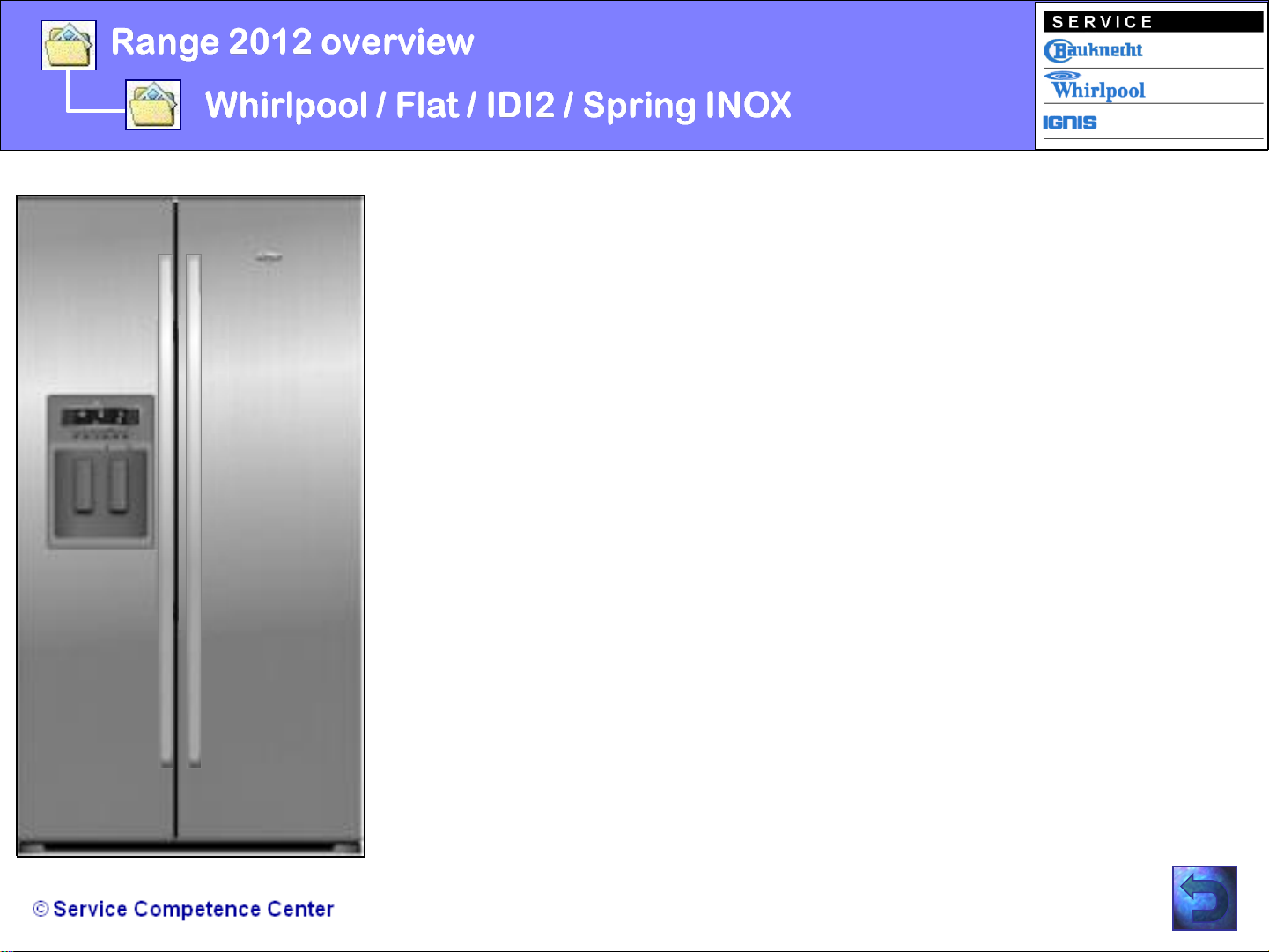

Whirlpool / Flat / IDI2 / Spring INOX
WSE 2930X / 8586 462 01070 / A+ / R134a
Doors: Flat, Spring Inox (968804), door end-caps in grey (10961)
Cabinet: Universal Silver (10979)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10961)
User Interface: Policarbonate in grey with bottons in grey (10961).
 with color white.
Dispenser: Dispenser frame in grey (10961), electronic paddles
(grey 10961), water tray Inox, spigot dispenser in grey
Plinth: plinth in grey (10961) with cover filter in black (80127)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony 2 without / 2 with wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Listeria and Antibacterial Filter

Range 2012 overview

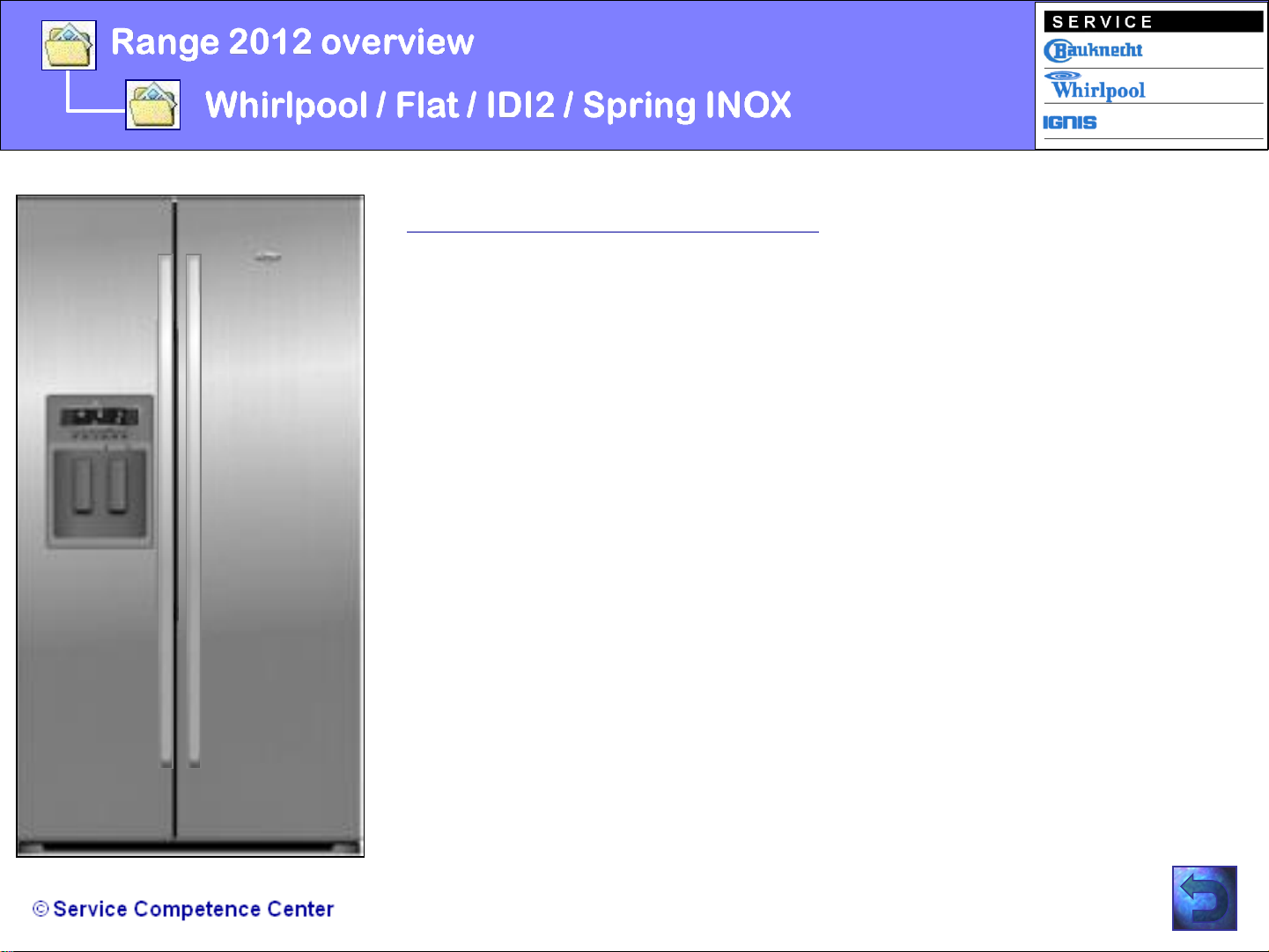

Whirlpool / Flat / IDI2 / Spring INOX
WSF 7256IX / 8586 462 11170 / A+ / R134a
Doors: Flat, Spring Inox (968804), door end-caps in grey (10961)
Cabinet: Universal Silver (10979)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10961)
User Interface: Policarbonate in grey with bottons in grey (10961).
 with color white.
Dispenser: Dispenser frame in grey (10961), electronic paddles
(grey 10961), water tray Inox, spigot dispenser in grey
Plinth: plinth in grey (10961) with cover filter in black (80127)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony without wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Antibacterial Filter

Range 2012 overview

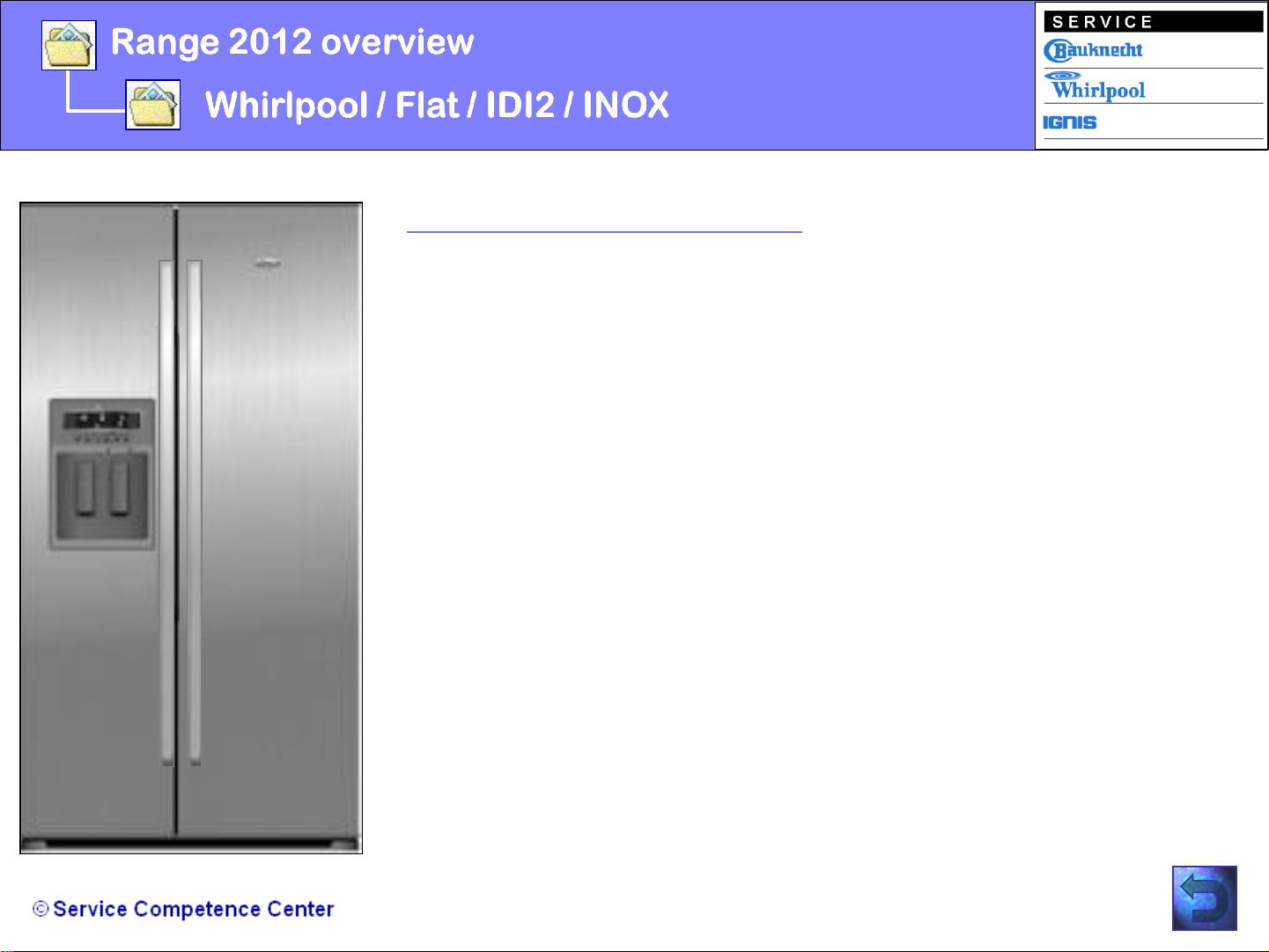

Whirlpool / Flat / IDI2 / INOX
WSF 7656X / 8586 462 79130 / A / R134a
Doors: Flat, Inox (10903), door end-caps in grey (10961)
Cabinet: Universal Silver (10979)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10961)
User Interface: Policarbonate in grey with bottons in grey (10961).
 with color white.
Dispenser: Dispenser frame in grey (10961), electronic paddles
(grey 10961), water tray Inox, spigot dispenser in grey
Plinth: plinth in grey (10961) with cover filter in black (80127)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony two with wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Antibacterial Filter, Shuko plug

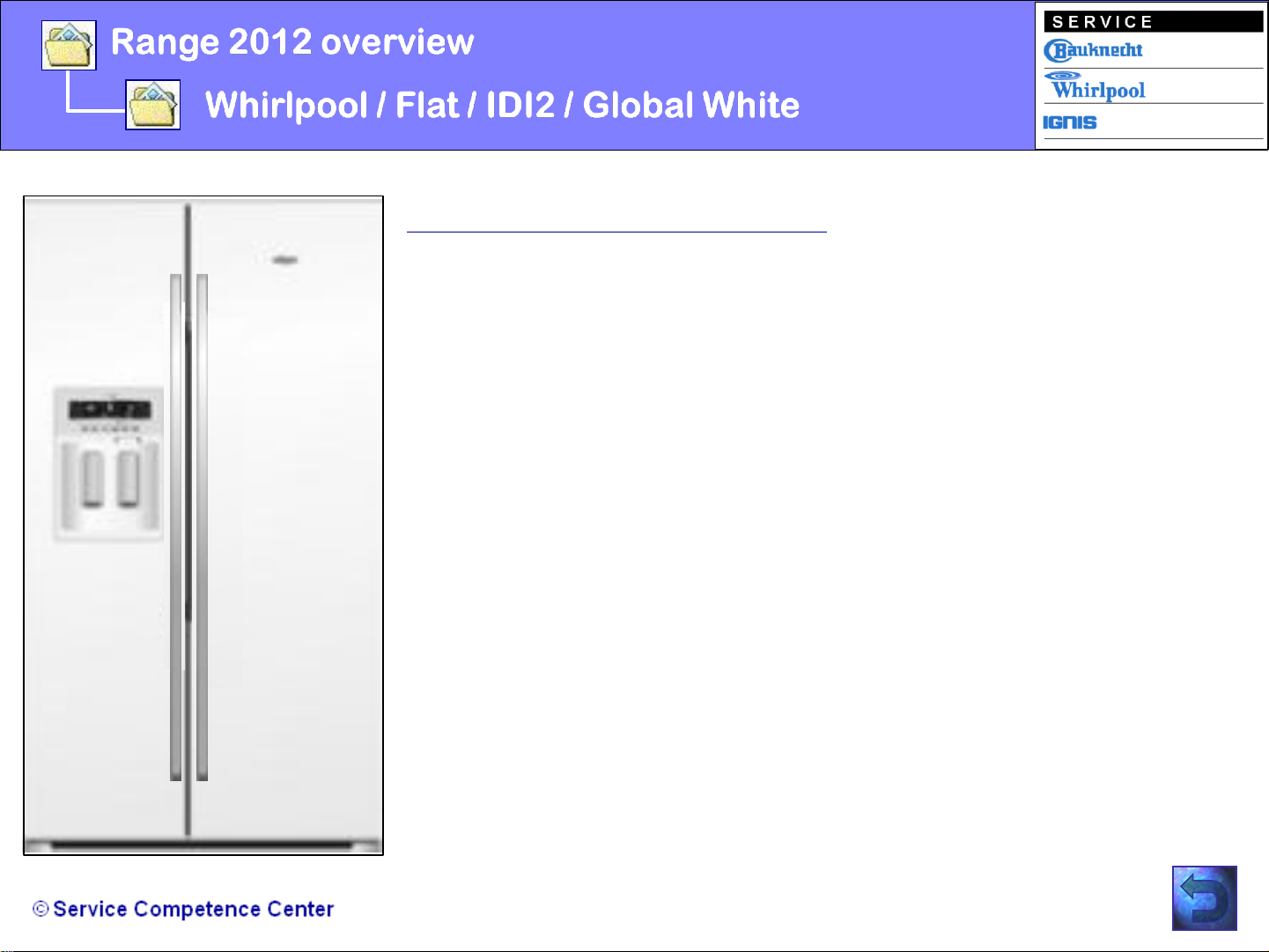

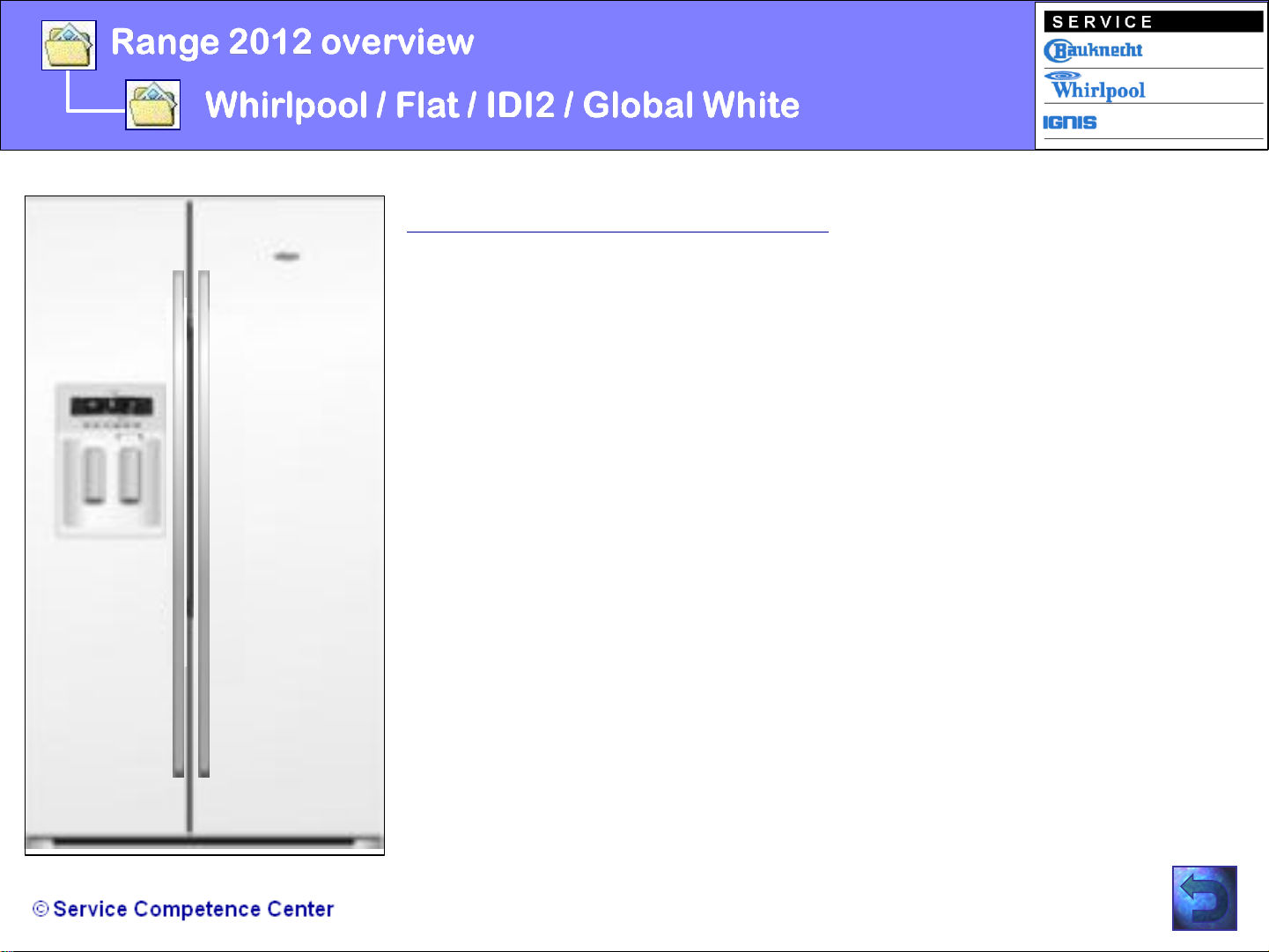

Range 2012 overview
Whirlpool / Flat / IDI2 / Global White
WSE 2930 W / 8586 462 01000 / A+ / R134a
Doors: Flat, white (90201), door end-caps in white (90201)
Cabinet: Global White (90201)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10961)
User Interface: Policarbonate in grey with bottons in white (90201).
 with color white.
Dispenser: Dispenser frame in white (90201), electronic paddles
(grey 10789), water tray Inox, spigot dispenser in white
Plinth: plinth in white (90201) with cover filter in white (90201)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony two with wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Antibacterial Filter, Listeria

Range 2012 overview
Whirlpool / Flat / IDI2 / Global White
WSF 7256 W / 8586 462 11100 / A / R134a
Doors: Flat, white (90201), door end-caps in white (90201)
Cabinet: Global White (90201)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10979)
User Interface: Policarbonate in grey with bottons in white (90201).
 with color white.
Dispenser: Dispenser frame in white (90201), electronic paddles
(grey 10789), water tray Inox, spigot dispenser in grey
Plinth: plinth in white (90201) with cover filter in white (90201)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony without wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Antibacterial Filter

WSF 7656 W / 8586 462 79100 / A+ / R134a
Doors: Flat, white (90201), door end-caps in white (90201)
Cabinet: Global White (90201)
Handles: Pillar handle Alu Scotch Bright (10995) with
handle support painted grey (10979)
User Interface: Policarbonate in grey with bottons in white (90201).
 with color white.
Dispenser: Dispenser frame in white (90201), electronic paddles
(grey 10789), water tray Inox, spigot dispenser in grey
Plinth: plinth in white (90201) with cover filter in white (90201)
Shelves fridge: Co-injected and one bottle rack (wire grid in Inox)
Door bins fridge: one flap, four balcony without wire,
one wine balcony
Drawers fridge: one snack crisper, one vegetable crisper,
one meat crisper
Shelves freezer: three wire grid, two with small basket
Door bins freezer: two snap-on balcony
Drawers freezer: upper and lower basket
Ice making system: IDI 2 version (Sankyo)
Features: Mini Multiflow in the top with milky Multiflow (with graph
"6°sense - 
Antibacterial Filter, Shuko plug
Whirlpool / Flat / IDI2 / Global White
Range 2012 overview

Range 2012
Novelties
1. New IDI (In Door Ice) Sankyo ice-maker.

Range 2012
Novelties
2. Electronic paddle dispenser version.
3. New multiflow channel in fridge compartment.

Range 2012
Novelties

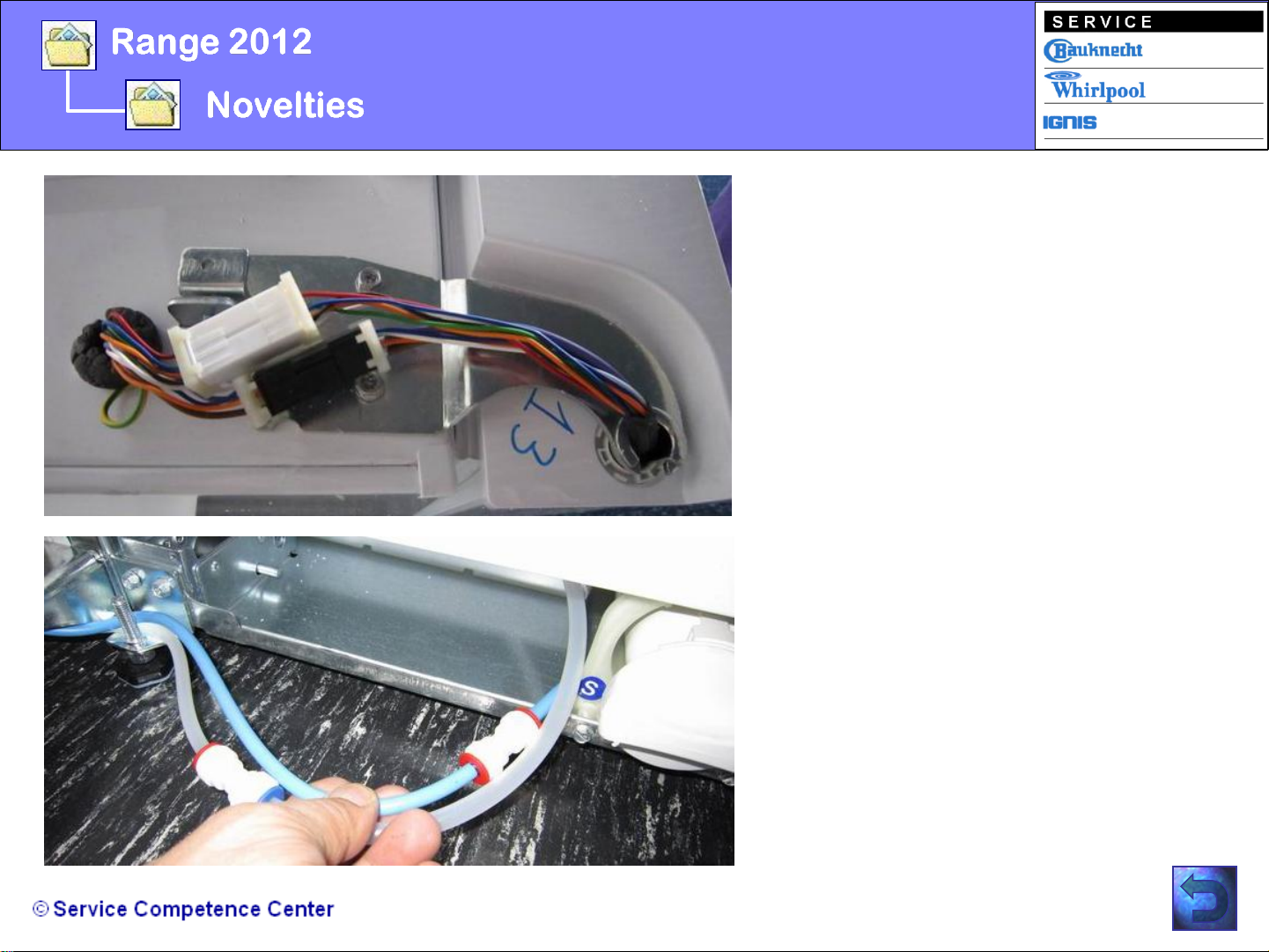

5. New upper hinge with cut-
for a door exchange without
removing the connectors and
modified top connectors with
pin lock system.
6. New water piping guidance for
the ice-maker. Both pipes are
now located in the base of the
appliance.
Blue pipe for the ice-maker
Transparent pipe for the ice-water

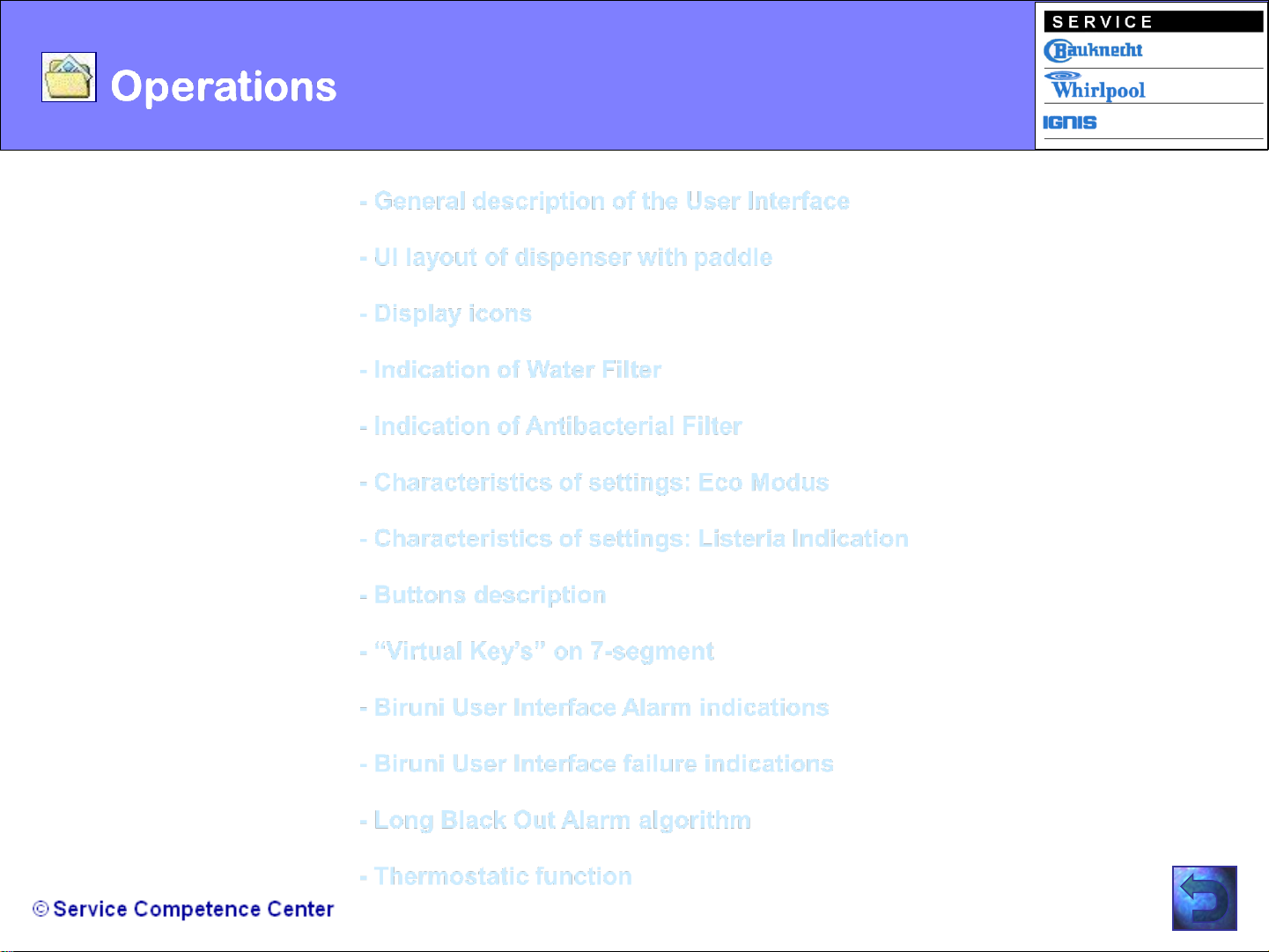

- General description of the User Interface

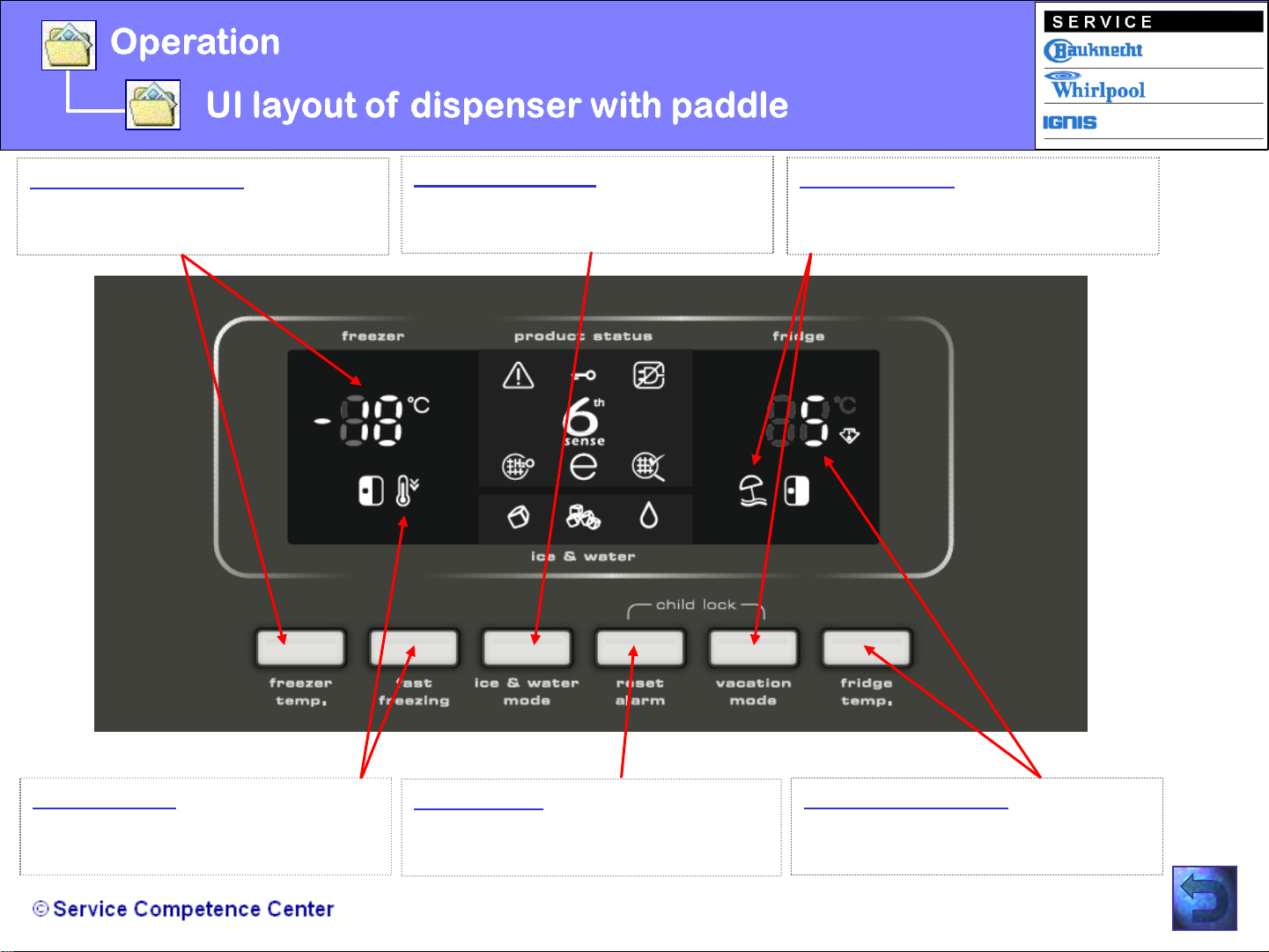

- UI layout of dispenser with paddle
- Display icons
- Indication of Water Filter
- Indication of Antibacterial Filter
- Characteristics of settings: Eco Modus
- Characteristics of settings: Listeria Indication
- Buttons description
- -segment
- Biruni User Interface Alarm indications
- Biruni User Interface failure indications
- Long Black Out Alarm algorithm
- Thermostatic function
Operations

Operation

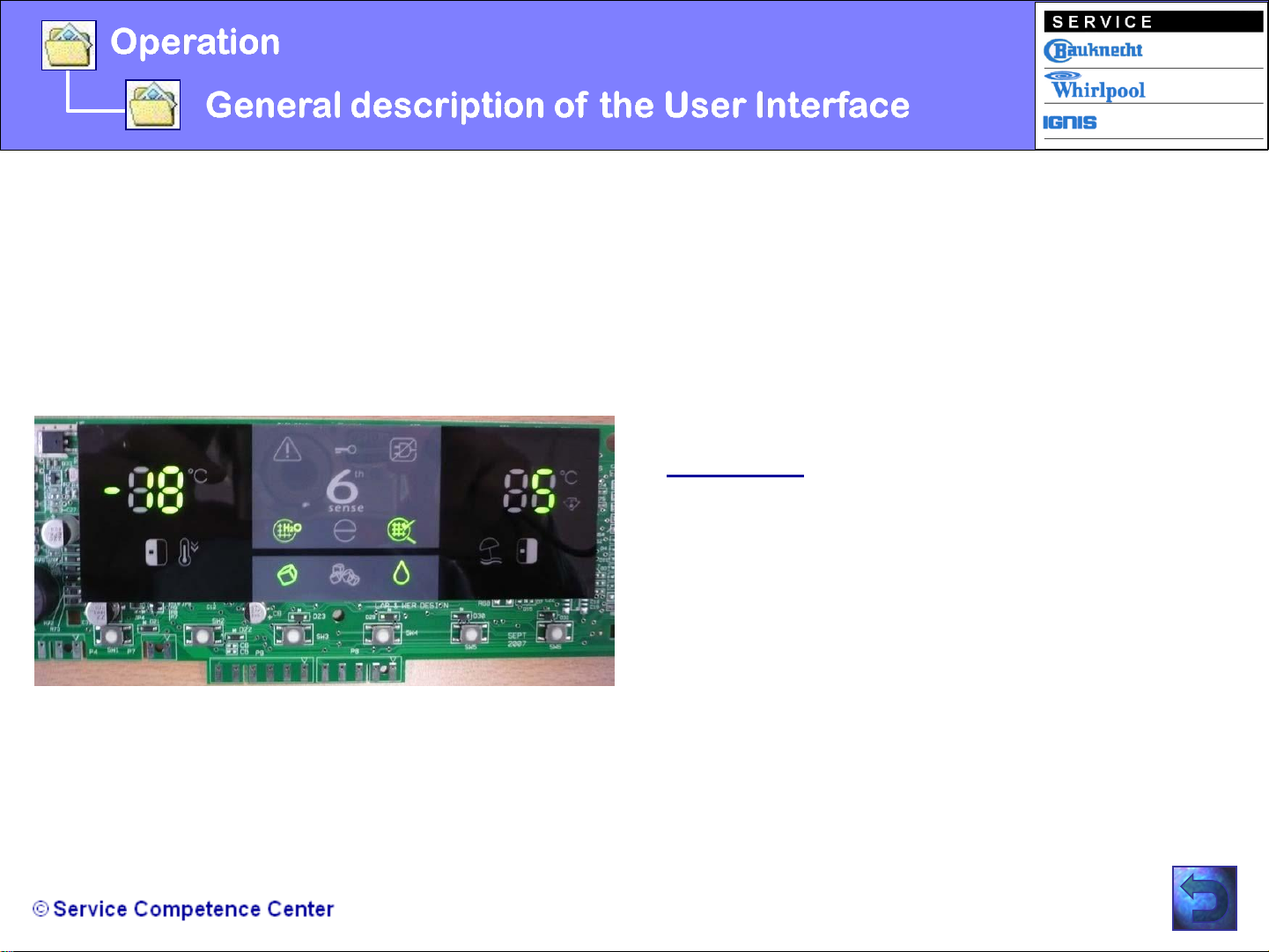

General description of the User Interface
The function of the User Interface is to provide to the User which functions are active and/or selectable and if
there is some failure or alarm condition. Some loads (such as heater, paddle switch, step motor) will be driven
directly by the User Interface Board, but according to Control Board instruction; no logic will reside in the board.
7-segment IDI/NO IDI Biruni
Expected life:
The equipment shall have a useful life not less
than 15 years, corresponding to:
- 10.000 pushbutton operating cycles
- LED life for 15 years
- Buzzer life for 2000 hr. continuous

Operation
Vacation Mode:
Push the button to activate and
deactivate the vacation mode.
Freezer Temperature:
To change the temperature, press
the freezer temperature button.
Fast Freezing:
Push the button to activate and
deactivate the fast freezing mode.
Ice & Water Mode:
Push the button, to select the type
of ice (cubed or crushed ice)
Reset Alarm:
Push the button, to reset the
buzzer in case of a pending alarm.
Fridge Temperature:
To change the temperature, press
the fridge temperature button.
UI layout of dispenser with paddle

Operation

Black-Out Alarm
6th Sense Function
Refrigerator Open Door AlarmFreezer Open Door Alarm
Eco-Mode
Antibacterial Filter IndicationWater Filter Indication
Water Delivery Icon
Alarm Icon
Control Panel Lock (Child Lock)
UI layout of dispenser with paddle
