Whirlpool WET4024HW User manual

W10843842A
WASHER/DRYER
USE AND CARE GUIDE
Table of Contents
WASHER/DRYER SAFETY ...........................................2
ACCESSORIES..............................................................4
USING LESS WATER AND ENERGY ...........................4
CHECK YOUR VENT SYSTEM
FOR GOOD AIRFLOW .................................................5
CONTROL PANEL AND FEATURES ............................6
WASHER CYCLE GUIDE ..............................................7
DRYER CYCLE GUIDE .................................................8
USING YOUR WASHER................................................9
USING YOUR DRYER .................................................12
ADDITIONAL FEATURES............................................13
WASHER/DRYER MAINTENANCE ............................14
TROUBLESHOOTING.................................................18
WARRANTY.................................................................24
ASSISTANCE OR SERVICE........................Back Cover
Table des matières
SÉCURITÉ DE LA LAVEUSE/SÉCHEUSE .................25
ACCESSOIRES............................................................28
RÉDUCTION DE LA CONSOMMATION D’EAU
ET D’ÉNERGIE. ...........................................................28
VÉRIFICATION D’UNE CIRCULATION
D’AIR ADÉQUATE POUR LE SYSTÈME
D’ÉVACUATION ..........................................................29
TABLEAU DE COMMANDE ET
CARACTÉRISTIQUES.................................................30
GUIDE DE PROGRAMMES DE LA LAVEUSE ...........31
GUIDE DE PROGRAMMES DE LA SÉCHEUSE ........32
UTILISATION DE LA LAVEUSE ..................................33
UTILISATION DE LA SÉCHEUSE...............................36
CARACTÉRISTIQUES SUPPLÉMENTAIRES.............38
ENTRETIEN DE LA LAVEUSE/SÉCHEUSE ...............39
DÉPANNAGE ...............................................................43
GARANTIE...................................................................51
ASSISTANCE OU SERVICE............ Couverture arrière
LAVEUSE/SÉCHEUSE
GUIDE D’UTILISATION
ET D’ENTRETIEN
Índice
SEGURIDAD DE LA LAVADORA/SECADORA ..........53
ACCESORIOS .............................................................56
USANDO MENOS AGUA Y ENERGÍA........................56
REVISE QUE EL SISTEMA DE VENTILACIÓN
TENGA UN BUEN FLUJO DE AIRE ..........................57
PANEL DE CONTROL Y CARACTERÍSTICAS ..........58
GUÍA DE CICLOS DE LA LAVADORA........................59
GUÍA DE CICLOS DE LA SECADORA .......................60
USO DE SU LAVADORA .............................................61
USO DE SU SECADORA ............................................64
CARACTERÍSTICAS ADICIONALES..........................66
LAVADORA/SECADORA
MANUAL DE USO Y CUIDADO
MANTENIMIENTO DE
LA LAVADORA/SECADORA.......................................67
SOLUCIÓN DE PROBLEMAS.....................................71
GARANTÍA...................................................................79
AYUDA O SERVICIO TÉCNICO..................................83

2

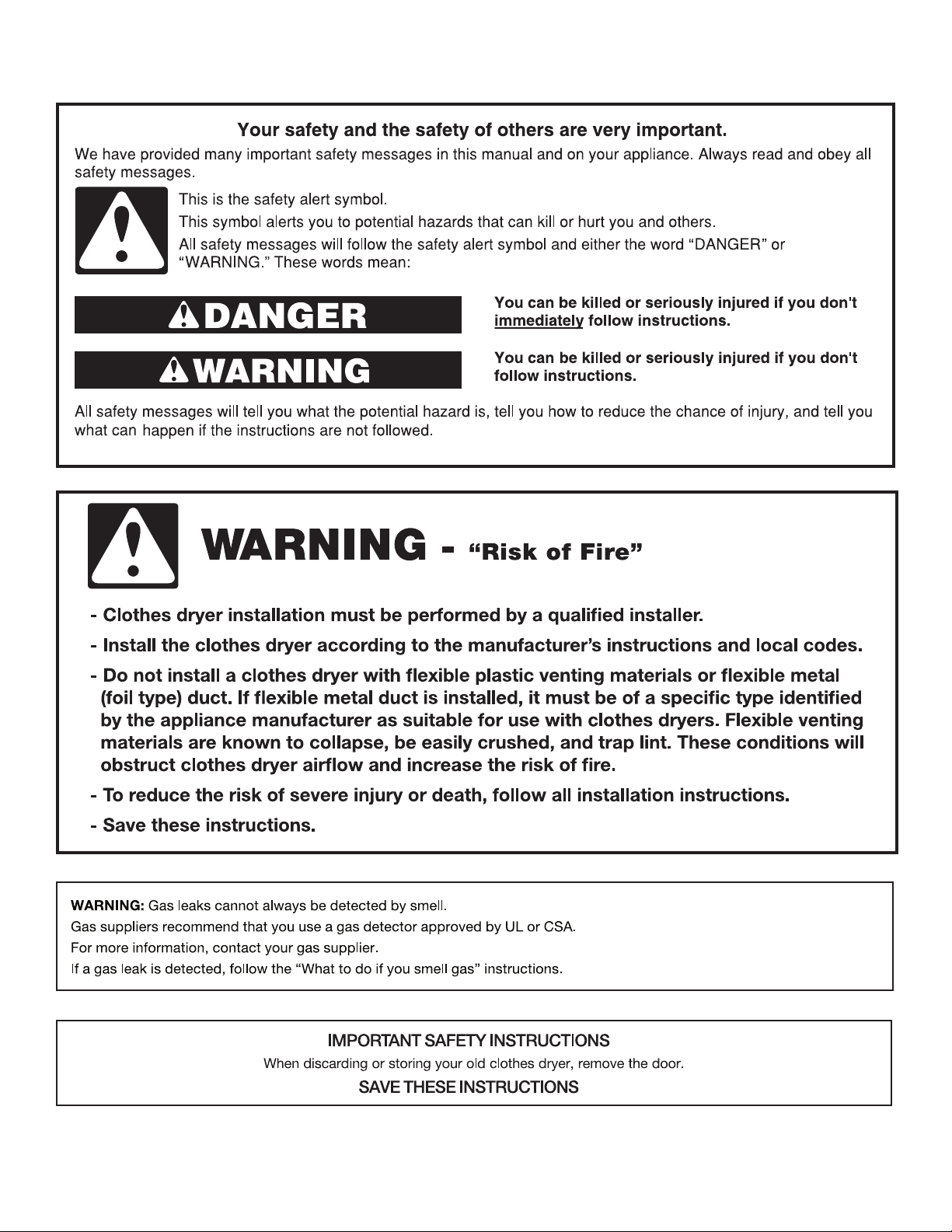

Washer/Dryer Safety

3

4
Accessories
This washer does not include inlet water hoses. See Installation Instructions for installation accessories.
Enhance your dryer with these premium accessories.
For more high-quality items or to order, call 1-866-698-2538, or visit us at www.whirlpool.com/accessories.
In Canada call 1-800-688-2002, or visit us at www.whirlpoolparts.ca.
Part Number Accessory: Part Number Accessory
3404351
8212614
Drying rack – ts 29" (737 mm)
Super Capacity, 6.5 cu ft (0.18 cu m) –
side swing or hamper door
Dryer vent lint brush
All-purpose appliance cleaner
Compact dryer stand – white
31682
49971
3406839 Drying rack – ts 29" (737 mm)
Super Capacity Plus, 7.0 cu ft
(0.20 cu m) – side swing door only
Laundry supply storage cart
1903WH
Using Less Water and Energy
This washer is designed to use less water and energy, and
complies with all 2015 energy standards. Wash cycles with
controlled temperatures are designed to maintain cleaning
performance while using less water and energy compared to
older traditional washers. As a result, water levels will be lower,
and hot and warm wash temperatures may not be as warm as
you are used to.
Traditional washer Reduced water washer

5
Check Your Vent System for Good Airow
Good airow
Along with heat, dryers require good airow to efciently
dry laundry. Proper venting will reduce your drying times and
improve your energy savings. See Installation Instructions.
The venting system attached to the dryer plays a big role
in good airow.
Service calls caused by improper venting are not covered
by the warranty and will be paid by the customer, regardless
of who installed the dryer.
Maintain good airow:
Good Better
n Clean your lint screen before each load.
n Replace plastic or foil vent material with 4" (102 mm)
diameter heavy, rigid vent material.
n Use the shortest length of vent possible.
n Use no more than four 90° elbows in a vent system;
each bend and curve reduces airow.
n Remove lint and debris from the exhaust hood.
n Remove lint from the entire length of the vent system at
least every 2 years. When cleaning is complete, be sure
to follow the Installation Instructions supplied with your
dryer for nal product check.
n Clear away items from the front of the dryer.
4"
(102 mm)
Use Automatic cycles for better fabric care and energy savings
Use the Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Dry
cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle, and the
dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.
With Timed Drying, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to
overdrying. Use Timed Drying for the occasional damp load that needs a little more drying time or when using the drying rack.

6
341
Control Panel and Features
2
WASH CYCLE KNOB
Use the Wash Cycle knob to select available cycles on your
washer. Turn the knob to select a cycle for your laundry load.
See “Washer Cycle Guide” for detailed descriptions of cycles.
WASH TEMP
You may select a Wash Temperature based on the type of
fabric and soils being washed. Use the warmest wash water
safe for the fabric. Follow garment label instructions.
SOIL LEVEL
Select the most suitable setting (Light, Medium, or Heavy)
for your load.
DEEP WATER WASH (on 27" models)
Select this option for bulky loads such as sheets
or bedding.
2
3
4
15
Not all features and options are available on all models. Appearance may vary.
56
PUSH TO START KNOB/END OF CYCLE SIGNAL
On 24" models, press the PUSH TO START knob
to start the dryer.
On 27" models, the PUSH TO START knob is used both
to start the dryer and to select End of Cycle Signal.
The End of Cycle Signal produces an audible sound when
the drying cycle is nished. Promptly removing clothes
at the end of the cycle reduces wrinkling. Turn the END
OF CYCLE SIGNAL knob to select the desired setting
(On or Off). Press the PUSH TO START knob to start
the dryer.
DRYER CYCLE KNOB
Use your Dryer Cycle knob to select available cycles on your
dryer. Turn the knob to select a cycle for your laundry load.
See “Dryer Cycle Guide” for detailed descriptions of cycles.
TIMED DRYING
Will run the dryer for the specied time on the control.
Drying time and temperature will depend on your dryer
model.
AUTOMATIC DRY
Senses moisture in the load or air temperature and shuts
off when the load reaches the selected dryness level.
Gives the best drying in the shortest time. Drying time will
vary based on fabric type, load size, and dryness setting.
6
WASHER DRYER
27" (68.5 cm) Models
3
1 2 56
24" (61 cm) Models
341 2 56
27" (68.5 cm) Long Vent Models (U.S. Only)

7
* You should use the amount of detergent or presoak additive recommended by the manufacturer. After the cycle ends, you may add
detergent and start a new wash cycle.
**Approximate time in minutes.
IMPORTANT: Do not presoak items in your washer by lifting the lid or stopping the cycle. Failure to follow this instruction can result
in property damage. If needed, presoak items in a small wash basin prior to loading the washer.
Washer Cycle Guide
Items to wash: Cycle: Wash
Times:** Wash/Spin
Speed: Cycle Details:
Lightly to moderately
soiled delicate items
and washable knits
Delicates Low/Low
Permanent press
blends and
synthetic fabrics
that are lightly to
moderately soiled
Cottons and
linens; loads that
are moderately or
heavily soiled
Heavily soiled
or stained
items that need
pretreatment
Casual
Normal
Prewash*
Gently removes soils and minimizes
wrinkling.
You may select a wash time based on your
load. Features a low-speed nal spin to
reduce wrinkling.
You may select a wash time based on your
load. Select the Deep Water Wash option
for bulky loads such as sheets or bedding.
Brief periods of agitation and soak
followed by a 4-minute prewash featuring
high-speed agitation.
6–10
6–14
4
High and
Low/Low
High and
Low/High
High/High
6–10
Not all cycles or options are available on all models.
Refer to the cycle control knob on your washer.
Wash temperatures are selected using the Wash
Temp knob.
For best performance:
• Choose the cycle that best ts the load being washed.
• Use Prewash or Soak for heavily soiled clothing.
• Do not leave the washer lid open unattended once
the washer has started to ll.
27" Models
* You should use the amount of detergent or presoak additive recommended by the manufacturer. After the cycle ends, you may add
detergent and start a new wash cycle.
**Approximate time in minutes.
IMPORTANT: Do not presoak items in your washer by lifting the lid or stopping the cycle. Failure to follow this instruction can result
in property damage. If needed, presoak items in a small wash basin prior to loading the washer.
Items to wash: Cycle: Wash
Times:** Wash/Spin
Speed: Cycle Details:
Lightly to moderately
soiled delicate items
and washable knits
Delicates Low/Low
Permanent press
blends and
synthetic fabrics
that are lightly to
moderately soiled
Cottons and
linens; loads that
are moderately or
heavily soiled
Heavily soiled
or stained
items that need
pretreatment
Casual
Normal
Soak*
Gently removes soils and minimizes
wrinkling.
You may select a wash time based on your
load. Features a low-speed nal spin to
reduce wrinkling.
You may select a wash time based on
your load.
Brief periods of agitation and soak
followed by a 2-minute prewash featuring
high-speed agitation.
6–10
8–12
12
High and
Low/Low
High and
Low/High
High/High
8
24" Models
Heavily soiled loads Super Wash 14 High/High The longest wash time.
27" Models 24" Models
Soil
Level
Medium
or
Heavy
Light
or
Medium
Light
or
Medium
Heavy
Soil
Level
Medium
or
Heavy
Light
or
Medium
Light
or
Medium
Heavy
Heavy

8
Not all cycles and settings are available on all models.
AUTOMATIC DRY – Automatic cycles give the best drying
in the shortest time. They sense moisture in the load or air
temperature and shut off when the load reaches the selected
dryness level. Drying time varies based on fabric type, load
size, and dryness setting.
Select a drying temperature based on the fabrics in your
load. If you are unsure of the temperature to select for a
load, select the lower setting rather than the higher setting.
Items to dry: Available
Options: Cycle Details:
End of Cycle Signal
(on 27" models)
Dryer Cycle Guide — Automatic Dry Cycles
NOTE: If loads do not seem as dry as you would like, select Very Dry next time you dry a similar load. If loads seem drier than you
like, select Less Dry next time you dry a similar load.
AUTOMATIC
DRY (Low Heat)
AUTOMATIC
DRY (High Heat) End of Cycle Signal (on 27" models) Automatic cycles include a cool down cycle to make the load easier to handle.
An ENERGY PREFERRED AUTOMATIC SETTING is available
for optimal energy savings.
Cycle:
Dryer Cycle Guide — Timed Drying
Items to dry: Temperature:Cycle: Available
Options: Cycle Details:
Not all cycles and settings are available on all models.
Will run the dryer for the selected time.
Heavy, bulky, or
lightweight items
Any load
Timed Drying
Damp Dry
(on 27" models) High
Time Adjustment
End of Cycle Signal
(on 27" models)
End of Cycle Signal
(on 27" models)
Completes drying if items are still damp.
Dries items to a damp level or for items
that do not require an entire drying cycle.
High
Rubber, plastic,
heat-sensitive fabrics Fluff Air No Heat Time Adjustment
End of Cycle Signal
(on 27" models)
No-heat drying.
Any load Tumble Press®High End of Cycle Signal
(on 27" models) Helps remove wrinkles in dry clothing, such as those found in clothes packed
in a suitcase or in items wrinkled from
being left in the dryer too long.
Most loads, including
jeans, heavy work
clothes, towels
Medium to lightweight
synthetics, permanent
press, no-iron items
or smaller, lighter
loads, including work
clothes, medium
weight fabrics, sheets,
casual, shirts, pants,
lightweight items,
synthetics, delicates,
athletic wear
27" Models 24" Models

9
• Empty pockets. Loose change, buttons, or any small object
can pass under the agitator and become trapped, causing
unexpected sounds.
• Sort items by recommended cycle, water temperature,
and colorfastness.
• Separate heavily soiled items from lightly soiled.
• Separate delicate items from sturdy fabrics.
• Do not dry garments if stains remain after washing, because
heat can set stains into fabric.
• Treat stains promptly.
• Close zippers, fasten hooks, tie strings and sashes, and
remove non-washable trim and ornaments.
• Mend rips and tears to avoid further damage to items
during washing.
Helpful Tips:
• When washing waterproof or water-resistant items, load evenly.
• Use mesh garment bags to help avoid tangling when washing
delicate or small items.
• Turn knits inside out to avoid pilling. Separate lint-takers from
lint-givers. Synthetics, knits, and corduroy fabrics will pick up
lint from towels, rugs, and chenille fabrics.
NOTE: Always read and follow fabric care label instructions to
avoid damage to your garments.
1. Sort and prepare your laundry
Using Your Washer
Add a measured amount of detergent or single-dose laundry
packet into the basket before adding clothes. If using Oxi-type
boosters, color-safe bleach, or fabric softener crystals, add
to the bottom of the washer basket as well.
IMPORTANT: Follow the manufacturer’s instructions
to determine the amount of laundry products to use.
2. Add laundry products

10
5. Add fabric softener to dispenser
(on 27" models)
Pour a measured amount of liquid fabric
softener into dispenser; always follow
manufacturer’s directions for correct amount
of fabric softener based on your load size.
Dilute liquid fabric softener by lling the dispenser with warm
water until liquid reaches the underside of the rim. See max ll
line arrows. Do not overll.
Adding Liquid Fabric Softener Manually to Wash Load
On models without a fabric softener dispenser (24" models),
or to add fabric softener manually on dispenser models, during
the nal rinse, wait until the washer has completed lling, then
push in the Cycle knob to pause the washer. Lift the lid and add
the measured recommended amount of liquid fabric softener
(diluted with 1/2 to 1 cup [125 to 250 mL] warm water). Do not
allow liquid fabric softener to spill, splash, drip, or run into the
basket or on load. Do not use more than the recommended
amount. Close the lid and pull out the Cycle knob to start the
washer.
Do not overll, dilute, or use more than 1 cup (250 mL).
Do not use color-safe bleach or Oxi products in the same
cycle with liquid chlorine bleach.
Load garments in loose heaps evenly around basket wall.
For best results, do not pack the load tightly. Do not wrap large
items such as sheets around the agitator; load them in loose
piles around the sides of the basket. Try mixing different sized
items to reduce tangling.
3. Load laundry into washer
IMPORTANT: Do not tightly pack or force items into washer.
Items need to move freely for best cleaning and to reduce
wrinkling and tangling.
Turn Cycle knob clockwise to choose your wash cycle.
For more information, see “Washer Cycle Guide.”
6. Select cycle
4. Add liquid chlorine bleach
to dispenser (on 27" models)
MAX FILL
Liquid
Chlorine Bleach

11
8. Select TEMPERATURE
Once you select a cycle, select the desired wash temperature
by turning the WASH TEMP knob to the appropriate setting
based on your load. All rinses are tap cold.
NOTE: Always read and follow fabric care label instructions
to avoid damage to your garments.
10. Pull out Cycle knob to begin
wash cycle
Close the washer lid and pull out the Cycle knob to start
the washer.
NOTE: Some washers will only ll with the lid in the closed
position.
To add a garment after washer starts:
• Push in the Cycle knob to stop the washer.
• Open the lid and add the item(s).
• Close the lid and pull the Cycle knob out to resume the
cycle. Do not leave the lid open unattended once the
washer has started lling.
• For best performance, do not interrupt washer cycle
once the washer has been started.
On some models, set DEEP WATER WASH to ON for bulky
loads such as sheets or bedding.
9. Select Deep Water Wash option
(on 27" models)
Select the soil level setting most suitable for your load.
7. Select SOIL LEVEL
Wash Temp
Hot
Some cold water is added to save
energy. This will be cooler than
your hot water heater setting.
Warm
Some cold water will be added, so
this will be cooler than what your
previous washer provided.
Cool
Some warm water may be added
to assist in soil removal and to
help dissolve detergents.
Cold
A small amount of warm water
may be added to assist in soil
removal and to help dissolve
detergents. Water will be colder
than “Cool” setting.
Tap Cold
This is the temperature from
your faucet.
Suggested Fabrics
Whites and pastels
Durable garments
Heavy soils
Bright colors
Moderate to light soils
Colors that bleed
or fade
Light soils
Dark colors that
bleed or fade
Light soils
Dark colors that
bleed or fade
Light soils

12
Using Your Dryer
1. Clean the lint screen
Clean the lint screen before each load.
On 27" models, pull the lint screen straight up. Roll lint off the
screen with your ngers. Push the lint screen rmly back into place.
On 24" models, reach inside the drum and pull out the lint
screen and its cover, and separate the cover and the screen by
squeezing the screen and pulling on the cover at the same time.
Roll lint off the screen with your ngers. Put the lint screen and
its cover back together and push rmly into place.
On all models, do not rinse or wash screen to remove lint. For
additional cleaning information, see “Cleaning the lint screen.”
2. Load the dryer
Place laundry in the dryer. Close the door.
NOTE: Your model may have a different door than the
one shown.
Do not tightly pack the dryer; clothes should be able to
tumble freely.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this dryer.
Before using your dryer, wipe the dryer drum with a damp cloth
to remove dust from storing and shipping.
3. Select cycle
Select the desired cycle for your load. See “Dryer Cycle
Guide” for more information about each cycle.
AUTOMATIC DRY Cycles
You can select a different dryness level, depending on your
load, by turning the knob to the desired dryness level.
Selecting Very Dry, ENERGY PREFERRED, or Less Dry
automatically adjusts the dryness level at which the dryer will
shut off. Once a dryness level is set, it cannot be changed
without stopping the cycle.
AUTOMATIC DRY cycles give the best drying in the shortest
time. Drying time varies based on fabric type, load size, and
dryness setting.
NOTE: Very Dry removes more load moisture. ENERGY
PREFERRED is used for a starting point for AUTOMATIC DRY
cycles. Choose ENERGY PREFERRED for optimal energy
savings. Less Dry removes less moisture and is used for loads
you may want to put on a hanger to complete drying.
27" models 24" models

13
5. Press PUSH TO START knob
to begin cycle
Push and hold the PUSH TO START knob to begin the cycle.
Promptly remove garments after cycle has completed to reduce
wrinkling. Use the Tumble Press®feature to avoid wrinkling
when you are unable to remove a load from the dryer as soon
as it stops.
4. Select End of Cycle Signal
(optional, on 27" models only)
Your dryer may have an End of Cycle Signal. The signal is
helpful when drying items that should be removed from the
dryer as soon as it stops. On the PUSH TO START button,
turn the END OF CYCLE SIGNAL selector to ON or OFF.
The signal will sound only if the selector is set to ON.
NOTE: When the Tumble Press®setting is selected and
the End of Cycle Signal is ON, the tone will sound every
5minutes until the clothes are removed or the Tumble Press®
setting ends.
Additional Features
2. Align the two hooks on the front of the drying rack with
the holes in the dryer door opening and press down fully
into holes. Rest the rear support on the dryer back ledge.
USING THE DRYING RACK
To obtain a drying rack for your dryer, follow the instructions
included in your dryer drum. Remove and discard any
packing material before use.
Use the drying rack for items that you do not want to tumble
dry, such as sweaters and tennis shoes. When you use the
drying rack, the drum continues to turn, but the rack remains
stationary.
The drying rack is intended for use with the Timed Drying
cycles only. The drying rack cannot be used with Automatic
Dry cycles.
To use the drying rack:
IMPORTANT: Do not remove the lint screen.
1. Open dryer door.
3. Place wet items on top of the drying rack. Allow space
around items for air to circulate. The drying rack does
not move, but the drum will rotate. Make sure items do
not hang over the edges or between drying rack grille.
4. Close the door.
5. Select a Timed Drying/Fluff Air or Low Temperature
cycle. Items containing foam, rubber, or plastic must be
dried on a clothesline or by using the Fluff Air setting.
6. Start the dryer.
NOTE: Check the lint screen and remove any lint
accumulated from items dried on the drying rack
after the cycle is nished.
27" Models 24" Models

14
WASHER CARE
Recommendations to Help Keep Your Washer Clean
and Performing at its Best
1. Always follow the detergent manufacturer’s instructions
regarding the amount of detergent to use. Never use more
than the recommended amount because that may increase
the rate at which detergent and soil residue accumulate
inside your washer, which in turn may result in undesirable
odor.
2. Use warm and hot wash water settings sometimes (not
exclusively cold water washes), because they do a better
job of controlling the rate at which soils and detergent
accumulate.
3. Always leave the washer lid open between uses to help dry
out the washer and prevent the buildup of odor-causing
residue.
Cleaning Your Top Loading Washer
Read these instructions completely before beginning the
routine cleaning processes recommended below. This Washer
Maintenance Procedure should be performed, at a minimum,
once per month or every 30 wash cycles, whichever occurs
sooner, to control the rate at which soils and detergent
may otherwise accumulate in your washer. To keep washer
interior odor-free, follow this recommended monthly cleaning
procedure:
affresh®Washer Cleaner Cycle Procedure (Recommended
for Best Performance):
a. Open the washer lid and remove any clothing or items.
b. Place an affesh®Washer Cleaner tablet in the bottom
of the washer basket.
c. Do not add any detergent or other chemical to the
washer when following this procedure.
d. Close the washer lid.
e. Select Normal 14 (27" models) or Super Wash
(24" models) cycle, Hot Temperature, and Heavy
Soil Level.
f. Pull out the Cycle knob. Water will pour into washer
for a moment and then pause; the lid will lock and
the cycle will continue.
NOTE: For best results, do not interrupt cycle. If cycle must
be interrupted, push in the Cycle knob.
Replace inlet hoses after 5 years of use to reduce the risk of
hose failure. Periodically inspect and replace inlet hoses if
bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hoses, mark the date of replacement
on the label with a permanent marker.
WATER INLET HOSES
Washer/Dryer Maintenance
WASHER CARE (cont.)
Chlorine Bleach Procedure (Alternative):
a. Open the washer lid and remove any clothing
or items.
b. Add 1 cup (236 mL) of liquid chlorine bleach
to the bleach compartment.
NOTE: Use of more liquid chlorine bleach than is
recommended above could cause washer damage
over time.
c. Do not add any detergent or other chemical to the
washer when following this procedure.
d. Close the washer lid.
e. Select Normal 14 (27" models) or Super Wash
(24" models) cycle, Hot Temperature, and Heavy
Soil Level.
f. Pull out the Cycle knob. Water will pour into washer
for a moment and then pause; the lid will lock and
the cycle will continue.
NOTE: For best results, do not interrupt cycle. If cycle must
be interrupted, push in the Cycle knob.
Cleaning the liquid fabric softener dispenser
(on some models)
1. Remove dispenser by grasping top with both hands
and squeezing, while pushing upward with thumbs.
2. Rinse dispenser under warm water, then replace it.
NOTE: To avoid damage to the washer or clothing,
do not wash clothes with the liquid fabric softener
dispenser removed.
Cleaning the bleach dispenser (on some models)
Wipe the inside of the bleach dispenser with a clean,
damp cloth.
Cleaning the Outside of the Washer
Use a soft, damp cloth or sponge to wipe away any spills.
Use only mild soaps or cleaners when cleaning external
washer surfaces.
IMPORTANT: To avoid damaging the washer’s nish,
do not use abrasive products.

15
Keep washer/dryer area clear and free from items that
would block the airow for proper washer/dryer operation.
This includes clearing piles of laundry in front of the washer/
dryer.
CLEANING THE DRYER INTERIOR
To clean dryer drum
1. Apply a liquid, nonammable household cleaner to the
stained area of the drum and rub with a soft cloth until
stain is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain loose dyes, such as denim
blue jeans or brightly colored cotton items, may discolor the
dryer interior. These stains are not harmful to your dryer and
will not stain future loads of clothes. Dry these items inside
out to avoid drum staining.
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often,
depending on dryer usage. Cleaning should be done
by a qualied servicer.
From the Exhaust Vent
Lint should be removed every 2 years, or more often,
depending on dryer usage.
CLEANING THE WASHER/DRYER LOCATION
CLEANING THE LINT SCREEN
Every load cleaning
A screen blocked by lint can increase drying time.
On 27" models, the lint screen is located in the door opening
of the dryer.
On 24" models, it is located inside the dryer on the back wall.
To clean:
1. On 27" models, pull the lint screen straight up. Roll lint
off the screen with your ngers.
On 24" models, pull out the lint screen and its cover,
and separate the cover and the screen by squeezing the
screen and pulling on the cover at the same time. Roll
lint off the screen with your ngers.
On all models, do not rinse or wash the screen
to remove lint. Wet lint is hard to remove.
2. On 27" models, push the lint screen rmly back into
place.
On 24" models, put the lint screen and its cover back
together and push rmly back into place.
IMPORTANT:
n Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can cause
overheating and damage to both the dryer and fabrics.
n If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See
“Venting Requirements” in the Installation Instructions.
As needed cleaning
Laundry detergent and fabric softener residue can build
up on the lint screen. This buildup can cause longer drying
times for your clothes, or cause the dryer to stop before
your load is completely dry. The screen is probably clogged
if lint falls off while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your ngers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent.
Scrub lint screen with the brush to remove residue
buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel.
Reinstall screen in dryer.
27" models
27" models 24" models
24" models

16
CHANGING THE DRUM LIGHT (on some models)
1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the
back wall of the dryer. Using a Phillips-head screwdriver,
remove the screw located in the lower right-hand corner
of the cover. Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with
a 10-watt appliance bulb only. Replace the cover and
secure with the screw.
4. Plug into a grounded outlet or reconnect power.
VACATION, STORAGE, AND MOVING CARE
Non-Use or Storage Care
Operate your washer/dryer only when you are at home.
If you will be on vacation or not using your washer/dryer
for an extended period of time, you should:
1. Unplug washer/dryer or disconnect power.
2. Turn off water supply to washer, to avoid ooding due
to water pressure surge.
3. For gas dryers only: Close shut-off valve to gas supply line.
4. Clean lint screen. See “Cleaning the Lint Screen”.
Moving Care
For power supply cord-connected washer/dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in washer/dryer base.
3. Continue with “For washers” in next column.
For direct-wired washer/dryers:
1. Turn off power at fuse or breaker box.
2. Disconnect wiring.
3. Make sure leveling legs are secure in washer/dryer base.
4. Continue with “For washers” below.
For gas washer/dryers:
1. Unplug or disconnect power to washer/dryer.
2. Close shut-off valve in gas supply line.
3. Disconnect gas supply line pipe and remove ttings
attached to dryer pipe.
4. Cap the open fuel supply line.
5. Make sure leveling legs are secure in washer/dryer base.
6. Continue with “For washers” below.
For washers:
1. Shut off both water faucets. Disconnect and drain water
inlet hoses.
2. If washer/dryer will be moved during freezing weather,
follow “Winter Storage Care” directions before moving.
3. Disconnect drain hose from drain system and drain any
remaining water into a pan or bucket. Disconnect drain
hose from back of washer.
4. Place inlet hoses and drain hose inside washer basket.
5. Drape power cord over edge and into washer basket.
6. Place packing tray from original shipping materials
back inside washer/dryer. If you do not have packing
tray, place heavy blankets or towels into basket opening.
Close lids/doors and place tape over lids/doors and
down front of washer/dryer. Keep lids/doors taped
until washer/dryer is placed in new location.
VACATION, STORAGE, AND MOVING CARE (cont.)

17
2. Plug in washer/dryer or reconnect power.
3. Run washer through a complete cycle to clean washer
and remove antifreeze, if used. Use half the manufacturer’s
recommended amount of detergent for a medium-size load.
In the U.S.A.
In Canada
WINTER STORAGE CARE
IMPORTANT: To avoid damage, install and store washer/dryer
where it will not freeze. Because some water may stay in
hoses, freezing can damage washer/dryer. If storing or moving
during freezing weather, winterize your washer/dryer.
To winterize washer/dryer:
1. Shut off both water faucets, disconnect and drain water
inlet hoses.
2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and run
washer on RINSE cycle for about 30 seconds to mix
antifreeze and remaining water.
3. Unplug washer/dryer or disconnect power.
REINSTALLING/USING WASHER/DRYER AGAIN
To reinstall washer/dryer after non-use, vacation, moving,
or winter storage:
1. Refer to Installation Instructions to locate, level, and
connect washer/dryer.
2. Before using again, run washer/dryer through the following
recommended procedure:
To use washer/dryer again:
1. Flush water pipes and hoses. Reconnect water inlet hoses.
Turn on both water faucets.
(continued in next column)

18
First try the solutions suggested here or visit our website at www.whirlpool.com/product_help –
In Canada www.whirlpool.ca for assistance and to possibly avoid a service call.
If you experience Possible Causes Solution
Feet may not be in contact with the
oor and locked. Front and rear feet must be in rm contact with oor, and washer/dryer must be level to operate properly. Jam nuts must
be tight against the bottom of the cabinet.
Check oor for exing or sagging. If ooring is uneven, a 3/4"
(19 mm) piece of plywood under your washer/dryer will reduce
sound.
See “Level the Washer/Dryer” in Installation Instructions.
Load could be unbalanced. Load dry items in loose heaps evenly around basket wall.
Adding wet items to washer or adding more water to basket
could unbalance washer.
Do not tightly pack. Avoid washing single items.
See “Washer Cycle Guide” and “Using Your Washer” in this Use
and Care Guide.
Empty pockets before washing. Loose items such as coins
could fall between basket and tub or may block pump.
It may be necessary to call for service to remove items.
It is normal to hear metal items on clothing such as metal snaps,
buckles, or zippers touch against the stainless steel basket.
Objects caught in washer drain
system.
Clicking or metallic
noises
Gurgling or humming It is normal to hear the pump making a continuous humming
sound with periodic gurgling or surging as nal amounts of
water are removed during the Spin cycle.
Washer may be draining water.
Check the following for
proper installation or
see “Using Your
Washer” section. Washer/dryer may not be level.
Vibration or Off-Balance
Noises
Troubleshooting — Washer
Washer not level. Water may splash off basket if washer is not level. Check that
load is not unbalanced or tightly packed.
Fill hoses not attached tightly. Tighten ll-hose connection.
Make sure all four ll hose at washers are properly seated.
Drain hose connection. Pull drain hose from washer cabinet and properly secure it to
drainpipe or laundry tub.
Do not place tape over drain opening.
Check household plumbing for leaks
or clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe,
water pipes, and faucets.)
Fill hose washers.
Check the following for
proper installation:
Improper loading can cause basket to be out of alignment
and cause water to splash off tub. See “Using Your Washer”
for loading instructions.
Washer not loaded as
recommended.
Water Leaks
Washer not performing as expected
Washer won’t run
or ll, washer stops
working
Check for proper water supply. Both hoses must be attached and have water owing to
inlet valve.
Both hot and cold water faucets must be turned on.
Check that inlet valve screens have not become clogged.
Check for any kinks in inlet hoses, which can restrict water ow.
Humming You may hear the hum of the sensing spins after you have
started the washer. This is normal. Sensing spins will take
several minutes before water is added to the washer.
Washer is in sensing spin.

19
If you experience Possible Causes Solution
Normal washer operation. Door must be closed for washer to run.
Washer will pause during certain phases of cycle. Do not
interrupt cycle.
Washer spins the dry load for several minutes before lling to
determine if load is balanced. You may hear the hum of the
spins. This is normal.
Washer not loaded as
recommended. Remove several items, rearrange load evenly in basket and add detergent. Close lid and pull Cycle knob to start washer.
Do not add more than 1 or 2 additional items after cycle has
started to avoid tightly packing or unbalancing.
First try the solutions suggested here or visit our website at www.whirlpool.com/product_help –
In Canada www.whirlpool.ca for assistance and to possibly avoid a service call.
Washer not performing as expected (cont.)
Used a cycle with a low spin speed. Cycles with lower spin speeds remove less water than cycles
with high spin speeds. Use the recommended cycle/spin speed
for your garment. To remove extra water in the load, select Spin.
Load may need to be rearranged to allow even distribution of the
load in the basket.
Empty pockets and use garment bags for small items.
Small items may have been caught
in pump or between basket and tub,
which can slow draining.
Washer not draining/
spinning, loads are
still wet
Washer not loaded as recommended. Tightly packing or unbalanced loads will not allow the washer to
spin correctly, leaving the load wetter than normal. See “Using
Your Washer” for loading recommendations.
Check plumbing for correct drain hose
installation. Drain hose extends into
standpipe farther than 4.5" (114 mm).
Check drain hose for proper installation. Use drain hose form
and securely attach to drainpipe or tub. Do not tape over drain
opening. Lower drain hose if the end is higher than 96" (2.4 m)
above the oor. Remove any clogs from drain hose.
Washer won’t run
or ll, washer stops
working (cont.)
Too much detergent causing suds
to slow or stop draining and spinning. Always measure and follow detergent directions for your load. To remove extra suds, select Rinse and Spin. Do not add
detergent.
Troubleshooting — Washer (cont.)
In the U.S.A. In Canada
Plug into a grounded outlet or reconnect power.
Do not use an extension cord.
Ensure there is power to outlet.
Reset a tripped circuit breaker. Replace any blown fuses.
NOTE: If problems continue, contact an electrician.
Check proper electrical supply.

20
If you experience Possible Causes Solution
Incorrect or wrong
wash or rinse
temperatures
Check for proper water supply. Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached to both washer and faucet, and
have both hot and cold water owing to inlet valve.
Check that inlet valve screens are not clogged.
Remove any kinks in hoses.
This washer uses cooler wash and rinse water temperatures
than your previous washer. This includes cooler hot and warm
washes.
Load not rinsed Check for proper water supply.
First try the solutions suggested here or visit our website at www.whirlpool.com/product_help –
In Canada www.whirlpool.ca for assistance and to possibly avoid a service call.
Washer not performing as expected (cont.)
Energy-saving controlled
wash temperatures.
Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached and have water owing to the
inlet valve.
Both hot and cold water faucets must be ON.
Inlet valve screens on washer may be clogged.
Remove any kinks in the inlet hose.
Using too much detergent. The suds from too much detergent can keep washer from
operating correctly. Always measure detergent and follow
detergent directions based on load size and soil level.
Washer not loaded as recommended. The washer is less efcient at rinsing when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
The washer will not rinse well if tightly packed. Load with dry
items only.
Use cycle designed for the fabrics being washed.
Add only 1 or 2 garments after washer has started.
The high spin speeds combined with air ow during the nal
spin can cause items near the top of the load to develop dry
spots during the nal spin. This is normal.
High speed spins extract more
moisture than traditional top-load
washers.
Increase soil level setting.Heavy sand, pet hair, lint, and
detergent or bleach residues may
require additional rinsing.
Sand, pet hair, lint,
etc. on load after
washing
Load is tangling Washer not loaded as recommended. See “Using Your Washer” section.
Select a cycle with a slower wash action and spin speed;
however, items will be wetter than those using a higher
speed spin.
Load garments in loose heaps evenly around the basket wall.
Reduce tangling by mixing types of load items. Use the
recommended cycle for the type of garments being washed.
Not cleaning or
removing stains Washer is less efcient at cleaning when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
Load with dry items only.
Add only 1 or 2 garments after washer has started.
Washer not loaded as recommended.
Troubleshooting — Washer (cont.)
Adding detergent on top of load. Add detergent, oxi products, and color-safe bleach to the
bottom of the basket before adding the load items.
Water level seems
too low, or the washer
appears to not ll
completely
The top of the agitator is much
higher than the highest water level.
This is normal and necessary for clothes to move freely.
Clothes not completely
covered with water This washer uses much less water than traditional top-load washers. Clothes may not be completely covered with water.
Dry spots on load
after cycle Wash a smaller load, or select Deep Water Wash option.
This washer uses much less water
than traditional top-load washers.
