Whirlpool WET3300SQ0 User manual

1
WASHER/DRYER CONTROL PANEL PARTS
For Model: WET3300SQ0
(Designer White)
4−10 Litho in U.S.A.(LT) Part No. W10120216 Rev. B
WASHER/DRYER
LAUNDRY SYSTEM
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
Installation
Instructions
W10118289 English
8578179 English
W10118304 Sheet,
Cycle Feature
W10113806 Wire Diagram
W10118487 Energy Guide
2 3390688 Spacer
Foam Pad (2)
3 8528583 Bracket, Control
(Includes Illus. 2)
4
W10113804 Timer, Washer
5
W10121648 Jumper Wire
(Timer−Buzzer)
6 8566018 Dial, (Washer)
7 8566022 Knob, Timer
(Washer)
8 8565944 Knob, Control (2)
9 8521965 Gasket, Console
10 3389464 End, Cap (LH)
11 8566061 Knob, Timer
(Dryer)
12 3400808 Screw,
10−32 x 5/16
13
W10112533 Switch, Pressure
14
W10114118 Switch,
Temperature
15 90767 Screw, 8−18 x 3/8
16 3404233 Switch,
Push−To−Start
17 8566073 Knob,
Push−To−Start
18 694419 Buzzer, Mini
19
W10113761 Timer, Dryer
20 Panel, Control
W10114898 White
21 3389453 Bracket, Hinge (2)
22 End Cap (RH)
3389456 White
23
W10119331 Harness − Dryer
23B 2154470 Receptacle,
23C 3395683 Connector
(Motor−Dryer)
24 3390604 Clamp, Harness
25 3390422 Clip, Harness (2)
26 8536939 Spring, Clip
Knob
27 2219077 Clip, Harness

2

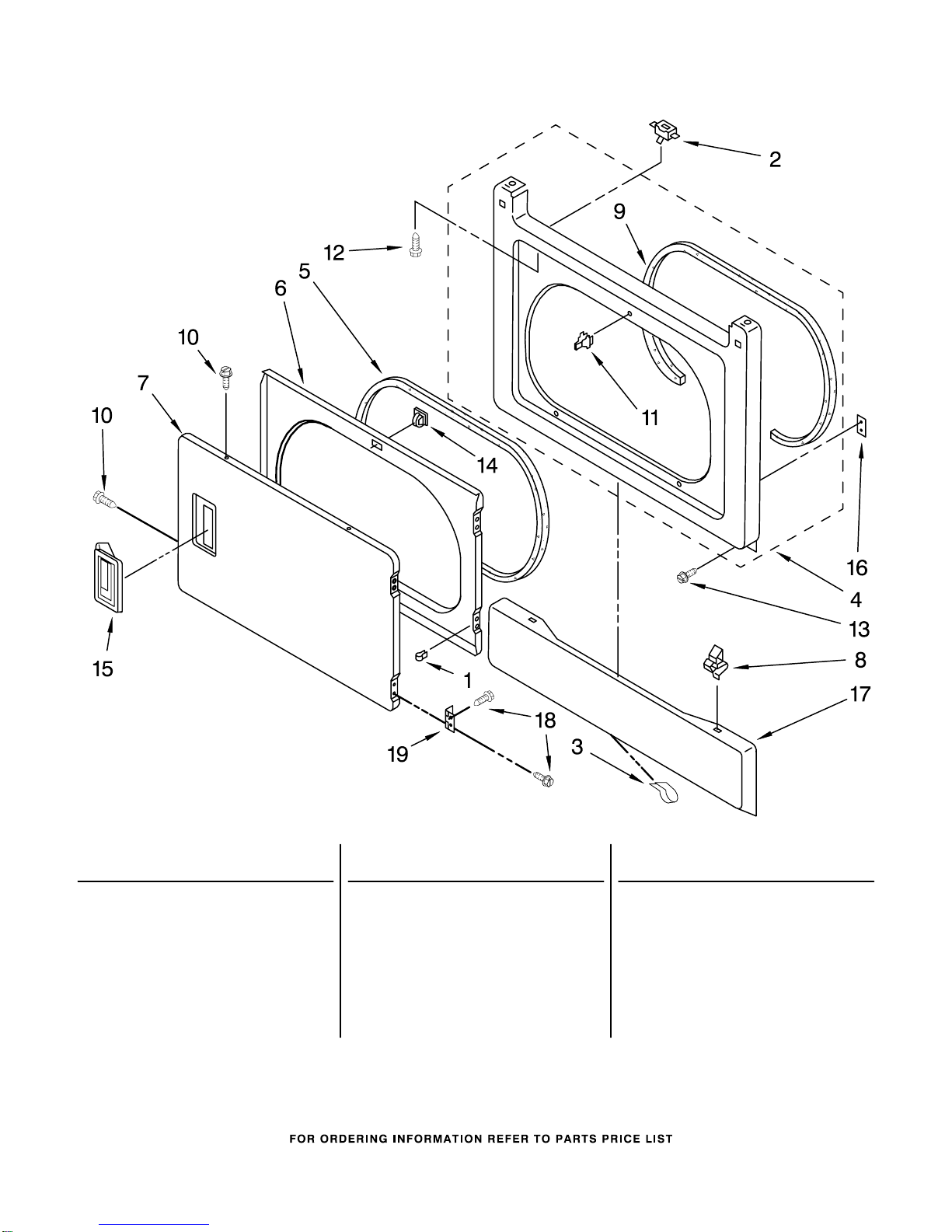

DRYER FRONT PANEL AND DOOR PARTS
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3389249 Nut, Push (4)
2 3391901 Switch, Door
3 98234 Clip, Ground
4 3392547 Panel, Front
5 3390735 Seal, Door
6 3392563 Door, Rear
7 3387872 Door, Front
8 3388229 Retainer, Toe
Panel (2)
9 3387242 Bearing & Seal
10 694091 Screw, 8−18 x 3/8
11 696144 Strike, Panel
12 697773 Screw, Door
Switch
Mounting (2)
13 3393008 Screw, 10−16 x 1/2
14 3392538 Catch, Door
15
W10095180 Handle, Door
16 3390902 Clip, Door
Hinge (2)
17 3388958 Panel, Toe
18 342055 Screw, 8−18 x 1/2
19 3389247 Hinge & Pin,
Door (2)

3

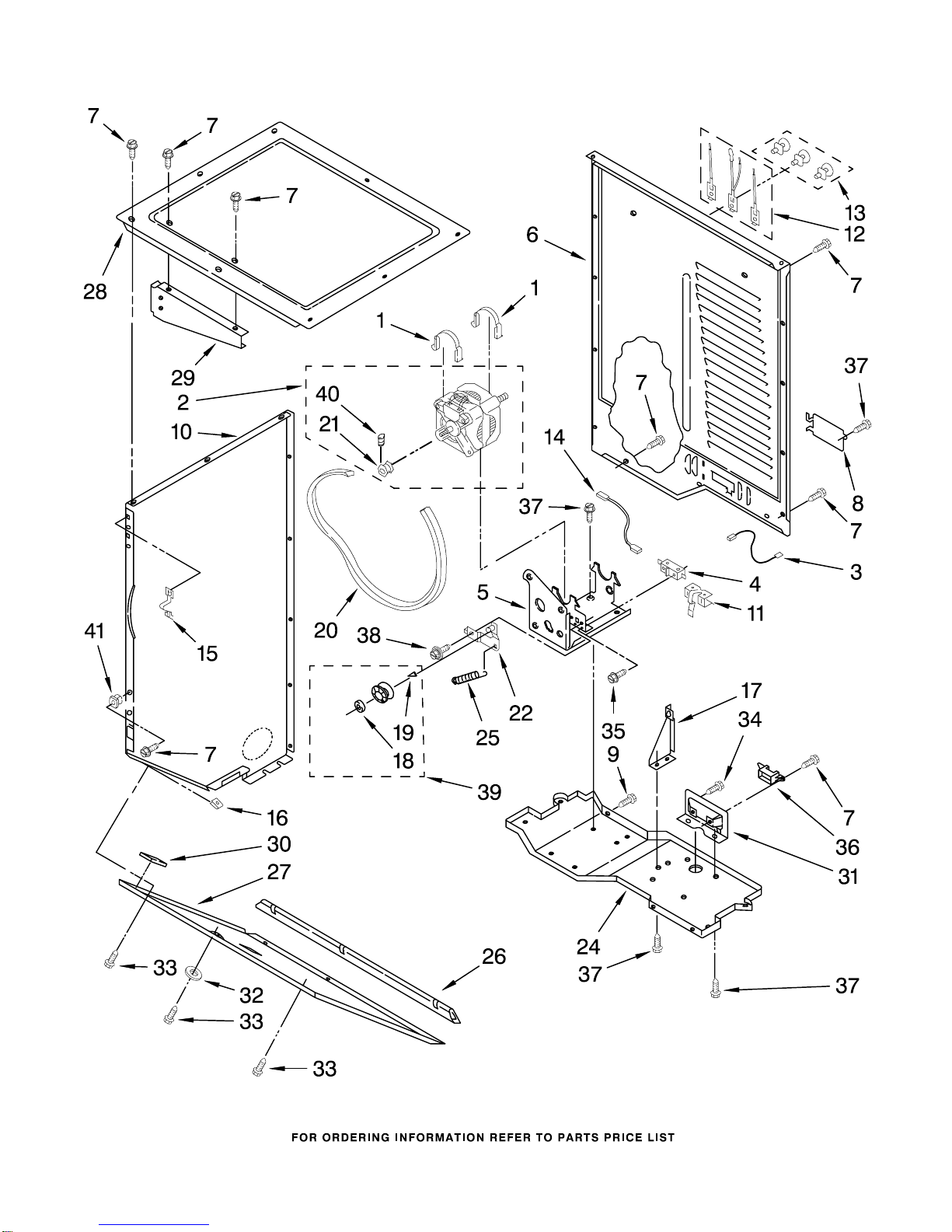

DRYER CABINET AND MOTOR PARTS
For Model: WET3300SQ0
(Designer White)
W10120216

DRYER CABINET AND MOTOR PARTS
4
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 660658 Clamp, Motor
Mounting (2)
2 8538266 Motor, Main Drive
(60 Hz.)
3 3398948 Wire, Jumper
4 3394881 Switch, Broken
Belt
5 3388858 Bracket, Motor
6 3389847 Panel, Rear
7 343641 Screw, 10−16 x 1/2
8 3387673 Cover, Terminal
Block
9 8533974 Screw, Ground
(10−32 x 1/2)
10 3389264 Panel, Side (L.H.)
3389256 Panel, Side (R.H.)
11 8066120 Lever Snap
Switch
12 279318 Terminal, Tinned
& Brass (3)
13 279393 Screw−Kit
(For Terminal
Block)
14 3394081 Wire, Broken
Belt Switch
15 3389231 Clip, Front
Panel (2)
16 98234 Clip, Ground
17 3391639 Bracket, Bulkhead
18 690997 Washer,
Thrust
19 690997 Tri−Ring
20 3387610 Belt, Drive
21 3391087 Pulley, Motor
(60 Hz.)
22 3389332 Bracket, Idler
24 3390026 Base, Dryer
25 3387374 Spring, Idler
26 3389683 Cove, Transition
Panel (Black)
27 3389272 Panel, Transition
28 3389537 Top, Dryer
29 3390722 Shield−Console
To Drum
30 3389682 Spacer (2)
31 3393722 Bracket,
Terminal Block
32 3389431 Bumper, Lid Stop
33 693304 Screw & Washer
34 3387485 Screw, 10−16 x 5/8
35 98129 Screw,
6−20 x 1−1/16
36 3397659 Block, Terminal
37 3390631 Screw, 10−16 x 3/8
38 3389420 Bolt, Shoulder
39 3388672 Pulley, Idler
40 3394743 Pin, Roll
41 692400 Nut, Push−In

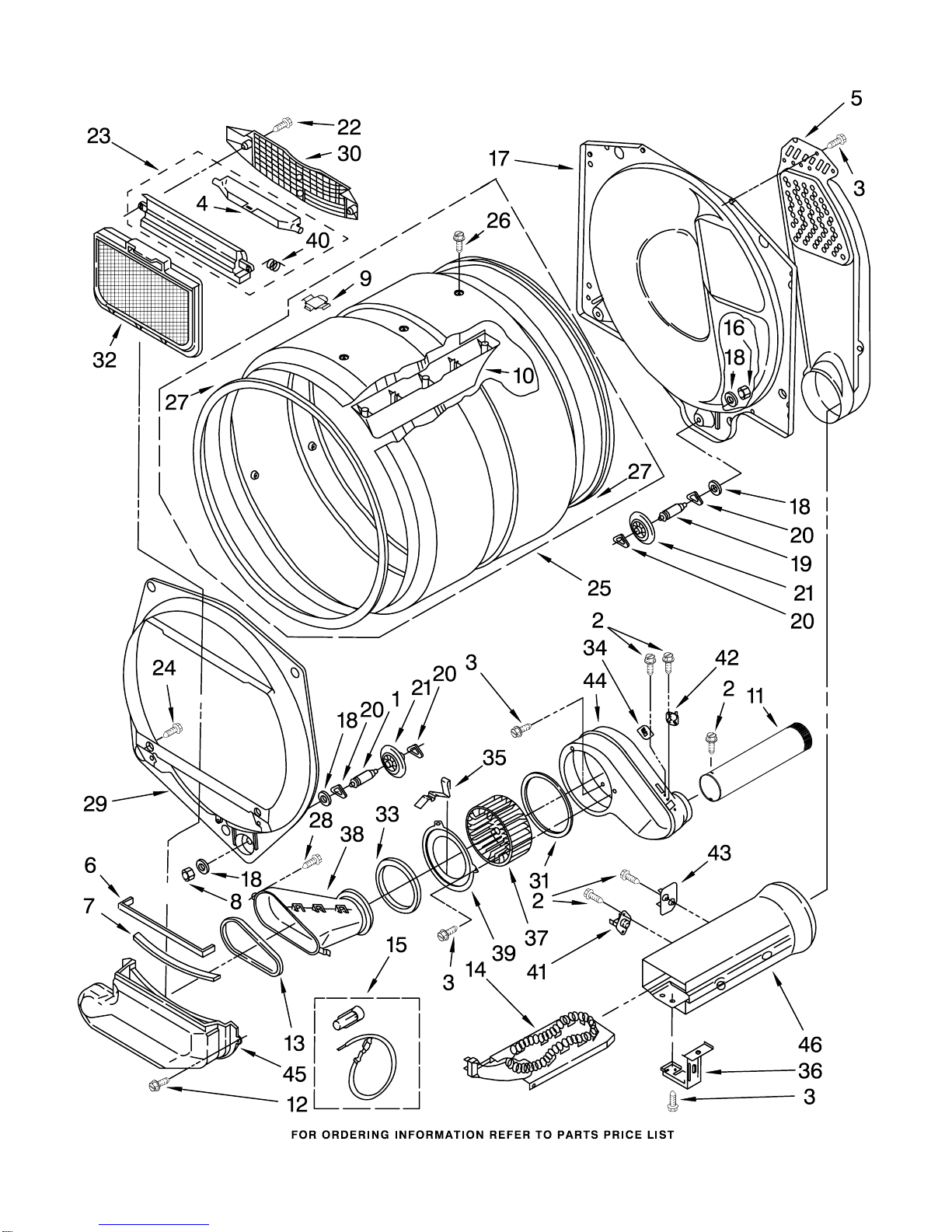

DRYER BULKHEAD PARTS
5
For Model: WET3300SQ0
(Designer White)
W10120216

DRYER BULKHEAD PARTS
6
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 8575324 Shaft, Roller
2 90767 Screw, 8−18 x 3/8
3 343641 Screw, 10−16 x 1/2
4 3394984 Door, Lint
Screen
5 697354 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 3391906 Seal, Lint Duct
8 3934666 Nut (2)
9 8066086 Drum Hole
Plug
10 3389449 Baffle, Drum (3)
11 8563748 Pipe, Exhaust
12 3390647 Screw, 8−18 x 1/2
13 3391685 Seal, Transition
Duct To Lint Duct
14 3387749 Element, Heater
15 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
16
W10001120 Nut, Hex (2)
17 3387809 Bulkhead, Rear
18 3387459 Washer, Support
19 8575325 Shaft, L.H. Thread
20 690997 Tri− Ring
21 8536973 Support, Roller
22 3357011 Screw, 10−16 x 1/2
23 3394985 Housing, Outlet
24 695240 Screw, 8−18 x 1/2
25 3389448 Assembly, Drum
26
W10109200 Screw, 11−16 x 3/4
27 697694 Seal, Drum
28 3387230 Screw,
10−16 x 13/16
29 697557 Bulkhead, Front
30 8299979 Grille, Front
31 697770 Seal, Cover Plate
32 3389644 Screen, Lint
33 8566209 Seal,
Transition Duct
34 3403607 Thermal−Limiter
35 3390935 Clip, Duct
Locator
36 3389647 Bracket, Heater
Mounting
37 697772 Wheel, Blower
38 3389445 Duct, Transition
(Includes Illus.
No.33)
39 697366 Plate, Blower
40 3394986 Spring, Lint
Screen Door
41 3390291 Fixed, Thermostat
42 3387134 Thermostat,
Internal−Bias
43 3977394 Thermal−Cutoff
(Includes Illus. 41.)
44 8544363 Housing, Blower
45 3388909 Lint Duct Assembly
(Includes
Illus. 7 & 13)
46 697715 Box, Heater

7

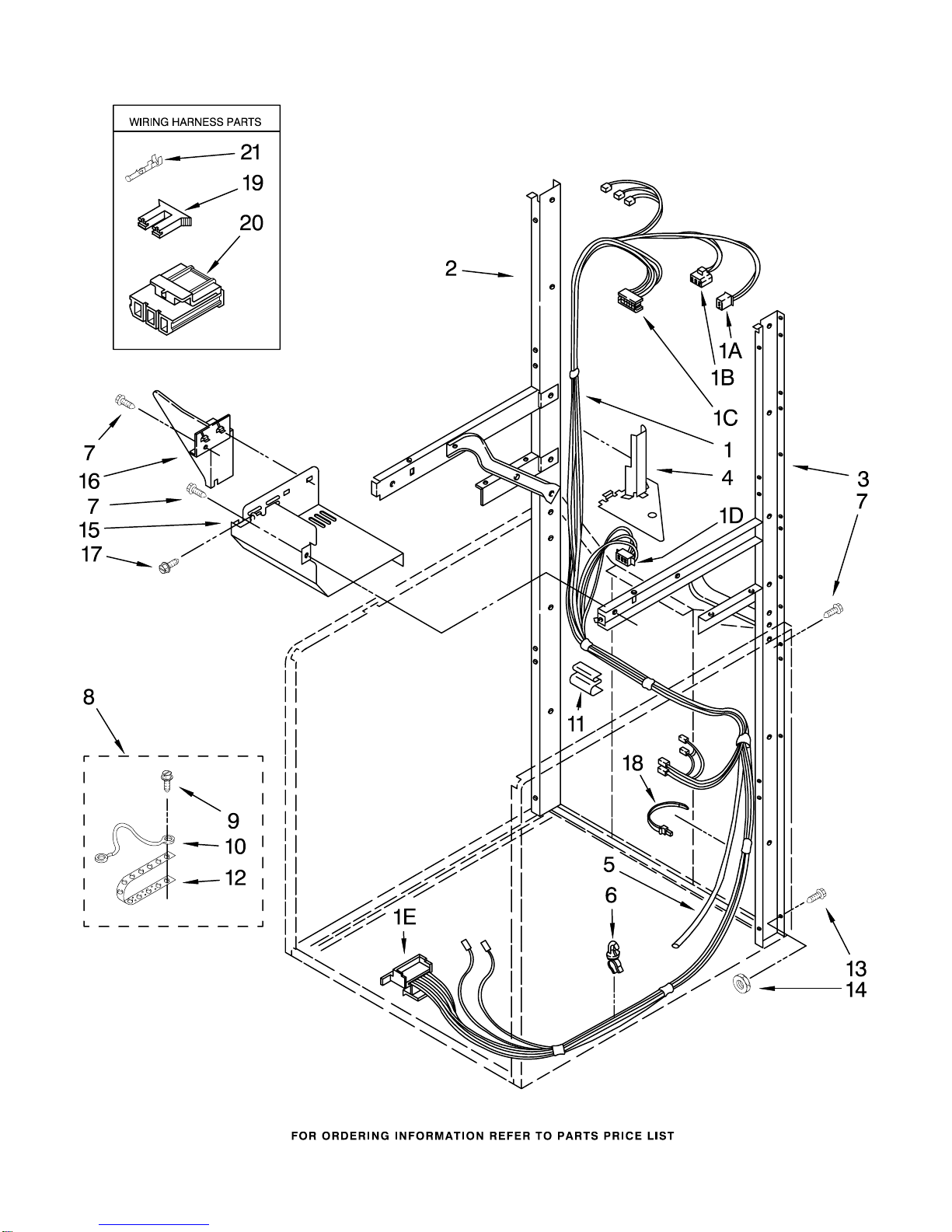

DRYER SUPPORT AND WASHER HARNESS PARTS
For Model: WET3300SQ0
(Designer White)
W10120216

DRYER SUPPORT AND WASHER HARNESS PARTS
8
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
1 W10114956 Harness − Washer
1A 3350130 Plug, 3 Way
1B 3347243 Connector, 5 Way
1C 352089 Block,
Disconnect − Timer
1D 3350211 Receptacle, 3 Way
1E 62505 Block, Disconnect
2 3388851 Channel Assembly
(Left Hand Side)
3 3388850 Channel Assembly
(Right Hand Side)
4 3390609 Shield, Harness
5 8545438 Hose, Pressure
Switch
6 8281256 Clip, Harness
7 343641 Screw, 10−16 x 1/2
8 685463 Kit, Grounding
9 8533971 Screw
10 685449 Wire
11 63523 Protector, Harness
12 22965 Strap, Grounding
13 3400300 Bolt,
5/16−18 x 1/2 (4)
14 3393930 Nut, Hex (4)
15 3394350 Shield, Front
16 3390336 Shield,
Thermostat
17 3393008 Screw, 10−16 x 1/2
18 3391249 Clip, Harness (2)
19 3354925 Connector,
H−Pod
20 3360056 Connector,
Pressure Switch
21 Terminal,
94613 Male
94614 Female

9
WASHER TOP AND LID PARTS
For Model: WET3300SQ0
(Designer White)
W10120216

WASHER TOP AND LID PARTS
10
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
1 Lid
3351652 White
2 9724509 Bumper, Lid (2)
3 3351355 Screw And Washer
4 343641 Screw, 10−16 x 1/2
5 692400 Nut, Push−In (2)
6 3349817 Top
7 357572 Clip, Grounding
8 3354020 Bracket Mounting
9 3350152 Lid Retainer
10 3350828 Clip
11 21258 Hinge, Bearing (2)
12 3356311 Screw And Washer
13 358684 Strike, Lid
14 3350101 Hinge, R.H.
15 3350102 Hinge, L.H.
16 3362952 Dispenser, Bleach
17 3355458 Switch, Lid
18 90016 Clip, Wire (4)
19 3390481 Locator, Top

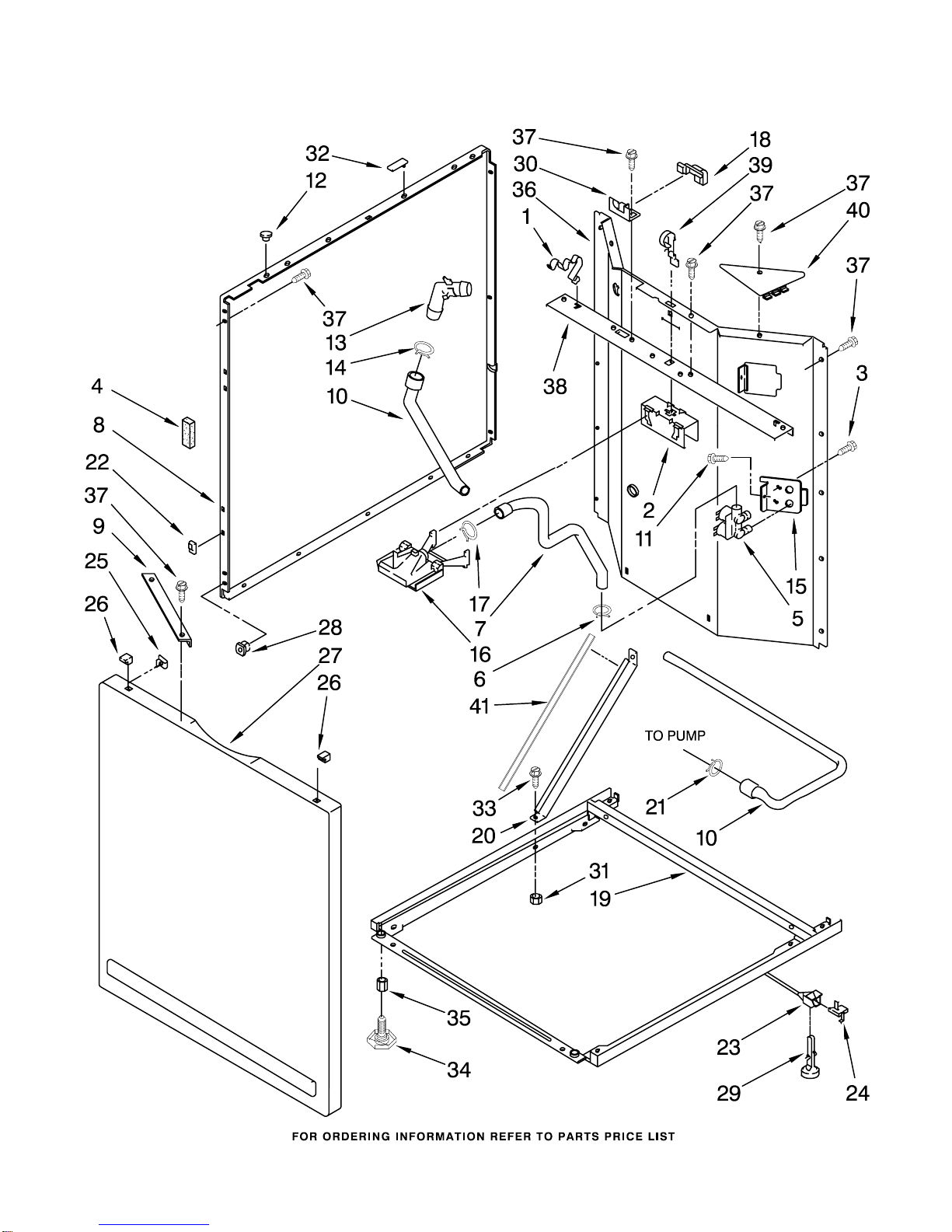

WASHER CABINET PARTS
11
For Model: WET3300SQ0
(Designer White)
W10120216

WASHER CABINET PARTS
12
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 3349770 Clip, Spring
Top (2)
2 3349768 Bracket, Vacuum
3 62863 Screw, Mixing
Valve Mounting
4 3350013 Foam
5 3979349 Valve, Water
Mixing
6 370451 Clamp, Hose
7 8521954 Hose, Water Inlet
(Vacuum Break To
Mixing Valve)
8 3349455 Panel, Side (2)
(Same Panel
Used On Left
And Right Side)
9 3350745 Brace, Front
Panel
10 3353841 Hose, Drain
11 9740848 Screw, 8−18 x 1/2
12 660975 Plug, Top To
Cabinet (2)
13 8557915 Connector, Hose
14 356138 Clamp, Hose
15 3349673 Bracket, Valve
16 387606 Thermister, Inlet
17 371503 Clamp, Hose
18 3350145 Shield, Lid
Switch
19 3402724 Base, Cabinet
20 3388857 Bracket, Base
21 371507 Clamp, Hose
22 3394083 Clip, Front Panel (2)
23 3349311 Link, Leveling
24 359364 Clip, Leveling
Mechanism (2)
25 98234 Clip, Ground
26 345670 Lock, Top (2)
27 3349499 Panel, Front
28 352292 Nut, Push−In (2)
29 358594 Foot, Rear (2)
30 3350144 Bracket, Lid
Switch
31 3393930 Nut, Hex (2)
32 352292 Nut, Push−In (2)
33 3400300 Screw,
5/16−18 x 1/2
34 389102 Foot, Front (2)
35 3400917 Nut, Jam (2)
36 3349493 Panel, Rear
(Washer)
37 343641 Screw, 10−16 x 1/2
38 3349697 Rail, Back
Top
39 3350135 Spring, Lever
Bracket
40 3390608 Shield, Corner
Right Rear
41 303294 Edge Protector

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
13
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION

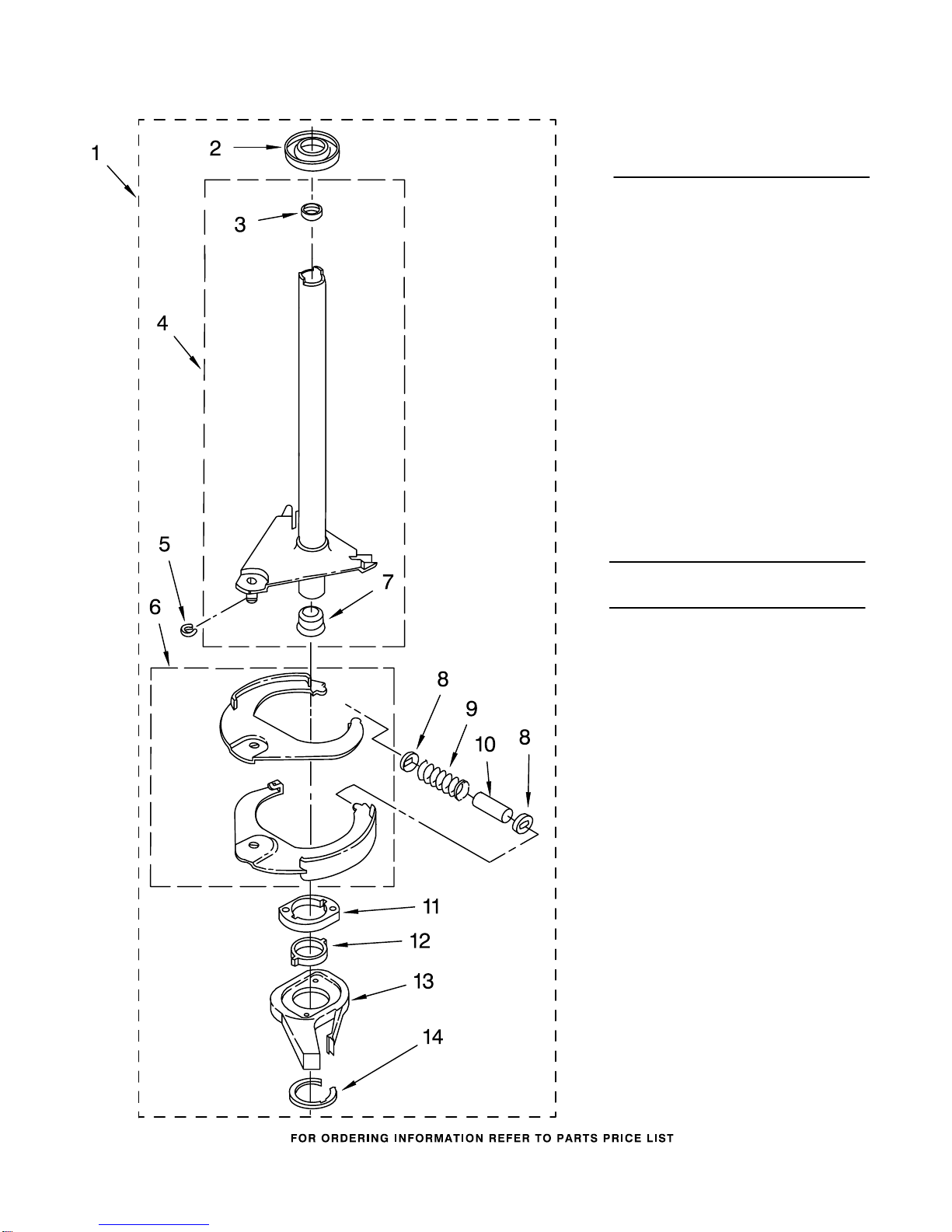

1 388951 Brake And
Drive Tube
(Complete)
(Refer To Page
18 For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 Ring, Retainer
5 3951311 Clutch (Complete)
6 3951308 Band And Lining
(Includes Illus.
7 & 8)
7 3946792 Spring & Damper
Assembly
8 62646 Cap, Clutch
Spring (2)

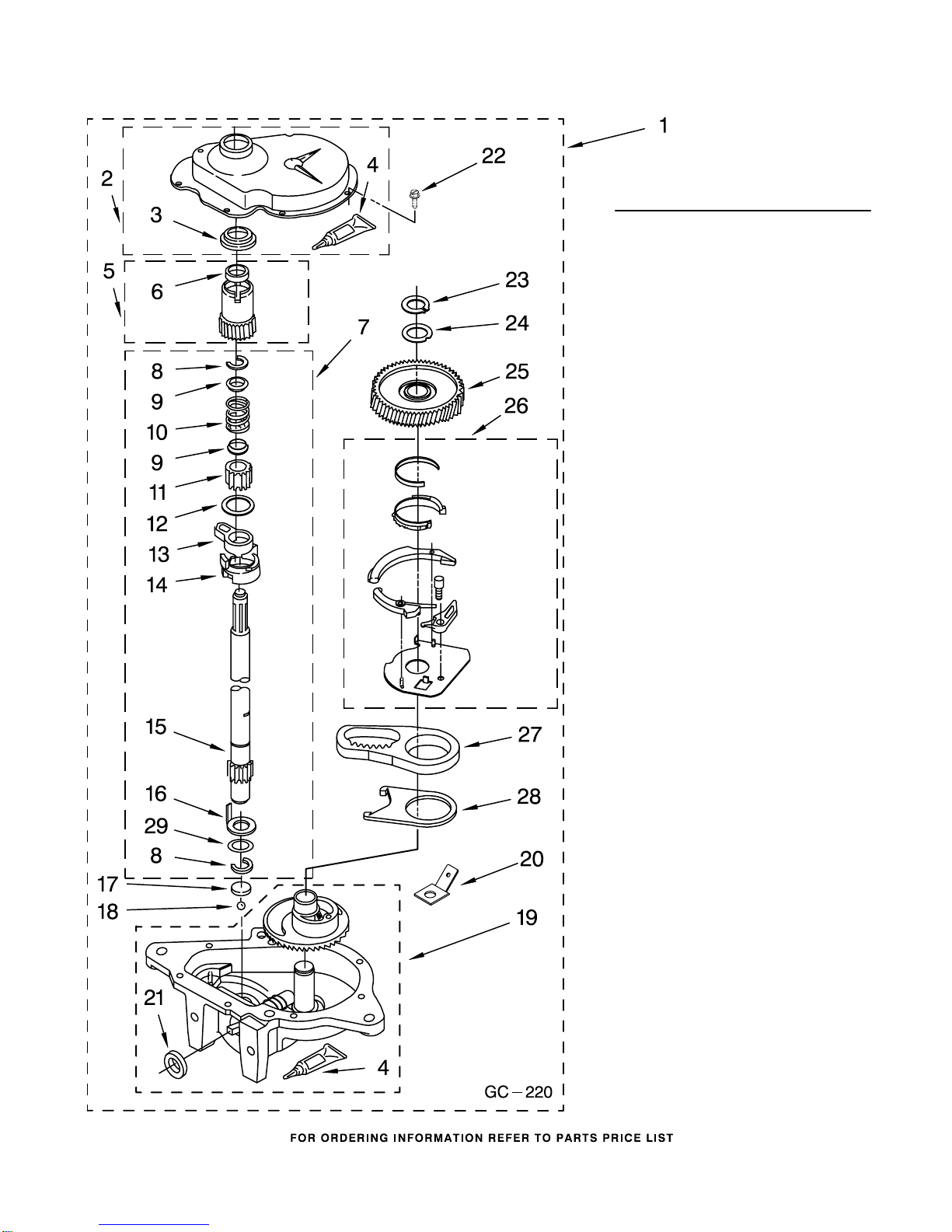

9 8532118 Gearcase
(Complete)(Refer
To Page 17 For
Further
Breakdown)
10 3357334 Screw,
5/16−24 x 5/8
11 62611 Plate, Motor
Mount To
Gearcase
13 3364003 Coupling, Motor
& Isolating
14 661600 Motor,
Main Drive
15 8572717 Capacitor,
Motor Start
16 8316060 Shield, Motor
17 62863 Screw, 10−16 x 3/8
18 3363892 Pump, Complete
19 8546127 Retainer, Pump
20 62850 Switch, Main
Drive Motor
21 62691 Grommet,
Motor (4)
22 3349637 Retainer,
Motor (2)
23 3362089 Shield, Tub
To Motor
24 3387485 Screw, 10−16 x 5/8
25 3949496 Clamp,
Capacitor
26 3355454 Clip,
Anti−Rattle

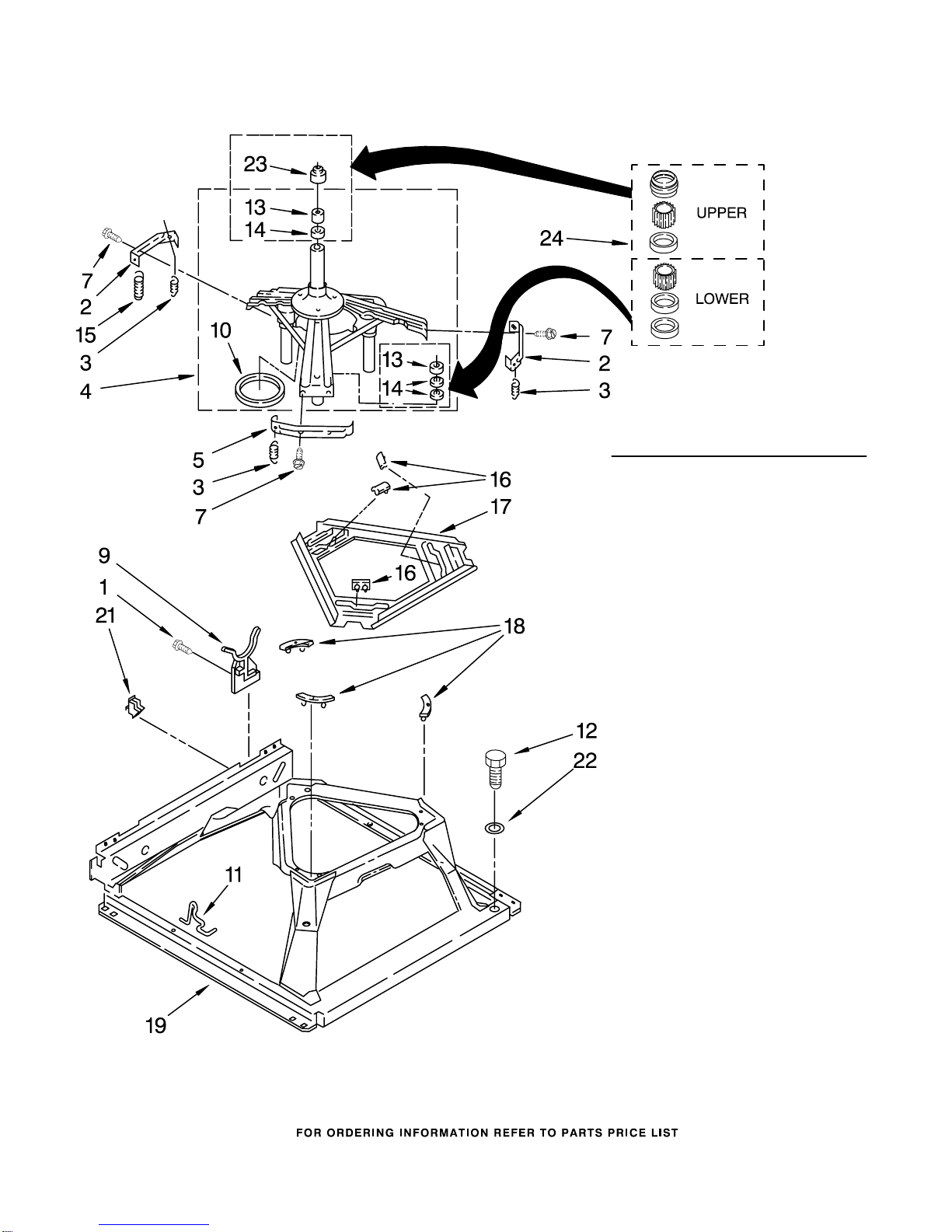

MACHINE BASE PARTS
14
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
1 343641 Screw, Bracket
Mounting
(10−16 x 1/2)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring,
Suspension (3)
4 8575214 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
7 3400076 Screw, 10−32 x 5/8
9 3350506 Retainer, Hose
10 63134 Ring, Sound
Deadening
11 63806 Retainer,
Suspension Spring
12 3400501 Screw,
5/16−18 x 1 3/32
13 8546455 Bearing,
Centerpost (2)
14 357409 Seal,
Centerpost (3)
15 388492 Spring,
Counterweight
16 62568 Pad, Plate
17 3946509 Plate, Suspension
(Includes Illus. 16)
18 3363660 Pad, Base
19 3349343 Base Assembly
(Includes Illus.
11 & 18)
21 3349749 Restrainer, Base
22 3349340 Washer (2)
23 8577376 Seal, Centerpost
24 285203 Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)

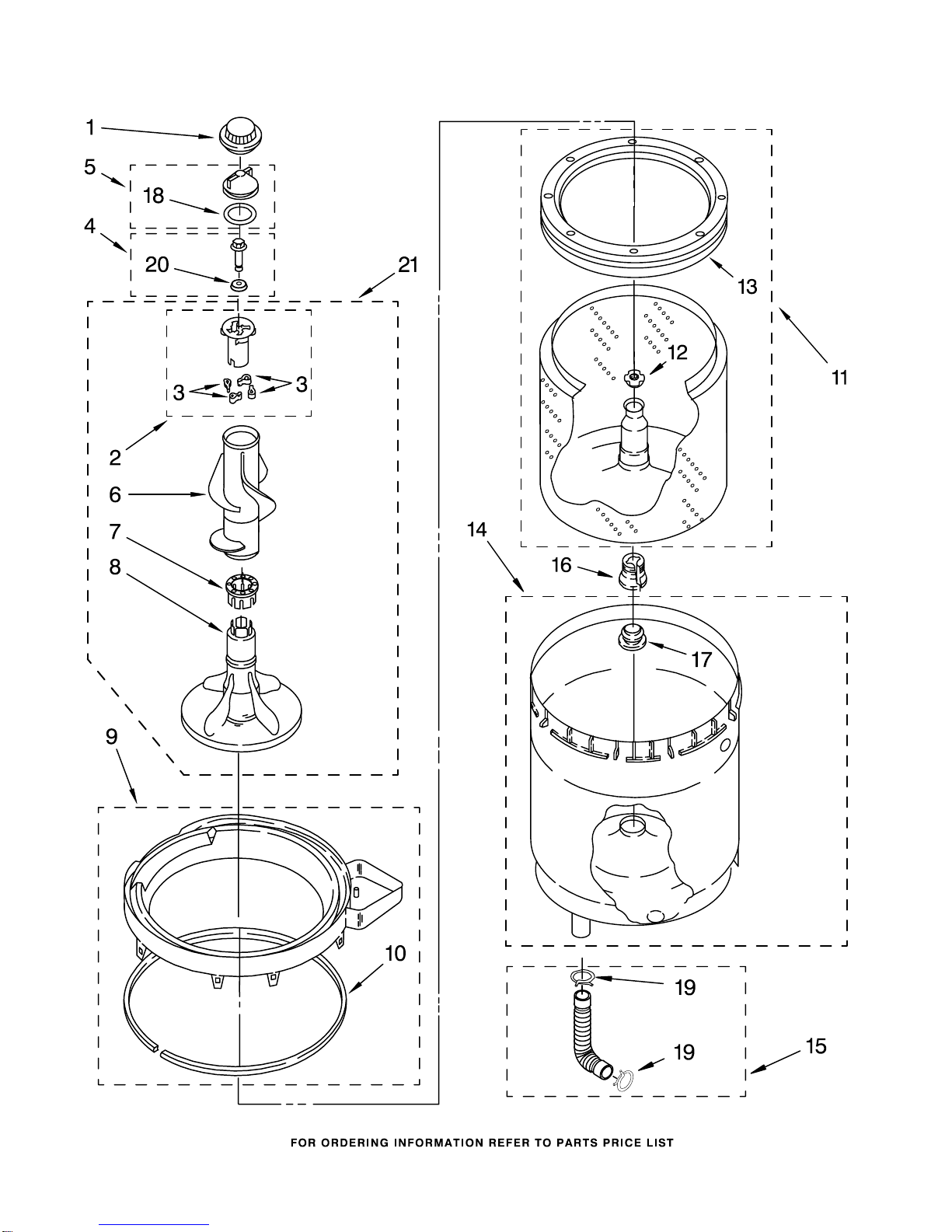

AGITATOR, BASKET AND TUB PARTS
15
For Model: WET3300SQ0
(Designer White)
W10120216

AGITATOR, BASKET AND TUB PARTS
16
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
1 3350834 Dispenser
2 3947410 Cam Driven
3 3366877 Dog, Agitator (4)
4 358237 Screw & Washer
5 387094 Cap, Barrier
6 3349610 Mover, Agitator
Clutch
7 3351014 Spacer, Thrust
8 3349578 Agitator
9 8528150 Tub Ring
10 3976308 Gasket,
Tub Ring
11 3979385 Basket
12 21366 Nut, Spanner
13 8519788 Ring, Balance
14 3349292 Tub
15 3951449 Hose & Clamp
Assembly
16 389140 Block, Drive
17 383727 Gasket, Centerpost
18 3348855 Seal, Inner Cap
19 3363366 Clamp, Hose (2)
20 3949550 Washer
21 3349743 Agitator
(Complete)

GEARCASE PARTS
Illus. Part
No. No. DESCRIPTION
1 8532118 Gearcase
(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase
Cover
4 285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin
(Includes Illus. 25)
6 356427 Seal, Spin
Pinion
7 389387 Shaft, Agitator
(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring (2)
10 62676 Spring, Agitate
11 63273 Gear, Agitate
(Includes 15 & 29)
12 62619 Washer, Agitate
Gear
13 62580 Cam Follower
(Includes 14)
14 62581 Cam, Agitate
(Includes 13)
15 285509 Shaft, Agitator
(Includes 11 & 29)
16 62618 Washer, Cam
Thrust
17 16018 Bearing, Thrust
(Includes 18)
18 85529 Ball, Bearing
(Includes 17)
19 389230 Bottom and Pinion,
Gearcase
20 3949116 Block Tab,
Terminal
21 285352 Seal, Thrust Plug
22 3351614 Screw, Gearcase
Cover Mounting (8)
(10−24 x 3/8)
23 3362552 Ring, Retaining
24 285735 Washer Kit,
Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,
Intermediate
17
For Model: WET3300SQ0
(Designer White)
W10120216

BD−314A
BRAKE AND DRIVE TUBE PARTS
Illus. Part
No. No. DESCRIPTION
1 388951 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 356427 Seal, Drive Tube
4 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
5 64035 Ring, Retaining
6 64232 Shoe, Brake (2)
7 62703 "T" Bearing,
Spin Tube
8 3353956 Cap, Brake
Spring (2)
9 62647 Spring, Brake
10 3355360 Sleeve, Brake
Spring
11 661516 Cam, Brake
Release
12 63022 Sleeve, Cam
13 64194 Driver, Brake
Cam
14 90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
18
For Model: WET3300SQ0
(Designer White)
W10120216

WATER SYSTEM PARTS
WS−900D
Illus. Part
No. No. DESCRIPTION
1 285321 Sleeve Kit,
Plastic Drain
Hose (Contains
2 Sleeves)
2 65349 Clamp, Hose (2)
3 16272 Connector,
Straight
4 285320 Siphon Break
Kit
(Not Included)
5 661575 Hose, Corrugated
Plastic Drain
(5 1/2 Ft.)
W10108350 Hose, Corrugated
Plastic Drain
(6 1/2 Ft.)
(For FSOU
& Twin−Twin)
661577 Hose, Corrugated
Plastic Drain
(10 Ft.)
(Not Included)
6 8577378 U−Bend
7 3357331 Clamp, Hose
8 356739 Connector, Hose
9 3354858 Hose, Inlet (2)
10 285442 Connector Kit,
Plastic Drain
Hose
19
For Model: WET3300SQ0
(Designer White)
W10120216

MISCELLANEOUS PARTS
20
For Model: WET3300SQ0
(Designer White)
W10120216
Illus. Part
No. No. DESCRIPTION
1 3356714 Miscellaneous
Parts Bag
2 16123 Washer, Inlet
Hose
3 356138 Clamp, Hose
5 3357331 Clamp, Hose
(Upper Drain)
