Whirlpool Thin Twin LT5000XM User manual

WASHER • DRYER
Models LT5000XM
LT5004XM
LT5008XM
owave Ovens, TrashCompactors, RoomAir Conditioners, Dehumidifiers, Automatic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers

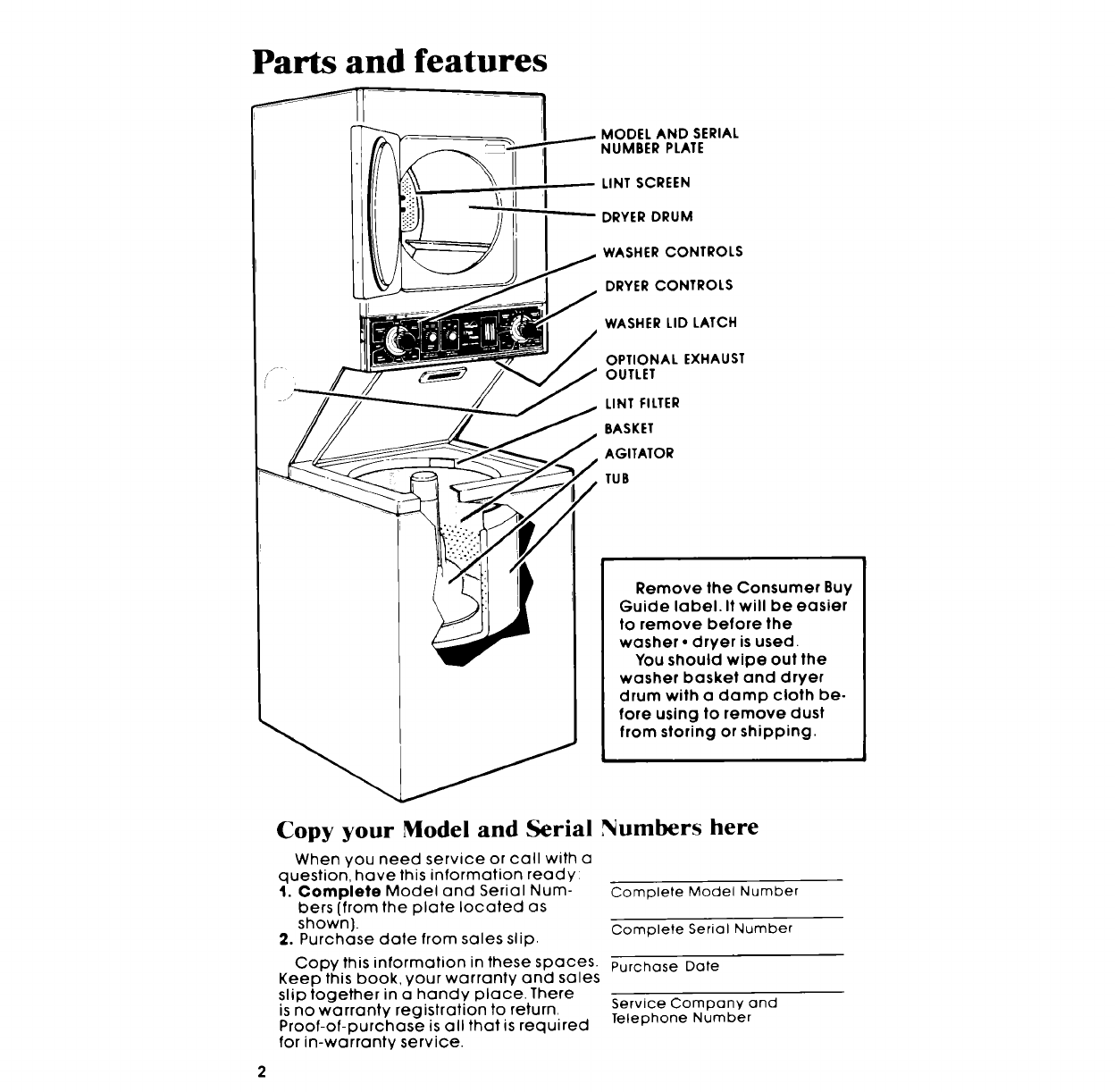

Parts and features
MODEL AND SERIAL
NUMBER PLATE
LINT SCREEN
DRYER DRUM
WASHER CONTROLS
DRYER CONTROLS
WASHER LID LATCH
OPTIONAL EXHAUST
OUTLET
LINT FILTER
BASKET
AGITATOR
TUB
Remove the Consumer Buy
Guide label. It will be easier
to remove before the
washer * dryer isused.
You should wipe out the
washer basket and dryer
drum with a damp cloth be-
fore using to remove dust
from storing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
1. Complete Model and Serial Num-
bers [from the plate located as
shown].
2. Purchase date from sales slip.
Copy this information in these spaces.
Keep this book, your warranty and sales
slip together in a handy place. There
is no warranty registration to return.
Proof-of-purchase is all that is required
for in-warranty service.
Complete Model Number
Complete Serial Number
Purchase Date
Service Company and
Telephone Number

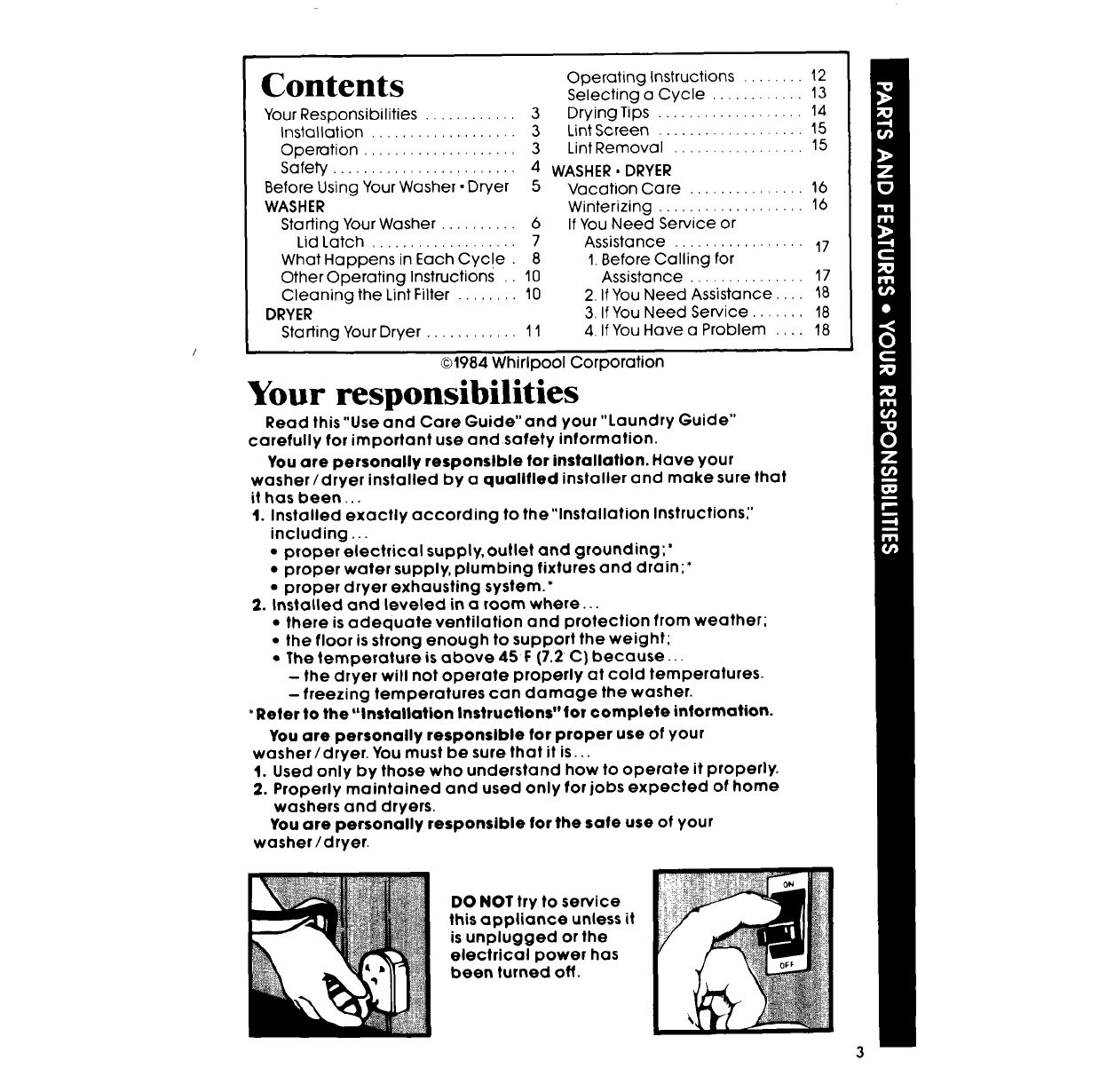

Contents
Your Responsibilities ............
Installation ...................
Operation ....................
Safety ........................
Before Using Your Washer, Dryer
WASHER
Starting Your Washer ..........
Lid Latch ...................
What Happens in Each Cyc!e .
Other Operating Instructions ..
Cleaning the Lint Filter ........
DRYER
Starting Your Dryer ............
3
3
3
4
5
Operating Instructions ........ 12

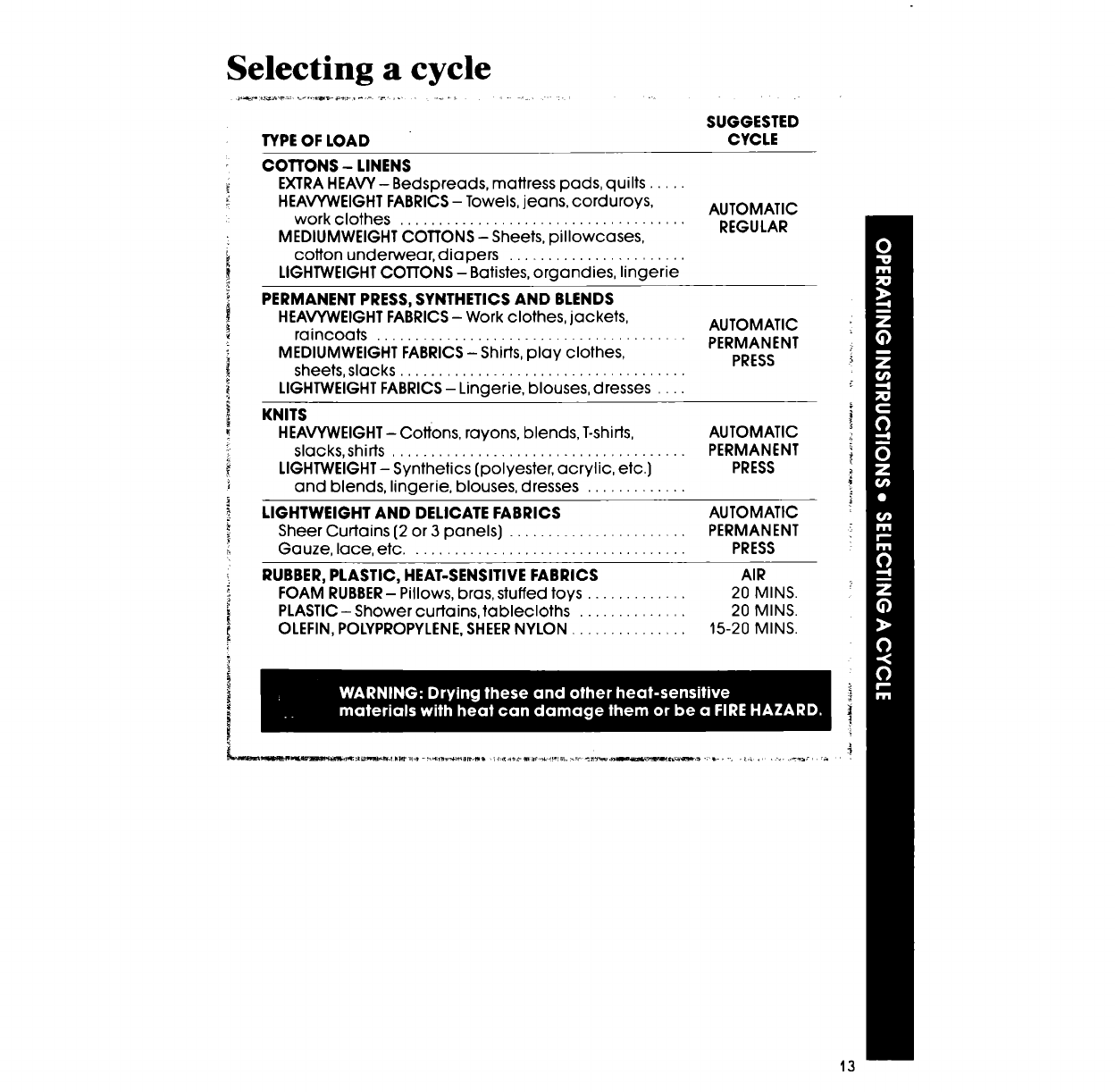

Selecting a Cycle ............ 13

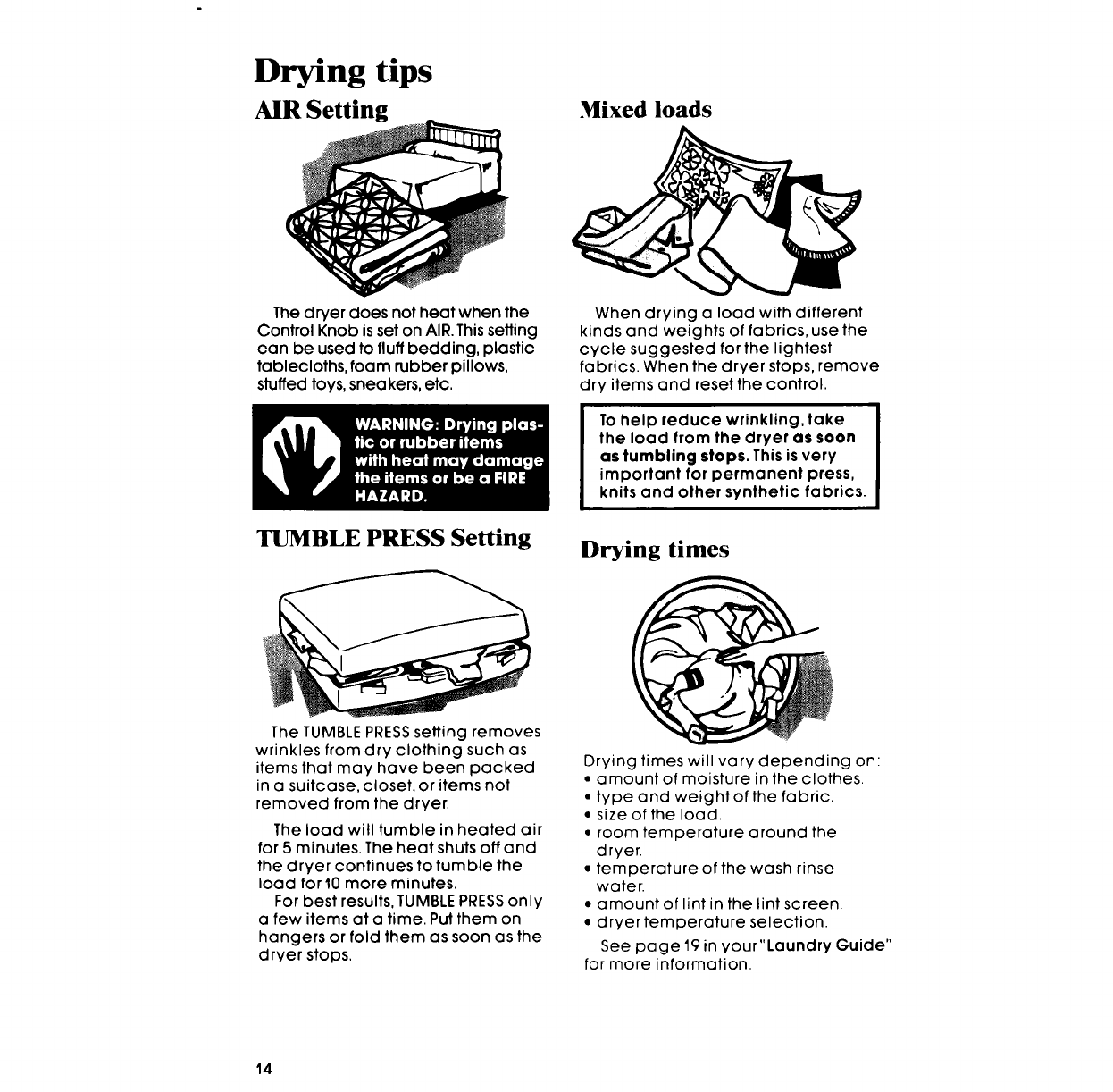

Drying Tips ................... 14
Lint Screen ................... 15
Lint Removal ................. 15
WASHER• DRYER

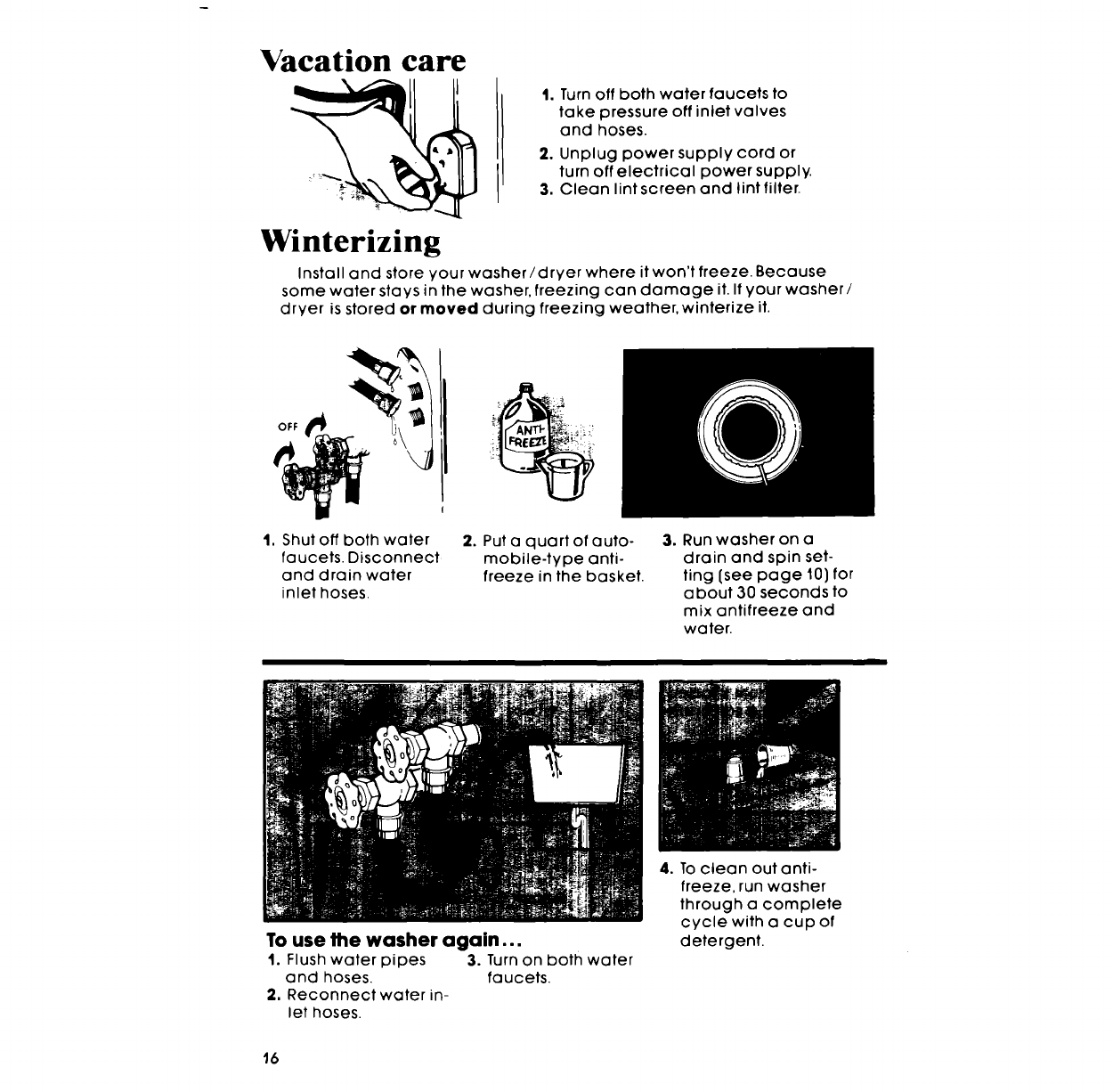

Vacation Care ............... 16
Winterizing ................... 16
6 IfYou Need Service or
7 Assistance ................. 17
8 I. Before Calling for
10 Assistance ............... 17
10 2. IfYou Need Assistance .... 18
3. IfYou Need Service ....... 18
11 4. IfYou Have a Problem .... 18
©t984 Whirlpool Corporation
Your responsibilities
Read this "Use and Care Guide" and your "Laundry Guide"
carefully for important use and safety information.
You are personally responsible for installation. Have your
washer/dryer installed by a qualified installer and make sure that
it has been...
I. Installed exactly according to the"Installation Instructions;'
including...
• proper electrical supply, outlet and grounding:*
•proper water supply, plumbing fixtures and drain;*
•proper dryer exhausting system.*
2. Installed and leveled in a room where...
•there is adequate ventilation and protection from weather;
•the floor is strong enough to support the weight:
•The temperature is above 45 F [7.2 C) because...
- the dryer will not operate properly at cold temperatures.
- freezing temperatures can damage the washer.
*Refer to the "Installation Instructions" for complete information.
You are personally responsible for proper use of your
washer/dryer. You must be sure that it is...
I. Used only by those who understand how to operate it properly.
2. Properly maintained and used only for jobs expected of home
washers and dryers.
You are personally responsible for the safe use of your
washer/dryer.
DO NOT try to service
this appliance unless it
is unplugged or the
electrical power has
been turned off'.

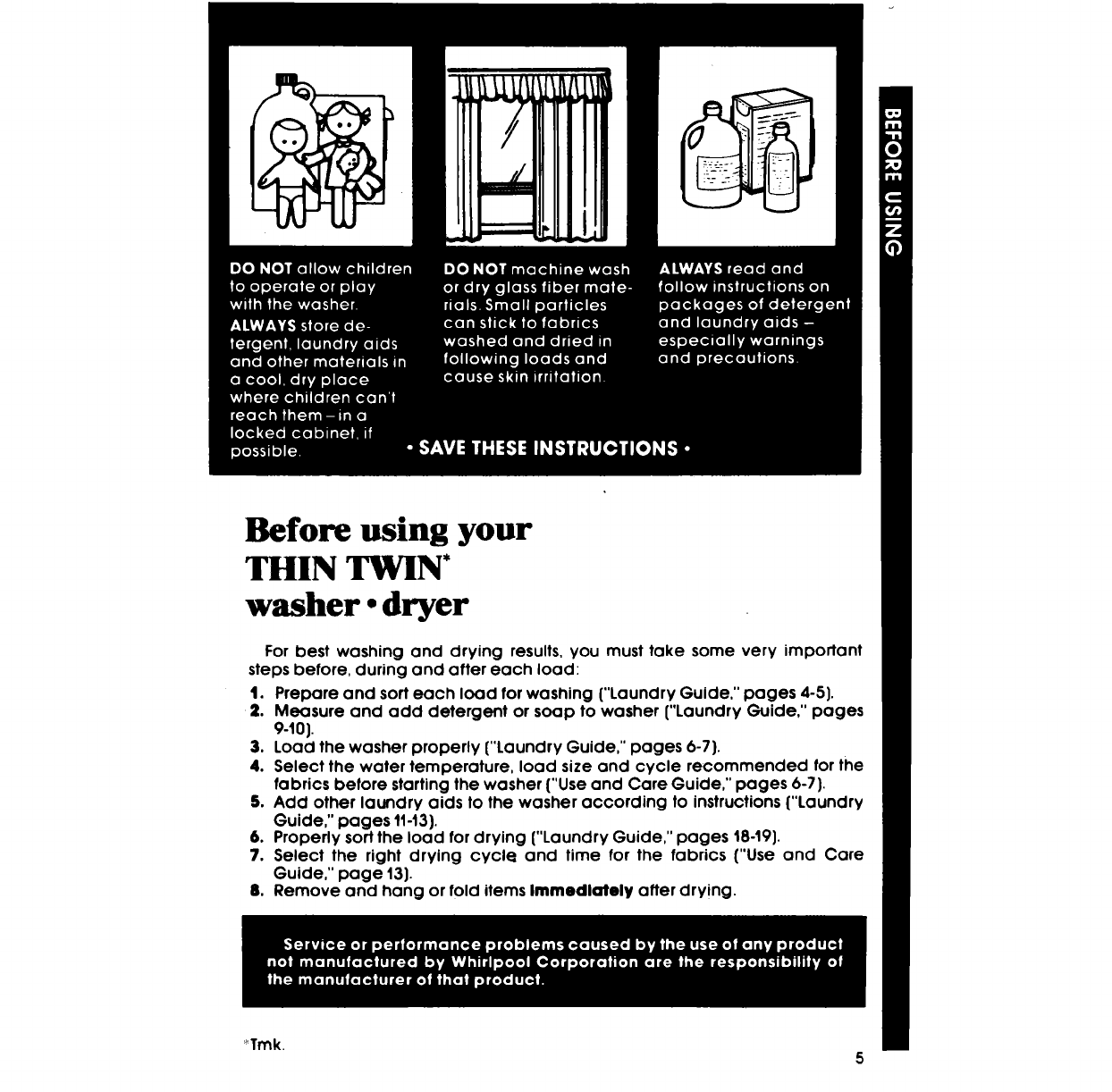

Before using your
THIN TWIN*
washer.dryer
For best washing and drying results, you must take some very important
steps before, during and after each load:
4. Prepare and sort each load for washing {"Laundry Guide," pages 4-5}.
2. Measure and add detergent or soap to washer ["Laundry Guide," pages
9-10}.
3. Load the washer properly ["Laundry Guide," pages 6-7}.
4. Select the water temperature, load size and cycle recommended for the
fabrics before starting the washer {"Use and Care Guide," pages 6-7},
$. Add other laundry aicls to the washer according to instructions {"Laundry
Guide," pages it-t3].
6. Properly sod the load for drying ["Laundry Guide," pages 18-t9}.
7. Select the right drying cycle and time for the fabrics {"Use and Care
Guide." page t3}.
8. Remove and hang or fold items Immediately after drYing.
_Tmk. 5

Starting your washer
1. Measure and add detergent.
Before starting your washer: 2. Place sorted load in washer.
3. Start washer.
Select a
1. oAn SiZE Select WATER
2. TEMPERATURES
• Turn the knob to point at a setting
that describes the size of load you
want to wash.
• The water level can be set for EX
SMALL, MEDIUM or LARGE loads.
Select the water level that
matches the load size.
See your "Laundry Guide" for details
on load sizes.
•Match the wash water temperature
to the type of fabrics and soils being
washed.
Recommended wash temperatures
can be found in your "Laundry Guide'.'
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items.
.,_1_ DO NOT
OVERLOAD WASHER.
LARGE
[f19gals /451L)"
MEDIUM
(9.6 gols /36.3 L)"
EX-SMALL
[73gals./277 L)"
•Approximate fill with load
6

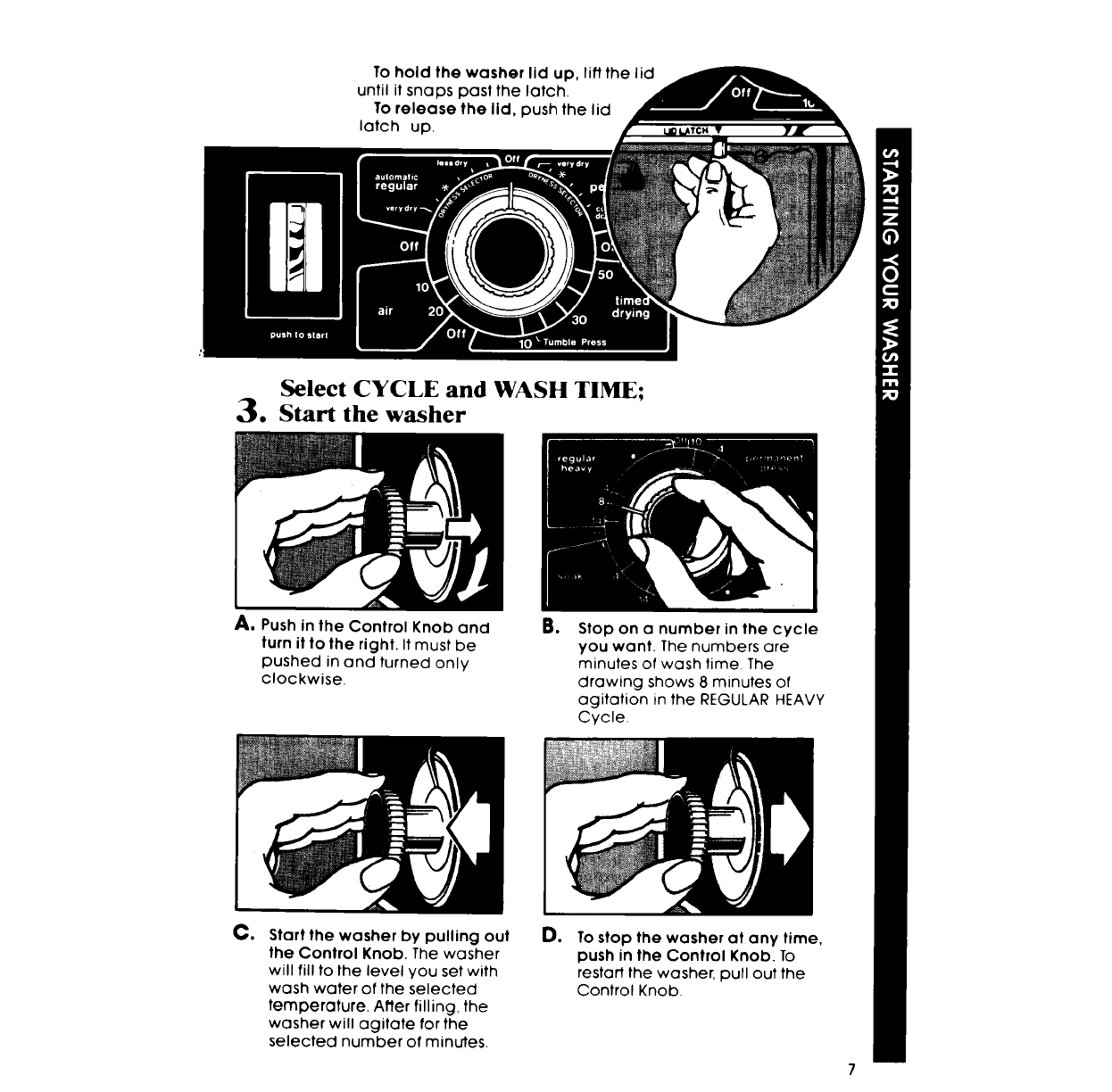

Toholcl the washer licl up, lift the lid
until it snaps past the latch,
To release the lid, push the lid
latch up,
Select CYCLE and WASH TIME;
3. Start the washer
A. Push inthe Control Knob and
turnittothe right.Itmust be
pushed inand turned only
clockwise.
B. Stop on a number inthe cycle
you want. The numbers are
minutes of wash time. The
drawing shows 8 minutes of
agitation in the REGULAR HEAVY
Cycle.
C= Startthe washer by pullingout
the Control Knob. The washer
willfillto the levelyou setwith
wash water of the selected
temperature.Afterfilling,the
washer willagitateforthe
selected number ofminutes.
D= Tostop the washer at any time,
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

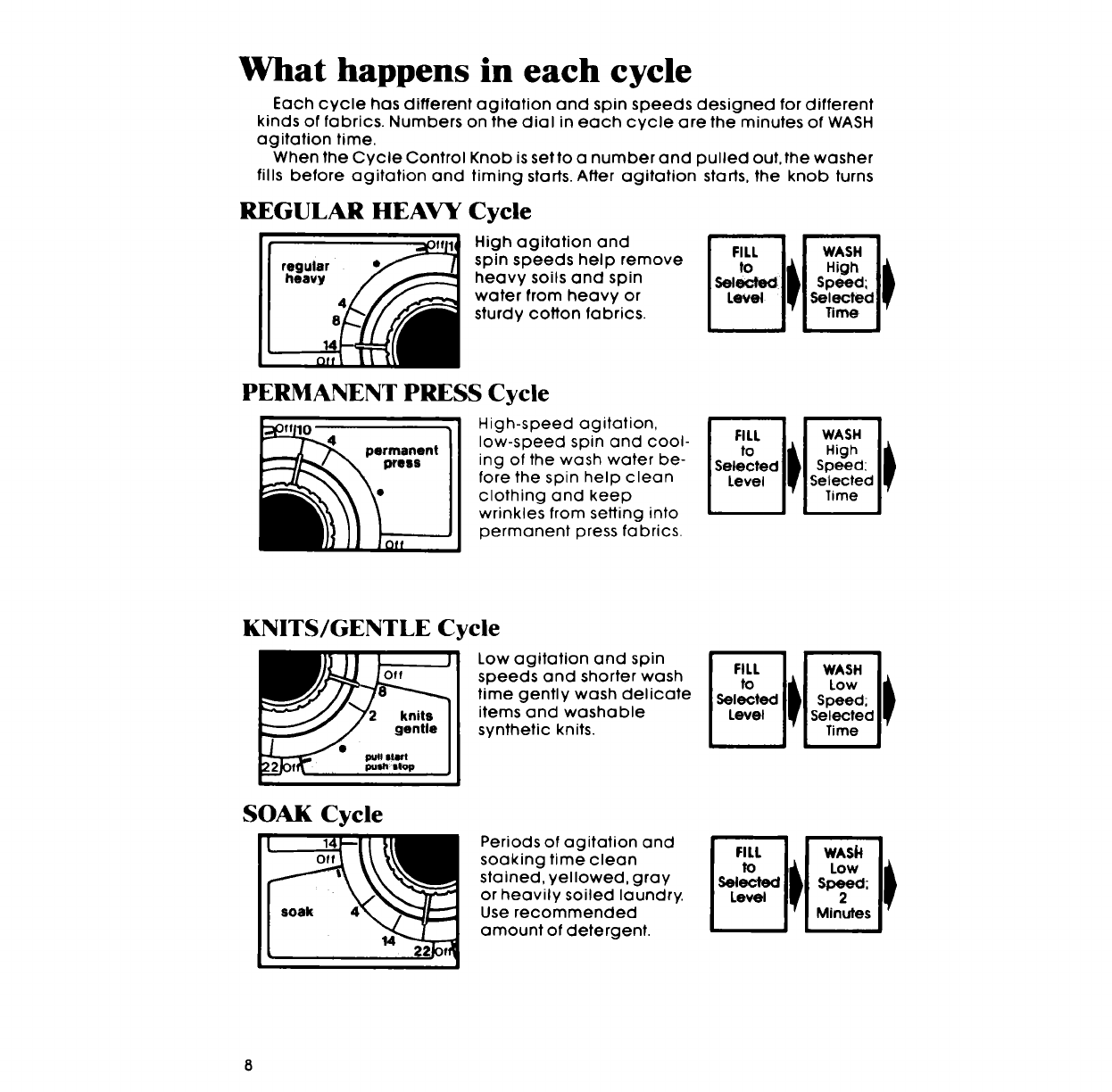

What happens in each cycle
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is setto a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns
REGULAR HEAVY Cycle
High agitation and
spin speeds help remove
heavy soils and spin
water from heavy or
sturdy cotton fabrics.
PERMANENT PRESS Cycle
permanent
press
High-speed agitation,
low-speed spin and cool-
ing of the wash water be-
fore the spin help clean
clothing and keep
wrinkles from setting into
permanent press fabrics.
_I w^s.I
Speecl:
Selected
I I-I ,,m_/
KNITS/GENTLE Cycle
Low agitation and spin
speeds and shorter wash
time gently wash delicate
items and washable
synthetic knits.
SOAK Cycle
Periods of agitation and
soaking time clean
stained, yellowed, gray
or heavily soiled laundry.
Use recommended
amount of detergent.
1 w^s_I
.ow
Mi2utes

clockwise until it points.to OFF and the cycle ends.
NOTE:You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles, cold water is sprayed on the spinning load to
heipwith the rinsing.
DRAIN
No
Agitation Agitation
IPARTIALJ DRAIN
DRAIN J No
[Pause J Agitation
about 11/2J
Minutes] I
I REFILL J I wASH I
High
IX°w°_I)1s°=e°_I
I I'1M,nutesI
I)_)1 DeePRinseFILLt°rI__i__d 3SPEEDsPINLOWISpray
Ji R,nsesrl l iM,nutesri I I R'n'e'I
NOTE: Always use cold rinse water for
permanent press fabrics.
J DRAINI I LOWI I FILLI _ I DRAINI
.o... ....o.i ls! u : l lI
AgitationIII SPIN III Deep Agitation
Iql 3 Spray Iql Rinse
J" I Rinses J'l
J SOAK I_
6
Minutes
No
Agitation
WASH
Low
Speed;
2
Minutes
Pre-wash setting begins here [see pagelO]
ISpecial care is needed when soaking or pre-washing laundry.
See your "Laundry Guide" for proper use of this cycle. I

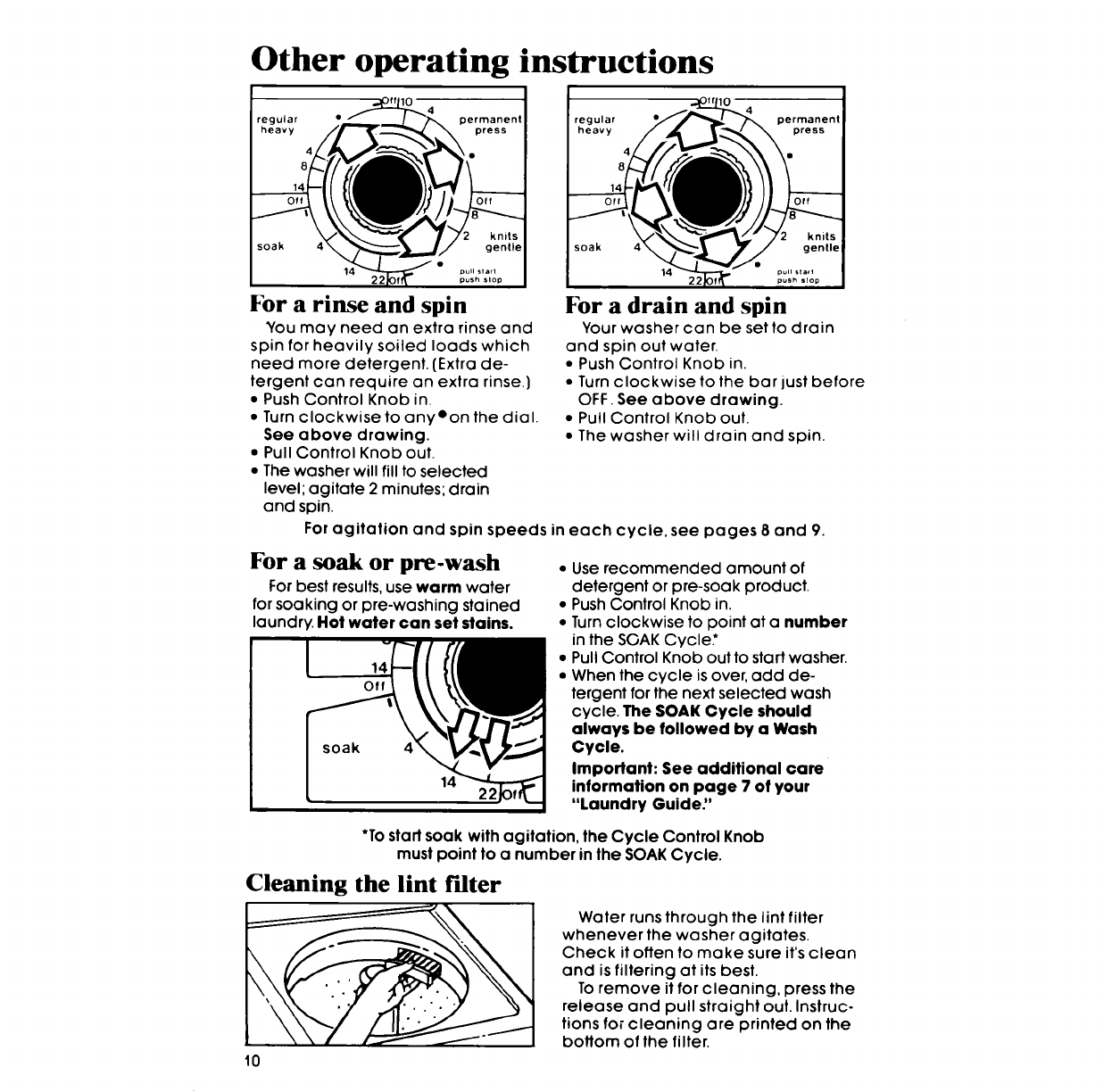

Other operating instructions
lo
regular permanent
heavy heavy permanent
For a rinse and spin For a drain and spin
"Youmay need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse.)
• Push Control Knob in.
• Turn clockwise to anyeon the dial.
See above drawing.
=Pull Control Knob out.
•The washer will fill to selected
level: agitate 2 minutes: drain
and spin.
For agitation and spin speeds in
For a soak or ple-wash
For best results,use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
22
Your washer can be set to drain
and spin out water.
• Push Control Knob in.
• Turn clockwise to the bar lust before
OFF. See above drawing.
• PullControl Knob out.
* The washer willdrain and spin.
each cycle,see pages 8 and 9.
• Use recommended amount of
detergent or pre-soak product.
• Push Control Knob in.
*Turn clockwise to point at a number
in the SOAK Cycle.*
e Pull Control Knob out to start washer.
e When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
"Laundry Guide:'
*To start soak with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.
Cleaning the lint f'dter
fO
Water runs through the lint filter
whenever the washer agitates.
Check it often to make sure it's clean
and is filtering at its best.
Toremove it for cleaning, press the
release and pull straight out. Instruc-
tions for cleaning are printed on the
bottom of the filter.

Starting your dryer
Before starting your dryer, be sure laundry is sorted and loaded
properly (see your "Laundry Guide"). Be sure the door is tighlly closed.
Select
1. CYCLE and TIME Push the 2. START Button
Turn the Control Knob either way to The dryer will start tumbling when
point to the time setting you want in you push the STARTButton.
the cycle you want.
To stop and
3. restart the dryer
To stop, open the door (or turn the
Control Knob to OFF).
To restart, close the door and push
the STARTbutton.
4. Changing a setting
The setting can be changed at any
time by turning the Control Knob to a
new setting,
The Cycle Control Knob should point to OFF when the dryer is not in use. 11

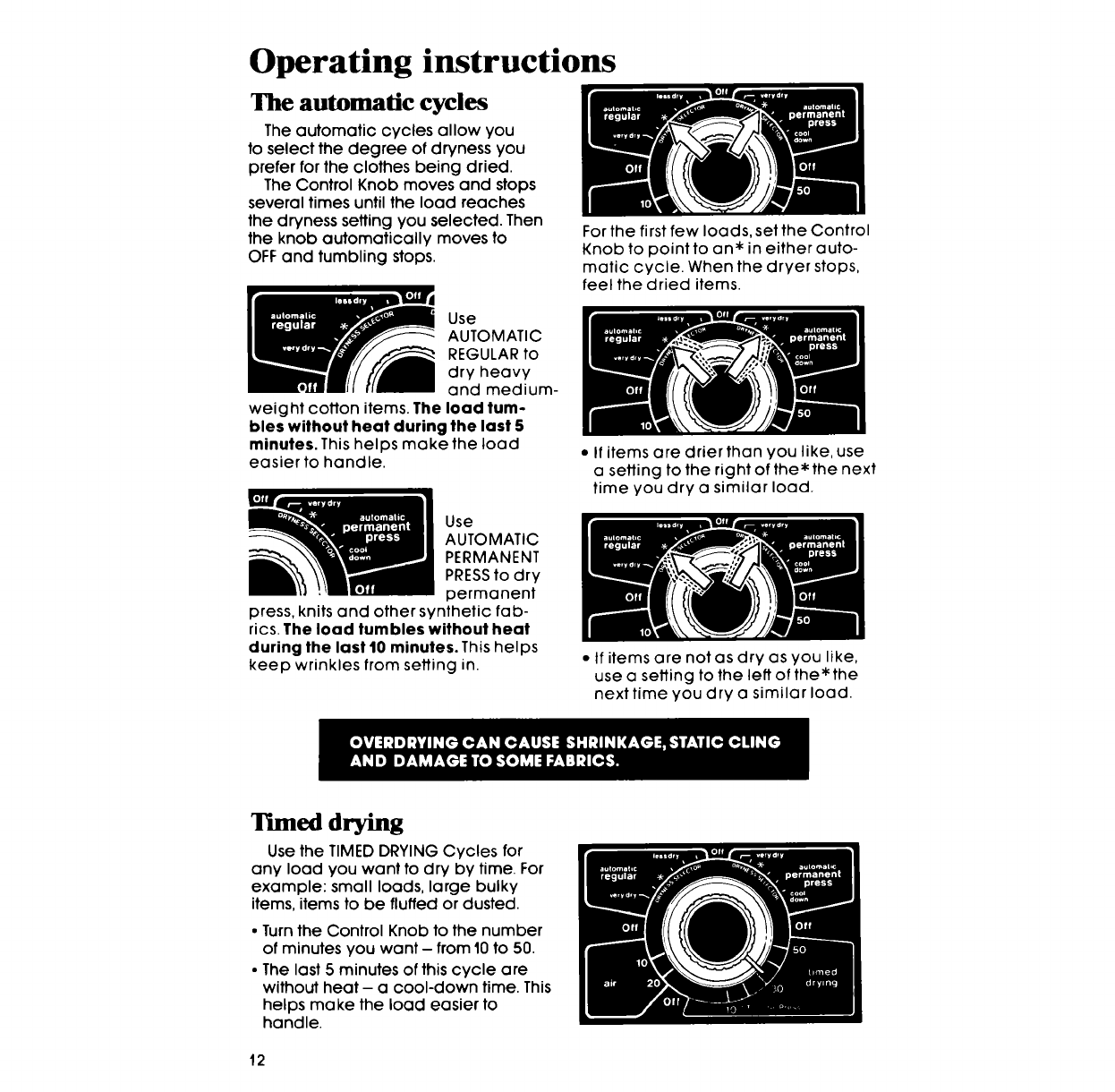

Operating instructions
The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
Use
AUTOMATIC
REGULAR to
dry heavy
and medium-
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle.
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
•If items are drier than you like, use
a setting tothe right of the*the next
time you dry a similar load.
•tf items are not as dry as you like,
use a setting to the left of the* the
next time you dry a similar load.
Timed drying
Use the TIMED DRYING Cycles for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted.
• Turn the Control Knob to the number
of minutes you want - from 10 to 50.
• The last 5 minutes of this cycle are
without heat - a cool-down time. This
helps make the load easier to
handle.
12

Selecting a cycle
!
TYPEOF LOAD
co'rroNs - LINENS
EXTRAHEAVY- Bedspreads, mattress pads, quilts .....
HEAVYWEIGHTFABRICS- Towels, jeans, corduroys,
work clothes .....................................
MEDIUMWEIGHT COTTONS - Sheets, pillowcases,
cotton underwear, diapers .......................
LIGHTWEIGHTCoI"rONS - Batistes, organdies, lingerie
PERMANENT PRESS, SYNTHETICS AND BLENDS
HEAVYWEIGHTFABRICS- Work clothes, jackets,
raincoats .......................................
MEDlUMWEIGHT FABRICS-Shifts, play clothes,
sheets, slacks .....................................
LIGHTWEIGHTFABRICS- Lingerie, blouses, dresses ....
KNITS
HEAVYWEIGHT- Cottons, rayons, blends, T-shirts,
slacks, shifts ......................................
LIGHTWEIGHT- Synthetics (polyester, acrylic, etc.)
and blends, lingerie, blouses, dresses .............
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels) .......................
Gauze, lace, etc ....................................
RUBBER,PLASTIC, HEAT-SENSITIVE FABRICS
FOAM RUBBER- Pillows, bras, stuffed toys .............
PLASTIC- Shower curtains, tablecloths ..............
OLEFIN, POLYPROPYLENE,SHEERNYLON ...............
SUGGESTED
CYCLE
AUTOMATIC
REGULAR
AUTOMATIC
PERMANENT
PRESS
AUTOMATIC
PERMANENT
PRESS
AUTOMATIC
PERMANENT
PRESS
AIR
20 MINS.
20 MINS.
15-20 MINS.
t
13

Drying tips
AIR Setting
The dryer does not heat when the
Control Knob isset on AIR.This setting
can be used to fluff bedding, plastic
tablecloths, foam rubber pillows,
stuffed toys, sneakers, etc.
TUMBLE PRESS Setting
Mixed loads
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
To help reduce wrinkling, take
the load from the dryer as soon
as tumbling stops. This isvery
important for permanent press,
knits and other synthetic fabrics.
Drying times
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer.
The load will tumble in heated air
for 5 minutes. The heat shuts off and
the dryer continues to tumble the
load forlO more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.
Drying times will vary depending on:
• amount of moisture in the clothes.
• type and weight of the fabric.
•size of the load.
•room temperature around the
dryer.
• temperature of the wash rinse
water.
• amount of lint in the lint screen.
• dryer temperature selection.
See page 19 in your"Laundry Guide"
for more information.
14

Lint screen
Clean the lint screen before each load. Ascreen blocked by lint can
increase drying time and may be a FIREHAZARD,
The lint screen is 2.
inside the dryer Pull
drum, on the straight
back wall. out.
I. Use the finger
holes to pull
the lint screen 3.
straight out.
_ARNING: DO NOT run the
dryer with the lint screen
loose, damaged or missing.
Doing so can cause over-
heating, can damage fabrics and
can be a FIRE HAZARD.
4.
5.
Lightly
squeeze the
body, as
shown, while
pulling the
cover off, \
Roll lint off the \
screen with
your fingers. Squeeze body;
DO NOT rinse pull cover off.
or wash the
screen. Wet lint is hard to remove.
Replace the cover on the body of
the lint screen.
Push the lint screen straight back
in until it clicks into place
Lint removal
Lint can gather inside the dryer and create a fire hazard.
This lint should be removed every 2 to 3 years, or more often,
depending on dryer usage.
Cleaning should be done only by a qualified service person.
t. Remove back panel from dryer.
2. Avoid touching thermostats,
wires, terminals and heater box.
3. Remove lint from shaded area
-see art - with a soft brush or
vacuum cleaner.
4. Replace back panel. Recon-
nect, exhaust duct, etc.
Level the washer/dryer.
*Avoid electrical shock
hazard- unplug power
supply cord or turnoff
electrical power.
•Avoid injuryor damage-do not
put hands inside cabinet.
•Metal edges may be sharp.
•Make sure dryer iscool.
Ihermostats IJ[IHeaterBox
Exhaust Duct Outlet
Heat Element Terminals
15

Vacation care
!
1. Turn off both water faucets to
take pressure off inlet valves
and hoses.
2. Unplug power supply cord or
turn off electrical power supply.
3. Clean lint screen and tint filter.
Winterizing
Install and store your washer/dryer where it won't freeze. Because
some water stays in the washer, freezing can damage it. If your washer/
dryer is stored or moved during freezing weather, winterize it.
1. Shut off both water
faucets. Disconnect
and drain water
inlet hoses.
2. Put a quart of auto-
mobile-type anti-
freeze in the basket.
To use the washer again...
3. Run washer on a
drain and spin set-
ting (see page tO) for
about 30 seconds to
mix antifreeze and
water.
4. Toclean out anti-
freeze, run washer
1. Flush water pipes
and hoses.
2, Reconnect water in-
let hoses.
3. Turn on both water
faucets.
through a complete
cycle with a cup of
detergent.
16

If you need service or assistance,
we suggest you follow these four steps:
I. Before calling for assistance...
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any kind
IF YOUR WASHER DOES NOT FILL:
•Is the power supply cord
plugged in?
• Are both water faucets open?
• Are fuses blow.n or circuit-breaker
tripped?
• Are the water supply hoses kinked?
• Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
• Isthe lid closed?
• Is the power supply cord plugged in?
•Are fuses blown or a circuit-breaker
tripped?
IF WASHER DRAINS ATTHE WRONG TIME:
•The drain hose should be at least
28 inches above the floor and
secured.
• The drain hose should not fit tightly
in the drain pipe.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN'T...
• The washer may seem to be
draining during wash and rinse
cycles.
• Water can siphon out. (See "In-
stallation Instructionsi'1
IF YOUR WASHER STOPS DURING
THE PERMANENT PRESS CYCLE:
• Remember, the washer will stop
for about 1__minutes after the
partial drain during the cool-
down period in this cycle.
DRYER DOESN'T RUN OR
DOESN'T HEAT:
• Is it plugged in?
• Is the circuit-breaker tripped or
one or both of the fuses blown?
• Did you push START?
• Is the door closed?
• The AIR setting is without heat.
•The last minutes of heat settings
are without heat. See page 12.
DRYING TIME SEEMS LONG:
• Is the lint screen clean?
• Is the room cold?
• Check your"Laundry Guide;'
page 19.
17

2. if you need assistance*...
Call Whirlpool COOL-LINE ®serv-
ice assistance telephone number.
Dial free from:
Continental U.S.. [phone]
Michigan ....... [phone]
Alaska & Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obta in satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
i jo]- w rooo o
l a nationwide net-
work of franchised
TECH-CARE ® Serv-
_ Z-£_H-_,4R£ ice Companies.
FRANCHISEDSERVICETECH-GARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number [see Step 2) or look in
your telephone directory Yellow
Pages under:
APPLIANCES - HOUSEHOLD ELECTRICAL APPLIANCES
MAJOR SERVICE & REPAIR 0R MAJOR REPAIRING & PARTS
WHIRLPOOL APPUANCES WHIRLPOOL APPUANCES
FRANCHISED TECH CARE SERVICE FRANCHISEO TECH CARE SERVIC[
_ERVI¢ 'E _ CJ_4E4 ",lK_; NERVI('E [ (_14P4 _'/KN
XYZSERVICE CO XYZSERVIC€ CO
123 Maple ........ go9 9999 123 Ma_le ........ 999 9Og9
0R
WASHING MACHINES. DRYERS
&IRONERS SERVICING
WHIRLPOOL APPLIANCES
FRANCHISED TEC_ CARE SERV CE
;_¥Z SERVIC[ CO
123 M_;31p ......... 999 99£g
4. If you have a problem*...
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Robert EGunts, Vice President
Whirlpool Corporation
Administrative Center
2000 US-33, North '
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to your request for
assistance.
FSP is a registered trademark
ot Whirlpool Corporation for
.quality parts Look for this
symbol of quality whenever
you need areplacement part
for your Whirlpool appliance
FSP replacement parts
will fitright and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance.
18

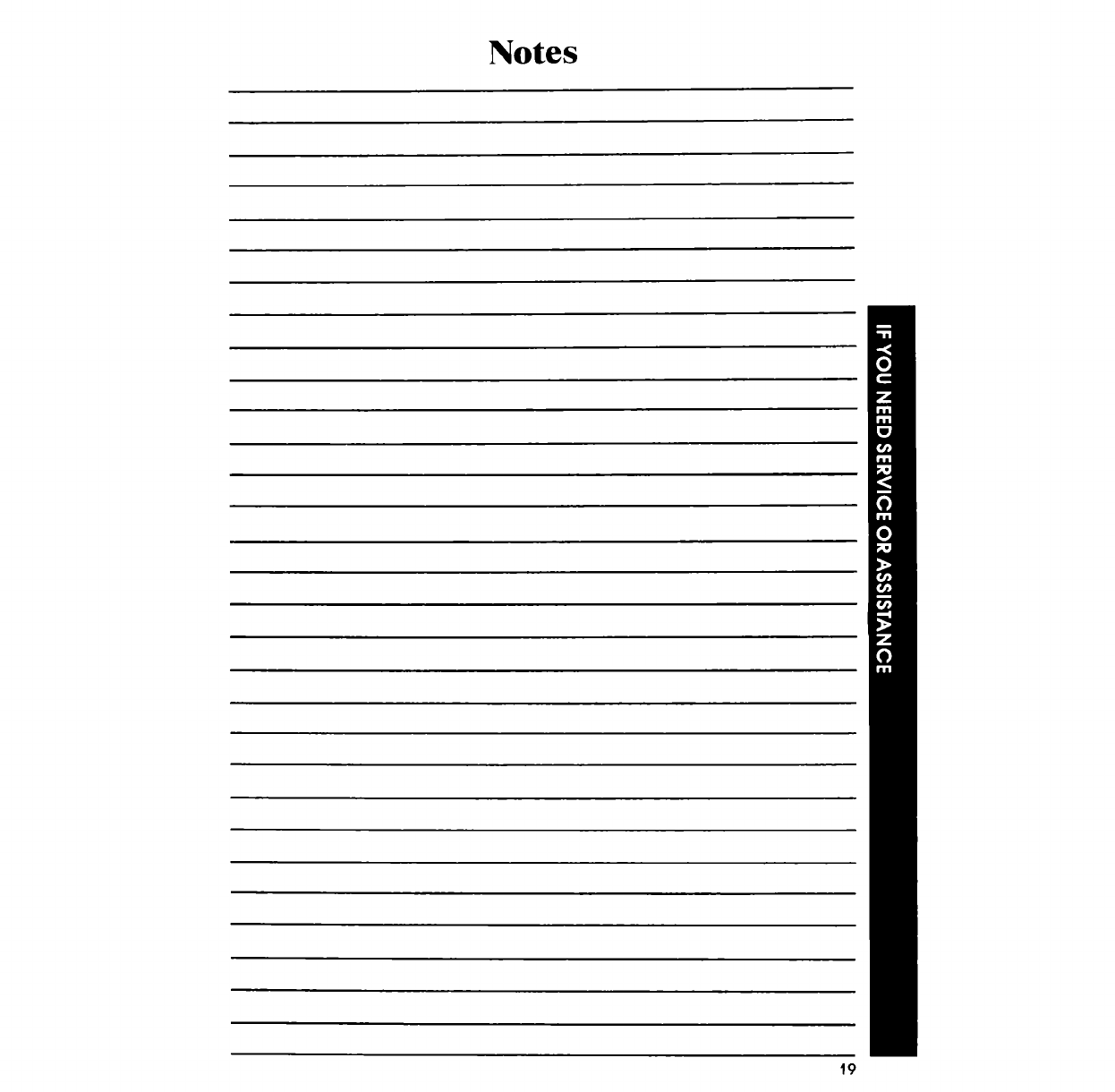

Notes
19

Whirl gl
.... Home _ Applia c
Making your world a little easier.
Part No. 693012 Rev. A.
©1984 Whirlpool Corporation Printed in U.S.A.
ztomaticWashers, Clothes Dryers. Freezers, Refrigerator-Freezers, Ice Makers, Dishwashers, Built-lnOvens and Surface Units. Ranges, Micr
