whisker SAUDER CREDENZA User manual

CAUTION
ELECTRICALLY OPERATED
PRODUCT - Not recommended for
children under 3 years of age. As with
all electrical products, precautions
should be observed during handling
and use to prevent electrical shock.
If you have assembly questions or need a replacement part, please contact Sauder directly at
www.sauder.com or 800-445-1527.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
WHISKER CREDENZA - WHITE PLANK
[e-mail] | 1.877.250.7729 | Mon-Fri, 9am-5:30pm EST

3
4
5-20
21-24
25-28
29-30
31
Part Identication
Hardware Identication
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Table of Contents Assembly Tools Required
Use of a TV that is too heavy or large is hazardous. A TV that is too heavy will create a risk of a tip-over that
can cause severe injury or death. A TV that is too large for the available space might be accidentally pushed
or bumped o the furniture, or subject to tip-over.
• Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly!
• This unit is designed for use with at panel televisions weighing less than 50 pounds. Never use with a TV
that weighs more.
• The size of the television, front-to-back and side-to-side, must t within the space dened in the diagram.
• Never place the front edge of the TV past the front edge of the TV support shelf (or stop molding – if equipped)
• Never allow the sides of the TV to extend past the side edges of the TV support surface.
• Be sure to apply the warning label as instructed later in assembly. The label provides important safety
related information.
WARNING
!
50 lbs.50 lbs.
28-1/8"28-1/8"
43-1/8"43-1/8"
425539 whiskersupport.comPage 2

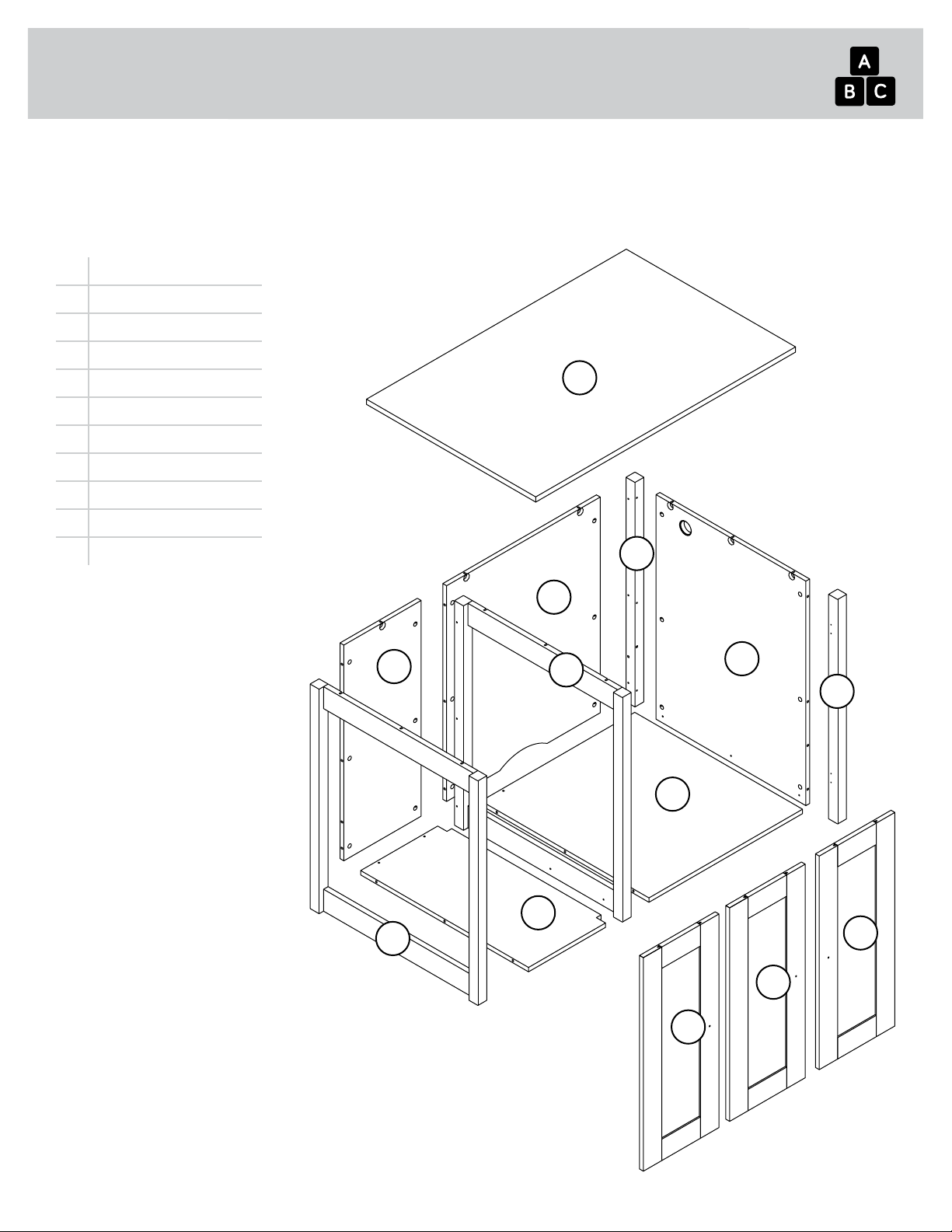

Part Identication Now you know
our ABCs.
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge to
help distinguish similar parts from each other. Use this part identication to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C TOP (1)
D LARGE BOTTOM (1)
E SMALL BOTTOM (1)
F LARGE BACK (1)
G SMALL BACK (1)
H RIGHT FRONT LEG (1)
J RIGHT BACK LEG (1)
K UPRIGHT (1)
L DOOR (3)
A
B
C
D
E
F
G
H
J
K
L
L
L
If you have assembly questions or need a replacement part, please contact Sauder directly at
www.sauder.com or 800-523-3987.
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)
whiskersupport.com Page 3
425539

Hardware Identication
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 9/16" PAN HEAD SCREW - 1
51S
GOLD 1" MACHINE SCREW - 3
50S
BLACK 9/16" LARGE HEAD SCREW - 24
1S BLACK 1/2" FLAT HEAD SCREW - 3 11S
BLACK 1-15/16" FLAT HEAD SCREW - 4
113S
HINGE - 6
2H MAGNETIC CATCH - 3 3I
WOOD DOWEL - 4
15F 12F TWIST-LOCK®
FASTENER -12
FOOT - 1
1E CAM SCREW - 30 8F
HIDDEN CAM - 30
1F
USB POWER HUB - 1
9D
STRIKE
PLATE - 3
6I
WARNING
For use with televisions weighing 50 lbs.
(22.6 kg) or less. Use with heavier
televisions may result in instability causing
tip over resulting in death or serious injury.
-Never allow children to climb on audio/
video furniture.
Refer to instruction book for complete
safety information.
Note: This is a permanent label. Do not
try to remove. Surface will be damaged.
11/18 5 2 4 9 2 8 524928
WARNING LABEL - 1
1L
(Refer to Step 15 for proper
location and application)
KNOB - 3
186K CAM
COVER - 18
102P
425539 whiskersupport.comPage 4

View our assembly video at
www.whisker.com/support
Step 1
A
B
F
G
K
(12 used)
12F
Do not tighten the TWIST-LOCK®FASTENERS in this step.
å Assemble your unit on a carpeted oor or on
the empty carton to avoid scratching your
unit or the oor.
å To begin assembly, push twelve SAUDER
TWIST-LOCK®FASTENERS (12F) into the large
holes in the ENDS (A and B), BACKS (F and G),
and UPRIGHT (K).
whiskersupport.com Page 5
425539

Step 2
A
D
E
F
G

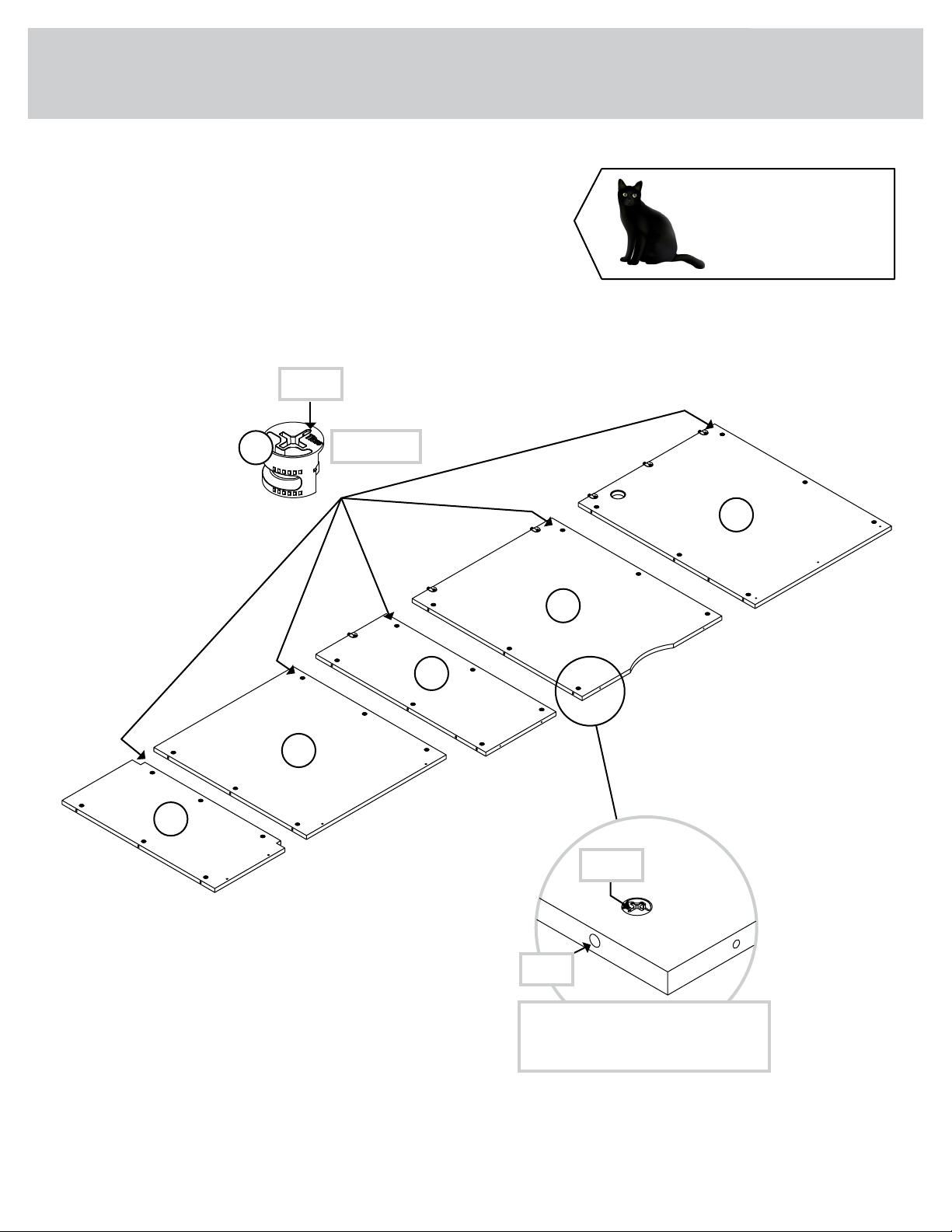

å Push thirty HIDDEN CAMS (1F) into the
RIGHT END (A), BOTTOMS (D and E),
and BACKS (G and F).
1F (30 used)
Arrow
Arrow
The arrow in the HIDDEN CAM
must point toward the hole in
the edge of the board.
Hole
425539 whiskersupport.comPage 6
Thinking outside
the litter box.

Step 3
A
K
K
B
J
H
8F
8F
8F
å Turn thirty CAM SCREWS (8F) into the ENDS (A
and B) LEGS (H and J) and UPRIGHT (K).
(30 used)
F
L
I
P
O
V
E
R
F
L
I
P
O
V
E
R
whiskersupport.com Page 7
425539

å Insert two WOOD DOWELS (15F) into the long
edges of the RIGHT END (A).
å Fasten the RIGHT END (A) to the RIGHT REAR
LEG (J). Tighten three HIDDEN CAMS.
å Fasten the RIGHT FRONT LEG (H) to the
RIGHT END (A). Tighten three HIDDEN CAMS.
Step 4
A
H
J
15F
15F
Surface with HIDDEN CAMS
These surfaces
should be even.
425539 whiskersupport.comPage 8
1
2

å Insert a WOOD DOWEL (15F) into the hole in
the RIGHT REAR LEG (J).
å Fasten the LARGE BACK (F) to the RIGHT
REAR LEG (J). Tighten three HIDDEN CAMS.
Step 5
J
15F
Surface with HIDDEN CAMS
F
Rounded edge
whiskersupport.com Page 9
425539

å Fasten the LARGE BOTTOM (D) to the RIGHT
END (A). Tighten three HIDDEN CAMS.
å Fasten the LARGE BOTTOM (D) to the LARGE
BACK (F). Use two BLACK 1-15/16" FLAT
HEAD SCREWS (113S).
å Fasten the FOOT (1E) to the LARGE BOTTOM (D).
Use the BLACK 9/16" PAN HEAD SCREW (51S).
Step 6
BLACK 9/16" PAN HEAD SCREW
(1 used in this step)
51S
1E
D
A
BLACK 1-15/16" FLAT HEAD SCREW
(2 used in this step)
113S
F
Surface with
HIDDEN CAMS
425539 whiskersupport.comPage 10

å Fasten the UPRIGHT (K) to the LARGE
BACK (F) and LARGE BOTTOM (D). Tighten
six HIDDEN CAMS.
Step 7
D
F
K
Surface without
TWIST-LOCK®
FASTENERS
whiskersupport.com Page 11
425539

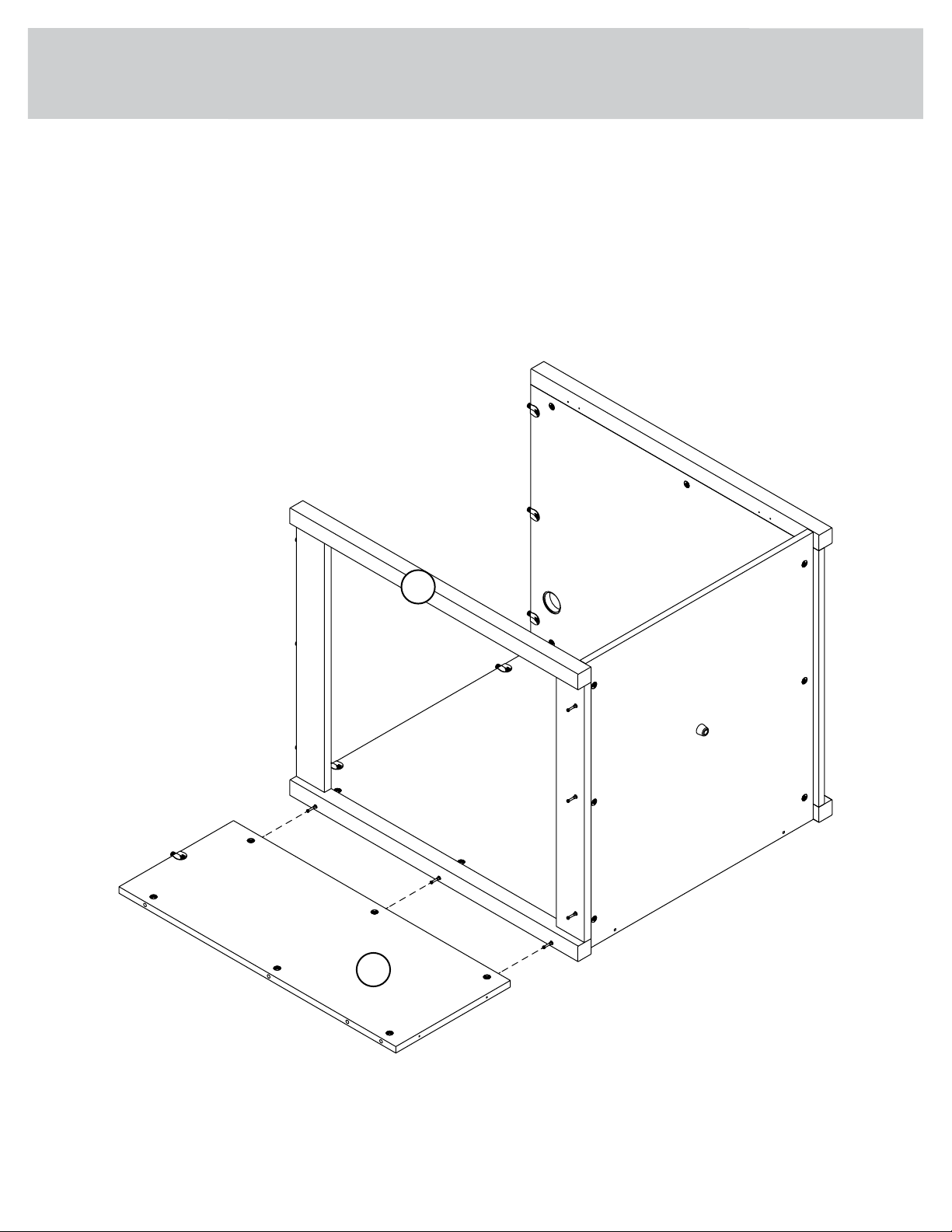

å Fasten the SMALL BACK (G) to the
UPRIGHT (K). Tighten three HIDDEN CAMS.
Step 8
Surface
with
HIDDEN
CAMS
K
G
425539 whiskersupport.comPage 12

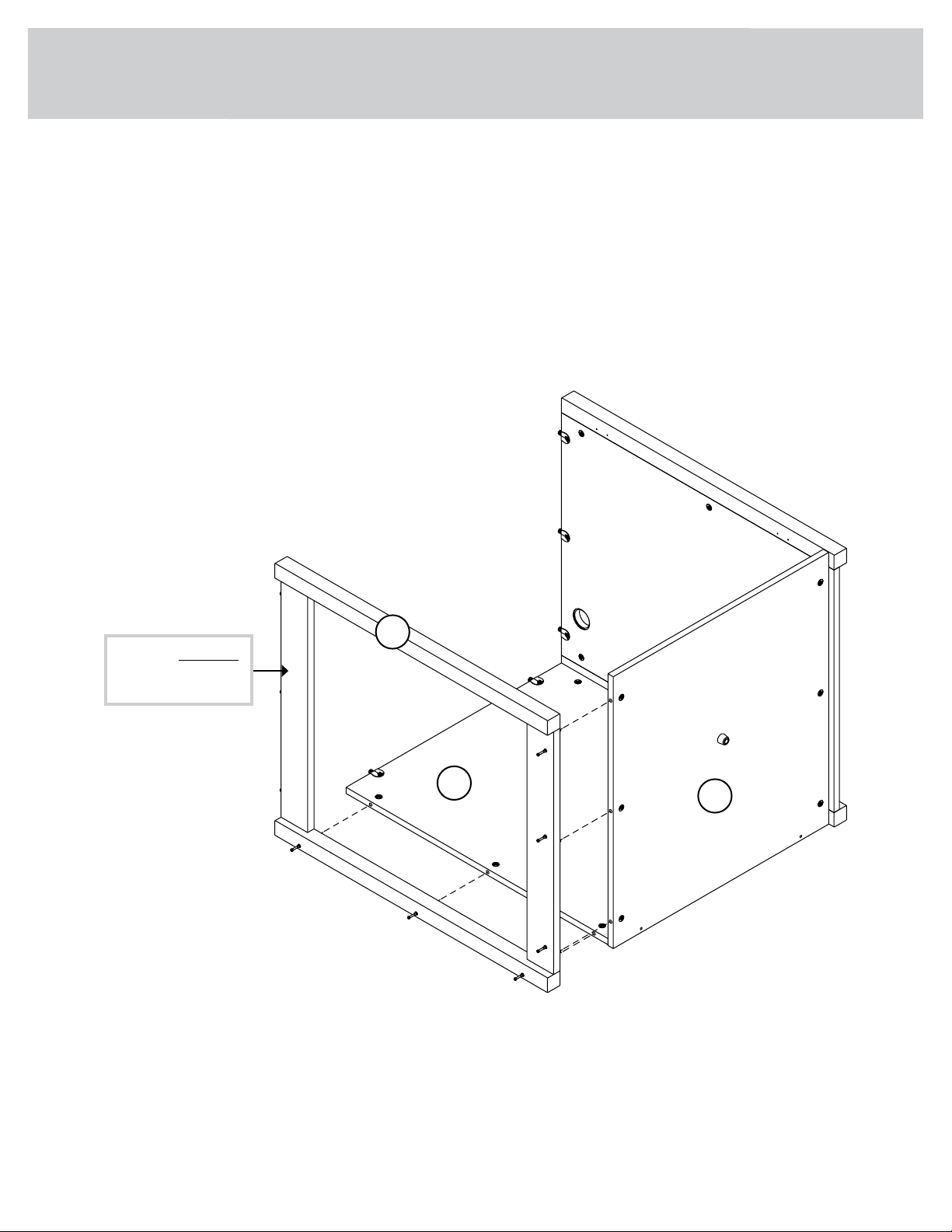

å Fasten the SMALL BOTTOM (E) to the
UPRIGHT (K).Tighten three HIDDEN CAMS.
å Fasten the SMALL BOTTOM (E) to the
SMALL BACK (G). Use two BLACK 1-15/16"
FLAT HEAD SCREWS (113S).
Step 9
K
G
E
Surface
with
HIDDEN
CAMS
Notch
BLACK 1-15/16" FLAT HEAD SCREW
(2 used in this step)
113S
whiskersupport.com Page 13
425539

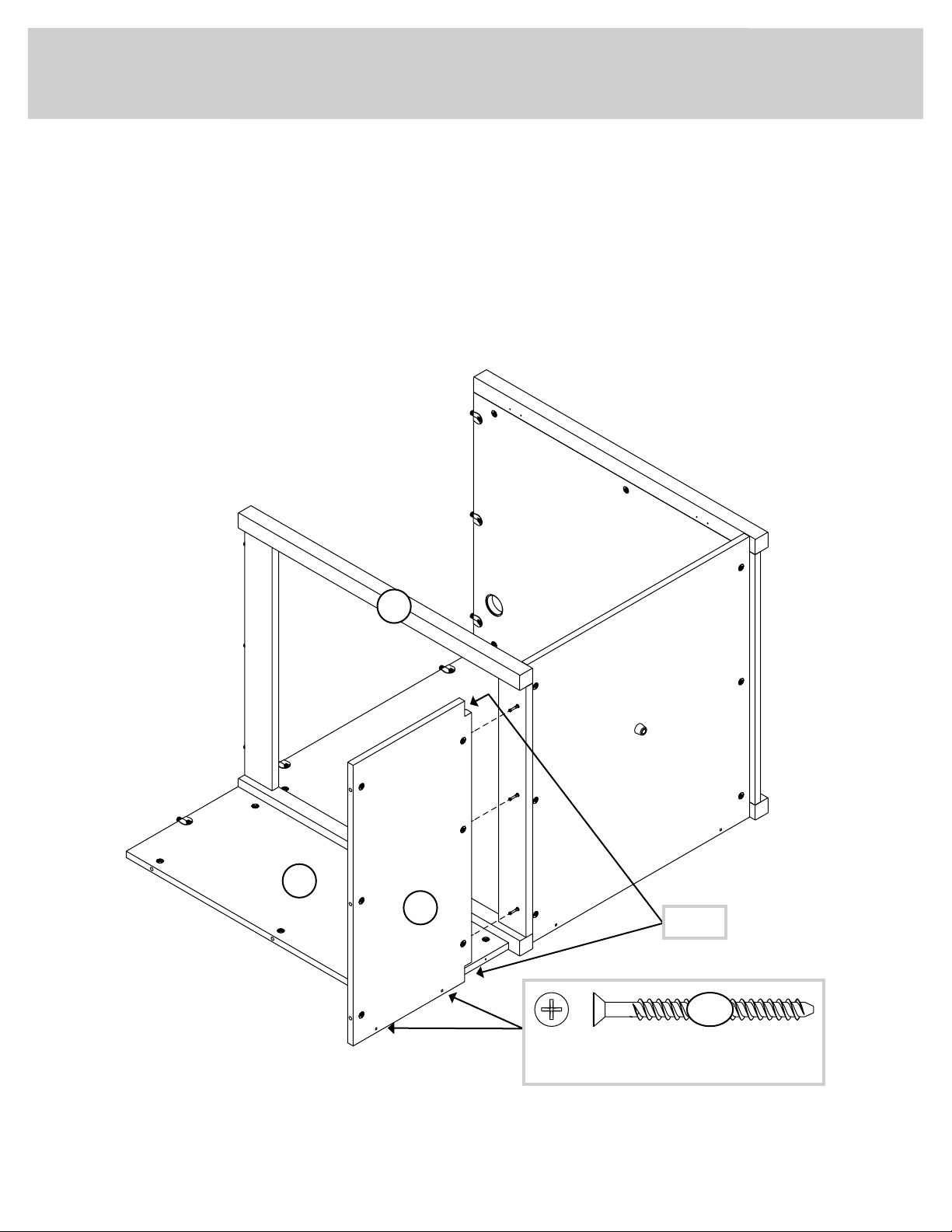

å Insert a WOOD DOWEL (15F) into the long
edge of the SMALL BACK (G).
å Fasten the LEFT END (B) to the SMALL
BOTTOM (E) and SMALL BACK (G). Tighten
six HIDDEN CAMS.
Step 10
GE
B
15F
425539 whiskersupport.comPage 14

Step 11
å Completely push three MAGNETIC
CATCHES (3I) into the holes in the
TOP (C) exactly as shown.
å Carefully stand your unit upright.
å Fasten the TOP (C) to the ENDS (A and B),
BACKS (F and G) and UPRIGHT (K). Tighten
twelve TWIST-LOCK®FASTENERS.
C
A
B
KF
G
C
3I
whiskersupport.com Page 15
425539
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the
hole of the adjoining part.
NOTE: The dowel end of the FASTENER must
remain fully inserted in the hole of the adjoining
part while locking the FASTENER.
2. Tighten the FASTENER with a Phillips
screwdriver as tight as possible.
Dowel end

Step 12
å Insert the USB POWER HUB (9D) into the large hole
in the RIGHT END (A). An opening has been provided
through the LARGE BACK (F) for cord access.
å Using your hammer, gently tap a CAM COVER (102P)
onto each visible HIDDEN CAM.
F
A
9D
To cover HIDDEN CAMS
102P
(18 used)
425539 whiskersupport.comPage 16
Go on, spoil 'em a little.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
"Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to
operate this device".
OR
"Changes or modications not expressly approved by Sauder Woodworking Co. could void the user's authority to operate this device".
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

Step 13

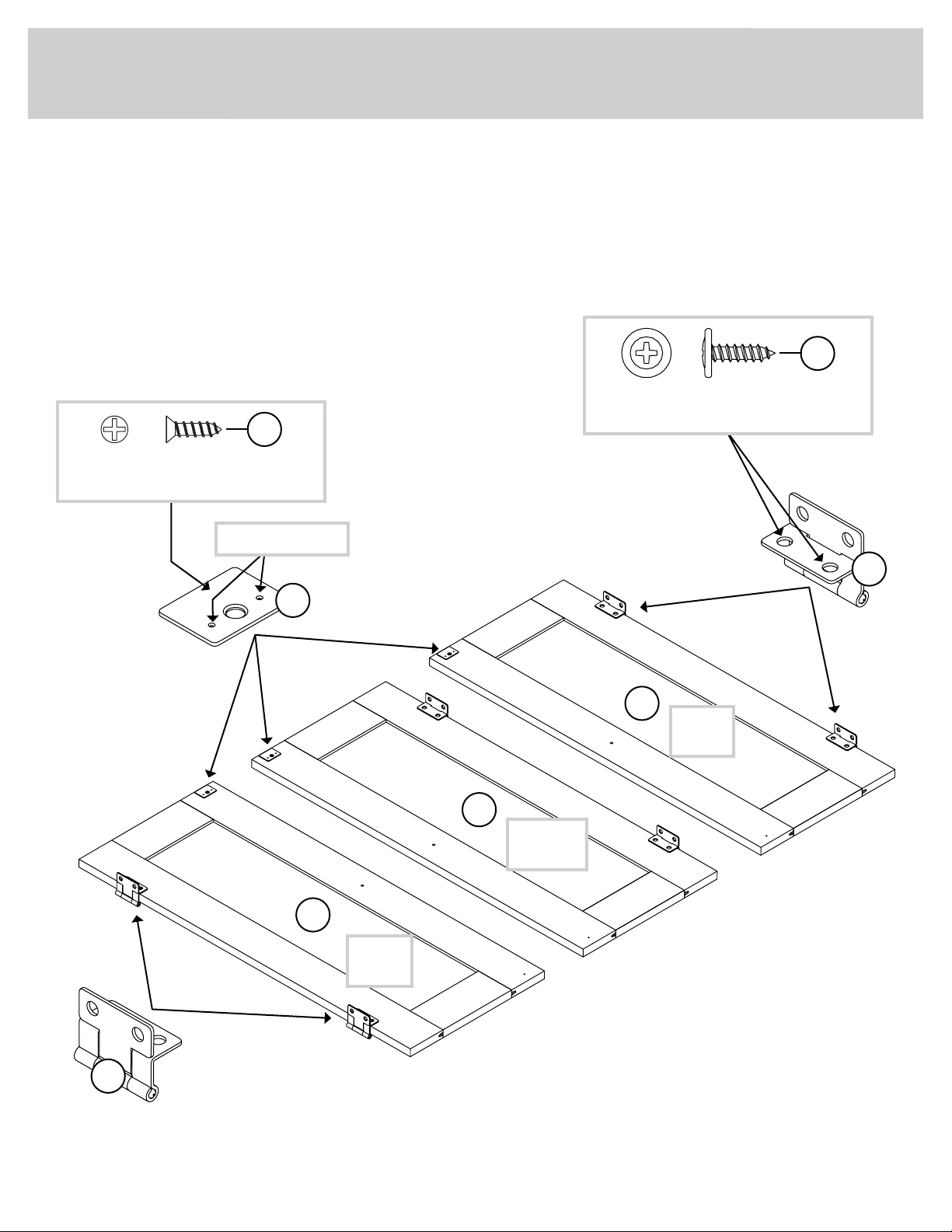

å Fasten six HINGES (2H) to the DOORS (L). Use
twelve BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten a STRIKE PLATE (6I) to each DOOR (L).
Use three BLACK 1/2" FLAT HEAD SCREWS (11S).
2H
2H
BLACK 9/16" LARGE HEAD SCREW
(12 used for the HINGES)
1S
6I
Indented holes
L
L
L
LEFT
DOOR
RIGHT
DOOR
CENTER
DOOR
BLACK 1/2" FLAT HEAD SCREW
(3 used for the STRIKE PLATES)
11S
whiskersupport.com Page 17
425539

å Fasten the LEFT DOOR (L) to the LEFT END (B). Use
four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten the CENTER DOOR (L) to the UPRIGHT (K). Use
four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten the RIGHT DOOR (L) to the RIGHT END (A). Use
four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten a KNOB (186K) to each DOOR (L). Use three
GOLD 1" MACHINE SCREWS (50S).
Step 14
GOLD 1" MACHINE SCREW
(3 used in this step)
50S
L
L
L
LEFT
DOOR
CENTER
DOOR
RIGHT
DOOR A
B
K
186K
186K
425539 whiskersupport.comPage 18
Almost time to celebrate!
With a cat nap.
BLACK 9/16" LARGE HEAD SCREW
(12 used for the HINGES)
1S

Use Jokes-Quips from
Pets/Litter-Robot folder-
you will need to change
to Work Sans font
Step 15
C

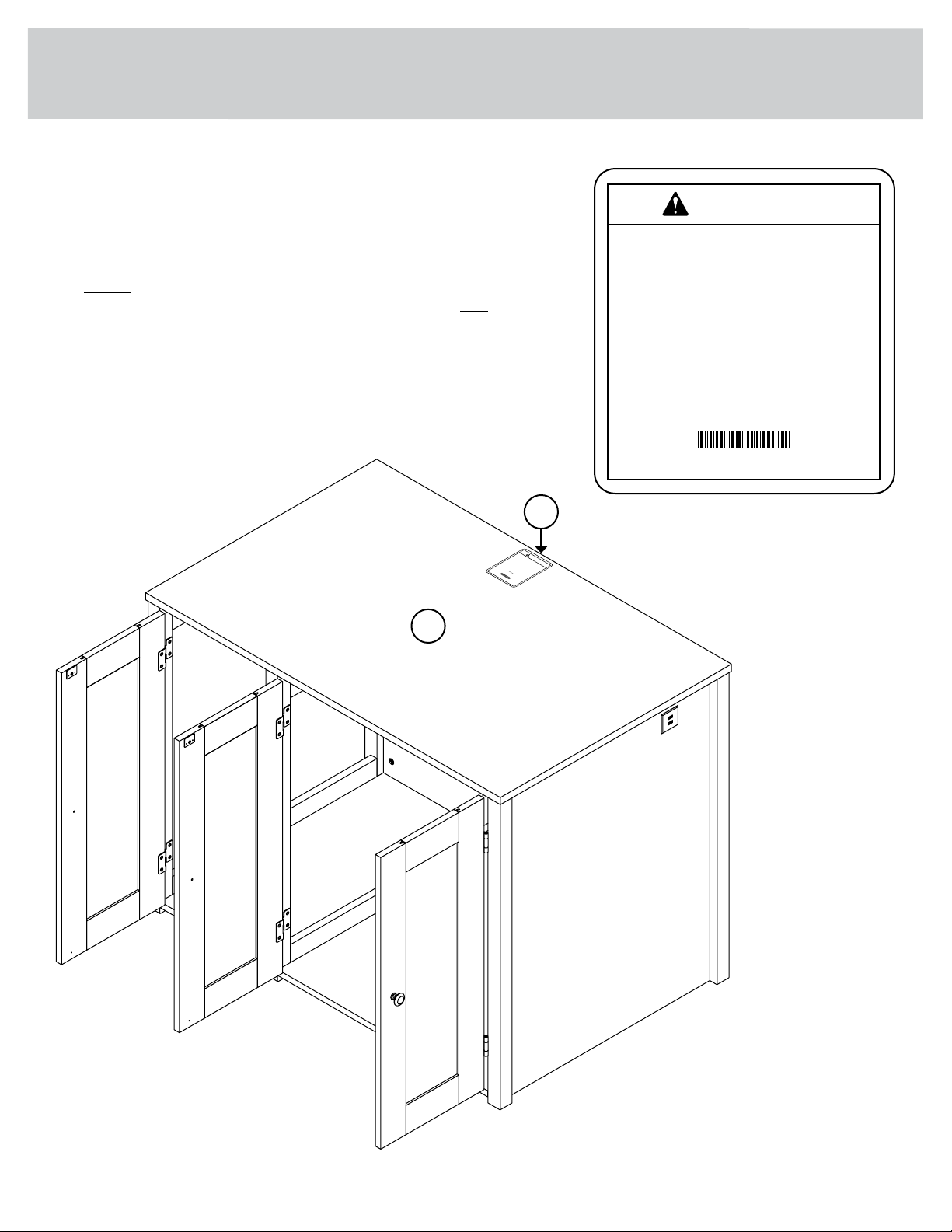

å Apply the WARNING LABEL (1L) to the TOP (C). You
should be able to read the label when the TV is
removed from the unit. When the TV is in place,
it should hide the label. Peel o the backing and
apply the label as shown in the diagram.
å NOTE: This is a permanent label intended to last
for the life of the product. Once applied, do not try
to remove it.
WARNING
For use with televisions weighing 50 lbs.
(22.6 kg) or less. Use with heavier
televisions may result in instability
causing tip over resulting in death
or serious injury.
-Never allow children to climb on audio/
video furniture.
Refer to instruction book for complete
safety information.
Note: This is a permanent label.
Do not try to remove. Surface
will be damaged.
11/18 5 2 4 9 2 8 524928
1L
WARNING
For use with televisions weighing
50 lbs. (22.6 kg) or less. Use with
heavier televisions may result in
instability causing tip over resulting
in death or serious injury.
-Never allow children to climb on
audio/video furniture.
Refer to instruction book for
complete safety information.
Note: This is a permanent label. Do not
try to remove. Surface will be damaged.
11/18 5 2 4 9 2 8 524928
whiskersupport.com Page 19
425539

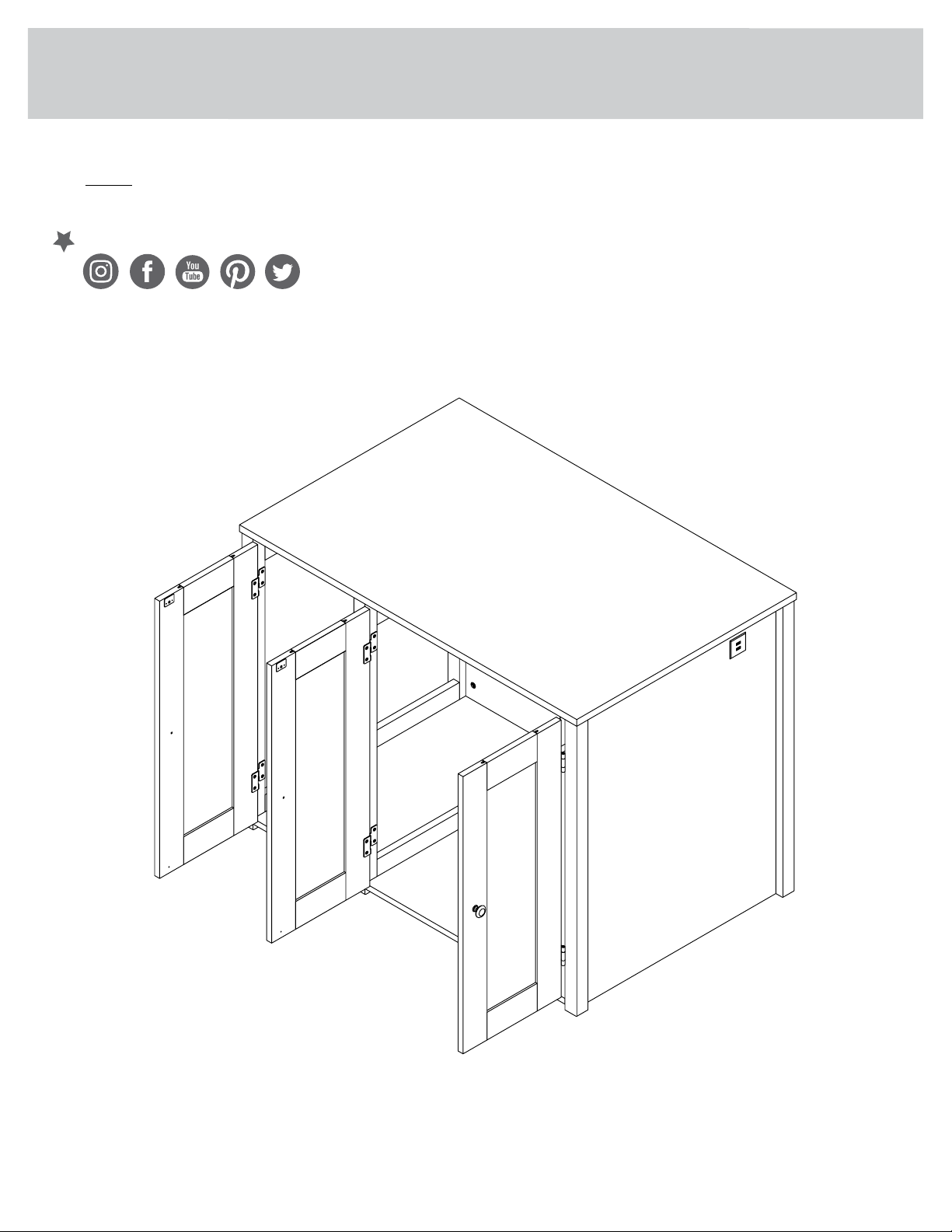

Step 16
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. Clean with a damp cloth. Wipe dry.
50 lbs.
75 lbs.
425539 whiskersupport.comPage 20
And to celebrate, why not share your success story at whisker.com or
