Whispair W3m06s2 User manual

OPERATING AND INSTALLATION INSTRUCTIONS

FOR WHISPAIR RANGEHOODS

TO AVOID THE RISK OF INJURY OR DAMAGE

TO THE PRODUCT IT IS ESSENTIAL TO READ

THESE INSTRUCTIONS PRIOR TO

INSTALLATION AND USE

Environmental Tip

Congratulations

Congratulations and thank you for choosing a WHISPAIR rangehood. We

are sure you will nd your new rangehood a pleasure to use.

To avoid the risks that are always present when you use an electrical

appliance it is important that the rangehood is installed correctly and that

you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference

and pass it on to any future owners.

AFTER UNPACKING THE RANGEHOOD PLEASE REVIEW YOUR NEW

ITEM TO ENSURE THAT IT HASN’T BEEN DAMAGED IN TRANSIT OR

IS MISSING ANY COMPONENTS. FAILURE TO REPORT ANY ISSUE

WITHIN 72 HOURS OF RECEIPT OF YOUR ITEM MAY RESULT IN ADDI-

TIONAL CHARGES.

Information on disposal for users

Most of the packing materials are recyclable. Please dispose of those

materials through your local recycling depot or by placing them in appro-

priate collection bin.

If you wish to discard this product, please contact your local authorities

and ask for the correct method of disposal.

•

Product Description & Carton Contents

Carton 1 - Hood Unit

You will be supplied with one of the three hood unit options detailed below.

Option 1 - Integrated Hood

Models include W3M06S2, W3M09S2, W3MD09S2 and

A3W12S2

Included in the carton:

1. Main hood housing including control module and lighting

2. Bafe Filters

3. Grease Trap

4. Fixing Screws

5. Operating & Installation Guide

Option 2 - Wall Hung Canopy

Models include W5L09S2, W5S09S2, W5R09S2, W5P09S2,

W5V09S2, W5B09S2, A5M09S2, A5C09S2 and A5N12S2

Included in the carton:

1. Main hood housing including control module and lighting

2. Bafe Filters

3. Grease Trap (W5L09S2 and A Series Hoods Only)

4. Flue Cover x2

5. Fixing Screws

6. Operating & Installation Guide

Option 3 - Island Hung Canopy

Models include W7S09S2, W7V09S2, W7B09S2 and A7N12S2

Included in the carton:

1. Main hood housing including control module and lighting

2. Bafe Filters

3. Grease Trap (A Series Hoods Only)

4. Flue Cover x2

5. Island Mounting Bracket

6. Fixing Screws

7. Operating & Installation Guide

Product Description & Carton Contents

Carton 2 - Fan Motor Unit

You will be supplied with one of the two fan motor options detailed.

Option 1 - Inline Solution (Fig. 4a)

Models include IL-765 and IP-1140

Unit designed to be located in a roof space and then

duct to an external vent.

Included in the carton:

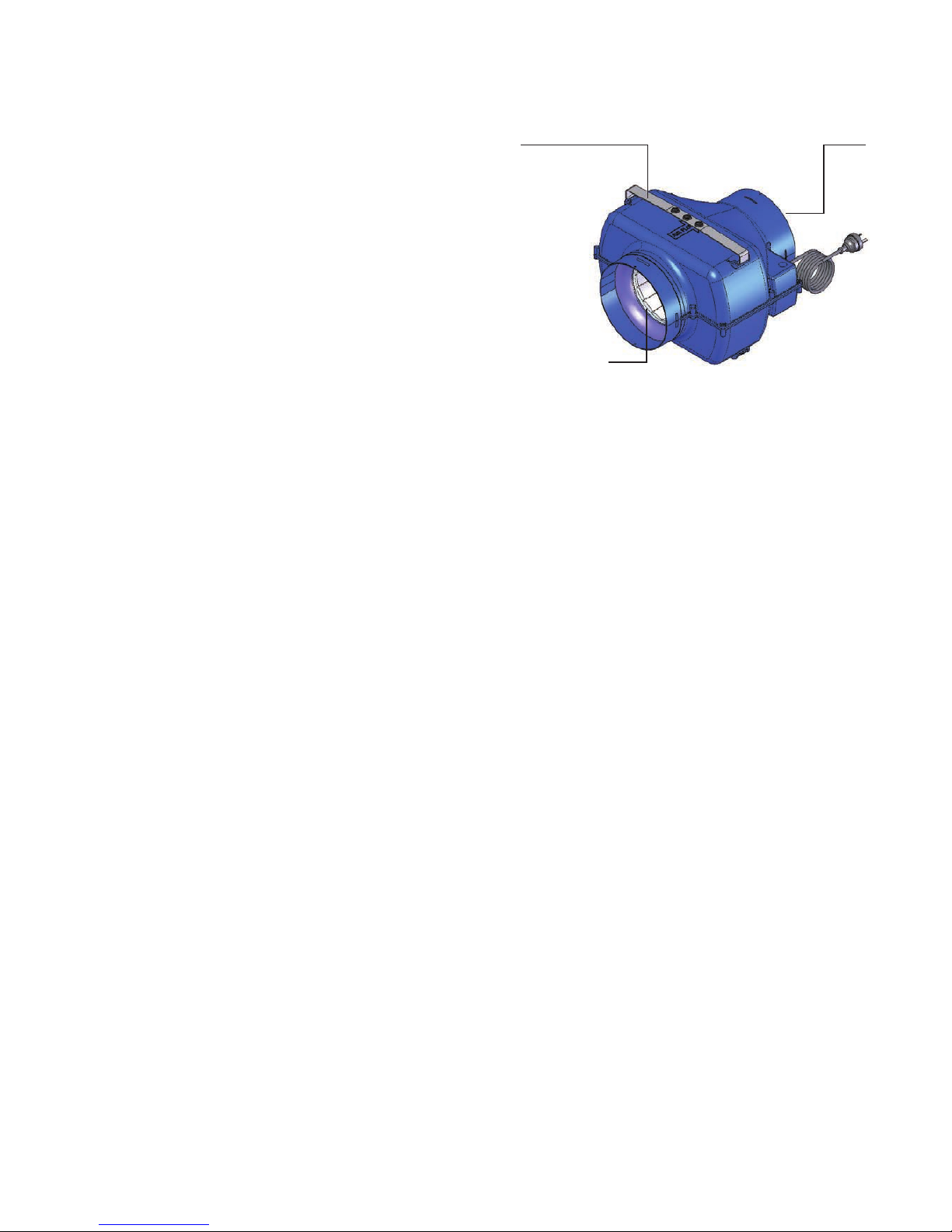

1. KLEENAIR Inline Motor Unit

2. Mounting Bracket

3. Fixing Screws

4. Hose Clips x4

5. 200mm FlexiDuct (5 Mtr Length)

6. Stainless Steel Eave Vent

Option 2 - External Solution (Fig. 4b)

Models include EL-765, EP-1140 and EPP-2010

Unit designed to be mounted externally either on an

external wall or penetrating through the roof.

Included in the carton:

1. KLEENAIR External Motor Unit

2. Hose Clips x2

3. 200mm FlexiDuct (5 Mtr Length)

Optional accessories when roof mounting:

1. 200mm Tile Roof Install Kit (HBX200TILE)

Includes roof dektite (ashing) for tile

roof and mounting brackets x2

2. 200mm Metal Roof Install Kit (HBX200MET)

Includes roof dektite (ashing) for metal

roof and mounting brackets x2

Fig. 4b

Fig. 4a

Conditions of Use and Maintenance

This rangehood is a domestic appliance which has been manufactured and tested to comply with Australian

and New Zealand Standard AS/NZS 60335.2.31 and is designed to work under Australian and New Zealand

conditions. The hoods are designed to remove bi-products of cooking – heat, steam, grease and odour.

This appliance is intended for domestic application only. Any other usage is at the owner’s risk and could be

dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or

operation. This unit is approved for electrical safety (N5761).

WHISPAIR reserves the right to change the specication without notice.

All WHISPAIR performance gures are based upon standards developed by the Haus Appliance Group, which

either comply or are in excess of the government regulated standards.

Safety

WARNING: The installation of WHISPAIR rangehoods must comply with the information in this guide.

Failure to install the rangehood in accordance with these installation instructions may result in

electrical hazards, injury, damage to your appliance and loss of warranty. Specically, failure by the

installer to install the screws or xing devices in accordance with these installation instructions may

result in electrical hazards. Please install the appliance as detailed in these instructions.

The rangehood is not intended for use by children or inrmed persons without supervision.

CAUTION: Accessible parts may become hot when used with cooking appliances. Please do not

touch halogen lighting whilst in use or for some time after switching off. The lamps operate at a high

temperature that may be harmful if contact is made.

Ensure the canopy rangehood is switched off before carrying out maintenance, to avoid any

possibility of electric shock.

Always use non-ammable materials to minimize the risk of re.

Do not ambé under the range hood.

There must be adequate ventilation of the room of operation when the range hood is used at the

same time as appliances burning gas or other fuels.

In the case of damage to power supply cords, use only an authorized service agent or licensed electrician.

Exhausted air must not be discharged into a chimney or ue.

Ducting & Extraction Levels

WHISPAIR ducting is designed to ensure optimum performance for your rangehood. Please follow the installation

instructions carefully.

Every WHISPAIR rangehood must be ducted to the externally or cavity mounted KLEENAIR unit by the use of

non-ammable ducting. The rangehood must not be ducted into a wall cavity or a ceiling space where a build-up

of grease can occur and become a potential re risk. Ensure the external outlet on the KLEENAIR unit is not

covered and the air ow is not restricted in any way as this may result in reduced performance.

The duct must at all times have a cross sectional surface area equivalent to the hood outlet. The hood outlet has

a circular cross section of 200mm in diameter or an approximate area of 31,400mm. Do not reduce the duct

size at any time and avoid sharp bends. If the duct run is longer than six (6) metres, it may be necessary to

enlarge the duct size to ensure optimum performance. The manufacturer does not guarantee performance

when the duct length is greater than six (6) metres.

Ensure that all ducting is correctly tted and sealed with pipe clips, duct tape or silicone to ensure that fumes do

not escape prior to reaching the KLEENAIR unit.

The WHISPAIR extraction calculations are based upon a 50pa change of head of pressure loss and are used to

factor the variance of air ow resistance through the ducting. 50pa is equivalent to approximately 4 metres (the

recommended length) of exi ducting with one gentle bend, which is above and beyond the industry standard

of one straight metre of ducting. The KLEENAIR LITE offers a powerful 765 cubic meters per hour (213 litres per

second) of air movement. The KLEENAIR PRO offers 1140 cubic meters per hour (317 litres per second) whilst

for serious users the KLEENAIR PRO PLUS boasts a market leading 2010 cubic meters per hour (558 litres per second).

To Rangehood Unit

Gentle Bend

In Ducting

THE RECOMMENDED DUCT

LENGTH (INSTALLATION DISTANCE)

IS 4 METERS.

THE MINIMUM INSTALLATION

DISTANCE IS 3 METERS.

GENTLE BENDS IN THE DUCTING

ARE RECOMMENDED AS IT ASSISTS

IN MUFFLING NOISE FROM THE

EXTERNAL FAN UNIT.

Noise Levels & Extraction Levels

All KLEENAIR units operate at maximum external sound pressure level between 43dB(A) and 76dB(A). The

internal operation of the systems will have a varying sound level dependent on the style of hood, the motor option

selected, the acoustics of the environment and the installation method used. It was established through testing,

in accordance with the Australian Standards, that the internal noise level varied between 33dB(A) and 65dB(A) on

the air movement settings available.

It is important to understand that whilst WHISPAIR rangehoods offer quieter operational noise levels due to the

positioning of the motor externally to the primary cooking environment, the noise levels as a consequence of air

movement or ‘wind’ noise are equivalent to other premium hoods in the Australian and New Zealand market

place, although it must be noted that the extraction levels are signicantly higher.

Servicing

The installation and tting of the rangehood should be done in such a way that will allow the unit to be

removed if service is required. Additional costs incurred in the removal, such as damage to walls, are not

covered under warranty.

It is expected that the stainless steel is cleaned with a quality non-abrasive stainless steel cleaner. The

bafe lters are removable and dishwasher safe. It is recommended that these items be cleaned regularly.

There is a re risk if cleaning is not carried out in accordance with the instructions.

The KLEENAIR unit should be checked regularly to ensure that nothing is obstructing the air ow from

the housing.

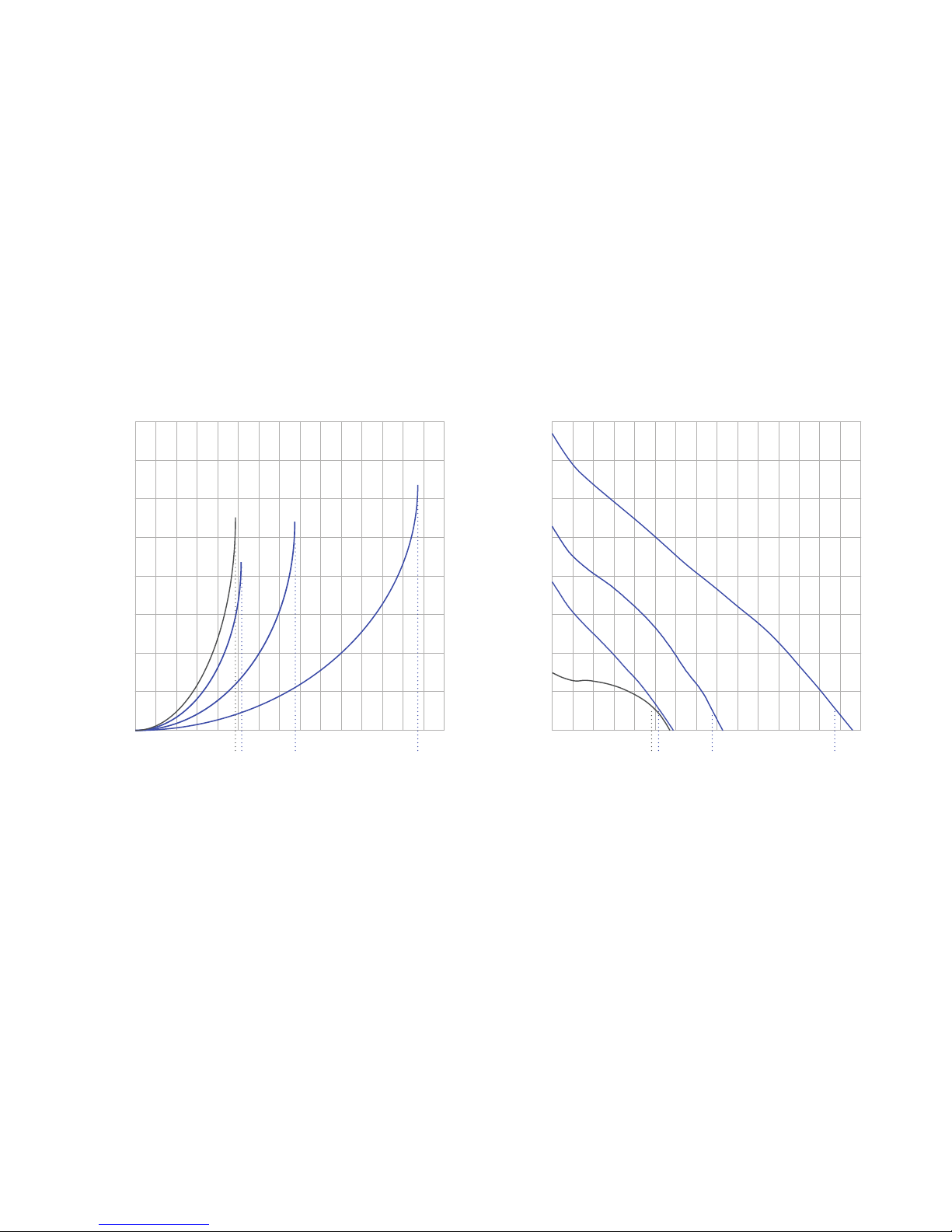

Extraction Level versus Noise Level

Cubic Meters / Hour of Air Movement

[m/hr]600 1200 1800

A.740 B.765 C.1140 D.2010

Sound Pressure Level

[dB]

Extraction Level Comparison

Cubic Meters / Hour of Air Movement

[m/hr]600 1200 1800

Change in Pressure

100

200

300

400

500

600

700

[Pa]

A. Standard premium rangehood found in the Aus/NZ market offering 740 m/hr

B. KleenAir Lite Unit offering 765 m/hr

C. KleenAir Pro Unit offering 1140 m/hr

D. KleenAir Pro Plus Unit offering 2010 m/hr

A.740 B.765 C.1140 D.2010

Part 1: Hood Installation Guide

Integrated Hood

Models include W3M06S2, W3M09S2, W3MD09S2 and A3W12S2

Step 1:

To install into your overhead cupboard, several holes may need to be cut into shelves to enable the ducting to exit

the cavity. Ensure the hood is mounted as close to the centre of the cooking surface as possible. Fit a shelf 290mm

(Undermount 60 & 90) or 320mm (Undermount 90 Super Deep) or 332mm (Undermount 120) from the base of the cupboard.

NOTE: The height of the underside of the hood body must be a minimum of 600mm above an electric cooktop &

650mm above a gas cook top and a maximum height of 1200mm. If the instructions of the hob specify a greater

distance than the minimum detailed, this shall be the minimum height for installation. Building codes that

stipulate a minimum dimenstion may vary from state to state, please check with your local council prior to installation.

Step 2:

Cut out a central 202mm hole in the shelf for ducting, matching the holes position to that of the outlet on top of the

hood. Additional holes might need to be cut to feed the duct out to the roof cavity.

Step 3:

Refer to Part 2: Motor Installation Guide.

Step 4:

Place the hood in the cabinet in the level position ensuring that the controls and display will be visable when

standing in front of the unit.

Step 5:

Using the six (6) mounting holes, screw the hood into position.

Both of the side panels and the rear panel of the hood have two

mounting holes each.

Step 6:

Attach the male plug of the rangehood unit to mains power supply.

Note to Electricians: Standard 10 Amp General Power Outlet (GPO)

required. Position GPO as close to the hood unit as possible.

Installing the grease trap and your lters:

The integrated range of hoods utilise a removable grease trap that

is used to catch excess amounts of grease and condensate from

the bafe lters. This trap can be removed for cleaning. The trap

consists of a concave channel with xing points in the channel of

the trap.

The bafe lters will then sit within the channel, with the lter

vanes running downward.

WARNING

DIMENSIONS ARE ACCURATE AT THE TIME OF PRINTING BUT HAUS APPLIANCES RESERVES THE RIGHT

TO CHANGE SPECIFICATIONS WITHOUT NOTICE. FOR BUILDING PURPOSES THE UNIT SHOULD BE

PROVIDED TO THE CABINET MAKER / BUILDER / KITCHEN DESIGNER FOR EXACT MEASUREMENTS.

Outlet

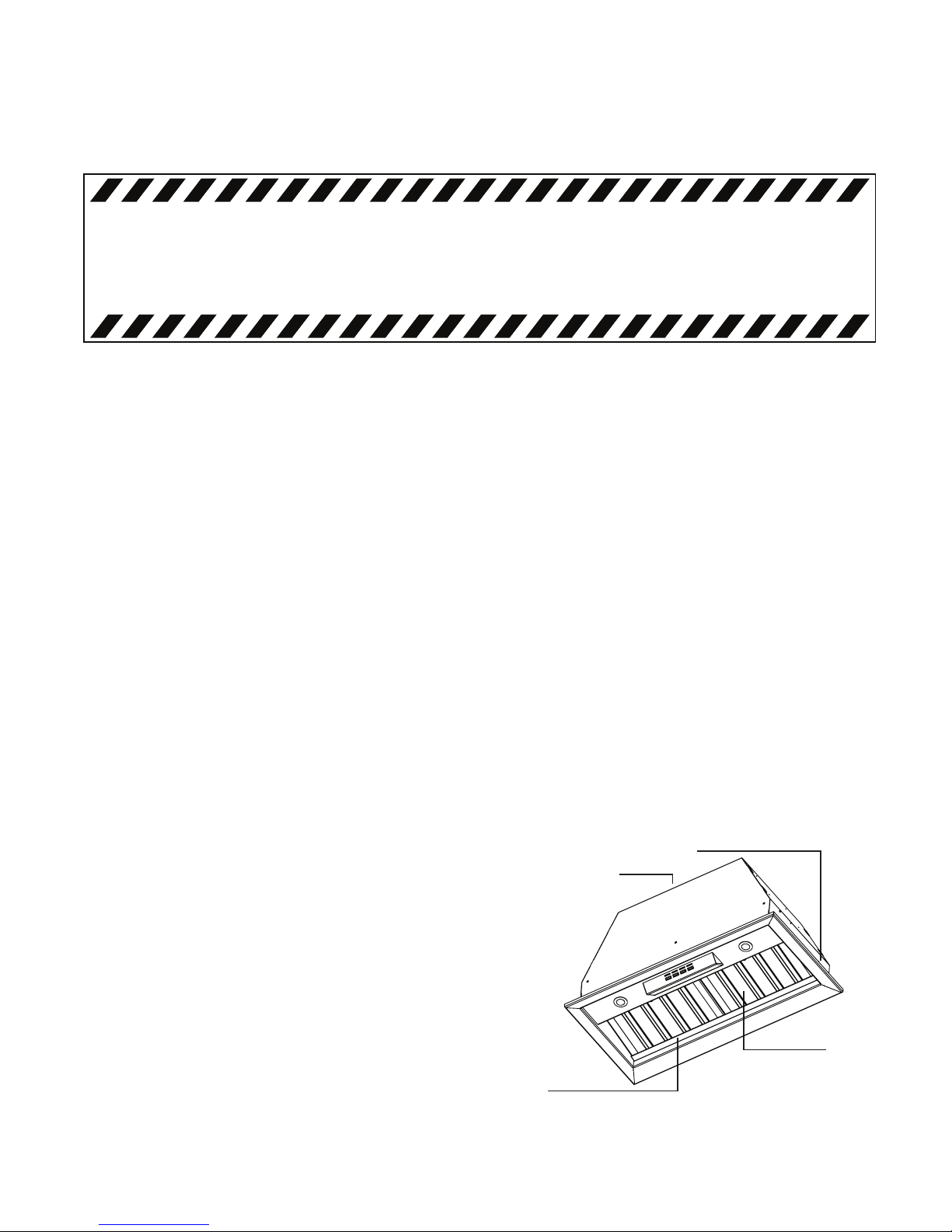

Grease Trap

Mounting Holes

Bafe Filters

Part 1: Hood Installation Guide

Wall Hung Canopy

Models include W5L09S2, W5S09S2, W5R09S2, W5P09S2, W5V09S2, W5B09S2, A5M09S2, A5C09S2 and A5N12S2

Step 1:

Measure the height of the hood from the base to the top of the mounting hooks.

NOTE: The height of the underside of the hood body must be a minimum of 600mm above an electric cooktop &

650mm above a gas cook top and a maximum height of 1200mm. If the instructions of the hob specify a greater

distance than the minimum detailed, this shall be the minimum height for installation. Building codes that

stipulate a minimum dimenstion may vary from state to state, please check with your local council prior to installation.

Step 2:

Using a spirit level mark a vertical centre line on the wall where the hood hooks need to be positioned. It is best to

centre the hood unit to the cook top below.

Step 3:

Mark a horizontal line on the wall for the mounting bracket position. Centre and mark the two (2) xing points to the

left and right of the centre line. Drill and plug holes with suitable sized wall plugs.

Step 4:

Fix the wall bracket with two (2) suitable screws into the wall at the positions marked in step 3 to allow the body

of the hood to be hung on the wall.

Step 5:

Hang the body of the hood on the wall using the bracket attached in step 4.

Identify and mark several screw holes located inside the hood. Remove the

hood from the wall and drill and plug holes with suitable sized wall plugs.

Step 6:

Replace the hood back on the wall

and secure the hood by xing the

additional screws inside the hood

housing.

Step 7:

Secure the hood rmly to the wall

by tightening the hood hooks.

Step 8:

Secure the chimney bracket to the wall.

Step 9:

Refer to Part 2: Motor Installation Guide.

Step 10:

Place the chimney on the hood and secure to the chimney bracket.

You may need to drill some new holes through the cover and bracket to secure the chimney cover.

Step 11:

Attach the male plug of the rangehood unit to mains power supply. Note to Electricians: Standard 10 Amp

General Power Outlet (GPO) required. Position GPO as close to the hood unit as possible.

WARNING

DIMENSIONS ARE ACCURATE AT THE TIME OF PRINTING BUT HAUS APPLIANCES RESERVES THE RIGHT

TO CHANGE SPECIFICATIONS WITHOUT NOTICE. FOR BUILDING PURPOSES THE UNIT SHOULD BE

PROVIDED TO THE CABINET MAKER / BUILDER / KITCHEN DESIGNER FOR EXACT MEASUREMENTS.

Part 1: Hood Installation Guide

Island Hung Canopy

Models include W7S09S2, W7V09S2, W7B09S2 and A7N12S2

Step 1:

Using a weighted stringline (plumb line), determine the central position of hood on the ceiling. It is best to centre

the hood unit to the cook top below. Mark the position. Before making the cut out, check for obstructions like

electrical cables, etc.

NOTE: The height of the underside of the hood body must be a minimum of 600mm above an electric cooktop &

650mm above a gas cook top and a maximum height of 1200mm. If the instructions of the hob specify a greater

distance than the minimum detailed, this shall be the minimum height for installation. Building codes that

stipulate a minimum dimenstion may vary from state to state, please check with your local council prior to installation.

Step 3:

Mount supplied island bracket to supporting beams on

the ceiling.

Step 4:

Adjust and x the roof bracket to the desired length.

Step 5:

Secure the FlexiDuct down the inside of the roof brack-

et taking care not to constrict the duct.

Step 7:

Slide the stainless steel chimney covers up and secure

to the bracket. You may need to drill some new holes

through the cover and bracket to secure the chimney

cover depending on desired length. In order to avoid

streaking the steel during the installation process do

not remove the protective lm from the upper piece

until all pieces are in the correct position.

Step 8:

Attached the hood unit to the base of the bracket.

Step 9:

Attach the male plug of the rangehood unit to mains

power supply. Note to Electricians: Standard 10 Amp

General Power Outlet (GPO) required. Position GPO

as close to the hood unit as possible.

WARNING

DIMENSIONS ARE ACCURATE AT THE TIME OF PRINTING BUT HAUS APPLIANCES RESERVES THE RIGHT

TO CHANGE SPECIFICATIONS WITHOUT NOTICE. FOR BUILDING PURPOSES THE UNIT SHOULD BE

PROVIDED TO THE CABINET MAKER / BUILDER / KITCHEN DESIGNER FOR EXACT MEASUREMENTS.

Part 2: Motor Installation Guide

Motor Unit Positioning and Solution Options

EXTERNAL KLEENAIR

MOTOR SOLUTION

Wall Mounted

Wall

Fan Power Supply

Attached to Internal Hood Unit

200mm Ducting

Attached to Internal Hood Unit Outlet

Gentle Bend In Ducting

Maintain 200mm Duct Diameter

Ducting Pulled Tight

Housing Mounts

(Optional Accessory)

Dektite to suit

Metal or Tile Roof

(Optional Accessory)

Fan Power Supply

Attached to Internal Hood Unit

200mm Ducting

Attached to Internal

Hood Unit Outlet

Ducting Pulled Tight

Gentle Bend In Ducting

Maintain 200mm Duct Diameter

EXTERNAL KLEENAIR

MOTOR SOLUTION

Roof Mounted

Roof

INLINE KLEENAIR

MOTOR SOLUTION

Wall Vented

Wall

Fan Power Supply

Attached to Internal Hood Unit

200mm Ducting

Attached to Internal

Hood Unit Outlet

Gentle Bend In Ducting

Maintain 200mm Duct Diameter

Ducting Pulled Tight

INLINE KLEENAIR

MOTOR SOLUTION

Eave Vented

Vent & Eave

Fan Power Supply

Attached to Internal Hood Unit

200mm Ducting

Attached to Internal Hood Unit Outlet

Gentle Bend In Ducting

Maintain 200mm Duct Diameter

Ducting Pulled Tight

Roof

Mounting Bracket Outlet

Inlet

Part 2: Motor Installation Guide

Inline Solution

Positioning your KLEENAIR Unit:

It is recommended that the KLEENAIR INLINE unit be mounted in a

roof space or wall cavity. Please ensure that the KLEENAIR unit is

positioned in an environment that is free of other gases to enable

an efcient expulsion of the cooking bi-products and to ensure that

back draft of external gases doesn’t take place.

Please ensure the motor is positioned away from other exhausts

such as re place chimneys, gas ues, etc. The inline unit an be

mounted so that it ducts directly through the wall or eave.

Step 1:

Establish a suitable position in the roof or wall cavity for the KLEENAIR unit, ensuring that the distance between the

KLEENAIR unit and the outside vent is under 800mm. The KLEENAIR unit must be located a minimum of 3

metres from the hood unit.

Step 2:

Using the mounting bracket and screws, mount the KLEENAIR unit to a beam, truss or another appropriate struc-

tures in the roof or wall space. Ensure the direction of airow is toward the outside. The direction of air ow is

marked on the KLEENAIR unit.

Step 3:

Cut a 200mm diameter hole in the wall or eave to enable the mounting of the external vent. Please ensure that the

hole is cut in a practical position to enable the FlexiDuct to be secured. Attach the FlexiDuct to the vent and then

mount vent to the wall or eave.

Step 4:

Attach the FlexiDuct from the external vent to the outlet of the KLEENAIR unit using pipe clips. To minimise inef-

ciencies and noise ensure the duct is pulled tight.

Step 5:

Attach FlexiDuct from the KLEENAIR unit to the rangehood using pipe clips. Ensure that the duct is pulled tightly

to ensure that FlexiDuct remains rm and stable during operation. Avoid sharp bends in the duct. Gentle bends in

the ducting are recommended as it assists in mufing noise from the fan unit back to the rangehood. If the

FlexiDuct needs to be extended attach the two FlexiDuct ends using a RigidDuct insert, secured by pipe clips or

duct tape.

Step 6:

Attach the male plug of the KLEENAIR unit to the female plug of the rangehood to enable power supply to the fan

motor unit. An extension lead (not supplied) of up to ve meters may be added if required.

Mounting PointsOutlet

Rear View Front View

Mounting Bracket

Step 1:

Cut a 200mm diameter hole in the wall to enable the rigid duct on the back of the KLEENAIR unit to protrude.

Please ensure that the hole is cut in a practical position to enable the FlexiDuct to be secured.

Step 2:

Remove the mounting bracket from your KLEENAIR unit by twisting the cover

in an anti clockwise direction. Mark at least four mounting points on the wall

and pre-drill the holes required.

Step 3:

Attach the FlexiDuct to the rigid duct on the back of the mounting bracket

using the pipe clips supplied.

Step 4:

Fix the mounting bracket to the wall using the screws and wall plugs provided.

Step 5:

Feed power cable through the centre of the mounting bracket and return the KLEENAIR unit on to the mounting

bracket and x it by rotating the cover in a clockwise direction noting the locating points. Lock the cover into posi-

tion by tightening the locking screw.

Step 5:

Attach FlexiDuct from the KLEENAIR unit to the rangehood using pipe clips. Ensure that the duct is pulled tightly

to ensure that FlexiDuct remains rm and stable during operation. Avoid sharp bends in the duct. Gentle bends in

the ducting are recommended as it assists in mufing noise from the fan unit back to the rangehood. If the

FlexiDuct needs to be extended attach the two FlexiDuct ends using a RigidDuct insert, secured by pipe clips or

duct tape.

Step 6:

Attach the male plug of the KLEENAIR unit to the female plug of the rangehood to enable power supply to the fan

motor unit. An extension lead (not supplied) of up to ve meters may be added if required.

Part 2: Motor Installation Guide

External Solution (Wall Mounted)

Positioning your KLEENAIR Unit:

It is recommended that when the KLEENAIR EXTERNAL UNIT is

WALL mounted, it is positioned a minimum 1800mm above the

ground surface with a downward clearance of 1200mm and with a

radial clearance of 600mm. Please ensure that the KLEENAIR unit

is positioned in an environment that is free of other gases to enable

an efcient expulsion of the cooking bi-products and to ensure that

back-draft of external gases doesn’t take place.

Please ensure the motor is positioned away from other exhausts

such as re place chimneys, gas ues, etc. The unit can be

mounted so that it ducts directly through the wall.

Inlet

Mounting Points

Mounting Bracket

Cover

RigidDuct

Outlet

Inlet

Step 7:

Attach FlexiDuct from the KLEENAIR unit to the rangehood using pipe clips. Ensure that the duct is pulled tightly

to ensure that FlexiDuct remains rm and stable during operation. Avoid sharp bends in the duct. Gentle bends in

the ducting are recommended as it assists in mufing noise from the fan unit back to the rangehood. If the

FlexiDuct needs to be extended attach the two FlexiDuct ends using a RigidDuct insert, secured by pipe clips or

duct tape.

Step 8:

Attach the male plug of the KLEENAIR unit to the female plug of the rangehood to enable power supply to the fan

motor unit. An extension lead (not supplied) of up to ve meters may be added if required.

Part 2: Motor Installation Guide

External Solution (Roof Mounted)

Positioning your KLEENAIR Unit:

It is recommended that when the KLEENAIR EXTERNAL UNIT is

ROOF mounted, it is positioned a minimum 2100mm above the

ground surface with a radial clearance of 600mm. Please ensure that

the KLEENAIR unit is positioned in an environment that is free of

other gases to enable an efcient expulsion of the cooking

bi-products and to ensure that back-draft of external gases doesn’t

take place.

Please ensure the motor is positioned away from other exhausts

such as re place chimneys, gas ues, etc. The unit can be mounted

so that it ducts directly through the roof.

Step 1:

Cut a 200mm diameter hole in the roof to enable the RigidDuct on

the base of the KLEENAIR unit to protrude down into the roof space.

Afx the dektite (optional accessory) to the roof surface. Please

ensure that the hole is cut in a practical position to enable the Flexi-

Duct to be secured.

Step 2:

Using standard 200mm pipe mounts (optional accessory), mount

the RigidDuct neck to beams, trusses or other appropriate struc-

tures in the roof space. Ensure the RigidDuct protrudes past the top

of the dektite by at least 75mm.

Step 3:

Remove the mounting bracket from your KLEENAIR unit by rotating

the cover in an anti clockwise direction.

Step 4:

Fix the mounting bracket to the RigidDuct using the screws

provided.

Step 5:

Feed power cable through the centre of the mounting bracket and

return the KLEENAIR unit on to the mounting bracket and x it by

rotating the cover in a clockwise direction. Lock the cover into posi-

tion by tighting the locking screw.

Step 6:

Attach the FlexiDuct to the RigidDuct using the pipe clips supplied.

min 75mm

Mounting Points

Mounting Bracket

Mounting

Bracket

Operation

Operating your control panel with the 4 Button Control:

Turning the extraction function ON or OFF:

In standby mode, press button 1 to turn on operating mode, then press button 1 or 2 to change the speed.

The hood has three speed options and a boost speed plus the off function.

To turn hood off, press button 2 repeatedly until hood returns to standby mode.

Auto off function: After 1 hour of operation without alteration, the fan motor will turn off (returned to standby)

Turning the light function ON or OFF:

Press button 3 to turn on or turn off the light independently in standby mode. Light will automatically shut off

when time elapses in timer mode.

Turning the timer function ON or OFF:

In operating mode, press button 4 to engage the timer function, then press button 1 or 2 to adjust the delay time.

The default time set is 10min and can be increased in increments of 10min up to 1 hour.

For the controller without the LCD, the LED positioned behind button 4 will periodically blink quickly to indicate the

delayed time remaining. i.e. For 30min remaining the LED will blink 3 times quickly. When the timer function is

engaged the (timer) LED positioned behind button 4 will blink slowly.

Adjusting the clock function (Control with LCD Only):

In standby mode, press button 4 for two seconds to enter time-adjust mode, press button 1 or 2 to adjust the

hour, press button 4 again, then press button 1 or 2 to adjust the minute. Time will be automatically saved as

default if not adjusted after 5 seconds.

BOOST

Product Care

It is recommended that your WHISPAIR rangehood and all of its items be cleaned regularly.

Before any cleaning or maintenance work, disconnect the cooker hood from the mains power supply.

Cleaning the stainless steel hood unit

It is expected that the stainless steel is cleaned with a quality non-abrasive stainless steel cleaner.

Use a soft cloth for application.

Cleaning the KLEENAIR Fan Motor Unit

The KLEENAIR unit should be checked regularly to ensure that nothing is obstructing the air ow from

the housing.

If there are obstructions, please remove the debris ensuring the product returns to the manufacturer’s

intended operating condition.

Cleaning the bafe lters

The bafe lters and grease trap can be removed by sliding them from their mounted position within the hood and

washed in the dishwasher or by hand.

Use hot water and liquid detergent.

After cleaning, leave the lters and trap to dry before placing back in the hood.

Changing the lamp

WARNING: Please be aware that whilst in use both LED and halogen lighting units will become very hot and will

remain hot for some time after switching off. Please allow the lamp area to cool before operating near the lamps.

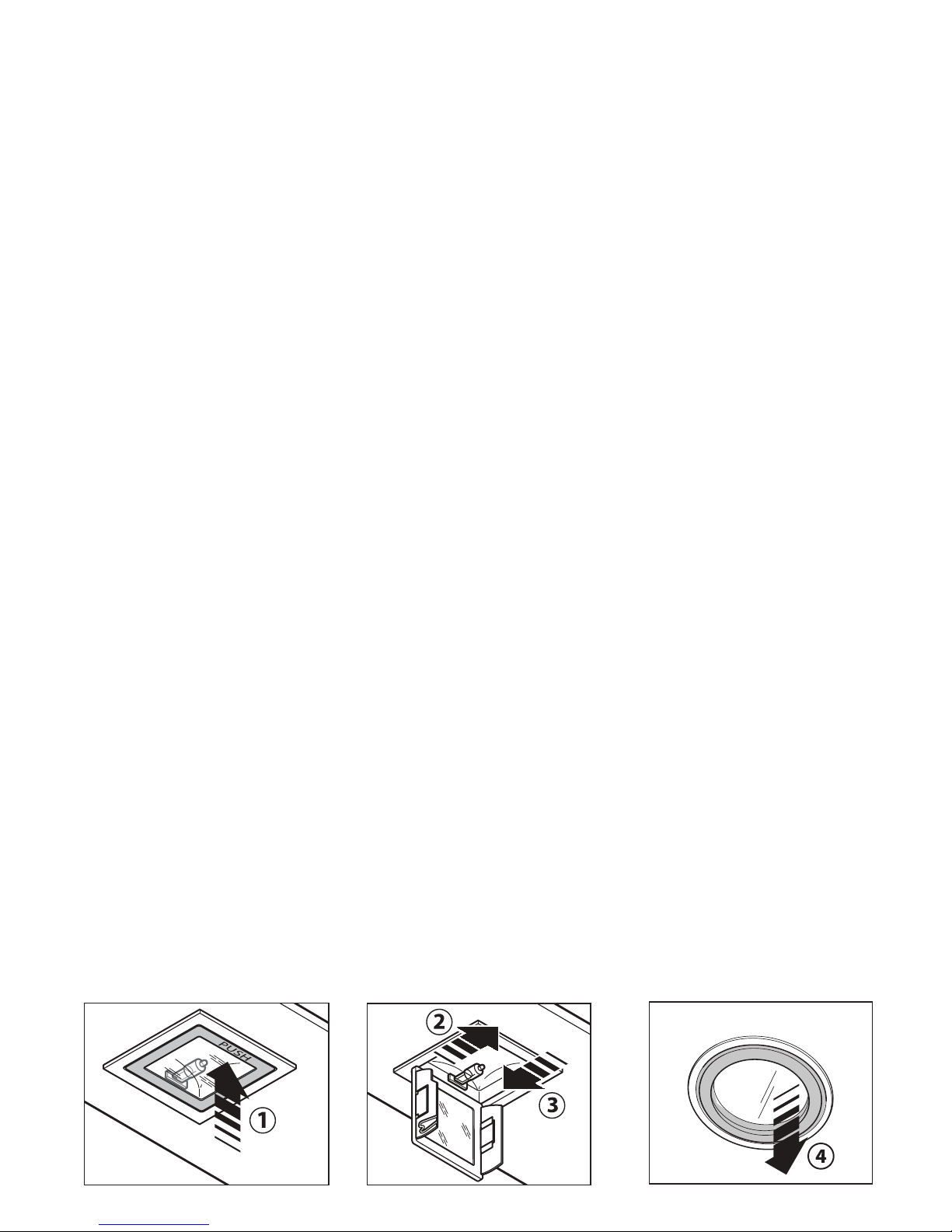

For Halogen: To access the halogen lamp, push the inner cover of the lamp up (1). The cover will click and can

be pulled down. Remove the old halogen globe out of the connection socket (2) and replace it with a new 20W

globe (3). Push the cover back up and ensure it is secured into place.

For LED: Disconnect from with inside the hood unit. Push the entire LED unit down from with inside the hood (4).

Replace with a new unit and reconnect power supply. Please replace only with a genuine unit.

Remove cover to access

halogen globe Remove halogen globe unit

Remove LED unit

Warranty

Every WHISPAIR rangehood comes with a 3-Year parts and labour warranty.

All WHISPAIR KLEENAIR units come with a 10-Year replacement product warranty. This is a change over warranty.

The consumer is responsible for any charges associated with removal of the faulty unit and installation of the new unit.

The customer may also be responsible for any freight charges incurred in this change over process.

The installation of WHISPAIR rangehoods must comply with the information in the guide. Failure to follow the

guideline may result in loss of warranty.

We recommend our customers use an authorised WHISPAIR installer.

Any imperfections in the nishes or in the natural materials used should not be considered as faults but a typical

characterisitc of these crafted products.

Should you ever need to make a warranty related enquiry about your WHISPAIR product, in Australia simply call

+61 (0)3 9700 9100 or in New Zealand call +64 (0)9 964 0400 to speak with our friendly customer service

consultants. We suggest you have the following information close at hand to make the process as easy as possible:

1. Model number of your rangehood

2. A copy of your WHISPAIR pro forma invoice

3. Address details of where the appliance has been installed

Any associated or ancillary costs to be incurred by you as a result of replacement or repair of your WHISPAIR

rangehood under this guarantee shall, in all cases, be previously approved by PR Kitchen & Washroom Systems Pty Ltd.

Please note: The benets provided under this warranty are additional to other rights and remedies available to

the customer under the Australian Customer Law.

Your Statutory Rights

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled

to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss

or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable

quality and the failure does not amount to a major failure.

Notes

_______________________________________________________________________________________________

Notes

_______________________________________________________________________________________________

PR Kitchen & Washrooms Systems Pty Ltd

83 Bangholme Road, Dandenong South

Victoria Australia 3175

Australian Sales & Service:

T+61 (0)3 9700 9100

Einfo@whispair.com.au

www.whispair.com.au

New Zealand Sales & Service:

T+64 (0)9 964 0400

Einfo@whispair.co.nz

www.whispair.co.nz

Terms & Conditions

Due to ongoing research and develoment, th

reserves the right to change specifications without

notice. If specifications are critical to end use,

please ask your local retail agent. This informa-

tion is provided without prejudice to the standard

terms and conditions of the sale of the manufac-

turer. This installation guide supersedes all previ-

ous installation guide. All due care has been

taken while compiling this installation guide at the

time of print, however no responsibility is taken

for error. Issued October 2013.

This manual suits for next models

Table of contents

Other Whispair Ventilation Hood manuals

Whispair

Whispair X3M06S5 User manual

Popular Ventilation Hood manuals by other brands

Electrolux

Electrolux EFP60566OX user manual

ROBLIN

ROBLIN VIZIO VERRE 1100 Dimensions

Kuppersberg

Kuppersberg RAMZ Technical Passport

Zephyr

Zephyr Verona Use, care and installation guide

Valore

Valore Cascade VCA-E30AS Use, care and installation guide

Falcon

Falcon FALHDS110SC instruction manual

Wolf

Wolf W422210 Planning information

DELTA PACIFIC

DELTA PACIFIC 168 Series Installation guide and user's manual

ETNA

ETNA T4404TRVS Concise Manual

ELICA

ELICA SUT950 Use, care and installation guide

Gorenje

Gorenje WHI641ST user manual

Weller

Weller Zero Smog 4V operating instructions

Gibson

Gibson 66538D instruction manual

AEG

AEG DGB1522S user manual

Teka

Teka DSJ 980 user manual

Electrolux

Electrolux EFG10563OX user manual

Electrolux

Electrolux EFC 9450 user manual

Brandt

Brandt AC 500 XF1 Guide to installation

Whispair W3M06S2 User manual

Popular Ventilation Hood manuals by other brands
