Whistler 1660 Series User manual

TM
OWNER’S MANUAL
1660 Series
LASER/RADAR DETECTOR

If you have questions concerning the
operation of this Whistler product
please call consumer relations:
1-800-531-0004
Hours:
Monday - Friday
8:00 am - 5:00 pm CST
Please keep the receipt in a safe
place. If the unit is returned without a
dated proof of purchase an out of
warranty service charge applies.
Note: Your warranty period begins at
the time of purchase. The warranty is
validated only by return of the
Warranty Validation card.
Now is the time to record the serial
number of the unit in the space pro-
vided in the warranty section of the
manual.

1
INTRODUCTION
Dear Whistler Owner,
For many of us, a vehicle is more than just transportation. It
can be a mobile office, communications or entertainment
center, or simply an expression of our personality. Whistler
products are designed to make the time you spend in your
vehicle more productive, more fulfilling, safer, or just simply
more fun. Our mission is to provide products that improve
your driving experience.
Your new Whistler 1660 Series laser/radar detector detects all
radar, laser and safety radar systems, plus offers Whistler’s
exclusive Real Voice™ technology . The comprehensive safe-
ty system detects all safety radar including the Safety
Warning System™ keeping you informed of road hazards
and adverse weather. Whistler’s 1660 Series also offers a dig-
ital display with safety messages to keep you informed while
you drive.
To fully acquaint yourself with the operation of the Whistler
1660 Series and to better understand the differences
between detecting radar, laser and safety radar signals, we
recommend reading this entire manual.
Enjoy the Whistler 1660 Series and please drive safely.
Sincerely,
THE WHISTLER GROUP

Topic Page
Model Features Summary....................................................3 - 5
Installation .............................................................................6 - 8
• Mounting Guidelines
• Dash/Visor/Windshield Mounting
• Power Connection And Fuse Replacement
Operation ............................................................................9 - 12
• Power On And Self-Test
• Feature Engaged Confirmation
• Integrated Real Voice™
• Auto Quiet/Quiet Modes
• City Mode/Highway Mode
• Dim/Dark Mode
• Engaging/Disengaging VG-2 Detection
• Vehicle Battery Saver Mode
Radar, Laser And VG-2 Alerts ..........................................13 - 15
• Speed Radar Audio/Visual Alerts
• Pulse Protection®
• Safety Radar Audio/Visual Alerts
• Laser Audio/Visual Alerts
• VG-2 Audio/Visual Alerts
• Alert Priority
Care and Maintenance.............................................................16
Troubleshooting Guide............................................................17
Are Detectors Legal?...............................................................18
Speed Monitoring Technologies.....................................19 - 20
• Radar Facts
• Laser Facts
• Other Speed Detection Systems
• Radar Detector Detectors
Warranty Information........................................................21 - 23
Specifications............................................................................24
Accessories ...............................................................................25
TABLE OF CONTENTS
2

WHISTLER FEATURES
Whistler’s ergonomic and user-friendly design provides a
new level of operating convenience. Special features
include:
1. Bracket Release Button – Provides quick and easy
release of the mounting bracket.
2. Power Jack – Provides connection for the power cord.
3. Speaker – Provides distinct audio and Real Voice™
warnings for X, K, Ka band radar, safety radar, laser and the
VG-2.
4. Power/Volume Control – Turns unit on/off and adjusts
audio level.
5. High Visibility Display – Provides distinct visual confir-
mation of signals detected, signal strength, and indicates
engaged modes of operation.
3
Whistler 1660 Series
1
2
84
6
5
37

WHISTLER FEATURES
6. QUIET/Auto Quiet Button – Pressing QUIET before a
signal is detected engages Auto Quiet Mode. Pressing
QUIET during a radar/laser encounter silences audio
alerts, while allowing visual alerts to keep you informed.
7. CITY Button – Reduces the annoyance of false alerts
typically encountered in urban driving areas.
8. DARK/VG-2 Button – Reduces illumination of display
to “dim” or “dark” settings. Press and hold (for two sec-
onds) to engage or disengage VG-2.
9. Laser Antenna (Rear) – An integrated optical wave-
guide provides superior detection of laser signals trans-
mitted from behind.
10. Laser Antenna (Front) – High gain optical lens array
provides increased sensitivity and field of view for leading-
edge laser detection.
11. Radar Antenna – Compact, high-efficiency antenna
receives radar signals.
12. Mounting Bracket Location – Slot holds mounting
bracket firmly. 4
11
12
10

WHISTLER FEATURES
Accessories
Accessories included are highly functional and easy to use.
Power Cord - Connects to the unit’s power jack and your
vehicle’s lighter socket.
Windshield Bracket - Allows installation of unit on your
vehicle’s windshield.
Hook & Loop Fasteners - Designed to secure the unit on
a level dashboard.
Certain 1660 Series radar detectors include additional
accessories.
5

INSTALLATION
Mounting Guidelines
•Mount the unit as low as possible near the center of the
windshield.
•Do not mount your unit behind wipers, ornaments, mir-
rored sunscreens, etc. These obstructions have metal sur-
faces which can affect radar and laser signals and reduce crit-
icalwarningtime.(Regulartintedglassdoesnot affectrecep-
tion.)
•Some newer windshields have an Instaclear™or
Electriclear™ type coating, which affect radar signals.
Consult your dealer or the owner’s manual supplied with
your vehicle to determine if your windshield has this coating.
•Avoid placing unit in direct contact with windshield.
•To reduce the possibility of theft, conceal your unit when
not in use.
Windshield Mounting
•Install the two suction cups and rubber bumper onto the
bracket by fitting them into their holes.
•Press the suction cups onto the windshield at the location
you have chosen. IMPORTANT: Some newer cars have a
plastic safety coating on the inside of the windshield. The
windshield bracket may leave permanent marks on this
type of surface. To find out if your vehicle has this type of
windshield, check the owner’s manual or ask your dealer.
We recommend that you do not leave the suction cup
bracket on the window in direct sunlight. If the detector
is removed, this may cause blistering of the dash in some
vehicles.
•Slide the detector onto the bracket until it locks into place.
• If necessary, the unit may be leveled by bending the wind-
6

INSTALLATION
shield bracket. Press the bracket release button and remove
the detector before bending.
Dash Mounting
•Make sure the mounting location you have chosen is
relatively level and is clean and dry. Clean with isopropyl
alcohol if necessary to remove any waxes or polishes.
•Separate the fastener strips. Peel the paper backing off
each strip and adhere one piece to the dash and the other
piece to the bottom of the unit, taking care not to cover
the serial number.
Be careful not to place the fastener strip over the unit’s serial number. If the
fastener strip is removed, the serial number may be pulled off the unit. Units
without serial numbers are not covered under warranty.
7

INSTALLATION
Visor Mounting (optional accessory)
• Slide the visor bracket into the bracket mounting slot.
• Clip the visor bracket onto the visor making sure it is
relatively level and has a clear view of the road.
Power Connection
• Plug the small end of the power cord into the unit’s power
jack.
• Plug the large end into the vehicle’s cigarette lighter.
Fuse Replacement
The lighter socket plug is equipped with a replaceable 2
amp 3AG fuse located behind the silver tip. To replace the
fuse, carefully unscrew the tip of the plug. (IMPORTANT:
Unscrew slowly. The tip contains a spring which may fly out
when disassembling.) Insert the new fuse with the spring and
screw on the tip. With use, screw cap on plug may loosen.
Retighten occasionally.
Unscrew the tip of the lighter socket plug carefully when replacing the 2 amp
fuse. 8
Insert into bracket mounting slot. Do not bend this
section of bracket.
Slide on view

OPERATION
Power On And Self-Test
Each time your Whistler detector is turned on, an auto-
matic self-test sequence confirms that the speaker and
visual displays are functional.
• Turn Power/Volume control clockwise. Display reads:
Feature Engaged Confirmation
Each time a button is pressed one beep confirms feature
“on”, two beeps confirm feature “off”.
Integrated Real Voice™
Real Voice™is used along with audio tones to articulate
band identification and Safety Warning System™ mes-
sages. Note: In certain cases the voice message does not
replicate the text message. 9
WHISTLER
Ka 9
SAFETY
HIGHWAY
X 9
LASER
K 9

OPERATION
Auto Quiet Mode
Auto Quiet shortens the tone for the selected audio
approximately 3 seconds after a radar or safety radar sig-
nal is detected. The shorter tone will resume for any new
signal within 20 seconds. Auto Quiet does not affect VG-2
or laser alerts.
• Press Quiet (before a signal is detected) to engage Auto
Quiet. Display reads:
• Once the Auto Quiet mode is engaged, you may cancel
the audio alarm by pressing Quiet.
• Press Quiet (when the unit is not alarming) to cancel
Auto Quiet mode.
Quiet Mode
Quiet cancels audio during an alert and any new alert with-
in 20 seconds. After 20 seconds, 2 beeps are provided on
any new alert and the unit then remains quiet.
• Press Quiet to cancel the audio.
• Press Quiet a second time while unit is alarming to
restore the standard audio alert pattern; or turn the unit
off, then on.
10
AUTO
QUIET

DARK
DIM
OPERATION
11
CITY
HIGHWAY
City Mode
Whistler’s City Mode is designed to reduce the annoyance of
automatic door openers, intrusion alarms and other devices
which share frequencies with police radar.
• Press City to engage City. Display reads:
• Pressing City a second time cancels City. Display reads:
In City Mode, weak speed/safety radar signals give an initial
alarm of two beeps, and then remains quiet unless the signal
becomes very strong. When the signal strength increases,
two additional beeps are provided.
Highway Mode
Highwaymode providesfull audiowarnings any timeradar (X,
K, Ka, Safety) signals are detected, and is recommended for
open road driving. Highway mode is automatically engaged
after the unit is turned on and completes the self-test.
Dim/Dark Mode
Dim/Dark Mode reduces the illumination of the display.
• Press Dark once to reduce illumination to a Dim setting.
Display reads:
• Pressing Dark a second time engages Dark Mode.
Display reads:
Dim or dark can be engaged during an alert. In Dark Mode,
the display goes dark for as long as a signal is being detect-
ed and for 20 seconds after, then the display returns to the
dimmer setting.
• Pressing Dark a third time restores full illumination to the
display.

OPERATION
Engaging VG-2
To engage or disengage VG-2 Detection:
• Press and hold Dark for two seconds. Display reads:
• Press and hold Dark a second time disengages VG2.
Display reads:
VG-2 must be engaged each time your detector is turned
on.
Vehicle Battery Saver Mode
The Vehicle Battery Saver Mode automatically shuts off your
detector within 3 hours if you forget to turn it off. The timer
is reset if the detector is turned off, unplugged or any button
is pressed before the 3 hours have expired. The detector will
alert you with an audible and visual warning before it shuts
off. Display reads:
During this warning you can momentarily reset the unit by
pressing any button. This will reset the timer.
If the unit has automatically turned itself off, press any but-
ton to turn the unit back on. You can manually engage the
Vehicle Battery Saver Mode by pressing and holding the City
button until one beep is heard. The auto shutoff function will
initiate after several seconds.
12
VG2 ON
VG2 OFF
PWR OFF

RADAR/LASER ALERTS
Speed Radar Audio/Visual Alerts

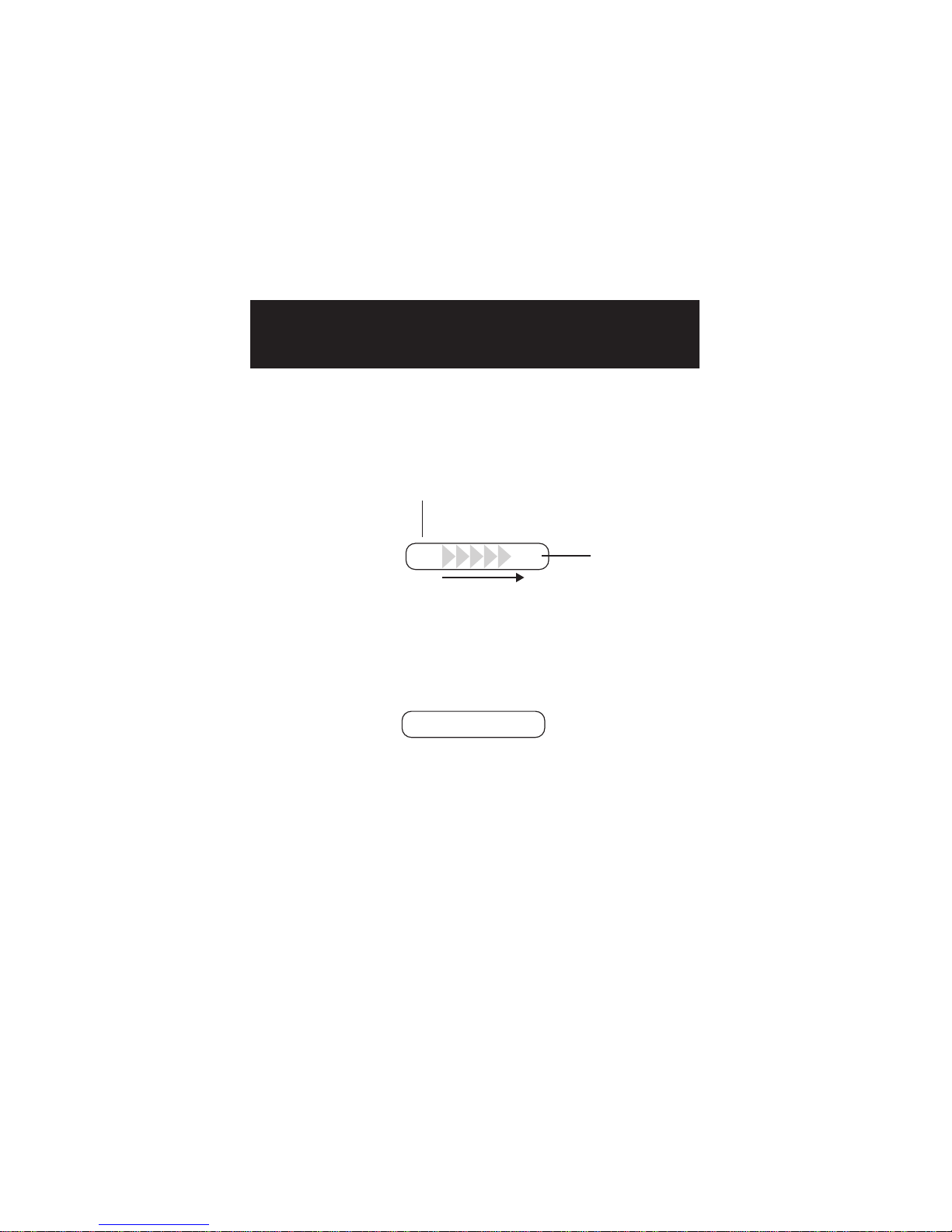

When X, K or Ka is detected the band ID and signal
strength is displayed. The audio alert is continuous and
has a geiger counter-like pattern. The faster the beep the
closer or stronger the radar source. Example:
1 = weak signal, 9 = strong signal
Pulse Protection®
When a pulse type signal (instant on strong signal) is
detected an urgent 3 second audio warning is sounded
and the display reads:
After 3 seconds standard alert pattern continues.
13
PULSE
K 9
Ka Band
Detected Display
Digits
ramp
1-9

SAFETY RADAR ALERTS
In communities where transmitters are located, the Safety
Warning System displays over 60 text messages. When
Safety Radar is detected the audio alert is geiger counter-
like.
Safety Warning System Text
Example: Poor Road Surface:
Note: Safety Warning System consists of 60 text messages. Not all
areas have Safety Warning System transmitters.
14
CAUTION
SURFACE
POOR
ROAD

LASER ALERTS / VG-2 ALERTS
Laser Audio/Visual Alerts
When a laser signal is detected the word “Laser” and sig-
nal strength is displayed, the audio alert is continuous for
a minimum of 3 seconds. Example:
The more “ “ the closer the laser source.
VG-2 Audio/Visual Alerts
When a VG-2 signal is detected, the detector “hides” its own
radiated signal and becomes undetectable by the VG-2.
Text message confirms detection of VG-2.
Every 30 seconds, the detector checks for a VG-2 signal. If
a VG-2 signal is still present, the unit continues to hide and
repeats the VG-2 alert. If no signal is detected, two beeps
are provided, indicating an “all clear” condition. During
VG-2 Alert X, K, and Ka band signals cannot be received.
Note: VG-2 must be turned on to receive VG-2 alerts.
Alert Priority
When two or more signals are received at the same time,
the alert priority is:
1. Laser
2. VG-2
3. Speed Radar
4. Safety Radar
Example:
If X band is alerting, then suddenly VG-2 is detected, the
VG-2 warning will override the X band alert.
15
LASER
VG2 VG2

CARE & MAINTENANCE
Care And Maintenance
During the summer months, avoid prolonged exposure to
direct sunlight by removing your unit from the dash when
your vehicle is parked for an extended period of time.
Do not spray water, cleaners or polishes directly onto the
unit. The spray may penetrate through the openings and
damage the unit. Also, do not use any abrasive cleaners on
the unit’s exterior.
16

Your Whistler detector is expertly engineered and designed
to exacting quality standards to provide you with reliable,
trouble-free operation. If your unit has beencorrectlyinstalled
following the guidelines in this manual, but is not operating
optimally, please refer to the troubleshooting guide below.
PROBLEM: No display or audio.
• Check fuse in Whistler plug; replace if necessary with a
2 amp 3AG type.
• Check fuse for lighter socket; replace if necessary.
• Make sure lighter socket is clean.
PROBLEM: Unit alarms when vehicle hits bumps.
• Check for loose lighter socket; tighten and clean.
• Check connections at both ends of power cord. Substitute
another cord to determine if cord is defective. Return
defective cord to the factory.
PROBLEM: Unit alarms when using vehicle equipment,
electrical accessories (brakes, power mirrors/windows,
directionals, horn, etc.), or when accelerating.
• Vehicle’s electrical system, including battery and alternator,
may have electrical noise. Install a filter capacitor (470mfd.
25 volt or larger capacitance value) on the back of the
lighter socket.
PROBLEM: Audio alerts are not loud enough.
• Cancel Auto Quiet Mode or City Mode.
PROBLEM: Unit gives laser alert when accelerating.
• Possible bad or low quality distributor cap. Replace with
factory quality cap.
If difficulties occur which cannot be solved by information in
this Troubleshooting Guide, please call Whistler Consumer
Relations at 1-800-531-0004 before returning your unit for
service.
TROUBLESHOOTING GUIDE
17

ARE DETECTORS LEGAL?
In Most States YES!
Laser detectors are completely legal in every state when
used in automobiles or light trucks (under 10,000 lbs.).
Similarly, when used in automobiles or light trucks, radar
detectors are legal in almost every state. Exceptions are
Virginia and Washington, D.C., which have local regula-
tions restricting the use of radar receivers in any vehicle.
Concerning trucks over 10,000 lbs., the Federal Highway
Administration (FHwA) issued a regulation, effective
January, 1994 which prohibits radar and laser detector use
in these types of vehicles nationally.
Prior to the FHwA regulation, laws existed in the state of
New York restricting the use of radar detectors in trucks
over 18,000 lbs. and in Illinois in trucks over 26,000 lbs.
18
