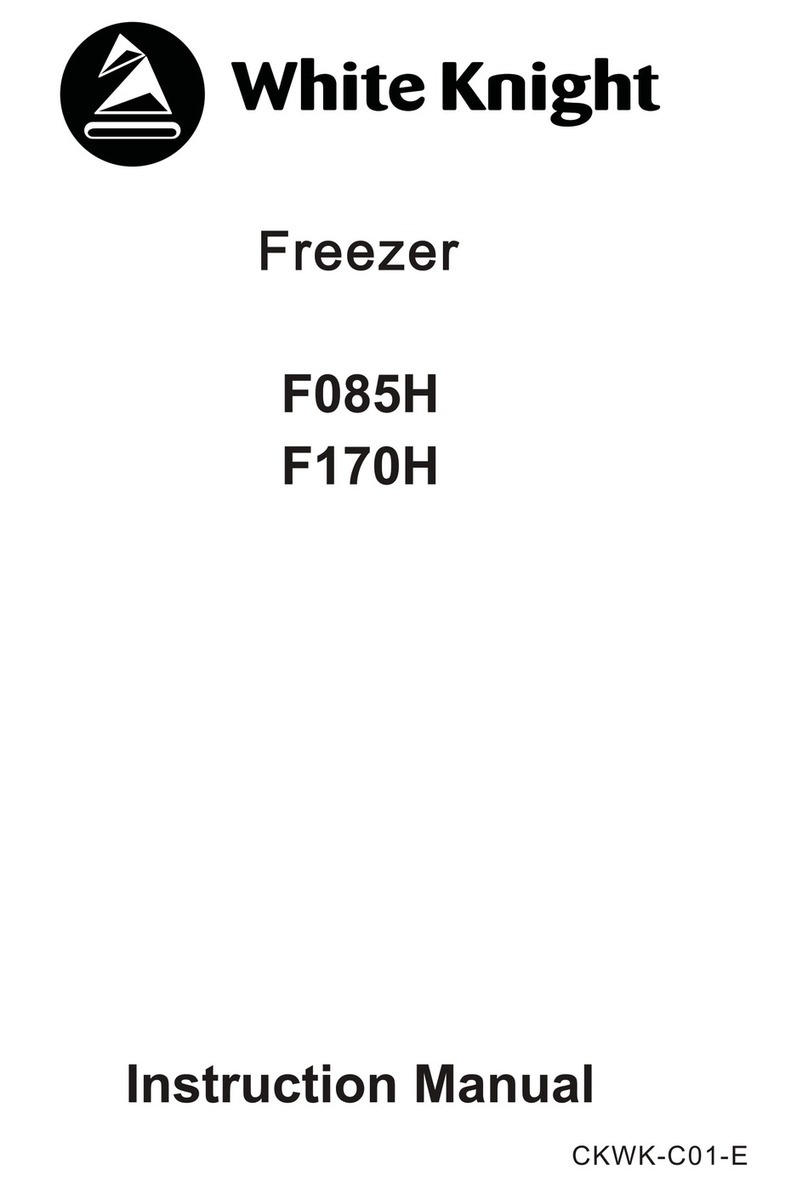

White Knight F085H User manual

Freezer
Service Manual for F085H
Exploded View
Electrical Diagram
Trouble Shooting Guide
Parts List
August 2017

Exploded View F085H
36 13456
8
9
10
11
12
13
16
15
17
18
19
20
21
22
27
30

The electrical diagram

No Problem Possible Cause What To Do
Not plugged in. Plug in
Is the circuit breaker tripped or blown fuse? Put on the home circuit breaker or change
the new fuse.
Is the refrigerator temperature control setted at
“off”? Set the temperature control knob at "4".
Is the refrigerator control dialed set to correct
location? Set it to a colder temperature.
Is the refrigerator placed in direct sunlight or
closel
y
a heat source? Move the refrigerator to proper location.
Is the door closed completely? Close the door completely.
Is the door opened too frequently or too long? Open the door less often,
Does the door gasket seal properly? Make the gasket sealing properly.
Is the refrigerator overloaded? Load less food into it.
Is the refrigerator control dialed set to correct
location? Set it to a warmer temperature.
Is the ambient temperature too low?
Hot-pipe is installed in two sides of
refri
g
erator.That makes refri
g
erator's tem
p
erture Normal state.
Condensation can occur when you leave the
door o
p
en for a lon
g
time. Normal state.
5 Vibrations The refrigerator is not level and firm. Place the refrigerator in a level location.
Water bubbling comes from the refrigerant
circulatin
g
of the refri
g
erator. Normal state.
Contraction and expansion of the insulation
inside the walls ma
y
cause
p
o
pp
in
g
and Normal state.
Is the refrigerator unstable or touching the wall? Keep the refrigerator leaving the wall.
Is the refrigerator not level? Adjust the refrigerator leveling.
Were the doors not properly installed? Assure the doors installed propertly.
Is the door gasket dirty and distortion? Cleaning and flatting the door gasket.
Has the home circuit breaker or fuse tripped? Put on the home circuit breaker or change
the new fuse.
Is the refrigerator's door close completely? Assure the door close completely.
Is the ambient temperature too high?
Is the temperature controller in freezer chamber
or in refri
g
erator chamber is set at “stron
g
” Sets it at a right position.
Too much food is loaded into the refrigerator
and insufficient s
p
aces for airflow. Load less food into the refrigerator.
The door were not closed completely or the
g
asket not sealin
g
enou
g
h.
Close the doors completely or make the
g
asket sealin
g
enou
g
h.
Open the door too frequently. Decrease the open-door times.
Operating for all long
time.
9
3The food in the
refrigerator is frozen
4
Two sides of the
cabinet are hot:
condensation occurs.
The door can not close
properly.
8The lamp does not
work.
6The refrigerator is
noisy.
7
Trouble shooting guide
1The refrigerator does
not get cold at all.
2The refrigerator does
not get cold enough.

Item No Description Crosslee Code
1 Top Cover N/A
3 Thermostat 4213 092 60331
4 Thermostat knob 4213 092 60341
5 Upper Door Hinge Assembly 4213 092 67011
6 Top cover support plate N/A
8 Door 4213 092 67321
9 Lower Door Left Aid-Closer 4213 092 67311
10 Lower Door Right Aid-Closer 4213 092 67311
11 Door Gasket 4213 092 67231
12 Lower Drawer 4213 092 60381
13 Middle Drawer 4213 092 60801
15 Shelf Trim, middle 4213 092 71631
16 Shelf Trim, top 4213 092 71641
17 Lower Door Hinge Assembly 4213 092 67161
18 Foot A 4213 092 67251
19 Drier Filter 4213 092 67281
20 Compressor base support N/A
21 Power Supply Cord with Plug 4213 092 67091
22 Foot B 4213 092 67131
27 Compressor 4213 092 67081
30 Evaporator N/A
36 Ice Cube Tray 4213 092 60971
www.whiteknightspares.co.uk www.whiteknightrange.co.uk
F085H Parts List
At present spare parts are only available which have been allocated a
Crosslee code number. If additional items are required which don't have a
Crosslee code number, please contact Crosslee Spares Dept to check
availability.
