White Knight PSD08 User manual

•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
https://wkfluidhandling.com
PSD08 Owner’s Manual
Manuals available online at: wkfluidhandling.com/owners-manuals
Manual Part #18200-LM-0035

•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
Table of Contents
1 Introduction...........................................................................................................................................................1
2 Specifications & Performance..............................................................................................................................2
2.1 Pump Specifications..................................................................................................................................... 2
2.2 PSD08 Performance Curves........................................................................................................................ 3
2.3 PSD08 Dimensional Drawing....................................................................................................................... 4
2.4 PSD08 Exploded View Drawing................................................................................................................... 5
3 Installation ............................................................................................................................................................7
3.1 Installation Precautions................................................................................................................................ 7
3.2 PSD Installation Advantages........................................................................................................................ 8
3.3 System and Pump Environment................................................................................................................... 8
3.4 Control and Monitoring Connections............................................................................................................ 9
3.5 PSD 08 Installation Instructions ................................................................................................................. 10
4 Pump Service & Rebuilds...................................................................................................................................11
4.1 PSD Ordering instructions.......................................................................................................................... 11
4.2 PSD08 Rebuild Kit Ordering Instructions................................................................................................... 12
4.3 Alternative Wet Kit Ordering Instructions................................................................................................... 15
4.4 Tools........................................................................................................................................................... 16
4.5 Torque Instructions..................................................................................................................................... 16
4.6 Disassembly instructions............................................................................................................................ 17
4.7 Assembly Instructions ................................................................................................................................ 18
5 Accessories........................................................................................................................................................19
6 Warranty.............................................................................................................................................................20
7 Certificate & Declaration of Conformity..............................................................................................................21
Manual content and data are subject to change without notification.
Manuals available online at: wkfluidhandling.com/owners-manuals

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 1
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
1 Introduction
Thank You for Purchasing White Knight Products
You have purchased a White Knight product that has been designed to our exacting
specifications and built by a team of technicians with the highest commitment to quality!
White Knight is the world leader in zero-metal, ultra-high purity pumps and continues to drive
the industry with new technology and products. Since the inception of White Knight in 1995,
we have been awarded over 14 US design patents and have multiple other patents
pending! White Knight currently produces over 30 sizes/models of pumps in varying materials
to meet our customers’ stringent requirements in numerous applications, including ultra-high
temperature re-circulation; high pressure chemical delivery systems, slurry, industrial chemical,
and industrial applications.
White Knight has received many prestigious awards for its designs and continues to lead the
industry in quality because White Knight controls the manufacturing process from raw
materials to finished goods in our facility located in Kamas, UT. This allows us to rigorously
manage our quality control process to ensure that our strict cleanliness procedures are always
followed and that components are built under consistent methods and conditions for maximum
reliability.
Our strict manufacturing process controls include assembling and testing White Knight
products in a clean environment. White Knight products also pass a battery of functional tests
to ensure operational integrity.
Before installing your White Knight product, please carefully review the product manual. There
are many helpful hints and ways to optimize the setup and use of your White Knight product as
well as instructions and requirements for installation. In addition, you will also find many
accessories in the manual that will enhance the functionality of your White Knight product.
Our team has gone to great lengths to provide you with the highest quality products at the best
value and we back them up with excellent warranties and world class support! We hope you
agree our products will serve your exacting needs and meet your stringent requirements every
time you purchase a White Knight Product.
Sincerely,
Brian Callahan
President
White Knight Fluid Handling

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 2 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
2 Specifications & Performance
2.1 Pump Specifications
PSD08 Pump Performance Specification1
Flow
Rate
Theoretical
Displacement
Per Cycle
Suction
Lift Wet
Suction
Lift Dry
Sound
Pressure3
dB(a)
Sound
Power3
dB(a)
Max.
Size of
Passible
Solids4
Max
Operating
Temperature
Air
Supply
Pressure
Limits5
63 lpm
(16.6 gpm)
0.160 L
(0.42 gal)
9.5 L
(31.2 ft2)
3.3 m
(10.8 ft)
66.67
82.04
54.45
74.75
4 mm
0.16 in
100°C TE
70°C UH
30 psi
(100 psi)
All tests performed with water at ambient temperatures and PTFE check balls
1. Pump Specifications are subject to change based on configuration ordered
2. Suction lift diminishes with wear of pump, minimize suction lift to maximize performance
3. dB Level at 100 psi 50CPM (top) and 100 psi maximum CPM (bottom).
4. The passing of solids may shorten the life of a pump
5. Minimum startup pressure (Max supply pressure)
STORAGE
PSD pumps that are not put into operation upon delivery must be stored in an environment where they are
protected from moisture, extreme temperatures, UV radiation, vibration, and should be kept clean. White Knight
recommends an environment of ambient temperature (between 60°F (15°C) and 80°F (25°C)) with a humidity
level below 65%.
Maintenance and Torque Values
Upon installation of the pump, as well as after a few hours of operating the pump, the head and manifold bolts
must be re-torqued. Tie bolts and manifold bolts must be re-torqued to values specified in the table below.
Re-torquing will be required after the pump has set for extended periods of time, run in thermal cycling
applications, been dismantled, or when there is a large difference between environmental temperatures and fluid
temperatures. See torquing instructions on page 17.
Assembly Torque in-lbs. (kg-cm)
Re-torque Spec in-lbs. (kg-cm)
Tie Bolts
60 (69.1)
55 (63.4)
Manifold Bolts
40 (46.1)
35 (40.3)

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 3
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476

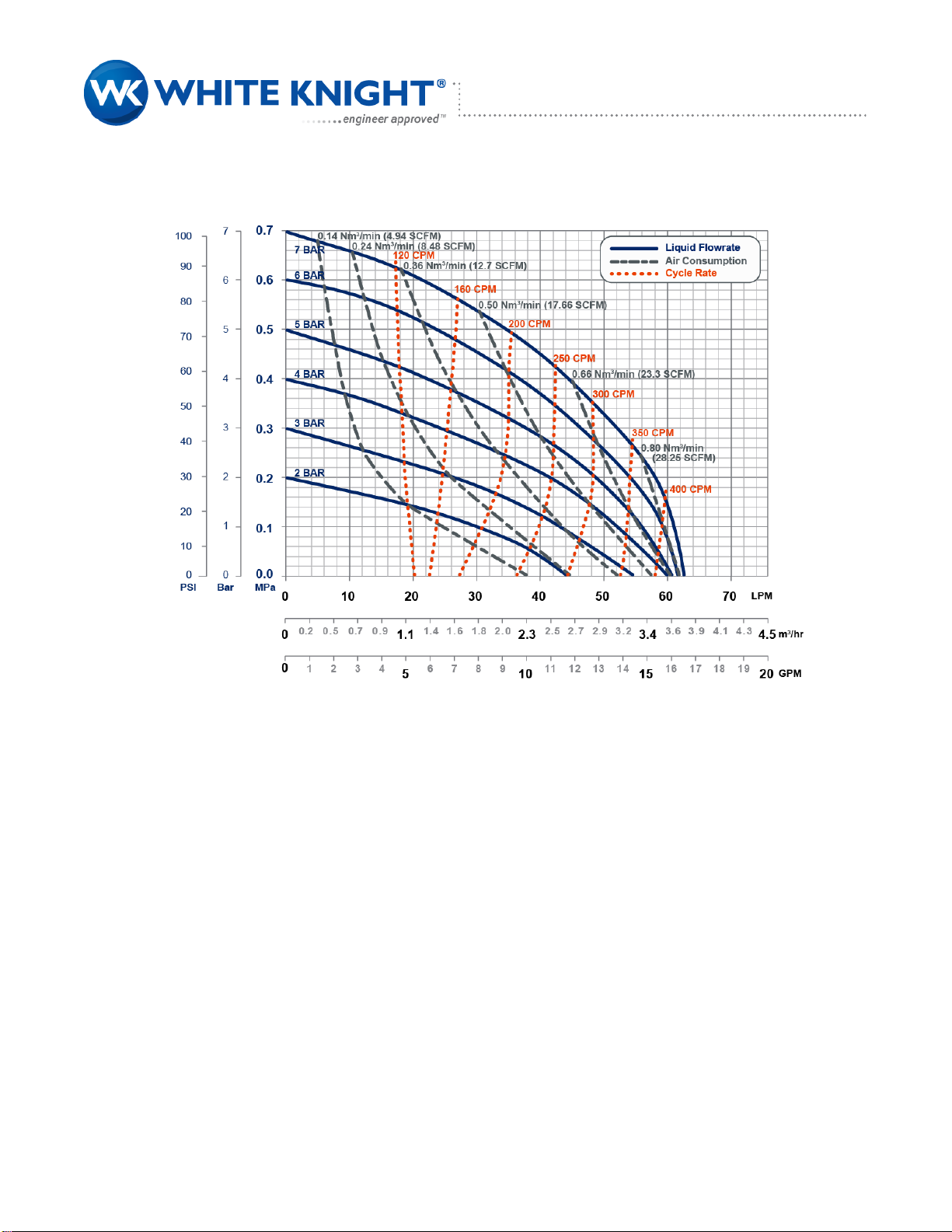

2.2 PSD08 Performance Curves
Liquid Line Pressure (PSI)
PSD08 Performance Curves
Liquid Flow-rate

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 4 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476

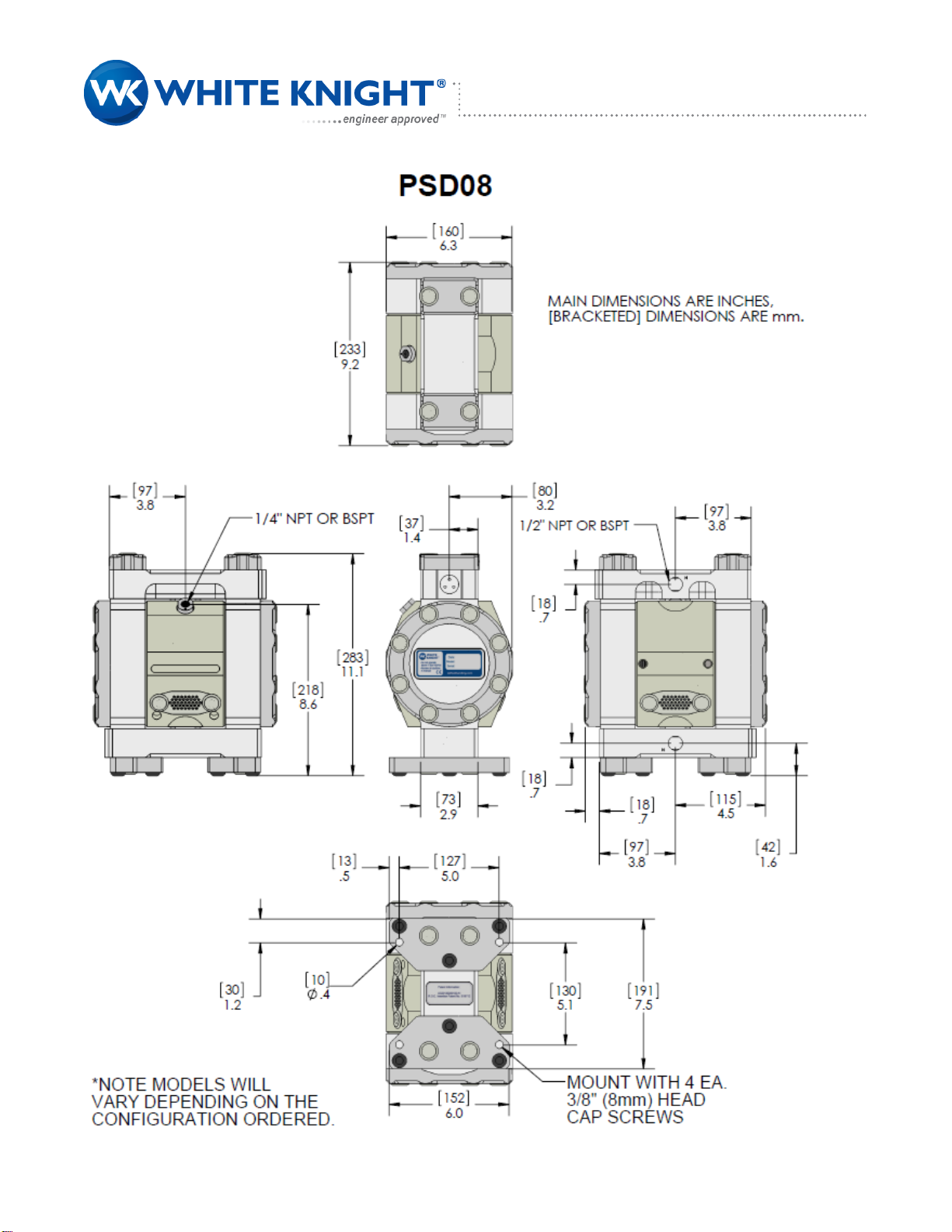

2.3 PSD08 Dimensional Drawing

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 5
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
2.4 PSD08 Exploded View Drawing

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 6 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 7
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
3 Installation
3.1 Installation Precautions
Restriction of Liquid Inlet Line
Restricting the liquid supply of the pump forces the pump to work harder than normal and should be
avoided whenever possible, especially when pumping viscous liquids. Attempting to operate the pump
against a closed liquid inlet will cause serious damage to the pump, and will void the warranty. If you
wish to slow or stop your pump this may be done by closing off the liquid outlet.
Supply Pressure Recommendations
The life of your pump may be extended significantly by operating your pump 30%-40% below redline
operating supply pressures. The use of undersized regulators, valves, and supply lines can decrease
pump performance and longevity significantly.
Orientation
White Knight does not recommend installing your pump in any position other than its upright position.
Check valves within White Knight PSD pumps are actuated by gravity and/or flow and perform optimally
in the upright position.
Failure Potential
It is possible that the diaphragm may fail. In such a situation it is possible that chemical could enter the
air side of the pump, and may even escape through the muffler. In such a situation the muffler media
must be replaced and the air side purged. White Knight recommends the implementation of a one way
valve on the air side to protect air lines from contamination in the event of a diaphragm failure.
Muffler
Pump performance may be restricted in the event of a clogged muffler. Regular inspection of air lines
and muffler media is recommended to maintain performance.
Product Testing
Each pump is tested before being packaged for shipment. White Knight recommends the flushing of
each pump before servicing if water can contaminate the process.
Required Air Flow and Operating Pressure
Required Air Flow for the PSD08 is 1/4” minimum orifice unrestricted. An adaptor is included for ¼”NPT
or ¼” BSPT with all pumps, NPT or BSPT is decided on based on the liquid fittings requested. Max air
supply for the PSD08 is 7 Bar (100 PSI).

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 8 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476

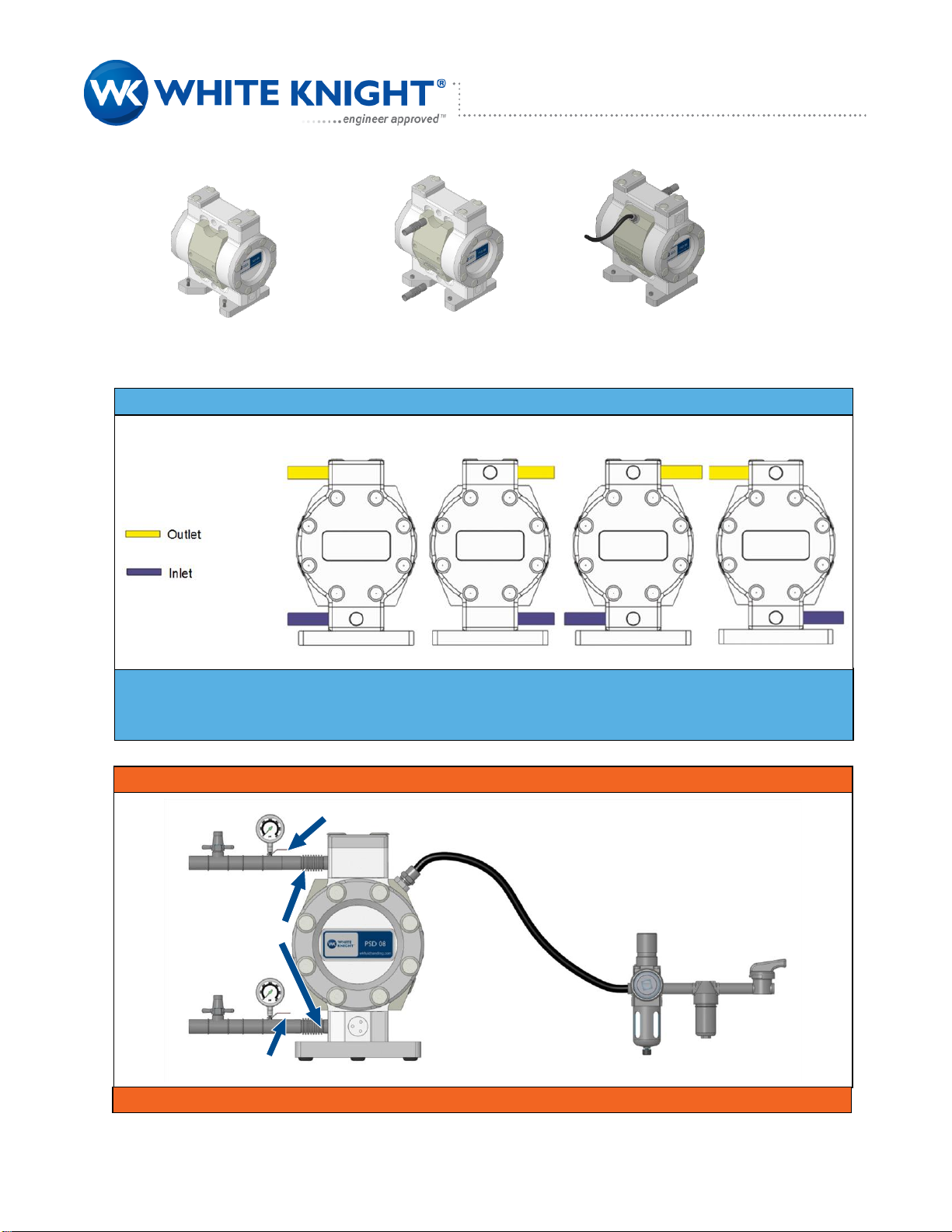

3.2 PSD Installation Advantages
3.3 System and Pump Environment
Clean Dry Supply Air (CDA)
Operation of the point of 5 PSD08 requires class 4 quality air for particles, moisture, and oils.
(maximum particle size 15 microns, 3° C Dew 5 mg/mᵌ) per ISO8573 –1.
Flammable Solvents
Any system used to pump flammable solvents should be properly grounded. A test from River’s Edge
on using isolative pumps to pump flammable liquids indicated that the liquid itself must be grounded
and that other procedures should be followed. A copy of the test is available upon request from
White Knight.
Pumping Liquids Near Boiling Point
The boiling point of a liquid is reduced under vacuum (suction) conditions. Due to the vacuum caused
by a pump, liquid could boil in the inlet line of the pump when it is not boiling in the tank (or other supply
reservoir). Placing the pump as close as possible to the tank and with as little vertical lift as possible
(the pump being flooded by gravity is ideal) minimizes boiling in the inlet line. Boiling of the liquid in the
inlet line causes a pump to “race” and accelerates the wear of the pump. Boiling liquids may cause
cavitation to occur. Damage to wearable or non-wearable components of the pump caused by cavitation
is not covered under warranty.
Abrasive Slurries
For slurry applications White Knight recommends use of the PSD UH pump.
Passing Solids
All damage caused by passing solids (wafer shards, etc.) is coverable under warranty when your pump
is used in conjunction with a White Knight Catcher™ pre-pump filter.
Running Dry
White Knight PSD pumps are capable of running dry without damage other than normal wear to the
pump. When a pump is run dry it cycles faster than normal, accelerating the rate of normal wear.
Head Pressure / Dead-Head
White Knight PSD pumps may be controlled by opening and closing the outlet of the pump and may be
installed in any head pressure situation up to dead-head. Dead-head occurs when air supply pressure
and the liquid line (head) pressure are equal. Dead-head conditions allow for no flow. Under dead-head
conditions the PSD will cease to cycle (limiting wear) until conditions change allowing for flow.
Running a Submerged Pump
When running the PSD in submerged mode, the exhaust air must be sealed and redirected above the
surface of the media. Take care that all pump parts (air side and wet side) are resistant to the media
being used. It may be necessary to mount the pump to the bottom of the tank. Operating this pump
while submerged requires use of a remote muffler adaptor kit.
Temperature
The PSD may be operated safely in low temperature applications. Take care to avoid freezing or
crystallization of the fluid inside or outside of the pump. Running the pump at temperatures below
freezing may accelerate the wear of the elastomer components within the pump. In applications where
the media or pump temperature varies, torque values (tension) of the manifold and head bolts must be
monitored. TE versions of the PSD Series pumps can be operated at temperatures up to 100°C
(212° F). UH versions of the PSD Series pumps can be operated at temperatures up to 70°C (158°F).

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 9
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
3.4 Control and Monitoring Connections
•PUMP MONITORING: Pump monitoring can be performed by solid state pressure switch monitoring.
This option is described on our website in the accessories section and is available for new orders and
for retrofits in the field.
•Pump Control: Run mode and flow rate are two of the items which the CPT-1 can control/monitor.
Pressure Switch Stroke Detection
Conductivity Leak Detection

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 10 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
3.5 PSD 08 Installation Instructions
Some configurations require re-orientation of crossover manifolds. See Disassembly and Assembly
Instructions.
Recommended Set Up
Inlet/Outlet Configurations
Supply Air
Pressure Gauge
Discharge Line
Shut off valve
Air Dryer
Filter Regulator
Shut off valve
Suction Line
Vacuum Gauge
Shut off valve
Air supply port
in pump body is
¼” NPT.
For ¼” BSPT
use supplied
adaptor.
1.
2.
3.
Shut off valve
Flexible Connection
Shut off valve
Caution: Closing suction line while pump is operating will cause irreversible damage to the pump.
•Fix base plate to work station
with four 3/8” or 10 mm bolts.
(Bolts not included.)
•Attach ½” liquid fittings to
pump. Excessive force
may damage threads.
•Ensure airline is free of solids before
attaching. Supply air via ¼” NPT air
fitting with flexible connection.

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 11
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
4 Pump Service & Rebuilds
4.1 PSD Ordering instructions

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 12 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
4.2 PSD08 Rebuild Kit Ordering Instructions
PSD08 Rebuild Kits
Part Name
Part Number
PSD08 Dry Rebuild Kit
RBPSD08-1
PSD08 Alt Dry Rebuild Kit (With Air Motor Assembly)
RBPSD08-2
PSD08TE-OT Wet Rebuild Kit
RBPSD08TE-OT
PSD08TE-ET Wet Rebuild Kit
RBPSD08TE-ET
PSD08TE-NT Wet Rebuild Kit
RBPSD08TE-NT
PSD08UH-OT Wet Rebuild Kit
RBPSD08UH-OT
PSD08UH-ET Wet Rebuild Kit
RBPSD08UH-ET
PSD08UH-NT Wet Rebuild Kit
RBPSD08UH-NT
PSD08TE-OT Combined Rebuild Kit
RBPSD08TE-OT-1*
PSD08TE-ET Combined Rebuild Kit
RBPSD08TE-ET-1*
PSD08TE-NT Combined Rebuild Kit
RBPSD08TE-NT-1*
PSD08UH-OT Combined Rebuild Kit
RBPSD08UH-OT-1*
PSD08UH-ET Combined Rebuild Kit
RBPSD08UH-ET-1*
PSD08UH-NT Combined Rebuild Kit
RBPSD08UH-NT-1*
PSD08TE-OT Alt. Combined Rebuild Kit
RBPSD08TE-OT-2**
PSD08TE-ET Alt. Combined Rebuild Kit
RBPSD08TE-ET-2**
PSD08TE-NT Alt. Combined Rebuild Kit
RBPSD08TE-NT-2**
PSD08UH-OT Alt. Combined Rebuild Kit
RBPSD08UH-OT-2**
PSD08UH-ET Alt. Combined Rebuild Kit
RBPSD08UH-ET-2**
PSD08UH-NT Alt. Combined Rebuild Kit
RBPSD08UH-NT-2**
*Contains all parts of RBPSD08-1 and applicable wet kit
**Contains all parts of RBPSD08-2 and applicable wet kit
Parts included in the PSD08-1 Rebuild Kit
Part Number
Description
Quantity
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
6140-FP-0006
Baffle, Porous Poly, PSD08/16
4
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
5
14850-PT-0002
Spool/Sleeve Assembly for WL Pump PSD08
2
Parts included in the RBPSD08-2 Rebuild Kit
Part Number
Description
Quantity
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
6140-FP-0006
Baffle, Porous Poly, PSD08/16
5
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
5
14860-NP-0001
PSD08 Air Motor Assembly
1
10080-EM-240-70
#240 EPDM O-ring Seal
3
10080-EM-238-70
#238 EPDM O-ring Seal
1

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 13
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
Parts included in the RBPSD08TE-OT Rebuild Kit
Part Number
Description
Quantity
5144-SS-0001
Diaphragm Shaft for WK Pump, PSD08
1
3200-TE-0001
Diaphragm for WK Pump, PSD08, PTFE
2
10010-SS-0006
Stud, Threaded
2
3300-SS-0004
Strike Plate for WK Pump, PSD08
2
4100-TE-0002
3/4" Check Ball for WK Pump, PSD08, PTFE
4
4137-TE-0004
Retainer, Ball, 3/4", PTFE
4
10050-MP-0002
D-Ring
4
4135-TE-0011
PSD08TE Wear seat
2
4135-TE-0013
PSD08TE Top Manifold Wear Seat
2
4135-TE-0014
Bottom Manifold Wear Seat, PSD08TE
2
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
24
10080-TE-217
O-ring, PTFE, 217
4
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
10080-EM-113-50
#113 EPDM O-ring Seal
2
10050-UH-0004
Shaft Glide Seal for WK Pump PSD08
2
Parts included in the RBPSD08TE-ET Rebuild Kit
Part Number
Description
Quantity
5144-SS-0001
Diaphragm Shaft for WK Pump, PSD08
1
3200-EM-0001
Diaphragm for WK Pump, PSD08, EPDM
2
10010-SS-0006
Stud, Threaded
2
3300-SS-0004
Strike Plate for WK Pump, PSD08
2
4100-TE-0002
3/4" Check Ball for WK Pump, PSD08, PTFE
4
4137-TE-0004
Retainer, Ball, 3/4", PTFE
4
10050-MP-0002
D-Ring
4
4135-TE-0011
PSD08TE Wear seat
2
4135-TE-0013
PSD08TE Top Manifold Wear Seat
2
4135-TE-0014
Bottom Manifold Wear Seat, PSD08TE
2
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
24
10080-TE-217
O-ring, PTFE, 217
4
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
10080-EM-113-50
#113 EPDM O-ring Seal
2
10050-UH-0004
Shaft Glide Seal for WK Pump PSD08
2

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 14 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
Parts included in the RBPSD08TE-NT Rebuild Kit
Part Number
Description
Quantity
5144-SS-0001
Diaphragm Shaft for WK Pump, PSD08
1
3200-BN-0001
Diaphragm for WK Pump, PSD08, NBR
2
10010-SS-0006
Stud, Threaded
2
3300-SS-0004
Strike Plate for WK Pump, PSD08
2
4100-TE-0002
3/4" Check Ball for WK Pump, PSD08, PTFE
4
4137-TE-0004
Retainer, Ball, 3/4", PTFE
4
10050-MP-0002
D-Ring
4
4135-TE-0011
PSD08TE Wear seat
2
4135-TE-0013
PSD08TE Top Manifold Wear Seat
2
4135-TE-0014
Bottom Manifold Wear Seat, PSD08TE
2
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
24
10080-TE-217
O-ring, PTFE, 217
4
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
10080-EM-113-50
#113 EPDM O-ring Seal
2
10050-UH-0004
Shaft Glide Seal for WK Pump PSD08
2
Parts included in the RBPSD08UH-OT Rebuild Kit
Part Number
Description
Quantity
5144-SS-0001
Diaphragm Shaft for WK Pump, PSD08
1
3200-TE-0001
Diaphragm for WK Pump, PSD08, PTFE
2
10010-SS-0006
Stud, Threaded
2
3300-SS-0004
Strike Plate for WK Pump, PSD08
2
4100-TE-0002
3/4" Check Ball for WK Pump, PSD08, PTFE
4
4137-UH-0001
Retainer, Ball, 3/4", UHMW
4
10050-UH-0005
D-Ring
4
4135-UH-0003
Wear Seat, PSD08UH
2
4135-UH-0005
Top Manifold Wear Seat, PSD08UH
2
4135-UH-0006
Bottom Manifold Wear Seat, PSD08UH
2
10040-PE-0009
Screw Caps for WK pumps, PSD08/16
24
10080-TE-217-55
#217 PTFE O-ring Seal
4
10300-XX-0001
PTFE Lubricant, Squeeze Tube
1
10080-EM-113-50
#113 EPDM O-ring Seal
2
10050-UH-0004
Shaft Glide Seal for WK Pump PSD08
2

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8 Page | 15
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
4.3 Alternative Wet Kit Ordering Instructions
Listed on page 12 are the standard rebuild kits offered by White Knight. Configurable wet kits are available for
purchase. To configure an alternative rebuild kit use the graphical ordering instructions shown below.
Air Motor
Air Motors do not need to be removed from the pump for
service. However, complete air motors with all
components (tested and certified) are available from
White Knight. They can be removed and installed in the
pump body as shown in the figure using the air motor pin
wrench tool. (Rotate counter clockwise to remove.)
Part Number for Air Motor Assembly:
14860-NP-0001
Note locations
of O-rings.
Tighten to flush
in assembly.
DO NOT OVER
TIGHTEN

••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Page | 16 Copyright © 2022 White Knight Fluid Handling | A Graco company 9/14/2022 Version 1.1.8
187 E. 670 S., Kamas, UT 84036
435.783.6040 888.796.2476
Pin Wrench for removing air motors from
½” and 1” PSD pumps (Must purchase
separately to remove air motor, not
included with pump). (12100-PV-0025)
4.4 Tools
Part Name Part Number QTY.
Sleeve Wrench 12100-PV-0030 1
Pin Wrench ½” and 1” Air Motor* 12100-PV-0025 1
Wearable Surface Installation Tool 12100-PV-0031 1
*Air motor does not need to be removed to service pump. The air motor wrench is not
included with the pump but is available from White Knight.
4.5 Torque Instructions
Four pin wrench used to
remove/install the Sleeve Pilot
Spool Assembly (included with
pump). Hex is for use with a 19mm
or ¾” socket drive. (12100-PV-0030)
Manifold Bolts
Tie Bolts
②
①
③
④
⑤
⑦
①
①
⑧
⑥
Tie bolts (purple) on both sides must be torqued before
manifold bolts (blue) on top and bottom.
Torquing of tie bolts should be done in a crossing fashion
as shown in image. There is no particular order for
torquing manifold bolts other than they must be done after
head blots.
Apply Loctite Antiseize Lubricant LB 8012 (or equivalent)
to all bolts. This procedure must be followed for assembly
and also re-torquing of bolts.
Rebuild Torque
in-lbs. (kg-cm)
Re-torque Spec
in-lbs. (kg-cm)
Tie Bolts
60 (69.1)
55 (63.4)
Manifold Bolts
40 (46.1)
35 (40.3)
Tool for inserting wearable
surfaces into manifolds and
heads (included with pump)
(12100-PV-0031)
