INSTRUCTIONS MANUAL
SPLIT TYPE ROOM AIR CONDITIONER
S3(47-50,59-62)W_ENGLISH_120717A
Models:
• WAS(C,E)09C5CRKW
• WAS(C,E)12C5CRKW
• WAS(C,E)18C5CRKW
• WAS(C,E)24C5CRKW,
• WAS(C,E)09P5CRKW
• WAS(C,E)12P5CRKW
• WAS(C,E)18P5CRKW
• WAS(C,E)24P5CRKW

Attention
Thank you for choosing White-whestinghouse. This manual contains all of the
information required to guarantee your safety and the appropriate use of your
air conditioner.
Please read all of the instructions before using the air conditioner and keep
this manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product.
We hope you will consider us for future purchase.
The air conditioner that you have bought may be slightly different from the one
illustrated in this manual. Please refer to the information related to the model
you have.
This air conditioner is for domestic use only. It is not reccomended for
commercial or industrial use.
The air conditioner you have may carry a different plug than the one illustrated
in this manual. The plug that comes with the product follows the electrical
specification of the country where it is sold.
The packaging material used is recyclable; we
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
According to WEEE (Waste of Electrical and Electronic
Equipment) guidelines, waste from electrical and
electronic devices should be collected separately. If
you need to dispose of this appliance in the future,
do NOT throw it away with the rest of your domestic
garbage. Instead, please take the appliance to the
nearest WEEE collection point, where available.
The air conditioner you purchased has R410a gas
refrigerant a environmental friendly gas which does
not damage the ozone layer.
Environmental advices
Welcome to the world of
simple handling and no worries
Contents
01 Welcome 02
Contents
01. Welcome...........................................................................................01
02. Environmental advices..........................................................................01
03. Contents...............................................................................................02
04. Safety precautions.....................................................................04
05. Installation:
5.1 Choosing the installation site.......................................................08
5.2 Parts list.....................................................................................10
5.3 Indoor unit installation...................................................12
5.4 Outdoor unit installation............................................................16
5.5 Refrigerant piping connection.....................................................18
5.6 Electrical work.....................................................................20
5.7 Purga de aire.............................................................................25
5.8 Electrical safety....................................................................28
5.7 Gas leak check...........................................................................28
5.8 Test running...............................................................................29
06. Operation:
6.1 Preparing the device for operation......................................30
6.2 Product description...........................................................32
6.3 Remote control.......................................................................33
- Remote control operation
- Remote control specifications
- Remote control battery
- When should the batteries be replaced
- To replace batteries
- Remote control instructions
6.4 Remote control description.........................................................35
- On/Off
- Temp. increase
- Temp. decrease
- Swing
- Clock
- Turbo
- Mode
- Fan speed
- Sleep
- Timer
- Cancel
- LED (screen)
6.5 LCD display indicators...............................................................37

To prevent injury to the user or other people and property damage, the
following instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
Safety precautions

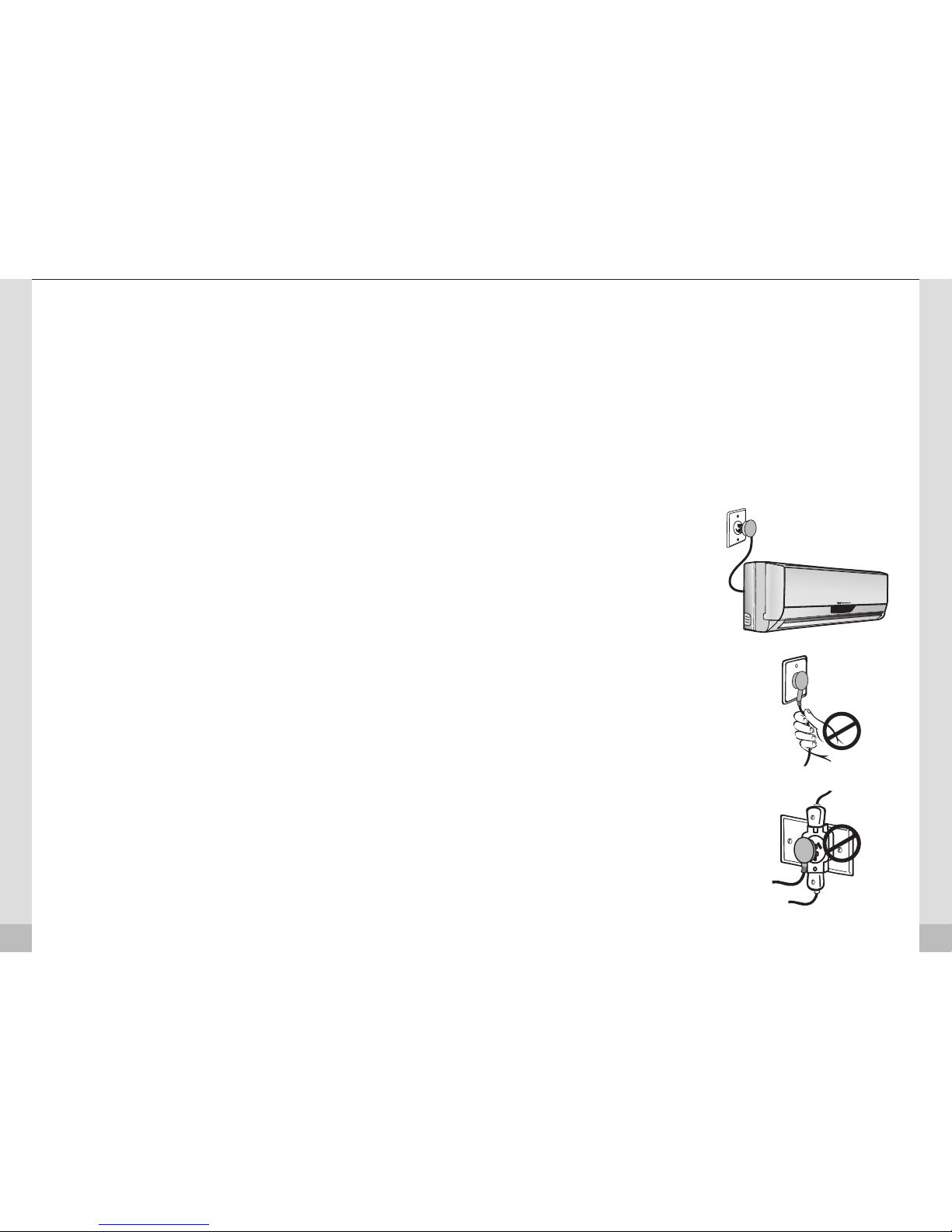

1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length or
share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3. Always ensure effective earthing.
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
5. Keep firearms away. It may cause
fire.

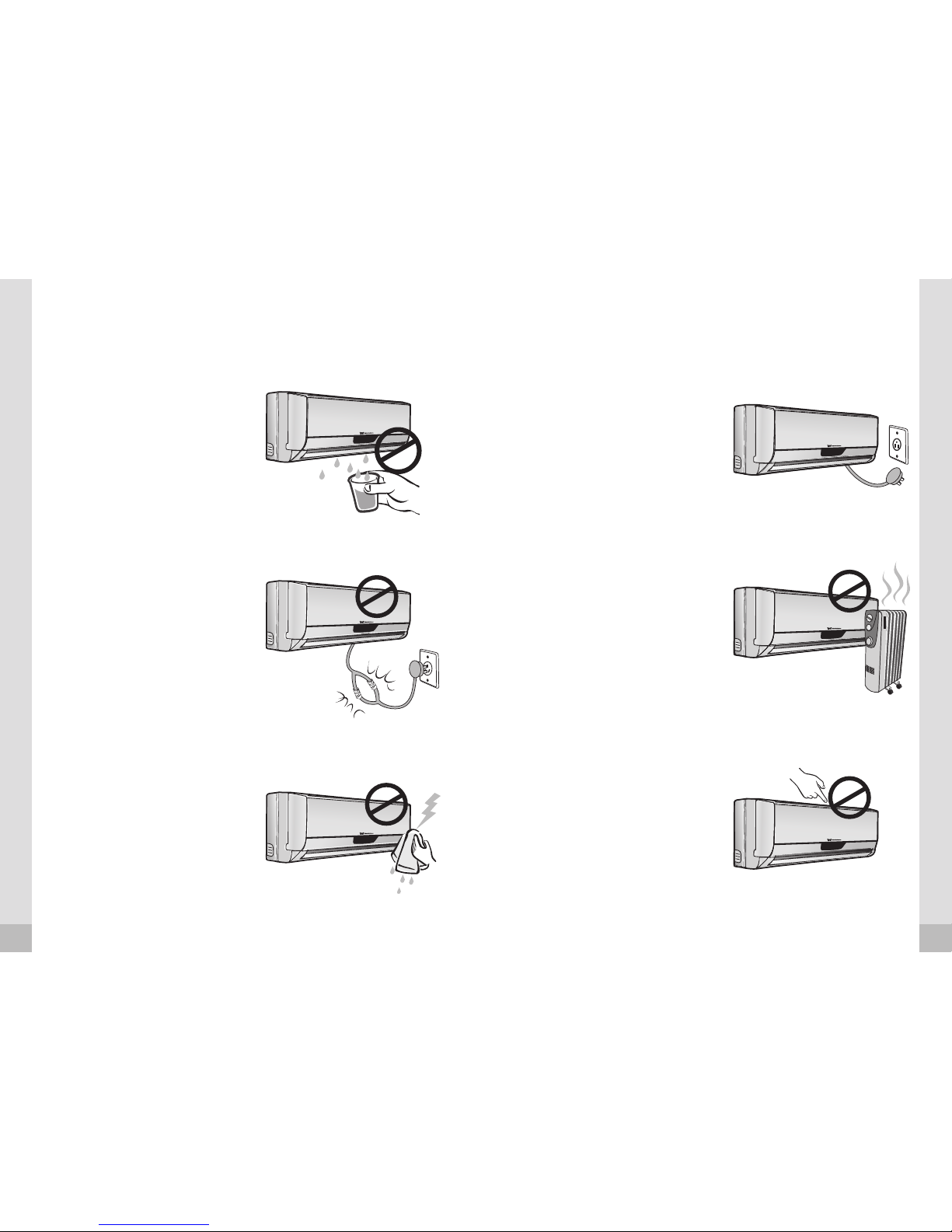

6. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire due
to heat generation.
7. Do not operate with wet hands or in
damp environment. It may cause
electric shock.
8. Do not allow water to run into
electric parts. It may cause failure of
machine or electric shock.
9. Do not drink water drained from air
03 Contents 04
Safety precautions
6.6 How the air conditioner works...................................38
- Automatic operation
- Cool/heat and fan only operation
- Dry operation
- Airflow direction adjustment
- Sleep mode
- Timer operation
- Optimal operation
6.7 How to use the indoor unit......................................................42
- Adjusting air flow direction
- Adjusting the vertical air flow direction (up/down)
- To set the horizontal air flow direction (left/right)
- To automatically swing the air flow direction (up/down)
6.8 Manual operation....................................................................44
07. Maintenance....................................................................................45
08. Operation tips.....................................................................................47
09. Solution for problems.........................................................................49
10. Technical specifications........................................................................50

conditioner. It contains contaminants
and could make you sick.
10.Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
12.Do not direct airflow at room
occupants only. This could damage
your health.
13.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.
14.Do not open the unit during
operation. It may cause electric
shock.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
16.Ventilate room before operating air
conditioner if there is a gas
leakage from another appliance. It
may cause explosion, fire and,
burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be
removed, do not touch the metal
parts of the unit. It may cause an
injury.
19.Do not clean the air conditioner
with water. Water may enter the unit
and degrade the insulation. It may
cause an electric shock.
20.Ventilate the room well when used
together with a stove, etc. An oxygen
shortage may occur.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire and
electric shock, it may cause an injury.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
23.Do not use for special purposes. Do
not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It may
cause deterioration of quality, etc.
24.Stop operation and close the window
in storm or hurricane. Operation with
windows opened may cause wetting
of indoor and soaking of household
furniture.
25.Turn off the main power switch when
not using the unit for a long time. It
may cause failure of product or fire.
26.Do not use strong detergent such as
wax or thinner. Use a soft cloth for
cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
05 Safety precautions 06
Safety precautions

27.Ensure that the installation bracket of
the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
there is concern of damage due to
falling of unit.
28.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may cause
failure.
29.Do not place heavy object on the
power cord and take care so that the
cord is not compressed. There is
danger of fire or electric shock.
30.Do not place obstacles around air-
inlets or inside of air-outlet. It may
cause failure of appliance or
accident.
meters (7.5 feet) from the ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably install
the unit at one of these sites, please consult your local distributor beforehand:1.
Site with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.

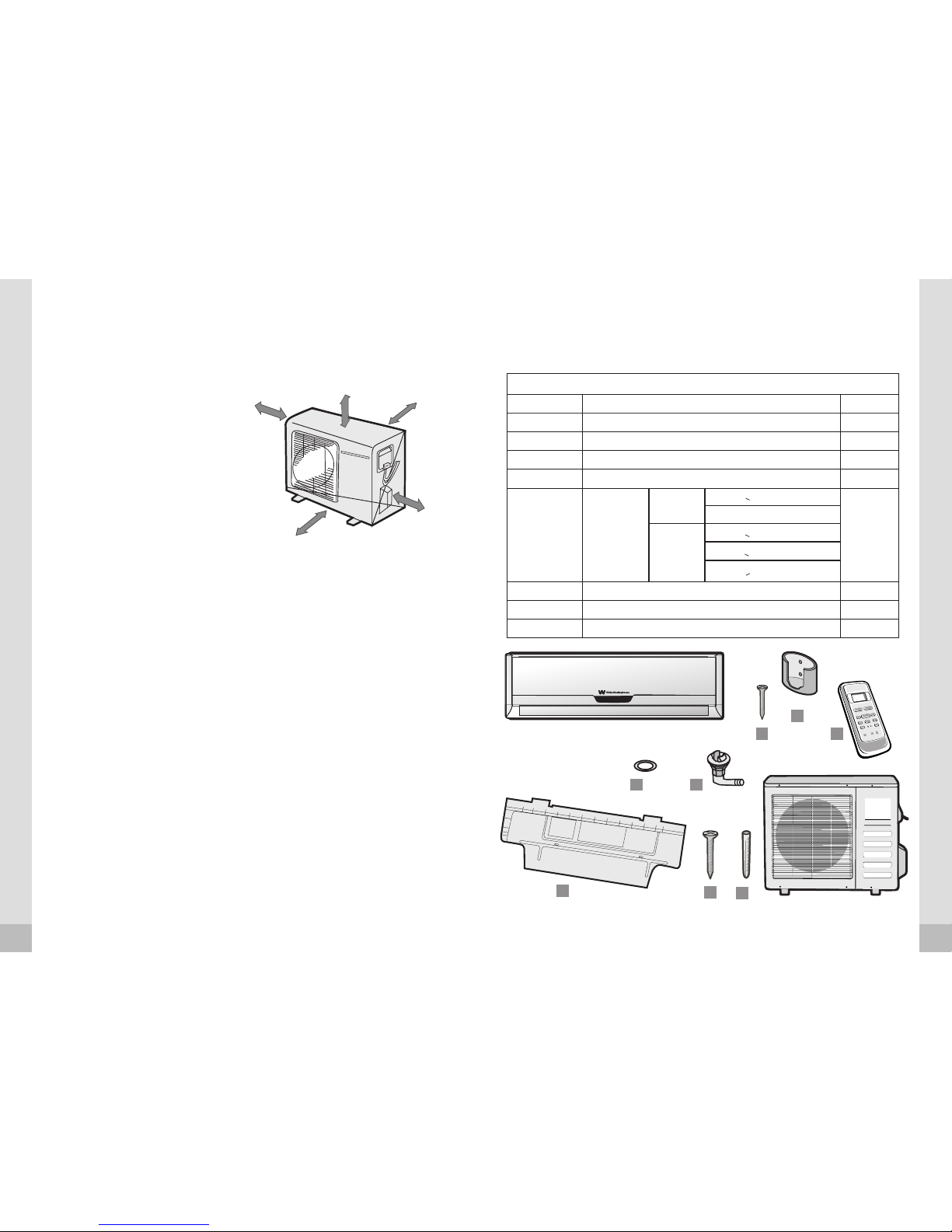

Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight of
the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.

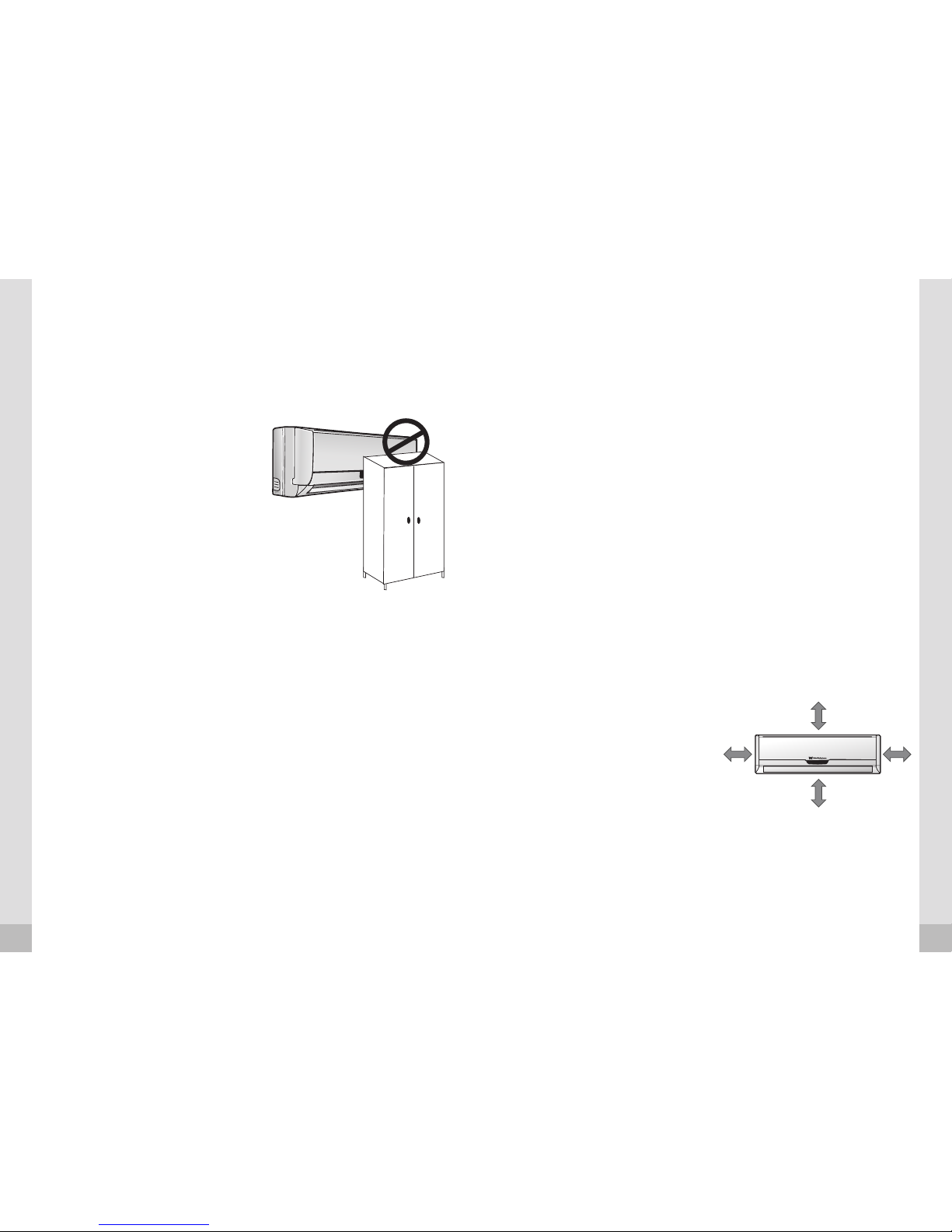

4. The site must allow for the
necessary space around the indoor
unit, as shown in the following
figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is ideal
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
7. The indoor unit must be at least 2.3
Choosing the installation site
More
than 15cm
More
than 12cm
More
than 200cm
More
than 12cm
07 Safety precautions 08
Choosing the installation site
