Whitmor 5678-11142-WHT User manual

Page 1
©2020 Whitmor, Inc.
Part Reference
F10976
F10980
F10982
F10983
F10977
F10978
F10979
F10382
F10378
F10379
F10377
F10380
A
B
C
D
E
F
G
H
I
J
K
L
A6 ea
Top-Bottom
Panels
E40 ea
Large
Phillips Screws
F40 ea
Screw
Covers
B4 ea
Cube
Side Panels
C2 ea
Large Rectangle
Side Panels
D8 ea
Locking
Clips
Tools Needed:
A Phillips screwdriver.
PARTS:
G40 ea
Wooden
Dowels
I1 ea
Small
Phillips screw
J1 ea
Wall Anchor
L2 ea
Washer
K1 ea
Safety Strap
H1 ea
Medium
Phillips Screw
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 2
©2020 Whitmor, Inc.
•This set contains small parts which
could be a choking hazard for small
children. Children should be under
adult supervision at all times or
serious injury could occur.
•Always unload and transport one
section at a time, then reconfigure in
the new location. Serious bodily injury
and/or damage to personal
belongings may occur.
•Do not hang this set on the wall. The
product structure is not designed for
wall hanging. Serious bodily injury,
damage to personal belongings,
and/or damage to the wall may occur.
•Do not overload set. If any shelf, top, or
bottom of set bows or bends, it is
overloaded. The shelf, top, or bottom
could collapse and cause serious bodily
injury and/or damage to personal
belongings.
• Do not climb or step on the set. The set
may become unstable and either tip or
collapse. Serious bodily injury and/or
damage to personal belongings may
occur.
•Do not mount or attach anything to the
sides, rear or front of the set as this can
create a force which can cause the set to
tip. Serious bodily injury and/or damage
to personal belongings may occur.
•Follow proper safety procedures
when using power tools and ladders
(when applicable).
•We recommend you protect your work
surface during assembly to prevent
scratching or damage to tabletops,
wood floors, etc.
•All sets must be secured with at least
1 clip per 6" face, 1 clip per 12" vertical
face, 2 clips per 12" horizontal face
and 3 clips per 24" face when attaching
these units together.
• CAUTION: Serious injuries can occur
from tip-over. To prevent tipping, do not
stack more than 2 sets (50" max height).
WARNING
SAFETY PRECAUTIONS
• Wipe clean with a dry cloth.
CARE INSTRUCTIONS
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 3
©2020 Whitmor, Inc.
Using a Phillips screwdriver (not
included), securely tighten the 8
Phillips screws (E) to assemble
each section.
Place a screw cover (F) over the 8
screw heads.
STEP 3:Cube assembly
Insert four dowels (G) into the
larger inner predrilled holes of a
top/bottom panel (A).
Firmly press two cube side panels
(B) onto the dowels as shown
below. Make sure the grooves align.
Insert four dowels (G) into predrilled
holes of the top of the cube side
panels (B) as shown below.
Firmly press down the top/bottom
panel (A) onto the assembled set.
STEP 2:
2 Top-bottom panels (A)
2 Cube side panels (B)
8 Large Phillips screws (E)
8 Screw covers (F)
8 Wooden dowels (G)
STEP 1:
Gather the following parts:
F
E
F
E
F
E
F
E
E
F
F
F
E
E
F
E
G
B
A
B
G
G
G
G
G
G
G
A
NOTE:
Repeat the cube assembly. This set
comes with two cubes.
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Using a Phillips screwdriver (not
included), securely tighten the 8
Phillips screws (E) to assemble
each section.
Place a screw cover (F) over the 8
screw heads.
STEP 3:Large rectangle assembly
Insert four dowels (G) into the
larger inner predrilled holes of a
top/bottom panel (A).
Firmly press two large rectangle
side panels (C) onto the dowels as
shown below. Make sure the
grooves align.
Insert four dowels (G) into predrilled
holes of the top of the large rectangle
side panels (C) as shown below.
Firmly press down the top/bottom
panel (A) onto the assembled set.
STEP 2:
2 Top-bottom panels (A)
2 Large rectangle side panels (C)
8 Large Phillips screws (E)
8 Screw covers (F)
8 Wooden dowels (G)
STEP 1:
Gather the following parts:
F
E
F
E
F
E
F
E
E
F
F
F
E
E
F
E
C
G
C
A
G
G
G
G
G
G
G
A
Page 4
©2020 Whitmor, Inc.
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 5
©2020 Whitmor, Inc.
Place the large rectangle on its side
and follow by placing two cubes on
on top of the large rectangle.

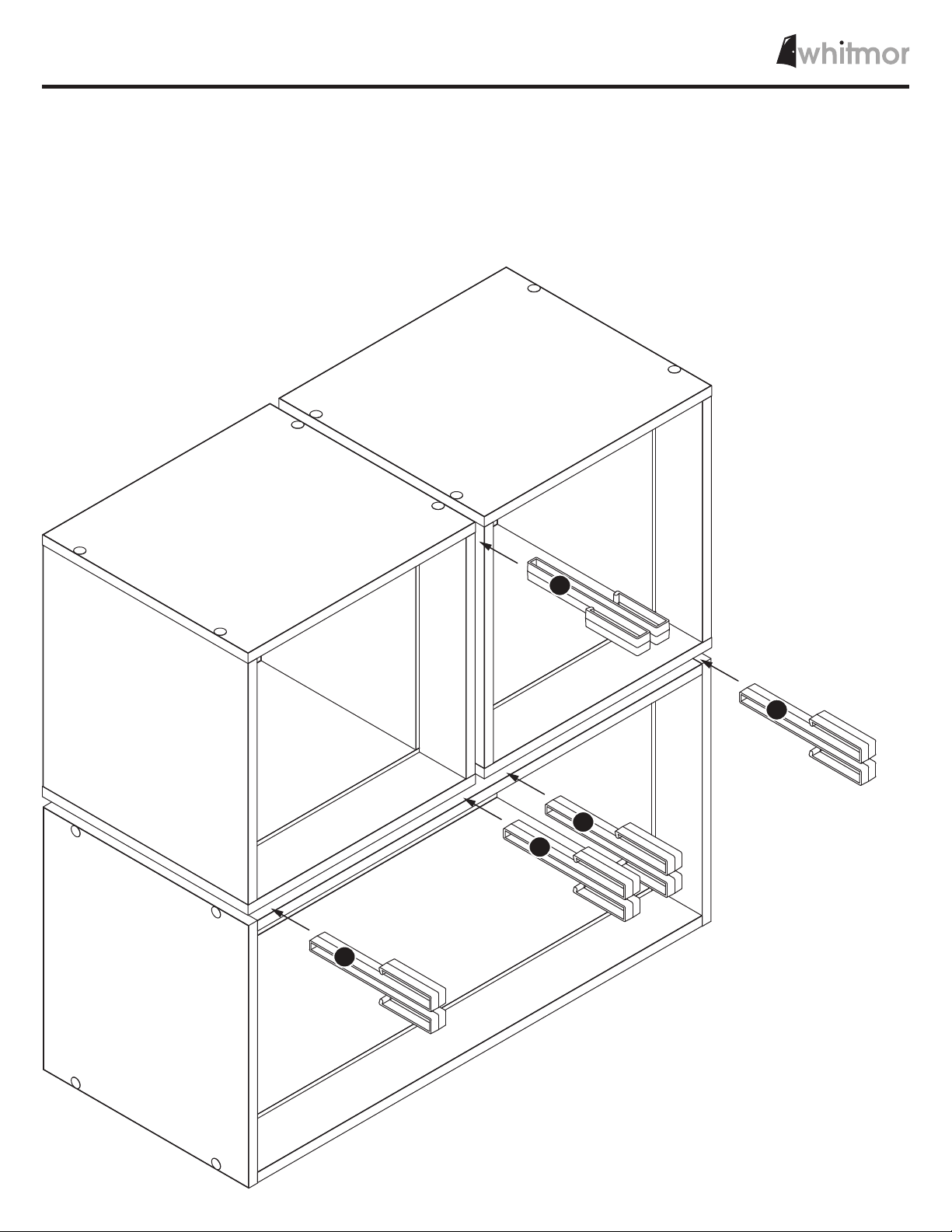

Firmly slide locking clips (D) through
the small opening on the back side
of the set as shown below.
FOR ASSEMBLY OPTION BELOW:
NOTE:
Arrange all of the pieces to your
liking. Please remember all sets must
be secured with at least 1 clip per 6"
face, 2 clips per 12" face, & 3 clips
per 24" face when attaching these
sets together.
PLEASE DO NOT MOVE
ITEM ASSEMBLED, ONLY
MOVE DISSASSEMBLED.
D
D
D
D
D
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 6
©2020 Whitmor, Inc.
Install the safety strap (K) to the back of the assembled set using a washer (L)
and a small Phillips screw (I).
MOUNTING SET TO WALL
STEP 1:
WALL WALL
K
L
I
Calculate and measure where the safety strap will be placed on the wall.
Attach safety strap to the wall using a wall anchor (J), medium Phillips screw
(H) and a washer (L).
WALL
H
L
J
STEP 2:
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 7
©2020 Whitmor, Inc.
5678-11142-WHT 3-Piece Clip & Cube™Organizer

Page 8
©2020 Whitmor, Inc.
NEED HELP? For help with assembly, or if you are
missing a part, please call Whitmor’s Consumer Care
Team, 1-888-944-8667 between 8 a.m. and 4:30 p.m.
(Central Standard Time) Monday through Friday, or email:
[e-mail]. Visit us online at www.whitmor.com
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
Rev.#0 | 05.29.20 Printed in China
5678-11142-WHT 3-Piece Clip & Cube™Organizer
