Wilko HG1603WK User manual

1
2 BURNER GAS BBQ
Assembly instruction (0428786)
0359-17

2
Expanded View
7
81
2
33
44
5
66
9
9
10
10
11
12
13
14
15
17
21
18
19
20
20
23
22
22
16
16
16
16

3

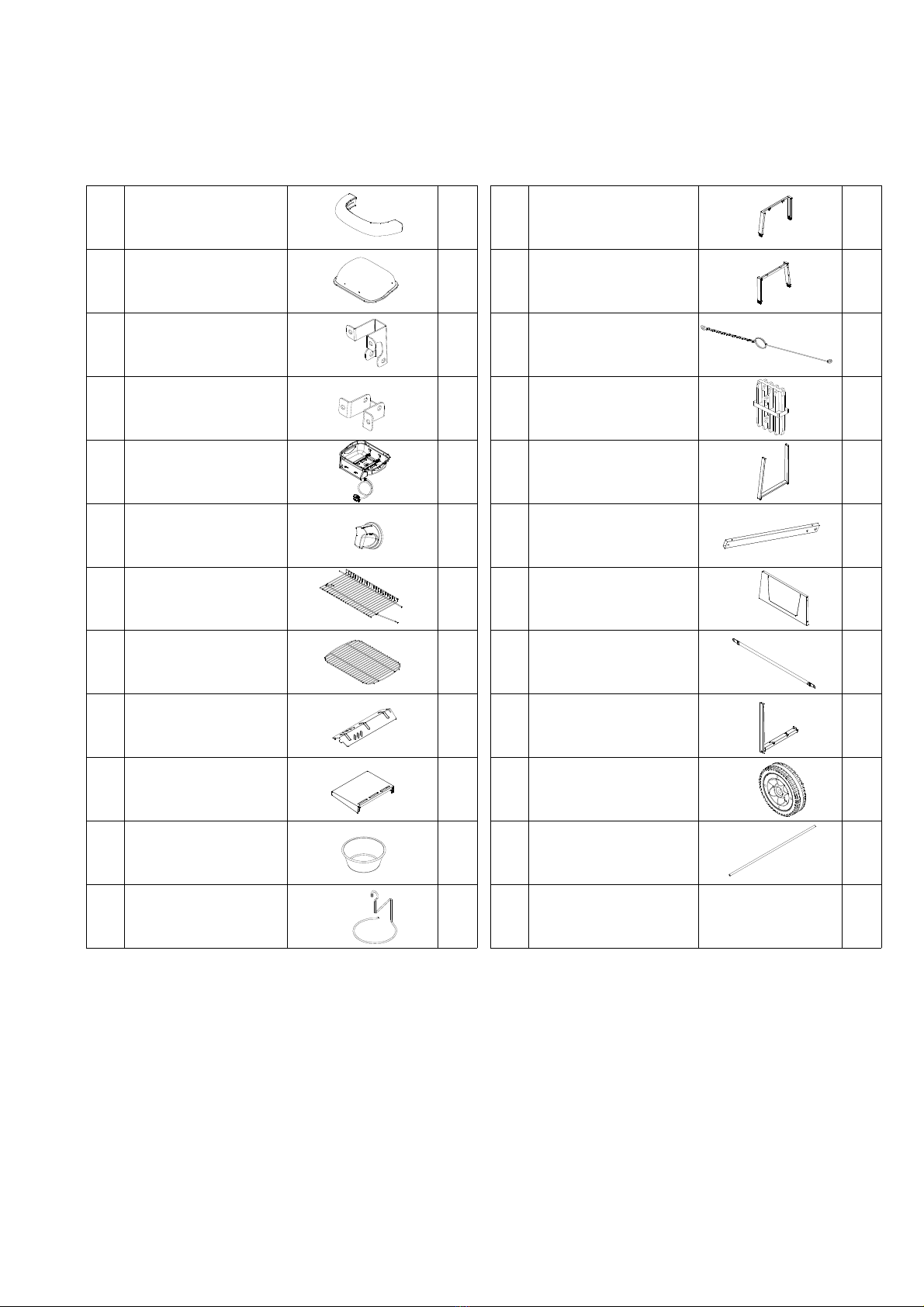

Parts Supplied
Please check parts against the list below before assembling your Barbecue Grill.
Take a few moments to familiarise yourself with the contents. Check that all holes are clear of paint before assembly, if
you find a blockage, please use a screw driver to clear the blocked hole.
11
2
4
3
6
5
1
2
2
1
2
92
14
17
15
22
1
1
1
1
Lid handle
Lid
Top hinge
Bottom hinge
Firebowl assembly
Control knob
Warming rack
Cooking grid
8
7
18
19
Upper left cart frame
Upper right cart frame
Lighting hook
Lower left cart frame
Lower right front cart
frame
Lower right rear cart
frame
Upper front panel
1
1
1
1
Heat plate
10 2
Side shelf
11 1
Grease cup
12 1
Grease cup support
13 1
20
21
Lower rear cart frame
support 2
Axle 1
23
Wheel 2
16 Cart frame insert 4

4
Fittings Supplied
Screwdriver (included), wrench (included) and plastic head hammer (not included) are
required to assemble the Barbecue.
• Dispose of all polythene packing carefully and keep out of the reach of children.
• Please read the section on barbecue safety prior to using your Barbecue.
• Two people are recommended for assembly.
Please read all instructions carefully and keep outer packaging to refer to photograph of finished product in case of
difficulty.
Warning
1, Use outdoor only.
2, Read the instructions before using the appliance.
3, WARNING: Accessible parts may be very hot. Keep young children away.
4, This appliance must be kept away from flammable materials during use.
5, Do not move he appliance during use.
6, Turn off the gas supply at the gas cylinder after use.
7, Do not modify the appliance.
8, Gas cylinder can’t be used or stored underneath the fire bowl or in the grill cabinet.
E
D
A8
B
C1
8
Screw ST4.8X10
23
M
F
8
K
L2
2
12
Heat resistant washer 6
Lock washer 6Wing Bolt M5X15
Bolt M5X16
N
O
Cotter pin 1.4x30
2
2
Pin 6x30
P
Spacer 18x20 2
I
G
H12
2
2
J
2
Washer 6
Washer 5
Wing Nut M6
Nut M10
Nut M5
Screw M5X14
QWrench M10-M5
Screwdriver 1
2
Lock washer 5

5
Assembly
Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble your barbecue.
Please refer to parts list and assembly diagram as necessary. Assembly of the barbecue involves many large
components, it is advisable to have two people assemble the unit.
STEP 1:
A: Attach lower right rear cart frame (18) to lower right front cart frame (21) ((B) Screw 3Pcs).
STEP 2:
A: Attach axle (23), wheel (22) to the assembled lower right cart frame ((F) Nut 2Pcs / (O) Spacer 2Pcs).
Note: Use wrench to tighten the wheel nut.
(21) (18)
(B)
(B)
(B)
(22)
(22) (23)
(F)
(O)
(O)
(F)

6
STEP 3:
A: Attach upper left cart frame (13), cart frame insert (16) to lower left cart frame (17) ((A) Screw 4Pcs).
Note:
- Use plastic head hammer slowly and gently to strike the cart frame insert into those tubes if needed.
- Make sure all the screw holes shown in below 2 small diagrams must be faced inward with the correct orientation.
(13)
(A)
(A)
(17)
(A) (A)
(16)
(16)

7

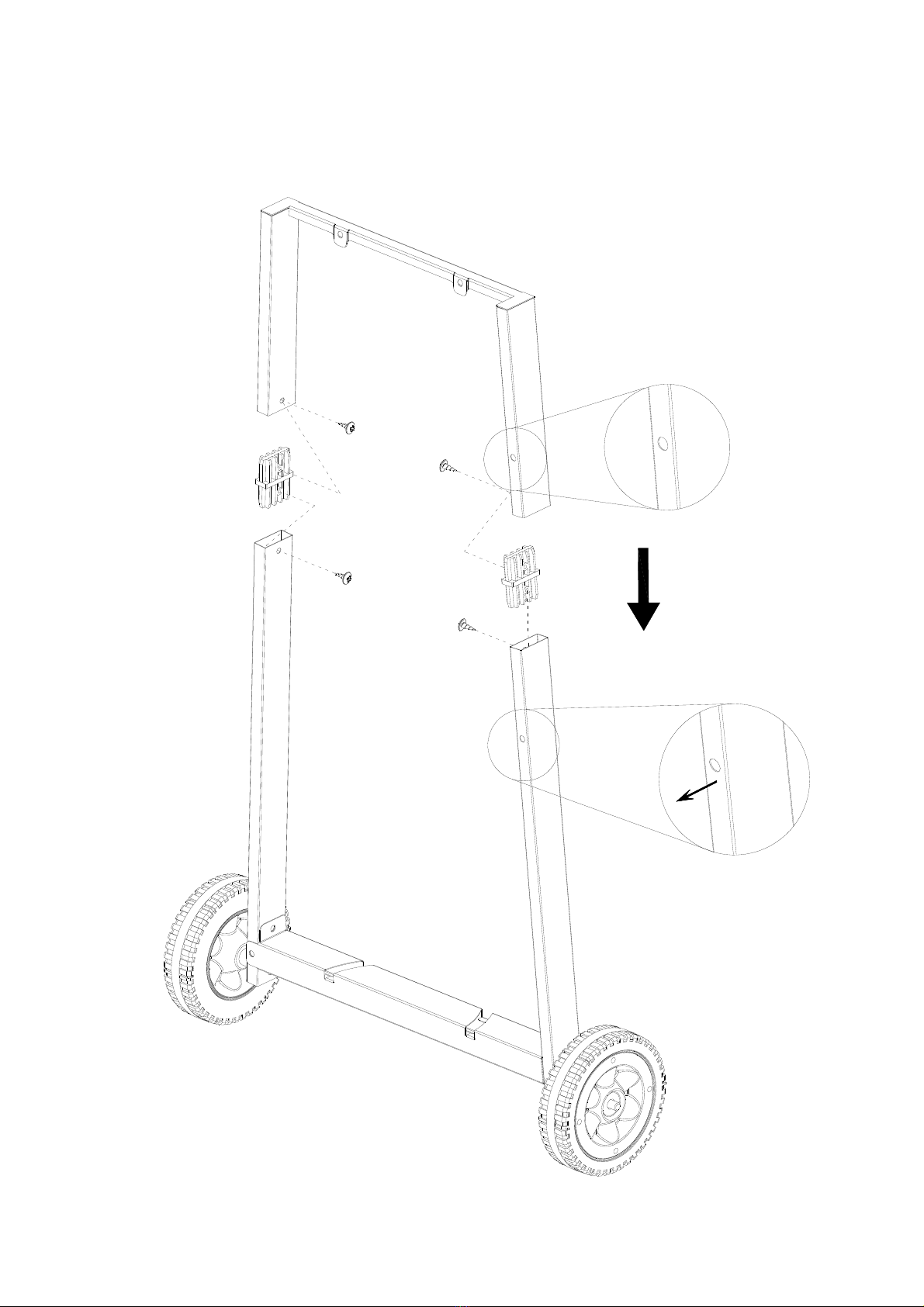

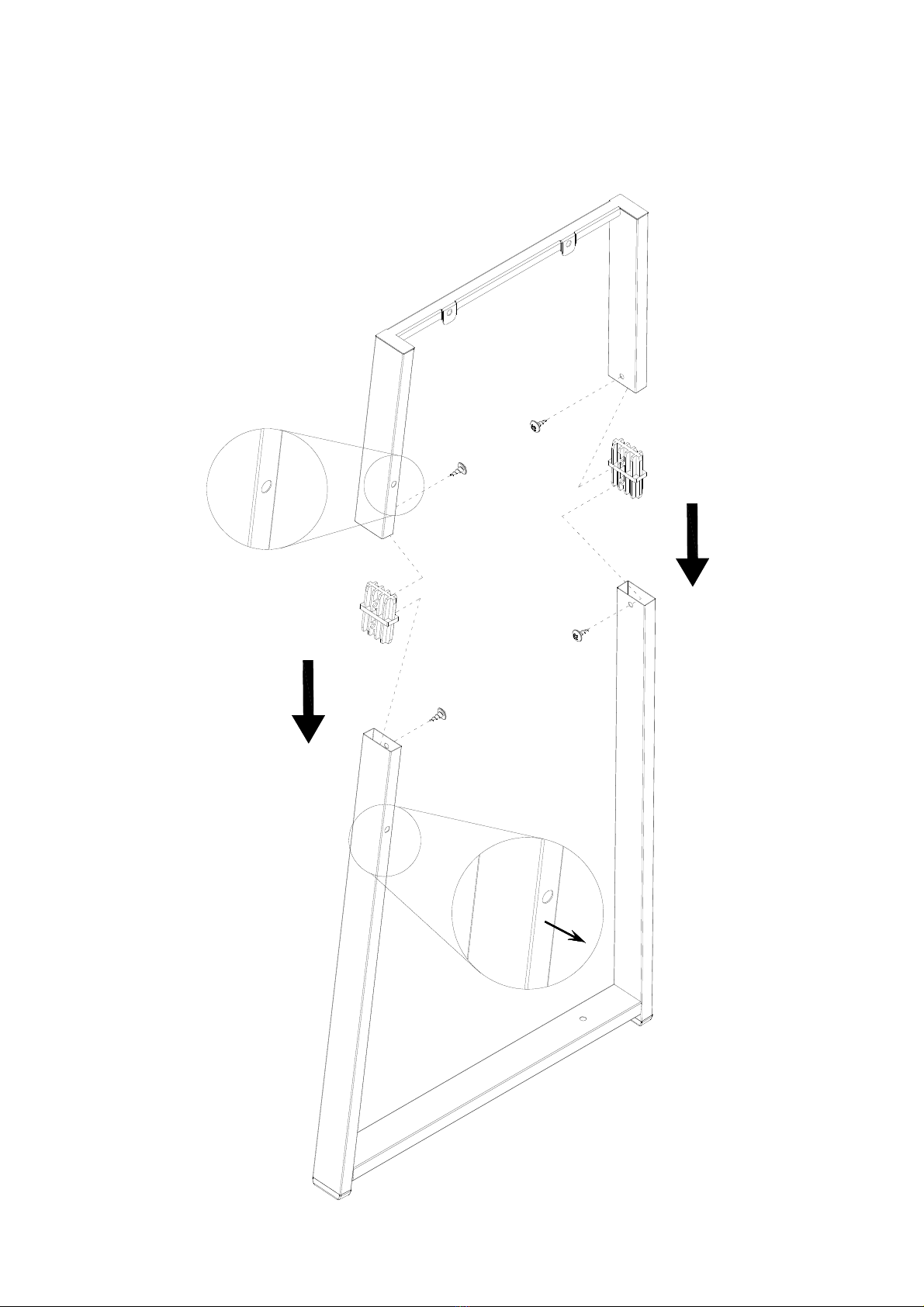

STEP 4:
A: Attach upper right cart frame (14), cart frame insert (16) to the assembled lower right cart frame ((A) Screw 4Pcs).
Note:
- Use plastic head hammer slowly and gently to strike the cart frame insert into those tubes if needed.
- Make sure all the screw holes shown in below 2 small diagrams must be faced inward with the correct orientation.
(A)
(A)
(A)
(A)
(16)
(16)
(14)

8

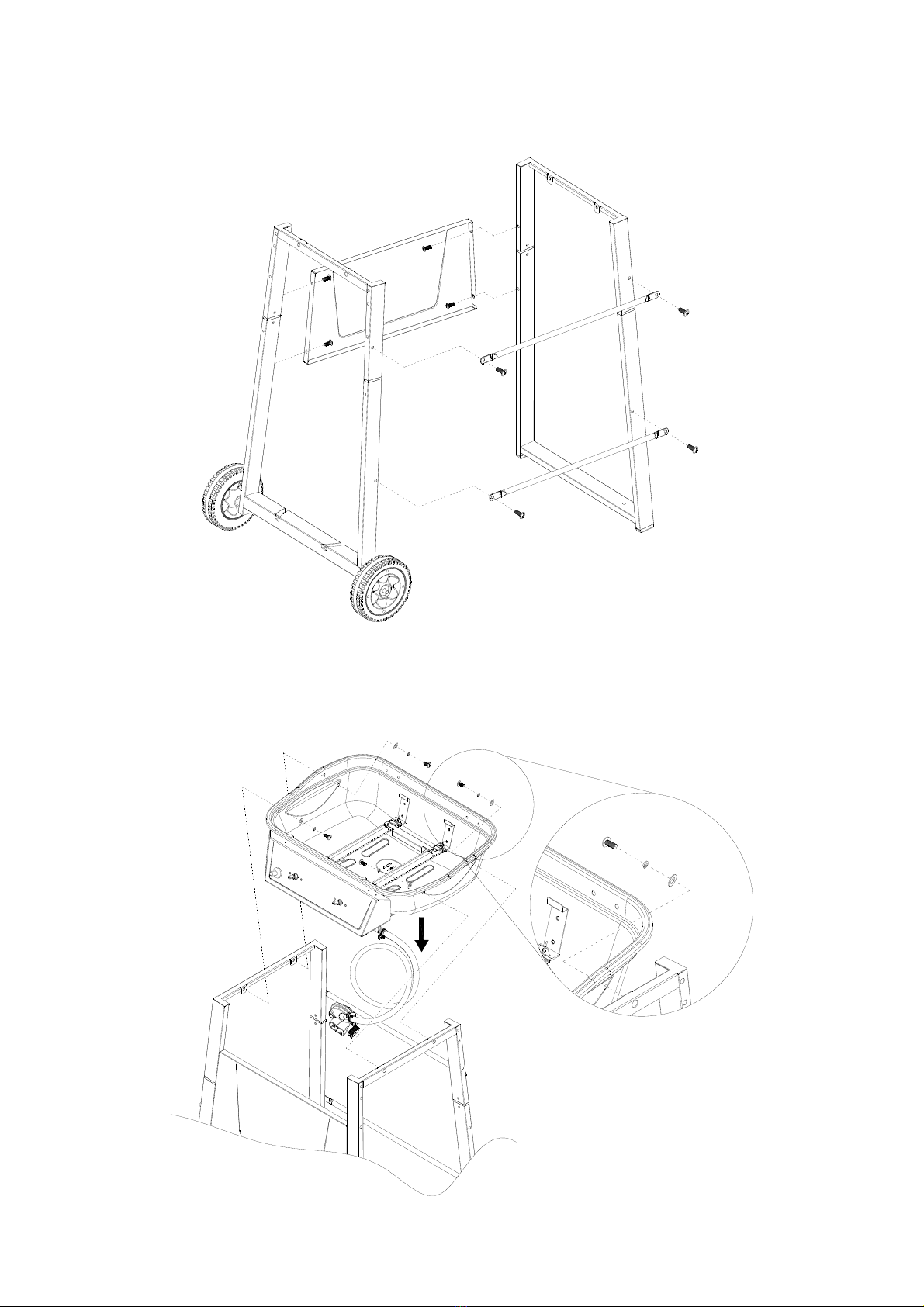

STEP 5:
A: Attach upper front panel (19) to the assembled left and right cart frame ((B) Screw 4Pcs).
B: Attach lower rear cart frame support (20) to the assembled left and right cart frame ((B) Screw 4Pcs).
Note: Make sure the upper front panel is assembled with the correct orientation as shown below.
STEP 6:
A: Attach firebowl assembly (5) on assembled cart frame ((H) Washer 4Pcs / (K) Lock washer 4Pcs / (B) Screw 4Pcs).
Note: Take care to ensure that the hose and regulator do not become snagged at the cart frame during assembly.
(20)
(20)
(19)
(B)
(B)
(B)
(B)
(B)
(B)
(B)
(K)(H)
(5)
(B)
(B)
(K)
(H)
(B)
(K)
(H)
(K) (H)
(B) (K) (H)
(B)

9
STEP 7:
A: Attach lighting hook (15) to the assembled right cart frame ((C) Wing bolt 1Pc).
B: Hang the lighting hook onto wing bolt.
(C)
(15)
1
2

10
STEP 8:
A: Attach bottom hinge (4) to firebowl assembly ((B) Screw 4Pcs / (H) Washer 4Pcs / (K) Lock washer 4Pcs / (E)
Wing nut 4Pcs).
STEP 9:
A: Attach control knob (6) onto valve stem.
(6) (6)
(4)
(B)
(B) (B) (B)
(K)(E)
(4)(H) (K)(E)
(H)
(K)(E)
(H)
(K)(E)
(H)

11
STEP 10:
A: Attach top hinge (3) to lid (2) ((B) Screw 4Pcs / (H) Washer 4Pcs / (K) Lock washer 4Pcs / (E) Nut 4Pcs).
B: Attach lid handle (1) to lid ((J) Heat resistant washer 2Pcs / (I) Washer 2Pcs / (L) Lock washer 2Pcs / (G) Wing nut
2Pcs).
STEP 11:
A: Attach lid to firebowl assembly ((M) Pin 2Pcs / (N) Cotter pin 2Pcs).
(N)
(M)
(N)
(M)
(N) (M)
(M) (N)
(1)
(G)
(L)
(I)
(J)
(J)
(G)
(L)
(I)
(3)
(3)(B)
(B)
(B)
(B)
(E)(K)(H) (2)
(E)
(E)
(E)
(K)
(K)
(K)(H) (H)
(H)
(2)

12
STEP 12:
A: Fix 2 bolts (D) into the upper bolt hole of left cart frame and leave 5mm space for hanging the side shelf (10)
((D) Bolt 2Pcs).
B: Hang the side shelf (10) onto 2 upper bolt heads.
C: Fix another 2 bolts (D) into the lower bolt hole of left cart frame.
D: Tighten all 4 bolts (D) securely on the left cart frame.
Note: Do not fully tighten the bolts until all 4 bolts are in place.
(D)
(D) (D)
(D)
(10)
b
5mm
a
C
d
(D) (D)
(D)
(D)

13
STEP 13:
A: Fix 2 bolts (D) into the upper bolt hole of right cart frame and leave 5mm space for hanging the side shelf
(10) ((D) Bolt 2Pcs)
B: Hang the side shelf (10) onto 2 upper bolt heads.
C: Fix another 2 bolts (D) into the lower bolt hole of right cart frame.
D: Tighten all 4 bolts (D) securely on the right cart frame.
Note: Do not fully tighten the bolts until all 4 bolts are in place.
b
a5mm
(10)
(D)(D)
(D)
(D)
c
d
(D)
(D)
(D)
(D)

14
STEP 14:
A: Slide warming rack (7) into holes in lid and firebowl.
Note: Look for corresponding holes on side of lid, insert short wire end into lid hole one side at a time. Position warming
rack legs into slots on firebowl sides.
(7)
1
4
2
3

15
STEP 15:
A: Place heat plate (9) onto heat plate support.
B: Place cooking grid (8) into firebowl assembly.
STEP 16:
A: Attach grease cup support (12) onto firebowl assembly.
B: Place grease cup (11) onto grease cup support.
(9)
(8)
(9)
(11)
(12)
b
a
(12)
(11)

16
General Safety Warnings
Important: Read all the safety warnings and assembly instructions before use and retain all information for future
reference.
• Read assembly instruction enclosed & all the safety warning before using the appliance. Failure to follow instructions
could result in death, serious body injury or property loss.
• Retain the instructions for future reference.
• For outdoors use only. Do not use indoors.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and tightened.
• Never operate this appliance unattended.
• Do not store or use charcoal, lava rocks, gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
• Do not use below ground level.
• Do not move the barbecue during use. Parts of the barbecue may become hot. Care must be taken when children and
animals are present. Allow the grill to cool before moving and storing.
• Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.
• Leak test annually and whenever the gas bottle is removed and replaced. Failure to follow the instructions could result
in serious injury or damage.
• After a period of storage and/or nonuse, check for leaks, burner obstructions and inspect for any abrasion, wear or
cuts to the hose.
• Do not attempt to disconnect the gas regulator from the cylinder or any gas fitting while the grills are in use.
• Accessible parts may be hot. Always use protective gloves.
• Never use a gas cylinder with a damaged body, valve, collar or footing,
• When cooking, fire extinguishing materials should be readily accessible. In the event of an oil/grease fire, do not
attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.
• Use only propane regulator 37mbar.
• Keep pet & young children away.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may be dangerous and will invalidate
your warranty. This does not affect your statutory rights.
• Check the hose connections are tight and leak test them each time you reconnect the gas bottle.
Prevent CO poisoning. Make sure exhaust from generators is properly vented away from occupied areas. Carbon
Monoxide (CO) is a colourless, odourless, highly poisonous gas that can kill in minutes. Carbon Monoxide poisoning
can be caused byANY fuel that burns or smoulders. Watch out for the symptoms – Mild headache / Dizziness / Nausea
Vomiting / Fatigue / Drowsiness.

17
Installing Gas Cylinder
To operate you will need (1) precision-filled gas cylinder between 11kg and 15kg.
Your barbecue will perform better if propane gas cylinder is used.
CAUTION: Gas cylinder must be properly disconnected and removed prior to moving this grill.
Specification of Gas Cylinder*(*Gas cylinder not included).
• Gas Type: I3+(28-30/37) (Propane at 37mbar)
• Connection: 27mm (compatible with Press on type regulator)
• Weight: 11 - 15 kg
Place Gas Cylinder
Gas Regulator
The type of the regulator to be used shall comply with the standard EN 16129: 2013.
Read thoroughly before use
Gas Regulator Parts
①Regulator Identification Label
②Regulator Assembly
③Regulator Rubber Hose
④Hose Clamp
⑤Regulator Valve handle
Connecting and Operating Conditions
The “Snap on compact” is a regulator designed to supply gas to consuming appliance at a pressure and capacity as
indicated on the regulator identification label.
The “Snap on compact” can be fitted to any cylinders equipped with automatic valves having a diameter as indicated
on the regulator.
CAUTION: The gas cylinder must always be used on the upright position.
CAUTION: Whenever used outdoors, the “snap on compact” should be suitable protected against rain.
CAUTION: Never use a flame to look for leaks, do it using a soap solution.
CAUTION: In case of any difficulties or problems, close the gas supply immediately and contact your dealer.
CAUTION: Never move or displace the gas cylinder when it is on.
CAUTION: Gas cylinder must be properly disconnected and removed prior to moving this grill.
Fitting the Hose
Before connecting the “Snap on compact” to a cylinder valve:
1. Connect regulation rubber hose to the barbed stem on the regulator.
Tip: Lubricate the barbed stem with water to help connect the regulator hose to the regulator.
2. Use a hose clamp to secure the regulation rubber hose to the regulator.
WARNING!
When in use place the gas
bottle on the floor away from
the base of the BBQ.
Gas

18

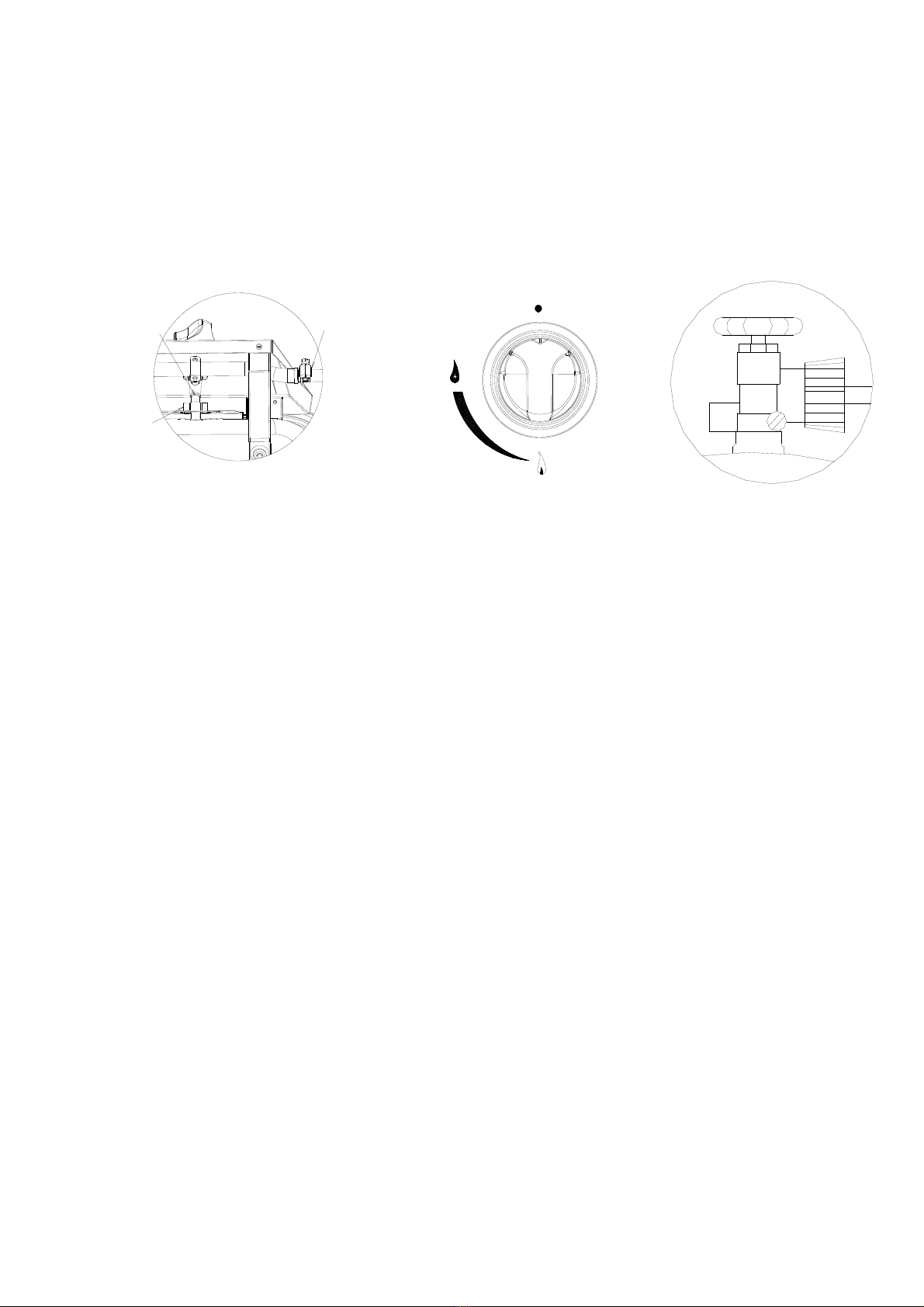

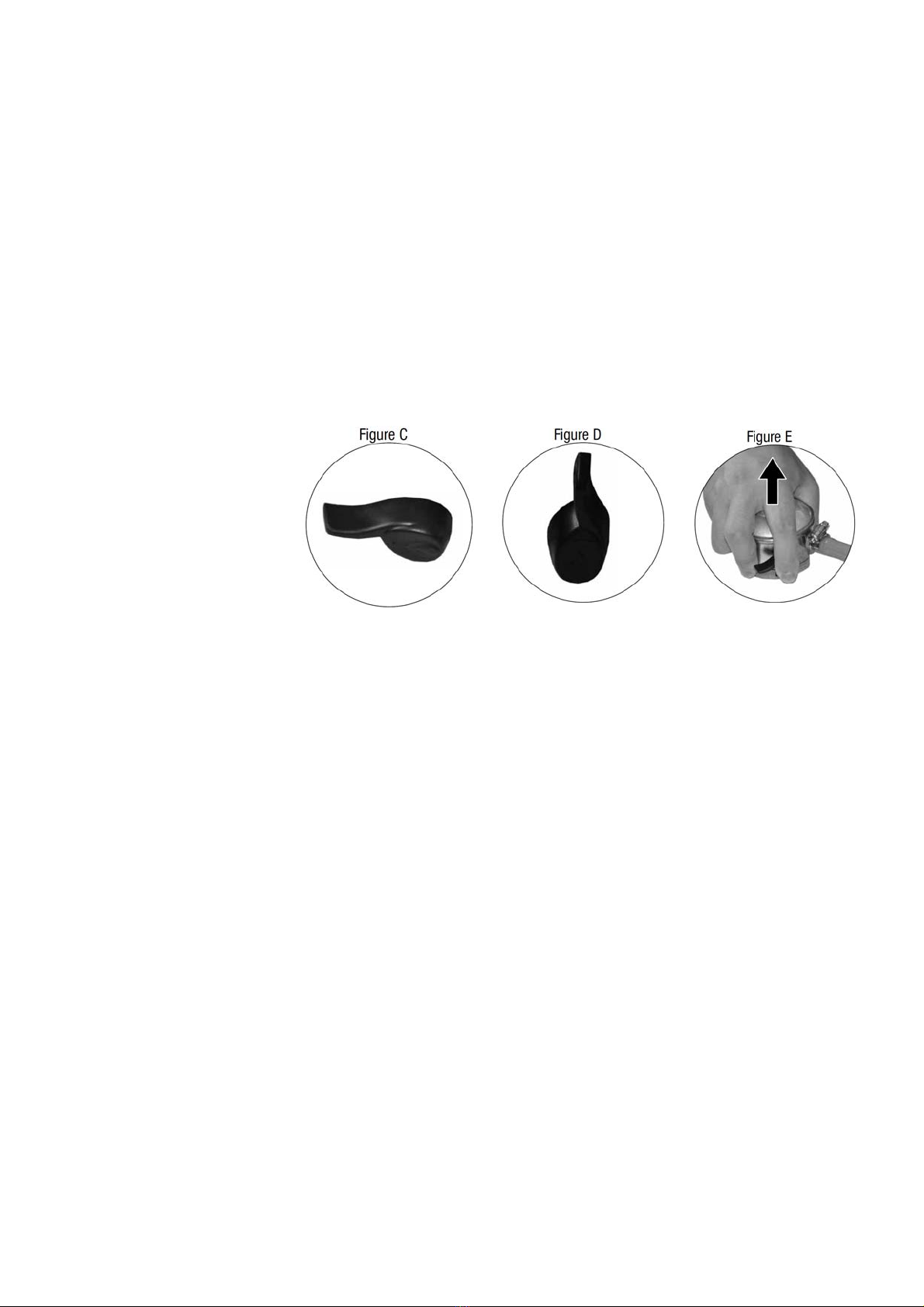

Connect Gas Cylinder
1. Make sure control knobs are “OFF” position.
2. The regulator rubber hose and regulator are properly and securely connected.
3. The regulator handle is in the “OFF” position. (Figure C).
4. Remove the seal cap from the automatic valve on the gas cylinder.
5. Place regulator onto the automatic valve on the gas cylinder. Press the regulator valve handle down firmly and
vertically. (Figure B).
6. You should hear a “click’’sound when the regulator is securely latched.
CAUTION: Never attempt to connect regulator when the regulator valve is not in the “OFF” position.
Operating Regulator
1. To turn regulator ON, turn the regulator valve handle clockwise into the “ON’’ position. (Figure D).
CAUTION: If you unable to turn the regulator valve handle to the “ON” position, your regulator is not properly
connected. Do not force the handle to open. Remove the regulator and repeat “Connect Gas Cylinder” section.
2. To Turn regulator OFF, turn the regulator valve handle counterclockwise into the “OFF” position. (Figure C).
Disconnect Gas Cylinder
1. Make sure control knobs are “OFF” position.
2. Turn the regulator valve handle in the “OFF” position. (Figure C).
3. Press the regulator valve handle down firmly and vertically, then pull regulator upwards. (Figure E).
CAUTION: Never attempt to disconnect regulator when the regulator valve handle is not in the “OFF” position.
Operation of Excess Flow Check Device
The regulator can be fitted a safety device designed to automatically limit the gas escape in case of gas leak, which
prevents the gas from reaching the grill. The marking “excess flow” on the regulator identification label means that the
regulator is provided with this option.
The “excess flow device” is likely to activate under the following condition
Normal operating conditions: Consumption of the gas fired appliance is higher that the regulator flow capacity. In such
case, you should contact your installer.
In case of pipe being torn off, proceed as follows:
1. Disconnect the regulator per the “Disconnect Gas Cylinder” section.
2. Re-fit the hose correctly
3. Connect the regulator per the “Connect Gas Cylinder” section.
4. Turn the regulator valve handle to the “ON” position.
5. Wait a few seconds (20 seconds) before restarting the system.
To guarantee a proper operation of the excess flow device, the pipe that supplier gas to the consuming appliance shall
be no more than 1.5 meters in length.
WARNING: The regulator is NEVER to be left on the cylinder without its being connected to the grill, as the tear-off
proof safety is not designed to ensure the operation of the cylinder valve.

19
Checking for Leaks
Burner Connections
1. Make sure the regulator valve and hose connections are securely fastened to the burner and the gas cylinder.
Visually check the connection between the burner venture pipe and orifice. Make sure the burner venture pipes fit over
the orifice.
WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can
cause death, serious bodily injury or damage of property.
2. Please refer to diagram for proper installation. (Figure 1).
Tank / Gas Line Connection
1. Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knobs are in “OFF” position. (Figure 2).
3. Connect gas cylinder per “Installing Gas Cylinder” section.
4. To turn regulator ON, turn the regulator valve counterclockwise into the “ON” position. (Figure D).
5. Spoon leak check solution at all “X” locations. (Figure 1, 3).
a. If any bubbles appear turn gas cylinder valve to “CLOSED”, reconnect and re-test.
b. If you continue to see bubbles after several attempts, turn gas cylinder valve to “CLOSED” and disconnect gas
cylinder, per “Disconnect Gas Cylinder’’ instruction.
c. If no bubbles appear after one minute turn gas cylinder valve to “CLOSED”, wipe away solution and proceed.
Operating Main Burners
First Use
1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Remove manufacturing oils before cooking on this grill for the first time by operating the grill for at least 15 minutes
on “HIGH’’ with the lid closed. This will ‘’heat clean’’ the internal parts and dissipate odors.
Lighting Instructions
CAUTION: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
CAUTION: Do not obstruct the flow of combustion and ventilation air.
CAUTION: Check and clean burner / venture tubes for insects and insect nests. A clogged tube can lead to a fire
beneath the grill.
CAUTION: Make sure the igniter wire was assembled on the igniter electrode properly before lighting.
IMPORTANT: Never light the appliance with HOOD in the closed position.
1. Open the barbecue hood.
2. Make sure there are no obstructions of airflow to the burners. Spiders and insects can nest within and clog the
burner / venture tube at the orifice.A clogged burner tube can lead to a fire beneath the appliance.
3. All control knobs are in the off position. (Figure 2)
Figure 3
X
X
X
X
X
Propane
gas valve
with orifice
Propane gas
connection
Burner
venturi
pipe
X
Main burne
r
Figure 1 Figure 2

20
4. Connect gas cylinder per “Installing Gas Cylinder” section.
5. To turn regulator ON, turn the regulator valve counterclockwise to the “ON” position. (Figure D)
Caution: If you are unable to turn the regulator handle to the “ON’’ position, your regulator is not properly connected.
Do not force the handle to open. Remove the regulator and repeat “Connect Gas Cylinder” section.
6. Push and turn left control knob counterclockwise to “HIGH”.
7. Press the (igniter) button quickly to light the burner. Repeat up to 3 - 4 times if the burner cannot be ignited
successfully.
8. If ignition does not occur within 5 seconds, turn the burner control knob “OFF”, wait 5 minutes, and repeat lighting
procedure.
9. If ignition does not light burner, use a lit match secured with the lighting rod provided to light burners manually.
Position the lit match near side of the burner. (Figure 4)
Important: Always use the lighting rod provided when lighting burners with a match.
10. After lighting, observe the burner flame, make sure all burner ports are lit and flame height matches illustration.
Note: For right burner, turn control knob counterclockwise to “HIGH”.
CAUTION: If burner flame goes out during operation, immediately turn the control knob to “OFF” position, turn the gas
cylinder valve to “CLOSED” and open lid to let the gas clear for 5 minutes before re-lighting.
Turning off
1. Turn gas cylinder valve to “CLOSED”
2. Turn all control knobs clockwise to the “OFF” position.
Note: A “poof” sound is normal as the last of the propane gas is burned.
3. Disconnect gas cylinder per “Disconnect Gas Cylinder” instructions.
CO Warning:
1. Carbon Monoxide (CO) is a colourless, odourless, highly poisonous gas that can kill in minutes. Carbon Monoxide
poisoning can be caused by ANY fuel that burns or smoulders.
2. The carbon monoxide from a badly adjusted barbecue can kill. Make sure exhaust from generators is properly
vented away from occupied areas.
3. Never take a barbecue – or lit charcoal into an enclosed space, like a tent or caravan. Barbecues in enclosed
spaces are lethal. Watch out for the symptoms – Mild headache / Dizziness / Nausea Vomiting / Fatigue /
Drowsiness.
Direct Cooking
CAUTION: Do not leave grill unattended while preheating, cooking or burning off food residue on “HIGH”. If grill has
not been cleaned, a grease fire can occur.
Cooking directly over lit burners is ideal for searing in juices and grilling food requiring less than 25 minutes of grilling
time, such as steaks, hamburgers, hot dogs, chicken parts, vegetables and fruit.
1. Open lid and ignite the desired burners per “Lighting Instruction” section.
2. Close lid and preheat grill on “HIGH”.
3. Wear protective gloves and use long handle tongs to place food onto cooking grids above the lit burners.
4. Adjust controls to desired flame height.
Figure 4
Table of contents
Other Wilko Grill manuals
