PL-80360
Networking Appliance
1U Rack-Mount / Desktop Intel® Atom Pineview Network
System, 6GbE, SATA, CF, mini-PCI, PCI & bypass
User’s Manual
Version 1.0, 9/10

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
2
© Copyright 2008. All Rights Reserved
Manual Edition 1.0, Dec., 2011
This document contains proprietary information protected by copyright. All rights are reserved; no
part of this manual may be reproduced, copied, translated or trans mitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable; the original manufacturer ass umes
no responsibility for any inaccuracies that may be contained in this manual. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without prior notice.
Trademarks
IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business Machine
Corporation
Award is a trademark of Award Software International, Inc
Intel is a trademark of Intel
RTL is a trademark of Realtek
VIA is a trademark of VIA Technologies, Inc
Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective co mpanies
Limitation of Lia bility
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liab ility resulting from errors or omissions in this document or from the use
of the information contained herein.
For more information on PL-80360 or other WIN ENTERPRISES products, please visit our website
http://www.win-ent.com.
For technical support send your inquiry to [e-mail].

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
3
Table of Contents
Chapter 1. General Information ...............................................................................4
1.1 Introducing.........................................................................................................4
1.3 Ordering Information .........................................................................................6
1.4 Packaging...........................................................................................................6
1.5 Precautions.........................................................................................................7
1.6 System Layout ...................................................................................................8
1.7 Board Dimensions..............................................................................................9
Chapter 2. Connector/Jumper Configuration.........................................................10
2.1 Connector/Jumper Location and Definition.....................................................10
2.2 Connector and Jumper Setting .........................................................................12
2.3 CompactFlash
TM
Card Socket Pin Define........................................................20
Chapter 3. BIOS Setup...........................................................................................22
3.1 Quick Setup......................................................................................................22
3.2 Entering the CMOS Setup Program.................................................................23
3.3 Menu Options...................................................................................................25
3.4 Advanced Menu ...............................................................................................25
3.6 Boot Menu .......................................................................................................44
3.7 Security Menu..................................................................................................48
3.8 Chipset Menu ...................................................................................................50
3.9 Exit Menu.........................................................................................................55
Chapter 4. Utility & Driver Installation.................................................................57
4.1 Operation System Supporting..........................................................................57
4.2 System Driver Installation ...............................................................................58
4.3 LAN Driver Installation...................................................................................58
Appendix A: Programming the Watchdog Timer...................................................59
Appendix B: LAN Bypass Function (optional).....................................................62
How to control LAN 1&2 bypass function by watchdog timer.............................62
How to control LAN 1&2 bypass function by GPIO ............................................62
Appendix C: System Resources.............................................................................63
Appendix D: Cable Development Kit....................................................................66

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
4
Chapter 1. General Information
1.1 Introducing
The PL-80360 is a desktop hardware platform designed for network service
applications. Built with Intel® Embedded IA components with warranty for
product longevity, the PL-80360 supports Intel® Atom™ D525, D425
low-voltage processors and ICH8-M I/O controller.
The platform supports high bandwidth DDR3 SODIMM slot with memory up to
4GB. In order to provide the best network performance and best utilization, the
powerful storage interfaces include one 2.5” SATA HDD and CompactFlash™.
In order to enhance network security performance, PL-80360 affords an
optional onboard Cavium Nitrox Lite CN505 chip to provide hardware-level
cryptographic acceleration. This can leave more CPU computing power for
higher layer packet processing. PL-80360 has six GbE Copper LAN ports with
bypass function on its front-panel. The front panel also has two USB 2.0 ports,
one RJ-45 console port and LED indicators to monitor power and storage
activities for local system management, maintenance and diagnostics. In
addition, the appliance supports one mini-card socket and is RoHS, FCC and
CE compliant.

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
5
1.2 Specifications
CPU Intel® Atom D525, D425 Processors
Chipset Intel® Pineview-D + ICH8-M chipset
Processor System
BIOS AMIBIOS
Technology Un-buffered and Non-ECC DDR3 800 MHz
memory
Memory
Capacity Up to 4GB with one SO-DIMM socket
Expansion Expansion Slots One mini-PCIe socket with USB bus only.
(Doesn’t support PCIe)(Optional)
GbE Ethernet six RJ45 GbE ports, Intel 82574L, PCI-E x1 (one
pair bypass between LAN1 and LAN2)
Ethernet
LAN bypass Two ports bypass (Optional)
SATA HDD One internal 2.5” SATA HDD bayStorage
Compact Flash
Socket
one CompactFlash
TM
Type II
USB two external USB2.0I/O
Serial one RJ45 Console port (COM1, RS232)
one internal 5x2 pin header (COM2)
Power Supply Watt 60W power supply, AC to DC 12V
Form Factor Desktop
LED 1 x Power LED (Green)
1 x HDD LED (Red)
1 x Bypass LED (Yellow)
6 pairs LEDs for 6 Etehernet ports Active/Link
status (Green)
Dimension （ W x D
x H ）
232mm (W) x 153mm (D) x 44mm (H)
(9.1W x 6” D x 1.7” H)
Operating
Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage
Temperature
-20 ~ 75°C (-4 ~ 167°F)
Mechanical and
Environment
Humidity 10 ~ 85% relative humidity, non-operating,
non-condensing
Weight 1pc/Box, 4kgs, 14cm(W) x 38cm(D) x 23.2cm(H)
5Boxes/CTN, 20kgs, 40cm(W) x 72.4cm(D) x 26.4cm(H)

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
6
Certification CE/FCC
1.3 Order Information
We offer some accessories for PL-80360 appliance for customer need.
PL-8036A Desktop Intel® ATOM D525 Network System, 6 x GbE, SATA, CF,
Bypass
PL-8036B Desktop Intel® ATOM D425 Network System, 6 x GbE, SATA, CF,
Bypass
PL-8036C Desktop Intel® ATOM D525 Network System, 6 x GbE, SATA, CF,
Bypass, Cavium CN505
DK001 Cable development kit
CB-CO5204-00 Cross over cable
CB -EC5200-00 Ethernet cable
CB -RJDB91-00 RJ45 Console cable
CB -DB9200-01 Null modem cable
CB -IVGA01-00 VGA cable
CB -IPS200-00 KB/MS cable
CB -IUSB01-00 USB cable
1.4 Packaging
Please make sure that the following items have been included in the package
before installation.
1. PL-80360 Appliance
2. Quick Installation Guide (Optional)
3. Cables (Optional)
4. CD-ROM that contains the following folders:
(1) Manual
(2) System Driver
(3) Ethernet Driver
(4) Utility Tools
If any of the above items are missing or damaged contact your sales person.
Keep the box and carton for shipping or storing PL-80360. After you unpack

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
7
the goods, inspect and make sure the packaging is intact. Do not plug in the
power adapter of the PL-80360 if you find it appears damaged.
Note: Keep the PL-80360 in the original packaging until you begin installation.
1.5 Precautions
Make sure you properly ground yourself before handling the PL-80360
appliance or any system components. Electrostatic discharge can be easily
cause damage.
Do not remove the anti-static packing until you are ready to install the
PL-80360 appliance.
Ground yourself before removing any system component from its protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the PL-80360 appliance by its edges and avoid touching the
components on it.

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
8

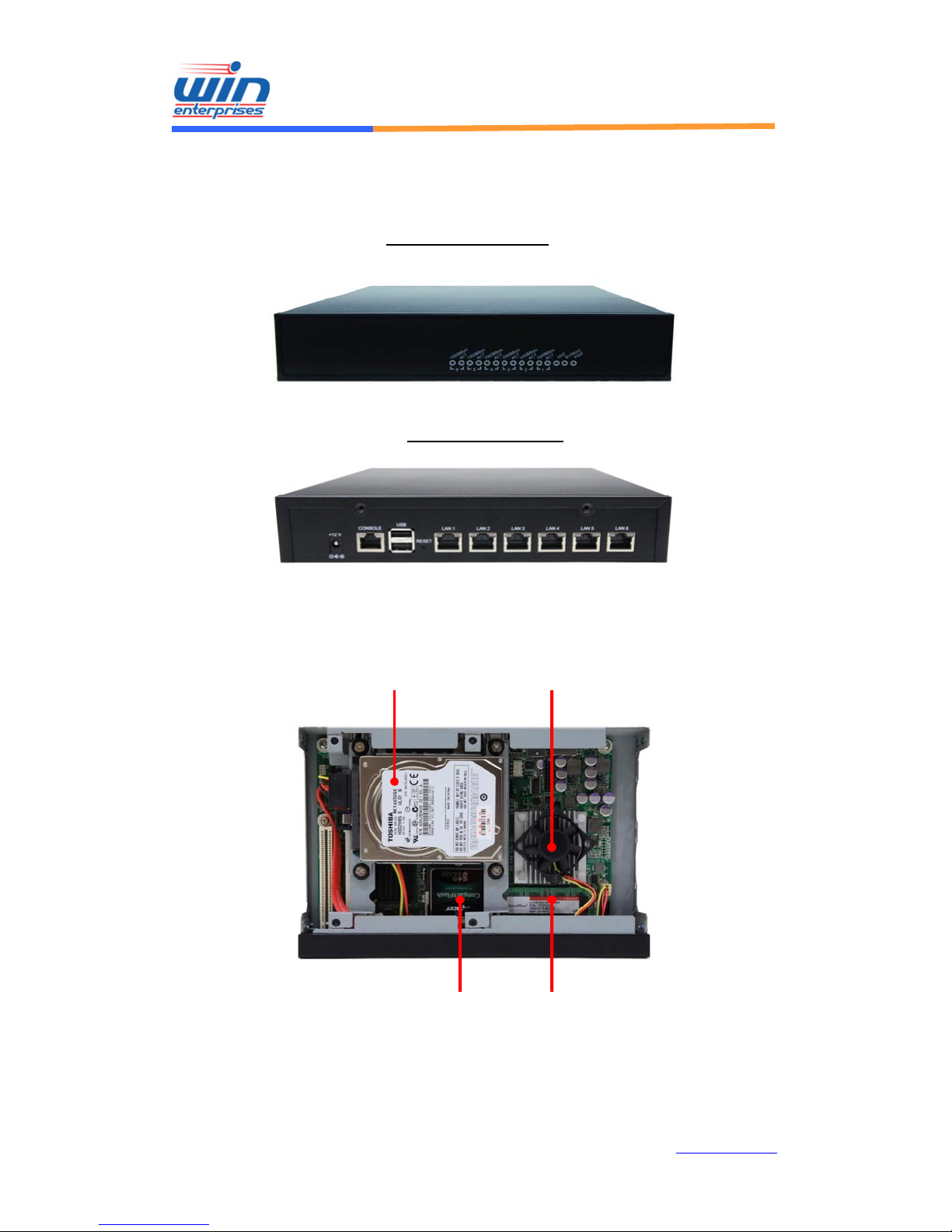

1.6 System Layout
SCB-6975 Front Side
SCB-6975 Rear Side
DDR3
SO-DIMM
CF card
2.5” SATA HDD Bay CPU

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
9

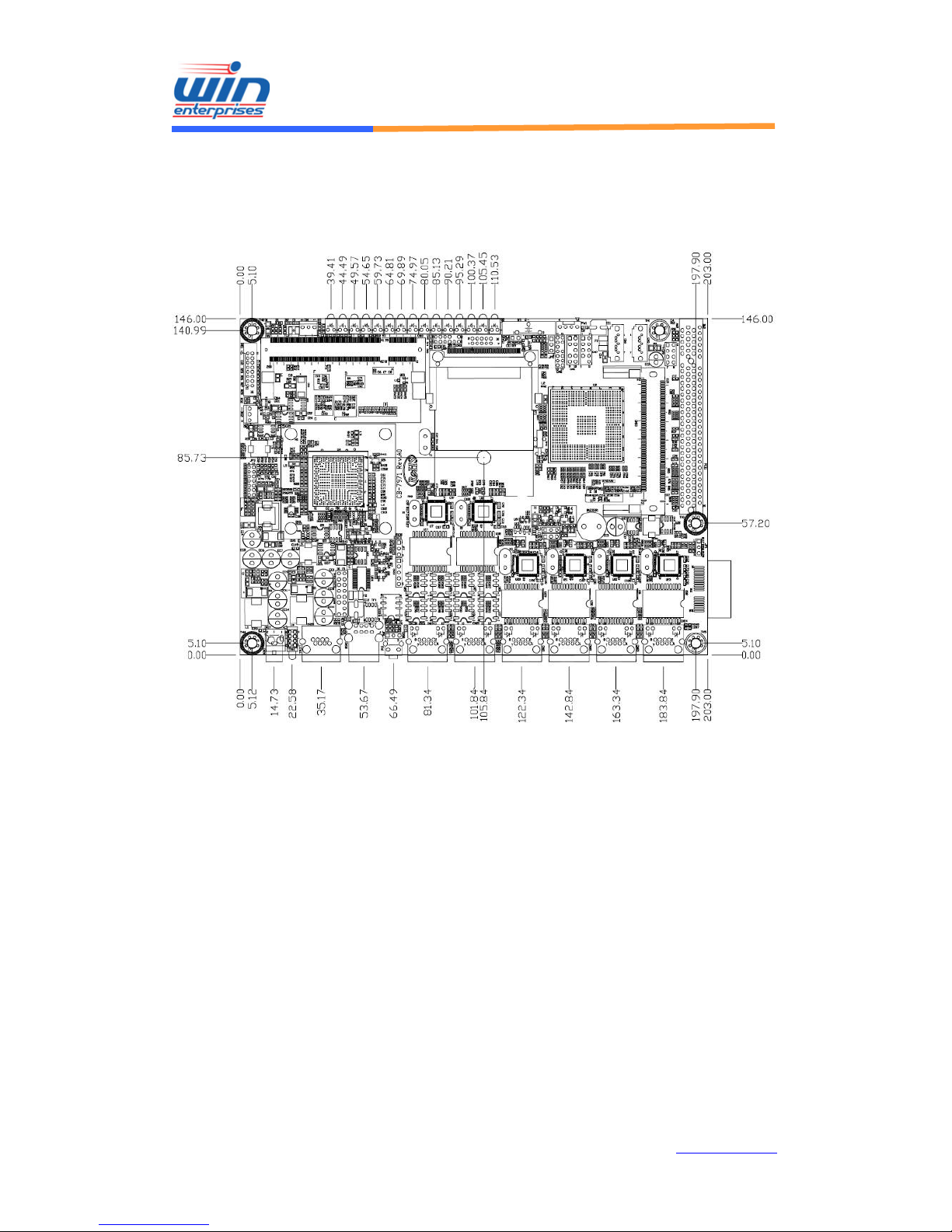

1.7 Board Dimensions

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
10
Chapter 2. Connector/Jumper Configuration
2.1 Connector/Jumper Location and Definition
CN12
CN11

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
11
CB-6975 Connectors and Jumpers:
Connector Define Connector Define
CN1 FAN Connector CN3 COM2 Pin Header
CN4 SATA Connector CN5 SATA Connector
CN6 PS2 KB/ MS Pin Header CN7 USB Pin Header
CN10 DDR3 SLOT CN11 VGA PORT
CN14 LCM KEY Pin Header CN12 FAN Connector
CN17 POWER Pin Header CN15 LCM Pin Header
CN19 LAN CONNECTOR CN18 USB CONNECTOR
CN21 LAN CONNECTOR CN20 LAN CONNECTOR
CN23 LAN CONNECTOR CN22 LAN CONNECTOR
CN25 COM1 CONNECTOR CN24 LAN CONNECTOR
PW1 HDD POWER PCI1 PCI SLOT
SW1 RESET/GPI BUTTON JP2 CLEAR CMOS
JP4 SELECT
WATCHDOG/BYPASS
CF1 CF SLOT
JP8 SELECT RESET/GPI JP5 SELECT BYPASS
Connector Description Connector Description
CN1 FAN Connector CN3 COM2 Pin Header
CN4 SATA Connector CN5 SATA Connector
CN6 PS2 KB/ MS Pin Header CN7 USB Pin Header
CN10 DDR2 SLOT CN11 VGA PORT
CN14 LCM KEY Pin Header CN12 FAN Connector
CN17 POWER JACK / Pin Header CN15 LCM Pin Header
CN19 LAN CONNECTOR CN18 USB CONNECTOR
CN21 LAN CONNECTOR CN20 LAN CONNECTOR
CN23 LAN CONNECTOR CN22 LAN CONNECTOR
CN25 COM1 CONNECTOR CN24 LAN CONNECTOR
CN28 Mini-PCIe SLOT(USB) CN29 PCIE x4 SLOT(PCIE x2)
CN30 Mini-PCIe LAN Card Status
LED
PCIE x1 PCIE x1 SLOT
PW1 HDD POWER CF1 CF SLOT
SW1 RESET/GPI BUTTON JP2 CLEAR CMOS
JP4 SELECT WATCHDOG / JP5 SELECT BYPASS

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
12
BYPASS
JP8 SELECT RESET/GPI JP9 SELECT +5V VOLTAGE
2.2 Connector and Jumper Setting
CN1/CN12: CPU/System FAN
Pin Define
1 Ground
2 +12V
3 Speed Detect
CN3: COM2 pin header
Pin Define Pin Define
1 DCD# 6 DSR#
2 RXD# 7 RTS#
3 TXD# 8 CTS#
4 DTR# 9 RI#2
5 Ground 10 NC
CN4/CN5: SATA Connector

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
13
Pin Signal
1 Ground
2 TXP
3 TXN
4 Ground
5 RXN
6 RXP
7 Ground

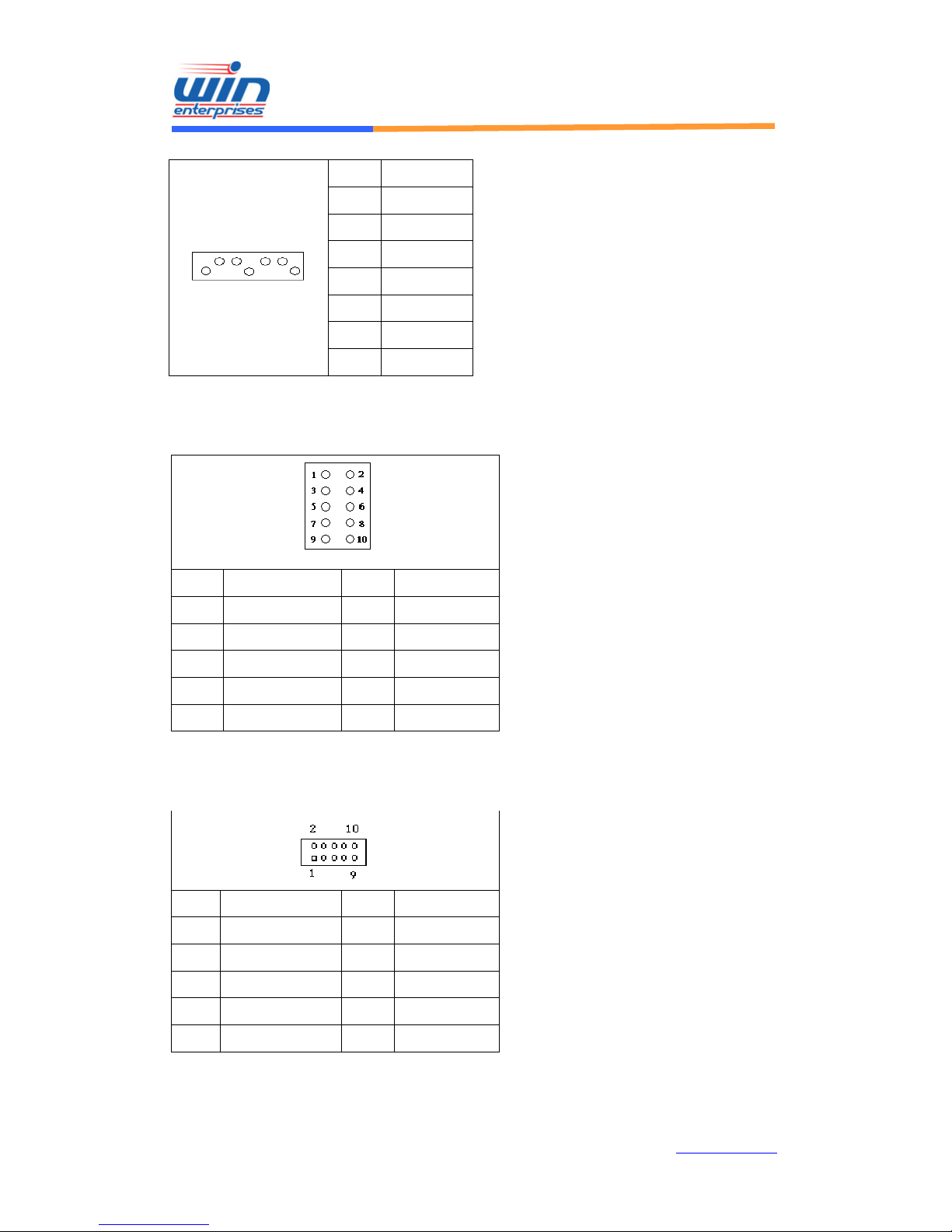

CN6: PS/2 KB/MS Pin Header
Pin Define Pin Define
1 KCLK 2 MCLK
3 KDAT 4 MDAT
5 N/A 6 N/A
7 PS2_GND 8 PS2_GND
9 PS2_VCC 10 PS2_VCC
CN7: USB Pin Header
Pin Define Pin Define
1 +5V 2 +5V
3 USB1N 4 USB2N-
5 USB1P 6 USB2P
7 Ground 8 Ground
9 N/A 10 Ground

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
14
CN11: VGA pin header
Pin Define Pin Define
1 RED 2 GREEN
3 BLUE 4 Reserved
5 GND 6 RED RTN
7 GREEN RTN 8 BLUE RTN
9 +5V 10 GND
11 Reserved 12 SDA
13 HSYNC 14 VSYNC
15 SCL 16 Reserved
CN14: LCM KEYPAD Pin Header
1
2
3
4
5
Pin Define
1 ACK#
2 BUSY
3 PE
4 SLCT
5 Ground
CN15: LCM Pin Header
2
3
6
8
10
12
14
16
1
5
7
9
11
13
15

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
15
Pin Define Pin Define
1 +5V 2 Ground
3 AFD# 4 N/A
5 INIT# 6 SLIN#
7 PD1 8 PD0
9 PD3 10 PD2
11 PD5 12 PD4
13 PD7 14 PD6
15 BLN 16 BLP
CN17: DC +12V Power Jack (2Pin)
11
22
Pin Define Pin Define
1 +12V 2 GND
CN19/CN20/CN21/CN22/CN23/CN24: LAN RJ-45 Connector
Pin Define
1 TX+
2 TX-
3 RX+
4 Chassis Ground
5 Chassis Ground
6 RX-
7 Chassis Ground
8 Chassis Ground
D1: Speed indicated LED

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
16
1 Gbps GREEN
100 Mbps YELLOW
D2 :Link/Activity LED
Link GREEN
Activity BLINKING

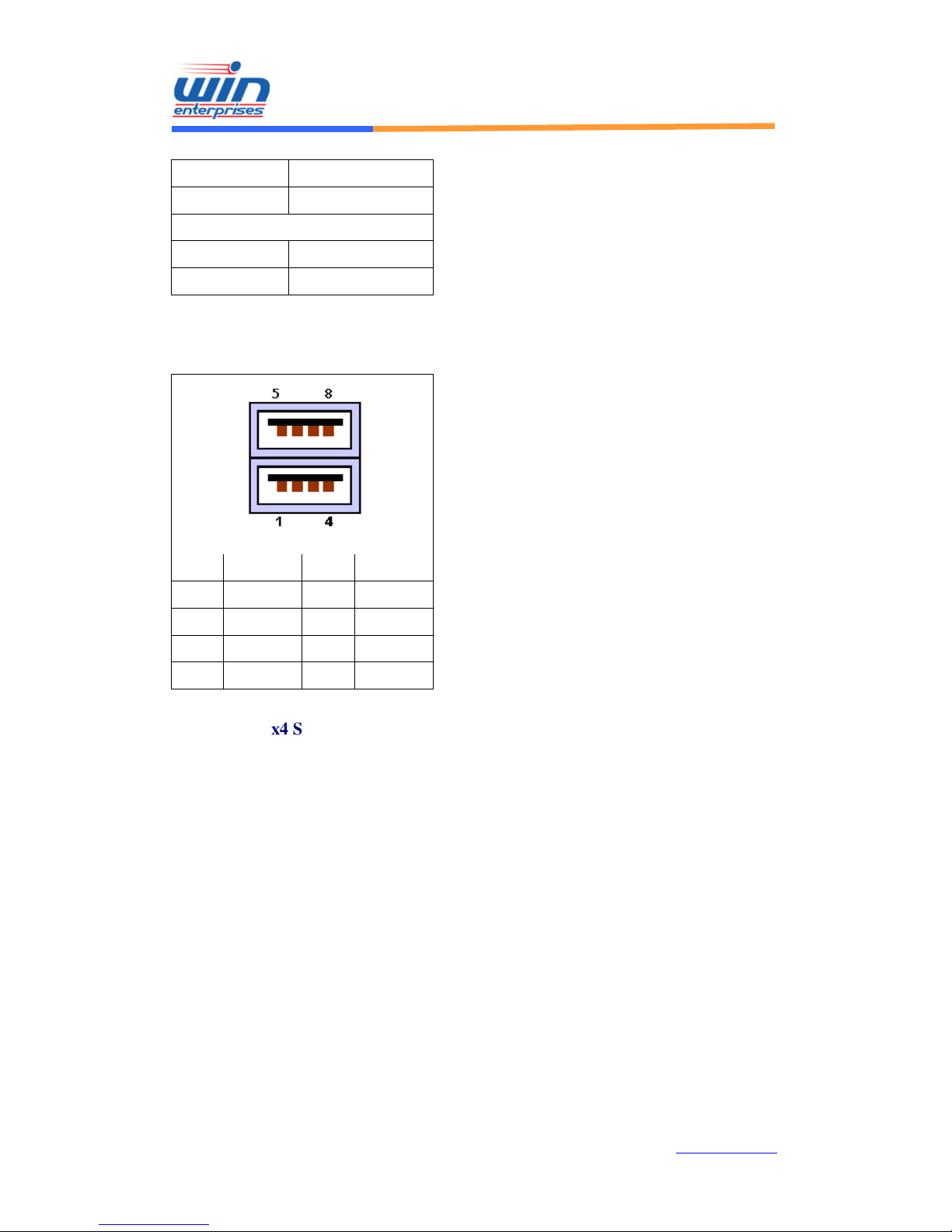

CN18: USB Connector
Pin Define Pin Define
1 +5V 2 DATA0-
3 DATA0+ 4 GND
5 +5V 6 DATA1-
7 DATA1+ 8 GND
CN29: PCIE x4 SLOT

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
17
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
PRSNT1#
+12V
+12V
GND
TCK
TDI
TDO
TMS
+3.3V
+3.3V
RST#
GND
CLK+
CLK-
GND
RP0
RN0
GND
RSVD
GND
RP1
RN1
GND
GND
RP2
RN2
GND
GND
RP3
RN3
GND
RSVD
+12V
+12V
+12V
GND
SMCLK
SMDAT
GND
+3.3V
TRST#
3.3Vaux
WAKE#
RSVD
GND
TP0
TN0
GND
PRSNT2-1#
GND
TP1
TN1
GND
GND
TP2
TN2
GND
GND
TP3
TN3
GND
RSVD
PRSNT2-2#
GND
Pin Define Pin Define
B1 +12V A1 GND
B2 +12V A2 +12V
B3 +12V A3 +12V
B4 GND A4 GND
B5 SMBCLK A5 +3.3V
B6 SMBDAT A6 +3.3V
B7 GND A7 TEST
B8 +3.3V A8 +3.3V
B9 NC A9 +3.3V
B10 +3.3V A10 +3.3V
B11 NC A11 PLTRST

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
18
B12 PWROK A12 GND
B13 GND A13 PCIECLKP
B14 TXP5 A14 PCIECLKN
B15 TXN5 A15 GND
B16 GND A16 RXP5
B17 SLOT_+5V A17 RXN5
B18 GND A18 GND
B19 TXP6 A19 SLOT_+5V
B20 TXN6 A20 GND
B21 GND A21 RXP6
B22 GND A22 RXN6
B23 NC A23 GND
B24 NC A24 GND
B25 GND A25 NC
B26 GND A26 NC
B27 NC A27 GND
B28 NC A28 GND
B29 GND A29 NC
B30 NC A30 NC
B31 PCIESEL A31 GND
B32 GND A32 NC

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
19
CN30: M ini-PCIe LAN Card Status LED
1
2
Pin Define Pin Define
1 LED1_WLAN# 2 +3.3V
PW1: HDD POWER
1
2
3
4
Pin Define
1 +12V
2 GND
3 GND
4 +5V

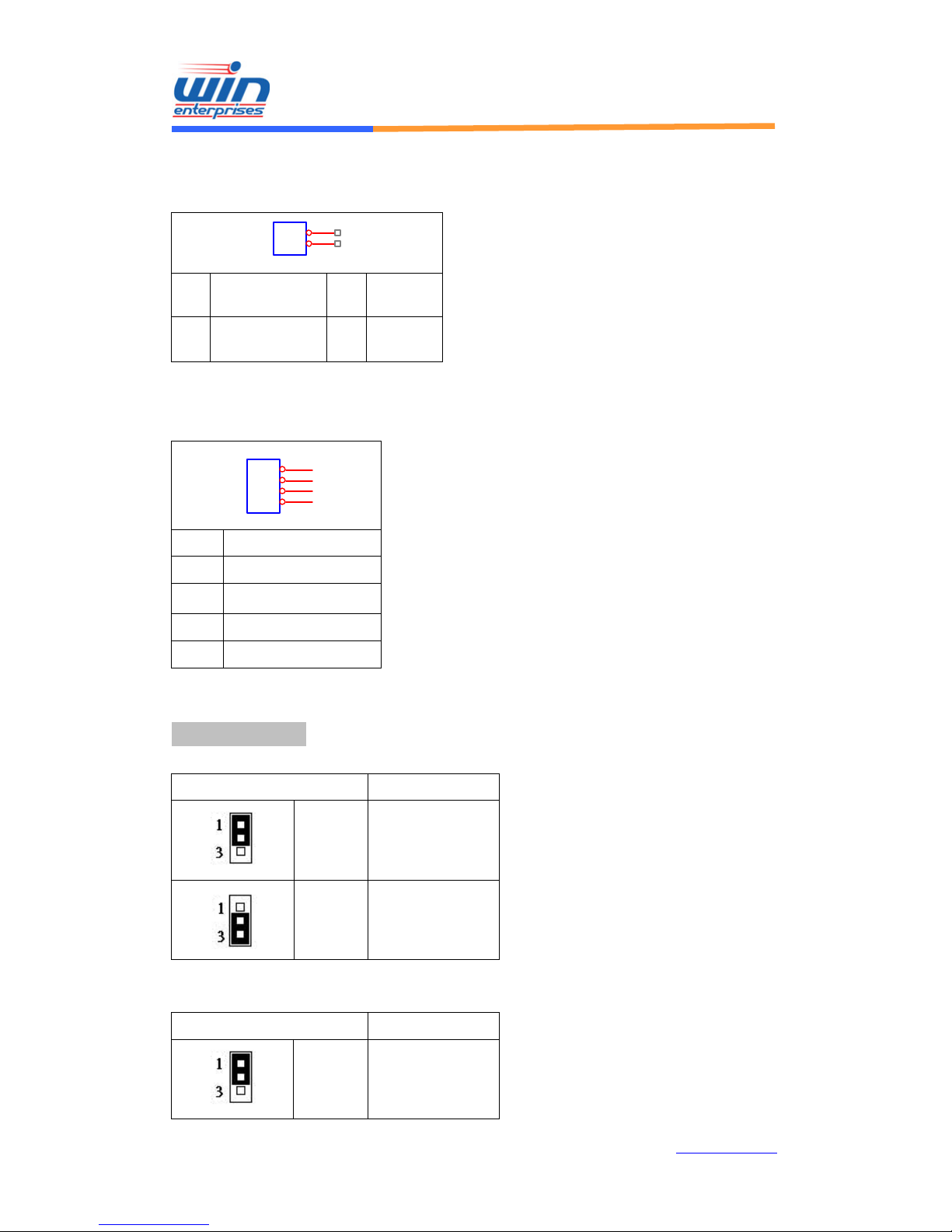

Jumper Setting
JP2: Clear CMOS
Pin Setting
1-2 Normal
(Default)
2-3 Clear CMOS
JP4: Select Watch Dog/Bypass
Pin Setting
1-2 Watch Dog

User’s Manual
WIN Enterprises, Inc., [e-mail], [phone], www.win-ent.com
20
2-3 Bypass
JP5: Select Bypass
Pin Setting
1-2 Bypass Enable
2-3 Bypass Disable
JP8: Select Reset/GPI
Pin Setting
1-2 GPI
2-3 RESET
2.3 CompactFlash
TM
Card Socket Pin Definitions
CompactFlash
TM
card is a small removable mass-storage device. It can
provide complete PCMCIA-ATA functionality and compatibility, plus True IDE
functionality compatible with ATA/ATAPI-4.
CompactFlash
TM
storage products are solid state form factors, meaning they
contain no moving parts. Thus, they provide users with much greater data
protection than conventional magnetic disk devices.
Pin As signment Pin Assignment Pin As signment Pin Assignment Pin Assignment
1 Ground 11 Ground 21 D00 31 D15 41 RESET
2 D03 12 Ground 22 D01 32 CS 42 ORDY
3 D04 13 VCC 23 D02 33 NC 43 DREG
4 D05 14 Ground 24 WP 34 IOR 44 DACK
