Win4NET AOD9836 User manual

Instruction Manual
AOD9836, AOD98TIR36, AOD9812
AOD98TIR12, AOD9912, AOD99TIR12
AOD9985, AOD99TIR85

Precaution
■ Do not open or modify
Do not open the case except during maintenance and
installation, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or
damages.
■ Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to
strong shock or vibration.
■ Install away from electric or magnetic fields
■ Protect from humidity and dust
■ Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen
or boiler room, as the temperature may rise to high levels.
■ Cleaning
Dirt can be removed from the case only by wiping it with
a soft cloth moistened with a soft detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to
support the camera.
2

Troubleshooting
Before sending the camera out for repair, check the items below. If the problem persists
after checking these items, contact your service center.
■ If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■ If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly
3

FEATURES (AOD9836, AOD98TIR36, AOD9812)
■ 1/3” 960H Shaprp CCD
■ 700TV lines
■ Smart 2D-DNR
■ D-WDR(Digital Wide Dynamic Range)
■ True Day Night (AOD98TIR36)
■ 100ft IR Range (AOD98TIR36)
■ 3.6mm fixed board lens (AOD9836, AOD98TIR36)
■ 3.3~12mm Varifocal Auto Iris lens (AOD9812)
■ Smart LED
■ HME(Highlight Masking Exposure)
■ SMART BLC
■ AGC/AWB
■ Easy Focus Tool
■ Easy Icon Driven OSD Menu with Built-in Jo■
■ Private Masking (8)
■ Night-up
■ Live DPC (Defective Pixel Cancellation)
■ Easy Focus Tool
■ Secondary Video-BNC Output
■ 12VDC only (AC/DC dual power is optionally available)
■ IP66 certified (Vandal resistance)
4

FEATURES
(AOD98TIR12, AOD9912, AOD99TIR12, AOD9985,
AOD99TIR85)
■ 1/3” 960H Sharp CCD
■ 700TV lines
■ WDR (MAX DR)
■ True Day Night (AOD98TIR12, AOD99TIR12, AOD99TIR85)
■ 100ft IR Range (AOD98TIR12, AOD99TIR12, AOD99TIR85)
■ 3.3~12mm Varifocal Auto Iris lens (AOD9912, AOD99TIR12)
■ 2.9~8.5mm Omnifocus 3x zoom & Varifocal Auto Iris lens (AOD9985, AOD99TIR85)
■ Smart 3D-DNR
■ Smart LED
■ Sense-up (x258)
■ HME (HiGhlight Masking Exposure)
■ Private Masking (8) & Motion Detection
■ BLC/AGC/AWB
■ Night-up
■ Live DPC (Defective Pixel Cancellation)
■ Easy Icon Driven OSD Menu with Built-in Joystick
■ Easy Focus Tool
■ Secondary Video-BNC Output
■ 12VDC only (AC/DC dual power is optionally available)
■ IP66 certified (Vandal resistance)
5

SPECIFICATION (AOD9836, AOD98TIR36, AOD9812)
6
TYPE HIGH NTSC HIGH PAL
CCD TYPE (SONY) 1/3" 520K Pixels Color 1/3" 610k Pixels Color
Pixels 1020(H) X 507 (V) 1020(H) X 595(V)
Resolution 650 TV Line [Color]
700TVLine [T.D.N (B/W)]
Minillumination 0.3Lux [(F1.2, 30IRE), (at COLOR)]
(F1.2, 30IRE) 0.04Lux [(F1.2, 30IRE), (at TDN(B/W)]
S/N ratio 52dB
GAMMA 0.45/0.6/1.0/MANUAL
Shutter speed 1/60 [sec] ~ 1/100,000[sec] 1/50 [sec] ~ 1/100,000[sec]
MotionDetection 4 Zone
DNR 2D
D-WDR D-WDR (OFF / ON)
Mirror Off / Mirror
PrivacyMasking Zone 8 Zone
Sync system Internal
Voltagerange 10.0[V] ~ 16.0[V]
Powerconsumption MAX 1.0 [W] (10% up)

SPECIFICATION (AOD98TIR12, AOD9912, AOD99TIR12, AOD9985,
AOD99TIR85)
7
TYPE HIGH NTSC HIGH PAL
CCD TYPE (Sharp) 1/3" 520K Pixels Color 1/3" 610k Pixels Color
Pixels 1020(H) X 507 (V) 1020(H) X 595(V)
Resolution 650 TV Lines (at COLOR)
700 TV Lines (at B/W)
Min illumination 0.3Lux [(F1.2, 30IRE), (at COLOR)]
0.04Lux [(F1.2, 30IRE), (at TDN(B/W)]
S/N ratio 50dB
GAMMA 0.45
Shutterspeed 1/60 [sec] ~ 1/100,000[sec]1/50 [sec] ~ 1/100,000[sec]
Sense-up x256
Motion Detection 16 * 15 Zone
MAX-DROff / ON
Mirror Off / Mirror
PrivacyMasking Zone 6 Zone
Syncsystem Internal or Line Lock
Voltagerange 10.0[V] ~ 16.0[V]
Powerconsumption Max 1.2 [W]

DIMENSIONS IN MILLIMETERS
8
Camera with 3.6mm Fixed Board Lens
Camera with Varifocal Autoiris Lens
94.1
32.8
48.8
Ø140.1
82.5
88.0
82.5
5.0
8.0
46.0
32.8
47.8
Ø140.1
170.0
182.0
170.0
182.0
R5.0

9
OSD MENU (AOD9836, AOD98TIR36, AOD9812)
EXPOSURE COLOR DAY NIGHT
FUNCTION MOTION PRIVACY
SET-UP EXIT
LENS
MANUAL, DC
BACKLIGHT
OFF / BLC / HME / D-WDR
AGC
OFF / LOW / MID / HIGH / HIGHEST
2D-DNR
OFF / LOW / MIDDLE / HIGH
EXIT JUMP
SAVE & EXIT / EXIT
WB MODE
AWC / ATW / MANUAL / PUSH
RED GAIN
0~255
BLUE GAIN
0~255
COLOR MODE
NORMAL / COOL / WARM
EXIT JUMP
SAVE & EXIT / EXIT
DAY & NIGHT
AUTO / COLOR / B&W
NIGHT C.
0~100
NIGHT A.
0~100
EXIT JUMP
SAVE & EXIT / EXIT
MIRROR
MIRROR / OFF
SHARPNESS
0~30
GAMMA
MANUAL / 0.45 / 0.60 / 1.0
SLC
OFF / ON
NIGHT-UP
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
AREA SET
AREAS 1~4 OFF / ON
SENSITIV.
1~30
SHOW INDI.
OFF / ICON / TRACE
EXTER-OUT.
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
MASK1
OFF / ON
MASK2
OFF / ON
MASK3
OFF / ON
MASK4
OFF / ON
MASK5
OFF / ON
MASK6
OFF / ON
MASK7
OFF / ON
MASK8
OFF / ON
EXIT JUMP
SAVE & EXIT / EXIT
TITLE
OFF / ON
DPC SET
OFF / AUTO
MONITOR
MODE1 / MODE2
LANGUAGE
ENGLISH /
DEUTSCH, FRENCH, ITALIAN, RUSSIAN,
SPANISH, DUTCH
OSD COLOR
BLUE / GREEN / CYAN / RED /
MAGENTA / YELLOW / PURPLE / GRAY
COMMUNICA.
OFF / ON
FACTORY SET.
NO / YES
EXIT JUMP
SAVE & EXIT / EXIT
SAVE & EXIT
EXIT

OSD MENU (AOD98TIR12, AOD9912, AOD99TIR12, AOD9985,
AOD99TIR85)
10
13

11
Installation - 3.6mm Fixed Lens Models
1 Use the supplied hexagon wrench to remove the four fixing
screws (B) of dome cover (A).
2 Make screw holes and a cable hole in the supplied cushioning
sheet (D) that attaches to the back of the camera unit (C) .
3 Attach the cushioning sheet (single-sided tape)(D) to the back of the
camera unit.(C).
4 Align the camera unit with the surface of the ceiling, make marks on
the ceiling in the places where the screw holes are to be drilled, and
then drill the four holes.
5 Cut a hole (diameter:73mm) in the ceiling for routing the cables.
6 Pass the power cable (E) and video cable (F) from the camera unit
through the cable hole in the ceiling.
7 Align the four screw holes in the camera unit (C) with the screw holes
in the ceiling, and then secure the camera in place by tightening the
four or more screws (G) throught the washers.
8 Carry out the settings and adjustments for the camera.
9 If the dome liner (H) is secured in place, loosen the screw (I).
Adjust the dome liner (H) so that the dome camera's lens is visible
from the camera window, and then use a philips screwdriver to fix the
dome cover.
10 Secure the dome cover (A) by tightening the screws (B).
A
B
C
D
E
G
F
I
A
B
C
D
E
G
F

12

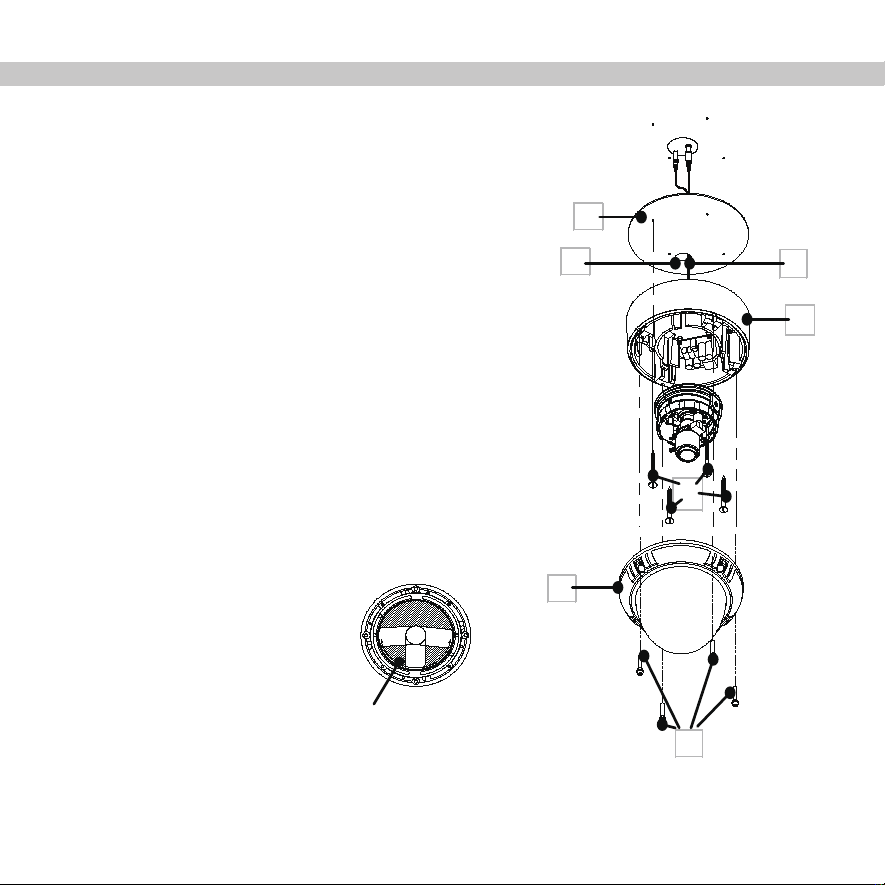

Installation - Varifocal Lens Models
1 Use the supplied L-wrench to remove the four fixing screws (B)
of dome cover (A).
2 Align the camera unit with the surface of the ceiling,
make marks on the ceiling in the places where the
screw holes are to be drilled, and then drill the four holes.
3 Cut a hole (diameter2.9in.73mm) in the ceiling for routing the
cables.
4 Pass the power cable (E) and video cable (F) from the
camera unit through the cable hole in the ceiling.
5 Align the four screw holes in the camera unit (D) with
the screw holes in the ceiling, and then secure the
camera in place by tightening the four or more screws
(C) throught the washers.
6 Carry out the settings and adjustments for the camera.
7 Secure the dome cover (A) by tightening the screws (B).
A
B
D
C
E
F

13
Connection
DC12V Camera
AC/DC Dual Camera
Caution
Check for polarity when using a
DC 12V power supply.
Caution
Check for polarity when using a
DC 12V or AC 24V power
supply.

14
Adjusting the Varifocal auto iris lens
360˚
60˚
Zoom
Focus
360˚
78˚
Focus
1. Move the Zoom lever until you get the desired position.
2. Move the Focus lever until you get the desired focus.

15
Camera OSD Key
DC12V Camera
AC/DC Dual Camera
2ND VIDEO
CONNECTOR
ENTER
ENTER
2ND VIDEO
CONNECTOR

16

17
