Winegard TPLE-15 User manual

INSTALLATION OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS. Watch out for overhead power lines. Check the distance to
the power lines before installing. Stay a minimum of twice the length of the antenna plus the length of the mast from all power lines.
Winegard®Telescoping Pole TPLE-15 Quick Start Guide
SETUP
CONTENTS:
• 4 pole sections
preassembled
• cable strap kit
a
b

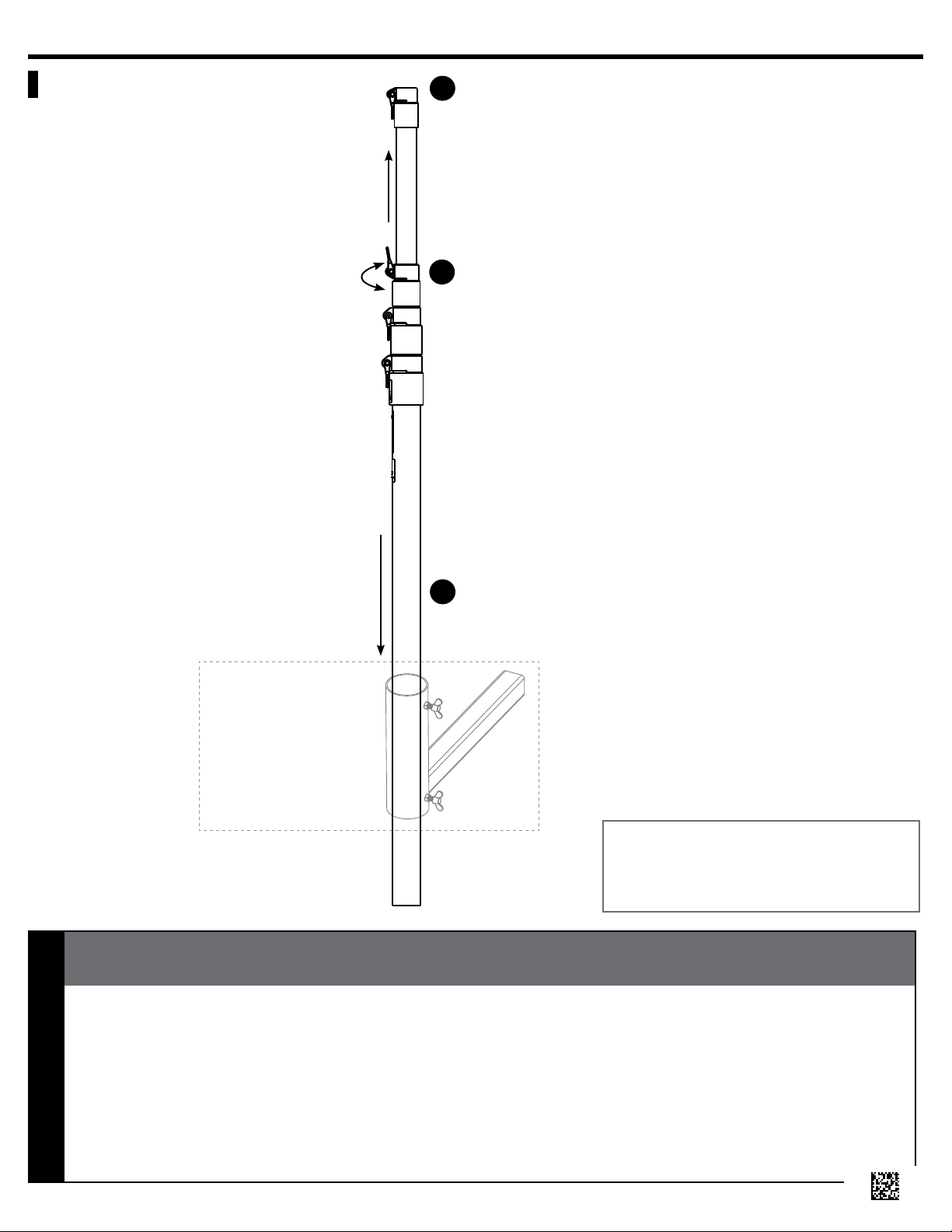

1PLACE pole through hitch mount (required,
not supplied) until secure on the ground and
tighten until snug. Do not overtighten (a).
WARNING: Failure to properly secure pole in support
bracket may result in serious injury or death.
2ATTACH top mount, if required (not
supplied), to antenna (not supplied), and
attach to pole (b). Check for adequate
clearance from power lines or other
obstructions before raising unit.
WARNING: INSTALLATION OF THIS PRODUCT
NEAR POWER LINES IS DANGEROUS. Watch out
for overhead power lines. Check distance to power
lines before installing. Stay a minimum of twice the
length of the antenna plus the length of the mast from
all power lines
3FLIP thumb latch up on next section of pole
to the open position and extend top section.
Secure cable to pole with provided cable
strap. Press thumb latch down to lock (c).
Do not raise past the red line on pole.
4REPEAT on middle and bottom sections as
in step 3 (do not raise past the red line on
each section) , until desired height reached.
Max height 15 ft.
WARNING: Pole must be removed prior to vehicle/
camper moving. Failure to do so may cause damage
or death.
TIPS / WARNINGS
Keep telescoping pole vertical when raising or lowering.
Do not raise pole sections above visual mark on pole to ensure pole
strength and pole sections do not become separated when raising.
To ensure proper resistance on locking mechanism, push thumb
tab up and turn silver screw counterclockwise to desired tightness.
Pole sections need to slide up and down with some friction between
pole and locking mechanism.
E6000 GLUE is recommended if locking mechanism becomes
loose on pole. Readily available online or in local hardware stores.
Lower pole to under 8 ft in winds over 35 mph.
If ice is expected, lower and store pole. Locking mechanisms will
become inoperable if ice builds up in latch or pipe unit and will not
be able to be lowered until ice has thawed.
Have adequate help raising and lowering pole system to maintain
control of the structure.
Not intended for ON/OFF road usage. Pole must be removed prior
to moving vehicle/RV.
Pole compatible ONLY with Winegard approved products. For
complete list see Winegard website. Use with any other products
will void Product Warranty.
c
Works with Winegard approved products
and accessories. For complete list see
Winegard website. Use with any other
products will void Product Warranty.
hitch mount HMK-300
(required, not included)
Hitch mount (required, not included)

Winegard®Telescoping Pole TPLE-15 Quick Start Guide

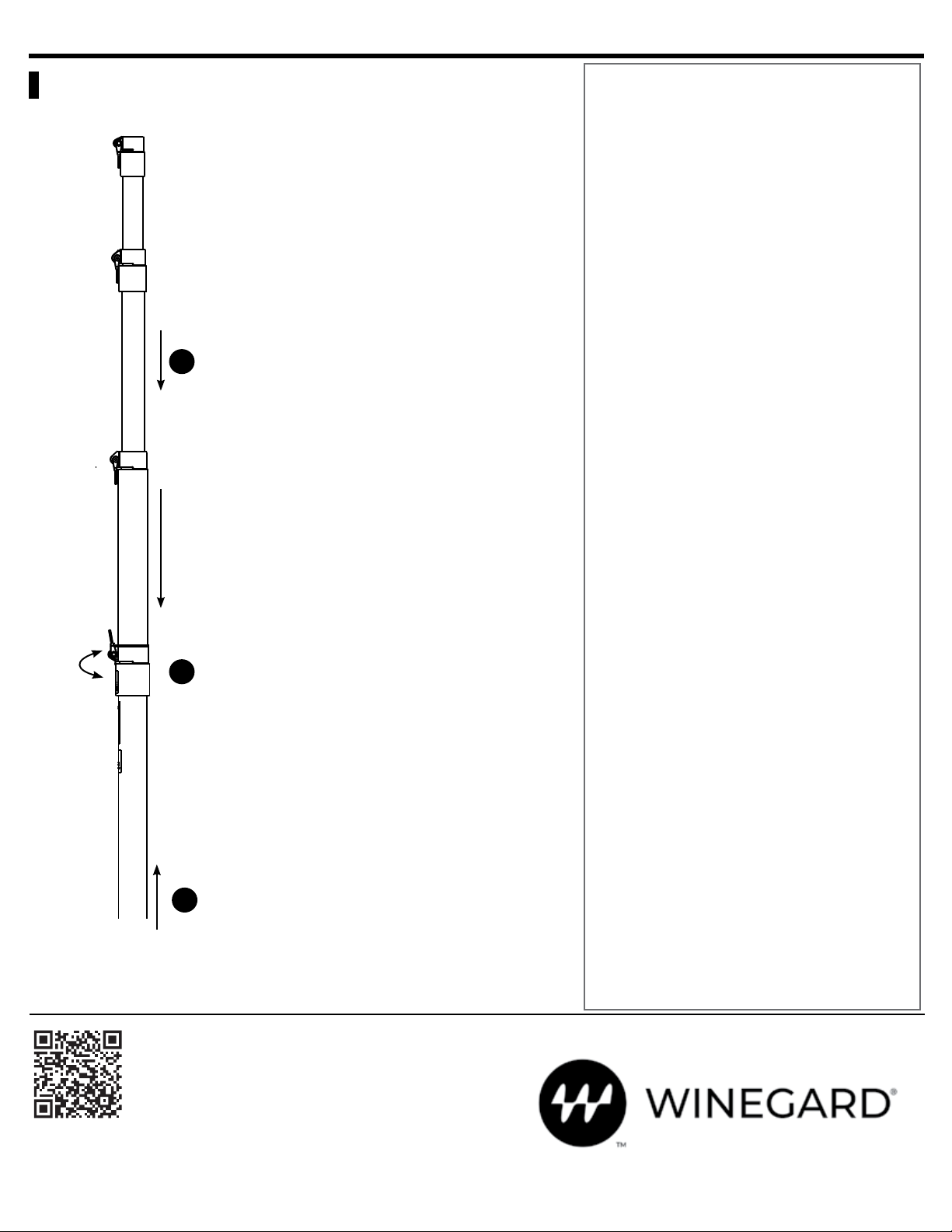

1COLLAPSE in reverse
order: Hold section 2,
release section 1 thumb
latch, slowly lower section
2 with both hands until
collapsed. Re-engage
thumb latch to lock (a).
WARNING: Do not allow the pole to
free fall into lower position.
2PROCEED to next section
until all sections
are collapsed (b). Remove
antenna from pole.
3REMOVE pole (c). Must be
removed prior to moving
vehicle/RV.
WARNING: Pole must be removed
prior to vehicle/camper moving.
Failure to do so may cause
damage or death.
LOWERING THE POLE
a
b
c
For help, send an email to [e-mail] or call 1-800-788-4417
2452491 Rev7/22
For more
product details,
visit Winegard’s
website.
Winegard Company 2736 Mt. Pleasant St. |Burlington, IA 52601
Printed in U.S.A. © 2022 Winegard Company
All trademarks and tradenames are copywrited and are the property of their respective owners.
Winegard is a registered trademark of Winegard Company.
2
1
3
4
