User Manual
12V CAR JUMP STARTER
and portable power bank
AC56388
AC56388-60 / AC56388M-60 / AC56388F-60

2
PACKAGE CONTENTS:
Power Bank
USB Cable and Car Adaptor User Manual
Storage Case
Jumper Cable with
Smart & Safe Protection

3
TECHNICAL SPECIFICATIONS:
Product Dimensions: 5.43 x 3.07 x 1.06 in (138 x 78 x 27 mm)
Product Weight: 0.773 lbs (351g)
Internal Battery: Lithium-Ion
Capacity: Up to 8000 mAh (3.7V)
Input Voltage: 5V 2A
USB Output Voltage: 5V (2.4A + 2.1A)
Jump Start Current: 200A - 350A
Operating Temperature: -4ºF ~ 93ºF (-20ºC ~ 34ºC)
Storage Temperature: -4ºF ~ 104ºF (-20ºC ~ 40ºC) Avg. Temp.
Charging Temperature: 32ºF ~ 104ºF (0ºC ~ 40ºC)
Charging Time: 4-5 hours

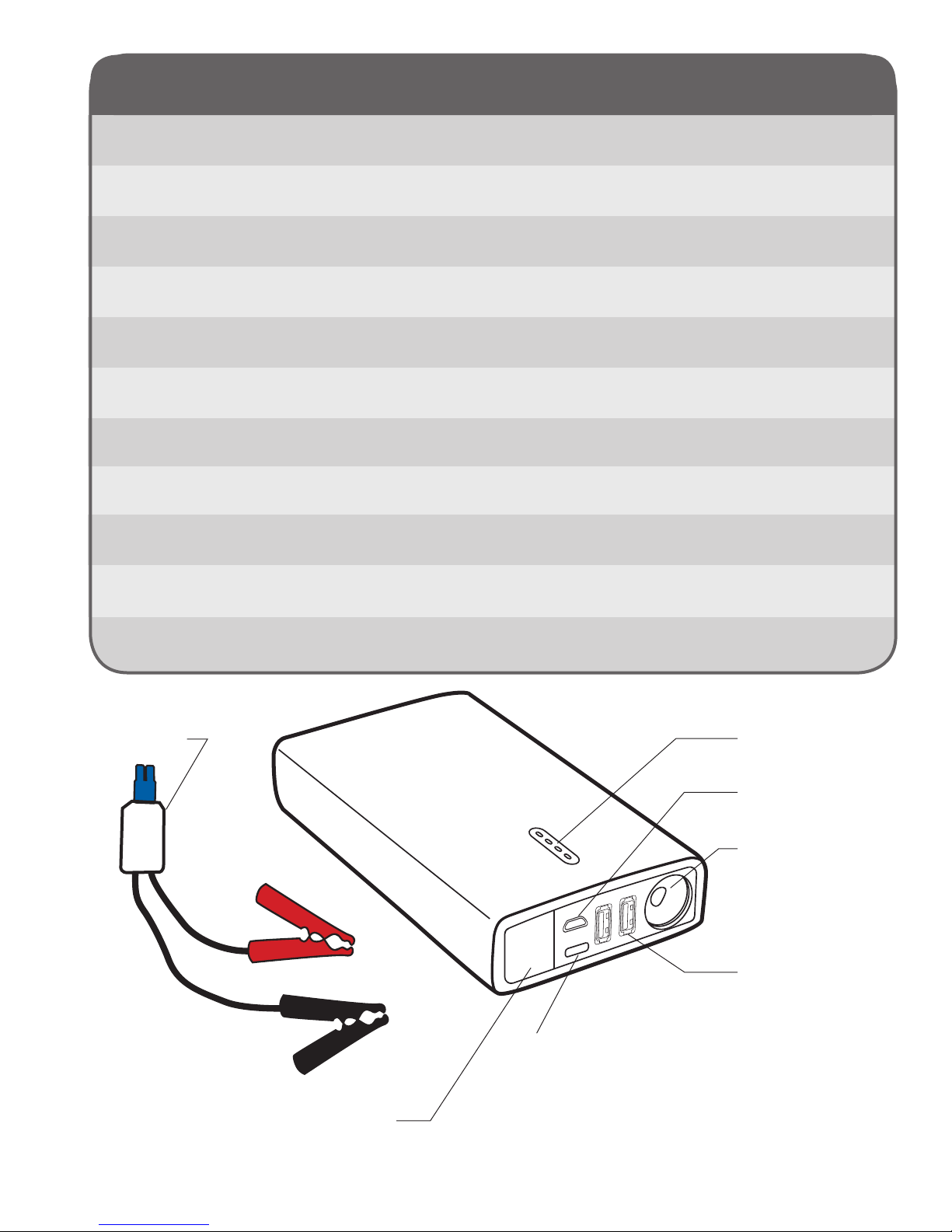

Power Button
Press Once - Power On / Power indicator
Press & Hold 3 Seconds - Turn on ashlight
Press Again - Strobe light
Press Again - Hazard light
Power Level
Indicator Lights
Jump Start
Socket
5V 2A Input
USB 5V Output
LED Flashlight/
Strobe Light/
Hazard Light
Polarity Protection
Circuit

4
Press the power button to check the capacity of the Jump Starter.
When charging, the indicator lights will ash one by one. The
number of solid lights indicates the battery capacity. When all the
indicator lights are solid then the Jump Starter is fully charged.
Indicator Lights: 1 Flashing 1 Solid 2 Solid 3 Solid 4 Solid
Battery Capacity: Below 5% 5-25% 26-50% 51-76% 76% - Full

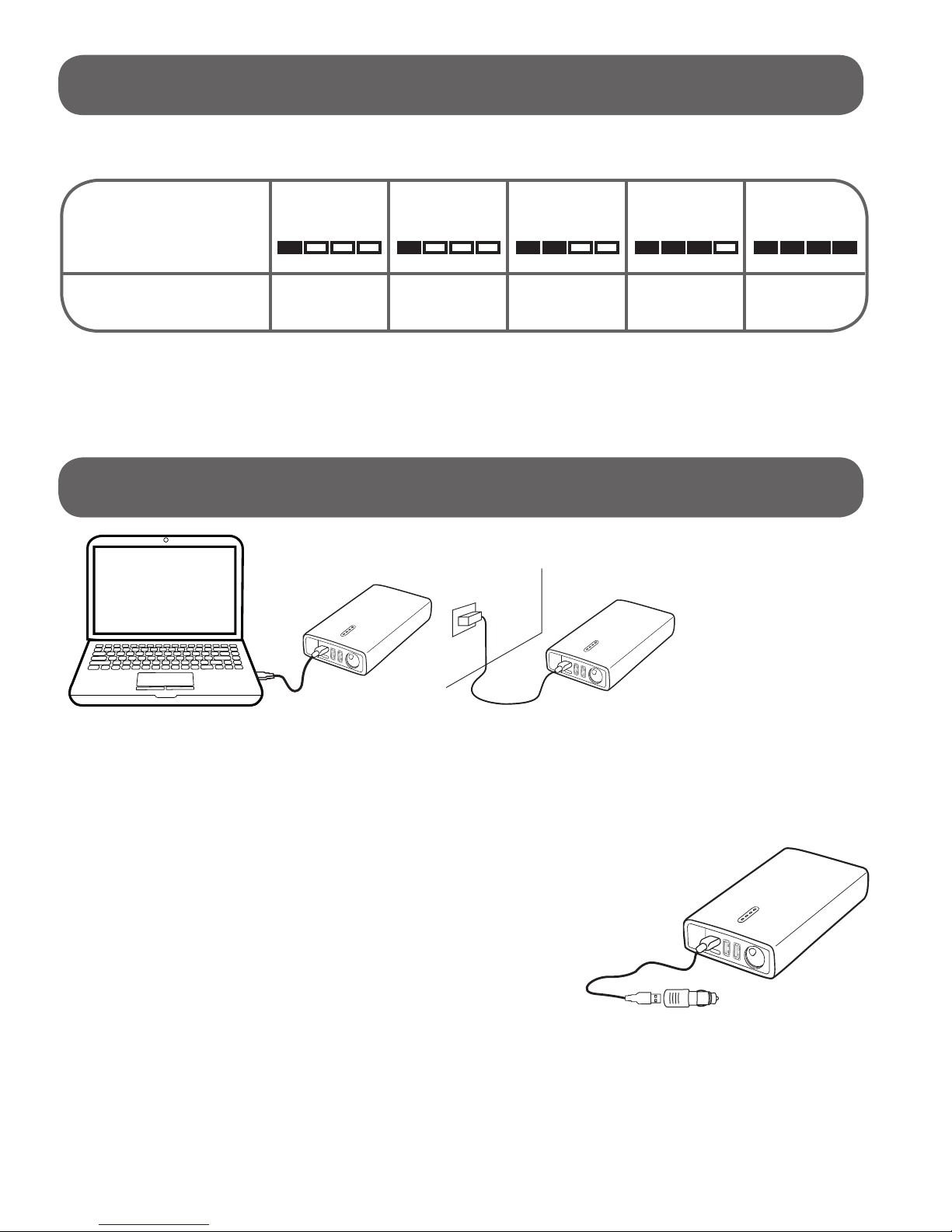

POWER LEVEL INDICATOR LIGHTS:
CHARGING THE JUMP STARTER:
At home:
1. Plug the USB cable into computer or any USB
2A wall adaptor (not included).
2. Connect the micro USB cable onto the Jump Starter .
In Car:
1. Plug the USB car adaptor (included) into an
available 12V socket.
2. Connect the micro USB cable onto
the Jump Starter .
NOTE: In order to reduce
the risk of re or electric
shock, an adapter shall
be chosen that is suitable
for the application and
is certied as a Class 2
or LPS power supply or
power adapter.
NOTE: It is recommended to recharge the Jump Starter every
3-4 months to maintain the efciency and prolong the service life
of the internal battery even if the unit has not been used.

5
Use the original manufacturer’s USB cable that came with your
device and plug into one of the USB output ports. You can
charge two devices at the same time. One of the ports has a
maximum output of 2.4A while the other has a maximum output
of 2.1A. Press the power button once
to begin charging your device. The
power level indicator will show the
battery level and will turn off after 30
seconds.
To check the power capacity again,
simply press the power button once.
CHARGING YOUR USB DEVICES:
To jump start the vehicle battery, put the vehicle
in park (neutral if the vehicle has a manual
transmission) and engage the emergency brake.
Locate the battery for the vehicle and follow the
steps listed below.
Jumper cables are color coded, RED for
POSITIVE (+) and BLACK for NEGATIVE (-).
DO NOT mix up the cables or allow the metal
ends to touch together because this may damage the battery,
charging system and/or electronics on a vehicle.
JUMP STARTING:
Black
Red

6
1. Press the power button on the Jump Starter once and check
that the power level indicator is 3 solid lights (51%) or higher.
2. Take the BLUE end of the jumper cable and plug it into the
power bank jump start socket which is located underneath the
black cover.
3. Connect the RED clamp to the POSITIVE (+) post on
the car battery. The POSITIVE battery post will be slightly
larger than the NEGATIVE post, and will be marked with a
PLUS (+) sign. There may also be a RED plastic protective
cover over the positive battery post.
JUMP STARTING CONT.:
Black
Red
Black
Red

7
JUMP STARTING CONT.:
4. Connect the BLACK clamp to the NEGATIVE (-) post
on the car battery. The NEGATIVE will be marked with
a MINUS (-) sign. There may also be a BLACK plastic
protective cover over the negative battery post.
NOTE: Do not connect the RED clamp (+) and the BLACK
clamp (-) at the same time. Connect the RED clamp rst, then
the BLACK clamp.
CAUTION: DO NOT lean directly over the battery
while making jumper connections.
5. Check the LED status on the indicator
light box located on the jumper cable.
Proceed to the next step unless the light
is ashing RED and BEEPING.
Please reference the LED status chart on page 9 if needed.
6. You now have 30 seconds to start your vehicle before the
jump starter times out to prevent the vehicle battery from
reverse charging the unit. If it does not crank or cranks very
slowly, wiggle the jumper connections to make sure they are
making good contact. Wait 60 seconds before trying to
start your car again. Each new jump start attempt requires
disconnection of both clamps from the car battery and
reconnection. The engine should start if there are no other
problems (such as a bad starter or ignition circuit problem).
Do not attempt to jump start the vehicle more than 3 times
with the Jump Starter. If the vehicle fails to start after 3
attempts, it is likely due to alternative reasons and should be
checked by an auto mechanic.
Indicator
Box

8
7. As soon as the engine starts, the indicator box on the
BLACK clamp will blink red and beep to let you know it is ok
to disconnect.
8. Please disconnect the jumper cables from your car within 30
seconds. First remove the RED/POSITIVE (+) clamp and
then the BLACK/NEGATIVE (-) clamp.
9. Do not allow the metal ends of the jumper cables to touch each
other or the RED clamp to touch anything metal on the car.
Now unplug the BLUE end of the jumper cable from the
jump starter. This will reset the jumper cable. In 10
seconds the jump starter will power off automatically.
10. Keep the engine running for 20 to 30 minutes, or drive
the car to recharge the battery.
NOTE: If the engine dies shortly after it has been jump started,
or as soon as the jumper cables are disconnected, it probably
means the vehicle charging system is not working (bad alternator,
voltage regulator, wiring problem, or loose/dirty battery cables).
Please seek professional help from an auto mechanic to nd the
root cause of the problem.
The Car Jump Starter may not work correctly for vehicles that
require remote battery jumper locations (e.g.: battery located in
trunk or other location). Please consult the owner’s manual for
your vehicle.
JUMP STARTING CONT.:

9
JUMP STARTING CONT.:

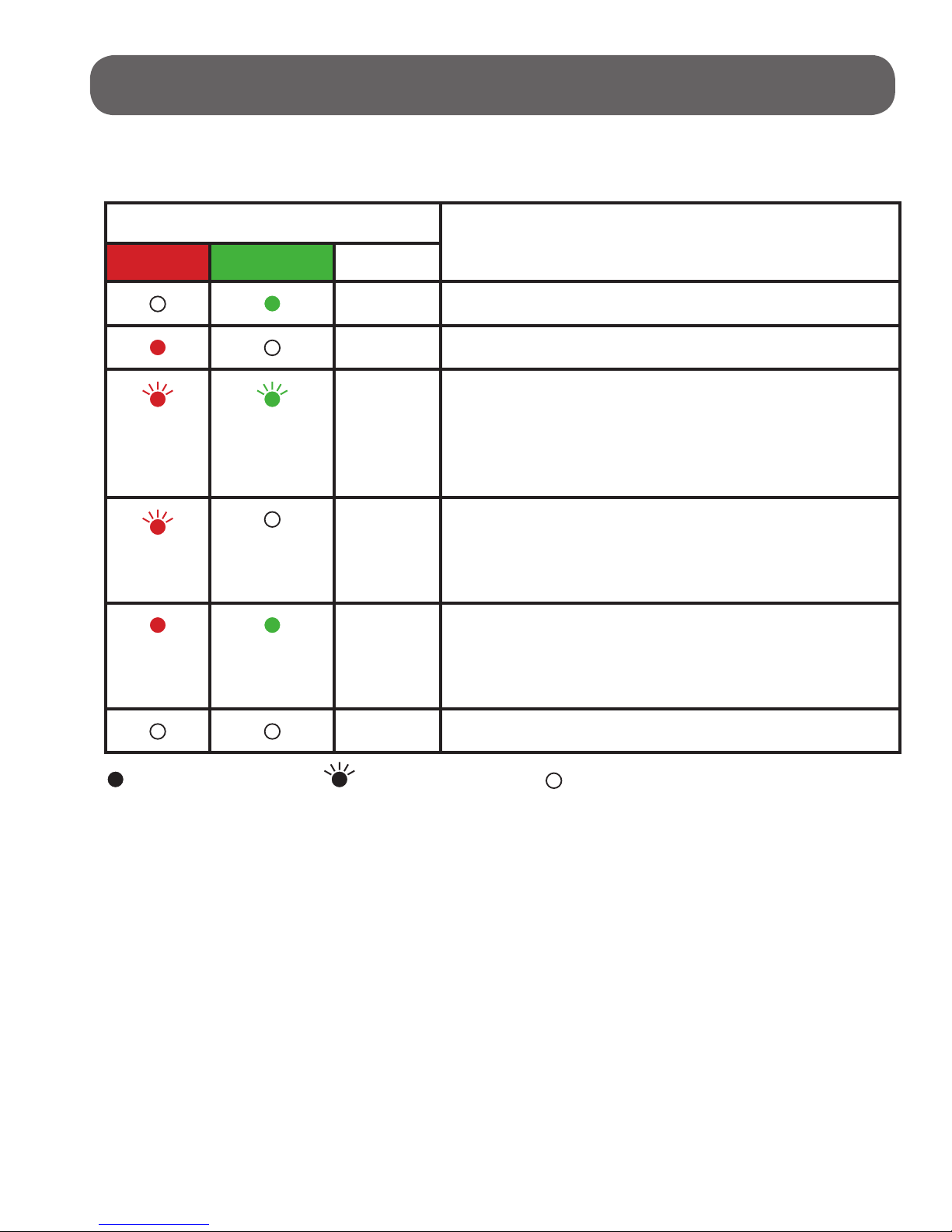

Polarity Protection Circuit Status
Solid LED On Flashing LED LED Off
Status (Light & Sound Indicator)
Status Meaning:
Red Light Green Light Sound
None The car battery is ready for jump start.
None The Jump Starter needs to be charged.
None The car battery is ready for jump start. If
the indicator doesn’t turn solid Green, the
car battery voltage is higher than the jump
starter. You can still jump start your battery,
but may need to charge your jump starter.
Beeping Disconnect the jumper cable from the car
battery and jump starter. Either the car jump
start is complete or there is a connection
problem.
None This status shows after 30 seconds time out.
Disconnect the jumper cable from the car
battery and jump starter to reset. Reconnect
the jumper cable to jump start the vehicle.
None Please contact Winplus for troubleshooting.

10
• Always wear safety glasses when jump starting a battery (to protect
your eyes), and gloves when handling a battery (to protect your hands).
• When jump starting a vehicle please ensure that the blue plug is
securely tted into the jump start socket on the jump starter.
• Ensure the battery clamps are connected correctly, and the connectors
are free from rust and dirt.
• Do not allow this product to become wet. Exposure to excessive moisture
will damage the unit.
• Do not immerse the product in water.
• Do not operate the product in explosive atmospheres, such as in the
presence of ammable liquid, gas or dust.
• Do not modify or disassemble this product.
• Do not store in locations where the temperature may exceed 104ºF (40ºC).
• Charge only using the charger provided.
• Under extreme heat conditions, battery leakage may occur. Avoid contact
with your skin. In case of skin or eye contact, rinse immediately with
clean water and seek medical attention.
• If battery leakage occurs, take it to your local battery recycling center for
disposal. Do not attempt to use.
• Do not place the jump starter on the oor, or at a height less than 18
inches (457mm) above the oor, during use in a repair facility.
• This car jump starter is for use with 12V vehicles only. Using on non-12V
vehicles may cause serious damage to the vehicle, jump starter, or injury
to the user. Refer to the owner’s manual for the vehicle if you are
uncertain what voltage the vehicle runs on.
BATTERY DISPOSAL
The battery is self-contained and not consumer replaceable. The battery
must be disposed of properly when it no longer holds a charge. Proper
charging practices will increase the life of the product. For information on
battery recycling, call toll-free 800-822-8837.
For information regarding air travel safety with batteries please check the
U.S. Department of Transportation prior to travel at: http://phmsa.dot.gov/
safetravel/batteries
Note: The Car Jump Starter contains the equivalent of 2.4g of lithium and
gives 29.6 watt hours of power.
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
WARNING:

11
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product, basic precautions should always be
followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the
product is used near children. Children should not operate this device
unless under strict supervision by a person responsible for their safety.
c) Do not put ngers or hands into the product.
d) Do not use any attachment that is not sold by jump starter manufacturer
which may result in a risk of re, electric shock, or injury to persons.
e) To reduce risk of damage to the electric plug and cord, pull the plug
rather than the cord when disconnecting the jump starter.
f) Do not use a battery pack or appliance that is damaged or modied.
Damaged or modied batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
g) Do not operate the jump starter with a damaged cord or plug, or a
damaged output cable.
h) Do not disassemble the jump starter; take it to a qualied service
person when service or repair is required. Incorrect reassembly may
result in a risk of re or electric shock.
i) To reduce the risk of electric shock, unplug the jump starter from the
outlet before attempting any instructed servicing.
j) WARNING - RISK OF EXPLOSIVE GASES.
1) WORKING IN VICINITY OF A LEAD ACID BATTERY IS DANGEROUS.
BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF THE UTMOST
IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME
YOU USE THE JUMP STARTER.
2) To reduce risk of battery explosion, follow these instructions
and those published by battery manufacturer and manufacturer
of any equipment you intend to use in vicinity of the battery.
Review cautionary marking on these products and on engine.
WARNING CONT.:

12
WARNING CONT.:
k) PERSONAL PRECAUTIONS
1) Consider having someone close enough by to come to your aid
when you work near a lead-acid battery.
2) Have plenty of fresh water and soap nearby in case battery
acid contacts skin, clothing, or eyes.
3) Wear complete eye protection and clothing protection. Avoid
touching eyes while working with battery.
4) If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters eye, immediately ood eye with
running cold water for at least 10 minutes and get medical
attention immediately.
5) NEVER smoke or allow a spark or ame within the vicinity of battery or engine.
6) Be extra cautious to reduce risk of dropping a metal tool onto
battery. It might spark or short-circuit battery or other electrical
part that may cause explosion.
7) Remove personal metal items such as rings, bracelets, necklaces,
and watches when working with a lead-acid battery. A lead-acid
battery can produce a short-circuit current high enough to weld a
ring or the like to metal, causing a severe burn.
l) When charging the internal battery, work in a well ventilated area and do
not restrict ventilation in any way.
m) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
n) Do not expose a jump starter to re or excessive temperature. Exposure
to re or temperature above 130°C (266°F) may cause explosion.
o) Have servicing performed by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the product
is maintained.
p) Attach output cables to a battery and chassis as
indicated below. Never allow the output clamps
to touch one another.
q) Dropping, hitting, or other excessive amounts of
force to the Jump Starter may damage the unit
(external and internal), which may result in loss of
operation, electrical re, or cause other serious
damage.
SAVE THESE INSTRUCTIONS

13
WINPLUS NORTH AMERICA
LIMITED WARRANTY
Winplus North America warrants, to the original purchaser, that its
products are free from defects in material and workmanship for 1 year
from the date of original purchase. Where permitted by law, Winplus
North America’s liability shall be limited to that set forth in this limited
express warranty. This limited express warranty shall be the exclusive
remedy of the purchaser and Winplus North America makes no other
warranty of any kind aside from the limited express warranty stated
above.
NOTE: Warranty only applies for North American customers of
purchases made in North America.
CONDITIONS OF WARRANTY
If during the 1 year warranty period your new product is found to be
defective, Winplus North America will repair such defect, or replace
the product, without charge for parts or labor subject to the following
conditions:
1. All repairs must be performed by Winplus North America.
2. All warranty claims must be accompanied by a copy of the sales
receipt or bill of sale.
3. The equipment must not have been altered or damaged through
negligence, accident, improper operation, or failure to follow the
product instructions for installation, use, or care.
4. The replacement of parts is excluded from the warranty when
replacement is necessary due to normal wear and tear.
5. Repair or replacement parts supplied by Winplus North America \
under this warranty are protected only for the unexpired portion of
the original warranty.
6. This is a “repair or replace” warranty only, and does not cover the
costs incurred for the installation, removal or reinstallation of the
product, or damage to any mobile phone, electronic device or vehicle.
WARRANTY:

14
OWNER’S RESPONSIBILITIES:
Winplus North America will make every effort to provide warranty service within
a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT
SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING
SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244
DURING REGULAR BUSINESS HOURS, MONDAY THROUGH FRIDAY 9:00 AM
TO 5:00 PM (Pacic Standard Time). For customer service and technical support,
please call us at 1.866.294.9244 or email us at [email protected]. If at
that time it is determined that a replacement unit is needed, the support representative
will issue a Return Authorization and instruct on how to get a new unit. Winplus North
America makes no other warranty of any kind aside from the limited express warranty
stated herein.
DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY
OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR
PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET
FORTH HEREIN, NO WARRANTY OR REPRESENTATION,
EXPRESS OR IMPLIED, IS MADE AS TO THE CAR JUMP
STARTER. WINPLUS NORTH AMERICA AND/OR ITS
AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION,
ANY STATUTORY WARRANTIES AND ALL IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
Winplus North America and/or its afliates are not responsible for a user’s intended
or actual use of the Car Jump Starter. In no event shall Winplus North America and/
or its afliates have any liability for any losses (whether direct or indirect, in contract,
tort or otherwise) incurred in connection with the Car Jump Starter, including but not
limited to damaged property, personal injury and/or loss of life. Neither shall Winplus
North America and/or its afliates have any liability for any decision, action taken
based on relying on the stability or performance of the Car Jump Starter. Winplus
North America and/or its afliates, the manufacturer, distributor and seller shall not
be liable for any injury, loss or damage, incidental or consequential, arising out of the
use or intended use of the product.
WARRANTY CONT.:

15
NOTE: This equipment has been tested and found to comply with the limits for Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications or change to this equipment. Such modications or change
could void the user’s authority to operate the equipment.
WARNING: This Jump Start is only intended to jump start 12V gas cars, trucks, boats, or
motorcycles with an internal combustion engine and single lead-acid battery systems. Do
not use this device to jump start batteries outside of these four types of vehicles; doing so
may cause a re or other serious injuries. Refer to the user manual for additional safety
information.
PROP 65 WARNING: This product contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
Have a comment or question? Email us at: [email protected]
or visit us online at www.winplus.com

16
820 South Wanamaker Avenue, Ontario, CA 91761 | Tel: [phone]
© 2017 Winplus North America Inc. All Rights Reserved.
Issue Cause Remedy
Cannot Jump Start Wrong clamp
connection
Make sure to clamp the RED jumper cable to
the POSITIVE (+) post on the car battery. And
BLACK jumper cable to NEGATIVE (-) post or
car interior. Refer to Page 6 for details.
30-Second timer
to jump start has
expired.
Jump starter timed out. Disconnect the cables
from the vehicle battery and reconnect.
Low battery status Recharge the unit via USB cable until at least
three solid lights or 51% charge.
LED light on the
clamp box keeps
ashing
Protection circuit is
working
Refer to the status table on the indicator box
or page 9 of the manual.
Flashing is not
working
Low battery Recharge the unit via USB cable.
The unit is
charging
As a safety precaution, the ashlight light will
not work while the unit is charging. Please
unplug the unit from charging or wait until the
unit nishes charging before using the light.
No wall adaptor Charge via USB
cable
Plug the USB cable into computer or any USB
2A wall adaptor.
No Indicator Light Low battery Refer to Power level indicator on page 4 of
the manual.
Power bank in off
mode
Press the power on/off.
TROUBLESHOOTING:
ML-56388_V2
