Wishbone PTR-6-J User manual

WISHBONE OUTHOUSE BUILDING
ASSEMBLY GUIDE
“JOHN” JUMBO OUTHOUSE (Model PTR-6-J)
“FOREST” JUMBO OUTHOUSE (Model FSTB-1-J)
“JOHN” WHEELCHAIR OUTHOUSE (Model PTR-80-WC)
“FOREST” WHEELCHAIR OUTHOUSE (Model FSTB-1-WC)
Revision 21-01
WishboneLtd.com | [phone]

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide

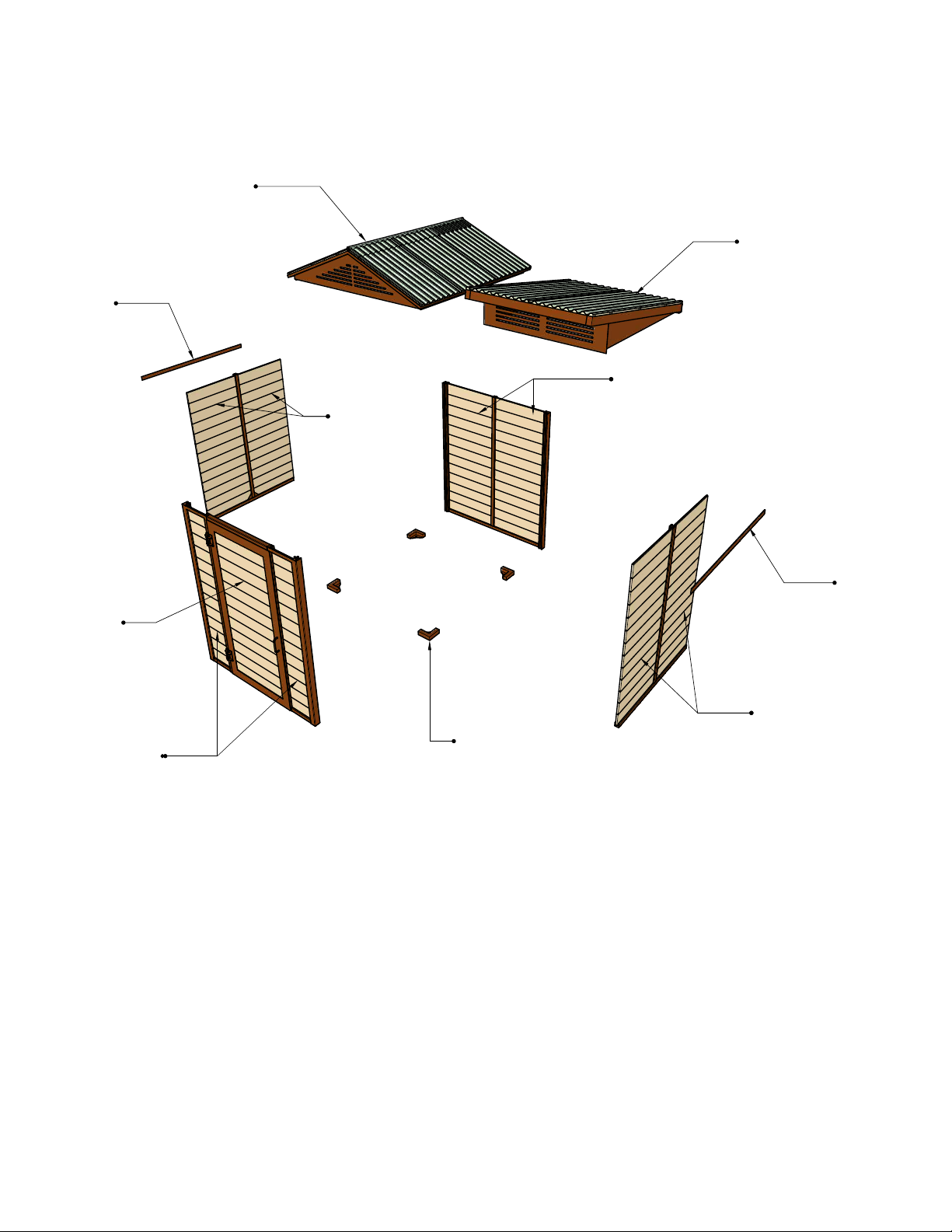

PARTS LIST
Hardware Wall Lumber Jumbo Wheelchair
SP0607 ¼” x ¾” Button Head Bolt (12/16) Side Wall (52) 31 9
/
16” 37 ½”
SP0610 ¼” x 1 ¼” Button Head Bolt (8/16) Back Wall (26) 31 9
/
16” 31 9
/
16”
SP0809 ⅜” x 1” Button Head Bolt (16/16) Front Wall (26) 12 ½” 12 ½”
SJ0614 ¼” x 2 ¼” Carriage Bolt (4/4) Door (12) 31 9
/
16” 31 9
/
16”
SU0611 ¼” x 1½” Hex Cap Bolt (1/1)
SA0605 ¼” Hex Nut (15/19)
SB0505 ¼” Flat Washer (4/8)
SJ0610 ¼” x 1 ¼” Carriage Bolt (10/10)
½” x 6 ⅝” ID U-Bolt (1/1)
2











The John
Roof
2” x ¼”
Flat Bar
Left Side Boards
Jumbo: 31 9
/
16” (26)
WC : 37 ½” (26)
Back Side Boards
31 9
/
16” (26)
Right Side Boards
Jumbo: 31 9
/
16” (26)
WC : 37 ½” (26)
2” x ¼”
Flat Bar
Front Side Boards
12 ½” (26)
Corner Feet (4)
Front Door Boards
31 9
/
16” (12)
The Forest
Roof
Required Tools
5
/
32” Allen Key ¼” Nut Driver
7
/
32” Allen Key 17
/
64” Drill
10” Crescent Wrench 2 Small Step Ladders
7
/
16” Wrench or Socket
Note: Extra hardware included for different outhouse configurations/options.
Abovelistshowshardware(required/included).
Extralumberincludedforrepairs.

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
INSTALLATION GUIDE

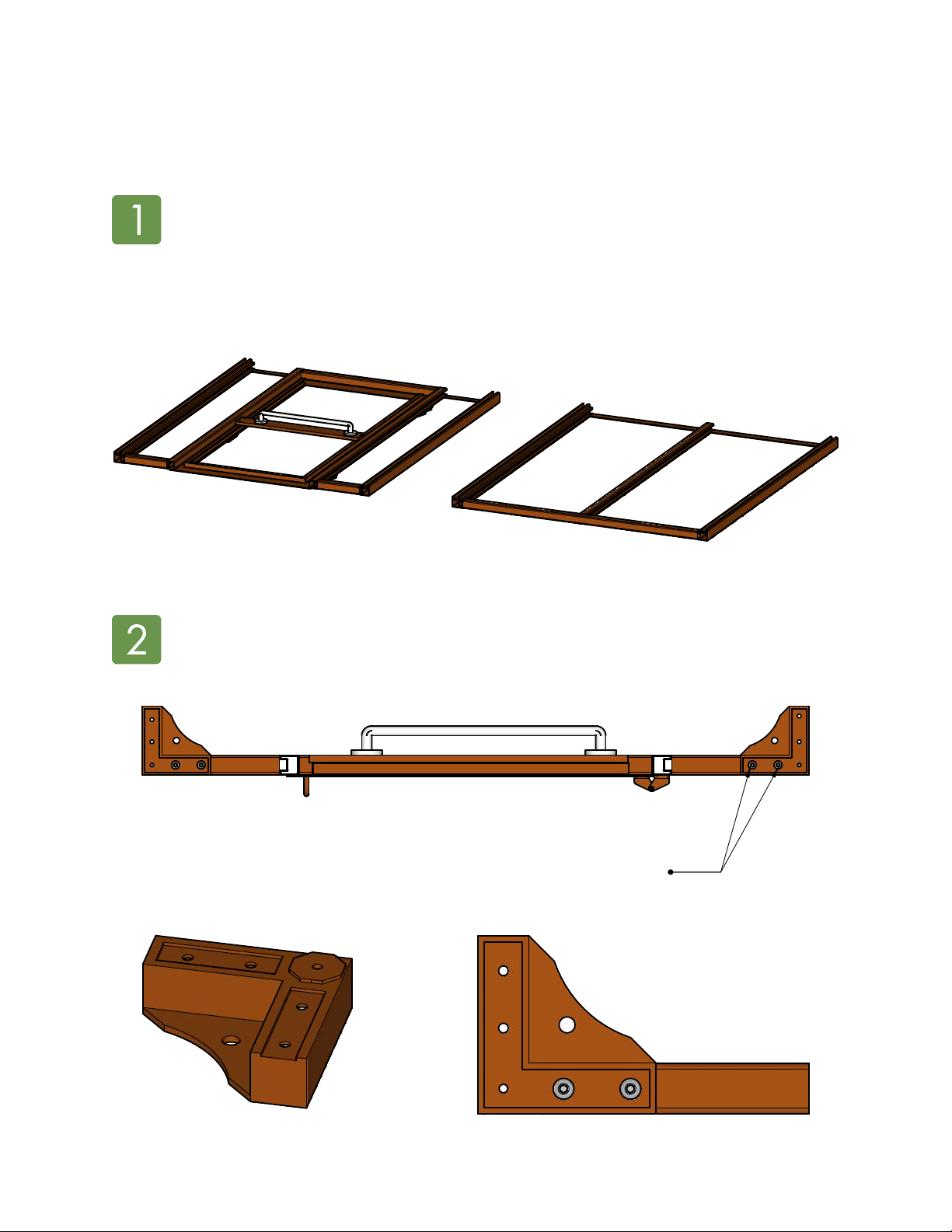

1Two people are recommended for outhouse assembly. Position
the front and back panels with the channels facing up as shown. Do
not remove the locking bolt in the door until the door is levelled and secured
in step 6.
2Attach the four corner feet to the bottom of the front and back panels.
3



Attach with SP0809 (⅜” x 1”) button head bolts (8)

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
3Stand the panels on edge with the channels facing each other as
shown. Attach the flat bar side support to the top of the panels on one
side of the frame.
4




Middle hole must remain
unused to secure roof
Attach flat bar with SP0607
(¼” x ¾”) button head bolts (4)

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
4On the same side of the frame, loosely attach the T-shaped side
support to the upper flat bar before attaching the lower part of the T-
shaped support to the corner feet. Tighten all bolts at the end.
5



Attach to flat bar with
SP0607 (¼” x ¾”)
button head bolts (2)
Drain hole
Attach T-shaped support with
SP0809 (⅜” x 1”) button
head bolts (4) as shown here

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
5Turn over the frame and attach the remaining side supports as in steps
3 and 4. First attach the upper flat bar. Then loosely attach the top of
the T-shaped support to it before attaching the bottom to the corner feet.
Tighten all bolts when square.
6




Attach flat bar with
SP0607 (¼” x ¾”)
button head bolts (4)
Attach T-shaped support
with SP0809 (⅜” x 1”)
button head bolts (4)
Attach to flat bar with SP0607
(¼” x ¾”) button head bolts
(2)

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
6Stand up the outhouse frame in the location to be secured. Level and
square the frame before appropriately securing it to the pad or ground
with fasteners supplied by the installer. Spacers under the corner blocks may
be required. Ensure the door moves freely and closes properly.
7




Do not remove
the locking bolt
until the outhouse
is levelled and
secured
Use ⅝” hole in corner blocks (4) to
secure outhouse with installer-supplied
fasteners, depending on application

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide

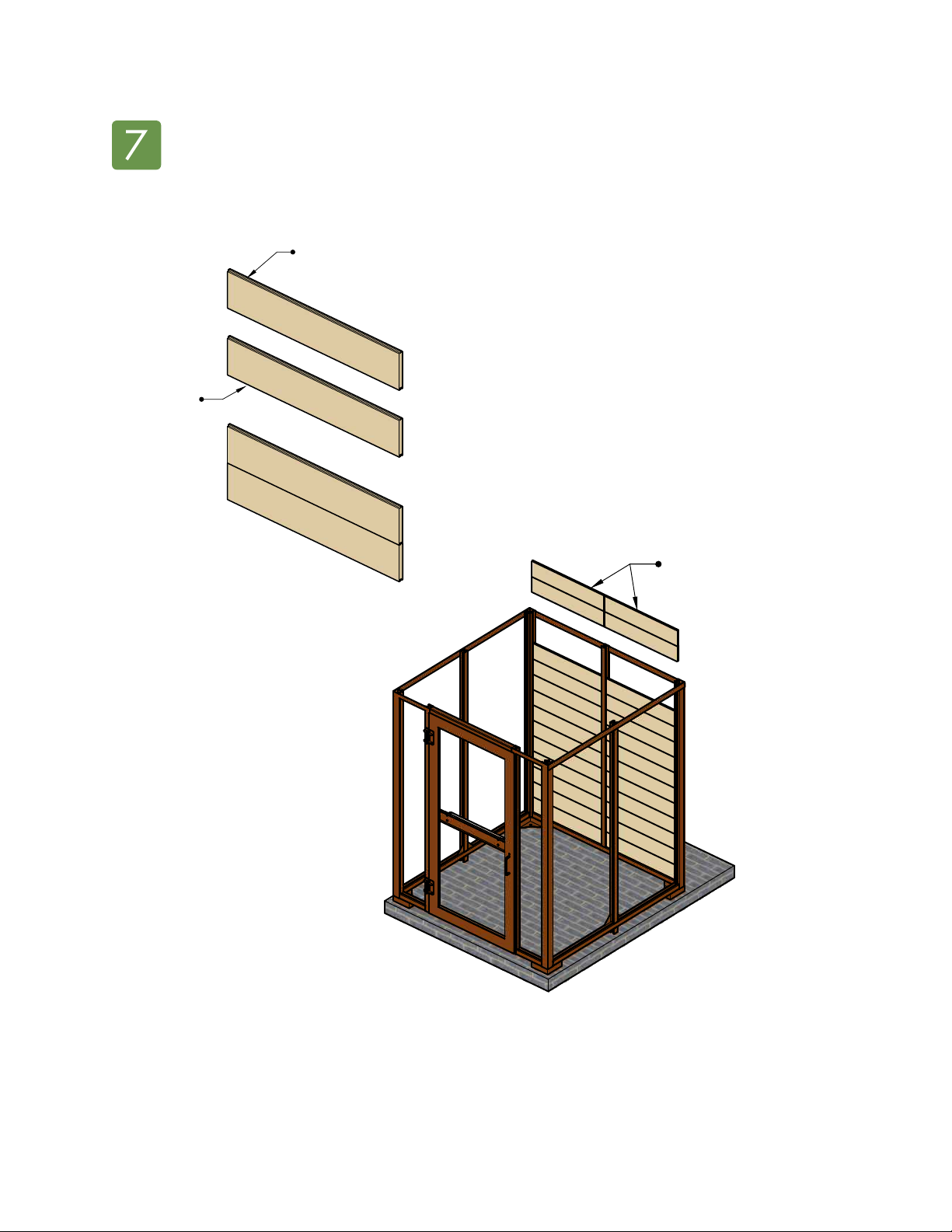

7Install the plastic lumber on the back side of of the structure by sliding it
down from the top. Ensure the groove side of the lumber faces down
and the tongue side faces up. The textured side of the lumber faces out.
8









Tongue faces up
Groove
faces down
Back side boards (26)
31 9
/
16”

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
8On the left side, slide in the plastic lumber from the top in the same way
with groove down, tongue up, and textured side out.
9On the right side, slide in the plastic lumber from the top in the same
way with groove down, tongue up, and textured side out.
9








Left side boards (26)
Jumbo: 31 9
/
16”
WC : 37 ½”
Right side boards (26)
Jumbo: 31 9
/
16”
WC : 37 ½”

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
10 On the front, slide in the plastic lumber from the top in the same way
with groove down, tongue up, and textured side out. Remove the
aluminum angle and install the plastic lumber on the door last. Note decal
board position.
11 Re-install the aluminum angle back above the top board on the door.
10









Remove aluminum
angle before
installing plastic
lumber
Front side boards (26)
12 ½”
Re-install aluminum angle to
hold door boards in place
Decal
board should be 3rd from
the top with decal on inside
Inside
Front door boards (26) 31 9
/
16”

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide

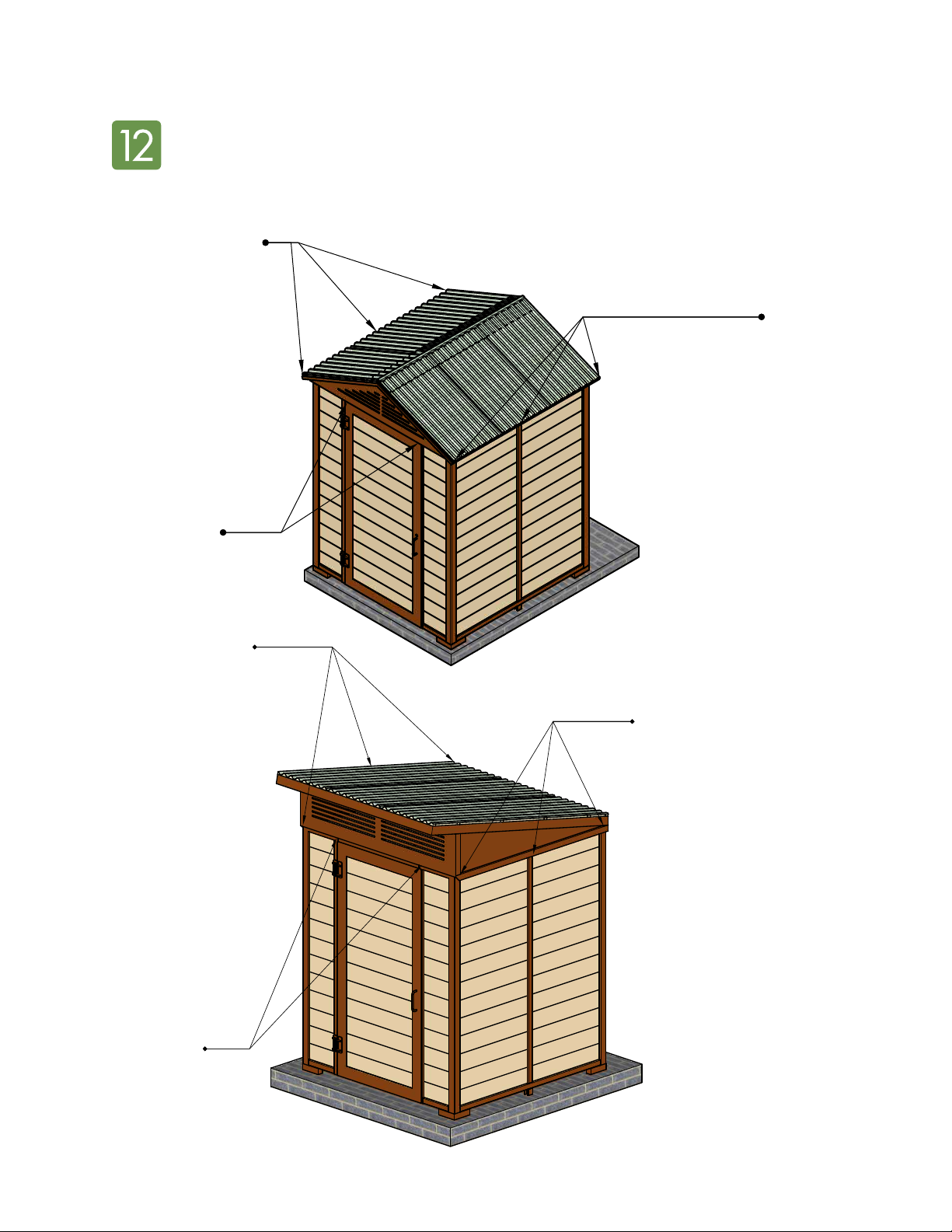

12 Position the roof and adjust the frame to line up all of the threads.
Insert all fasteners loosely to ensure proper alignment before final
tightening.
11











Use SP0610
(¼” x 1¼”)
button head
bolts (3) from
the outside
Use SP0610
(¼” x 1¼”) button
head bolts (3) from
the outside
Use SP0610 (¼” x 1¼”) button
head bolts (3) from the outside
Use SP0610
(¼” x 1¼”) button
head bolts (3)
from the outside
Use SP0610
(¼” x 1¼”) button
head bolts (2) from the
inside, above the door
Use SP0610
(¼” x 1¼”) button
head bolts (2) from the
inside, above the door

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide

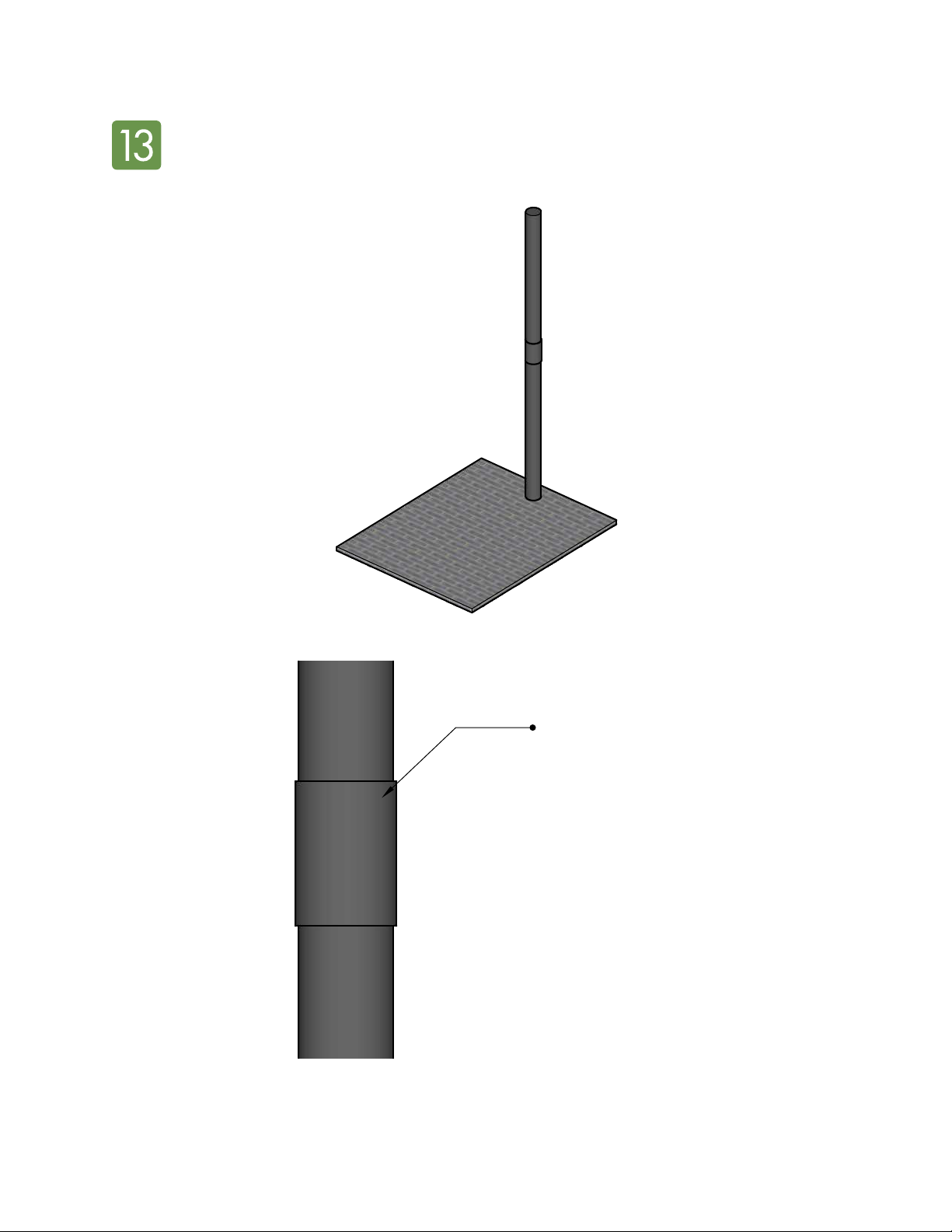

13 Install the vent stack into the ground or the concrete pad. Ensure the
vent is straight and positioned vertically.
12
8

8

A 6” ABS coupler joins
the 5 ft. lengths of the vent
stack together

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
14 Adjust the length of the connecting fixture needed to secure the vent
stack to the outhouse building.
15 Install the connecting fixture to the back of the outhouse. If the stack
must be in the middle of the outhouse, connect the fixture to the roof
slots instead of the back wall.
13








Secure using
SU0611 (¼” x 1½”) hex
cap bolt (1) and SA0605
(¼”) hex nut (1)
Adjustable length for
connecting the vent stack
to the back outhouse wall
Drill 17
/
64” hole on site
for appropriate length
of connecting fixture
Position connecting
fixture and drill four
17
/
64” holes through the
plastic lumber on the
back wall. Attach with
SJ0614 (¼” x 2 ¼”)
carriage bolts (4) from
the inside and SB0505
(¼”) flat washers and
SA0605 (¼”) hex nuts
(4 of each) on the
outside.

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
16 Attach the vent stack to the outhouse and secure using the U-bolt.
14

Secure the U-bolt to
the connecting fixture
with the included nuts (2)

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
17 Install the horizontal grab bar on the back wall above the toilet and on
the side wall nearest the toilet as shown. Position the bar correctly to
mark the ten hole locations. Drill 17 /64” holes. Insert the carriage bolts from
the outside and attach the grab bar with hex nuts on the inside.
15
35"
35"
2"
35"
35"
2"
Use SJ0610 (¼” x 1 ¼”) carriage bolts
(10) from the outside and SA0605 (¼”)
hex nuts (10) to install the grab bars
around the toilet as indicated
Center bar
between
vertical
channels

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
18 Your Wishbone outhouse building is complete. Enjoy!
16
Keep the locking bolt for use in
decommissioning the outhouse
with an appropriate padlock

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
CLEANING AND MAINTENANCE INSTRUCTIONS
Plastic Lumber
For basic cleaning, use a mild soap/detergent or a water/vinegar solution and a stiff-bristled brush.
Rinse clean with running water.
Minor scratches can be repaired by using a standard electric heat-gun (or hand held acetylene
torch) and a metal putty knife to heat and smooth the plastic. Test on a non-visible area first to
practice.
Include an annual power-wash of the plastic lumber in your maintenance schedule. Maintain a
distance no closer than 4-5 inches, and pressure no greater than 1200psi.
Specific problems:
•Grease stains: use a household grease remover
•Mould: use a mild soap solution
•Rust: use a mild soap solution
•Scratches or burns: use light sanding or brushing with a stainless steel brush
Aluminum Frame
Use mild soap, water, and a clean cloth to wipe down and wash the aluminum frames.
Roof
Clean the roof panels with warm water and a mild household detergent. Wipe off any remaining dirt
with a soft cloth and wash again.
Pressure-washing is also suitable, but only when the nozzle is kept at least 20” (50 cm) from the
sheet.
NEVER use solvent based cleaners (ammonia, etc.). NEVER wipe the sheets when dry. AVOID using
sponges or brushes that can scratch the surface.
17

Wishbone Jumbo / Wheelchair Outhouse Assembly Guide
QUESTIONS OR COMMENTS?
Please contact us if you have any questions or comments on how we can improve this outhouse
building.
