WOHOME LY138 User manual
Thanks for purchasing this Wire-Free battery camera.Please read this
instruction manual carefully before using this product.
Instruction Manual
WOHOME Smart Camera

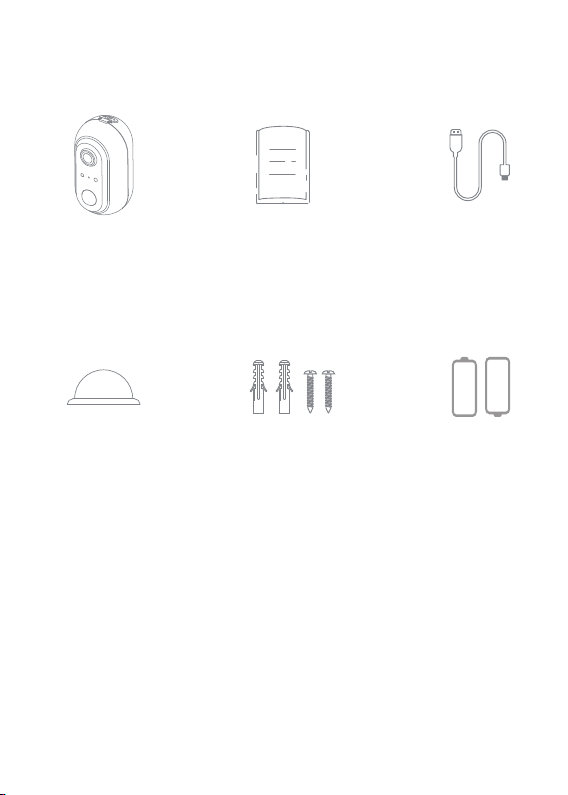

PACKING LIST
1.Camera x1
2.Instruction Manual x1
3.USB cable x1 USB
4.Iron Ball Wall Mountx1
5.Screws x2
6.Battery x2
① ② ③
④⑤⑥
Manual
3
CAMERA STRUCTURE
⑥
⑦
⑧
①
②③
④
⑤
⑥
⑦
⑧
①
②
④
⑤
③
①
②
④
⑤
Lens
Mic
Light sensor
LED
Motion detection sensor
Charge LED
USB interface
Speaker
Resrt button
Mirco-SD card
Power button
18650 Battery
Flip Switch
18650
①
②
③
④
⑤
Charge LED: Charging in Red;Full in Green.
Power button：Long press to turn on/off the camera.
Note: The camera will turn on automatically when the
battery is installed.
4
Inserting SD Card
THE CAMERA OPERATING
Please open the camera cover,and firstly insert the Mirco-SD
card. Slide the SD card cover down ,then open the cover and
inset the SD card.
18650
LOCKOPEN
18 650
SD card
5

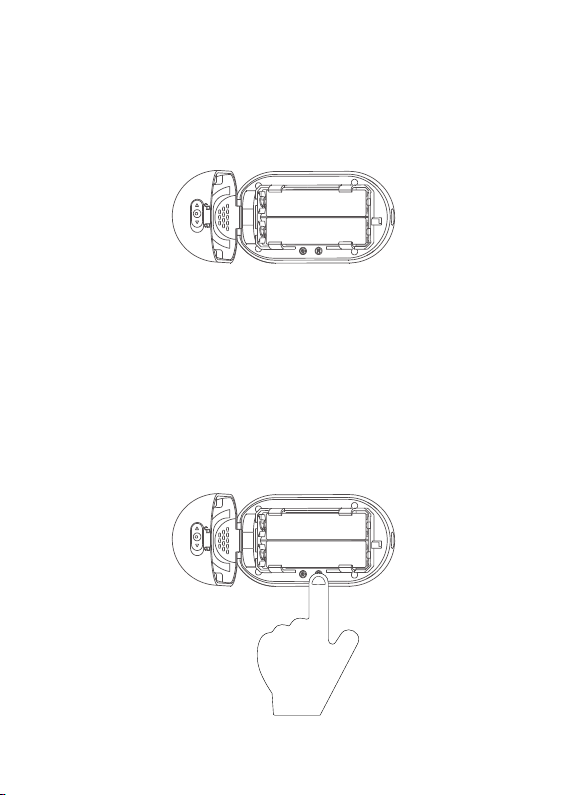

Loading batteries
Resetting camera
Please install 18650 battery.
Note: Please notice the polarity of the battery.
Press the Reset button long until you hear the "system reset"
prompt from the camera speaker.After resetting camera,
you’re ready to connect to the Tuya App.
18 650
18650
18650
18 650
18650
18650
6
+
-
+
-
+
-
+
-
NSTALL TUYA SMART APP
The App is available for iOS,Android.
Search “tuya smart” in App store or google play store,or scan
below QR Code to download and install the App.
7
CONNECT THE CAMERA WITH APP
1.Account Registration and Login
Please open Tuya App,and enter the App main interface. New
users need to register by Email or Mobile number,click
“Register”. Follow the steps to complete the registration of
the account,and login.
8
United States +1
Please log in directly if you already have an account. To input
your account and password ,click“Log in”.
2.Add Device
Click the Add Device
and enter next interface.
Find the Security
camera in the list and click
9
Pairing the camera. The camera lens is aimed at the QR code on the phone screen
with a distance of 15cm. It will sound”bugu” after the camera recognize the QR
code.
Confirm the red indicator light rapidly
blinks or a prompt tone is heard. Connect with your home Wi-Fi.
10
Please click “Hear a prompt” if you heard it ,then will start connecting. The
camera added successfully ,and enter to the main interface.
11
FUNCTION OVERVIEW
Settings
Click to enter detailed settings of the camera. You can check
more about it in the section of Settings on page 13.
Signal
The camera may be disconnected if the signal is lower than 50%.
Please move your camera to be closer to your router for better signal.
Battery capacity
Please charge the camera timely if the power is less than 2 bars.
Image quality
Tap to switch the image quality between HD and SD. SD is
recommended for a smoother streaming.
Screenshot
Tap to capture the current live picture and save it to your
mobile device.
Speak
Hold and talk to people on the camera side.
Image quality
Camera settings
Wi-Fi Signal
Full screen option
Battery capacity
Sound on/off
12
SETTINGS
Click enter to the Settings page. There are only a few
settings to make,so the process is quick and easy. To start
setting up your camera.
Device name
Allow you to set the name of the device .
Share device
Allow you to share the device with your family . Add your
family’s account in App.
Note: Firstly ensure family’s account already registered in
Tuya App.
Playback
Tap to play the videos recorded in the MicroSD card.
Record
Tap to start recording the current live streaming. Tap again to
end and save it to the internal storage of your mobile device.
13
Off
Device Name
Share Device
Device lnformation
Use Echo
Power Management Settings
Basic Function Settings
PIR
Purchase VAS
FAQ & Feedback
Firmware lnformation
Wire-Free Smart Camera
Power management settings
This function is it will push a notification if the battery is low
.You can set the low battery alarm threshold ( 0% to 30%).
Note: Firstly please enable Tuya App notification in mobile
setting .
Basic function settings
Flip screen setting. The function is to flip the screen angle.
Talk mode setting .Select one-way communication or
two-way talk you want.
PIR
OFF means you shut down the function. Also ,you can set the
PIR sensitivity for Low,Medium,High.
The camera will take pictures and videos automatically when
it is triggered by the PIR sensor’s detection of activity in the
area it covers. Meanwhile, it will push a notification to your
phone when PIR is triggered.
1.Make sure the PIR sensor of the camera is not facing bright
lights(including sunshine ,bright lamps, etc), mirror,
windows or glass.
2.Do not mount the camera in a place with moving vehicles
or streaming people.
3.Stay away from air vents of air conditioner or heating
sources like stove, lights and refrigerator, etc. To avoid
wireless interference.
IMPORTANT
Reducing the False Alarms
14
5.A mounting height of 2M is recommend to reduce false
alarms caused by the movements of small animals on the
ground. If it’s required, please mount the camera at a height
around 1.5M.
6.When mounting the camera an appropriate angle between
the PIR sensor and the monitoring area is recommended.
7.The effective distance between the PIR sensor of the
camera and the moving objects id 2M to 8M.

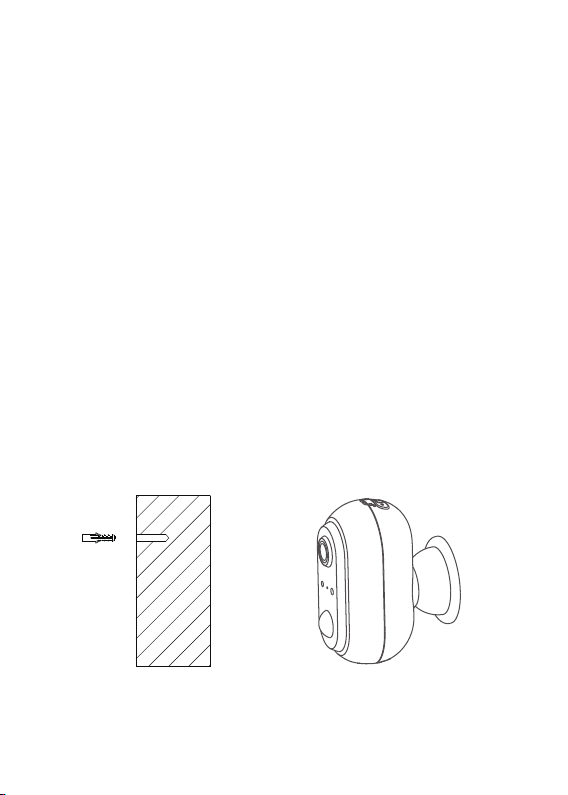

Please fix the iron ball bracket to the wall with screws ,and
then magnetize the camera to the iron ball. It is very
convenient and easy to adjust the angle.
4.Please do not scratch or squeeze the PIR sensor to avoid
lowering its detection sensitivity.
CAMERA INSTALLATION
15
Q1.The camera can’t connect to Wi-Fi.
Make sure you select the right Wi-Fi network and enter the
right password.
Make sure your Wi-Fi is 2.4GHz.
Make sure the camera and your mobile device are close to
the router.
Q2. How can I reset the camera?
Please press the Reset button .There is beeping sound after a
successful reset and the RED LED will flash slowly.
Q3. Why can’t I receive the push notifications of the alarms?
Make sure you have allowed Tuya App to push notifications
in the settings of your mobile device.
Q4. Why there is no video recorded?
Make sure you have installed a Micro-SD card with enough
capacity into the camera or you have subscribed a cloud
plan.
FAQ
16
SPECIFICATIONS
W orking Temperature
Storage Temperature
-10~ 55 ℃
-20~ 60 ℃
Lens
Infrared LEDs
PIR Motion Sensor
Storage
Connectivity
Power consumption
Battery
U S B
Video Compression
Voice Intercom
Video resolution
FO V/130°W ide-angle lens (4Glass)
6 meters PIR distance
Up to 128GB Micro SD card
2x18650 batteries
D C 5V
10 pcs Infrared LED s with 8 meters
flash distance
60 meters (open space without
obstacle)15 meters (indoor)
H.264
Two-way audio with noise
cancellation
1920*1080@15fps
W i-Fi distance
Standby 200uA
Working 220mA
17
FCC STATEMENT
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Caution: Any changes or modifications to this device not
explicitly approved by manufacturer could void your
authority to operate this equipment.
18
This device complies with part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure
requirement.
The distance between user and products should be no less
than 20cm.
If you have any questions or problems.
Please contact us by email:[email protected]
We will offer prompt and authoritative reply within 24 hours,
and try our best to resolve your problem ASAP.
